Model Maytag JMW2427WB03 MICROWAVE, WALL OVEN, COMBO, 27 INCH – Common Parts & Diagrams

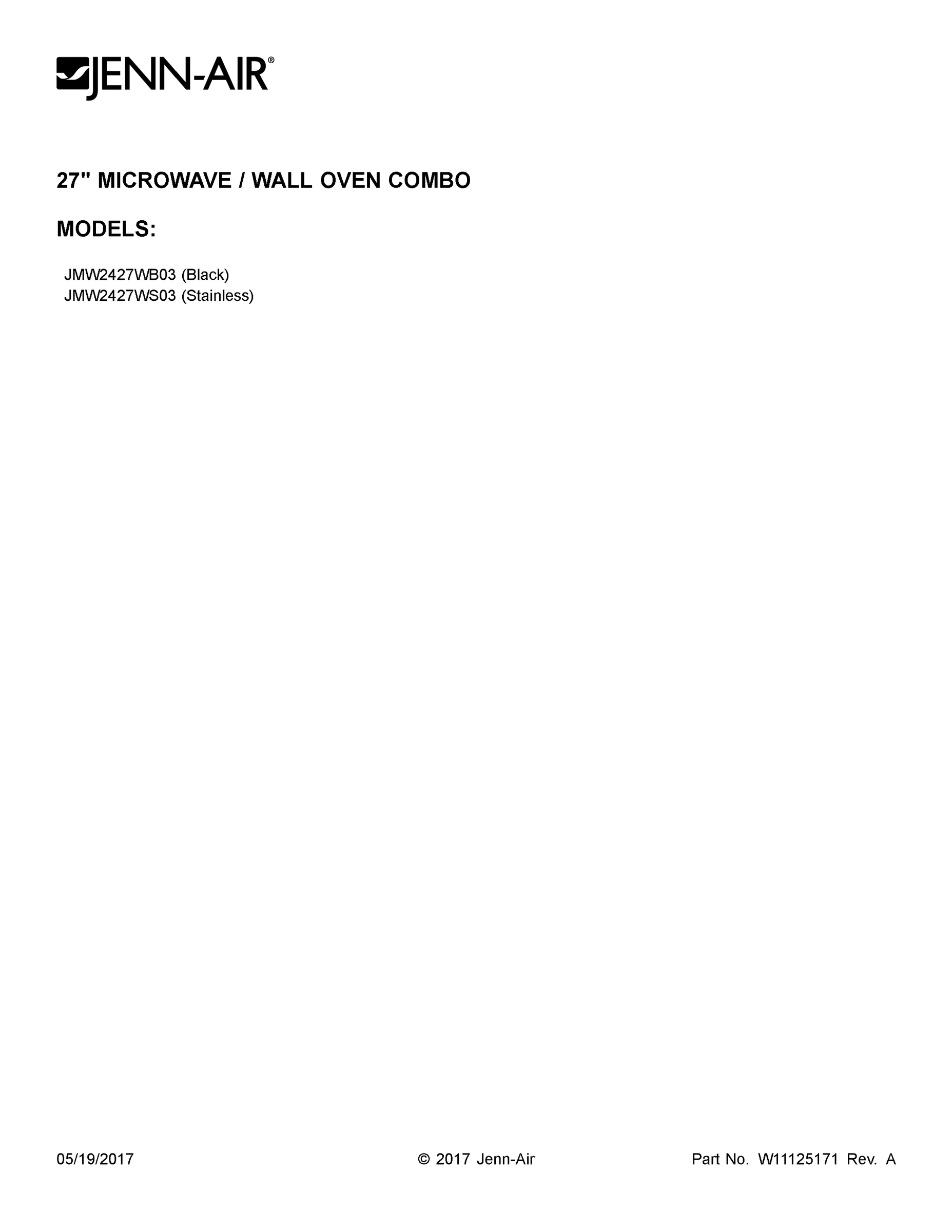

01 - COVER SHEET
02 - OVEN PARTS

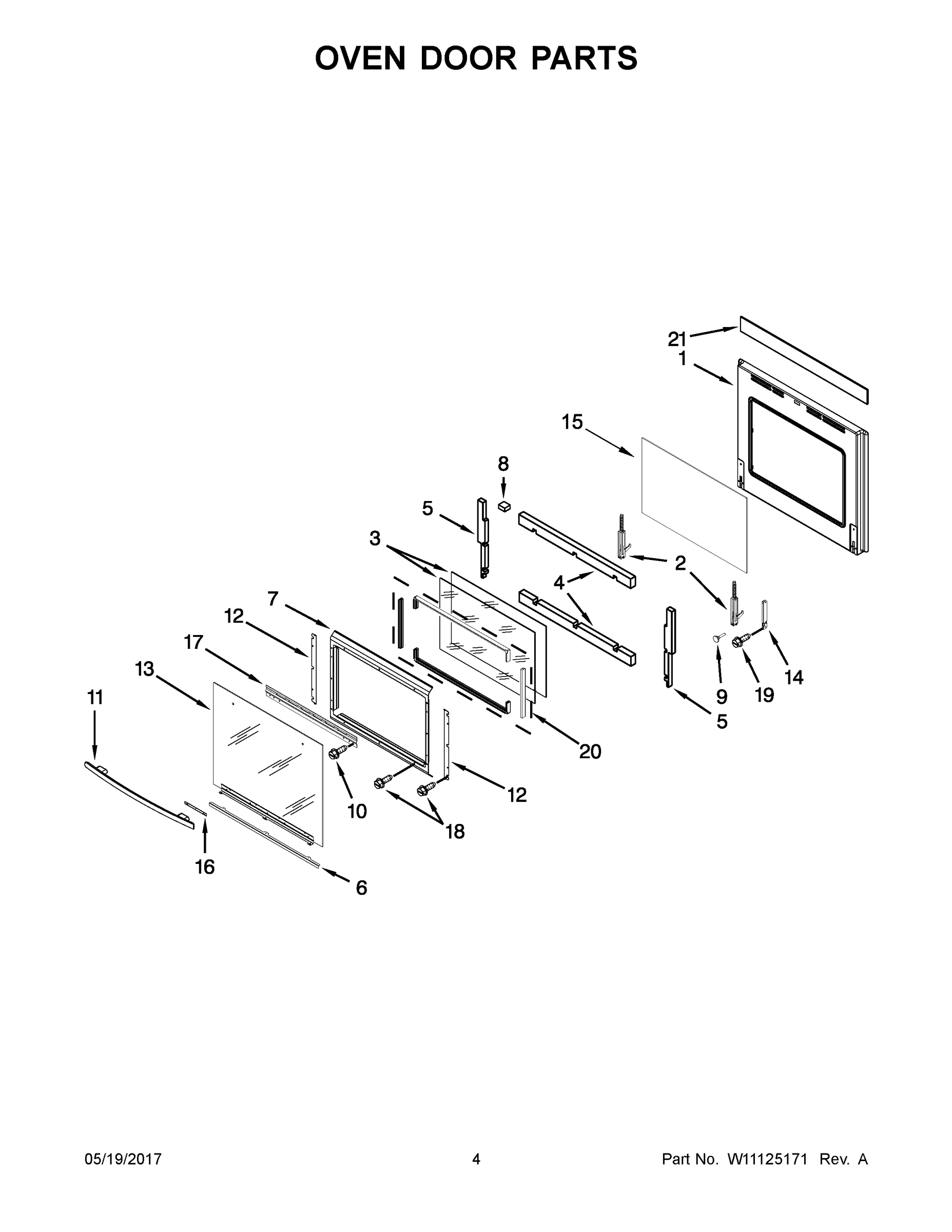

03 - OVEN DOOR PARTS

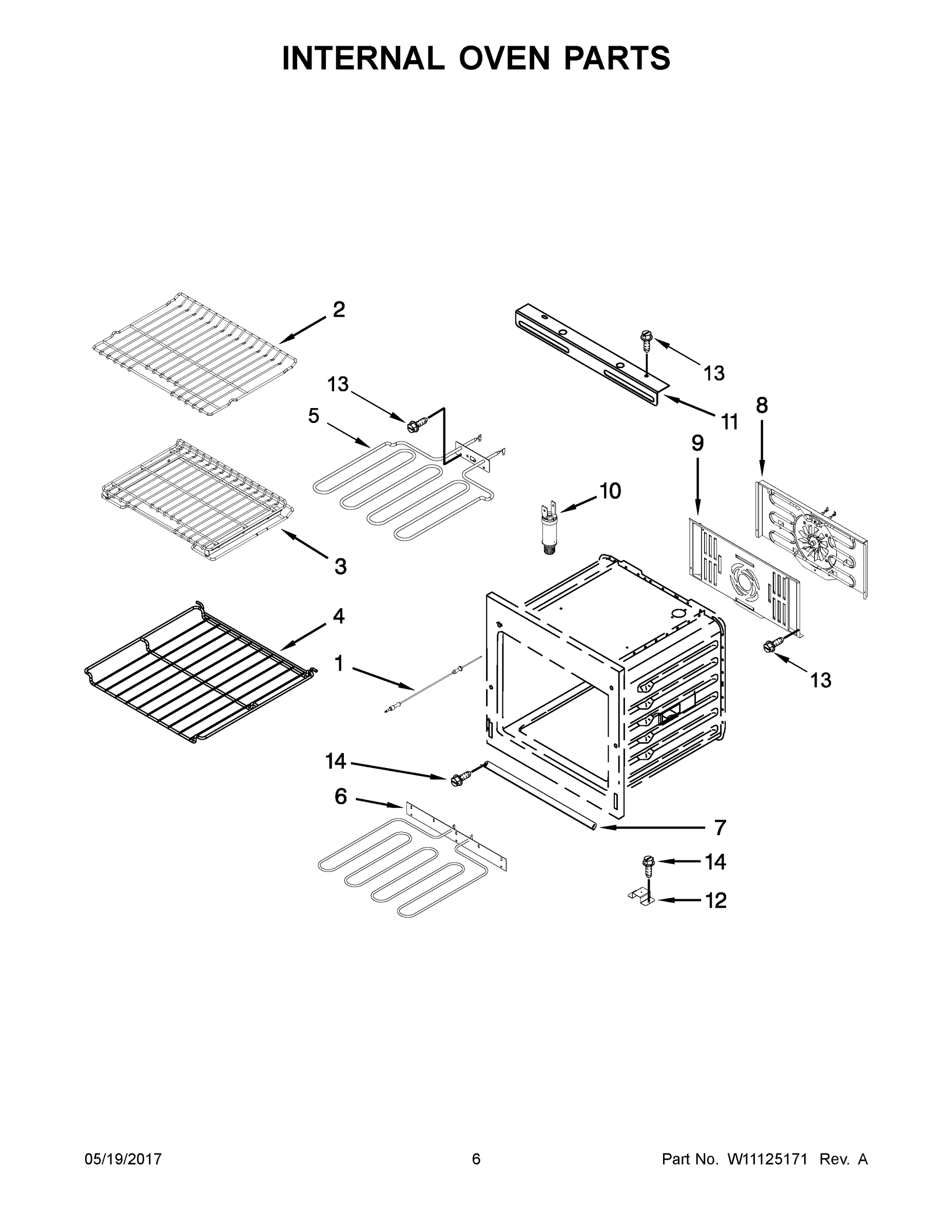

04 - INTERNAL OVEN PARTS

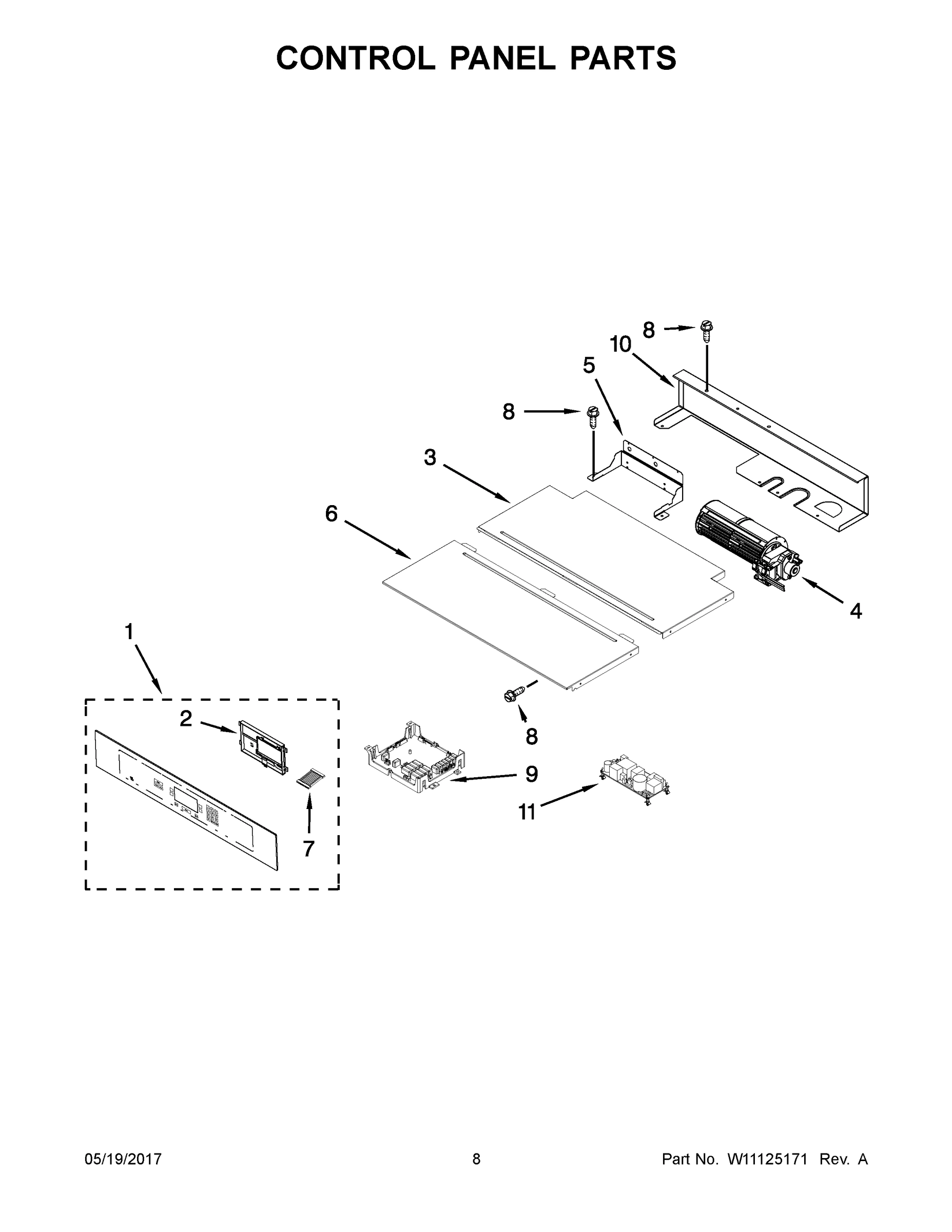

05 - CONTROL PANEL PARTS

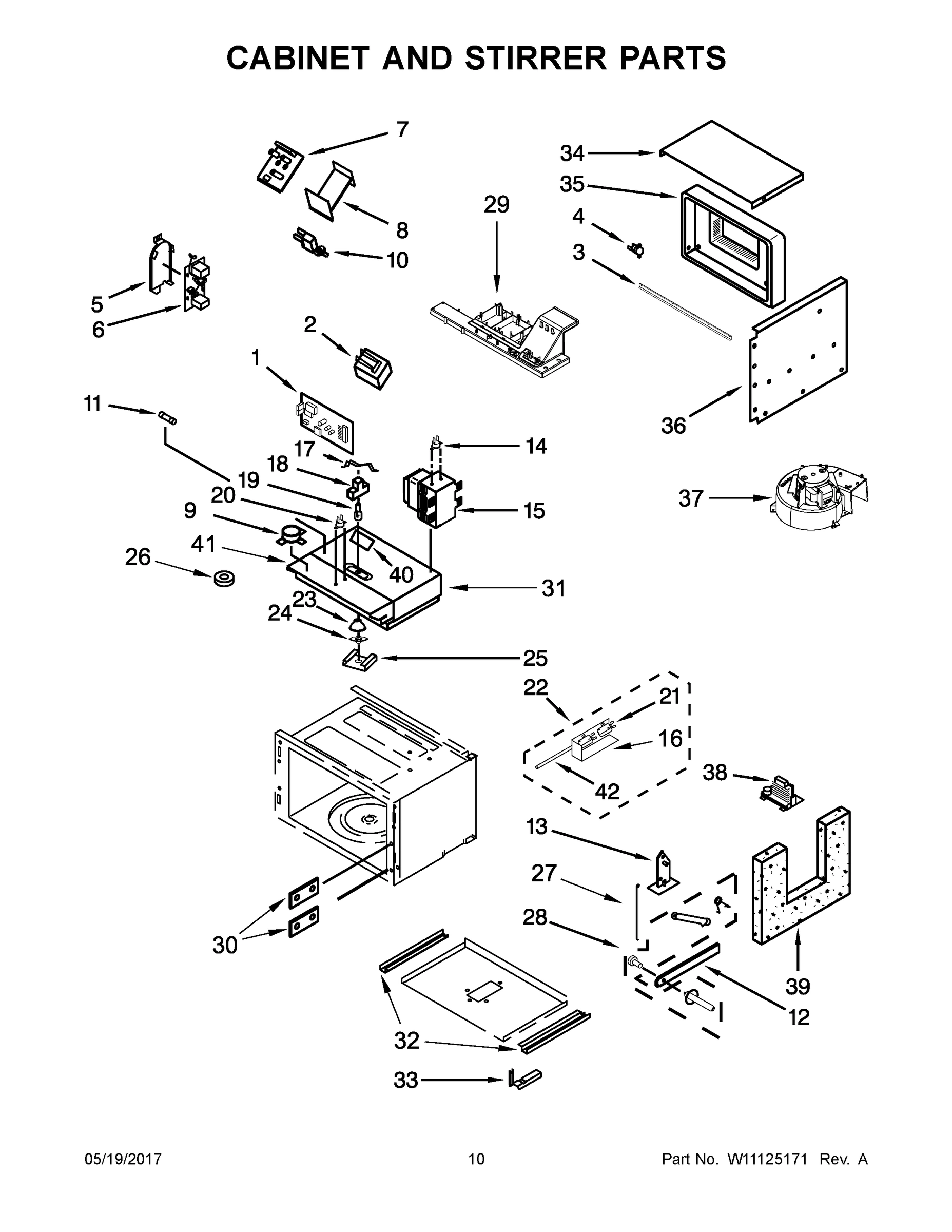

06 - CABINET AND STIRRER PARTS

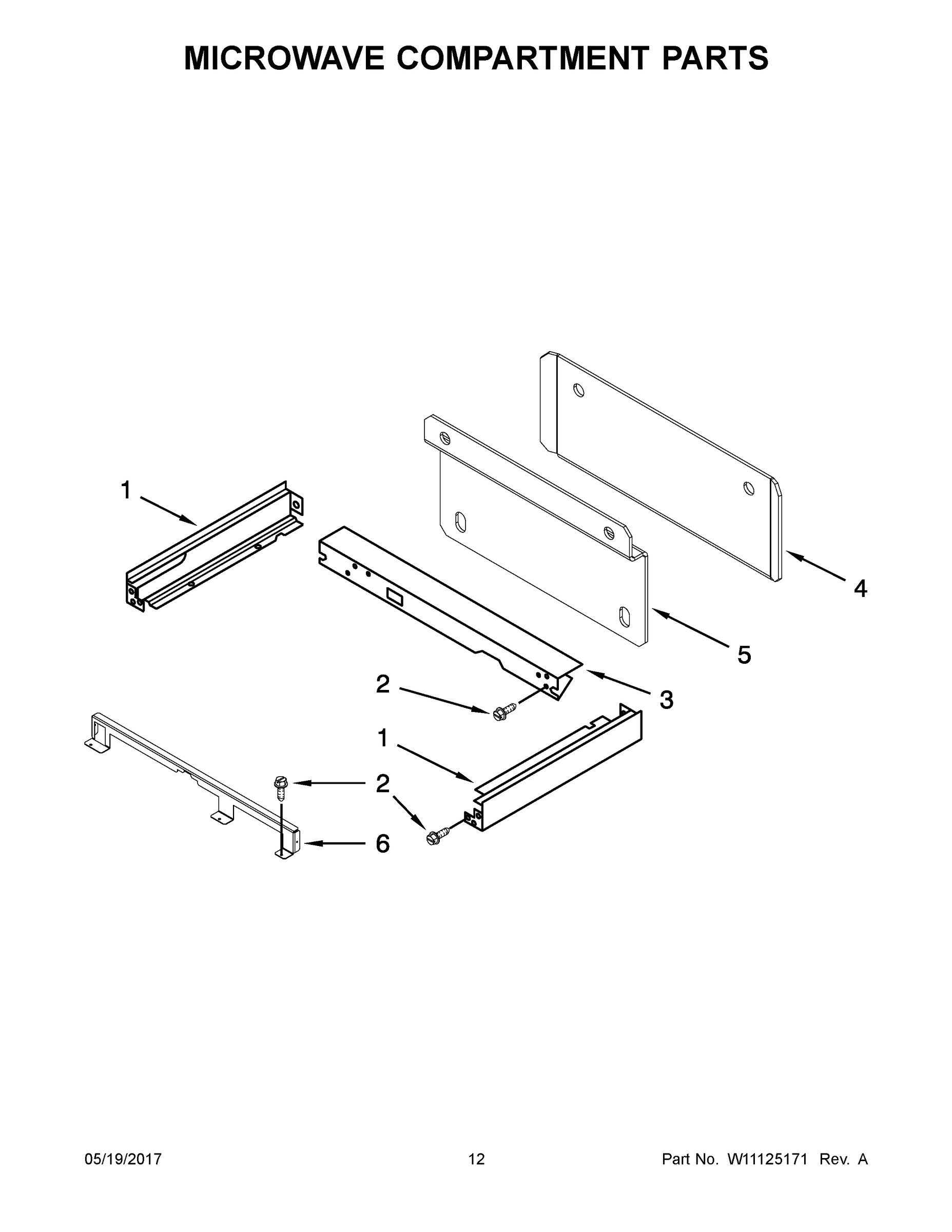

07 - MICROWAVE COMPARTMENT PARTS

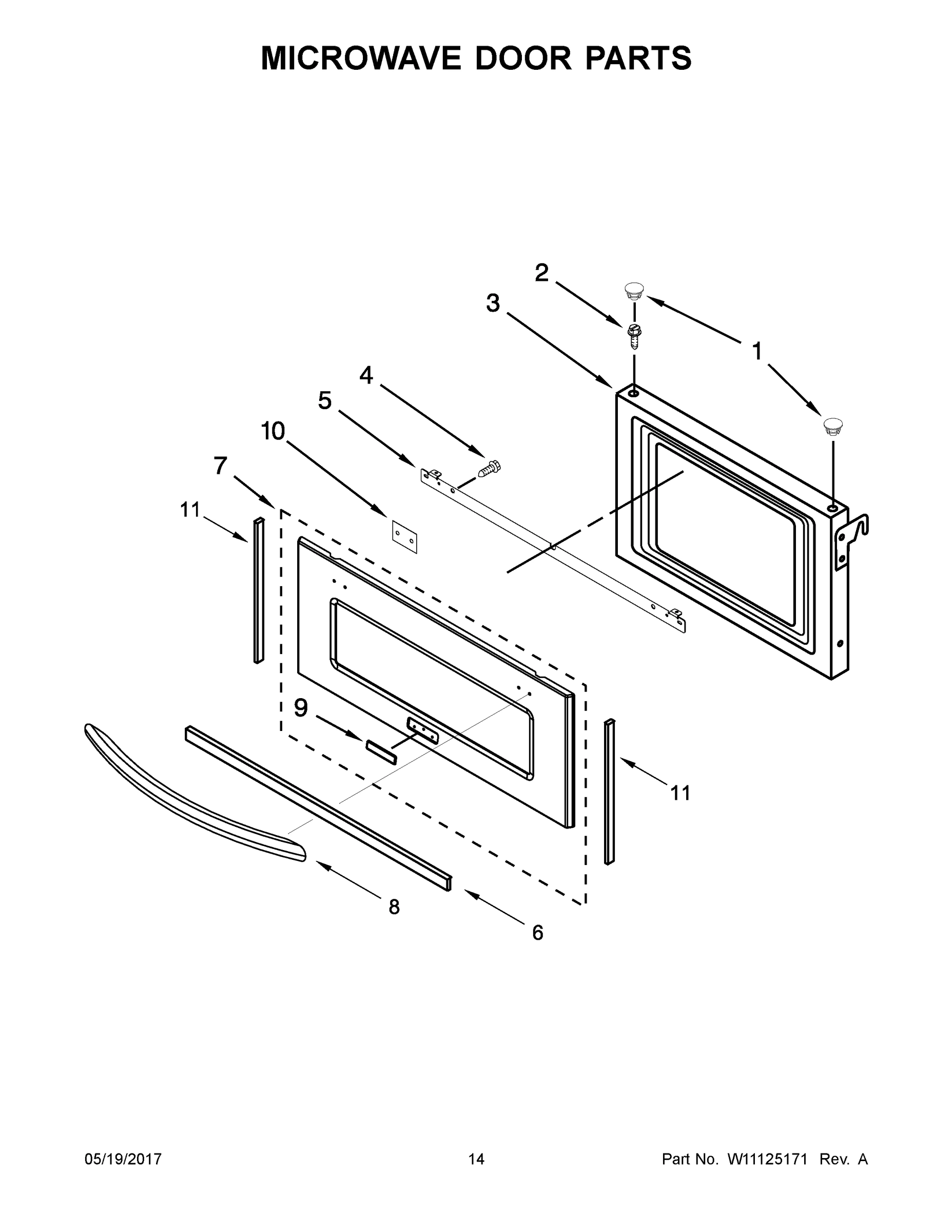

08 - MICROWAVE DOOR PARTS

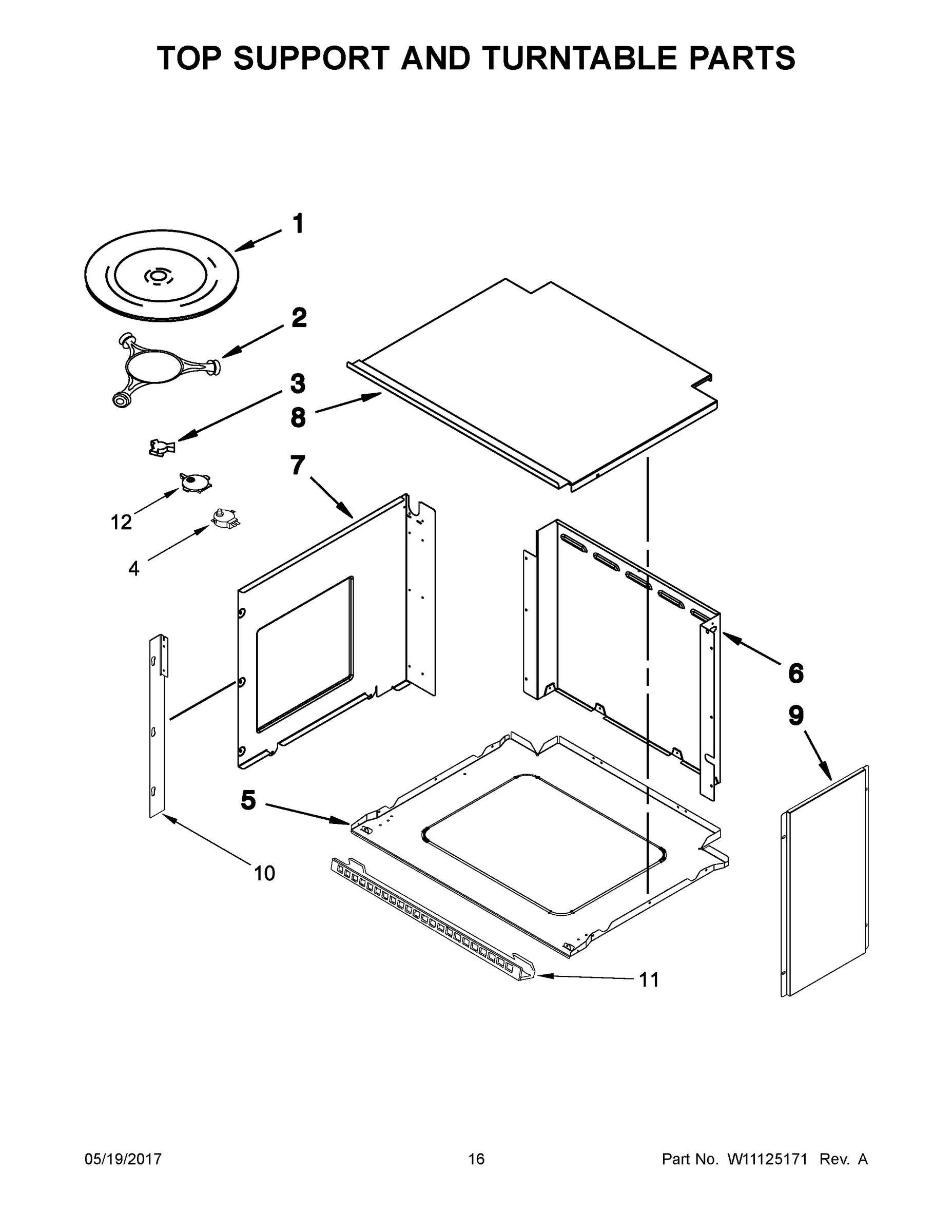

09 - TOP SUPPORT AND TURNTABLE PARTS
10 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JMW2427WB03 MICROWAVE, WALL OVEN, COMBO, 27 INCH
1
INSTRUCTIONS, INSTALLATION (ENGLISH/FRENCH) MAY W10221384 Contact Us For Availability
1
LINER, DOOR MAY W10187020 Contact Us For Availability
1
PROBE, MEAT MAY 7430P038-60 Contact Us For Availability
1
MAY W10344118 MAY W10344118 Contact Us For Availability
1
APPLIANCE MANAGER, MICROWAVE MAY W10626304 Contact Us For Availability
1
RAIL, MWO SUPPORT (LH) MAY W10209044 Contact Us For Availability
1
CAP, SCREW MAY 8304588BL Contact Us For Availability
1
TRAY, COOK MAY 461967720541 Contact Us For Availability
1A
GUIDE, USE AND CARE (COMBO) MAY W10450584 Contact Us For Availability
1A
ASSEMBLY, CONTROL PANEL (STAINLESS) MAY W10344115 Contact Us For Availability
1A
RAIL, MWO SUPPORT (RH) MAY W10209045 Contact Us For Availability
1B
GUIDE, USE AND CARE (MICROWAVE) MAY W10221391 Contact Us For Availability
1C
TIPS, SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1D
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1E
SHEET, TECH (ENGLISH) MAY W10213735 Contact Us For Availability
1F
SHEET, TECH (FRENCH) MAY W10213736 Contact Us For Availability
2
BACK, MAIN MAY 2624F043-51 Contact Us For Availability
2
SCREW MAY 7101P426-60 Contact Us For Availability
2
HINGE, DOOR (BLACK MODEL ONLY) MAY W10186751 Contact Us For Availability
2
RACK, BAKING MAY W10176139 Contact Us For Availability
2
ASSEMBLY, USER INTERFACE MAY W10344083 Contact Us For Availability
2
TRANSFORMER, LIGHT (20V) MAY 461967848621 Contact Us For Availability
2
RING, TURNTABLE MAY W10367316 Contact Us For Availability
2A
HINGE, DOOR (STAINLESS MODEL ONLY) MAY W10277752 Contact Us For Availability
3
BAFFLE, GREASE DEFLECTOR MAY 3601F343-51 Contact Us For Availability
3
GLASS, INNER MAY W10176101 Contact Us For Availability
3
RACK, EXTENDING MAY W10445854 Contact Us For Availability
3
PANEL, REAR MAY W10176095 Contact Us For Availability
3
BRACKET, WIRES SUPPORT MAY W10291274 Contact Us For Availability
3
SUPPORT, REAR MAY W10176195 Contact Us For Availability
3
DOOR, MICROWAVE MAY W10737654 Contact Us For Availability
3
DRIVE, TURNTABLE MAY W10545578 Contact Us For Availability
4
PANEL, BOTTOM MAY W10280326 Contact Us For Availability
4
INSULATION, DOOR (HORIZONTAL) MAY W10273677 Contact Us For Availability
4
SCREW MAY W10267047 Contact Us For Availability
4
RACK, OFFSET MAY W10186987 Contact Us For Availability
4
BLOWER MAY W10273667 Contact Us For Availability
4
THERMOSTAT MAY W10120223 Contact Us For Availability
4
GUIDE, STOP MAY W10186985 Contact Us For Availability
4
MOTOR, TURNTABLE MAY 461967848971 Contact Us For Availability
5
FOOT, PLASTIC MAY 8038P035-60 Contact Us For Availability
5
INSULATION, DOOR (VERTICAL) MAY W10273591 Contact Us For Availability
5
ELEMENT, BROIL MAY W10184147 Contact Us For Availability
5
BRACKET, COOLING FAN MAY W10186997 Contact Us For Availability
5
STOP, MICROWAVE MAY W10186986 Contact Us For Availability
5
BRACKET, HANDLE (BLACK) MAY W10281179 Contact Us For Availability
5
RETAINER, BOTTOM MAY W10176063 Contact Us For Availability
5A
BRACKET, HANDLE (STAINLESS) MAY W10176199 Contact Us For Availability
6
SUPPORT, AIR CHANNEL MAY W10213759 Contact Us For Availability
6
COVER, REAR MAY W10186984 Contact Us For Availability
6
BRACKET, DOOR CLIP MAY W10176176 Contact Us For Availability
6
ELEMENT, BAKE MAY 7406P322-60 Contact Us For Availability
6
PANEL, FRONT MAY W10311707 Contact Us For Availability
6
FILTER, NOISE MAY W10692851 Contact Us For Availability
6
SUPPORT, FRONT MAY W10176196 Contact Us For Availability
6
PAD, FOAM MAY W10312432 Contact Us For Availability
7
PAN, HIDDEN BAKE MAY 3401F079-45 Contact Us For Availability
7
RETAINER, DOOR GLASS MAY W10176105 Contact Us For Availability
7
RETAINER, ELEMENT BAKE MAY 3807F678-45 Contact Us For Availability
7
CABLE, USER INTERFACE MAY W10175829 Contact Us For Availability
7
CONTROL, ELECTRIC CONVERTER MAY W10578541 Contact Us For Availability
7
GLASS, ASSEMBLY (BLACK) MAY W10176229 Contact Us For Availability
7
RETAINER, SIDE (LEFT) MAY W10176065 Contact Us For Availability
7A
GLASS, ASSEMBLY (STAINLESS) MAY W10269424 Contact Us For Availability
7A
RETAINER, SIDE (RIGHT) MAY W10176064 Contact Us For Availability
8
FRAME, FRONT MAY W10186993 Contact Us For Availability
8
PANEL, TOP RETAINER MAY W10175999 Contact Us For Availability
8
INSULATION, CORNER DOOR MAY W10296505 Contact Us For Availability
8
HANDLE, DOOR (BLACK) MAY W10186759 Contact Us For Availability
8
KIT, UNITY CONVECTION MAY W10213813 Contact Us For Availability
8A
HANDLE, DOOR (STAINLESS) MAY W10186760 Contact Us For Availability
9
GASKET MAY W10213819 Contact Us For Availability
9
BUMPER, DOOR MAY W10176233 Contact Us For Availability
9
BAFFLE, UNITY CONVECTION MAY W10186795 Contact Us For Availability
9
APPLIANCE MANAGER, OVEN MAY W10292566 Contact Us For Availability
9
SENSOR, HUMIDITY MAY W10475857 Contact Us For Availability
9
BADGE (BLACK) MAY W10190724 Contact Us For Availability
9
COVER, SERVICE MAY W10176066 Contact Us For Availability
9A
BADGE (STAINLESS) MAY W10214168 Contact Us For Availability
10
RETAINER, GASKET MAY W10176218 Contact Us For Availability
10
RECEPTACLE, MEAT PROBE MAY 7408P088-60 Contact Us For Availability
10
BRACKET, 2ND BLOWER MAY W10186983 Contact Us For Availability
10
THERMOACTUATOR MAY 4375427 Contact Us For Availability
10
SPACER, HANDLE MAY W10314607 Contact Us For Availability
10
TRIM, SIDE (LEFT) MAY 461967013732 Contact Us For Availability
10A
TRIM, SIDE (RIGHT) MAY 461967013722 Contact Us For Availability
11
ASSEMBLY, BOX VENT MAY 4006W218-45 Contact Us For Availability
11
SUPPORT, ELEMENT MAY 3807F754-45 Contact Us For Availability
11
SUPPLY, POWER MAY W10286791 Contact Us For Availability
11
FUSE MAY 241908600053 Contact Us For Availability
11
PAD, SIDE FOAM MAY W10209071 Contact Us For Availability
11
VENT, TOP MAY 461968973251 Contact Us For Availability
12
SCREEN, SMOKE ELIMINATOR MAY 8034P008-60 Contact Us For Availability
12
BRACKET, INNER DOOR GLASS MAY W10186882 Contact Us For Availability
12
BRACKET, SUPPORT (HIDDEN BAKE) MAY 3801F823-51 Contact Us For Availability
12
ARM, SLIDING MAY 461967750483 Contact Us For Availability
12
ADAPTER, TURNTABLE MOTOR MAY 461967753742 Contact Us For Availability
13
SWITCH, MICRO MAY W10286173 Contact Us For Availability
13
SCREW MAY W10236129 Contact Us For Availability
13
GLASS, OUTER DOOR ASSEMBLY (BLACK) MAY W10277595 Contact Us For Availability
13
SUPPORT MAY 461967750494 Contact Us For Availability
13A
GLASS, OUTER DOOR ASSEMBLY (STAINLESS) MAY W10176228 Contact Us For Availability
14
ASSEMBLY, LIGHT MAY W10175989 Contact Us For Availability
14
HINGE, RECEIVER MAY W10175993 Contact Us For Availability
14
THERMOSTAT, MAGNETRON MAY 461967846741 Contact Us For Availability
15
TUBE, VENT MAY 8026P066-60 Contact Us For Availability
15
GLASS, CAVITY MAY W10213804 Contact Us For Availability
15
MAGNETRON MAY 461967847321 Contact Us For Availability
16
FUSE, THERMAL MAY W10277609 Contact Us For Availability
16
PAD, HANDLE (BLACK) MAY W10213722 Contact Us For Availability
16
HOLDER, SWITCH MAY 8205683 Contact Us For Availability
16A
PAD, HANDLE (STAINLESS) MAY W10176201 Contact Us For Availability
17
PANEL, SIDE MAY W10175995 Contact Us For Availability
17
BRACKET, HANDLE MAY W10176126 Contact Us For Availability
17
SPRING, LAMP MAY W10465869 Contact Us For Availability
18
RETAINER, REAR INSULATION MAY W10213725 Contact Us For Availability
18
HOLDER, LAMP MAY W10490593 Contact Us For Availability
19
SCREW MAY W10254050 Contact Us For Availability
19
LAMP, HALOGEN MAY W10795595 Contact Us For Availability
20
COVER, VENT MAY W10213792 Contact Us For Availability
20
SILICONE, INNER GLASS MAY W10305979 Contact Us For Availability
20
SENSOR, CONVECTION MAY W10287987 Contact Us For Availability
21
SWITCH, HIGH LIMIT MAY 7403P899-60 Contact Us For Availability
21
INSULATION, DOOR MAY W10277580 Contact Us For Availability
21
SWITCH MAY W10330566 Contact Us For Availability
22
CHANNEL, BOTTOM AIR MAY W10280323 Contact Us For Availability
22
ASSEMBLY, INTERLOCK MAY W10358246 Contact Us For Availability
23
LENS, LIGHT MAY W10187003 Contact Us For Availability
23
REFLECTOR MAY 423107022541 Contact Us For Availability
24
TRIM, SIDE MAY W10277588 Contact Us For Availability
24
LENS, LAMP MAY 423107720491 Contact Us For Availability
25
TRIM, BOTTOM VENT (BLACK) MAY W10238701 Contact Us For Availability
25
CLIP, SPRING MAY 461967010591 Contact Us For Availability
25A
TRIM, BOTTOM VENT (STAINLESS) MAY W10176037 Contact Us For Availability
26
BRACKET, REINFORCE SIDE (LEFT HAND) MAY W10277423 Contact Us For Availability
26
SEALING, LAMP MAY W10769147 Contact Us For Availability
26A
BRACKET, REINFORCE SIDE (RIGHT HAND) MAY W10277424 Contact Us For Availability
27
SPRING, TORSION MAY 8205704 Contact Us For Availability
28
LATCH, DOOR LOCK MAY W10213755 Contact Us For Availability
28
ASSEMBLY, SLIDING ARM MAY W10128850 Contact Us For Availability
29
BULB, LIGHT MAY W10169757 Contact Us For Availability
29
DUCT, MAGNETRON MAY 461967753451 Contact Us For Availability
30
FRAME, MICRO SWITCH MAY W10213745 Contact Us For Availability
30
PLATE, COVER MAY W10120230 Contact Us For Availability
31
TRIM, CONTROL PANEL MAY W10176019 Contact Us For Availability
32
SUPPORT, BOTTOM MAY 8205707 Contact Us For Availability
33
SCREW MAY W10236043 Contact Us For Availability
33
HINGE, DOOR MAY 461968979601 Contact Us For Availability
37
ASSEMBLY, COOLING FAN MAY 461968969271 Contact Us For Availability
38
INVERTER MAY W10468206 Contact Us For Availability
41
PANEL, TOP (NOT SERVICED) MAY N/P Contact Us For Availability
42
ROD, RELEASE MAY W10120235 Contact Us For Availability
NI
HOLDER, FUSE MAY 4454949 Contact Us For Availability
NI
HARNESS, MEAT PROBE JACK MAY 5171P208-60 Contact Us For Availability
NI
WASHER (RUBBER) MAY 7109P085-60 Contact Us For Availability
NI
FUSE, TIME DELAY MAY W10017410 Contact Us For Availability
NI
HARNESS, SIGNAL EXTENDED MAY W10174375 Contact Us For Availability
NI
HARNESS, MAIN MAY W10174756 Contact Us For Availability
NI
CONDUIT, COMBO MAY W10176182 Contact Us For Availability
NI
INSULATION, WRAP MAY W10186990 Contact Us For Availability
NI
HARNESS, LATC MAY W10209123 Contact Us For Availability
NI
MAY W10213747 MAY W10213747 Contact Us For Availability
NI
MAY W10277590 MAY W10277590 Contact Us For Availability
NI
MAY W10277613 MAY W10277613 Contact Us For Availability
NI
MAY W10288001 MAY W10288001 Contact Us For Availability
NI
MAY W10288002 MAY W10288002 Contact Us For Availability
NI
PAINT, SPRAY (WHITE) MAY 350930 Contact Us For Availability
NI
ADHESIVE, SEALER, SILASTIC MAY 482338 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) MAY 830864 Contact Us For Availability
× ![]()
