Model Whirlpool JGW8130DDW12 GAS WALL OVEN – Common Parts & Diagrams

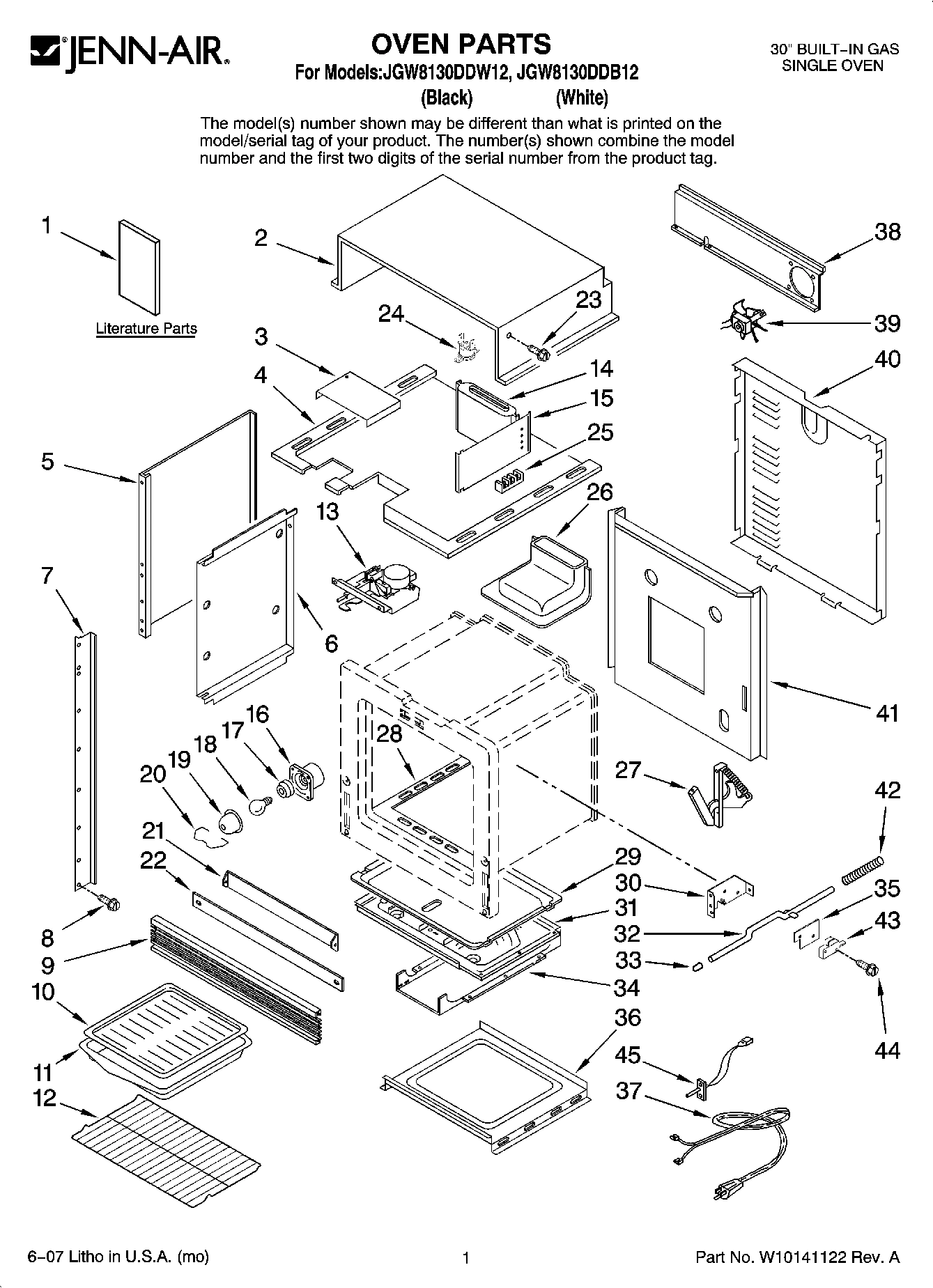

01 - OVEN PARTS

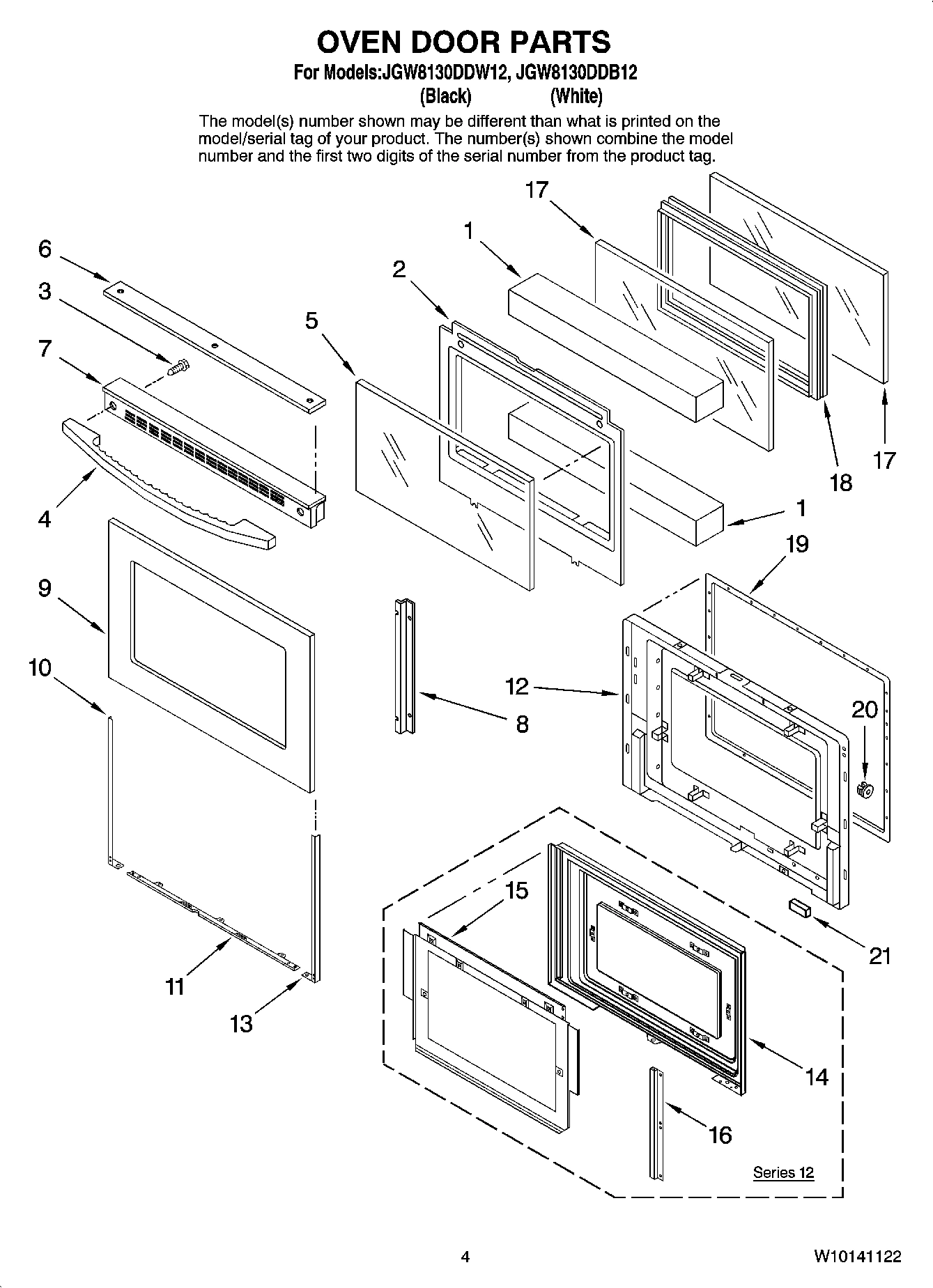

03 - OVEN DOOR PARTS

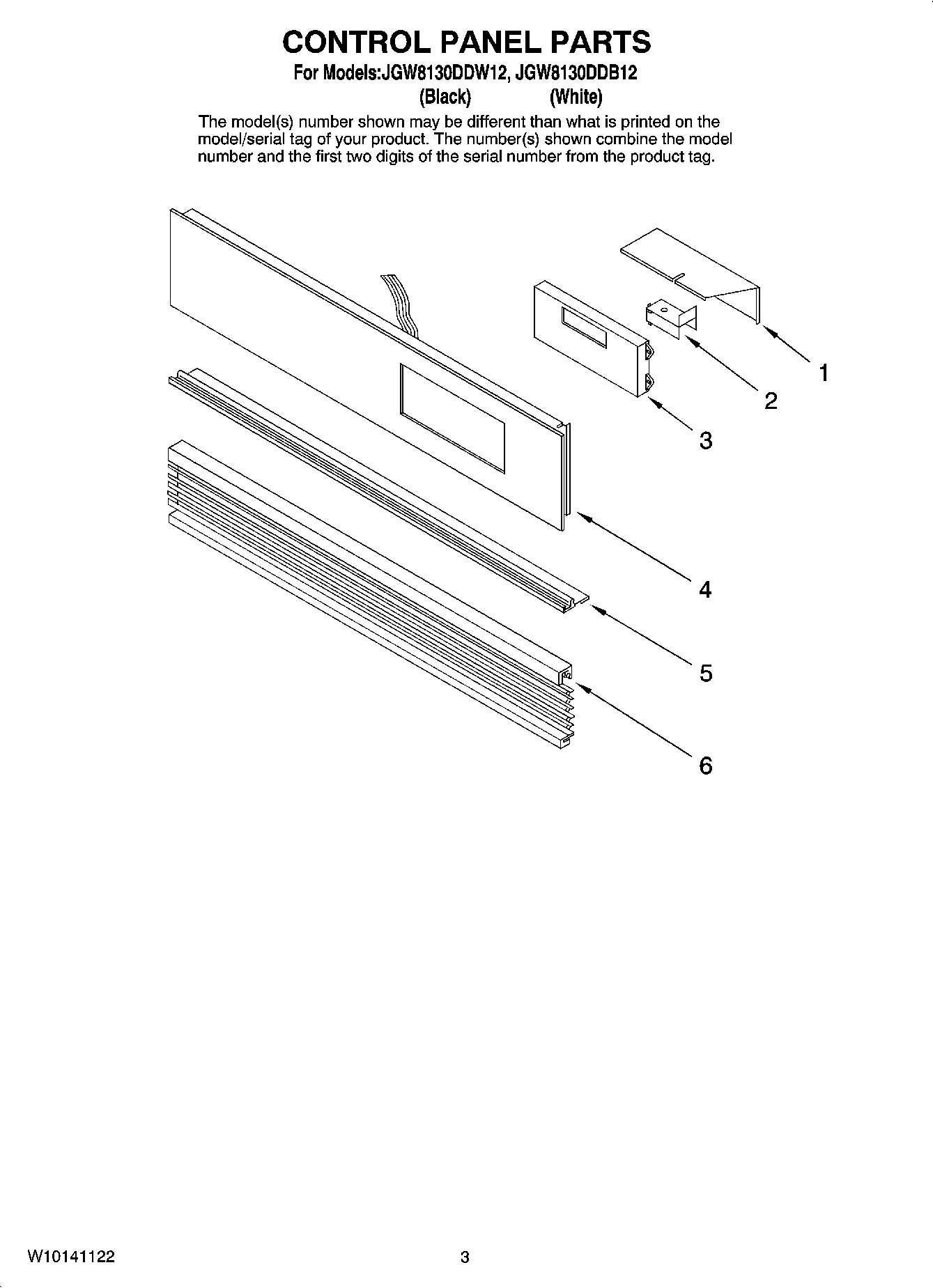

02 - CONTROL PANEL PARTS

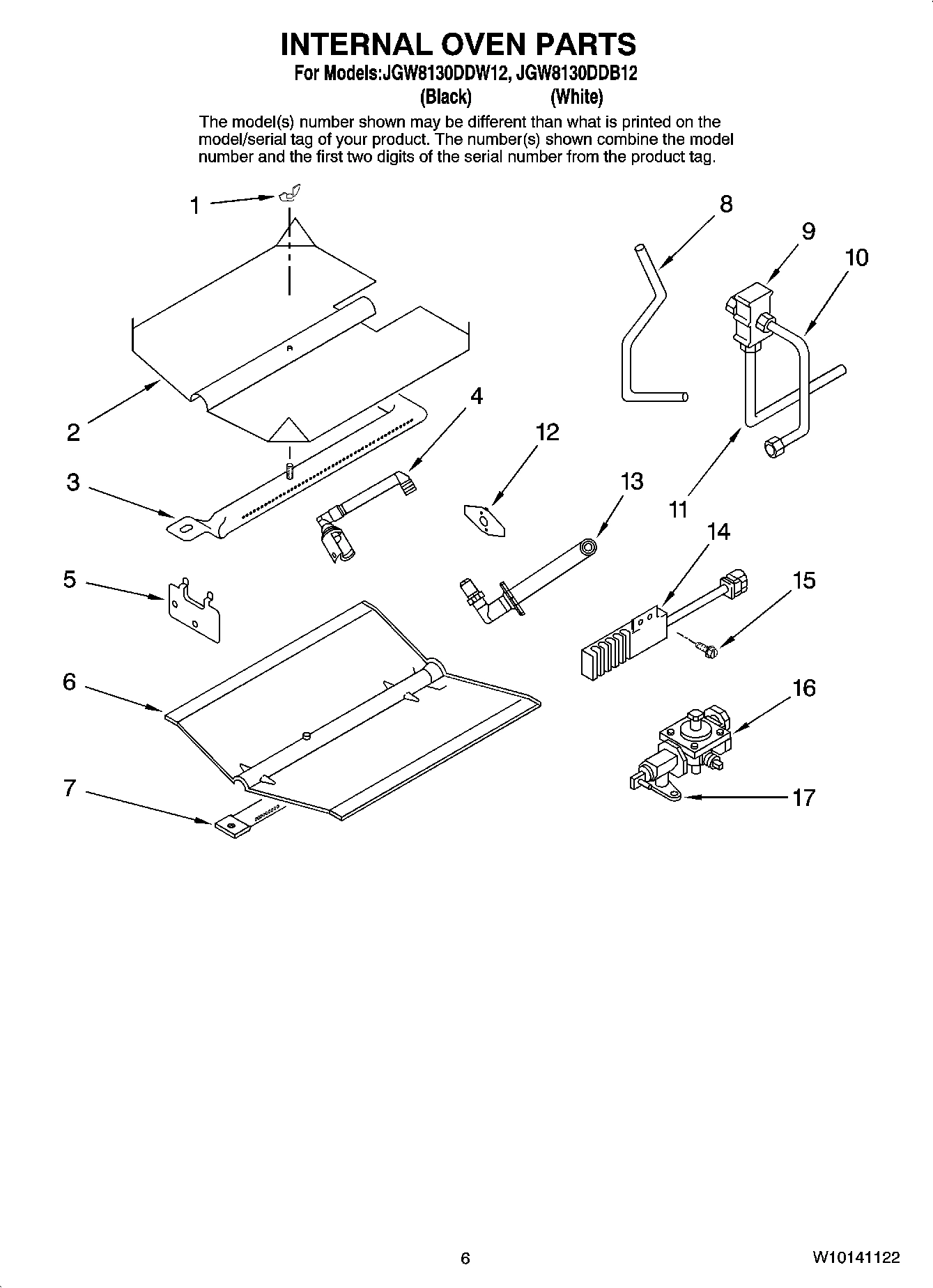

04 - INTERNAL OVEN PARTS
Common parts from model Whirlpool JGW8130DDW12 GAS WALL OVEN
1
Insulation,Door WPL 74003647 Contact Us For Availability
1
SHIELD, VENT WPL 74009496 Contact Us For Availability
1
NUT, WING WPL 7103P03060 Contact Us For Availability
2
Baffel, Door WPL 74009502 Contact Us For Availability
2
Bracket, Control WPL 74009473 Contact Us For Availability
2
Baffel, Broil Bnr WPL 74009231 Contact Us For Availability
3
Control (GAS) WPL 74009559 Contact Us For Availability
3
BURNER, BROIL WPL 74004076 Contact Us For Availability
4
Handle Door (Black) WPL 71003204 Contact Us For Availability
4
Handle Door (White) WPL 74003656 Contact Us For Availability
4
Panel, Control (White) WPL 74009501 Contact Us For Availability
4
Tubing,Oven Burner WPL 74009468 Contact Us For Availability
5
GLASS, DOOR WPL 74003649 Contact Us For Availability
5
Trim,Control Panel (Black) WPL 74009488 Contact Us For Availability
5
Trim,Control Panel (Chrome) WPL 74009499 Contact Us For Availability
5
COVER, IGNITER WPL 4005F42145 Contact Us For Availability
6
Extrusion, Vent (Chrome) WPL 74004130 Contact Us For Availability
6
Extrusion, Vent (Black) WPL 74004131 Contact Us For Availability
6
Insert, White WPL 7728P09460 Contact Us For Availability
6
Baffel, Bottom WPL 3601F23945 Contact Us For Availability
7
BURNER, BAKE WPL 74009483 Contact Us For Availability
7
Extrusion,Trim (Left (Black)) WPL 74009489 Contact Us For Availability
7
Extrusion,Trim (Right (Black)) WPL 74009490 Contact Us For Availability
7
Extrusion,Trim (Left (Chrome)) WPL 74009492 Contact Us For Availability
7
Extrusion,Trim (Right (Chrome)) WPL 74009493 Contact Us For Availability
8
Screw, Extrusion (Black) WPL 7101P04060 Contact Us For Availability
8
Screw, Extrusion (Zinc) WPL 7101P04160 Contact Us For Availability
8
RETAINER, GLASS WPL 74003650 Contact Us For Availability
8
TUBING, BROIL WPL 74006348 Contact Us For Availability
9
Kit, Door Glass (Black) WPL 12002300 Contact Us For Availability
9
Kit, Door Glass (White) WPL 12002301 Contact Us For Availability
10
Insert,Broil Pan WPL 3413F01619 Contact Us For Availability
10
TUBING, BAKE WPL 74009506 Contact Us For Availability
11
Pan, Broil WPL 3401F02019 Contact Us For Availability
11
Support, Glass (Black) WPL 74009686 Contact Us For Availability
11
Tubing, 30`` WPL 74009505 Contact Us For Availability
12
LINING, DOOR WPL 74003642 Contact Us For Availability
12
Plate, Broiler WPL 74004307 Contact Us For Availability
13
Fitting, Broiler WPL 74009475 Contact Us For Availability
14
RISER, DUCT ASSY. WPL 4006D12845 Contact Us For Availability
14
LINING, DOOR WPL 74011456 Contact Us For Availability
15
Sheild, Air WPL 74009497 Contact Us For Availability
15
Screw, Igniter WPL 7101P32860 Contact Us For Availability
16
HOUSING, BULB WPL 74003388 Contact Us For Availability
16
Regulator WPL 71003638 Contact Us For Availability
17
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
17
VALVE, SHUT OFF WPL 7501P04160 Contact Us For Availability
18
BULB-OVEN WPL 7407P10360 Contact Us For Availability
18
FRAME, GLASS WPL 74003644 Contact Us For Availability
19
COVER, BULB WPL 74003389 Contact Us For Availability
19
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
20
Retainer, Cover WPL 74003391 Contact Us For Availability
20
Nut, Snap (White (2)) WPL 7103P03960 Contact Us For Availability
21
Baffel, Oven WPL 74001219 Contact Us For Availability
22
Strip, Bottom WPL 4005F35470 Contact Us For Availability
24
Switch, Limit WPL 74009476 Contact Us For Availability
25
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
26
Box, Flute WPL 4006W11745 Contact Us For Availability
28
BOTTOM, OVEN ASSY. WPL 74011347 Contact Us For Availability
29
PAN, BAKE BURNER WPL 74001651 Contact Us For Availability
30
Bracket, Switch WPL 74001632 Contact Us For Availability
31
Retainer, Bottom WPL 74009480 Contact Us For Availability
32
Rod, Light Switch WPL 74003562 Contact Us For Availability
33
Cover, Plunger WPL 74007686 Contact Us For Availability
34
Support, Oven WPL 3807F42951 Contact Us For Availability
35
INSULATOR WPL 74008264 Contact Us For Availability
36
BOTTOM, MAIN WPL 74001742 Contact Us For Availability
37
CORD, POWER WPL 7402P04360 Contact Us For Availability
38
HOUSING, FAN WPL 4001F08351 Contact Us For Availability
40
COVER, BACK WPL 4005F40551 Contact Us For Availability
41
BACK, MAIN WPL 74009486 Contact Us For Availability
42
SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability
44
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
45
RETAINER, INSUL. WPL 3804F24745 Contact Us For Availability
45
Harness, Door WPL 74009491 Contact Us For Availability
45
HARNESS, MAIN WPL 74009495 Contact Us For Availability
NI
Wiring Diagram WPL 15003431 Contact Us For Availability
NI
Booklet, Cooking WPL 74009330 Contact Us For Availability
NI
Manual, U&C WPL 8112P21460 Contact Us For Availability
× ![]()
