Model Maytag JGW8130DDB12 GAS WALL OVEN – Common Parts & Diagrams

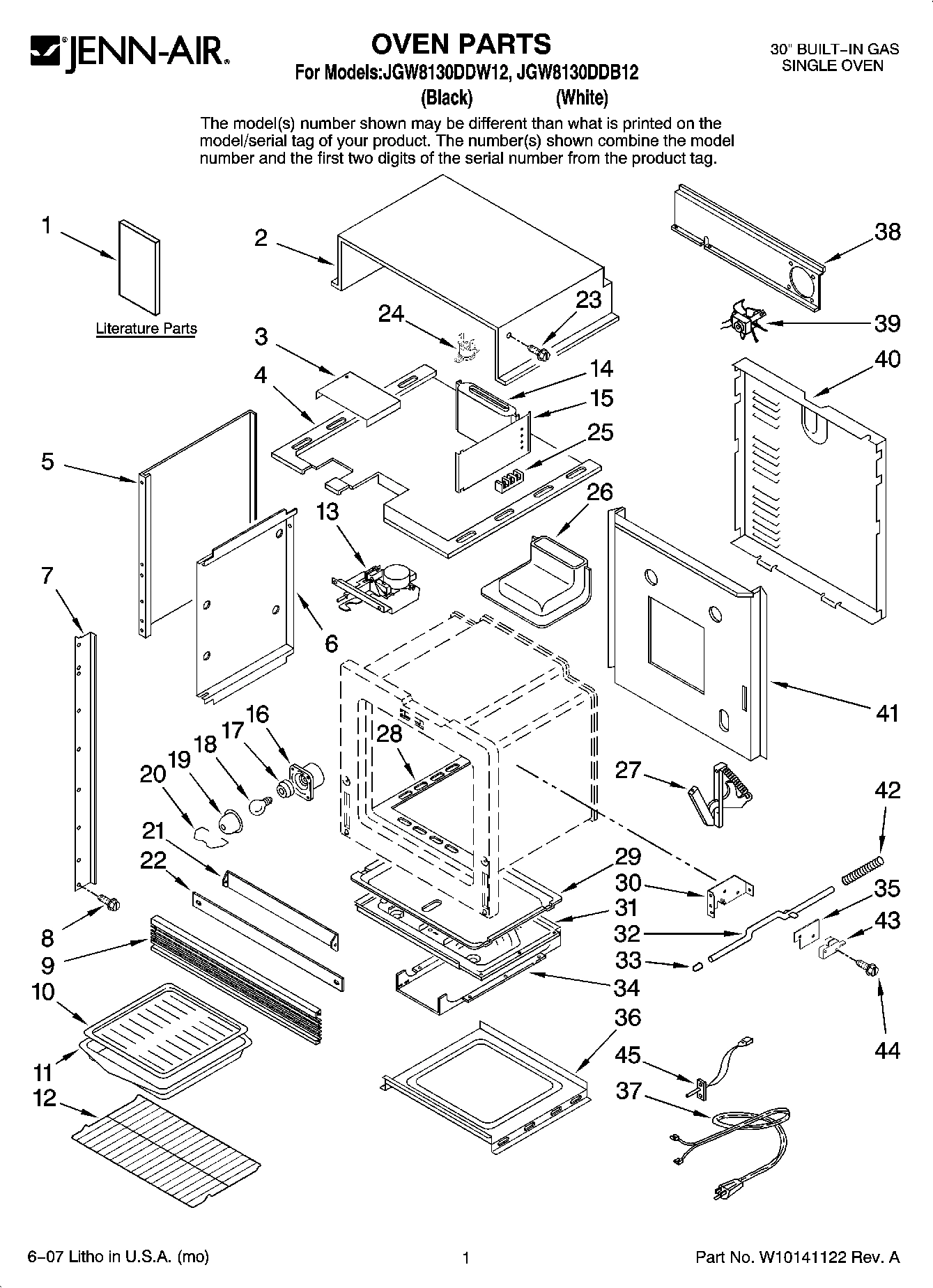

01 - OVEN PARTS

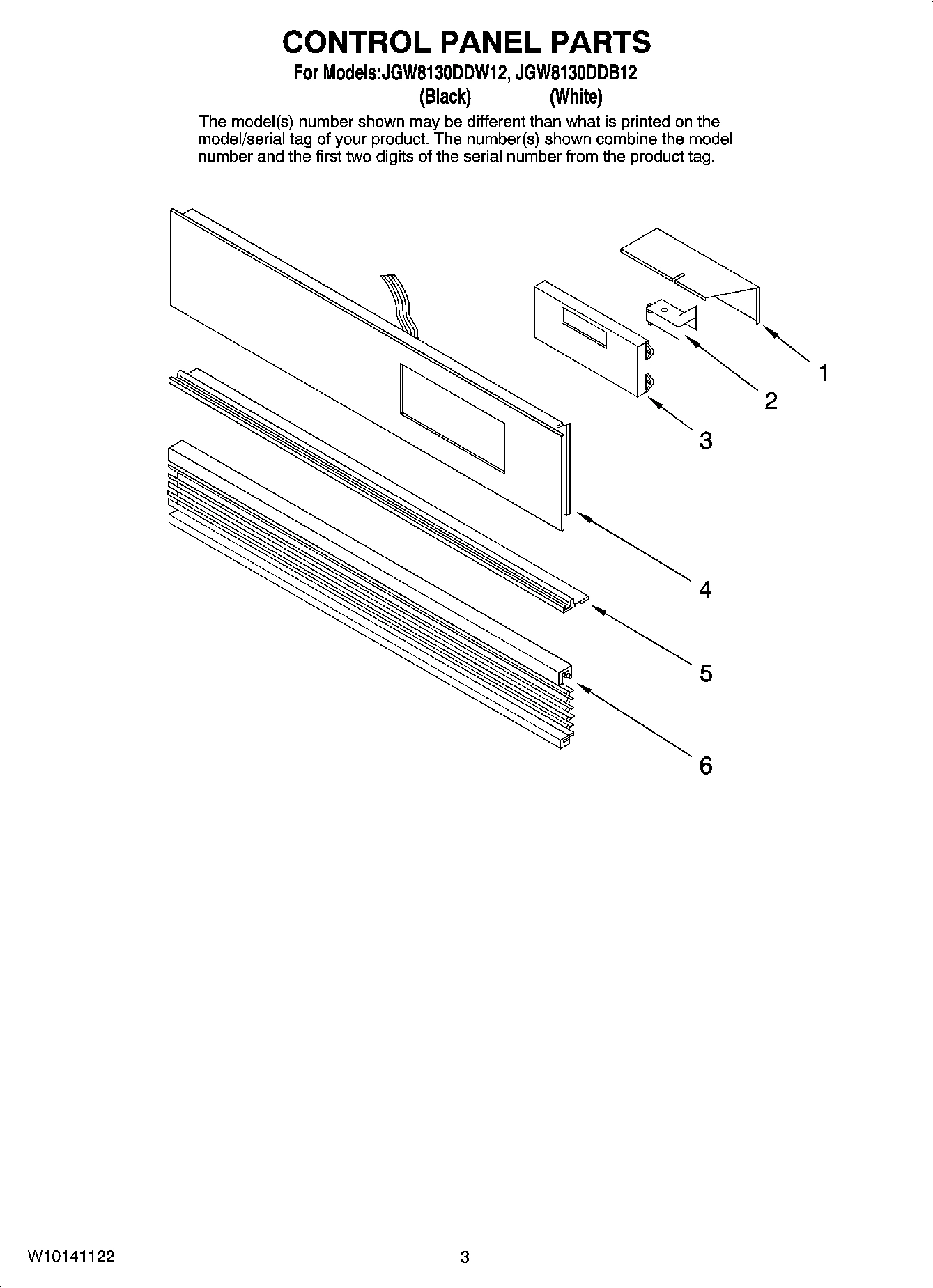

02 - CONTROL PANEL PARTS

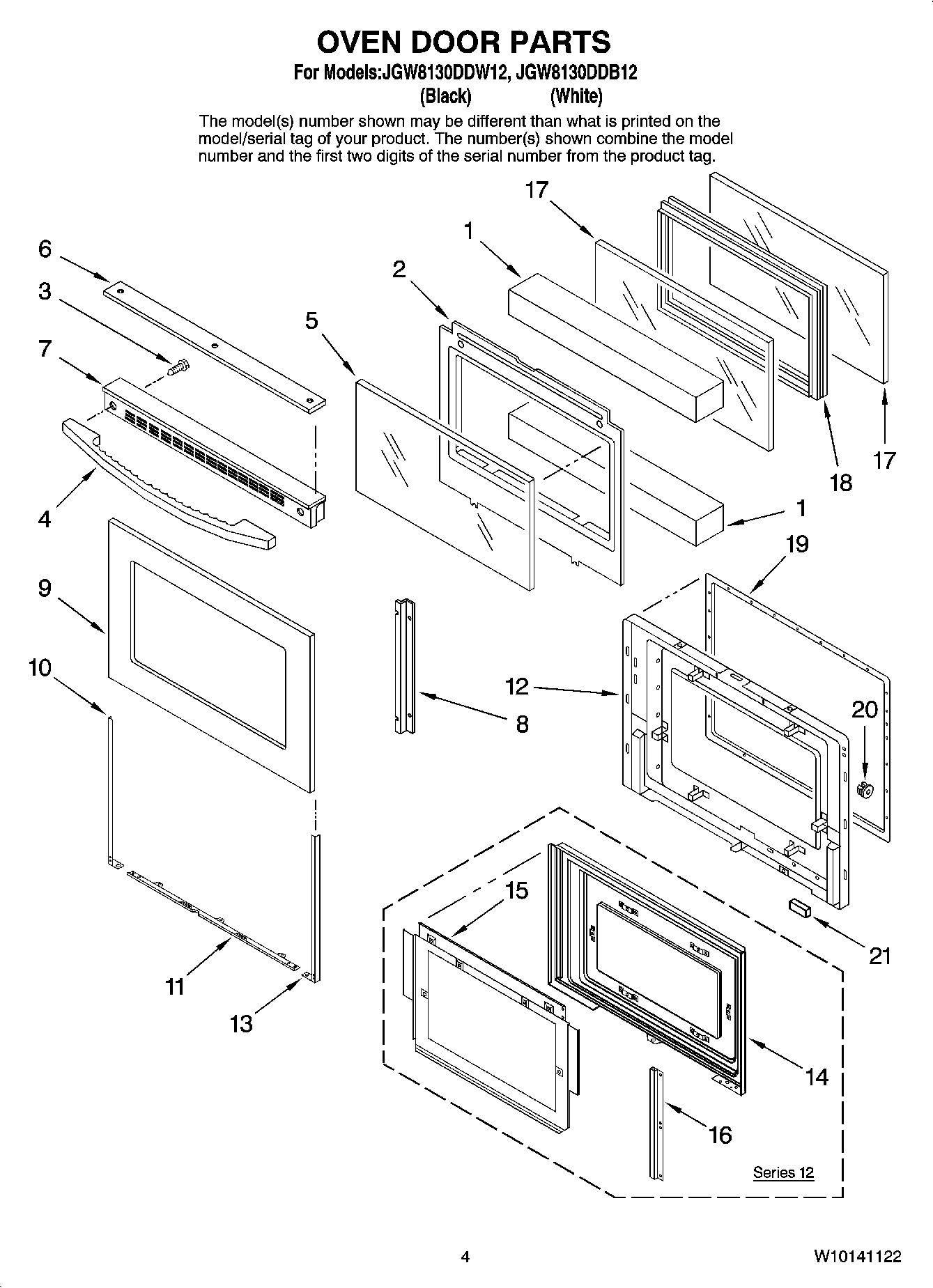

03 - OVEN DOOR PARTS

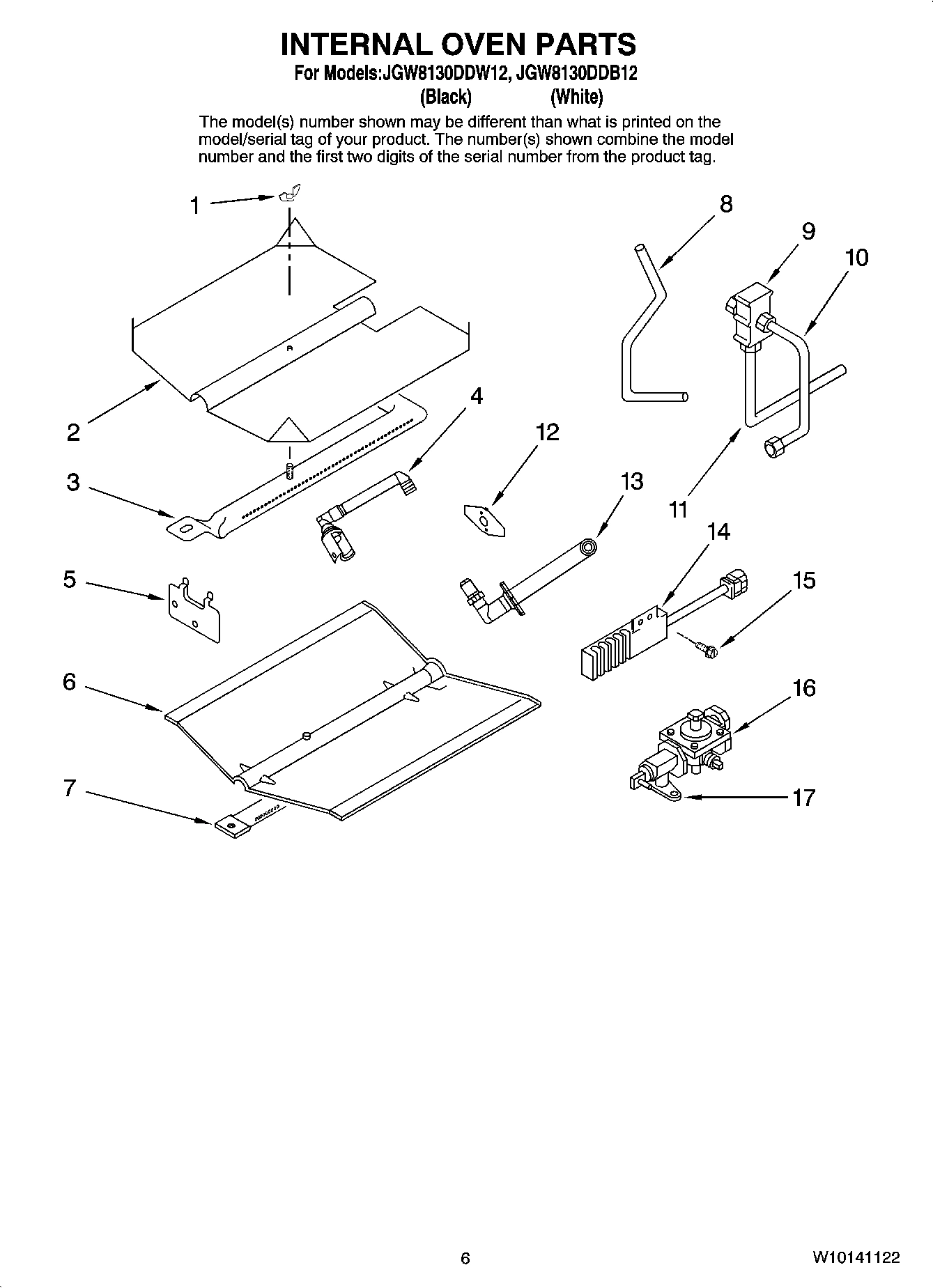

04 - INTERNAL OVEN PARTS
Common parts from model Maytag JGW8130DDB12 GAS WALL OVEN
1
MAY 74009496 MAY 74009496 Contact Us For Availability
1
Insulation,Door MAY 74003647 Contact Us For Availability
1
NUT, WING MAY 7103P030-60 Contact Us For Availability
2
Bracket, Control MAY 74009473 Contact Us For Availability
2
Baffel, Door MAY 74009502 Contact Us For Availability
2
Baffel, Broil Bnr MAY 74009231 Contact Us For Availability
3
Control (GAS) MAY 74009559 Contact Us For Availability
3
MAY 74004076 MAY 74004076 Contact Us For Availability
4
MAY 74009501 MAY 74009501 Contact Us For Availability
4
Handle Door (Black) MAY 71003204 Contact Us For Availability
4
Handle Door (White) MAY 74003656 Contact Us For Availability
4
Tubing,Oven Burner MAY 74009468 Contact Us For Availability
5
Trim,Control Panel (Black) MAY 74009488 Contact Us For Availability
5
MAY 74009499 MAY 74009499 Contact Us For Availability
5
GLASS, DOOR MAY 74003649 Contact Us For Availability
5
MAY 4005F421-45 MAY 4005F421-45 Contact Us For Availability
6
Extrusion, Vent (Chrome) MAY 74004130 Contact Us For Availability
6
Extrusion, Vent (Black) MAY 74004131 Contact Us For Availability
6
Insert, White MAY 7728P094-60 Contact Us For Availability
6
Baffel, Bottom MAY 3601F239-45 Contact Us For Availability
7
MAY 74009492 MAY 74009492 Contact Us For Availability
7
MAY 74009493 MAY 74009493 Contact Us For Availability
7
MAY 74009483 MAY 74009483 Contact Us For Availability
8
MAY 74003650 MAY 74003650 Contact Us For Availability
8
MAY 74006348 MAY 74006348 Contact Us For Availability
9
MAY 74006345 MAY 74006345 Contact Us For Availability
9
Kit, Door Glass (Black) MAY 12002300 Contact Us For Availability
9
MAY 12002301 MAY 12002301 Contact Us For Availability
10
MAY 3413F016-19 MAY 3413F016-19 Contact Us For Availability
10
MAY 74009506 MAY 74009506 Contact Us For Availability
11
MAY 3401F020-19 MAY 3401F020-19 Contact Us For Availability
11
Support, Glass (Black) MAY 74009686 Contact Us For Availability
11
Tubing, 30`` MAY 74009505 Contact Us For Availability
12
MAY 74003642 MAY 74003642 Contact Us For Availability
12
Plate, Broiler MAY 74004307 Contact Us For Availability
13
Fitting, Broiler MAY 74009475 Contact Us For Availability
14
MAY 4006D128-45 MAY 4006D128-45 Contact Us For Availability
14
LINING, DOOR MAY 74011456 Contact Us For Availability
15
Sheild, Air MAY 74009497 Contact Us For Availability
16
MAY 74003388 MAY 74003388 Contact Us For Availability
16
Regulator MAY 71003638 Contact Us For Availability
17
MAY 74003387 MAY 74003387 Contact Us For Availability
17
MAY 7501P041-60 MAY 7501P041-60 Contact Us For Availability
18
FRAME, GLASS MAY 74003644 Contact Us For Availability
19
MAY 74003389 MAY 74003389 Contact Us For Availability
20
Retainer, Cover MAY 74003391 Contact Us For Availability
20
Nut, Snap (White (2)) MAY 7103P039-60 Contact Us For Availability
20
Nut, Snap (Black (2)) MAY 74001574 Contact Us For Availability
21
Baffel, Oven MAY 74001219 Contact Us For Availability
22
Strip, Bottom MAY 4005F354-70 Contact Us For Availability
24
Switch, Limit MAY 74009476 Contact Us For Availability
25
MAY 7401P037-60 MAY 7401P037-60 Contact Us For Availability
26
Box, Flute MAY 4006W117-45 Contact Us For Availability
28
MAY 74011347 MAY 74011347 Contact Us For Availability
29
MAY 74001651 MAY 74001651 Contact Us For Availability
30
MAY 74001632 MAY 74001632 Contact Us For Availability
31
MAY 74009480 MAY 74009480 Contact Us For Availability
32
Rod, Light Switch MAY 74003562 Contact Us For Availability
33
Cover, Plunger MAY 74007686 Contact Us For Availability
34
Support, Oven MAY 3807F429-51 Contact Us For Availability
35
MAY 74008264 MAY 74008264 Contact Us For Availability
36
MAY 74001742 MAY 74001742 Contact Us For Availability
37
MAY 7402P043-60 MAY 7402P043-60 Contact Us For Availability
38
MAY 4001F083-51 MAY 4001F083-51 Contact Us For Availability
39
MAY 74004450 MAY 74004450 Contact Us For Availability
40
MAY 4005F405-51 MAY 4005F405-51 Contact Us For Availability
41
MAY 74009486 MAY 74009486 Contact Us For Availability
44
MAY 7101P330-60 MAY 7101P330-60 Contact Us For Availability
45
MAY 3804F247-45 MAY 3804F247-45 Contact Us For Availability
45
Harness, Door MAY 74009491 Contact Us For Availability
45
MAY 74009495 MAY 74009495 Contact Us For Availability
NI
Wiring Diagram MAY 15003431 Contact Us For Availability
NI
Booklet, Cooking MAY 74009330 Contact Us For Availability
NI
Manual, U&C MAY 8112P214-60 Contact Us For Availability
× ![]()
