Model Maytag JGW8130DDB GAS WALL OVEN – Common Parts & Diagrams
01 - BODY
02 - CONTROL PANEL AND INTERNAL CONTROLS

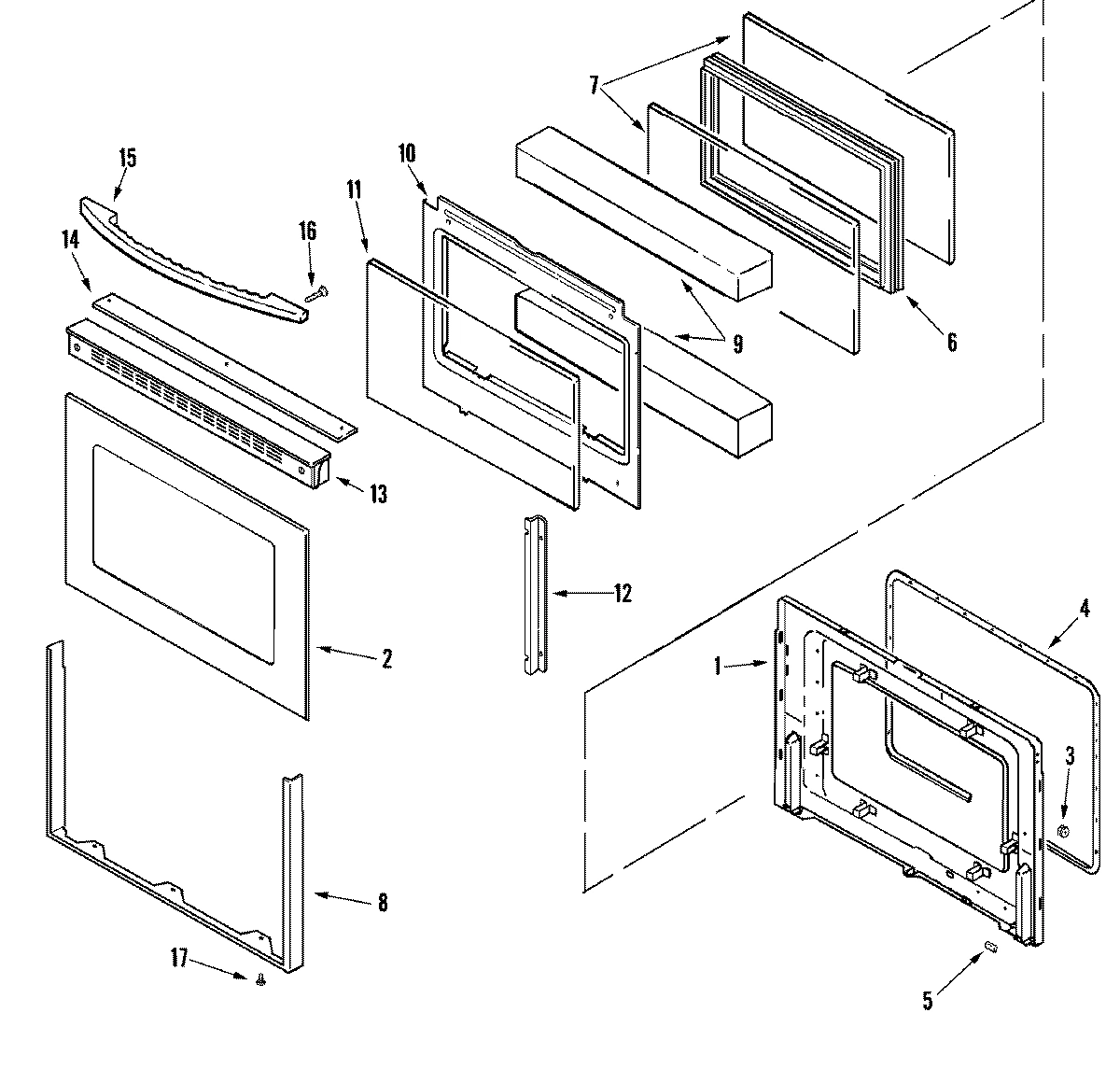

03 - DOOR

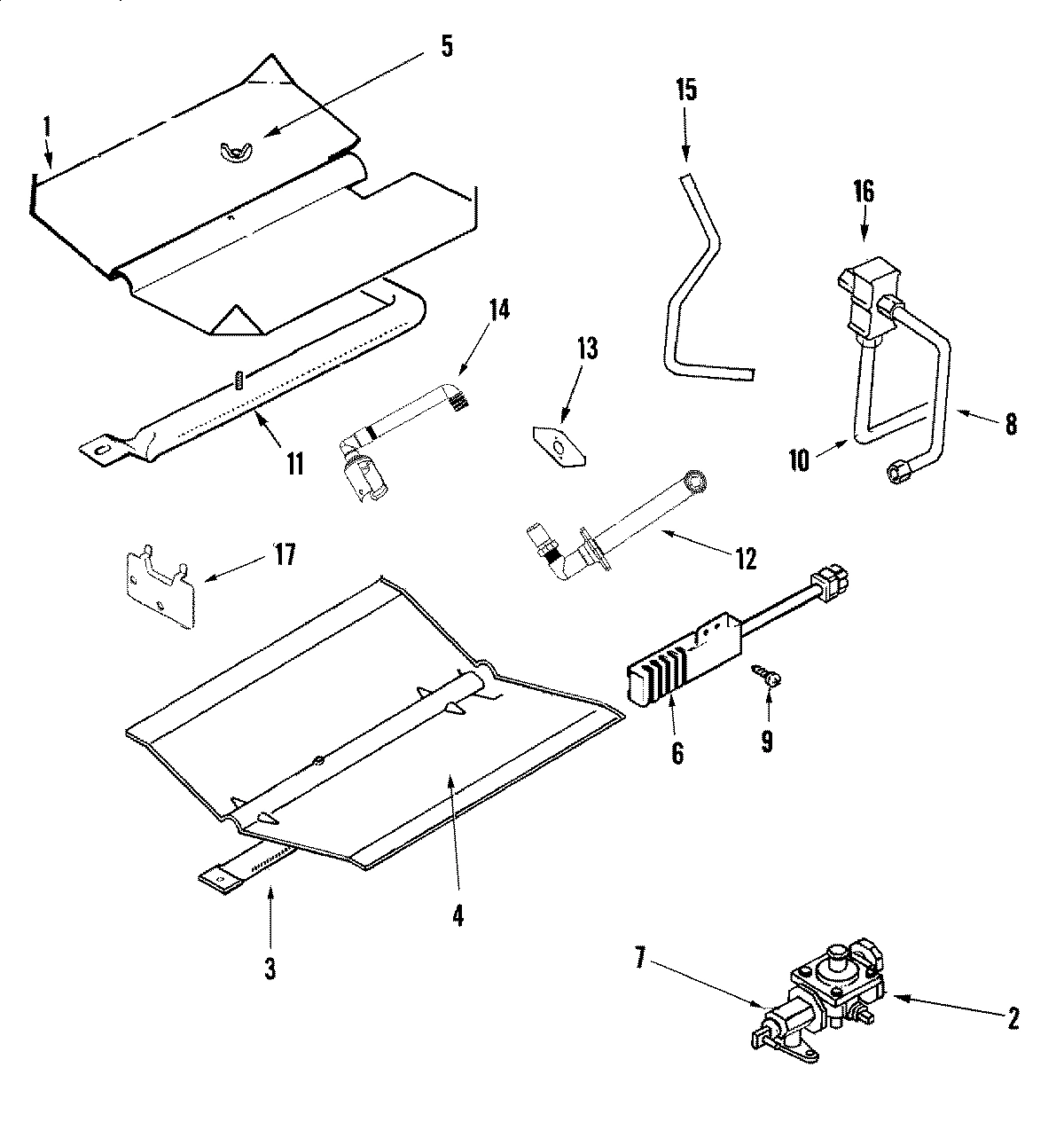

04 - GAS CONTROLS

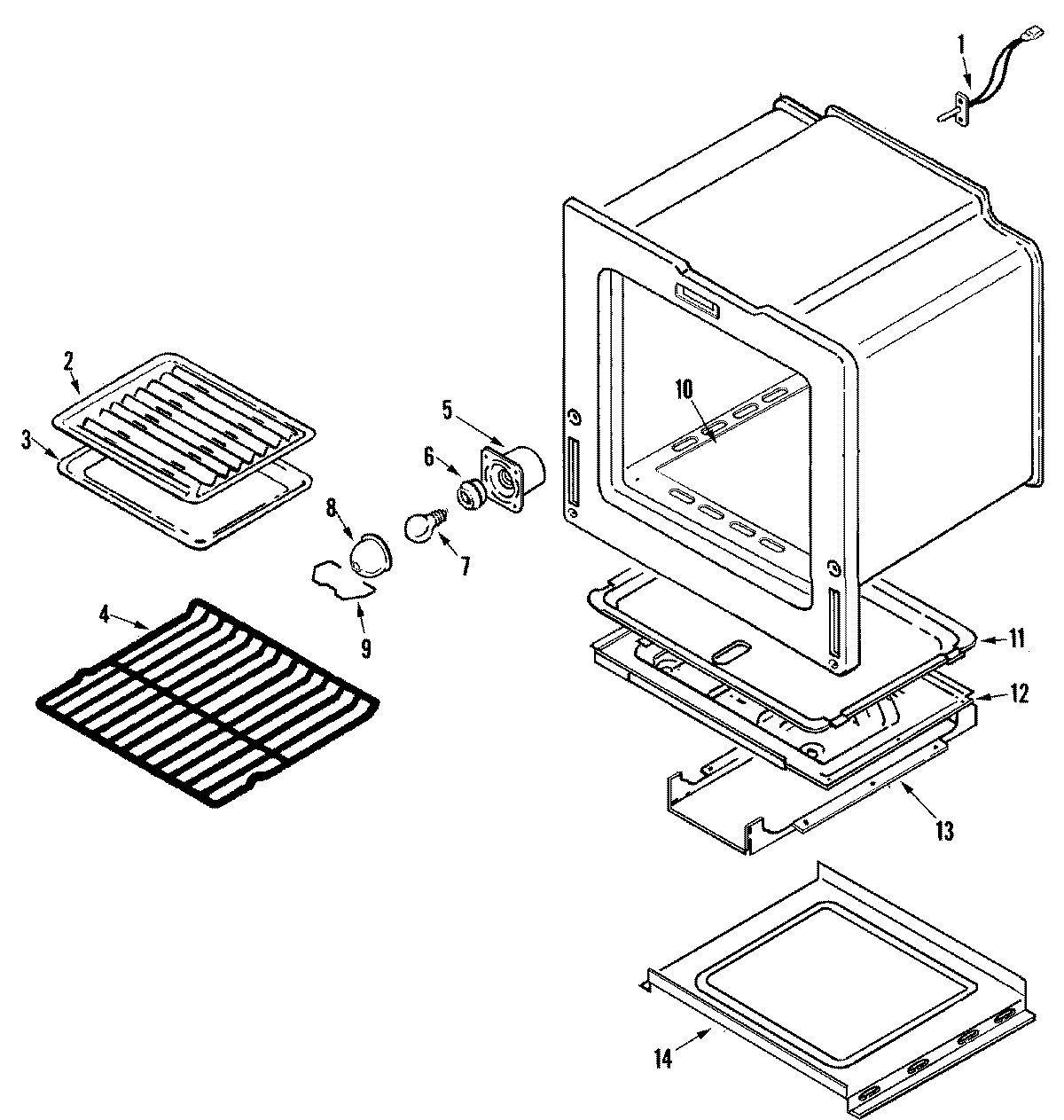

05 - OVEN/BASE
06 - SUPPLEMENTAL INFORMATION

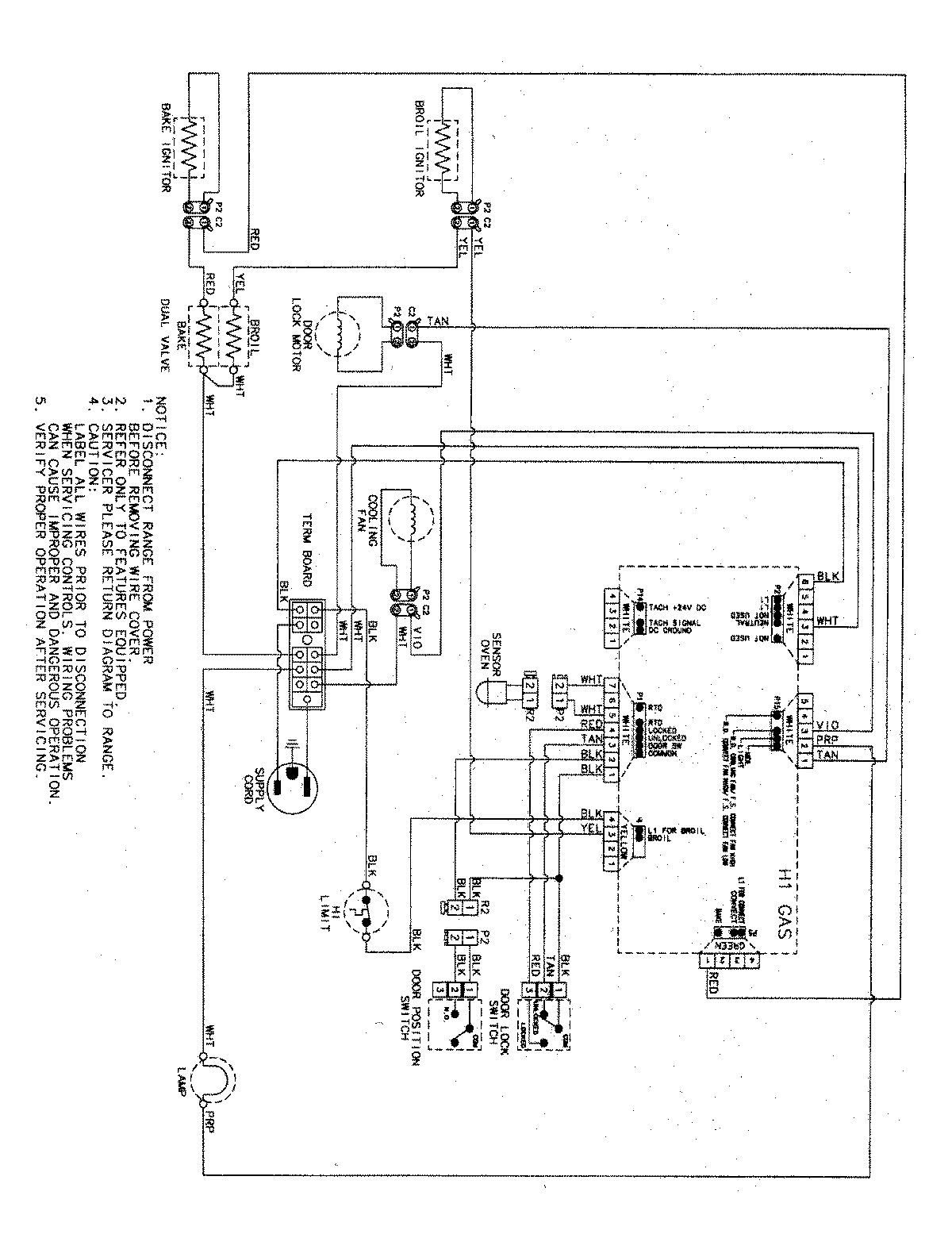

07 - WIRING INFORMATION

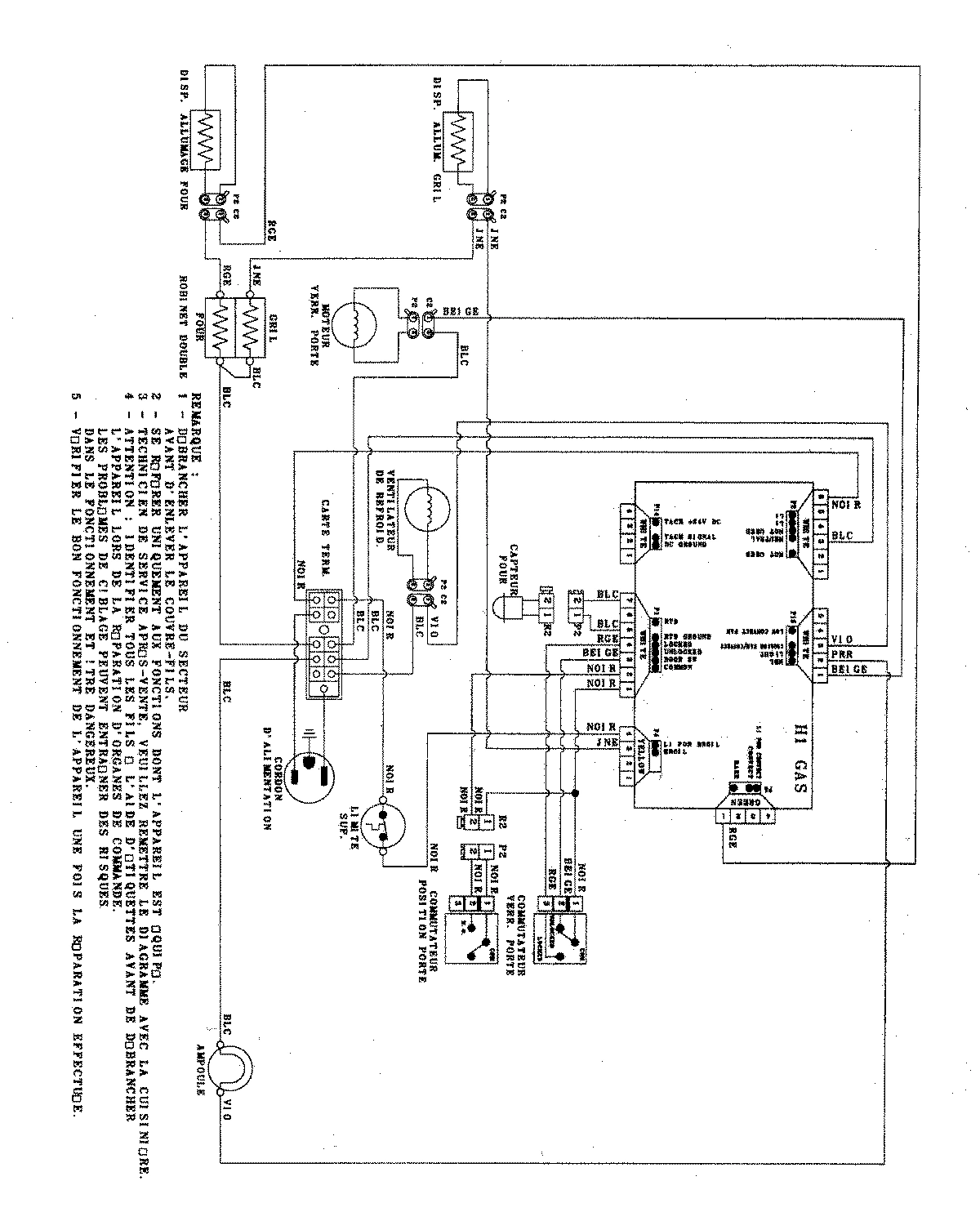

08 - WIRING INFORMATION (FRC)
Common parts from model Maytag JGW8130DDB GAS WALL OVEN
1
MAY 74003642 MAY 74003642 Contact Us For Availability
1
LINING, DOOR MAY 74011456 Contact Us For Availability
1
MAY 74009231 MAY 74009231 Contact Us For Availability
1
MAY 74009491 MAY 74009491 Contact Us For Availability
1
MAY 15003432 MAY 15003432 Contact Us For Availability
2
MAY 74009559 MAY 74009559 Contact Us For Availability
2
MAY 74009494 MAY 74009494 Contact Us For Availability
2
MAY 12002300 MAY 12002300 Contact Us For Availability
2
MAY 3801F290-51 MAY 3801F290-51 Contact Us For Availability
2
MAY 71003638 MAY 71003638 Contact Us For Availability
2
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
2
MAY 74009495 MAY 74009495 Contact Us For Availability
3
MAY 74004131 MAY 74004131 Contact Us For Availability
3
NUT, SNAP (ROUND-BLK) MAY 74001574 Contact Us For Availability
3
MAY 3807F446-45 MAY 3807F446-45 Contact Us For Availability
3
MAY 74009482 MAY 74009482 Contact Us For Availability
3
MAY 74009483 MAY 74009483 Contact Us For Availability
3
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
3
MAY 8112P214-60 MAY 8112P214-60 Contact Us For Availability
3
MAY 8112P311-60 MAY 8112P311-60 Contact Us For Availability
4
MAY 74009473 MAY 74009473 Contact Us For Availability
4
BAFFLE, OVEN BOTTOM MAY 3601F239-45 Contact Us For Availability
4
MAY 74009330 MAY 74009330 Contact Us For Availability
5
MAY 74009488 MAY 74009488 Contact Us For Availability
5
NUT, WING MAY 7103P030-60 Contact Us For Availability
5
MAY 74003388 MAY 74003388 Contact Us For Availability
6
MAY 74003387 MAY 74003387 Contact Us For Availability
6
MAY 74009496 MAY 74009496 Contact Us For Availability
6
SCREW, 8 X 1/2 MAY 74002979 Contact Us For Availability
6
FRAME, GLASS MAY 74003644 Contact Us For Availability
7
MAY 7501P041-60 MAY 7501P041-60 Contact Us For Availability
8
MAY 74009506 MAY 74009506 Contact Us For Availability
8
MAY 74003389 MAY 74003389 Contact Us For Availability
9
MAY 3604F166-45 MAY 3604F166-45 Contact Us For Availability
9
INSULATION, OVEN DOOR MAY 74003647 Contact Us For Availability
9
MAY 74003391 MAY 74003391 Contact Us For Availability
10
MAY 74009474 MAY 74009474 Contact Us For Availability
10
MAY 74009502 MAY 74009502 Contact Us For Availability
10
MAY 74009505 MAY 74009505 Contact Us For Availability
10
MAY 71001394 MAY 71001394 Contact Us For Availability
10
MAY 74002376 MAY 74002376 Contact Us For Availability
10
MAY 74002377 MAY 74002377 Contact Us For Availability
10
MAY 74002393 MAY 74002393 Contact Us For Availability
10
MAY 74011347 MAY 74011347 Contact Us For Availability
11
MAY 74009481 MAY 74009481 Contact Us For Availability
11
MAY 74009484 MAY 74009484 Contact Us For Availability
11
MAY 74009476 MAY 74009476 Contact Us For Availability
11
GLASS, DOOR MAY 74003649 Contact Us For Availability
11
MAY 74004076 MAY 74004076 Contact Us For Availability
11
MAY 74001651 MAY 74001651 Contact Us For Availability
11
MAY 74009477 MAY 74009477 Contact Us For Availability
12
BRACKET, SWITCH ACTUATOR MAY 74001632 Contact Us For Availability
12
MAY 4006W117-45 MAY 4006W117-45 Contact Us For Availability
12
MAY 74003650 MAY 74003650 Contact Us For Availability
12
MAY 74009475 MAY 74009475 Contact Us For Availability
12
MAY 74009479 MAY 74009479 Contact Us For Availability
12
RETAINER, BOTTOM INSULATION MAY 74009480 Contact Us For Availability
13
MAY 7401P037-60 MAY 7401P037-60 Contact Us For Availability
13
MAY 74004307 MAY 74004307 Contact Us For Availability
13
MAY 3807F429-51 MAY 3807F429-51 Contact Us For Availability
14
MAY 74007586 MAY 74007586 Contact Us For Availability
14
MAY 4006D128-45 MAY 4006D128-45 Contact Us For Availability
14
MAY 74009468 MAY 74009468 Contact Us For Availability
14
MAY 74001742 MAY 74001742 Contact Us For Availability
15
ROD, DOOR LIGHT SWITCH MAY 74003562 Contact Us For Availability
15
MAY 74009498 MAY 74009498 Contact Us For Availability
15
MAY 71003204 MAY 71003204 Contact Us For Availability
15
MAY 74006348 MAY 74006348 Contact Us For Availability
16
MAY 74006345 MAY 74006345 Contact Us For Availability
16
MAY 74009497 MAY 74009497 Contact Us For Availability
17
MAY 74008264 MAY 74008264 Contact Us For Availability
17
MAY 4006D101-45 MAY 4006D101-45 Contact Us For Availability
17
MAY 74004128 MAY 74004128 Contact Us For Availability
17
SUPPORT, GLASS (BLK) MAY 74009686 Contact Us For Availability
17
MAY 4005F421-45 MAY 4005F421-45 Contact Us For Availability
17
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
18
MAY 7101P330-60 MAY 7101P330-60 Contact Us For Availability
18
MAY 7101P356-60 MAY 7101P356-60 Contact Us For Availability
18
MAY 74009485 MAY 74009485 Contact Us For Availability
18
MAY 74007576 MAY 74007576 Contact Us For Availability
19
MAY 74009472 MAY 74009472 Contact Us For Availability
19
MAY 4001F083-51 MAY 4001F083-51 Contact Us For Availability
19
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
19
MAY 74009471 MAY 74009471 Contact Us For Availability
20
MAY 74004450 MAY 74004450 Contact Us For Availability
21
MAY 7402P043-60 MAY 7402P043-60 Contact Us For Availability
NI
MAY 15003431 MAY 15003431 Contact Us For Availability
× ![]()
