Model Whirlpool JGS8850ADW GAS RANGE – Common Parts & Diagrams

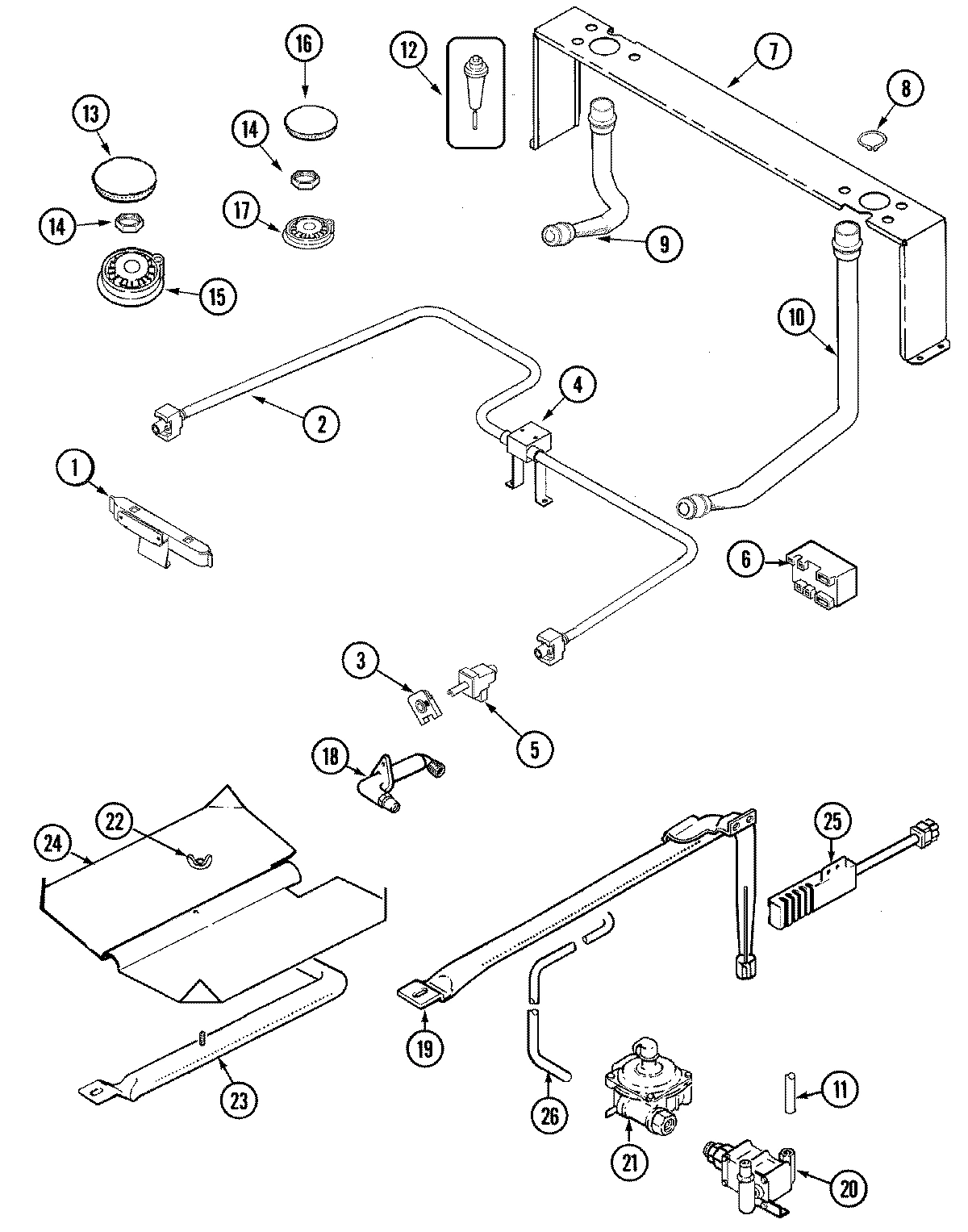

03 - GAS CONTROLS
01 - BODY
02 - DOOR/DRAWER
04 - OVEN/BASE
06 - WIRING INFORMATION
05 - TOP ASSEMBLY
Common parts from model Whirlpool JGS8850ADW GAS RANGE
1
BACK, MAIN WPL 74005721 Contact Us For Availability
1
LINING, DOOR WPL 74003642 Contact Us For Availability
1
PEDESTAL, SIDE WPL 74005772 Contact Us For Availability
1
SCREW W/WASHER WPL 71003201 Contact Us For Availability
1
CONTROL PANEL ASSY (WHT) WPL 74005740 Contact Us For Availability
2
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
2
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
2
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
2
BRACKET, CONTROL PANEL WPL 74005729 Contact Us For Availability
3
HARNESS, VALVE SWITCH (LT) WPL 74005998 Contact Us For Availability
3
INSULATOR, CONTROL WPL 74005755 Contact Us For Availability
4
SUPPORT, T-FITTING WPL 74006026 Contact Us For Availability
4
SCREW WPL 74006027 Contact Us For Availability
4
COVER, TERMINAL BLOCK WPL 74005264 Contact Us For Availability
4
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
4
NUT WPL 7103P08260 Contact Us For Availability
4
SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability
4
KNOB, VALVE (WHT) WPL 74006007 Contact Us For Availability
5
SCREW, VALVE WPL 71003231 Contact Us For Availability
5
VALVE, TOP BURNER (10.5K) WPL 74006028 Contact Us For Availability
5
VALVE, TOP BURNER (6.5) WPL 74006029 Contact Us For Availability
5
INSULATION, OVEN WRAP WPL 74005771 Contact Us For Availability
5
HARNESS, CONTROL/P9 WPL 74005873 Contact Us For Availability
5
HARNESS, SENSOR/LOCK WPL 74005874 Contact Us For Availability
5
HARNESS, CONTROL WPL 74005996 Contact Us For Availability
5
HARNESS, SENSOR/LOCK WPL 74006171 Contact Us For Availability
5
CLOCK W/HARNESS WPL 74006387 Contact Us For Availability
5
HARNESS, SENSOR LOCK LOGIC WPL 74007483 Contact Us For Availability
5
HARNESS, PEDESTAL WPL 74007484 Contact Us For Availability
5
HARNESS, MAIN WPL 74011564 Contact Us For Availability
6
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
6
FRAME, GLASS WPL 74003644 Contact Us For Availability
6
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
6
TOP, MAIN (WHT) WPL 74006002 Contact Us For Availability
7
BRACKET, VENTURI WPL 74005992 Contact Us For Availability
7
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
7
BAFFLE,VENT COVER WPL 3601F22145 Contact Us For Availability
8
RING, RETAINING WPL 74005993 Contact Us For Availability
8
SHIELD, DOOR (INR) WPL 74005761 Contact Us For Availability
8
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
8
COVER, VENT (GRAY) WPL 74006005 Contact Us For Availability
9
VENTURI, BURNER (RF) WPL 74006016 Contact Us For Availability
9
VENTURI, BURNER (LF) WPL 74006018 Contact Us For Availability
9
PLATE, HINGE WPL 74004173 Contact Us For Availability
9
INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability
9
GASKET WPL 7201P06160 Contact Us For Availability
10
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
10
VENTURI, BURNER (RR) WPL 74006017 Contact Us For Availability
10
VENTURI, BURNER (LR) WPL 74006019 Contact Us For Availability
10
EXTENSION, HEAT SHIELD WPL 74004176 Contact Us For Availability
10
EXTENSION, HEAT SHIELD WPL 74005728 Contact Us For Availability
10
BAFFLE, DOOR WPL 74003648 Contact Us For Availability
10
SUPPORT, VALVE/REGULATOR WPL 74005464 Contact Us For Availability
10
SUPPORT, CONTROL PANEL WPL 74005756 Contact Us For Availability
11
TUBING (3/8``) WPL 74004408 Contact Us For Availability
11
SHIELD, HEAT WPL 74004177 Contact Us For Availability
11
GLASS, DOOR (INR) WPL 74005774 Contact Us For Availability
11
RETAINER, BOTTOM INSULATION WPL 74004296 Contact Us For Availability
11
GRATE (GRAY) WPL 74006010 Contact Us For Availability
11
GRATE (GRAY) WPL 74006013 Contact Us For Availability
12
EXTENSION, MAIN BACK WPL 74005722 Contact Us For Availability
12
RETAINER, GLASS WPL 74003650 Contact Us For Availability
12
SHIELD, HEAT WPL 3604F20451 Contact Us For Availability
12
BRACKET, TOP SUPPORT WPL 74005877 Contact Us For Availability
13
SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability
13
CAP, BURNER (LRG-GRY) WPL 74005968 Contact Us For Availability
13
CAP, BURNER (LG-MT GRY) WPL 74007204 Contact Us For Availability
13
TRIM, DOOR (TOP-WHT) WPL 74005699 Contact Us For Availability
13
SHIELD, DRAWER WPL 3604F20551 Contact Us For Availability
13
SCREW WPL 7101P34960 Contact Us For Availability
13
SHIELD, CONTROL WPL 74005999 Contact Us For Availability
14
NUT, BURNER BASE WPL 74006032 Contact Us For Availability
14
TRIM, SIDE (WHT) WPL 74004182 Contact Us For Availability
14
INSERT, DOOR TRIM (WHT) WPL 74005703 Contact Us For Availability
14
INSULATION, OVEN WPL 74003503 Contact Us For Availability
14
GUIDE, COOKING (TRILINGUAL) WPL 74007136 Contact Us For Availability
15
LIGHT ASY, HAL0GEN WPL 74011220 Contact Us For Availability
15
BURNER, BASE (LRG) WPL 74006022 Contact Us For Availability
15
BURNER, BASE (LRG) WPL 74007186 Contact Us For Availability
15
FAN MOTOR ASY. WPL 74004947 Contact Us For Availability
15
HANDLE, DOOR (WHT) WPL 74005697 Contact Us For Availability
15
HALOGEN LAMP ASSY WPL 74005773 Contact Us For Availability
16
CAP, BURNER (SML-GRY) WPL 74005966 Contact Us For Availability
16
CAP, BURNER (MED-GRY) WPL 74005967 Contact Us For Availability
16
CAP, BURNER (SMR-MT GRY) WPL 74007192 Contact Us For Availability
16
CAP, BURNER (MED-MT GRY) WPL 74007197 Contact Us For Availability
16
BUMPER, ROD WPL 74001631 Contact Us For Availability
16
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
16
SCREW (No.10-32 X .625``) WPL 71003275 Contact Us For Availability
17
BURNER, BASE (SIM) WPL 74006020 Contact Us For Availability
17
BURNER, BASE (SM) WPL 74006021 Contact Us For Availability
17
BURNER, BASE (SIM) WPL 74007184 Contact Us For Availability
17
BURNER, BASE (SM) WPL 74007185 Contact Us For Availability
17
TRANSFORMER (STEPDOWN) WPL 74005416 Contact Us For Availability
17
SUPPORT, GLASS WPL 74005763 Contact Us For Availability
18
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
18
PLATE, BROIL FITTING WPL 74004307 Contact Us For Availability
18
FITTING, BROIL BURNER WPL 7507P08860 Contact Us For Availability
18
EXTENSION, FLUE BOX WPL 74004294 Contact Us For Availability
18
INSULATION, VENT EXTENSION WPL 74005994 Contact Us For Availability
18
TRIM, DOOR (RT-WHT) WPL 74005694 Contact Us For Availability
18
COVER, VALVE/REGULATOR WPL 74005465 Contact Us For Availability
19
SUPPORT, BURNER WPL 3807F44645 Contact Us For Availability
19
BURNER, BAKE WPL 74003960 Contact Us For Availability
19
BOX, VENT WPL 74002367 Contact Us For Availability
19
TRIM, DOOR (LT-WHT) WPL 74005696 Contact Us For Availability
19
BAFFLE, OVEN BOTTOM WPL 3601F23947 Contact Us For Availability
19
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
19
CLIP, OVEN BOTTOM WPL 74002377 Contact Us For Availability
20
VALVE, OVEN WPL 74006034 Contact Us For Availability
20
THERMOSTAT, HI LIMIT WPL 74007220 Contact Us For Availability
20
SWITCH, HI LIMIT WPL 7403P24960 Contact Us For Availability
20
GLASS, DOOR (WHT) WPL 74005717 Contact Us For Availability
20
ELEMENT, BROIL WPL 74003908 Contact Us For Availability
21
BRACKET, REGULATOR SUPPORT WPL 74007796 Contact Us For Availability
21
CORD, POWER WPL 74004438 Contact Us For Availability
21
TAPE, FOIL 29`` X 2`` WPL 74003664 Contact Us For Availability
21
BAFFLE, OVEN FRONT WPL 74001219 Contact Us For Availability
22
NUT, WING WPL 7103P03060 Contact Us For Availability
22
ASSEMBLY, DOOR LATCH WPL 74004327 Contact Us For Availability
22
ASSEMBLY, DOOR LATCH WPL 74005675 Contact Us For Availability
22
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
23
BURNER, BROIL WPL 74004076 Contact Us For Availability
23
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
23
BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability
23
DRAWER, STORAGE WPL 71003042 Contact Us For Availability
23
SCREW WPL 7101P35260 Contact Us For Availability
24
BAFFLE, BROIL BURNER WPL 3601F21747 Contact Us For Availability
24
BAFFLE, BROIL BURNER WPL 74009231 Contact Us For Availability
24
ROD, DOOR LIGHT SWITCH WPL 74003562 Contact Us For Availability
24
BLOCK, TERMINAL WPL 74006037 Contact Us For Availability
25
COVER, IGNITER WPL 4005F42145 Contact Us For Availability
25
IGNITER, OVEN WPL 7432P07560 Contact Us For Availability
25
SWITCH WPL 74001802 Contact Us For Availability
25
PANEL, DRAWER (WHT) WPL 74005691 Contact Us For Availability
26
TUBE, REGULATOR SUPPLY WPL 74006000 Contact Us For Availability
26
INSULATOR, SWITCH WPL 74001872 Contact Us For Availability
26
NUT, LOCK WPL 7103P13960 Contact Us For Availability
26
RECEPTACLE, PROBE WPL 71001863 Contact Us For Availability
26
RECEPTACLE, PROBE WPL 74009649 Contact Us For Availability
26
NUT, HEX 3/8`` WPL Y703356 Contact Us For Availability
27
HARNESS, WIRE (SPARK) WPL 74007017 Contact Us For Availability
27
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
27
SCREW WPL 7101P07260 Contact Us For Availability
27
PAN, BAKE BURNER WPL 74004465 Contact Us For Availability
28
RETAINER, INSULATION WPL 74004348 Contact Us For Availability
28
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
28
SPACER, DOOR DEHYDRATION WPL 74003639 Contact Us For Availability
28
SHIELD, FRONT FRAME (WHT) WPL 74005724 Contact Us For Availability
29
SCREW WPL 74005401 Contact Us For Availability
29
FAN ASSY. (GAS-CONVECTION) WPL 74005676 Contact Us For Availability
30
COVER, CONVECT WPL 74005783 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002820 Contact Us For Availability
× ![]()
