Model Whirlpool JGR8855BDS GAS RANGE – Common Parts & Diagrams

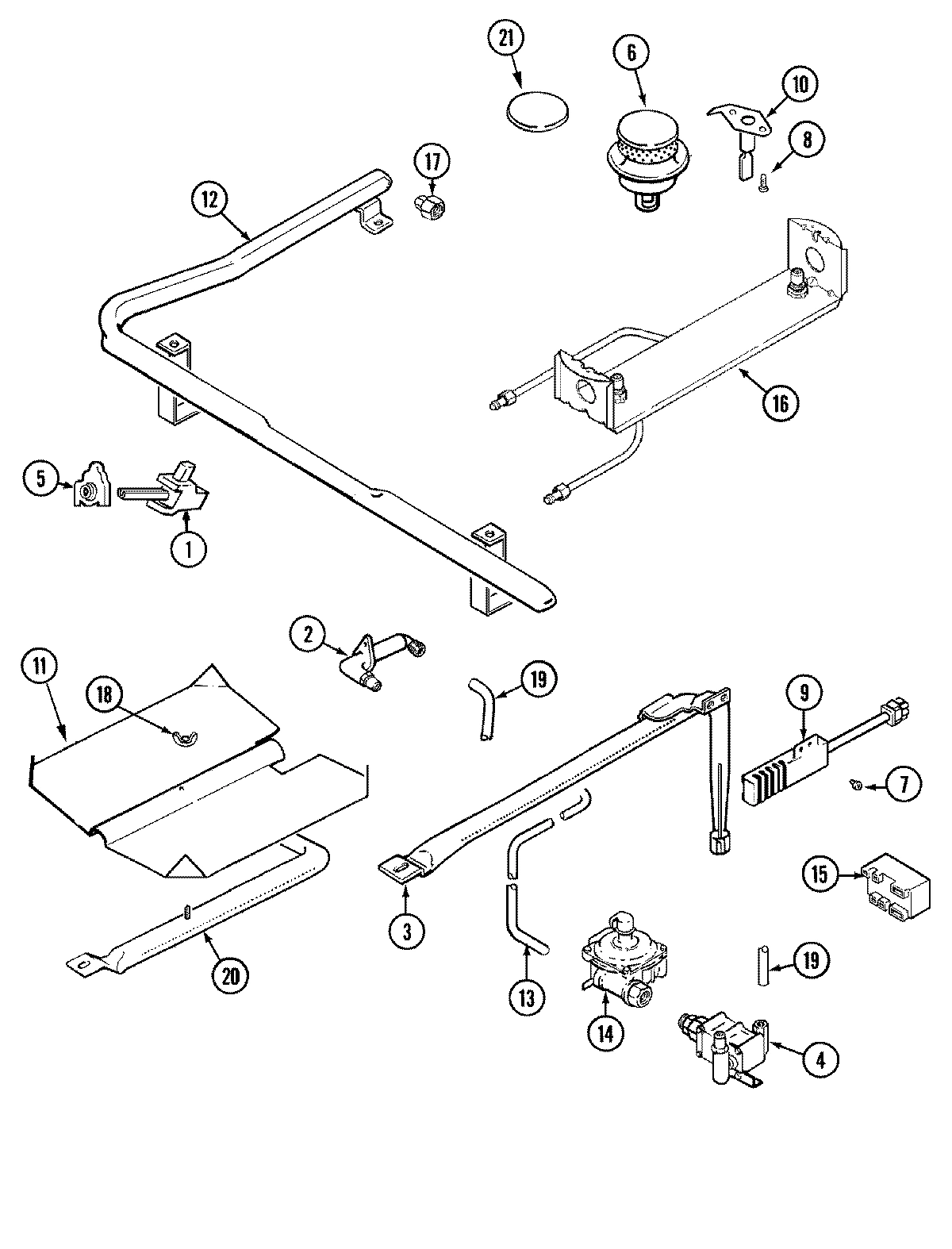

04 - GAS CONTROLS

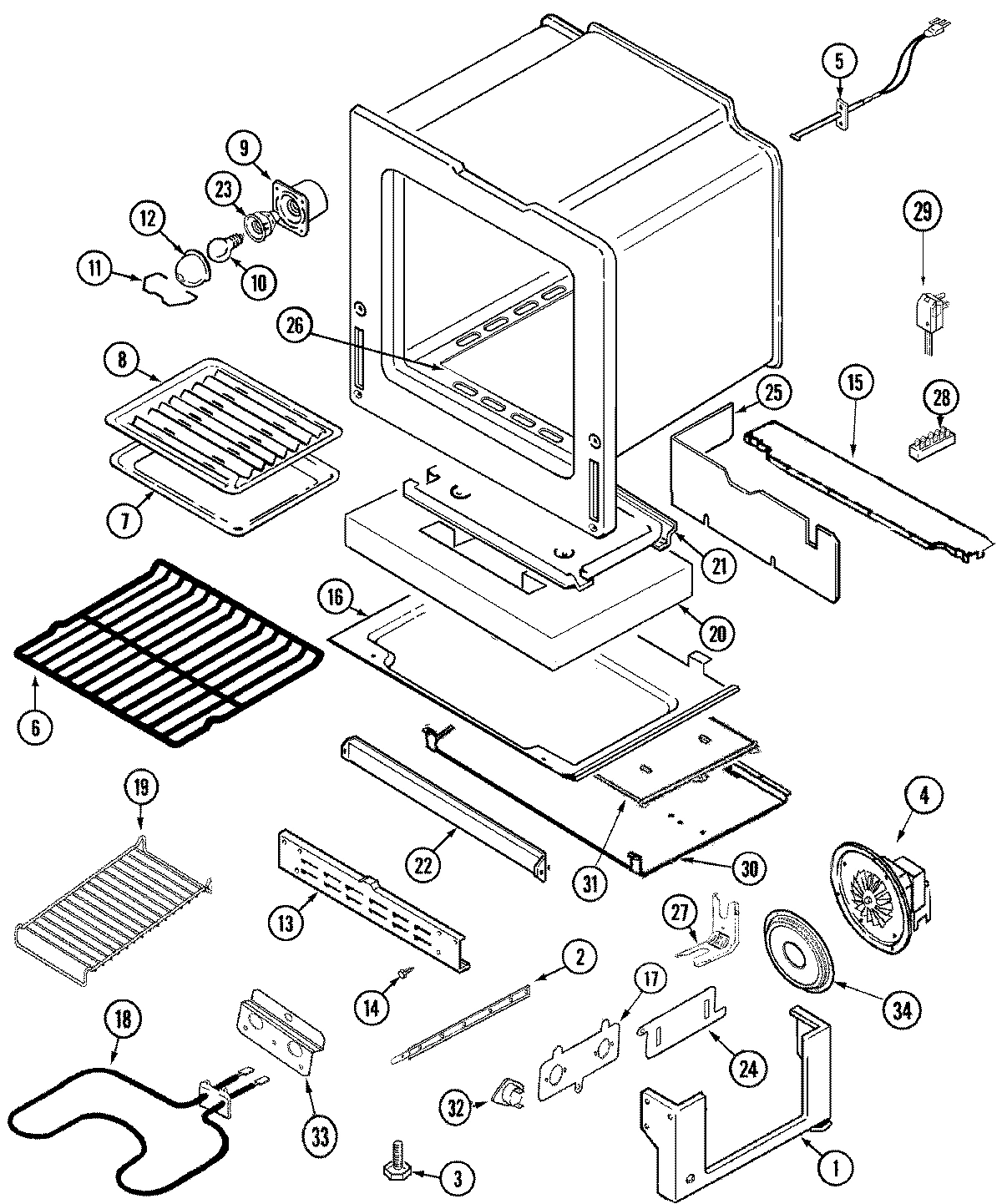

05 - OVEN/BASE

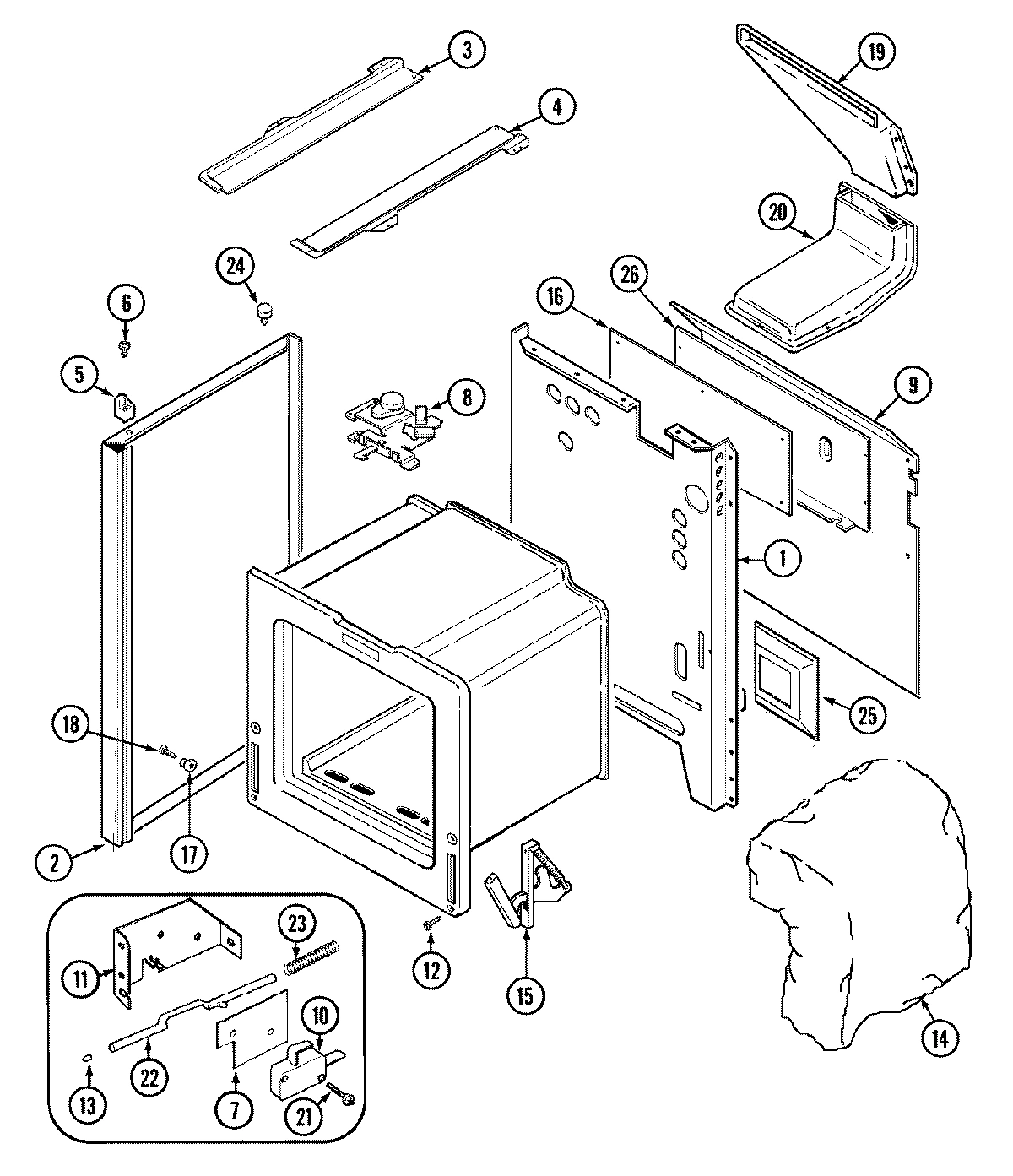

01 - BODY

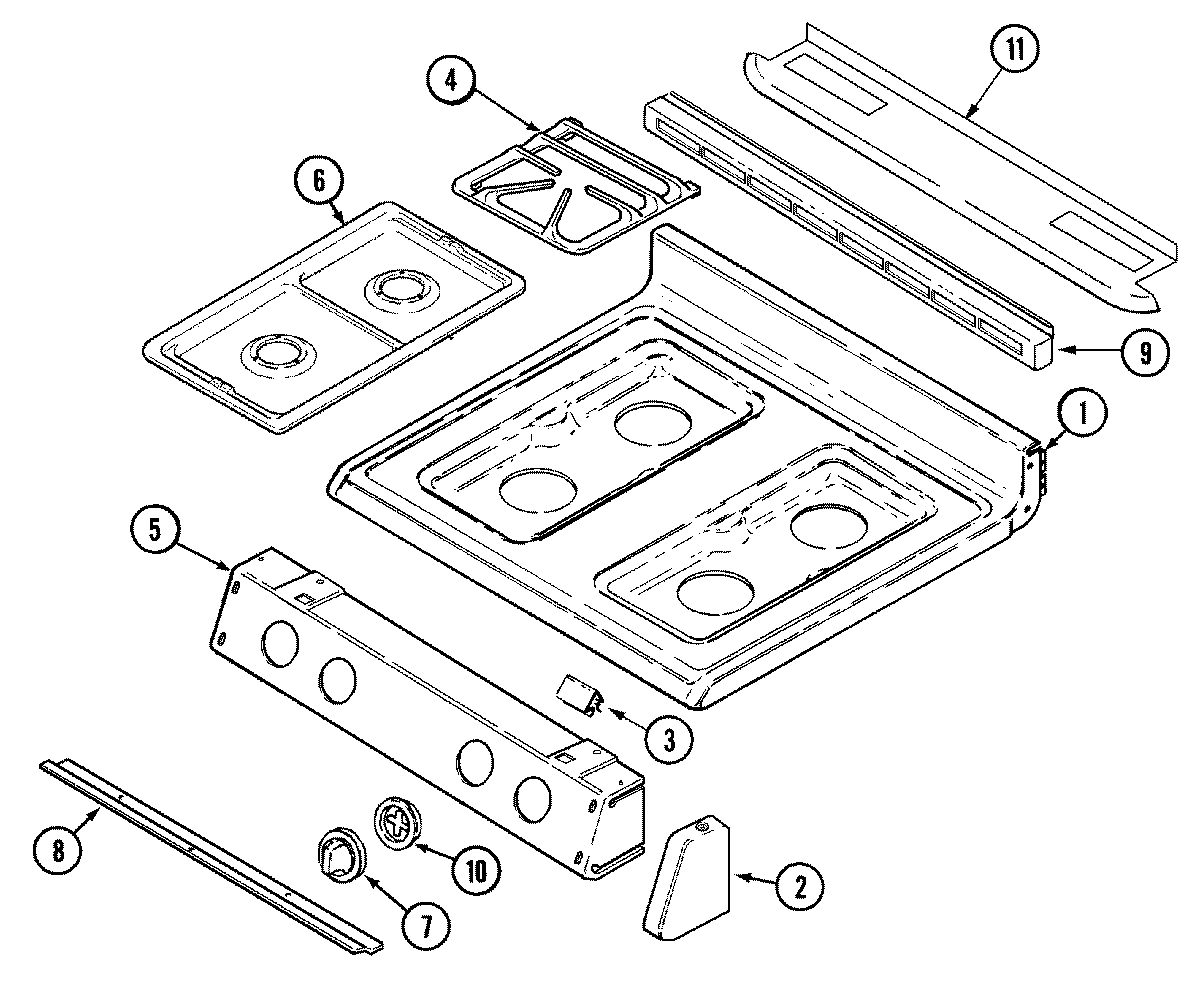

06 - TOP ASSEMBLY

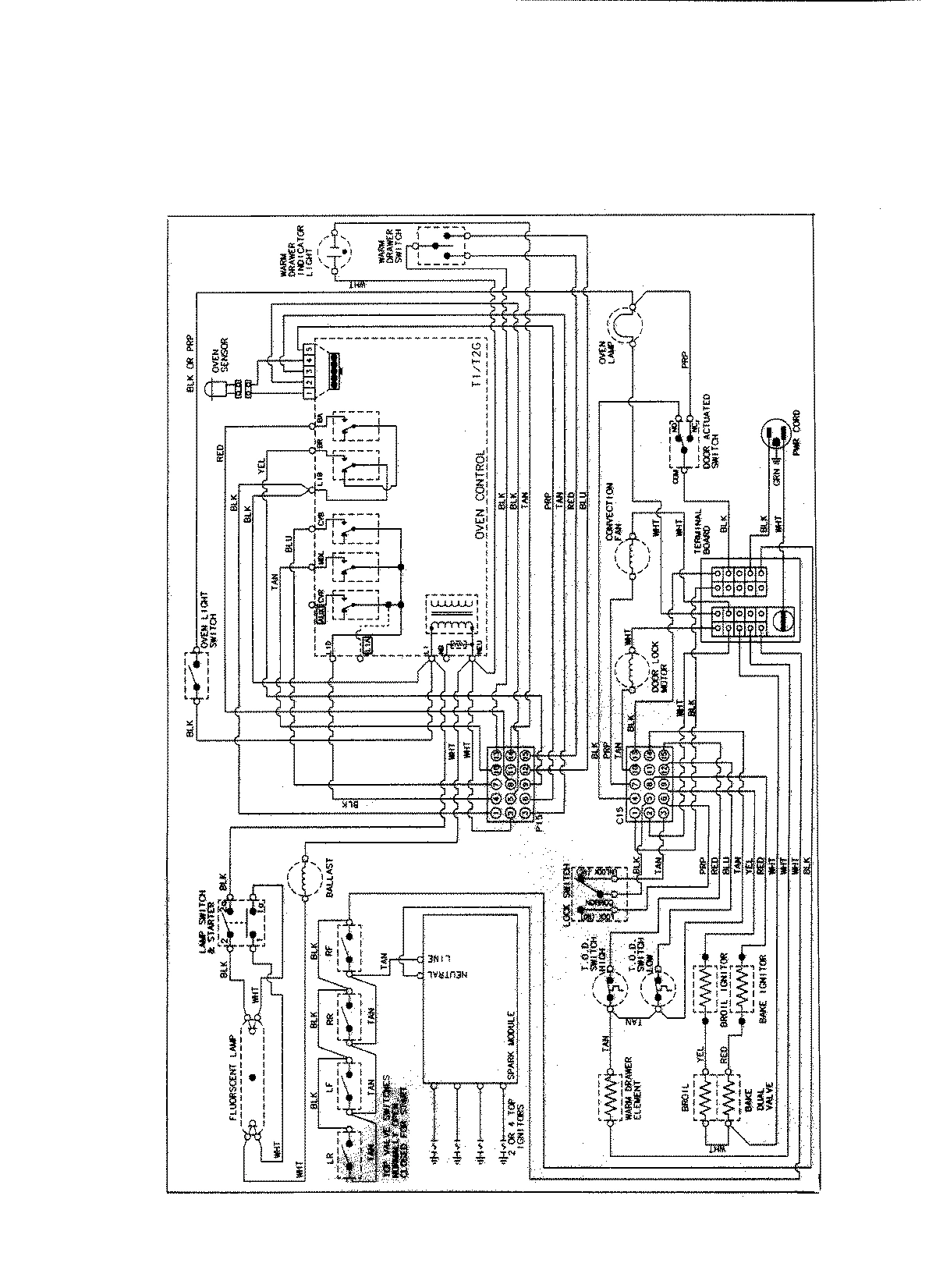

07 - WIRING INFORMATION

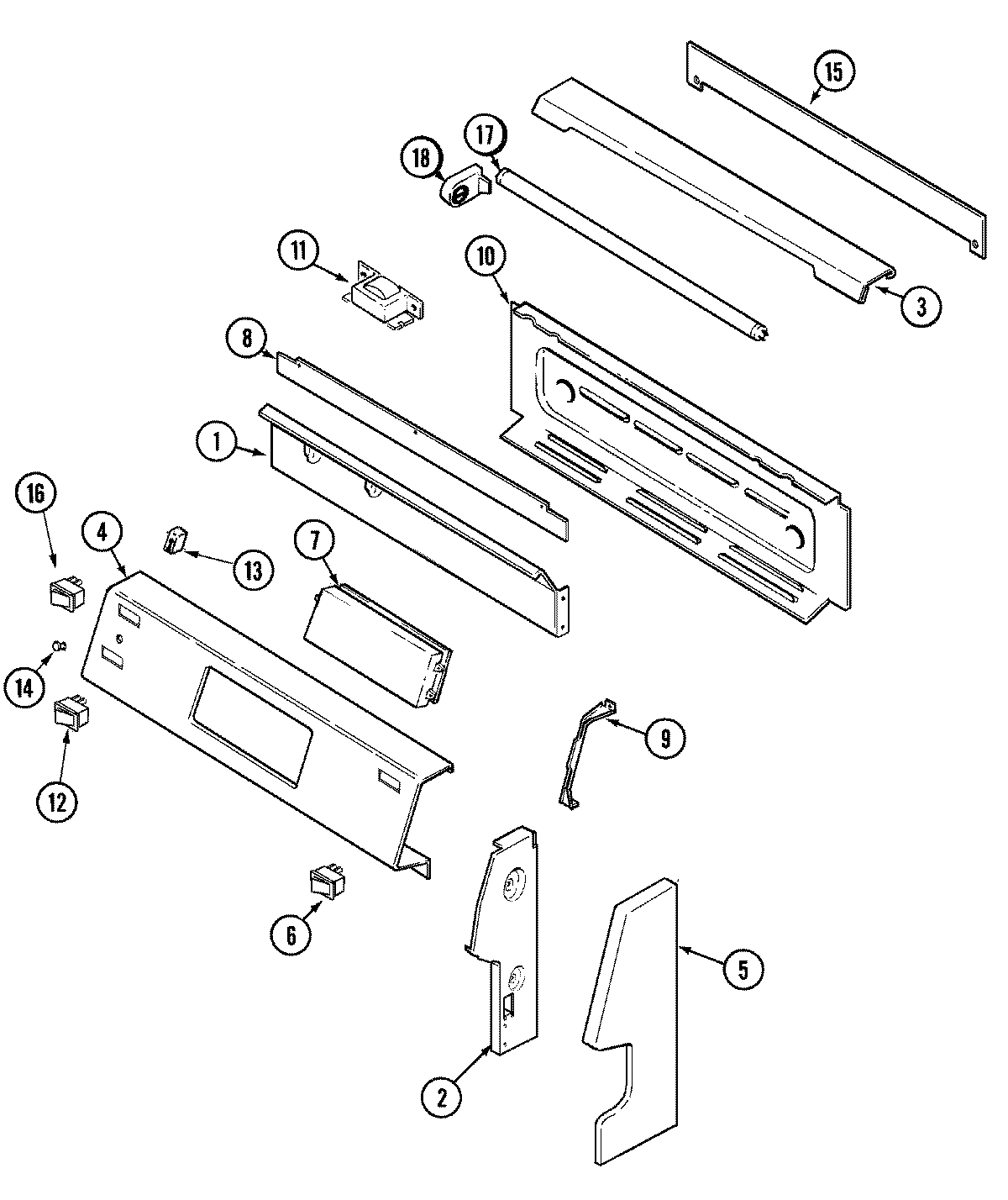

02 - CONTROL PANEL

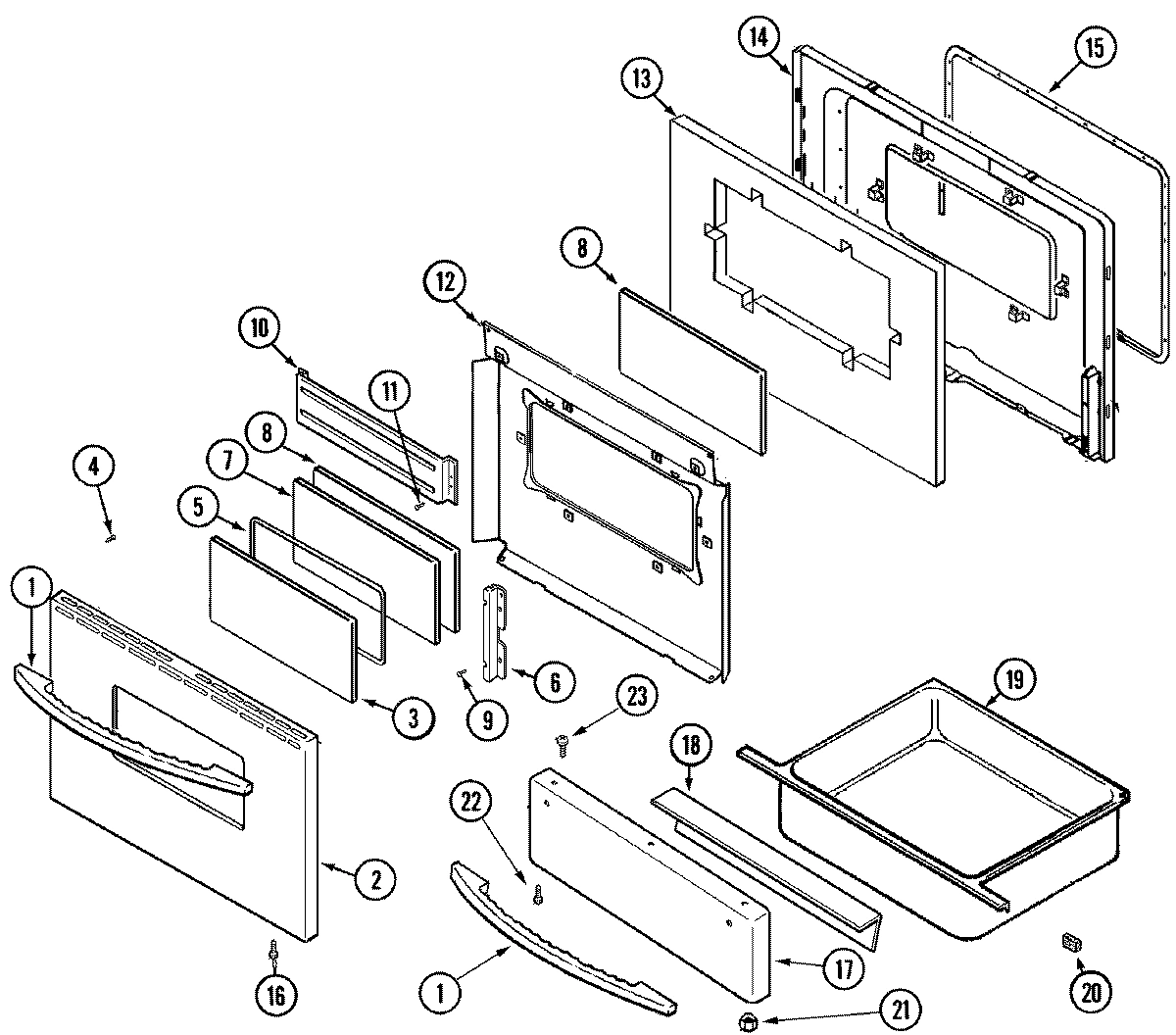

03 - DOOR/WARMING DRAWER (STL)
Common parts from model Whirlpool JGR8855BDS GAS RANGE
1
VALVE, TOP BURNER WPL 74004409 Contact Us For Availability
1
PEDESTAL, SIDE WPL 74005772 Contact Us For Availability
1
BACK, MAIN WPL 74006549 Contact Us For Availability
1
TOP, MAIN (BLK) WPL 71003047 Contact Us For Availability
1
SHIELD, VENT DEFLECTOR WPL 74003488 Contact Us For Availability
1
WASHER WPL 7109P03660 Contact Us For Availability
1
HANDLE, DOOR (BLK) WPL 74006704 Contact Us For Availability
2
PLATE, BROIL FITTING WPL 74004307 Contact Us For Availability
2
FITTING, BROIL BURNER WPL 74006421 Contact Us For Availability
2
TAPE 29.5`` WPL 4870F00560 Contact Us For Availability
2
PANEL, SIDE (BLK) WPL 74003283 Contact Us For Availability
2
END CAP, PANEL (RT-BLK) WPL 74003497 Contact Us For Availability
2
END CAP, PANEL (LT-BLK) WPL 74003498 Contact Us For Availability
2
BRACKET, CONTROL PANEL (LT) WPL 74003489 Contact Us For Availability
2
BRACKET, CONTROL PANEL (RT) WPL 74003490 Contact Us For Availability
2
PANEL, DOOR (STL) WPL 74006580 Contact Us For Availability
3
SUPPORT, BURNER WPL 3807F44645 Contact Us For Availability
3
BURNER, BAKE WPL 74003960 Contact Us For Availability
3
BOX, BURNER (LT) WPL 74002633 Contact Us For Availability
3
CLIP, TOP LOCKING WPL 74004827 Contact Us For Availability
3
COVER, LIGHT (BLK) WPL 74003573 Contact Us For Availability
3
GLASS, OUTER DOOR (BLK) WPL 74001072 Contact Us For Availability
4
FAN ASSY. (GAS-CONVECTION) WPL 74005676 Contact Us For Availability
4
BOX, BURNER (RT) WPL 74002632 Contact Us For Availability
4
GRATE (BLK) WPL 71003048 Contact Us For Availability
4
PANEL, CONTROL (STL) WPL 74006707 Contact Us For Availability
4
WASHER (1``) WPL 74001521 Contact Us For Availability
5
SWITCH, IGNITER WPL 74002533 Contact Us For Availability
5
SWITCH, IGNITER WPL 7403P27960 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SCREW WPL 7101P07460 Contact Us For Availability
5
MANIFOLD, PANEL (STL) WPL 74006708 Contact Us For Availability
5
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
5
SCREW (1 3/16``-BLK) WPL 74002432 Contact Us For Availability
5
END CAP, CONTROL PNL (RT-BLK) WPL 74003574 Contact Us For Availability
5
END CAP, CONTROL PNL (LT-BLK) WPL 74003575 Contact Us For Availability
5
GASKET, WINDOW WPL 790058 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
BOWL, DRIP (DBL-BLK) WPL 74003186 Contact Us For Availability
6
SWITCH, ROCKER (BLK) WPL 74003363 Contact Us For Availability
6
RETAINER, GLASS WPL 74003048 Contact Us For Availability
7
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
7
INSULATOR, SWITCH WPL 74001872 Contact Us For Availability
7
KNOB, VALVE (BLK) WPL 74005765 Contact Us For Availability
7
CLOCK W/OVERLAY (BLK) WPL 74006227 Contact Us For Availability
7
GLASS, INNER WPL 74002002 Contact Us For Availability
8
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
8
INSULATION, LATCH WPL 74003560 Contact Us For Availability
8
DOOR LOCK MOTOR ASSY. WPL 74005575 Contact Us For Availability
8
RETAINER, INSULATION WPL 74006400 Contact Us For Availability
8
SHIELD, SIGHT WPL 74002447 Contact Us For Availability
8
SHIELD, SIGHT WPL 8036P00360 Contact Us For Availability
8
GLASS, INNER WPL 74003320 Contact Us For Availability
9
COVER, IGNITER WPL 4005F42145 Contact Us For Availability
9
IGNITER, OVEN WPL 7432P07560 Contact Us For Availability
9
HOUSING, BULB WPL 74003388 Contact Us For Availability
9
COVER, MAIN BACK (WIRE) WPL 74003816 Contact Us For Availability
9
TRIM, VENT (BLK) WPL 74003501 Contact Us For Availability
9
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
9
BRACKET, CLOCK WPL 74003550 Contact Us For Availability
10
IGNITER WPL 74004410 Contact Us For Availability
10
BULB-OVEN WPL 7407P10360 Contact Us For Availability
10
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
10
SWITCH WPL 74001802 Contact Us For Availability
10
BEZEL, KNOB (BLK) WPL 74002052 Contact Us For Availability
10
BEZEL, KNOB (BLK) WPL 74005767 Contact Us For Availability
10
HOUSING, CONTROL PANEL WPL 74004963 Contact Us For Availability
10
COVER, WIRE (2 5/8`` X 2) WPL 74006536 Contact Us For Availability
10
BAFFLE, DOOR (SECONDARY) WPL 74005458 Contact Us For Availability
11
BAFFLE, BROIL BURNER WPL 3601F21747 Contact Us For Availability
11
BAFFLE, BROIL BURNER WPL 74009231 Contact Us For Availability
11
RETAINER, BULB COVER WPL 74003391 Contact Us For Availability
11
BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability
11
SHIELD, HEAT (BLK) WPL 74002199 Contact Us For Availability
11
BALLAST WPL 74003033 Contact Us For Availability
12
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
12
PIPE, MANIFOLD WPL 74006422 Contact Us For Availability
12
COVER, BULB WPL 74003389 Contact Us For Availability
12
SWITCH, ROCKER (BLK) WPL 74006701 Contact Us For Availability
12
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
13
TUBING, REGULATOR/PIPE(3/8``) WPL 74006428 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
13
BUMPER, ROD WPL 74001631 Contact Us For Availability
13
INSULATION, DOOR WPL 74001842 Contact Us For Availability
13
INSULATION, OVEN DOOR WPL 74006596 Contact Us For Availability
14
INSULATION, OVEN WPL 74003503 Contact Us For Availability
14
STRAP, INSULATION WPL 74003385 Contact Us For Availability
14
INSULATION, OVEN WRAP WPL 74005771 Contact Us For Availability
14
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
14
LINING, OVEN DOOR WPL 74004972 Contact Us For Availability
15
SUPPORT, VALVE REGULATOR WPL 74006324 Contact Us For Availability
15
SHIELD, LIGHT WPL 74003558 Contact Us For Availability
15
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
16
FITTING ASSY., ORIFICE (LT) WPL 74006682 Contact Us For Availability
16
RETAINER, BOTTOM INSULATION WPL 74004296 Contact Us For Availability
16
SHIELD, FLUE (LOWER) WPL 3604F16551 Contact Us For Availability
16
SWITCH, FLRSCENT LIGHT (BLK) WPL 74003571 Contact Us For Availability
17
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
17
PLATE, SWITCH MOUNTING WPL 74006575 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
17
BULB, FLUORESCENT LI WPL 7407P03760 Contact Us For Availability
17
PANEL, DRAWER (STL) WPL 74006689 Contact Us For Availability
18
NUT, WING WPL 7103P03060 Contact Us For Availability
18
ELEMENT, WARMER WPL 74005789 Contact Us For Availability
18
CLIP, WARMING ELEMENT WPL 74006592 Contact Us For Availability
18
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
18
RECEPTACLE, SNAP-IN (LT) WPL 7408P03060 Contact Us For Availability
18
LINING, WARMING DRAWER WPL 74006676 Contact Us For Availability
19
3/8`` NUT & FERRULE WPL 1555258K Contact Us For Availability
19
TUBING, BROIL FITTING WPL 74006430 Contact Us For Availability
19
RACK, WARMING WPL 74006573 Contact Us For Availability
19
EXTENSION, FLUE BOX WPL 4022W00719 Contact Us For Availability
19
GUIDE, COOKING (TRILINGUAL) WPL 74005475 Contact Us For Availability
19
MANUAL, USE & CARE WPL 74005921 Contact Us For Availability
19
DRAWER, WARMING ASSY. WPL 74006595 Contact Us For Availability
19
DRAWER, WARMING ASY. WPL 74008334 Contact Us For Availability
20
BURNER, BROIL WPL 74004076 Contact Us For Availability
20
BOX, VENT WPL 74006420 Contact Us For Availability
20
MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability
20
SEAL, DOOR PANEL WPL 7208P00960 Contact Us For Availability
21
HARNESS, WIRE (SPARK,WARM DRW) WPL 74006693 Contact Us For Availability
21
PAN, BAKE BURNER WPL 74004465 Contact Us For Availability
21
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
21
WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability
21
HARNESS, VALVE SWITCH/BBB WPL 74006516 Contact Us For Availability
21
HARNESS, BACKGUARD WPL 74006709 Contact Us For Availability
21
HARNESS, PEDESTAL WPL 74006710 Contact Us For Availability
21
NUT, LOCK WPL 7103P13960 Contact Us For Availability
22
NOT REQUIRED PART OR SEE NOTE LP CONVERSION K WPL W10124350 Contact Us For Availability
22
BAFFLE, OVEN FRONT WPL 74001219 Contact Us For Availability
22
ROD, DOOR LIGHT SWITCH WPL 74003562 Contact Us For Availability
23
SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability
23
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
23
SCREW WPL 7101P35660 Contact Us For Availability
24
PLATE, SPARK MODULE MOUNTING WPL 74006681 Contact Us For Availability
24
SPACER, MAIN TOP WPL 74001428 Contact Us For Availability
25
COVER, BURNER VALVE WPL 74006679 Contact Us For Availability
25
RETAINER, INSULATION (CONVECT) WPL 74005498 Contact Us For Availability
26
BAFFLE, OVEN BOTTOM WPL 3601F23947 Contact Us For Availability
26
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
26
COVER, CONVECT WIRE WPL 74002598 Contact Us For Availability
27
SCREW WPL 7101P35260 Contact Us For Availability
28
BLOCK, TERMINAL WPL 74006037 Contact Us For Availability
29
CORD, POWER WPL 74004438 Contact Us For Availability
29
GROMMET WPL 8008P01060 Contact Us For Availability
30
SHIELD, WARMING DRAWER WPL 74006591 Contact Us For Availability
30
SCREW, WARM DRAWER RETAINER WPL 74006677 Contact Us For Availability
31
INSULATION, DRAWER & SHIELD WPL 7002P14060 Contact Us For Availability
31
SHIELD, HEAT POUCH WPL 74006574 Contact Us For Availability
32
SWITCH, HI-LIMIT (ELEC/DRAWER) WPL 74006587 Contact Us For Availability
32
SWITCH, HI-LIMIT (GAS/DRAWER) WPL 74006586 Contact Us For Availability
33
SUPPORT, ELEMENT (REAR) WPL 74006576 Contact Us For Availability
34
SCREW WPL 74005401 Contact Us For Availability
34
COVER, CONVECT WPL 74005783 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002892 Contact Us For Availability
× ![]()
