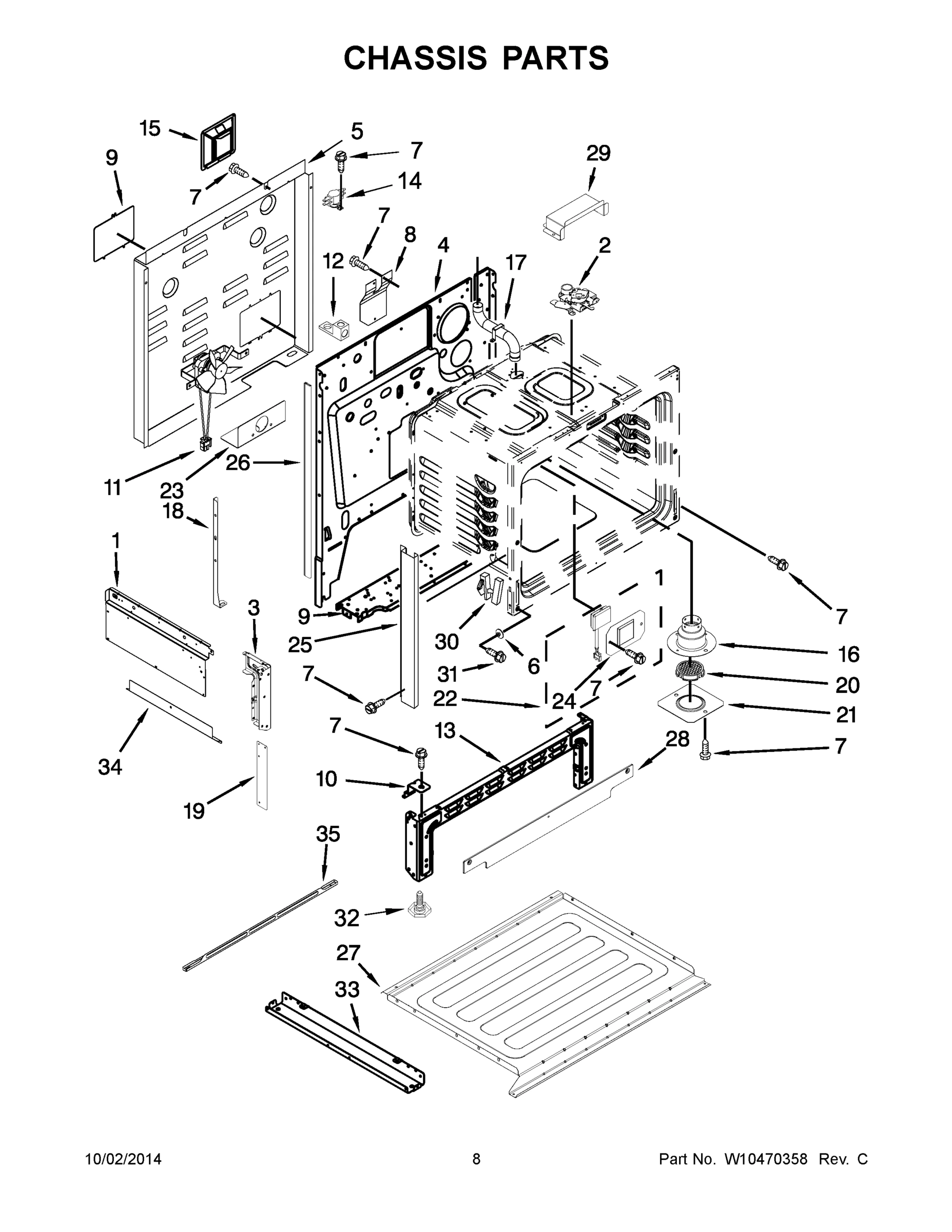

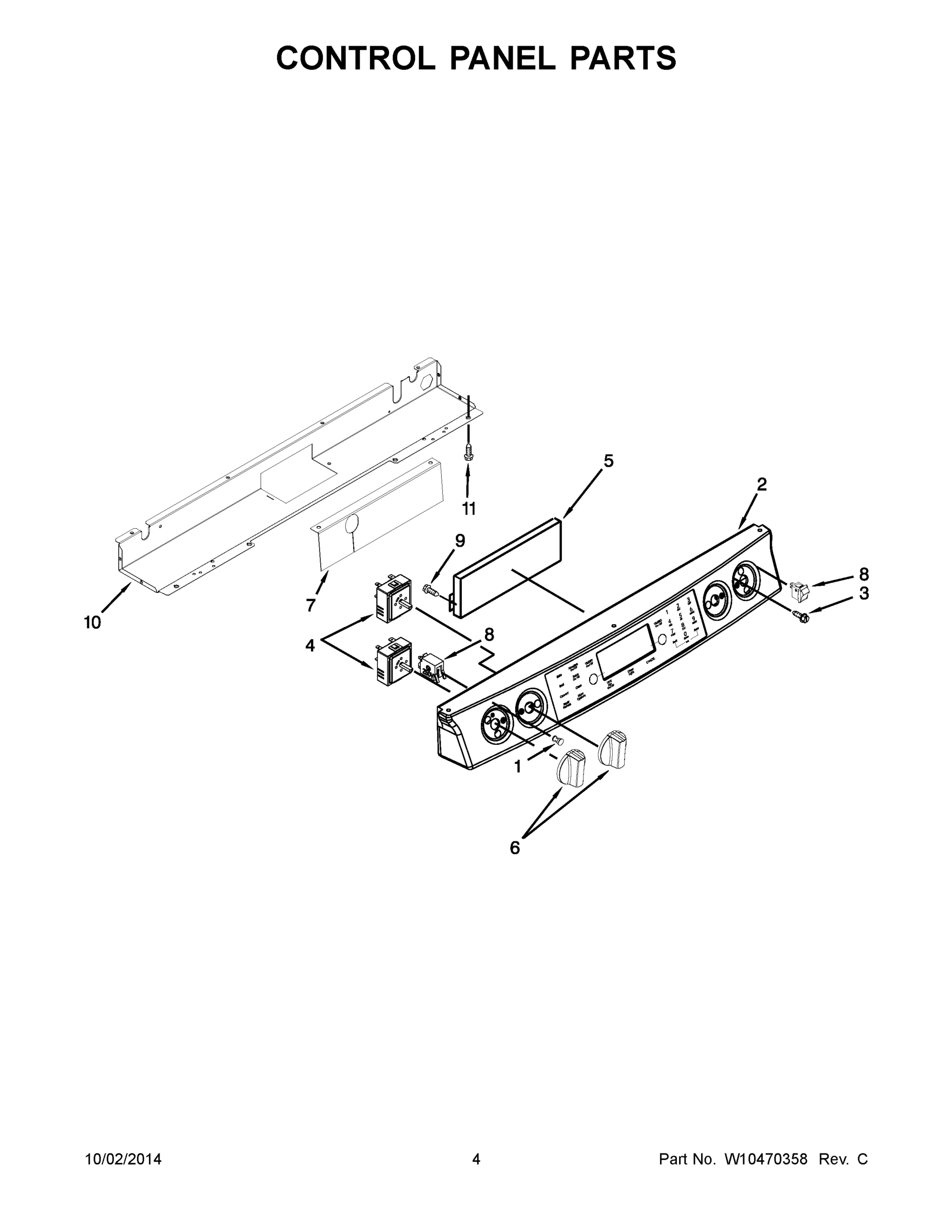

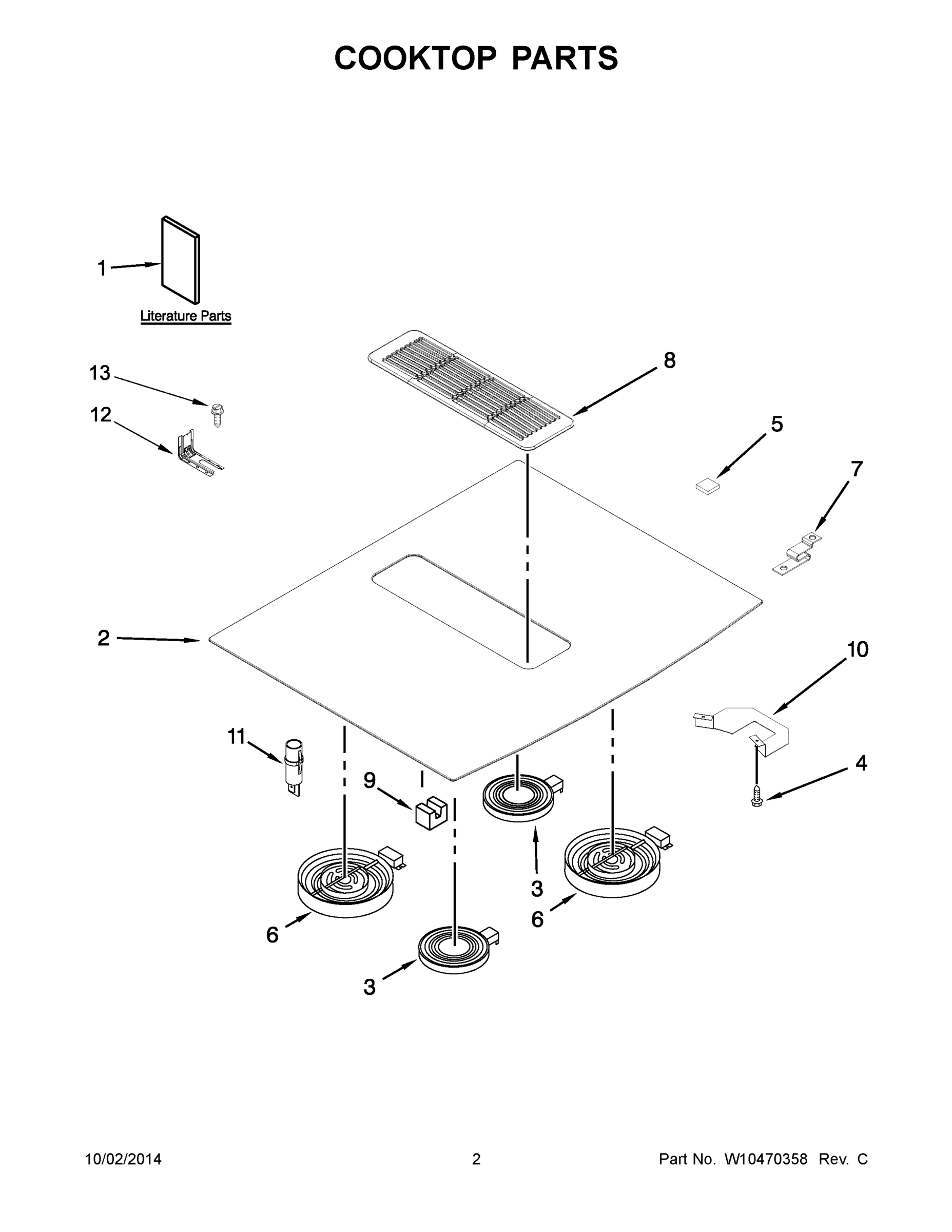

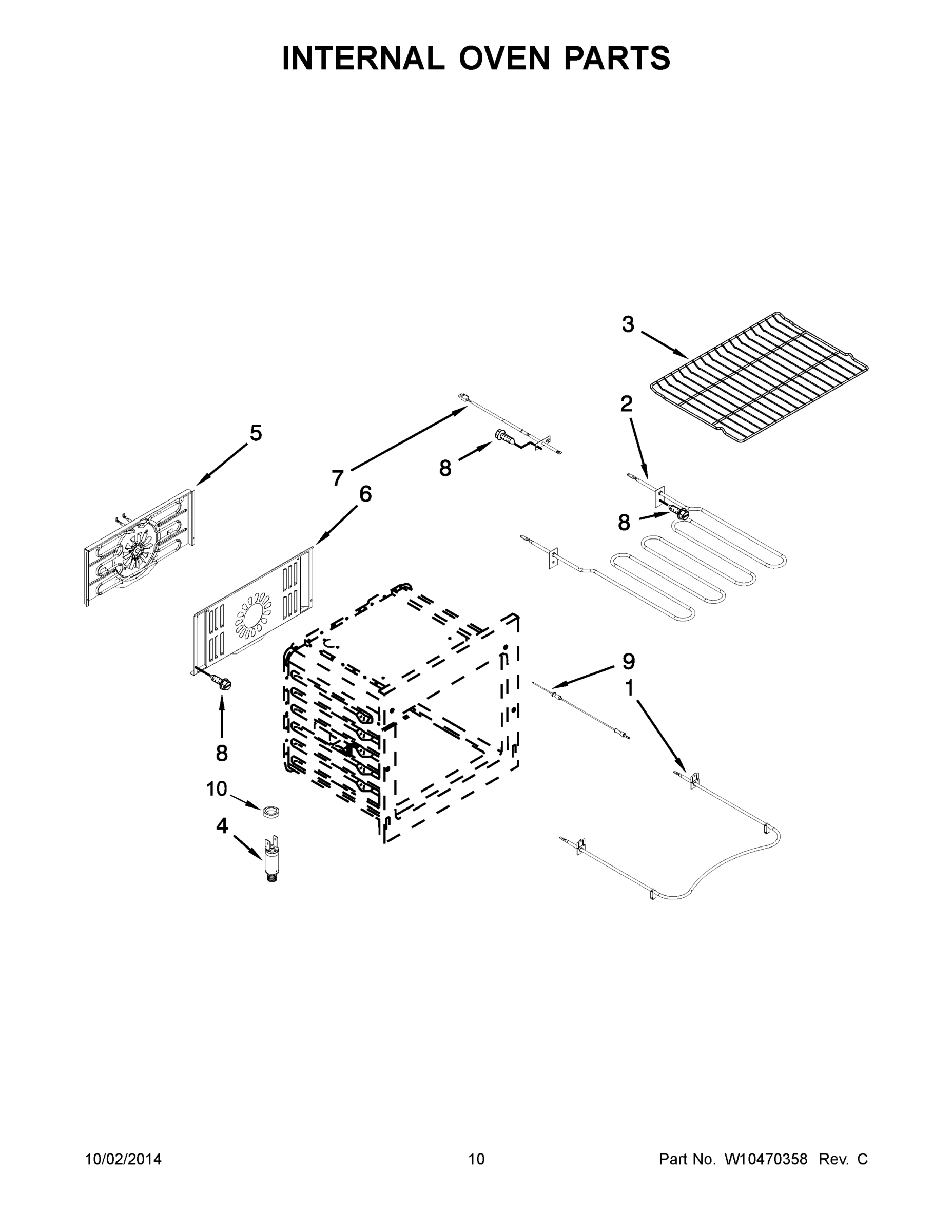

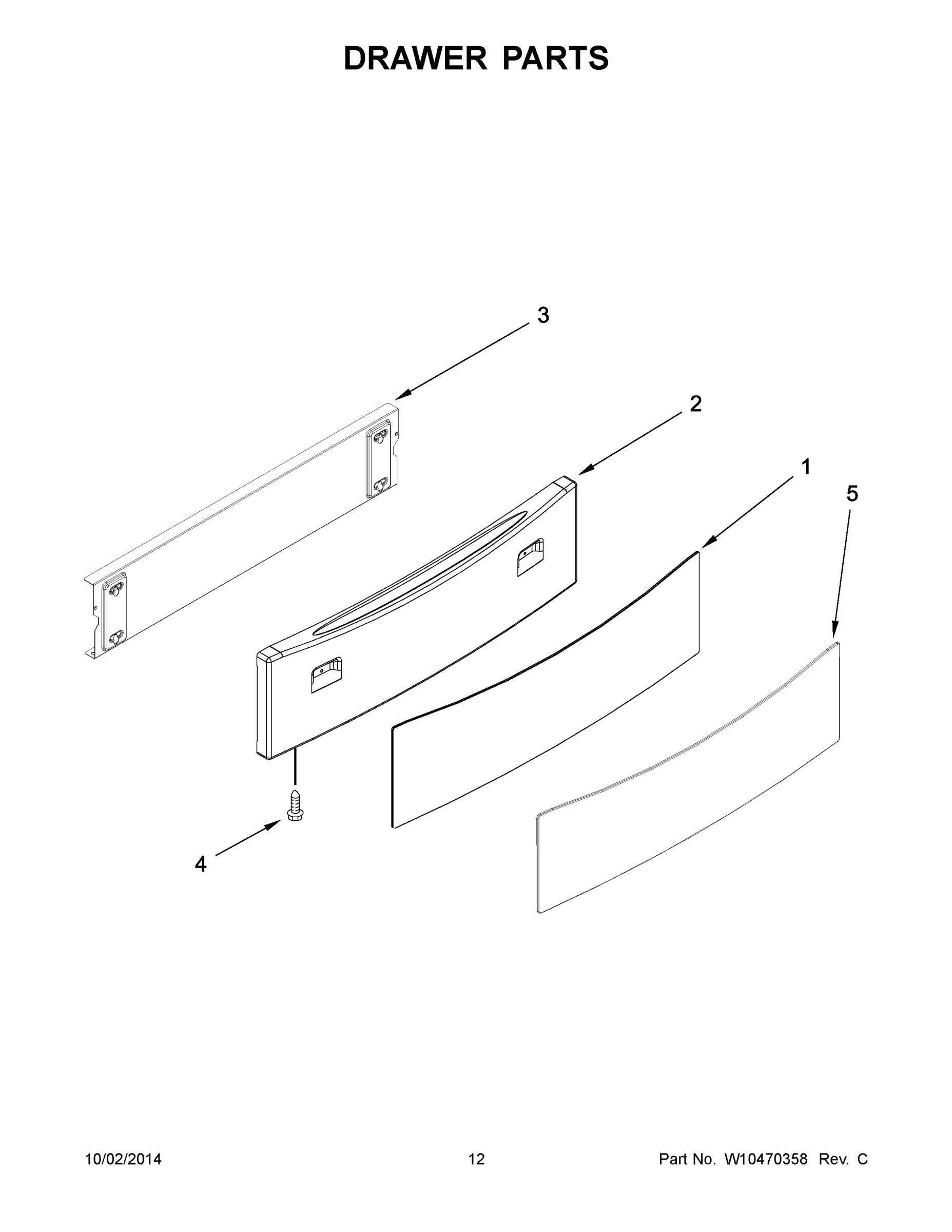

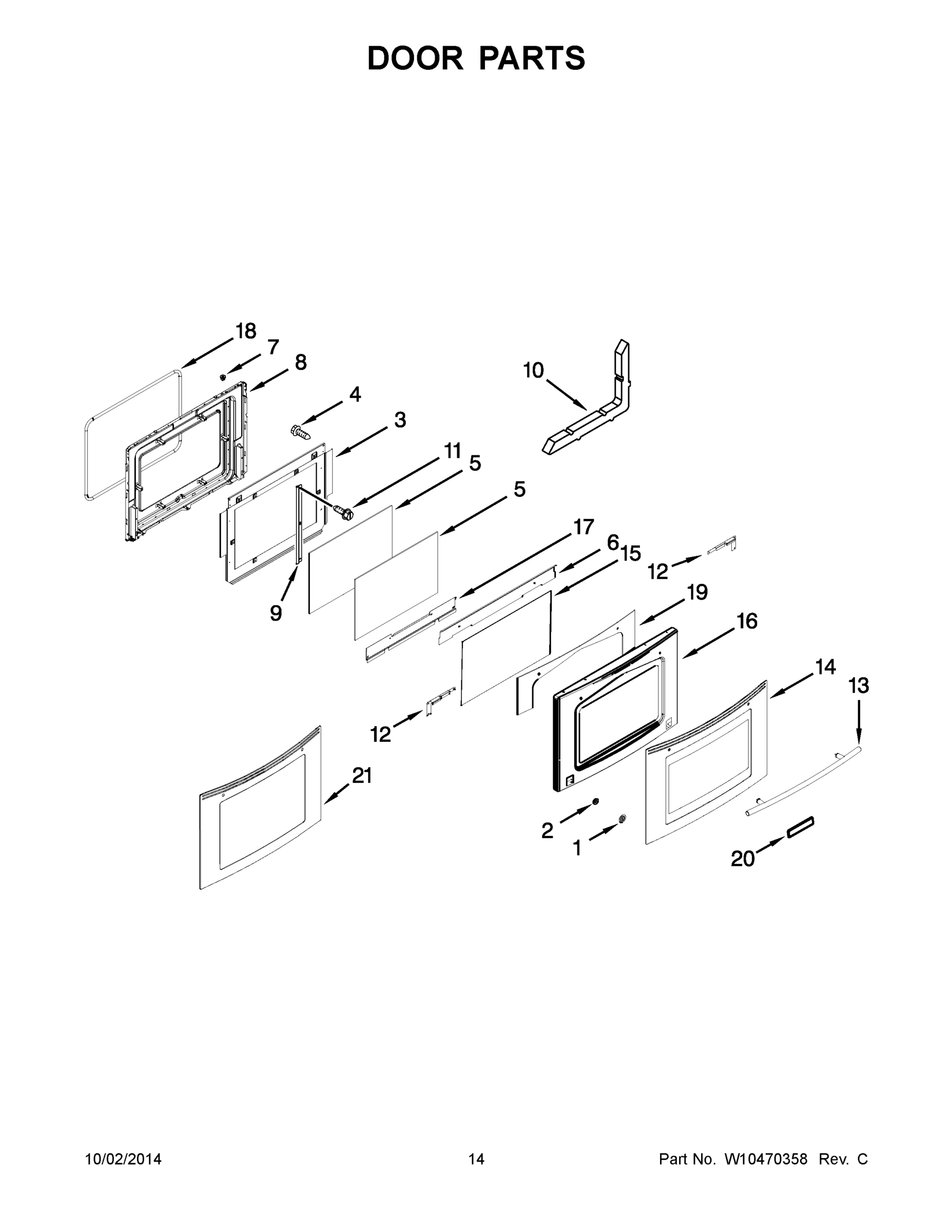

Model Whirlpool JES9800CAB01 ELECTRIC RANGE – Common Parts &amp; Diagrams

1

WASHER WPL 7109P08260 Contact Us For Availability

1

PANEL, SHIELD (LEFT) WPL 2618F20251 Contact Us For Availability

1

INSTRUCTIONS, INTALLATION WPL W10430955 Contact Us For Availability

1A

PANEL, SHIELD (RIGHT) WPL 2618F20651 Contact Us For Availability

1A

GUIDE, USE & CARE WPL W10430926 Contact Us For Availability

1B

TIPS, SAFE COOKING (ENGLISH) WPL 9762761 Contact Us For Availability

1C

DIAGRAM, WIRING WPL W10394693 Contact Us For Availability

2

W10239357 Whirlpool Cooktop In Stock WPL W10239357 $709.63

2

WPW10274035 Whirlpool Door Latch Backorder WPL WPW10274035 $233.79

2

NUT WPL 7103P17660 Contact Us For Availability

2

ELEMENT, BROIL WPL 7406P43060 Contact Us For Availability

2A

W10239347 Whirlpool Control Panel Backorder WPL W10239347 $305.14

2A

COOKTOP (FROSTED WHITE) WPL W10239360 Contact Us For Availability

3

W11171119 Whirlpool Radiant Surface Element In Stock WPL W11171119 $135.73

3

BAFFLE, OVEN DOOR WINDOW WPL 3601F37351 Contact Us For Availability

3

PEDESTAL, REAR (LEFT) WPL 4020F03380 Contact Us For Availability

3

RACK, OVEN WPL 7801P17360 Contact Us For Availability

3A

PEDESTAL, REAR (RIGHT) WPL 4020F03280 Contact Us For Availability

4

SCREW WPL 7101P37660 Contact Us For Availability

4

BACK, MAIN WPL 3804F31351 Contact Us For Availability

4

RECEPTACLE, MEAT PROBE WPL 7408P08660 Contact Us For Availability

4

SCREW WPL 7101P49860 Contact Us For Availability

4A

SWITCH, INFINITE (LEFT FRONT & RIGHT REAR) WPL 7403P87760 Contact Us For Availability

5

WP8507P234-60 Whirlpool Control Board Backorder WPL WP8507P234-60 $295.82

5

KIT, UNITY CONVECTION WPL W10213813 Contact Us For Availability

5

GLASS, INNER WPL 7902P43660 Contact Us For Availability

5

COVER, BOTTOM WIRE WPL 4005F81051 Contact Us For Availability

5

SPACER, RUBBER WPL 8010P15260 Contact Us For Availability

6

W10207697 Whirlpool Knob Backorder WPL W10207697 $32.70

6

WPW10201322 Whirlpool Blower Motor Backorder WPL WPW10201322 $273.52

6

WPW10275049 Whirlpool Surface Element 2500/12 In Stock WPL WPW10275049 $170.68

6

COVER, CONVECT WPL W10312218 Contact Us For Availability

6

SHIELD WPL 3604F41851 Contact Us For Availability

6

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

6A

KNOB (WHITE) WPL W10213942 Contact Us For Availability

7

SHIELD, INSULATOR WPL 7003P15060 Contact Us For Availability

7

SCREW WPL 7101P42660 Contact Us For Availability

7

NUT, SNAP (BLACK) WPL 7103P14160 Contact Us For Availability

7

SENSOR, OVEN WPL 7430P04260 Contact Us For Availability

7

SUPPORT, ELEMENT WPL 8004P09360 Contact Us For Availability

8

LIGHT, INDICATOR WPL 7407P13660 Contact Us For Availability

8

LINING, DOOR WPL 2402W31219 Contact Us For Availability

8

INSULATOR, CORD WPL 7003P10160 Contact Us For Availability

8

SCREW WPL 7101P43460 Contact Us For Availability

8

GRILL, AIR (BLACK) WPL 7772P05060 Contact Us For Availability

8A

GRILL, AIR (WHITE) WPL 7772P04060 Contact Us For Availability

9

SCREW WPL 7101P07760 Contact Us For Availability

9

BRACKET, GLASS WPL 3801F88651 Contact Us For Availability

9

PANEL, ACCESS WPL 4005F61251 Contact Us For Availability

9

PROBE, MEAT WPL 7430P03860 Contact Us For Availability

9

BLOCK, ELEMENT SUPPORT WPL 8255P41260 Contact Us For Availability

SUPPORT, CONTROL PANEL WPL 3807F73151 Contact Us For Availability

INSULATION, OVEN DOOR WPL 7002P24660 Contact Us For Availability

SUPPORT, OVEN WPL 3807F61551 Contact Us For Availability

NUT WPL 7103P17760 Contact Us For Availability

INSULATOR, DUAL ELEMENT BRIDGE WPL W10270588 Contact Us For Availability

11

WPW10586440 Whirlpool Blower Fan Backorder WPL WPW10586440 $228.42

11

LIGHT, INDICATOR WPL 7407P19360 Contact Us For Availability

12

RETAINER, GLASS (LEFT) WPL 3804F30851 Contact Us For Availability

12

BLOCK, BARE WIRE ADAPTER WPL 7401P15760 Contact Us For Availability

12

BRACKET, ANTI-TIP WPL 3801F65651 Contact Us For Availability

12A

RETAINER, GLASS (RIGHT) WPL 3804F30751 Contact Us For Availability

13

W10223163 Whirlpool Door Handle Backorder WPL W10223163 $227.26

13

PEDESTAL, BASE WPL W10271711 Contact Us For Availability

13

SCREW, ANTI-TIP WPL 7101P48560 Contact Us For Availability

13A

W10223164 Whirlpool Door Handle Backorder WPL W10223164 $199.68

13B

W10223165 Whirlpool Door Handle Backorder WPL W10223165 $201.06

14

WPW10272332 Whirlpool Range Glass Door Backorder WPL WPW10272332 $226.32

14

THERMOSTAT, HI-LIMIT WPL 7403P85660 Contact Us For Availability

14A

GLASS, DOOR (WHITE) WPL W10272330 Contact Us For Availability

14B

GLASS, DOOR (OILED BRONZE) WPL W10235391 Contact Us For Availability

15

GLASS, INNER (COATED) WPL 7902P76860 Contact Us For Availability

15

RETAINER, INSULATION WPL 3804F30051 Contact Us For Availability

16

FRAME, DOOR (BLACK) WPL 3603F07570 Contact Us For Availability

16

TUBE, VENT LOWER WPL 8026P09660 Contact Us For Availability

16A

FRAME, DOOR (WHITE) WPL 3603F07571 Contact Us For Availability

17

RETAINER, GLASS WPL 3804F31780 Contact Us For Availability

17

TUBE, VENT UPPER WPL 8026P09460 Contact Us For Availability

18

WPW10162384 Whirlpool Door Gasket In Stock WPL WPW10162384 $76.58

18

SUPPORT, OVEN REAR WPL 3807F73251 Contact Us For Availability

19

INSULATION, DOOR WPL 7002P46560 Contact Us For Availability

19

BRACKET, SIDE PANEL WPL 3801F92951 Contact Us For Availability

20

WPW10214168 Whirlpool Refrigerator Nameplate Backorder WPL WPW10214168 $60.45

20

SCREEN, SMOKE ELIMINATOR WPL 8034P00860 Contact Us For Availability

20A

W10190723 Whirlpool Compactor Nameplate Backorder WPL W10190723 $76.40

20B

W10214169 Whirlpool Nameplate Assembly Backorder WPL W10214169 $38.88

21

OVERLAY (OILED BRONZE) WPL W10234011 Contact Us For Availability

21

PLATE, SMOKE ELIMINATOR WPL 3605F34445 Contact Us For Availability

22

ASSEMBLY, LIGHT WPL 7407P18060 Contact Us For Availability

23

BRACKET, POWER SUPPLY WPL 3801F91151 Contact Us For Availability

24

COVER, LIGHT WPL 4005F68451 Contact Us For Availability

25

TRIM, SIDE (BLACK) WPL 3608F13870 Contact Us For Availability

25A

TRIM, SIDE (WHITE) WPL 3608F13871 Contact Us For Availability

26

GUARD, EDGE WPL W10183566 Contact Us For Availability

27

RETAINER, INSULATION WPL 3804F31251 Contact Us For Availability

28

TRIM, FRAME WPL 7713P05460 Contact Us For Availability

29

COVER, DOOR LOCK WPL 4005F75051 Contact Us For Availability

30

HINGE, DOOR WPL 7106P14360 Contact Us For Availability

31

SCREW WPL 7101P60460 Contact Us For Availability

32

LEG, LEVELING WPL 7101P66060 Contact Us For Availability

33

PEDESTAL, BOTTOM WPL 4020W03580 Contact Us For Availability

34

EXTENSION, HEAT SHIELD WPL 3826F06451 Contact Us For Availability

35

SUPPORT, ELEMENT WPL 3807F75445 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $52.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $30.02

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

8212471 Whirlpool Oven Paint Backorder WPL 8212471 $46.71

W10298901 Whirlpool Wire Harness Backorder WPL W10298901 $103.25

W10394791 Whirlpool Wire Harness Backorder WPL W10394791 $96.81

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $62.36

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $213.57

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $60.66

ACCESSORY PARTS, ALUMINUM FOIL WPL 241430 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

WIRING HARNESS PARTS, HARNESS, MAIN WPL W10394667 Contact Us For Availability

INSULATION, WRAP WPL 7002P46660 Contact Us For Availability

INSULATION, OVEN BOTTOM WPL 7002P46760 Contact Us For Availability

INSULATION, BACK WPL 7002P46860 Contact Us For Availability

WIRING HARNESS PARTS, HARNESS, SWITCH (RIGHT) WPL 5171P55060 Contact Us For Availability

WIRING HARNESS PARTS, HARNESS, SWITCH (LEFT) WPL 5171P55760 Contact Us For Availability

WIRING HARNESS PARTS, SCREW, GROUND WPL 7101P02760 Contact Us For Availability
