Model Whirlpool JES9750AAW ELECTRIC RANGE – Common Parts &amp; Diagrams

1

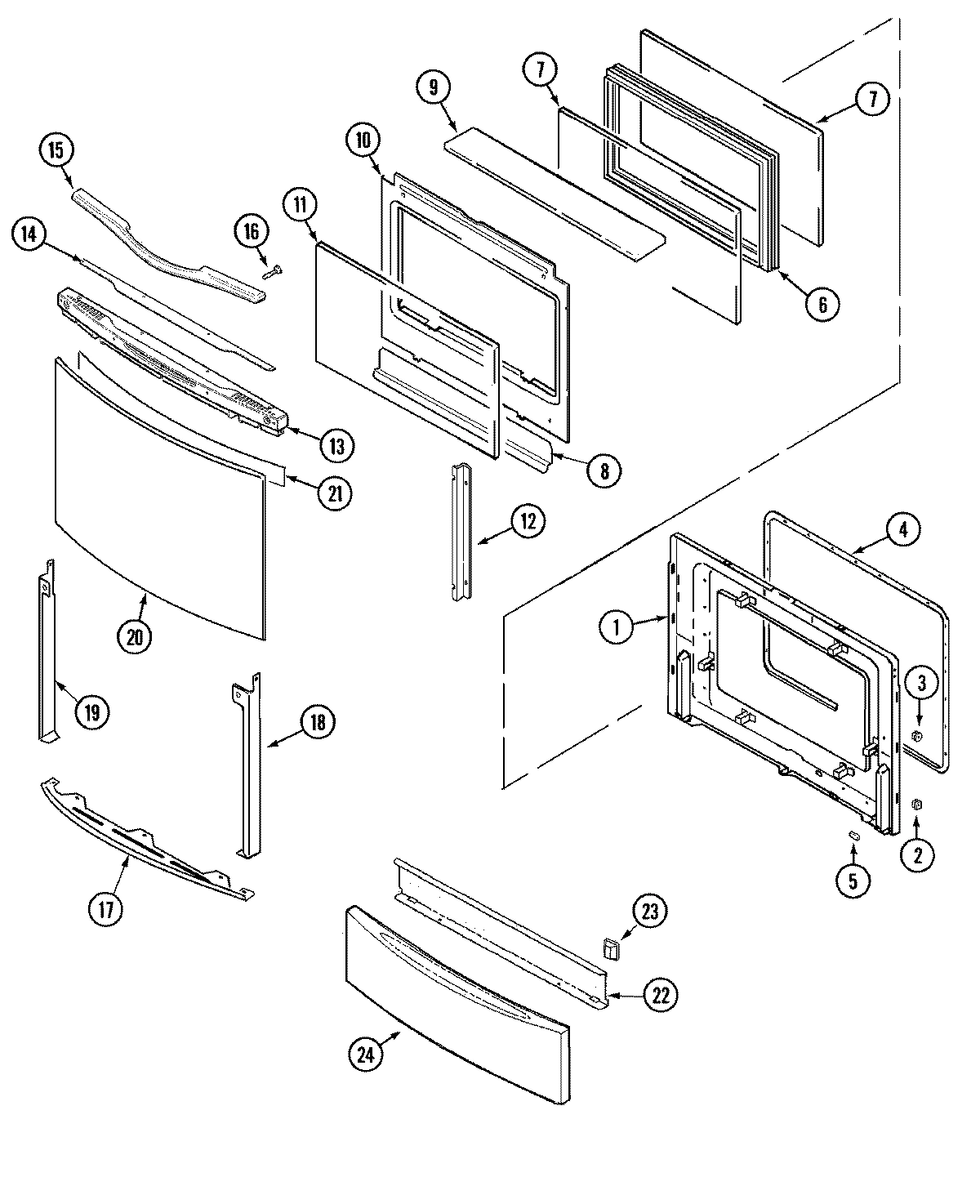

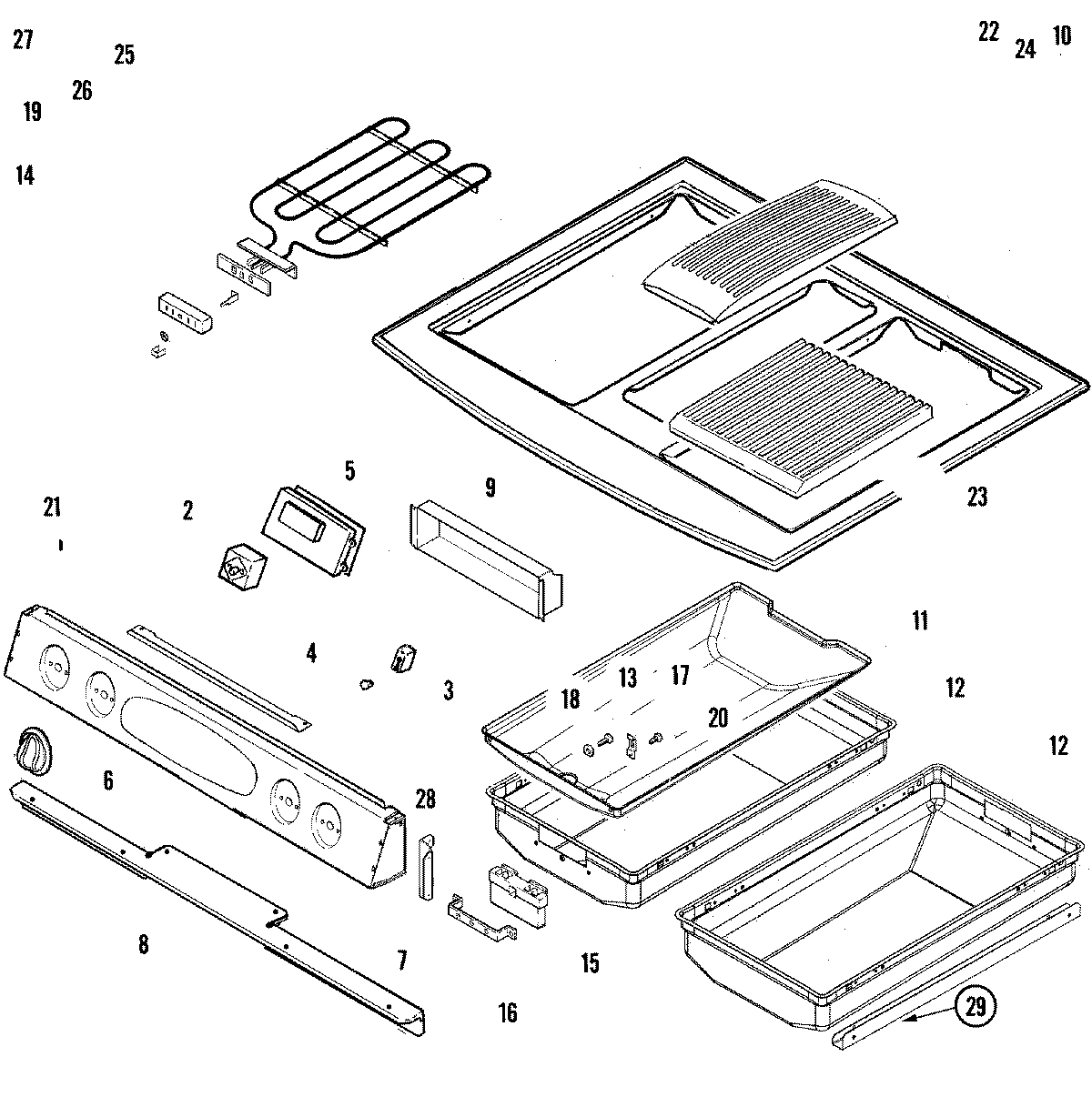

CONTROL PANEL ASSY (WHT) WPL 74005746 Contact Us For Availability

1

LINING, DOOR WPL 74003642 Contact Us For Availability

1

TUBE, VENT (LWR) WPL 74005720 Contact Us For Availability

2

W11120791 Whirlpool Range Surface Element Inf In Stock WPL W11120791 $70.11

2

WPY707702 Whirlpool Locknut Backorder WPL WPY707702 $4.82

2

SCREW W/WASHER WPL 71003201 Contact Us For Availability

2

NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability

2

SCREW WPL 7101P34560 Contact Us For Availability

2

SUPPORT, BROIL ELEMENT WPL 74003563 Contact Us For Availability

3

W11676350 Whirlpool Broil Element Backorder WPL W11676350 $120.20

3

WP74001574 Whirlpool Snap Nut Backorder WPL WP74001574 $6.85

3

LIGHT, INDICATOR WPL 7407P10060 Contact Us For Availability

3

SCREW WPL 707407 Contact Us For Availability

3

COVER, MOTOR WPL 71002107 Contact Us For Availability

4

WP22001948 Whirlpool Indicator Lens In Stock WPL WP22001948 $7.93

4

WP74010750 Whirlpool Oven Bake Element In Stock WPL WP74010750 $38.16

4

STOP, FILTER WPL 71002113 Contact Us For Availability

4

GASKET, DOOR WPL 7201P04660 Contact Us For Availability

5

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

5

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $6.25

5

WPW10201322 Whirlpool Blower Motor Backorder WPL WPW10201322 $273.52

5

CLOCK W/HARNESS WPL 74005733 Contact Us For Availability

5

HARNESS, CONTROL/P9 WPL 74005754 Contact Us For Availability

5

HARNESS, CONTROL WPL 74005856 Contact Us For Availability

5

HARNESS, SENSOR/LOCK WPL 74005857 Contact Us For Availability

5

HARNESS, SENSOR/LOCK WPL 74006137 Contact Us For Availability

5

CLOCK W/HARNESS WPL 74006359 Contact Us For Availability

5

HARNESS, MAIN WPL 74007222 Contact Us For Availability

5

HARNESS, MAIN WPL 74009296 Contact Us For Availability

5

HARNESS, CONTROL WPL 74009301 Contact Us For Availability

5

CLOCK W/HARNESS WPL 74009317 Contact Us For Availability

5

HARNESS, MAIN WPL 74011558 Contact Us For Availability

5

FOAM, URETHANE WPL Y715957 Contact Us For Availability

6

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

6

KNOB (WHT) WPL 74005705 Contact Us For Availability

6

BAND, MOTOR WPL Y707393 Contact Us For Availability

6

FRAME, GLASS WPL 74003644 Contact Us For Availability

7

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $115.28

7

WP98008545 Whirlpool Screw Backorder WPL WP98008545 $11.88

7

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

7

BRACKET, CONTROL PANEL WPL 74005729 Contact Us For Availability

7

RING, RESTRICTOR WPL Y704761 Contact Us For Availability

7

PEDESTAL, SIDE WPL 74005772 Contact Us For Availability

8

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

8

WP71002111 Whirlpool Grease Filter In Stock WPL WP71002111 $19.68

8

SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability

8

SUPPORT, CONTROL PANEL WPL 74005756 Contact Us For Availability

8

SHIELD, DOOR (INR) WPL 74005761 Contact Us For Availability

8

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

9

WP71003558 Whirlpool Isolator Backorder WPL WP71003558 $7.84

9

BLOCK, DISCONNECT (MALE) WPL 74002230 Contact Us For Availability

9

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

9

SCREW WPL 7101P34960 Contact Us For Availability

9

INSULATOR, CONTROL WPL 74005755 Contact Us For Availability

9

NUT WPL 707161 Contact Us For Availability

9

SCREW WPL Y707402 Contact Us For Availability

9

INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability

9

STRIKE, ACCESS PANEL WPL 74005828 Contact Us For Availability

74011142 Whirlpool Stove Range Oven Door Hing In Stock WPL 74011142 $86.64

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

WPY707985 Whirlpool Wheel Assembly Backorder WPL WPY707985 $116.81

TUBE, VENT (UPR) WPL 74005808 Contact Us For Availability

BAFFLE, DOOR WPL 74003648 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

DRAIN, TUBE WPL 74005855 Contact Us For Availability

PAN, GRILL INSERT WPL 74005797 Contact Us For Availability

SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability

GLASS, DOOR (INR) WPL 74005774 Contact Us For Availability

SCREW WPL 7101P35260 Contact Us For Availability

EXTENSION, HEAT SHIELD WPL 74005728 Contact Us For Availability

SHIELD, HEAT WPL 74005854 Contact Us For Availability

PAN, GRILL (LT) WPL 74005799 Contact Us For Availability

PAN, GRILL (RT) WPL 74005800 Contact Us For Availability

PLUG, RUBBER WPL Y702825 Contact Us For Availability

RING, INLET WPL Y704758 Contact Us For Availability

RETAINER, GLASS WPL 74003650 Contact Us For Availability

RETAINER, INSULATION WPL 74005824 Contact Us For Availability

SHIELD, HEAT WPL 74004177 Contact Us For Availability

ADAPTER, RESTRICTOR RING WPL Y702296 Contact Us For Availability

TRIM, DOOR (TOP-WHT) WPL 74005699 Contact Us For Availability

BUTTON, PLUG WPL 702929 Contact Us For Availability

WPY708730 Whirlpool Terminal Block In Stock WPL WPY708730 $71.74

TRANSFORMER (STEPDOWN) WPL 74005416 Contact Us For Availability

CLAMP, HOSE WPL Y702331 Contact Us For Availability

SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability

INSERT, DOOR TRIM (WHT) WPL 74005703 Contact Us For Availability

HOUSING, GREASE CUP WPL 74005826 Contact Us For Availability

WP5708M007-60 Whirlpool Wire Harness Backorder WPL WP5708M007-60 $93.43

WPY702434 Whirlpool Receptacle Backorder WPL WPY702434 $74.48

LIGHT ASY, HAL0GEN WPL 74011220 Contact Us For Availability

BRACKET, POWER SUPPLY WPL 71003644 Contact Us For Availability

CONTACT/WIRE ASSY. (BRN) WPL 71002325 Contact Us For Availability

CONTACT/WIRE ASSY. (VLT) WPL 71002327 Contact Us For Availability

CONTACT/WIRE ASSY. (YLW) WPL 71002328 Contact Us For Availability

CONTACT/WIRE ASSY (BRN) WPL 74005813 Contact Us For Availability

CONTACT/WIRE ASSY (VLT) WPL 74005815 Contact Us For Availability

CONTACT/WIRE ASSY (BL) WPL 74005816 Contact Us For Availability

DUCT, FLEXIBLE WPL Y702326 Contact Us For Availability

HANDLE, DOOR (WHT) WPL 74005697 Contact Us For Availability

HALOGEN LAMP ASSY WPL 74005773 Contact Us For Availability

W10886919 Whirlpool Light Bulb In Stock WPL W10886919 $18.79

NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability

SWITCH WPL 74001802 Contact Us For Availability

NUT, DRAIN TUBE WPL 702748 Contact Us For Availability

BRACKET, RECEPTACLE WPL 74005798 Contact Us For Availability

SCREW (No.10-32 X .625``) WPL 71003275 Contact Us For Availability

74004835 Whirlpool Clip In Stock WPL 74004835 $7.31

WP74004607 Whirlpool Light Lens Backorder WPL WP74004607 $12.66

TRIM, SIDE (WHT) WPL 74004182 Contact Us For Availability

PLENUM (UPR) WPL 74005836 Contact Us For Availability

CLIP, J WPL Y700556 Contact Us For Availability

SUPPORT, GLASS WPL 74005763 Contact Us For Availability

74003975 Whirlpool Screw P1 (8ABX3/8-BLK) Backorder WPL 74003975 $8.89

ASSEMBLY, DOOR LATCH WPL 74004327 Contact Us For Availability

ASSEMBLY, DOOR LATCH WPL 74005675 Contact Us For Availability

WASHER, TEFLON WPL 702747 Contact Us For Availability

COVER, VENT WPL Y702475 Contact Us For Availability

TRIM, DOOR (RT-WHT) WPL 74005694 Contact Us For Availability

CUP, GREASE WPL 74005827 Contact Us For Availability

Y708862 Whirlpool Speed Nut Backorder WPL Y708862 $9.78

FAN MOTOR ASY. WPL 74004947 Contact Us For Availability

SCREW WPL 74005401 Contact Us For Availability

SCREW (1/2``) WPL 7101P04060 Contact Us For Availability

TRIM, DOOR (LT-WHT) WPL 74005696 Contact Us For Availability

SHIELD, FRONT FRAME (WHT) WPL 74005724 Contact Us For Availability

2801L037-80 Whirlpool Plenum Backorder WPL 2801L037-80 $84.56

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

INSULATOR, SWITCH WPL 74001872 Contact Us For Availability

GLASS, DOOR (WHT) WPL 74005717 Contact Us For Availability

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

WP7402P104-60 Whirlpool Power Cord Backorder WPL WP7402P104-60 $41.99

BUMPER, ROD WPL 74001631 Contact Us For Availability

CLIP, SHUNT WPL Y700450 Contact Us For Availability

TAPE, FOIL 29`` X 2`` WPL 74003664 Contact Us For Availability

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

7772P040-60 Whirlpool Grille Backorder WPL 7772P040-60 $171.62

ROD, DOOR LIGHT SWITCH WPL 74003562 Contact Us For Availability

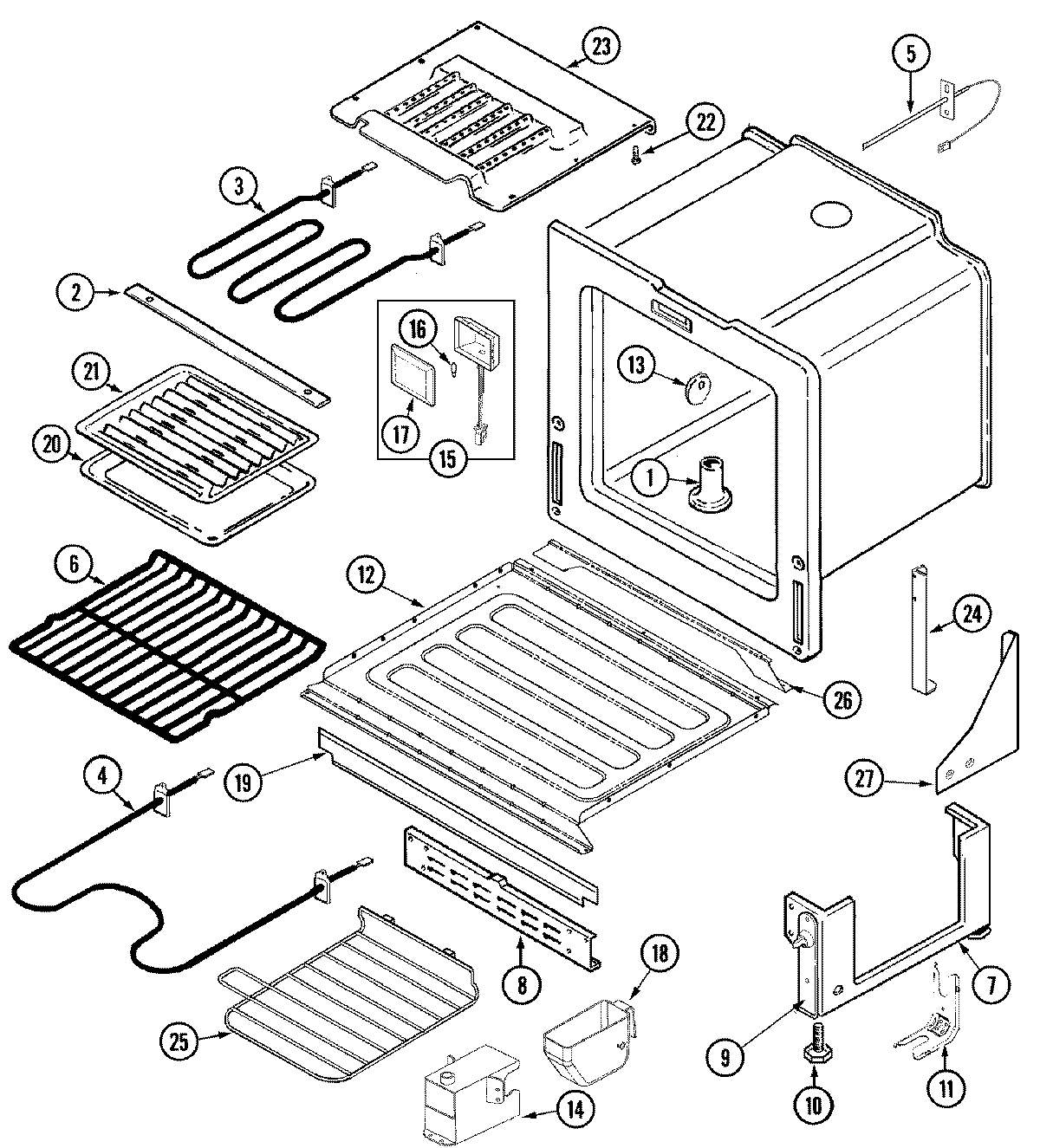

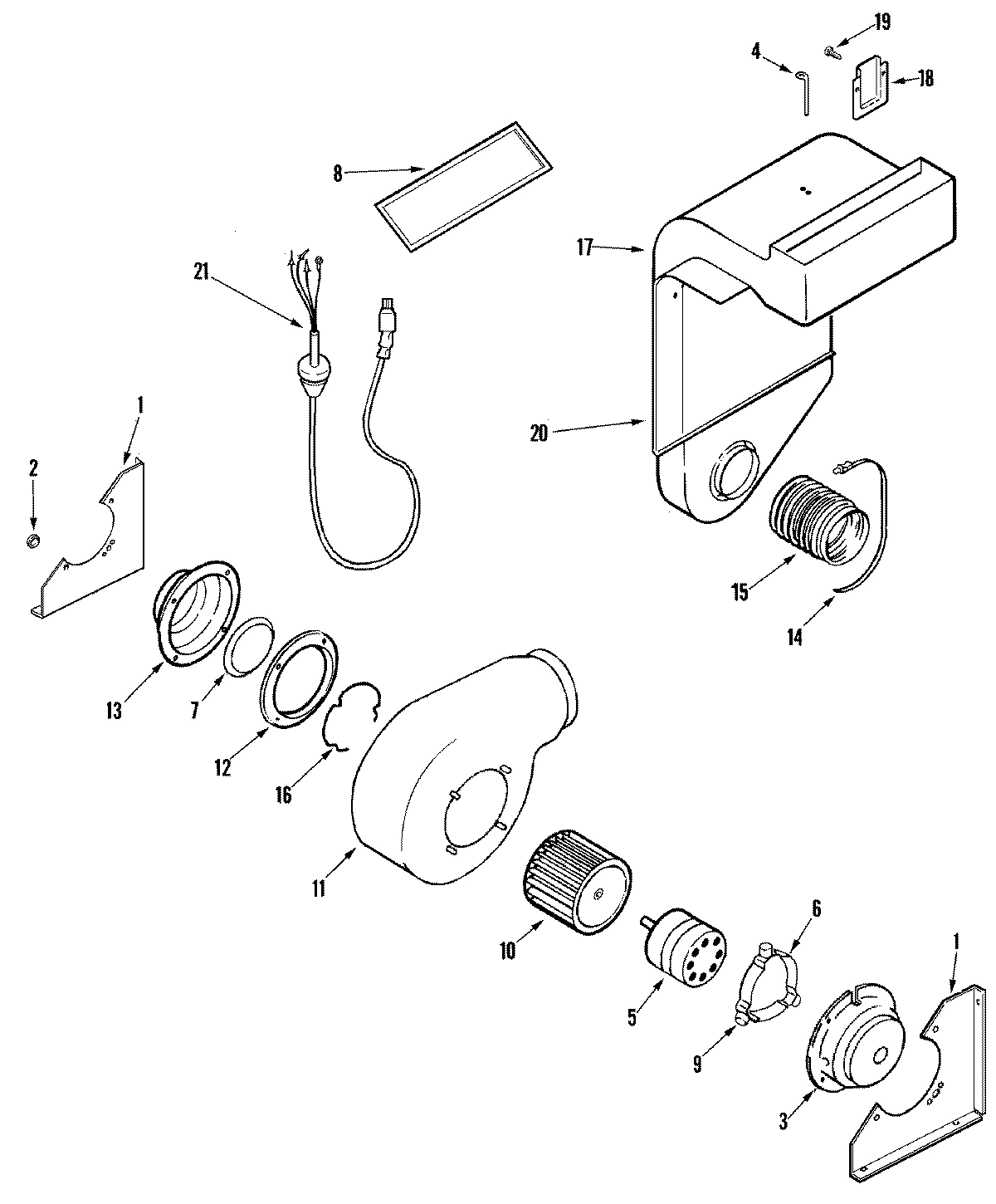

BLOWER ASSEMBLY WPL 74007501 Contact Us For Availability

BRACKET, ACCESS PANEL WPL 74005807 Contact Us For Availability

SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability

GRATE, GRILL WPL 74005795 Contact Us For Availability

GRATE, GRILL WPL 74006513 Contact Us For Availability

LATCH, BASE DOOR WPL 71002106 Contact Us For Availability

BAFFLE, BROIL WPL 74003564 Contact Us For Availability

SCREW, SWITCH WPL 7101P33060 Contact Us For Availability

TOP, MAIN (WHT) WPL 74005819 Contact Us For Availability

PANEL, DRAWER (WHT) WPL 74005691 Contact Us For Availability

SUPPORT, OVEN WPL 74004780 Contact Us For Availability

25

BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability

25

INSULATOR WPL Y700449 Contact Us For Availability

25

RACK, HALF (FLUSH CONV. COVER) WPL 74003590 Contact Us For Availability

26

Y708572 Whirlpool Spade Contact In Stock WPL Y708572 $7.78

26

SHIELD, HEAT (LT) WPL 74005876 Contact Us For Availability

26

SUPPORT, RETAINER WPL 74005825 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

WPW10310263 Whirlpool Grille Element Backorder WPL WPW10310263 $258.26

ELEMENT, GRILL WPL 74005553 Contact Us For Availability

BRACE, PEDESTAL (LT) WPL 74006082 Contact Us For Availability

BRACE, PEDESTAL (RT) WPL 74006083 Contact Us For Availability

28

BRACKET, TOP SUPPORT WPL 74005877 Contact Us For Availability

29

BRACKET, GRILL PAN WPL 74005817 Contact Us For Availability

COOKBOOK----NA WPL 16008409 Contact Us For Availability

COOKBOOK WPL 71003508 Contact Us For Availability

GUIDE, COOKING (TRILINGUAL WPL 74005475 Contact Us For Availability

WPL 74005523 WPL 74005523 Contact Us For Availability

NI

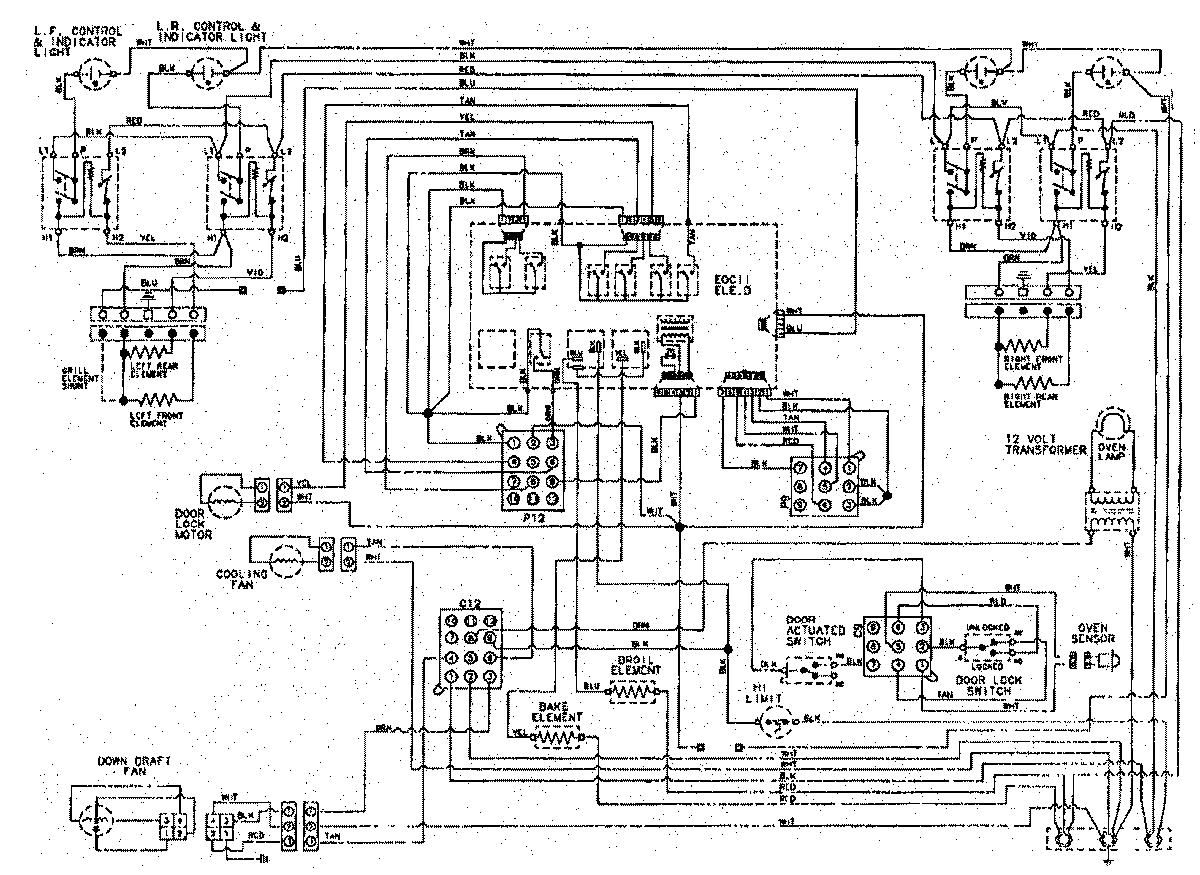

WIRING INFORMATION WPL 15002804 Contact Us For Availability

NI

WIRING INFORMATION WPL 15003363 Contact Us For Availability
