Model Whirlpool JE3510PRW ELECTRIC RANGE – Common Parts &amp; Diagrams

1

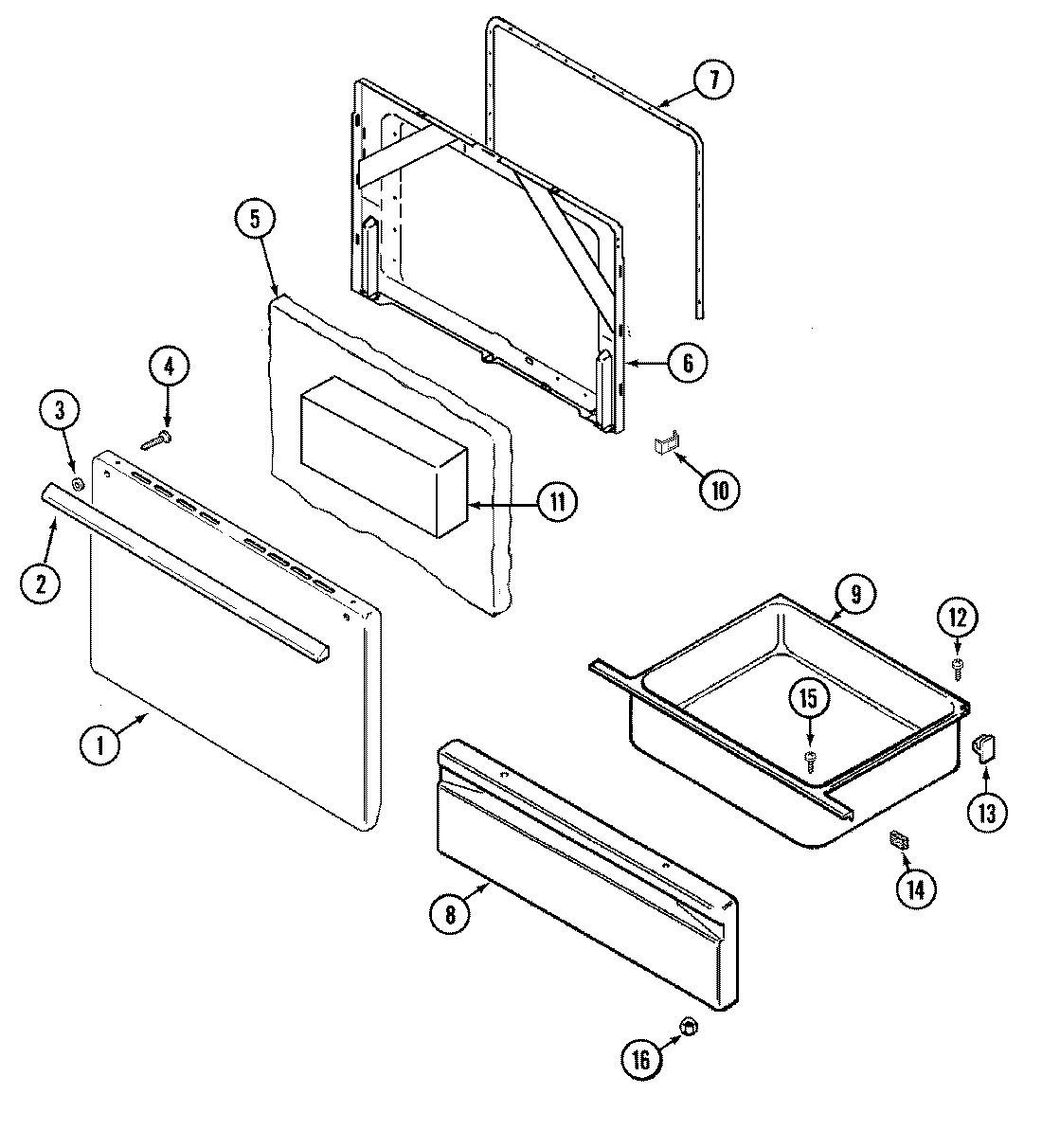

PANEL, DOOR (WHT) WPL 74002282 Contact Us For Availability

1

TUBE, VENT WPL 8026P01960 Contact Us For Availability

1

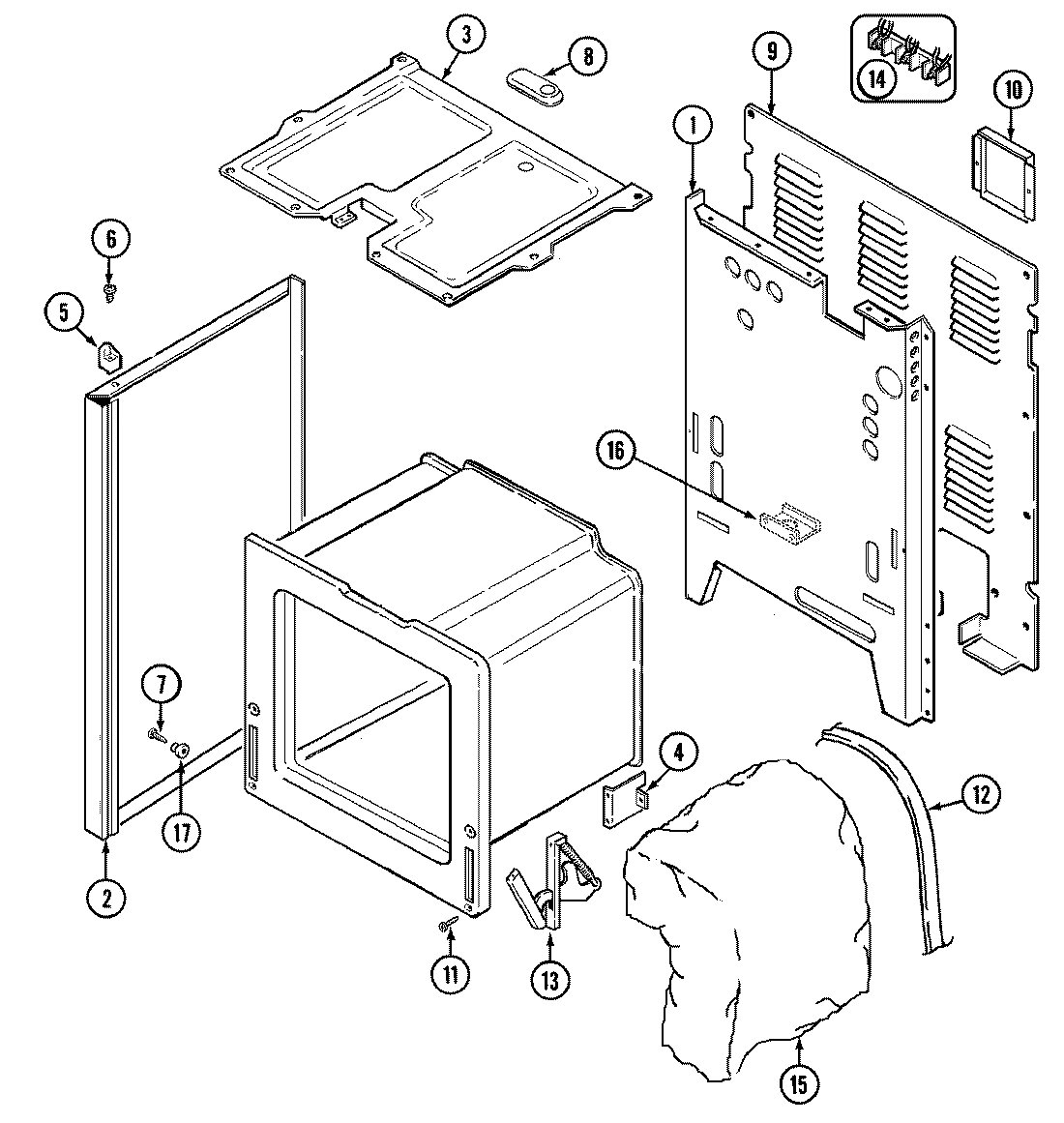

BACK, MAIN WPL 74001772 Contact Us For Availability

1

SHIELD, WIRE WPL 74002334 Contact Us For Availability

1

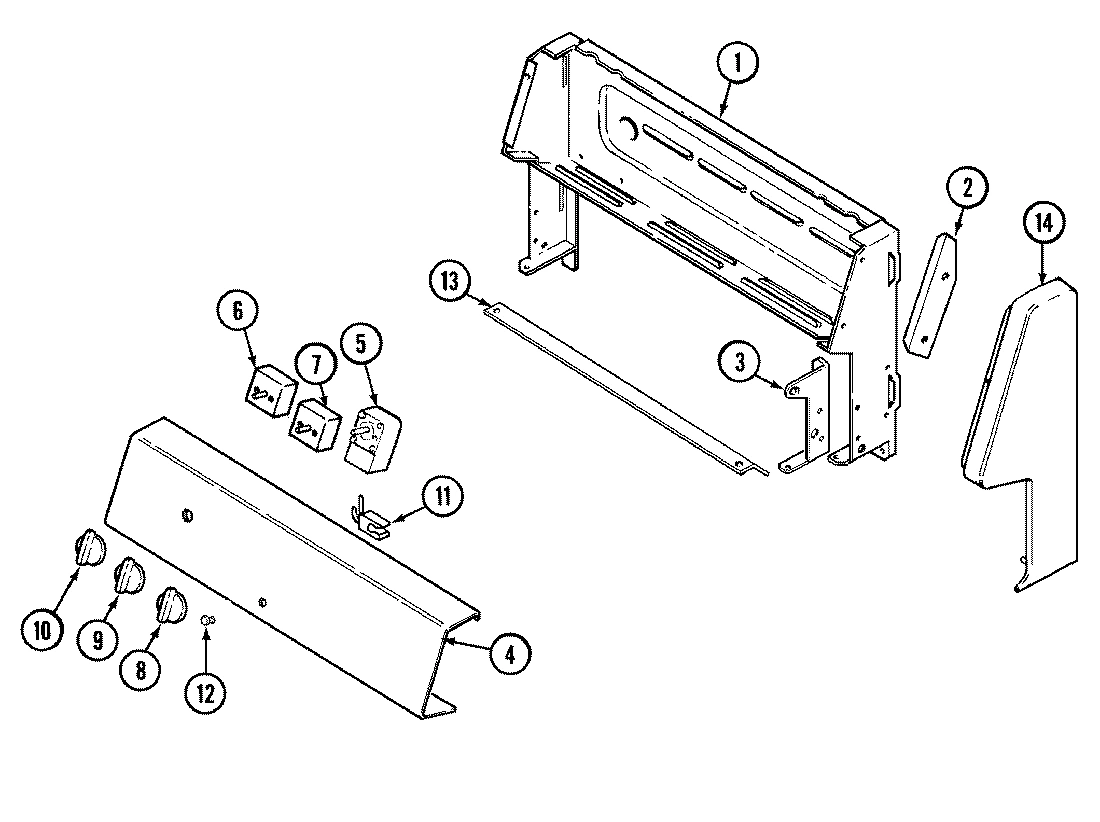

HOUSING, CONTROL PANEL WPL 74002162 Contact Us For Availability

2

WP2411F013-70 Whirlpool Door Handle Backorder WPL WP2411F013-70 $144.44

2

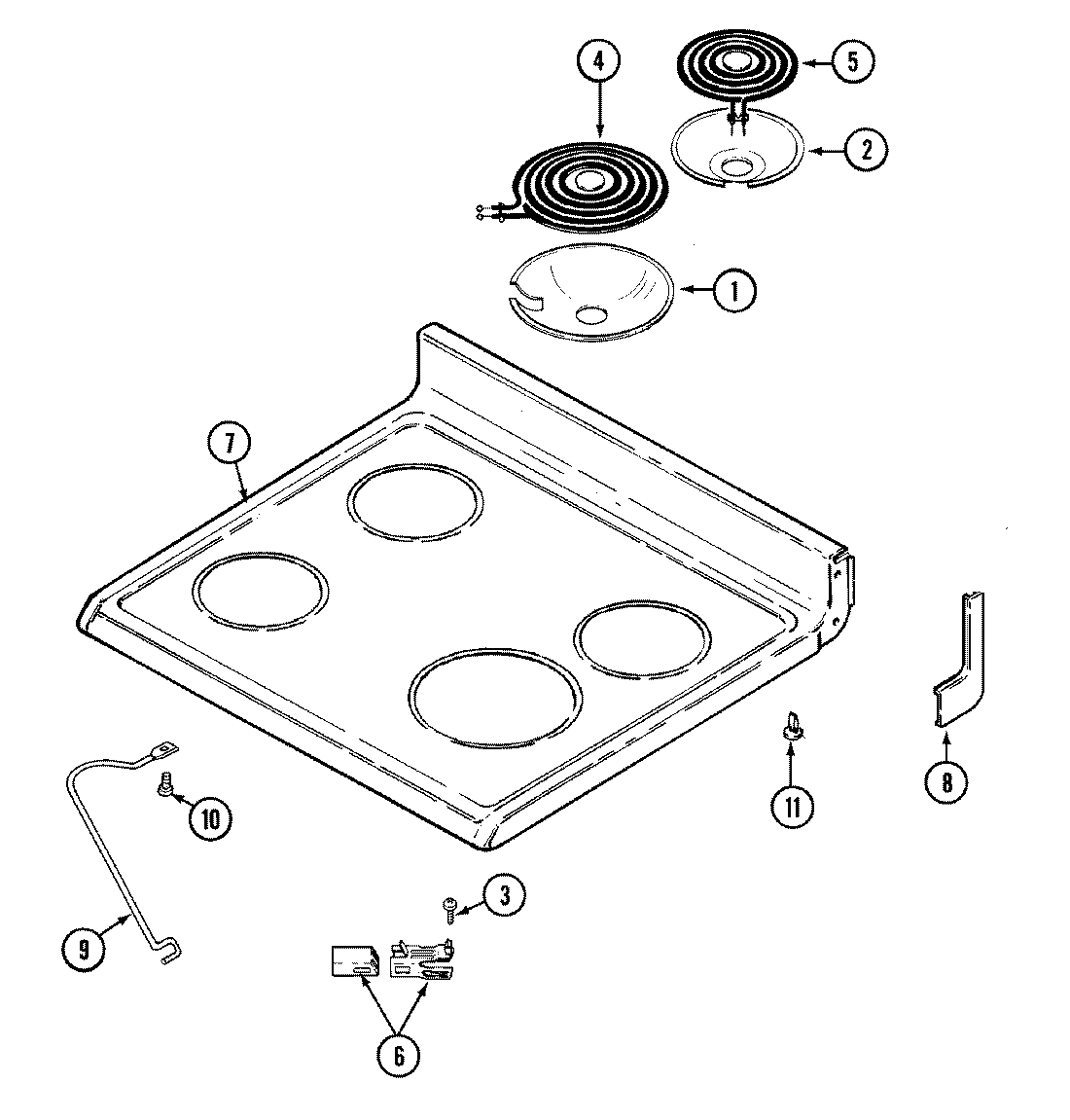

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $9.60

2

BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability

2

SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability

2

PANEL, SIDE (WHT) WPL 74001884 Contact Us For Availability

2

SUPPORT, CONTROL PNL (RT) WPL 3807F44945 Contact Us For Availability

2

SUPPORT, CONTROL PNL (LT) WPL 3807F45045 Contact Us For Availability

2

SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability

3

SPACER, HANDLE (BLK) WPL 8010P08460 Contact Us For Availability

3

SCREW WPL 7118P01360 Contact Us For Availability

3

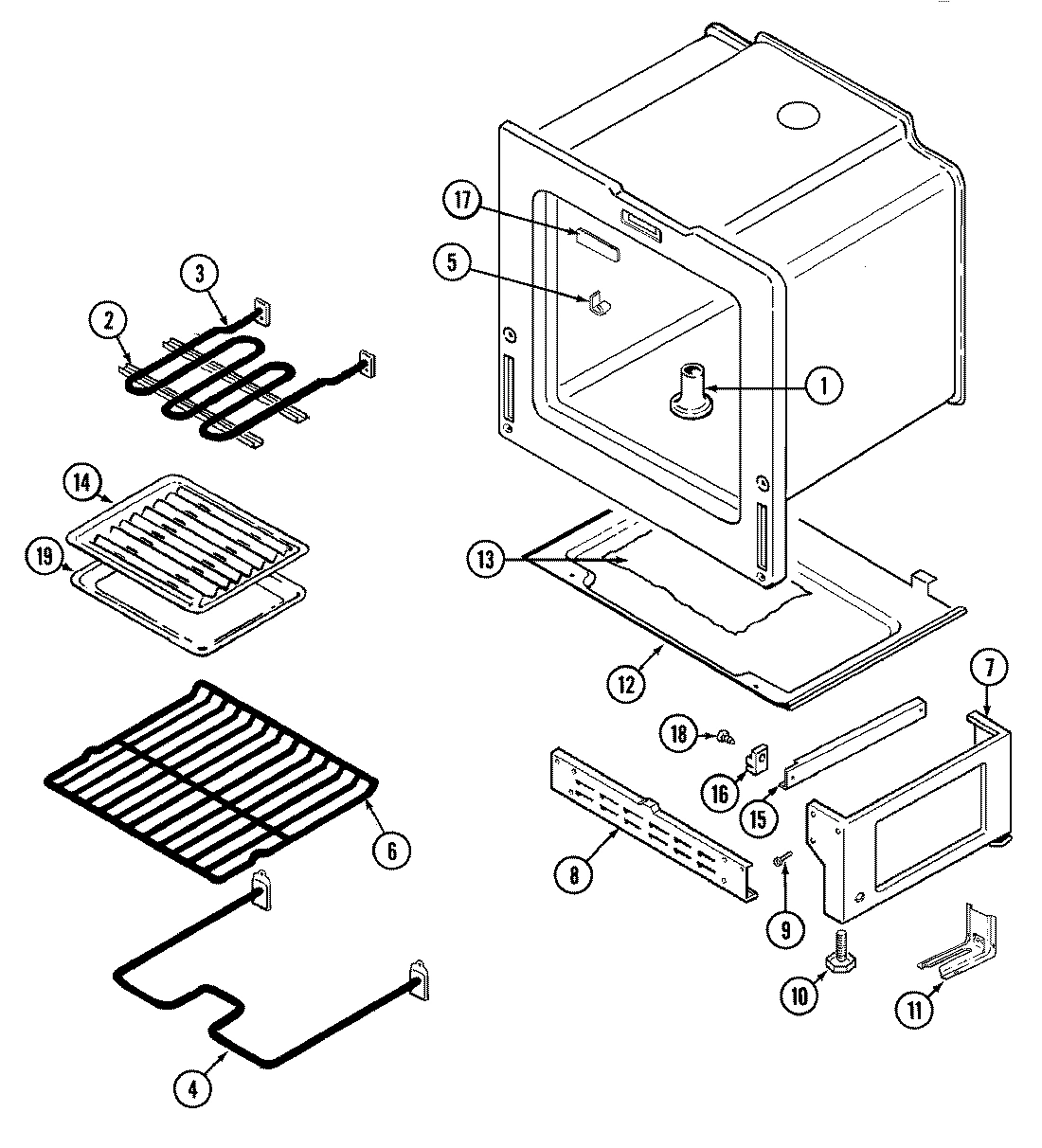

ELEMENT, BROIL WPL Y04000057 Contact Us For Availability

3

BOX, BURNER WPL 4011F23919 Contact Us For Availability

3

HINGE, MAIN TOP (LT) WPL 3418D09760 Contact Us For Availability

3

HINGE, MAIN TOP (RT) WPL 3418D09860 Contact Us For Availability

4

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $4.65

4

WP74003019 Whirlpool Oven Bake Element In Stock WPL WP74003019 $52.85

4

ELEMENT (8``) WPL 7406P04060 Contact Us For Availability

4

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

4

PANEL, CONTROL (WHT) WPL 74003113 Contact Us For Availability

5

INSULATION, DOOR 2`` WPL 4804F05060 Contact Us For Availability

5

ELEMENT (6``) WPL 7406P03860 Contact Us For Availability

5

CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

5

THERMOSTAT WPL 7404P10560 Contact Us For Availability

6

12001676 Whirlpool Range Surface Burner Recep In Stock WPL 12001676 $10.60

6

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

6

LINING, DOOR WPL 74002396 Contact Us For Availability

6

SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability

6

SCREW WPL 7101P30960 Contact Us For Availability

6

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

6

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

7

WP7403P255-60 Whirlpool Selector Switch Backorder WPL WP7403P255-60 $107.82

7

SEAL, SILICONE WPL 7212P03460 Contact Us For Availability

7

TOP, MAIN (WHT) WPL 2002W10481 Contact Us For Availability

7

PEDESTAL, SIDES WPL 4020W01780 Contact Us For Availability

7

PEDESTAL, SIDE WPL 74003016 Contact Us For Availability

7

SWITCH, SELECTOR WPL 7403P25560 Contact Us For Availability

8

WP3195558 Whirlpool Nut Backorder WPL WP3195558 $6.46

8

PANEL, DRAWER (WHT) WPL 2416F03962 Contact Us For Availability

8

END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability

8

END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability

8

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

8

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

8

COVER, VENT WPL 4005F43245 Contact Us For Availability

8

KNOB, THERMOSTAT (WHT) WPL 7735P04160 Contact Us For Availability

9

DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability

9

SCREW 3/8`` WPL 7101P14160 Contact Us For Availability

9

COVER, WIRE WPL 4005F45551 Contact Us For Availability

9

KNOB, SELECTOR (WHT) WPL 7739P04860 Contact Us For Availability

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

CLIP, DOOR WPL 7112P03460 Contact Us For Availability

SUPPORT, TOP WPL 74001170 Contact Us For Availability

LEG, LEVELING WPL 74001311 Contact Us For Availability

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

KNOB, INFINITE SWITCH (WHT) WPL 7737P04160 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability

GLIDE WPL 74001663 Contact Us For Availability

SCREW WPL 7101P34460 Contact Us For Availability

SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability

LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability

12

RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability

12

STRAP, RETAINER WPL 4820F00159 Contact Us For Availability

12

LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability

SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability

FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability

HINGE WPL 7106P05560 Contact Us For Availability

SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability

SEAL, RUBBER WPL 7208P01160 Contact Us For Availability

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability

END CAP (RT-BLK) WPL 7726P05160 Contact Us For Availability

END CAP (LT-BLK) WPL 7726P05260 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability

INSULATION, OVEN WRAP WPL 4804F04460 Contact Us For Availability

INSULATION, BACK WPL 74001800 Contact Us For Availability

HARNESS, CONTROL PANEL WPL 5170D11960 Contact Us For Availability

HARNESS, CONTROL/TOP WPL 74001013 Contact Us For Availability

SUPPORT, DRAWER WPL 74002312 Contact Us For Availability

NUT, LOCK WPL 7103P13960 Contact Us For Availability

PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability

MANUAL, USE & CARE WPL 74002469 Contact Us For Availability

17

COVER, DOOR LOCK WPL 7718P01360 Contact Us For Availability

17

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

17

GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability

19

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

NI

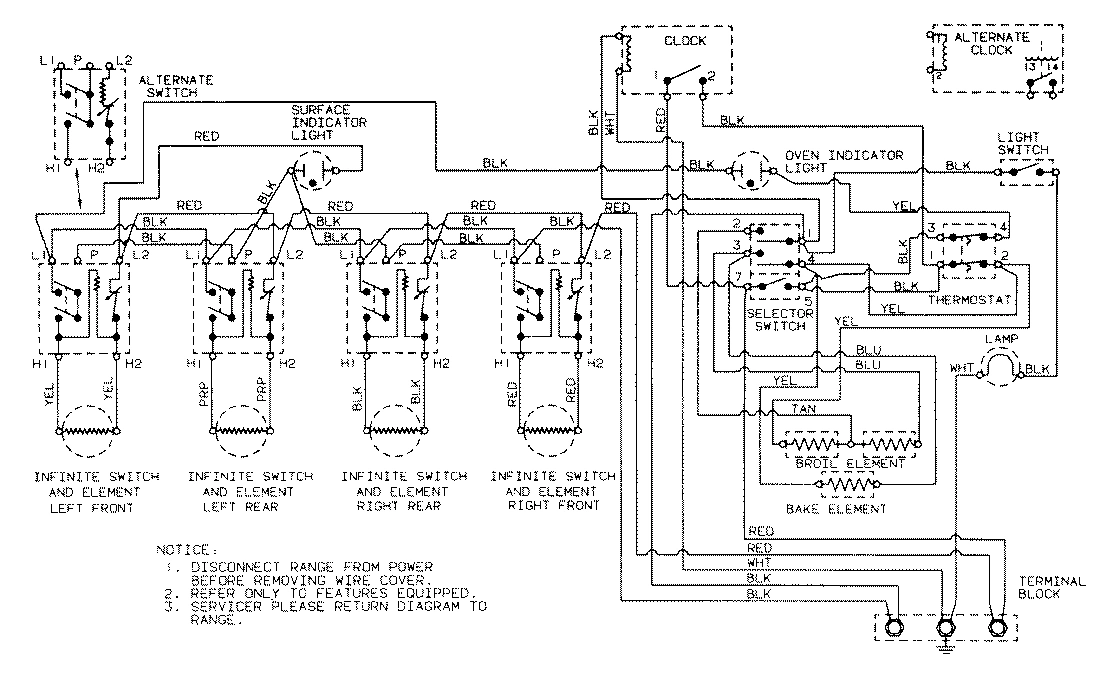

WIRING INFORMATION WPL 15001468 Contact Us For Availability
