Model Whirlpool JDS8850ACW GAS RANGE – Common Parts & Diagrams

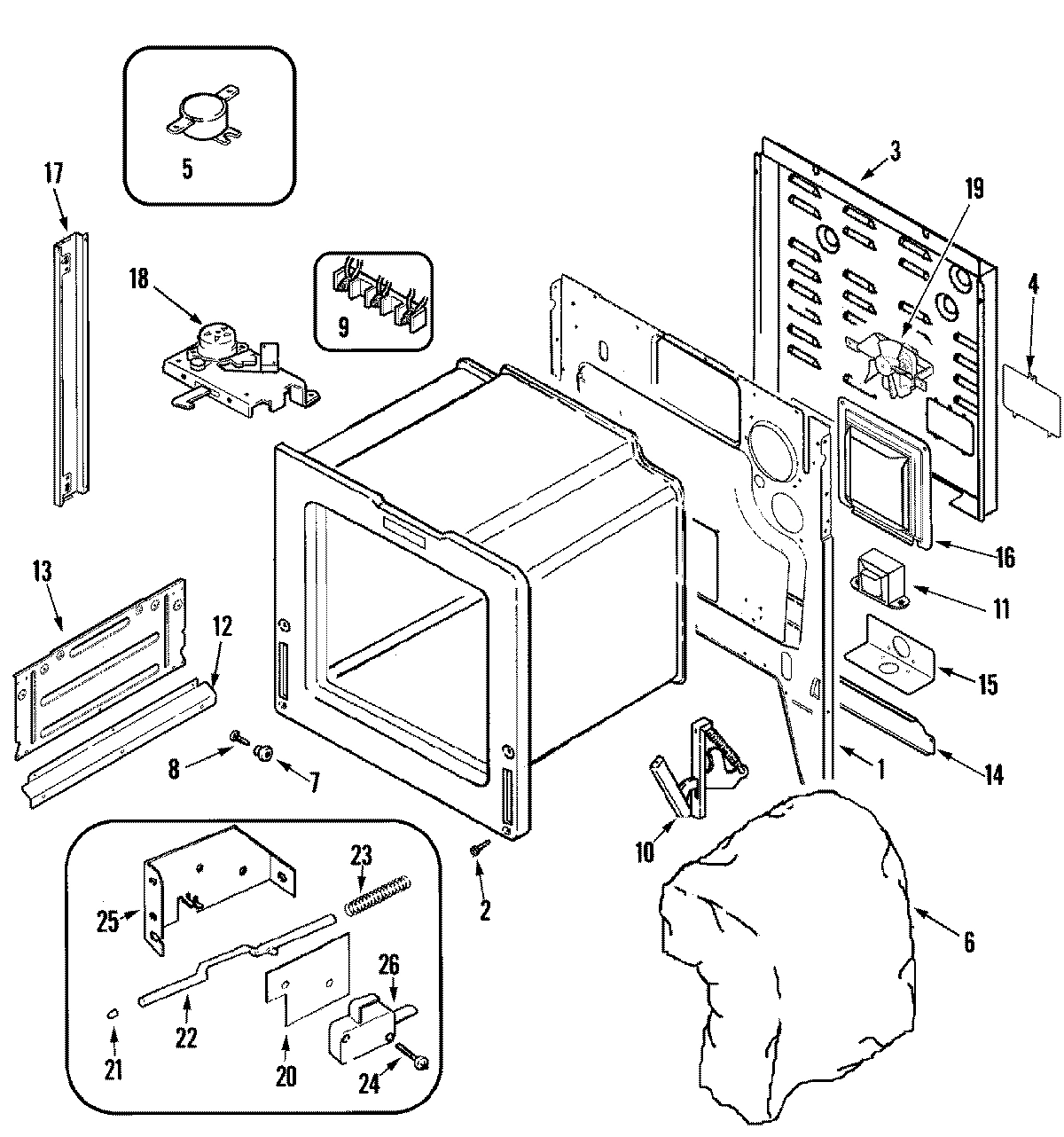

01 - BODY
07 - WIRING INFORMATION (FRC)

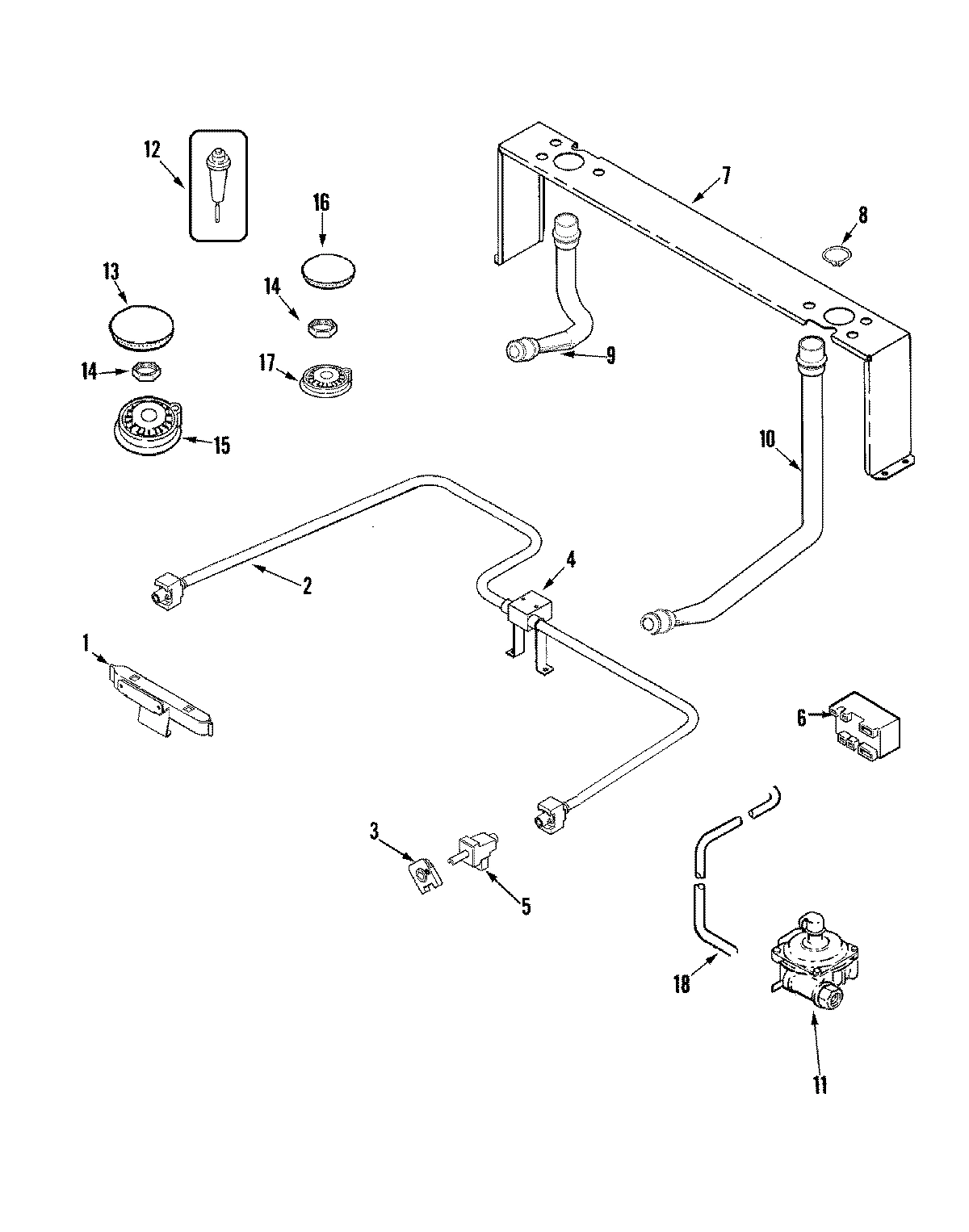

03 - GAS CONTROLS

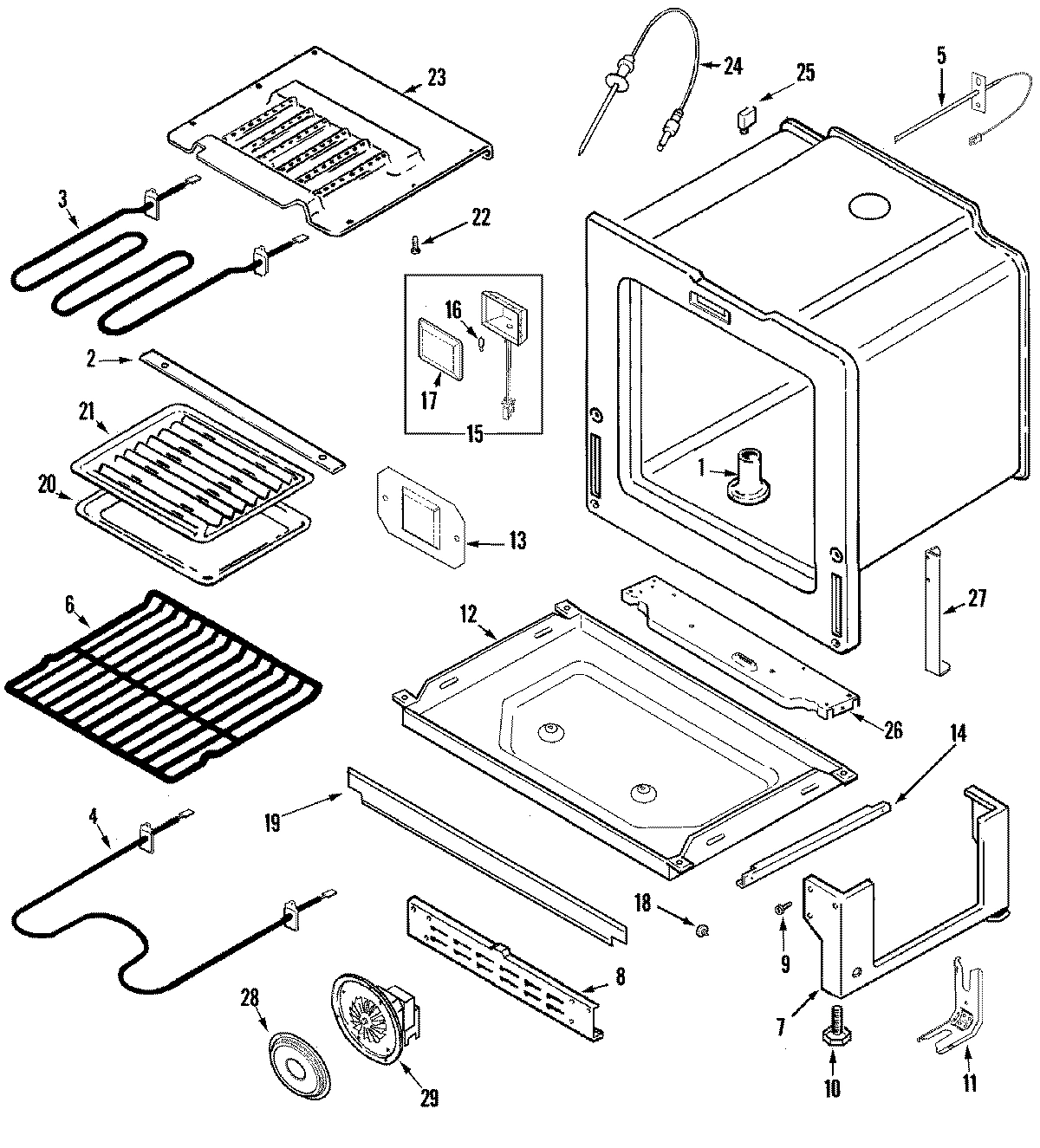

04 - OVEN/BASE

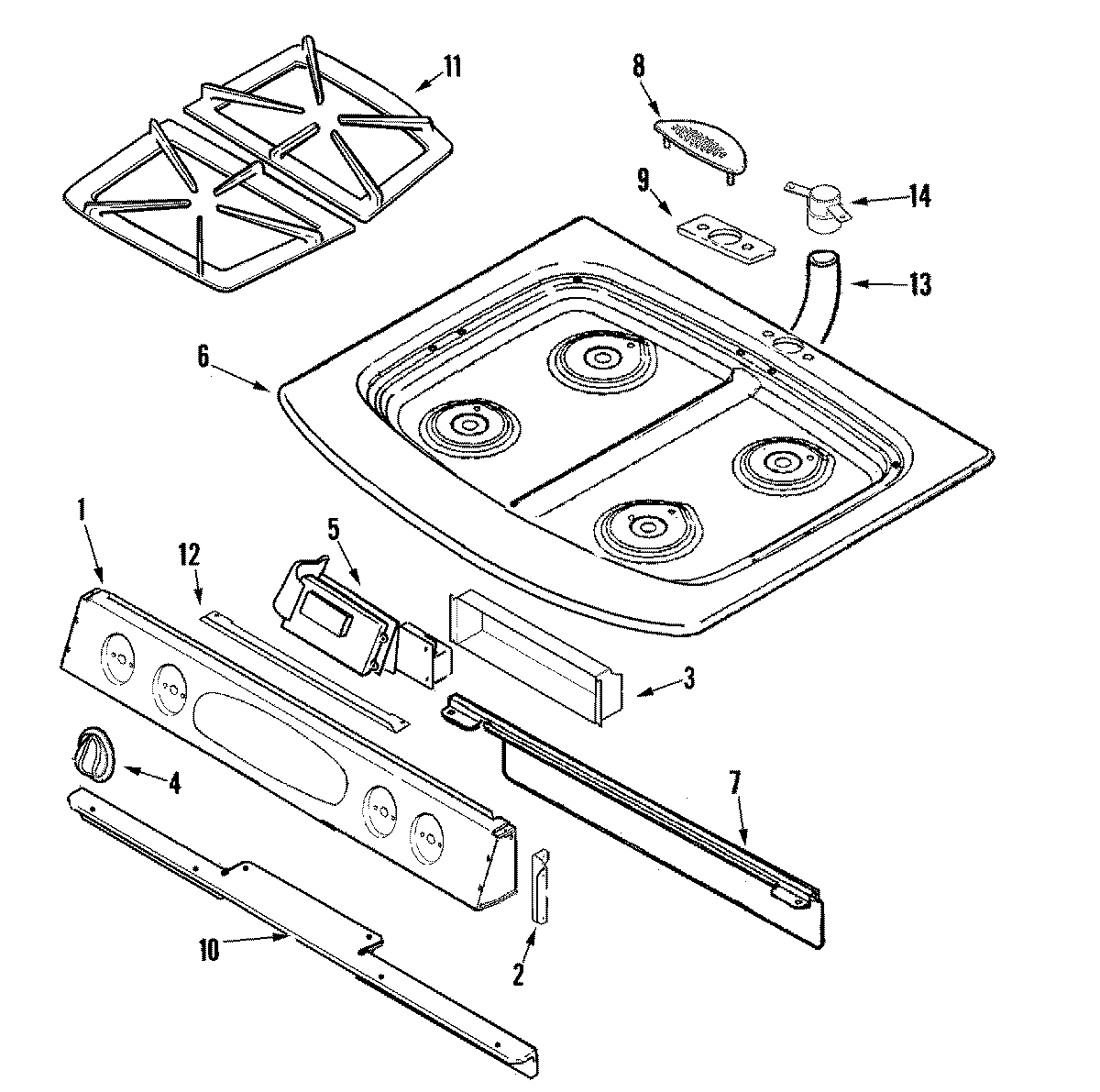

05 - TOP ASSEMBLY & CONTROL
06 - WIRING INFORMATION

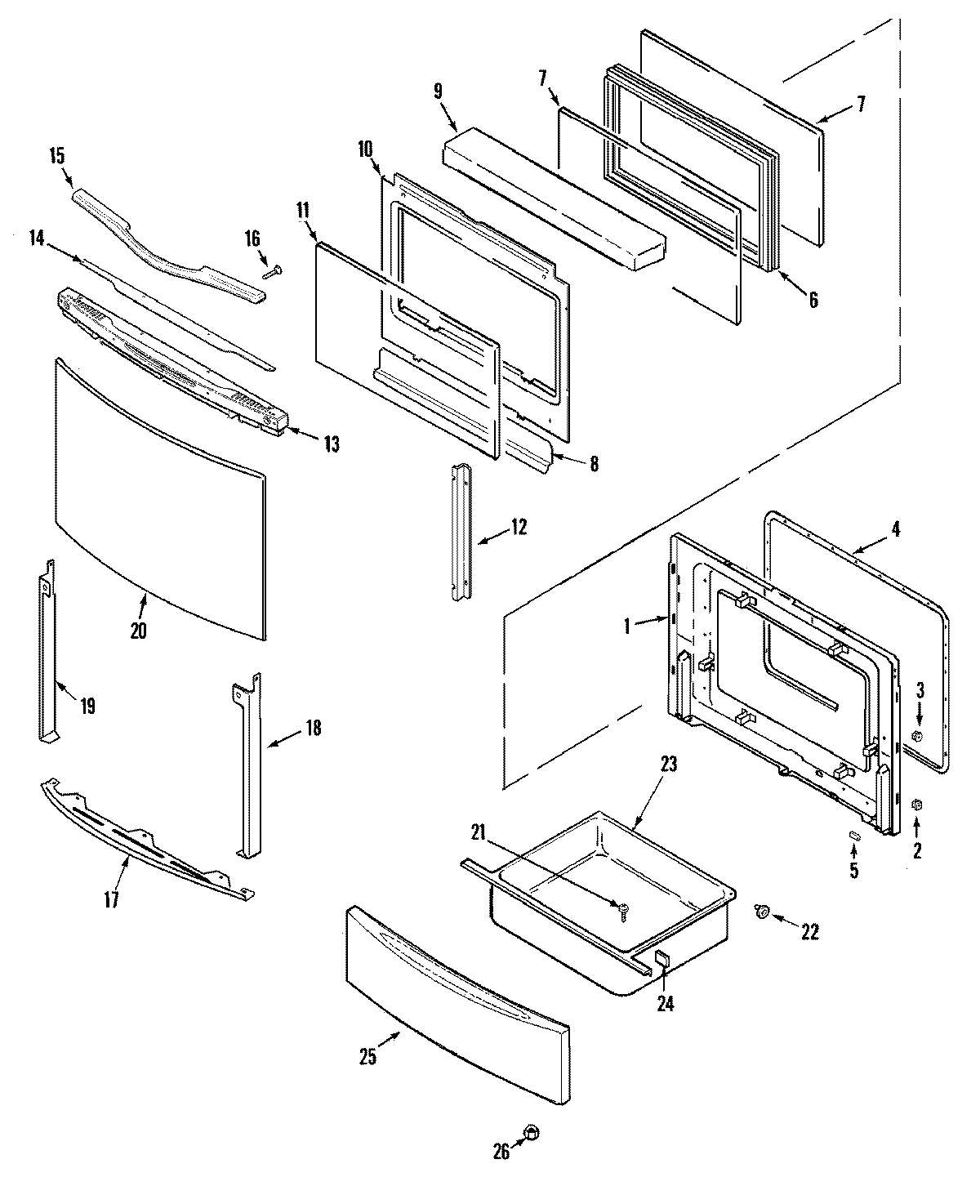

02 - DOOR/DRAWER
Common parts from model Whirlpool JDS8850ACW GAS RANGE
1
WIRING INFORMATION (FRC) WPL 15003404 Contact Us For Availability
1
TUBE, SUPPLY WPL 74006064 Contact Us For Availability
1
TUBE, VENT (LWR) WPL 74005720 Contact Us For Availability
1
SCREW W/WASHER WPL 71003201 Contact Us For Availability
1
CONTROL PANEL ASSY. (WHT) WPL 74007244 Contact Us For Availability
1
LINING, DOOR WPL 74003642 Contact Us For Availability
2
TUBING, CROSSOVER(W/T FITTING) WPL 74006024 Contact Us For Availability
2
SCREW WPL 7101P34560 Contact Us For Availability
2
SUPPORT, BROIL ELEMENT WPL 74003563 Contact Us For Availability
2
BRACKET, CONTROL PANEL WPL 74005729 Contact Us For Availability
2
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
3
HARNESS, VALVE SWITCH (LT) WPL 74005998 Contact Us For Availability
3
INSULATOR, CONTROL WPL 74005755 Contact Us For Availability
4
SUPPORT, T-FITTING WPL 74006026 Contact Us For Availability
4
SCREW WPL 74006027 Contact Us For Availability
4
KNOB, VALVE (WHT) WPL 74006007 Contact Us For Availability
4
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
5
SCREW, VALVE WPL 71003231 Contact Us For Availability
5
VALVE, TOP BURNER (10.5K) WPL 74006028 Contact Us For Availability
5
VALVE, TOP BURNER (6.5) WPL 74006029 Contact Us For Availability
5
HARNESS, CONTROL/P9 WPL 74005873 Contact Us For Availability
5
HARNESS, SENSOR/LOCK WPL 74006171 Contact Us For Availability
5
LOCK, PURSE WPL 74007369 Contact Us For Availability
5
HARNESS, MAIN WPL 74007485 Contact Us For Availability
5
CLOCK, W/HARNESS WPL 74007486 Contact Us For Availability
5
HARNESS, MAIN WPL 74011566 Contact Us For Availability
6
TOP, MAIN (WHT) WPL 74007248 Contact Us For Availability
6
FRAME, GLASS WPL 74003644 Contact Us For Availability
7
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
7
BRACKET, VENTURI WPL 74005992 Contact Us For Availability
7
PEDESTAL, SIDE WPL 74005772 Contact Us For Availability
7
SCREW WPL 7101P34960 Contact Us For Availability
7
SHIELD, CONTROL WPL 74005999 Contact Us For Availability
8
RING, RETAINING WPL 74005993 Contact Us For Availability
8
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
8
TRIM, VENT (WHT) WPL 74005758 Contact Us For Availability
8
SHIELD, DOOR (INR) WPL 74005761 Contact Us For Availability
9
BLOCK, DISCONNECT (MALE) WPL 74002230 Contact Us For Availability
9
BLOCK, DISCONNECT WPL 74002301 Contact Us For Availability
9
BLOCK, DISCONNECT WPL 74002303 Contact Us For Availability
9
BLOCK, DISCONNECT WPL 74002305 Contact Us For Availability
9
BLOCK, DISCONNECT WPL 74002306 Contact Us For Availability
9
CORD, POWER WPL 74006398 Contact Us For Availability
9
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
9
VENTURI, BURNER (RF) WPL 74006016 Contact Us For Availability
9
VENTURI, BURNER (LF) WPL 74006018 Contact Us For Availability
9
GASKET WPL Y04100462 Contact Us For Availability
9
INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability
10
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
10
VENTURI, BURNER (RR) WPL 74006017 Contact Us For Availability
10
VENTURI, BURNER (LR) WPL 74006019 Contact Us For Availability
10
SUPPORT, CONTROL PANEL WPL 74005756 Contact Us For Availability
10
BAFFLE, DOOR WPL 74003648 Contact Us For Availability
11
TRANSFORMER (STEPDOWN) WPL 74005416 Contact Us For Availability
11
REGULATOR, PRESSURE WPL Y04100249 Contact Us For Availability
11
SCREW WPL 7101P35260 Contact Us For Availability
11
GRATE (GRAY) WPL 74006010 Contact Us For Availability
11
GRATE (GRAY) WPL 74006013 Contact Us For Availability
11
GLASS, DOOR (INR) WPL 74005774 Contact Us For Availability
12
EXTENSION, HEAT SHIELD WPL 74005728 Contact Us For Availability
12
EXTENSION, HEAT SHIELD WPL 74006103 Contact Us For Availability
12
RETAINER, INSULATION (BOTTOM) WPL 74006522 Contact Us For Availability
12
BRACKET, TOP SUPPORT WPL 74005877 Contact Us For Availability
12
RETAINER, GLASS WPL 74003650 Contact Us For Availability
13
SHIELD, HEAT SIDE WPL 74007487 Contact Us For Availability
13
CAP, BURNER (LG-MT GRY) WPL 74007204 Contact Us For Availability
13
COVER, LIGHT WPL 74005777 Contact Us For Availability
13
TUBE, VENT (DUAL FUEL) WPL 74007246 Contact Us For Availability
13
TRIM, DOOR (TOP-WHT) WPL 74005699 Contact Us For Availability
14
EXTENSION, MAIN BACK WPL 74005722 Contact Us For Availability
14
NUT, BURNER BASE WPL 74006032 Contact Us For Availability
14
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
14
TUBE, VENT (UPR) WPL 74005759 Contact Us For Availability
14
INSERT, DOOR TRIM (WHT) WPL 74005703 Contact Us For Availability
15
LIGHT ASY, HAL0GEN WPL 74011220 Contact Us For Availability
15
BURNER, BASE (LRG) WPL 74007186 Contact Us For Availability
15
HALOGEN LAMP ASSY WPL 74005773 Contact Us For Availability
15
COOKBOOK WPL 71003508 Contact Us For Availability
15
MANUAL, USE & CARE WPL 74006684 Contact Us For Availability
15
GUIDE, COOKING (TRILINGUAL) WPL 74007136 Contact Us For Availability
15
HANDLE, DOOR (WHT) WPL 74005697 Contact Us For Availability
16
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
16
RETAINER, INSULATION WPL 74004348 Contact Us For Availability
16
CAP, BURNER (SMR-MT GRY) WPL 74007192 Contact Us For Availability
16
CAP, BURNER (MED-MT GRY) WPL 74007197 Contact Us For Availability
16
SCREW (No.10-32 X .625``) WPL 71003275 Contact Us For Availability
17
TRIM, SIDE (WHT) WPL 74004182 Contact Us For Availability
17
SUPPORT, GLASS WPL 74005763 Contact Us For Availability
18
NUT, LOCK (8-32) WPL 74005230 Contact Us For Availability
18
ASSEMBLY, DOOR LATCH WPL 74005675 Contact Us For Availability
18
TUBE, TOP BURNER SUPPLY WPL 74007238 Contact Us For Availability
18
TRIM, DOOR (RT-WHT) WPL 74005694 Contact Us For Availability
19
FAN MOTOR ASY. WPL 74004947 Contact Us For Availability
19
HARNESS, WIRE (SPARK) WPL 74007017 Contact Us For Availability
19
SHIELD, FRONT FRAME (WHT) WPL 74005724 Contact Us For Availability
19
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
19
TRIM, DOOR (LT-WHT) WPL 74005696 Contact Us For Availability
20
INSULATOR, SWITCH WPL 74001872 Contact Us For Availability
20
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
20
GLASS, DOOR (WHT) WPL 74005717 Contact Us For Availability
21
BUMPER, ROD WPL 74001631 Contact Us For Availability
21
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
21
SCREW WPL 7101P07260 Contact Us For Availability
22
ROD, DOOR LIGHT SWITCH WPL 74003562 Contact Us For Availability
22
SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability
22
NUT WPL 7103P08260 Contact Us For Availability
22
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
23
SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability
23
BAFFLE, BROIL WPL 74003564 Contact Us For Availability
23
DRAWER, STORAGE WPL 71003042 Contact Us For Availability
24
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
25
BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability
25
RECEPTACLE, PROBE WPL 71001863 Contact Us For Availability
25
RECEPTACLE, PROBE WPL 74009649 Contact Us For Availability
25
NUT, HEX 3/8`` WPL Y703356 Contact Us For Availability
25
PANEL, DRAWER (WHT) WPL 74005691 Contact Us For Availability
26
SWITCH WPL 74001802 Contact Us For Availability
26
SCREW WPL 7101P06860 Contact Us For Availability
26
NUT WPL 7103P03460 Contact Us For Availability
26
SUPPORT, VALVE/REGULATOR WPL 74005464 Contact Us For Availability
26
NUT, LOCK WPL 7103P13960 Contact Us For Availability
27
SUPPORT, OVEN WPL 74004780 Contact Us For Availability
28
SCREW WPL 74005401 Contact Us For Availability
28
COVER, CONVECT WPL 74005783 Contact Us For Availability
29
FAN ASSY., DUAL CONVECT WPL 74006807 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003405 Contact Us For Availability
× ![]()
