Model Whirlpool JDB4950AWG DISHWASHER – Common Parts &amp; Diagrams

1

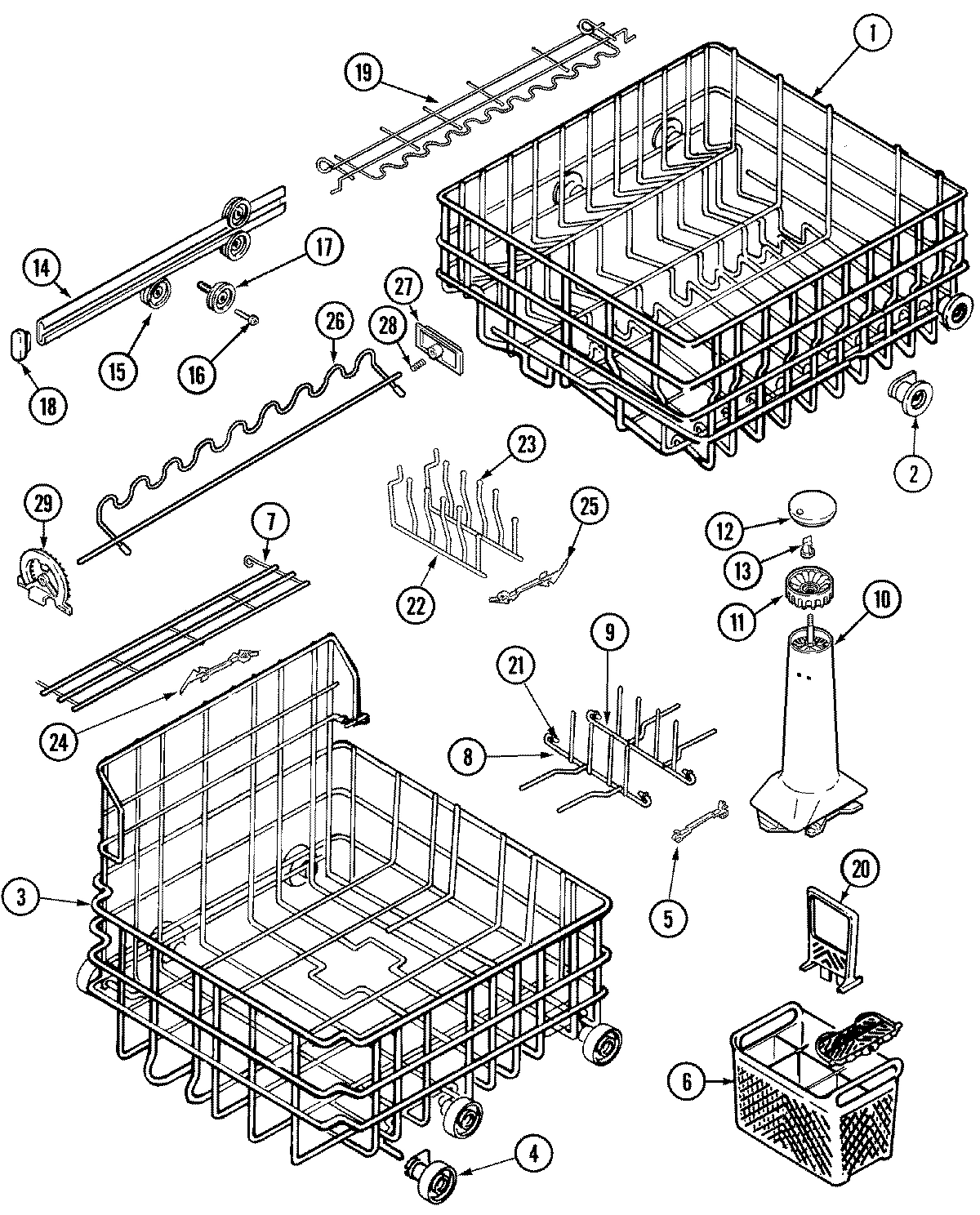

RACK ASSEMBLY (UPR) WPL 99001454 Contact Us For Availability

1

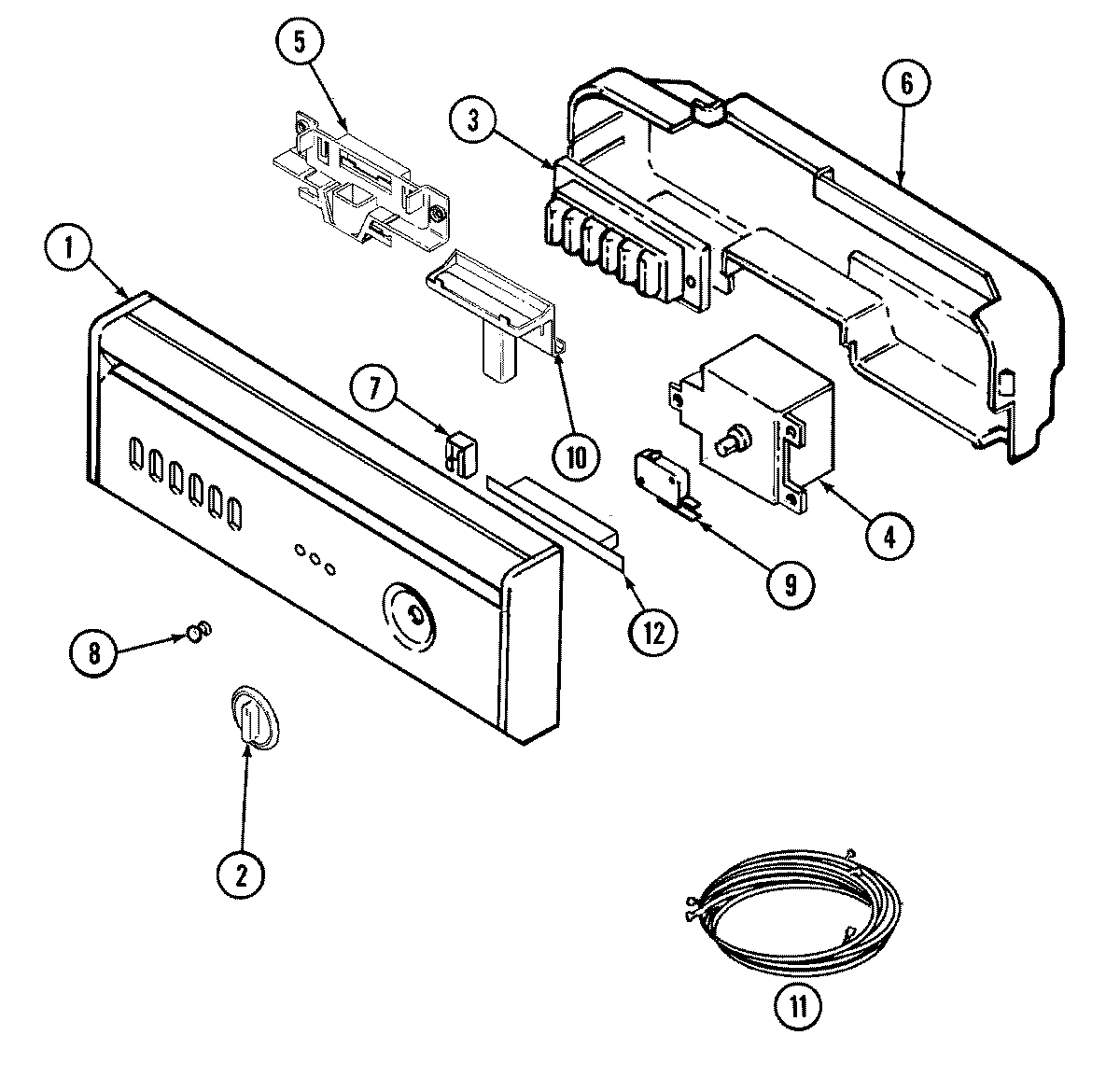

PANEL, CONTROL (BLK) WPL 99001473 Contact Us For Availability

1

FACIA, CONTROL PANEL WPL 99001982 Contact Us For Availability

1

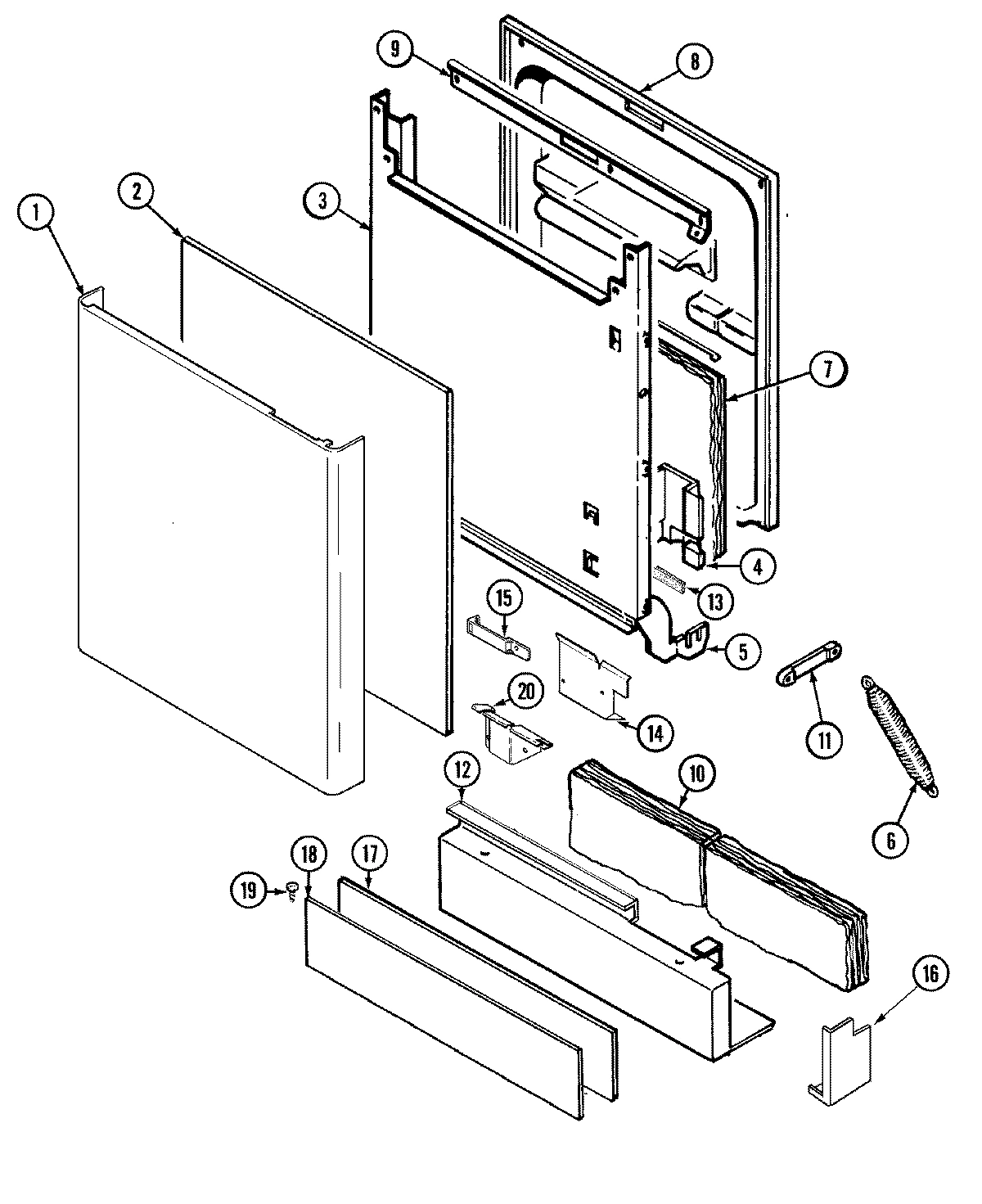

PANEL, DECORATOR (JADE) WPL 99001731 Contact Us For Availability

1

NAMEPLATE (BLUE CREEK) WPL 99001740 Contact Us For Availability

2

WP903093 Whirlpool Dishwasher Rack Wheel In Stock WPL WP903093 $9.83

2

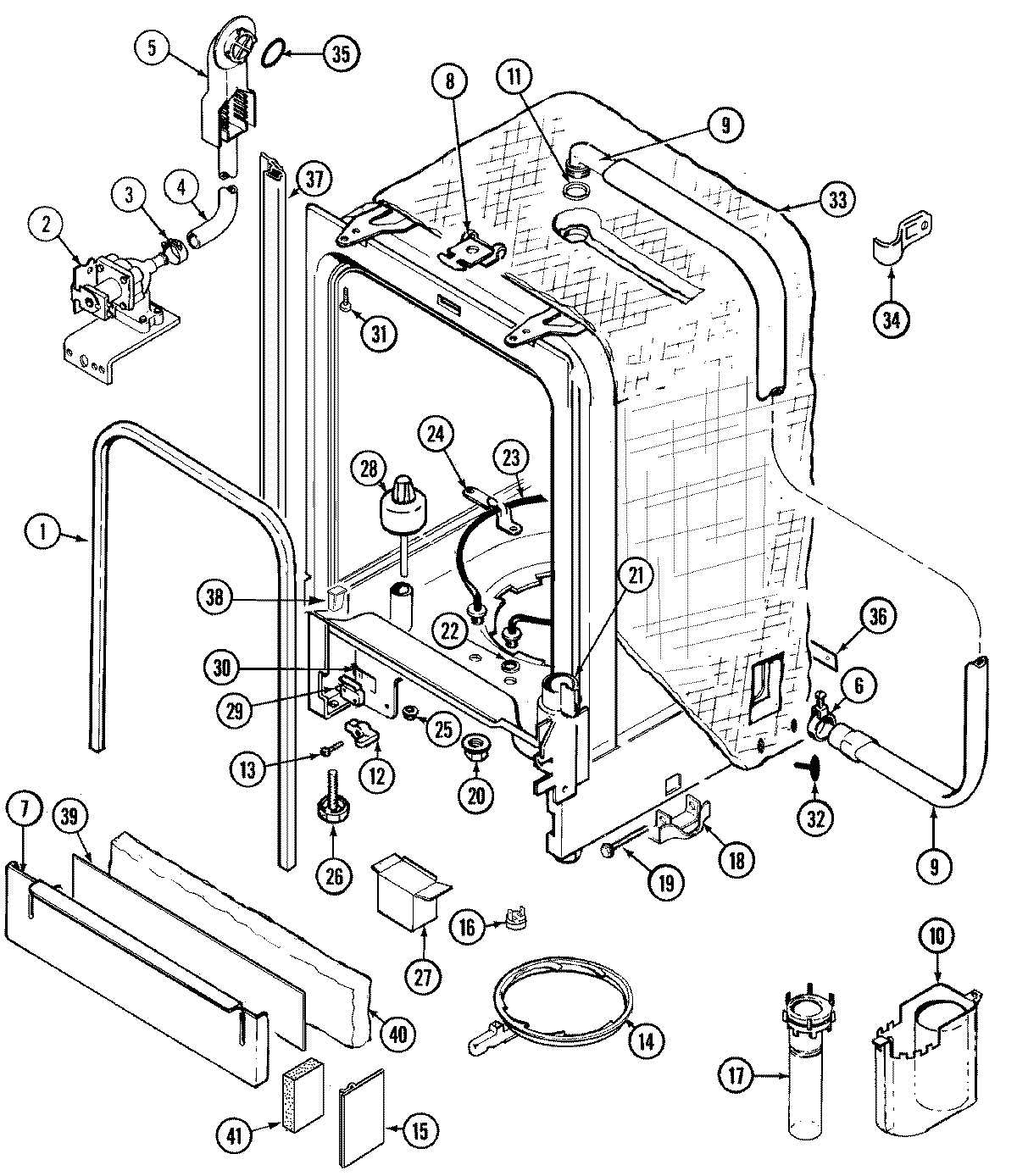

WP99001359 Whirlpool Dishwasher Water Valve In Stock WPL WP99001359 $48.23

2

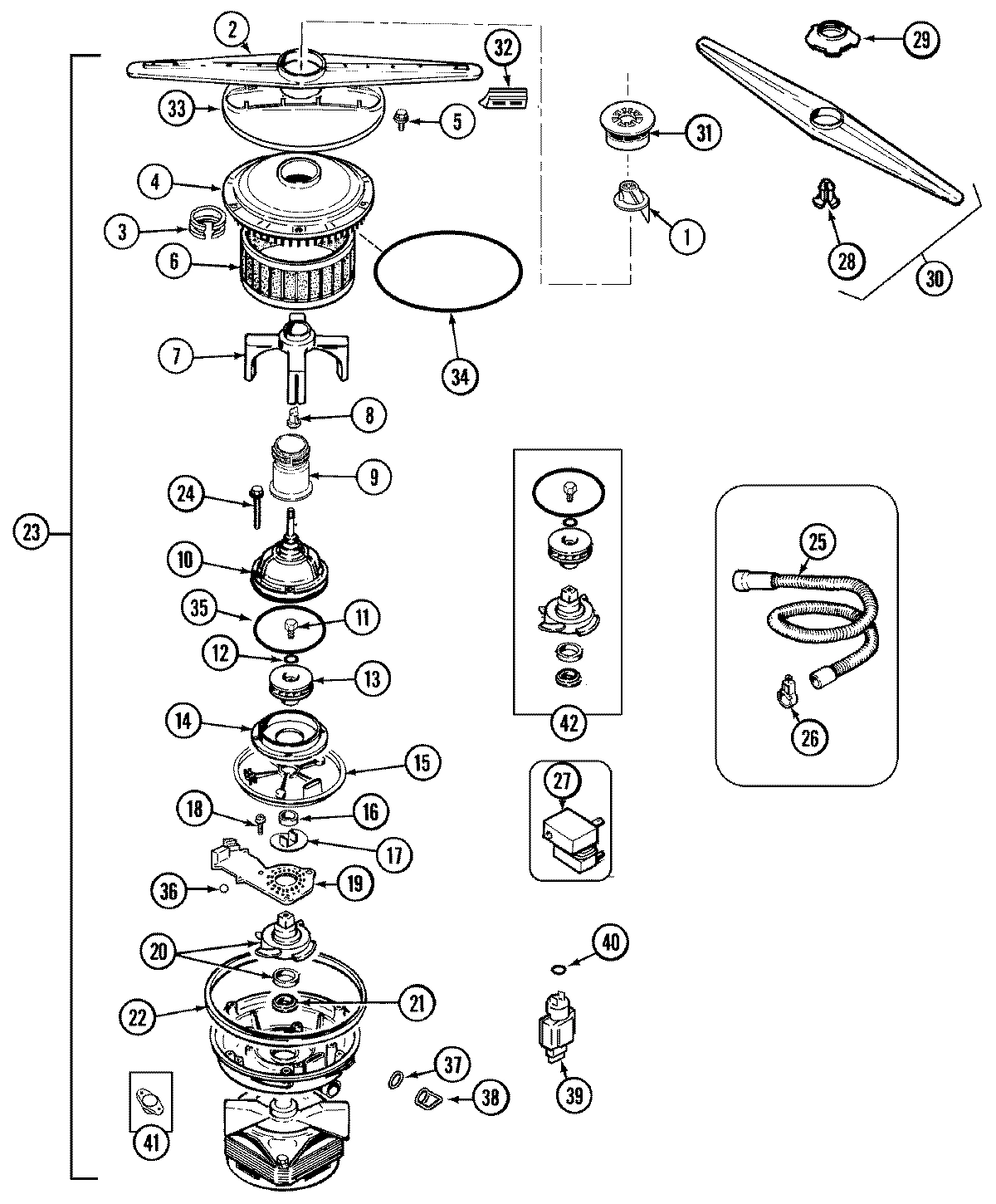

WP99001788 Whirlpool Dishwasher Spray Arm In Stock WPL WP99001788 $87.86

2

LABEL, ENERGY GUIDE WPL 99001967 Contact Us For Availability

2

FILLER, FRONT PANEL WPL 99001415 Contact Us For Availability

3

912619 Whirlpool Dishwasher Trim Screw P-1 Backorder WPL 912619 $8.39

3

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $5.02

3

RING, SEAL WPL 912313 Contact Us For Availability

3

BUTTON, CONTROL SWITCH (BLK) WPL 99001635 Contact Us For Availability

3

SWITCH, CONTROL (6-BUTTON) WPL 99002011 Contact Us For Availability

3

SWITCH, CONTROL (6-BUTTON) WPL 99002105 Contact Us For Availability

3

GROUND WIRE, REINFORCEMENT WPL 99001688 Contact Us For Availability

3

DOOR, OUTER WPL 99001892 Contact Us For Availability

3

RACK ASSEMBLY (LWR) WPL 99001455 Contact Us For Availability

4

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $4.82

4

WP99001553 Whirlpool Dishwasher Grommet Backorder WPL WP99001553 $48.03

4

WP99002780 Whirlpool Lower Wheel Assembly In Stock WPL WP99002780 $9.74

4

HOSE, INJECTOR WPL 912633 Contact Us For Availability

4

FILTER ASSY., SECONDARY WPL 99001789 Contact Us For Availability

4

TIMER WPL 99002001 Contact Us For Availability

4

TIMER WPL 99002014 Contact Us For Availability

4

SPACER, FOAM WPL 99002362 Contact Us For Availability

4

RETAINER, WIRE WPL Y912666 Contact Us For Availability

5

WPY912709 Whirlpool Dishwasher Adjuster Clip In Stock WPL WPY912709 $6.02

5

INJECTOR, WATER WPL 912533 Contact Us For Availability

5

SCREW, SECONDARY FILTER WPL 99001790 Contact Us For Availability

5

SCREW WPL 99001075 Contact Us For Availability

5

HINGE (LT) WPL 99001898 Contact Us For Availability

5

HINGE (RT) WPL 99001899 Contact Us For Availability

6

WP6-918873 Whirlpool Silverware Basket In Stock WPL WP6-918873 $38.54

6

WP912652 Whirlpool Dishwasher Spring In Stock WPL WP912652 $6.58

6

INSULATION, COLLAR WPL 99001207 Contact Us For Availability

6

DAMPER, COLLAR WPL 99001208 Contact Us For Availability

6

BARRIER, CONTROL PANEL WPL 99001545 Contact Us For Availability

7

WP6-920580 Whirlpool Dishwasher Insulation Pa Backorder WPL WP6-920580 $20.64

7

SLIDER WPL 99001289 Contact Us For Availability

7

ARM ASSY., RINSE WPL 99001748 Contact Us For Availability

7

SHELF, RACK (LWR) WPL 903436 Contact Us For Availability

8

WPW10116816 Whirlpool Dishwasher Spring Backorder WPL WPW10116816 $4.67

8

DOOR LATCH HOOK ASSY WPL 903098 Contact Us For Availability

8

SPRING, LATCH WPL 912648 Contact Us For Availability

8

RETAINER, LATCH WPL 912650 Contact Us For Availability

8

HOOK, LATCH WPL 99001355 Contact Us For Availability

8

SCREW, LATCH WPL Y912873 Contact Us For Availability

8

LENS, MINI-CONVEX WPL 99001319 Contact Us For Availability

8

DAMPER, SOUND (TOP) WPL 99001215 Contact Us For Availability

8

SEAL, VENT BACK WPL 99001783 Contact Us For Availability

8

GROMMET, VENT WPL 99001805 Contact Us For Availability

8

RETAINER, GROMMET WPL 99001806 Contact Us For Availability

8

MOTOR, WAX WPL 99001807 Contact Us For Availability

8

DOOR, INNER (GRANITE) WPL 99001968 Contact Us For Availability

8

DAMPER, SOUND (BTM) WPL Y912751 Contact Us For Availability

9

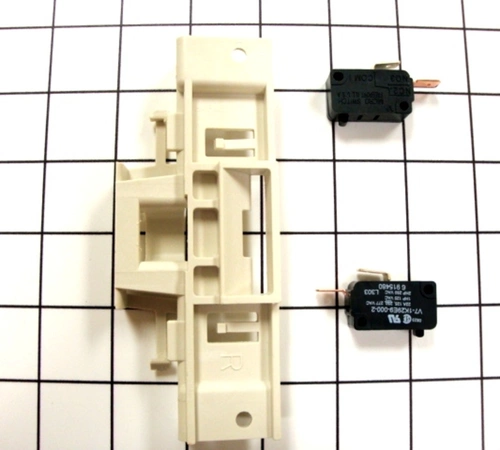

99002254 Whirlpool Dishwasher Door Switch wit Backorder WPL 99002254 $65.29

9

WP99002138 Whirlpool Dishwasher Tine Row Backorder WPL WP99002138 $44.52

9

WP99002833 Whirlpool Dishwasher Reservoir Backorder WPL WP99002833 $48.45

9

HOSE, TOP SHOWER WPL 912647 Contact Us For Availability

9

SUPPORT, SPRAY ARM WPL 99001422 Contact Us For Availability

9

BAR, REINFORCEMENT WPL Y912668 Contact Us For Availability

PLUNGER ASSEMBLY WPL 903124 Contact Us For Availability

VENT, INLET WPL Y913095 Contact Us For Availability

DISCHARGE HOUSING ASSY (UPR) WPL 99002461 Contact Us For Availability

PAD, LATCH WPL 99001401 Contact Us For Availability

FOAM, LATCH HANDLE WPL 99001402 Contact Us For Availability

INSULATION, ACCESS PANEL WPL 99001195 Contact Us For Availability

TOWER, SPRAY (W/SHAFT-GRAY) WPL 99001533 Contact Us For Availability

WP912653 Whirlpool Dishwasher Door Spring Lin In Stock WPL WP912653 $5.30

GASKET, RESERVOIR WPL Y913061 Contact Us For Availability

WASHER, TUB TOP WPL 910069 Contact Us For Availability

SCREW, IMPELLER WPL 910654 Contact Us For Availability

WIRE HARNESS, MAIN WPL 99001965 Contact Us For Availability

WIRE HARNESS, MAIN WPL 99002010 Contact Us For Availability

DIVERTER, SPRAY (GRAY) WPL 99001442 Contact Us For Availability

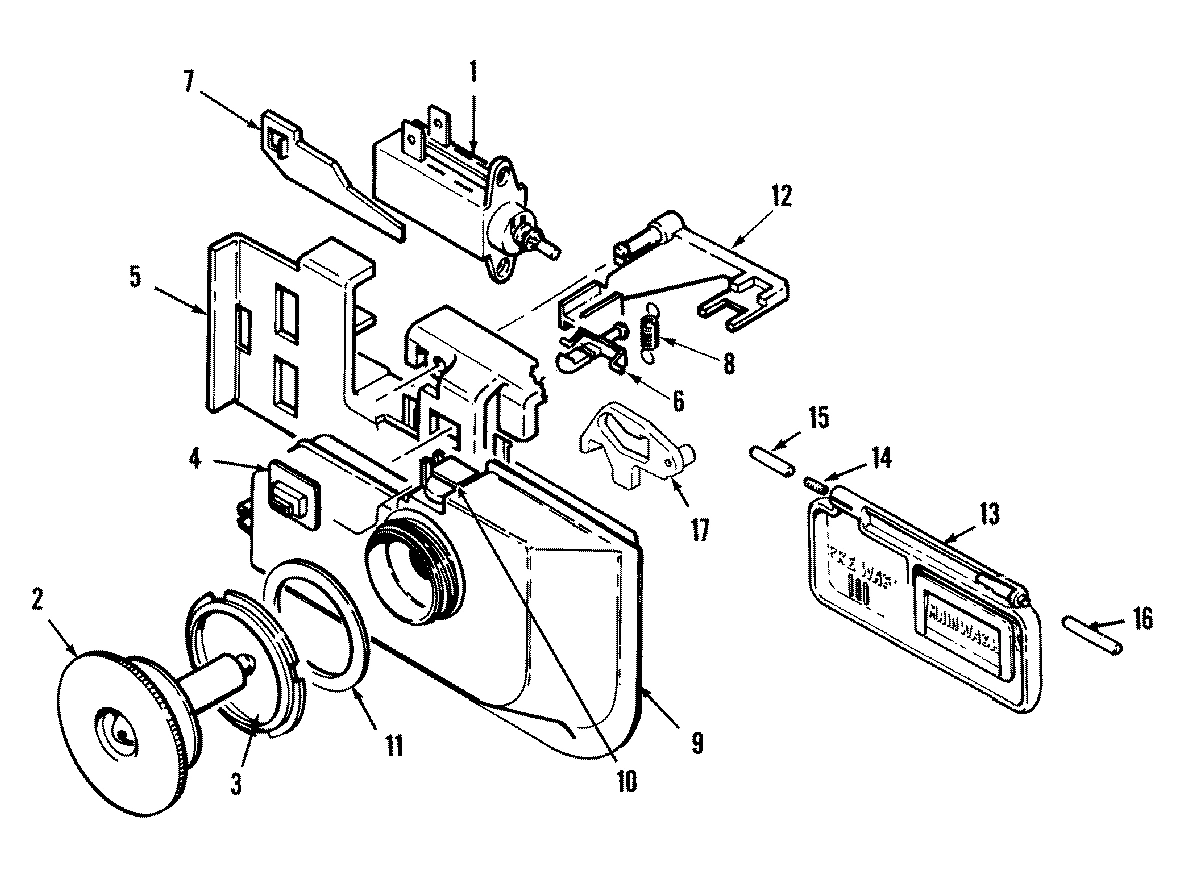

ACTUATOR, RINSE AID WPL 99001290 Contact Us For Availability

LEVER, ACTUATOR WPL 912014 Contact Us For Availability

LINER, HANDLE HOLE WPL 99001420 Contact Us For Availability

SEAL, ACCESS PANEL WPL 99001205 Contact Us For Availability

WP99002069 Whirlpool Dishwasher Impeller Backorder WPL WP99002069 $46.70

LID, DETERGENT CUP WPL 903108 Contact Us For Availability

PIN, LEVER PIVOT WPL 912015 Contact Us For Availability

NUT, DISCHARGE HOUSING WPL 99001426 Contact Us For Availability

MANUAL, USE & CARE WPL 99001966 Contact Us For Availability

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $5.02

SPRING, CUP LID WPL Y912547 Contact Us For Availability

RING, LOCKING WPL Y912686 Contact Us For Availability

PLATE, SUCTION WPL 99001793 Contact Us For Availability

MANUAL, SERVICE-NO REFUNDR WPL 16009308 Contact Us For Availability

SHIELD, TUB (BLK) WPL 912641 Contact Us For Availability

15

BARRIER (BLK) WPL 99001392 Contact Us For Availability

15

SUPPORT, FILTER WPL 99001794 Contact Us For Availability

15

STRAP, HARNESS WPL 99001444 Contact Us For Availability

WP6-912678 Whirlpool Hinge Pin In Stock WPL WP6-912678 $6.02

WP99002947 Whirlpool Tub Wheel In Stock WPL WP99002947 $7.80

THERMOSTAT, BOOST (36TX02) WPL 99001005 Contact Us For Availability

CLIP, THERMOSTAT WPL 99001008 Contact Us For Availability

THERMOSTAT, LIMITING WPL 99001852 Contact Us For Availability

O-RING WPL 912510 Contact Us For Availability

SHIELD, ACCESS PANEL (RT) WPL Y912809 Contact Us For Availability

SHIELD, ACCESS PANEL (LT) WPL Y912810 Contact Us For Availability

WPY912798 Whirlpool Dishwasher Tub Washer Whe Backorder WPL WPY912798 $4.82

PIVOT WPL 99001287 Contact Us For Availability

TUBE, INLET WPL Y913096 Contact Us For Availability

DISC, CUTTER WPL 912310 Contact Us For Availability

FILLER, ACCESS PANEL WPL 912525 Contact Us For Availability

61002031 Whirlpool Air Conditioner Handle Scr Backorder WPL 61002031 $33.53

WP99002135 Whirlpool Dishwasher Rack Stop In Stock WPL WP99002135 $6.02

BRACKET, ADJUSTING WPL 912651 Contact Us For Availability

CAP, ACCESS PANEL (JADE) WPL 99001736 Contact Us For Availability

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

WP912618 Whirlpool Dishwasher Screw Backorder WPL WP912618 $4.82

SCREW, ADJUSTING BRACKET WPL 912613 Contact Us For Availability

COVER, DRAIN WPL 99001795 Contact Us For Availability

SHELF, RACK (UPR) WPL 99001429 Contact Us For Availability

WP6-912366 Whirlpool Dishwasher Screw Backorder WPL WP6-912366 $4.82

NUT, HEATING ELEMENT WPL 912645 Contact Us For Availability

SLEEVE, INSULATING WPL 99001333 Contact Us For Availability

DRAIN IMPELLER ASSEMBLY WPL 903304 Contact Us For Availability

COVER, WIRE (BLK) WPL 912642 Contact Us For Availability

HANDLE, SILVERWARE BASKET WPL Y912708 Contact Us For Availability

SLEEVE, FOLDING TINES WPL WPW10116789 No Longer Available

SCREW WPL 912622 Contact Us For Availability

CAP, AIR INLET WPL Y912659 Contact Us For Availability

SEAL, PUMP WPL 902882 Contact Us For Availability

22

O-RING, HEATER WPL Y913079 Contact Us For Availability

22

GASKET, PUMP WPL 912529 Contact Us For Availability

22

TINE, FOLD-AWAY (FRT) WPL 99001434 Contact Us For Availability

23

ELEMENT, HEATING (830W/650W) WPL 99001773 Contact Us For Availability

23

MOTOR/PUMP HOUSING ASSY WPL 99001934 Contact Us For Availability

23

TINE, FOLD-AWAY (REAR) WPL 99001435 Contact Us For Availability

24

BRACKET, HEATING ELEMENT WPL Y912541 Contact Us For Availability

24

SCREW WPL 912383 Contact Us For Availability

24

LATCH, PIVOTING TINE WPL 99001746 Contact Us For Availability

25

WP99001436 Whirlpool Dishwasher Fold Clip Backorder WPL WP99001436 $4.82

26

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

26

WPW10143258 Whirlpool Dishwasher Leg Leveler Backorder WPL WPW10143258 $9.90

26

HANDLER, CUP (UPR) WPL 99001437 Contact Us For Availability

4396672 Whirlpool Dishwasher Connector Backorder WPL 4396672 $11.54

BOX, TERMINAL WPL 912563 Contact Us For Availability

RELAY, MOTOR WPL 99001425 Contact Us For Availability

BRACKET, RELAY WPL Y913156 Contact Us For Availability

SUPPORT, CUP HANDLER (REAR) WPL 99001439 Contact Us For Availability

SUPPORT CUP, VARILOCK (REAR) WPL 99001461 Contact Us For Availability

28

WP99002363 Whirlpool Dishwasher Float Backorder WPL WP99002363 $6.02

28

RETAINER, SNAP SPRAY WPL Y912681 Contact Us For Availability

28

SPRING, CUP HANDLER SUPPORT WPL 99001440 Contact Us For Availability

29

SCREW WPL 912012 Contact Us For Availability

29

SUPPORT, CUP HANDLER (FRT) WPL 99001438 Contact Us For Availability

UPPER SPRAY ARM/RETAINER ASSY WPL 12001446 Contact Us For Availability

BRACKET, WATER LEVEL SWITCH WPL 912656 Contact Us For Availability

CAP, RACK (WHT) WPL 99002016 Contact Us For Availability

CAP, RACK (LIGHT GRAY) WPL 99002017 Contact Us For Availability

31

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

31

WP99001428 Whirlpool Dishwasher Nut Backorder WPL WP99001428 $4.82

32

FASTENER, INSULATION WPL 911917 Contact Us For Availability

32

FASTENER, INSULATION (COLLAR) WPL 99002415 Contact Us For Availability

32

SHIELD, RADIANT WPL Y912895 Contact Us For Availability

WP99001796 Whirlpool Dishwasher Guard Backorder WPL WP99001796 $12.93

WPW10223013 Whirlpool Dishwasher Insulation P Backorder WPL WPW10223013 $59.09

DAMPER, SOUND (BACK) WPL 912749 Contact Us For Availability

DAMPER, TUB SUPPORT (LT) WPL 99001209 Contact Us For Availability

DAMPER, TUB SUPPORT (RT) WPL 99001210 Contact Us For Availability

DAMPER, SOUND (TOP-FRT) WPL 99001833 Contact Us For Availability

DAMPER, SOUND (TOP-BACK) WPL 99001834 Contact Us For Availability

DAMPER, SOUND (LT) WPL Y912744 Contact Us For Availability

DAMPER, SOUND (RT) WPL Y912745 Contact Us For Availability

34

HOOK, DRAIN WPL Y912790 Contact Us For Availability

34

O-RING WPL 99001797 Contact Us For Availability

35

WPL 912644 WPL 912644 Contact Us For Availability

35

GASKET, DISCHARGE HSNG (UPR) WPL 99001326 Contact Us For Availability

36

WPL 912654 WPL 912654 Contact Us For Availability

36

BALL, CHECK WPL 99001798 Contact Us For Availability

37

FLAPPER, VALVE WPL 99001799 Contact Us For Availability

38

WPL WP99001885 No Longer Available

38

CLIP, RETAINER WPL 99001800 Contact Us For Availability

39

WPW10272364 Whirlpool Refrigerator Screw Backorder WPL WPW10272364 $6.83

39

WPL 99001204 WPL 99001204 Contact Us For Availability

39

SENSOR, LCI WPL 99001869 Contact Us For Availability

40

WP6-920587 Whirlpool Dishwasher Shield Backorder WPL WP6-920587 $4.55

40

O RING, SENSOR WPL 99001888 Contact Us For Availability

41

WPL 99001395 WPL 99001395 Contact Us For Availability

41

O-RING, PUMP THERMOSTAT WPL 99001979 Contact Us For Availability

41

THERMOSTAT, BOOST WPL 99001981 Contact Us For Availability

42

PUMP MODULE REPAIR PACKET WPL 12001489 Contact Us For Availability
