Model Whirlpool JDB1105AWB0 DISHWASHER – Common Parts &amp; Diagrams

1

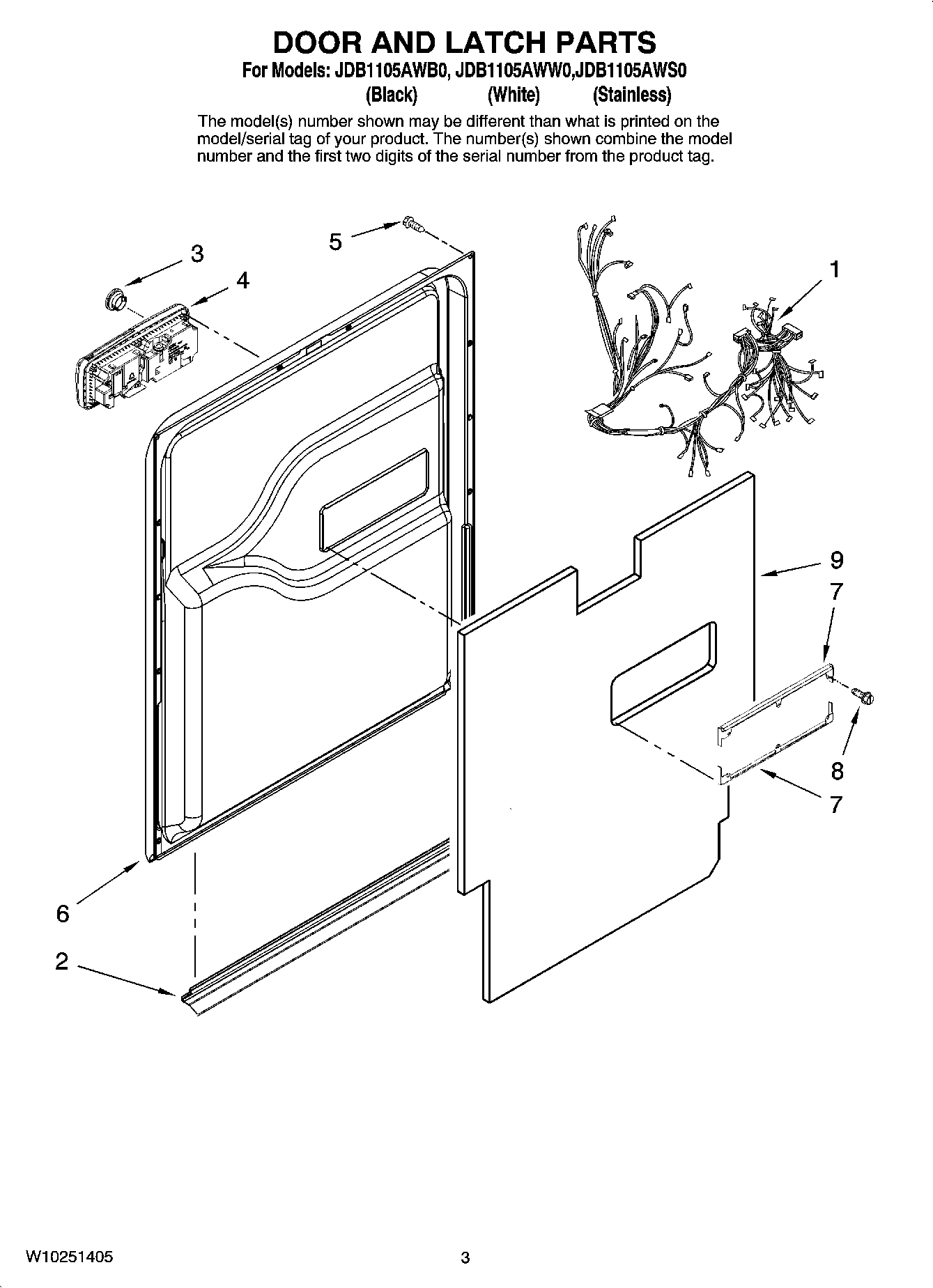

Strike, Door WPL W10119337 Contact Us For Availability

1

Harness, Wiring WPL 99003308 Contact Us For Availability

1

SCREW WPL 99002666 Contact Us For Availability

1

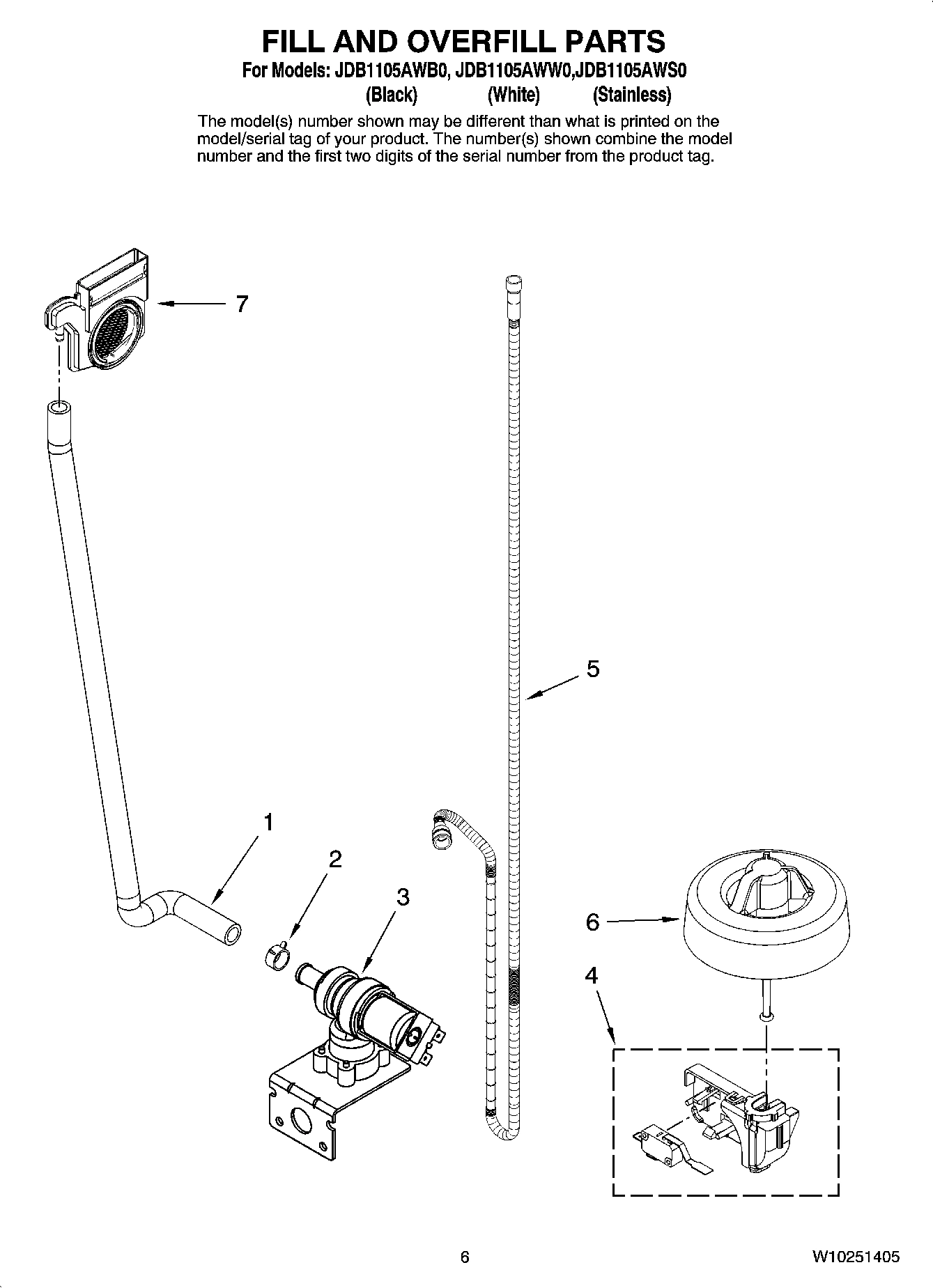

Feed Tube Assembly WPL 99003081 Contact Us For Availability

1

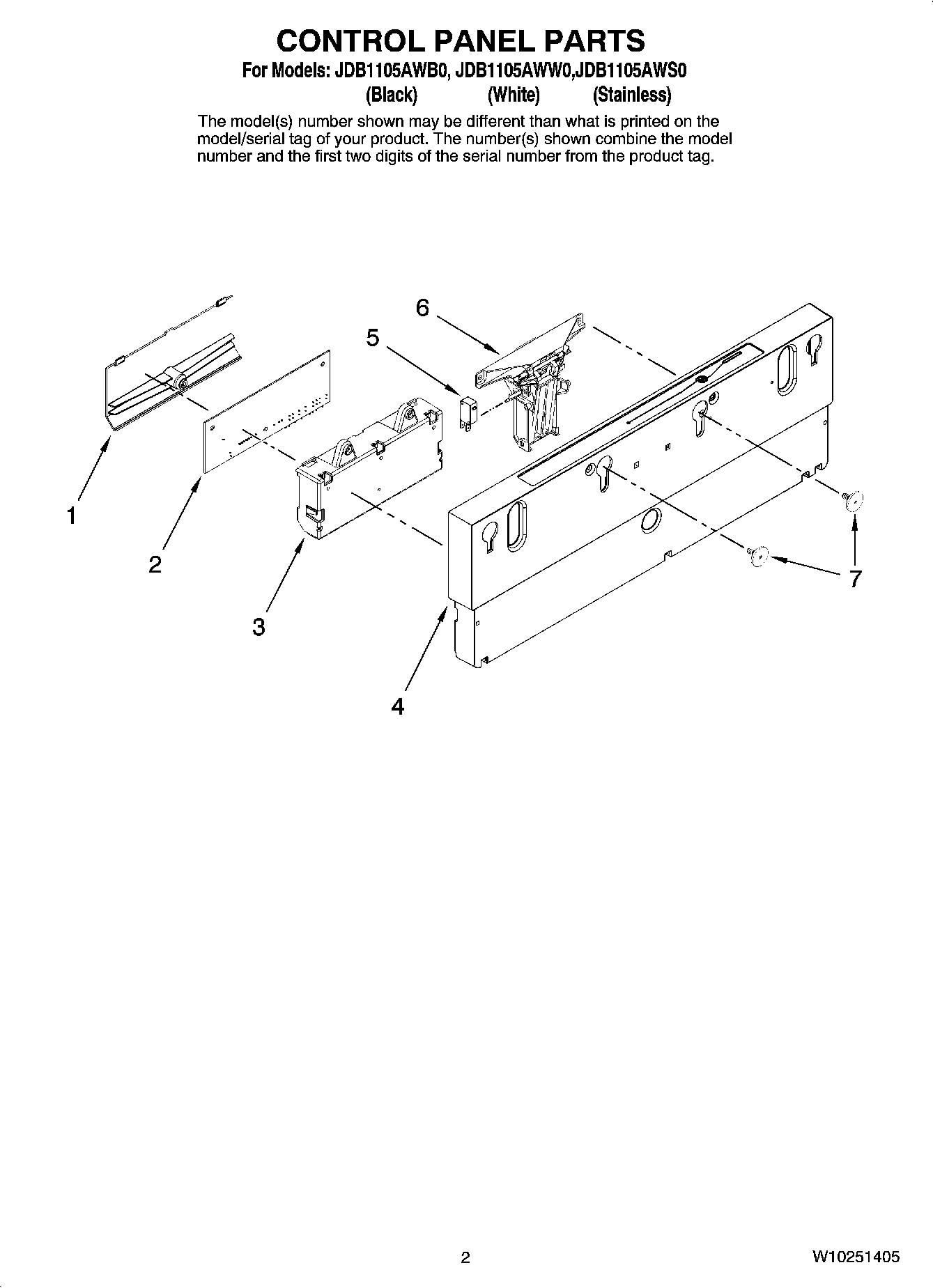

HOUSING, BOARD (TOP) WPL 99002575 Contact Us For Availability

1

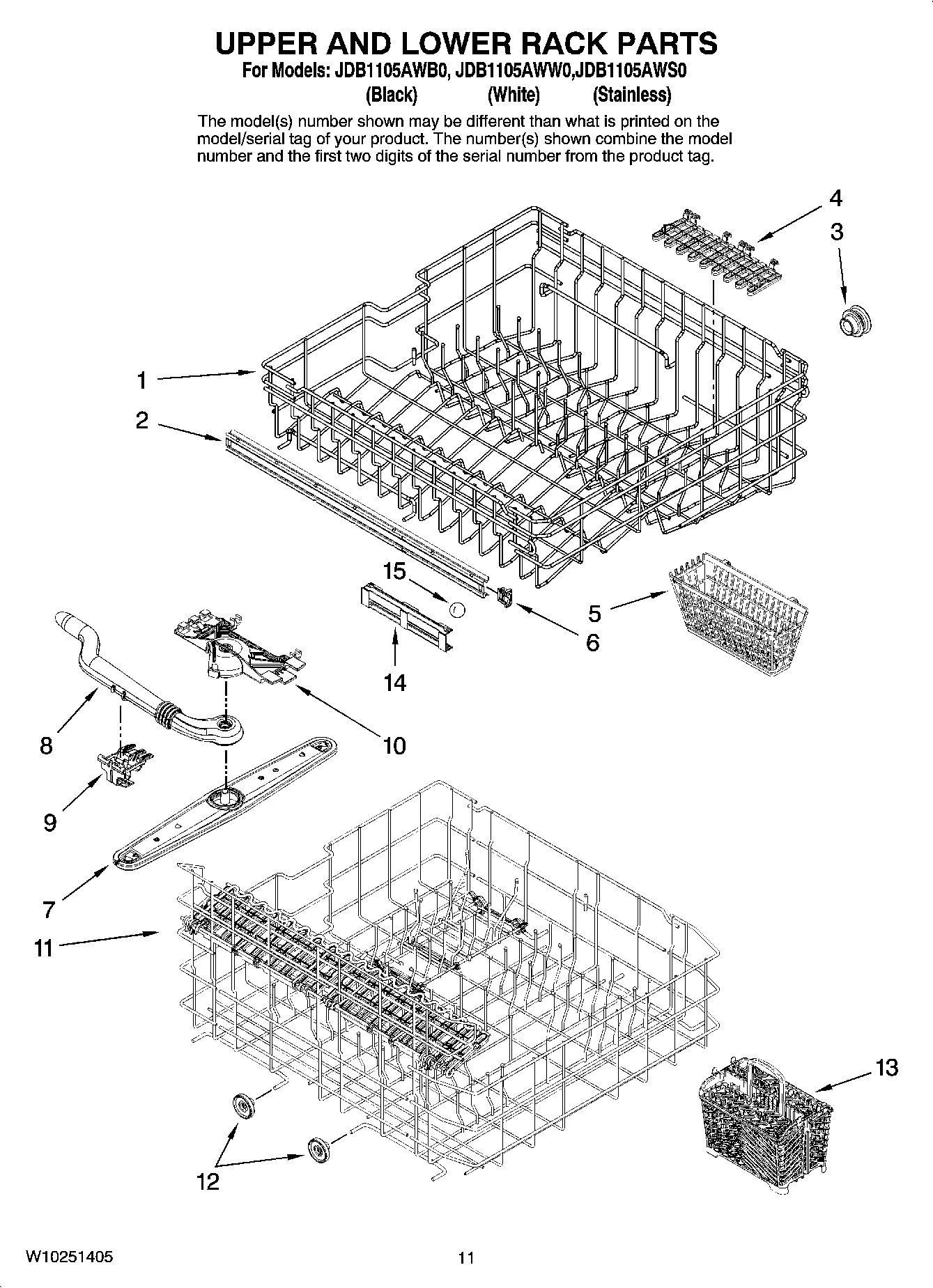

Dishrack, Upper WPL W10214026 Contact Us For Availability

2

Rail, Inner Slide WPL W10144736 Contact Us For Availability

2

Seal, Door (Bottom) WPL 99003045 Contact Us For Availability

2

Guard, Filter WPL W10166790 Contact Us For Availability

2

BRACKET, CABINET MOUNTING WPL 99002648 Contact Us For Availability

2

Board, Control WPL W10119995 Contact Us For Availability

3

WP99003148 Whirlpool Dishwasher Wheel In Stock WPL WP99003148 $6.03

3

Cap, Rinse Aid WPL 99003060 Contact Us For Availability

3

Screw WPL 99002668 Contact Us For Availability

3

Shield, Radiant WPL W10218606 Contact Us For Availability

3

Screw WPL 6912799 Contact Us For Availability

4

Panel, Control WPL W10161783 Contact Us For Availability

4

Switch, Float WPL W10205539 Contact Us For Availability

4

Dispenser, Rinse Aid WPL 99003320 Contact Us For Availability

4

Discharge, Housing Assembly WPL 99003145 Contact Us For Availability

4

Station, Docking (with Flapper) WPL 99003143 Contact Us For Availability

4

Shelf, Cup WPL 99003252 Contact Us For Availability

5

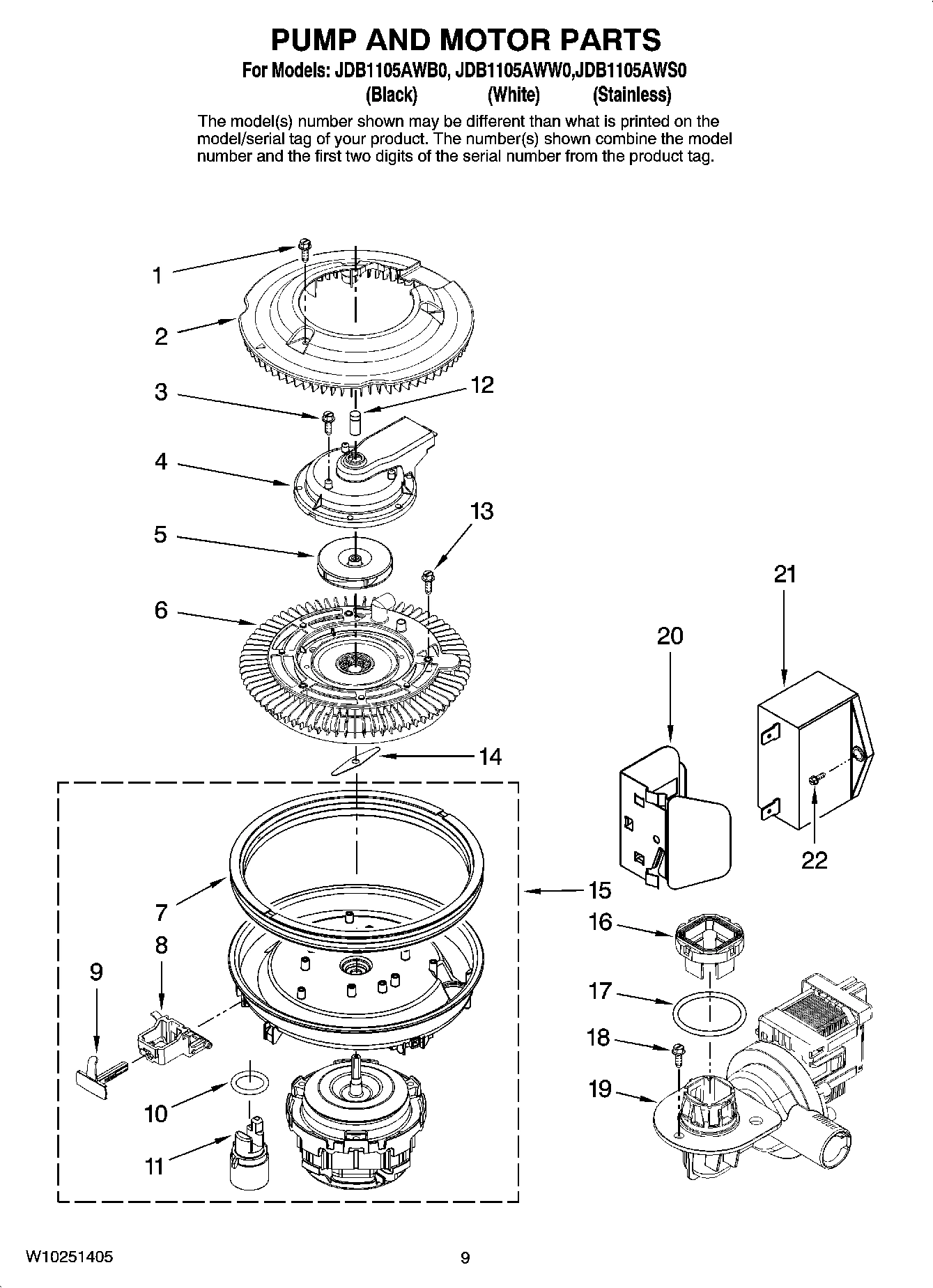

WP99002659 Whirlpool Impeller Backorder WPL WP99002659 $46.21

5

Basket, Auxiliary WPL W10171451 Contact Us For Availability

5

Wash Arm, Top (with Retainer) WPL 99002911 Contact Us For Availability

5

Bracket, Support WPL 99002636 Contact Us For Availability

5

SWITCH, DOOR WPL 99002751 Contact Us For Availability

5

Cover, Silverware Basket WPL W10141603 Contact Us For Availability

6

WPW10192799 Whirlpool Dishwasher Accumulator In Stock WPL WPW10192799 $144.02

6

WPW10275768 Whirlpool Door Latch In Stock WPL WPW10275768 $48.40

6

Stop, Rail WPL W10169391 Contact Us For Availability

6

Inner Door W/ Damper WPL W10120976 Contact Us For Availability

6

Trim, Corner Edge (Left) WPL 99003038 Contact Us For Availability

7

BRACKET, DISPENSER WPL 99002465 Contact Us For Availability

7

GASKET, MOTOR MOUNT WPL 99003055 Contact Us For Availability

7

Nut WPL 99003688 Contact Us For Availability

7

FASTENER, PANEL WPL 99003096 Contact Us For Availability

8

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $4.82

8

LEVER, MOTOR MOUNT WPL 99003056 Contact Us For Availability

8

Bracket, Cable WPL W10173920 Contact Us For Availability

8

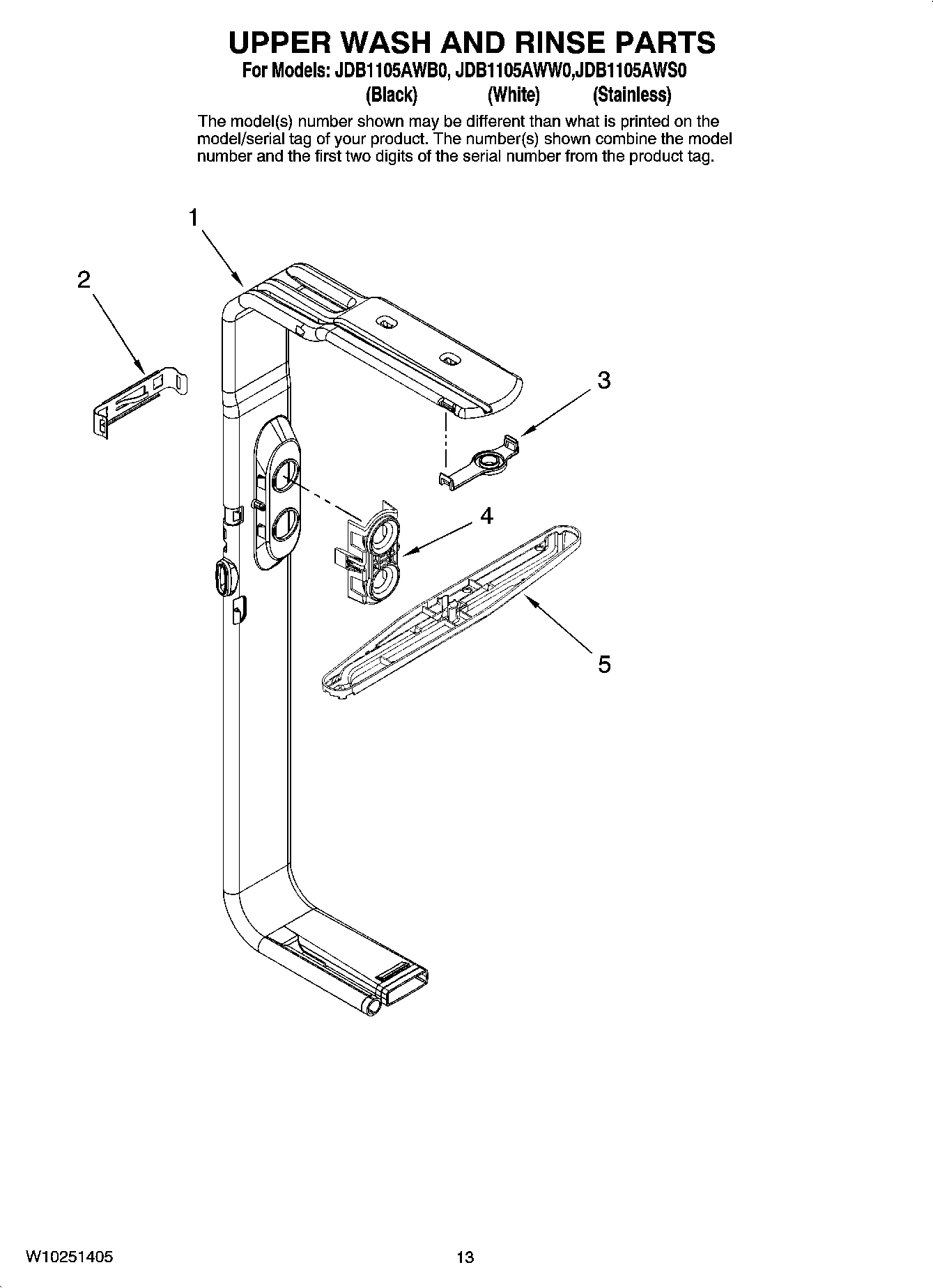

Wash Manifold Assembly WPL 99003142 Contact Us For Availability

9

INSULATION, DOOR WPL 99003044 Contact Us For Availability

9

PLUNGER, MOTOR MOUNT WPL 99003057 Contact Us For Availability

9

Clip, Upper Wash Manifold (Back) WPL 99003071 Contact Us For Availability

10

99002651 Whirlpool Dishwasher Turbidity Senso Backorder WPL 99002651 $14.02

10

Bolt, Shoulder WPL 99003687 Contact Us For Availability

10

Clip, Upper Wash Manifold (Front) WPL 99003072 Contact Us For Availability

WP99003118 Whirlpool Door Spring Backorder WPL WP99003118 $14.00

WPW10120019 Whirlpool Dishwasher Sensor Backorder WPL WPW10120019 $146.08

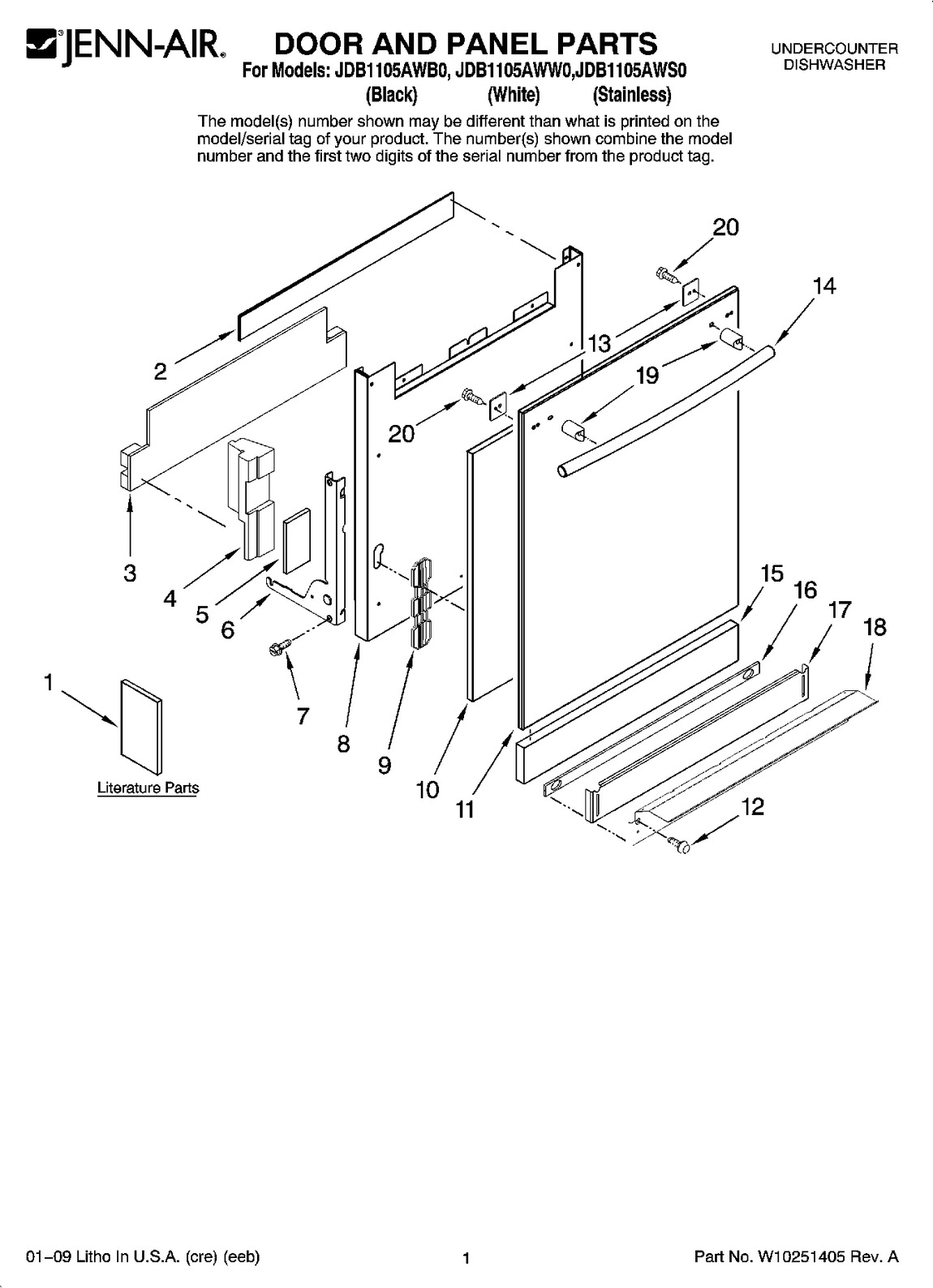

Panel, Front (Black) WPL 99003090 Contact Us For Availability

Panel, Front (White) WPL 99003092 Contact Us For Availability

Panel, Front (Stainless) WPL W10166535 Contact Us For Availability

Dishrack, Lower WPL W10203867 Contact Us For Availability

WP6-912366 Whirlpool Dishwasher Screw Backorder WPL WP6-912366 $4.82

WP99003446 Whirlpool Door Cable In Stock WPL WP99003446 $5.30

Screw (White) WPL 99001194 Contact Us For Availability

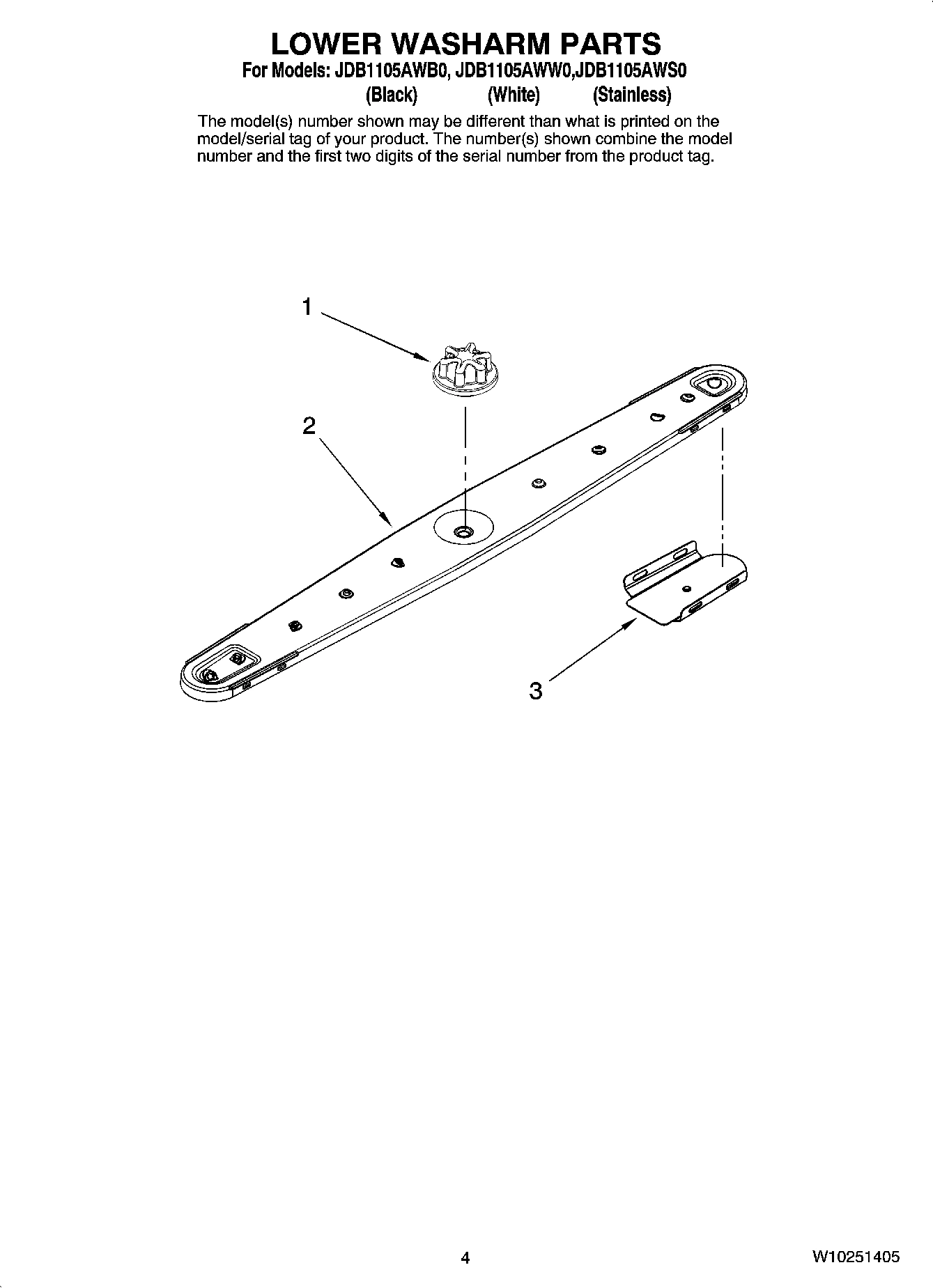

Pivot, Wash Arm WPL 99003697 Contact Us For Availability

Wheel Assembly (Lower) WPL 6918869 Contact Us For Availability

W10167659 Whirlpool Dishwasher Plate Backorder WPL W10167659 $18.01

Screw WPL 99002664 Contact Us For Availability

Gap Seal, Toe Kick (Black) WPL 99002701 Contact Us For Availability

Gap Seal, Toe Kick (White) WPL 99002703 Contact Us For Availability

Basket, Silverware WPL 6918873 Contact Us For Availability

WPW10223013 Whirlpool Dishwasher Insulation P Backorder WPL WPW10223013 $59.09

Handle, Door WPL W10191101 Contact Us For Availability

CHOPPER WPL 99003427 Contact Us For Availability

CAGE, BALL BEARING WPL 99003069 Contact Us For Availability

15

WP6-920587 Whirlpool Dishwasher Shield Backorder WPL WP6-920587 $4.55

15

WP99003337 Whirlpool Door Seal Backorder WPL WP99003337 $171.11

15

Wash Motor Assy. WPL W10118627 Contact Us For Availability

Damper, Toe Panel (Black) WPL 99002694 Contact Us For Availability

Damper, Toe Panel (White) WPL 99002698 Contact Us For Availability

FLAPPER, DRAIN PUMP INLET WPL 99003309 Contact Us For Availability

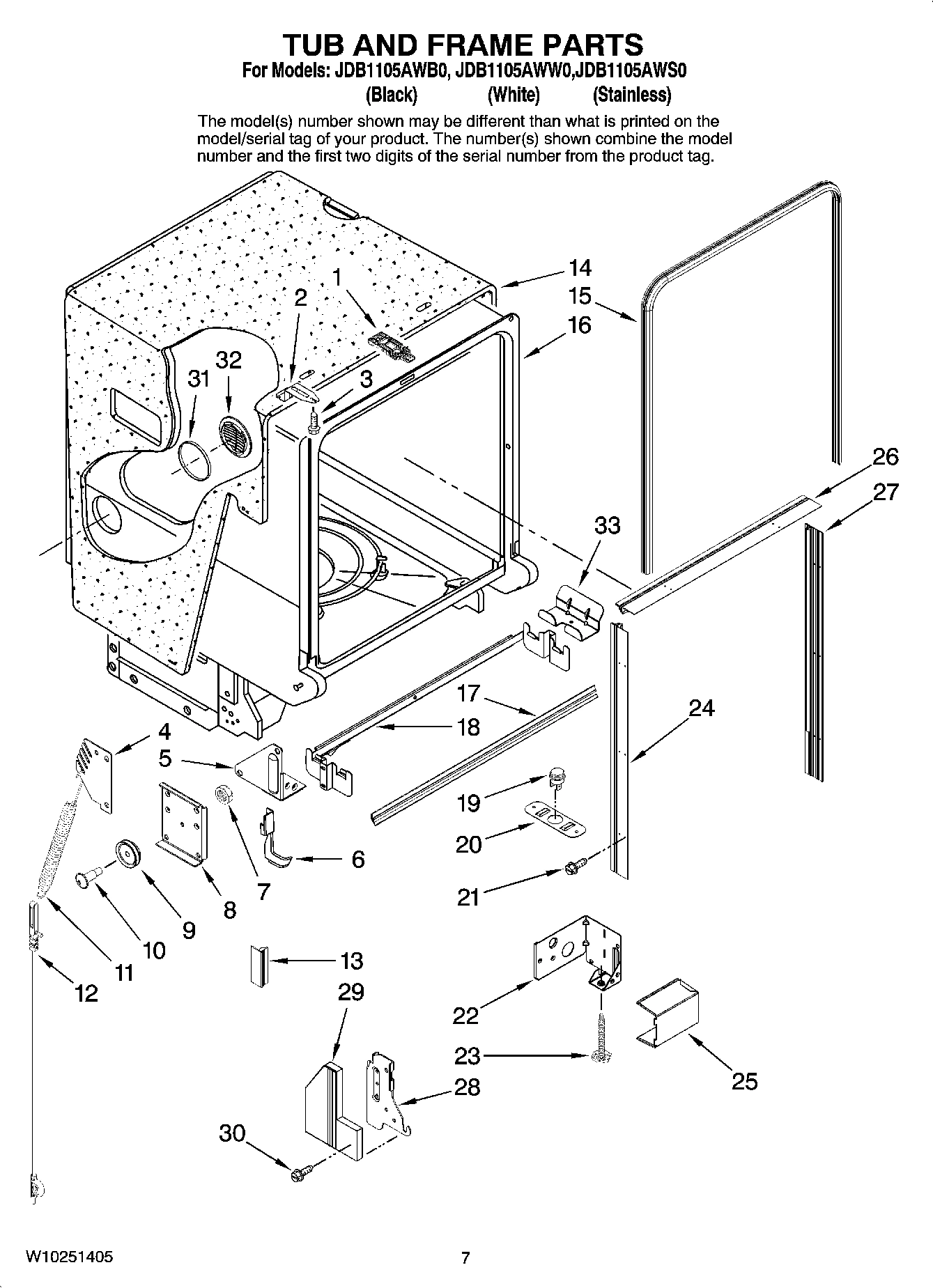

Tub Assembly (Not Serviced) WPL W10142298 Contact Us For Availability

WP99003041 Whirlpool Dishwasher Trim Backorder WPL WP99003041 $69.04

Panel, Toe (Includes Item 16) (Black) WPL 99002765 Contact Us For Availability

Panel, Toe (Includes Item 16) (White) WPL 99002766 Contact Us For Availability

O-RING, DRAIN PUMP WPL 99002857 Contact Us For Availability

Bracket, Support (Rear) WPL W10167660 Contact Us For Availability

Support, Front (Black) WPL 99002859 Contact Us For Availability

Support, Front (White) WPL 99002860 Contact Us For Availability

Screw WPL 99002740 Contact Us For Availability

19

Stud, Handle WPL 6918667 Contact Us For Availability

19

Drain Pump Assy. WPL W10200518 Contact Us For Availability

19

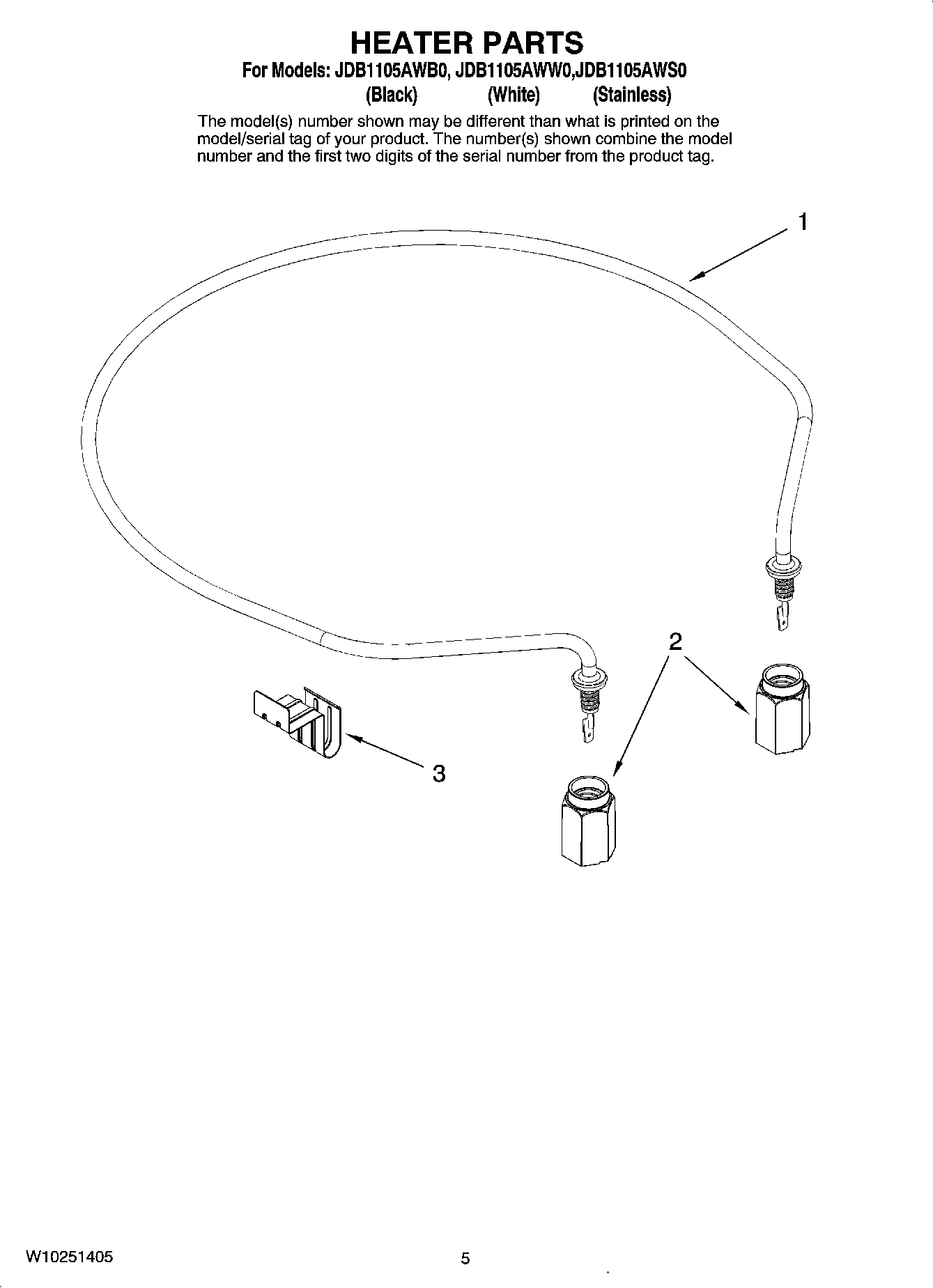

THERMOSTAT, LIMITING WPL 99002633 Contact Us For Availability

20

Screw WPL 99003154 Contact Us For Availability

20

Shield, Capacitor WPL W10167912 Contact Us For Availability

20

Clip, Thermostat WPL W10167658 Contact Us For Availability

21

Capacitor WPL 99002665 Contact Us For Availability

21

SCREW, TRIM MOUNTING WPL 99002692 Contact Us For Availability

22

Screw WPL 99002601 Contact Us For Availability

22

Bracket, Junction Box WPL 99002637 Contact Us For Availability

23

WPW10143258 Whirlpool Dishwasher Leg Leveler Backorder WPL WPW10143258 $9.90

24

STRIP, TRIM LEFT WPL W10164700 Contact Us For Availability

25

COVER, JUNCTION BOX WPL 99002638 Contact Us For Availability

26

STRIP, TRIM TOP WPL W10164702 Contact Us For Availability

27

STRIP, TRIM RIGHT WPL W10164701 Contact Us For Availability

28

Support, Hinge (Right) WPL W10117484 Contact Us For Availability

28

Support, Hinge (Left) WPL W10117485 Contact Us For Availability

29

Backer, Hinge (Left) WPL W10174569 Contact Us For Availability

29

Backer, Hinge (Right) WPL W10174581 Contact Us For Availability

30

Screw WPL 99003155 Contact Us For Availability

32

Grill, Air/Water Inlet WPL 6918397 Contact Us For Availability

33

Clamp, Rear Support WPL W10167916 Contact Us For Availability

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $20.75

4396277 Whirlpool Barrier Assembly Backorder WPL 4396277 $23.09

4396897RW Whirlpool Dishwasher Fill Hose In Stock WPL 4396897RW $25.16

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $21.50

8212486 Whirlpool Hose Assembly In Stock WPL 8212486 $39.62

8212488RC Whirlpool Dishwasher Installation K Backorder WPL 8212488RC $56.69

W10278635RP Whirlpool Dishwasher Fill Hose In Stock WPL W10278635RP $39.89

INSTALLATION KIT WPL ARI3127A64 Contact Us For Availability
