Model Maytag JDB1080AWS42 DISHWASHER – Common Parts & Diagrams

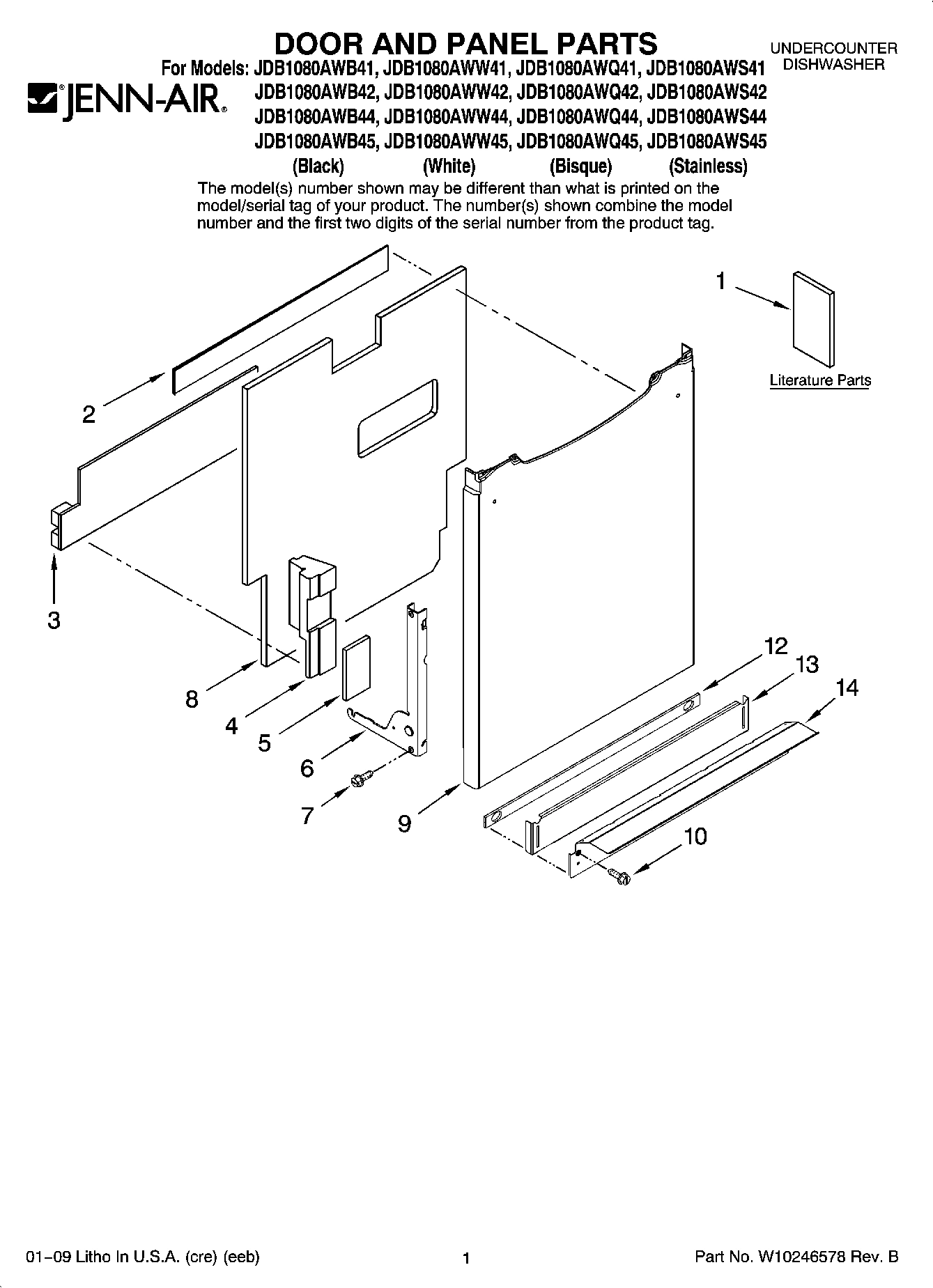

01 - DOOR AND PANEL PARTS

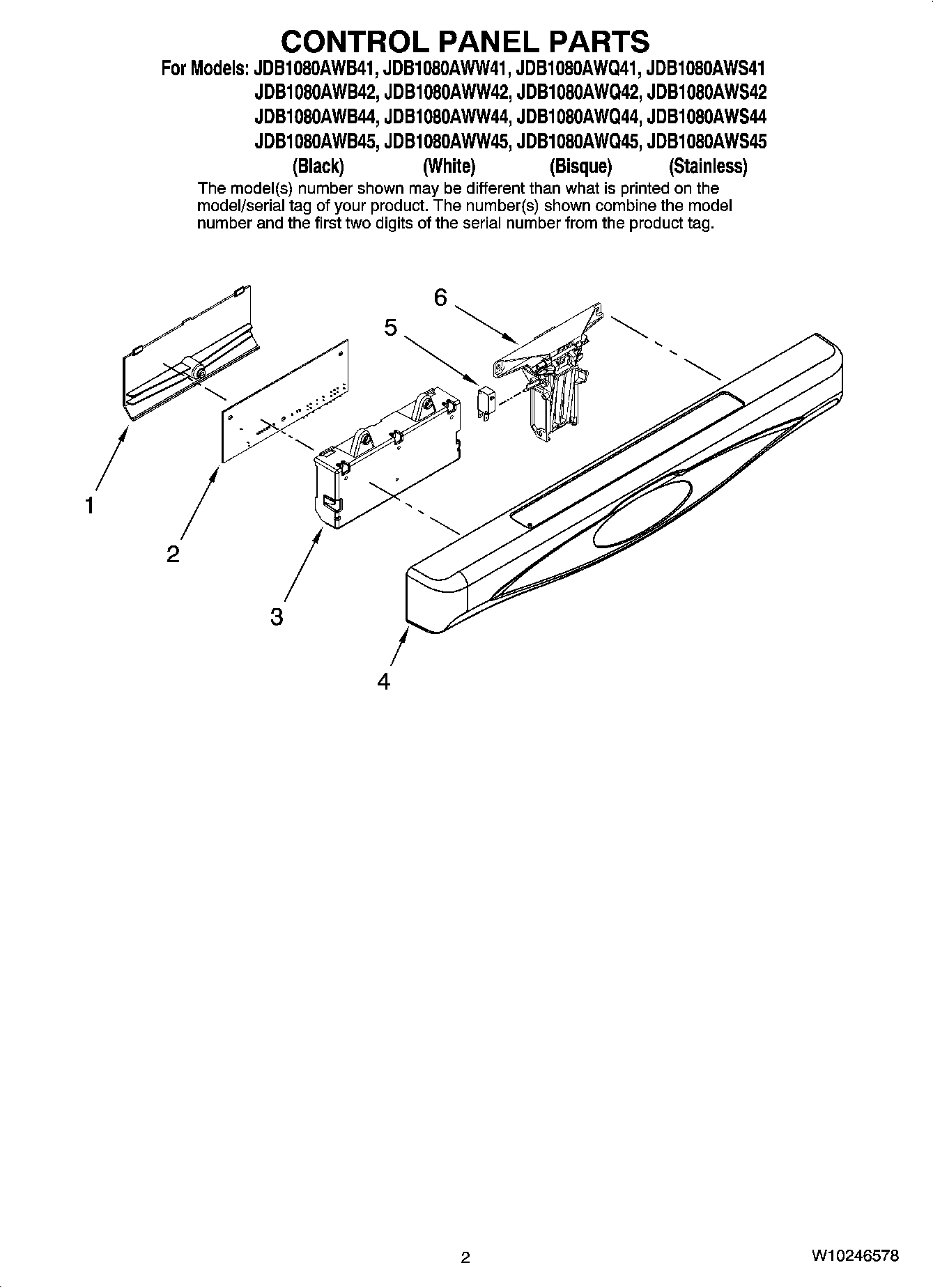

02 - CONTROL PANEL PARTS

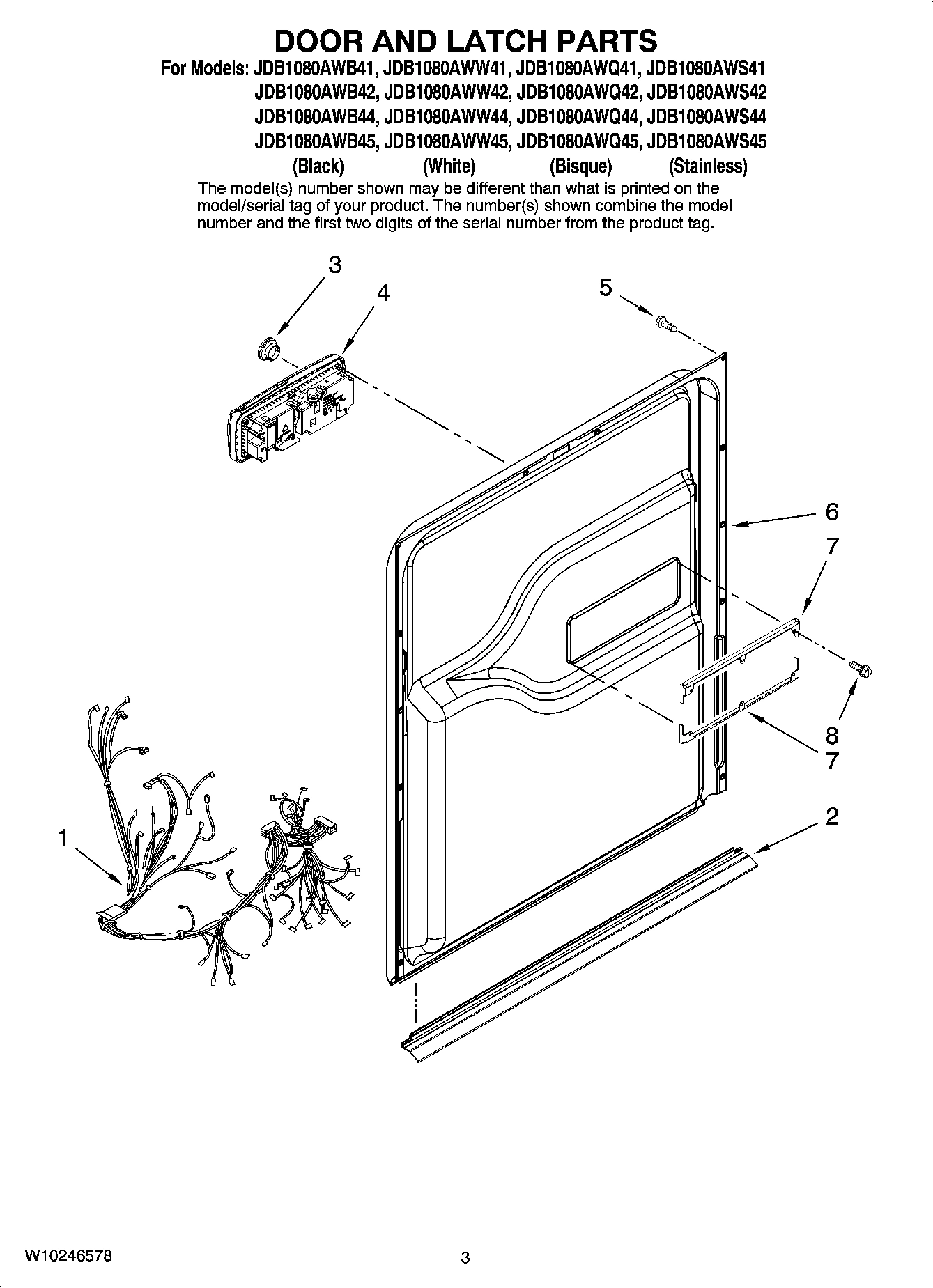

03 - DOOR AND LATCH PARTS

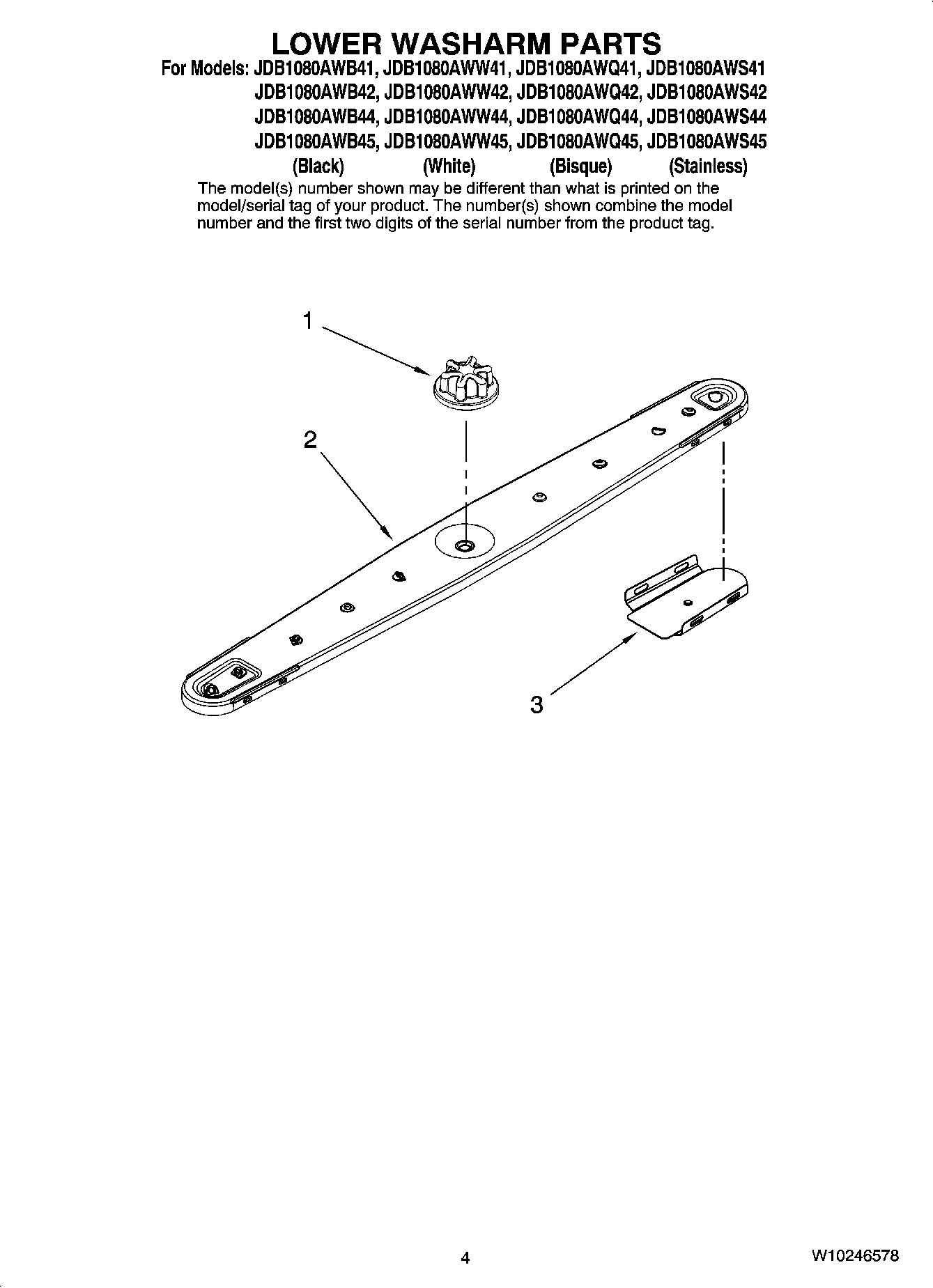

04 - LOWER WASHARM PARTS

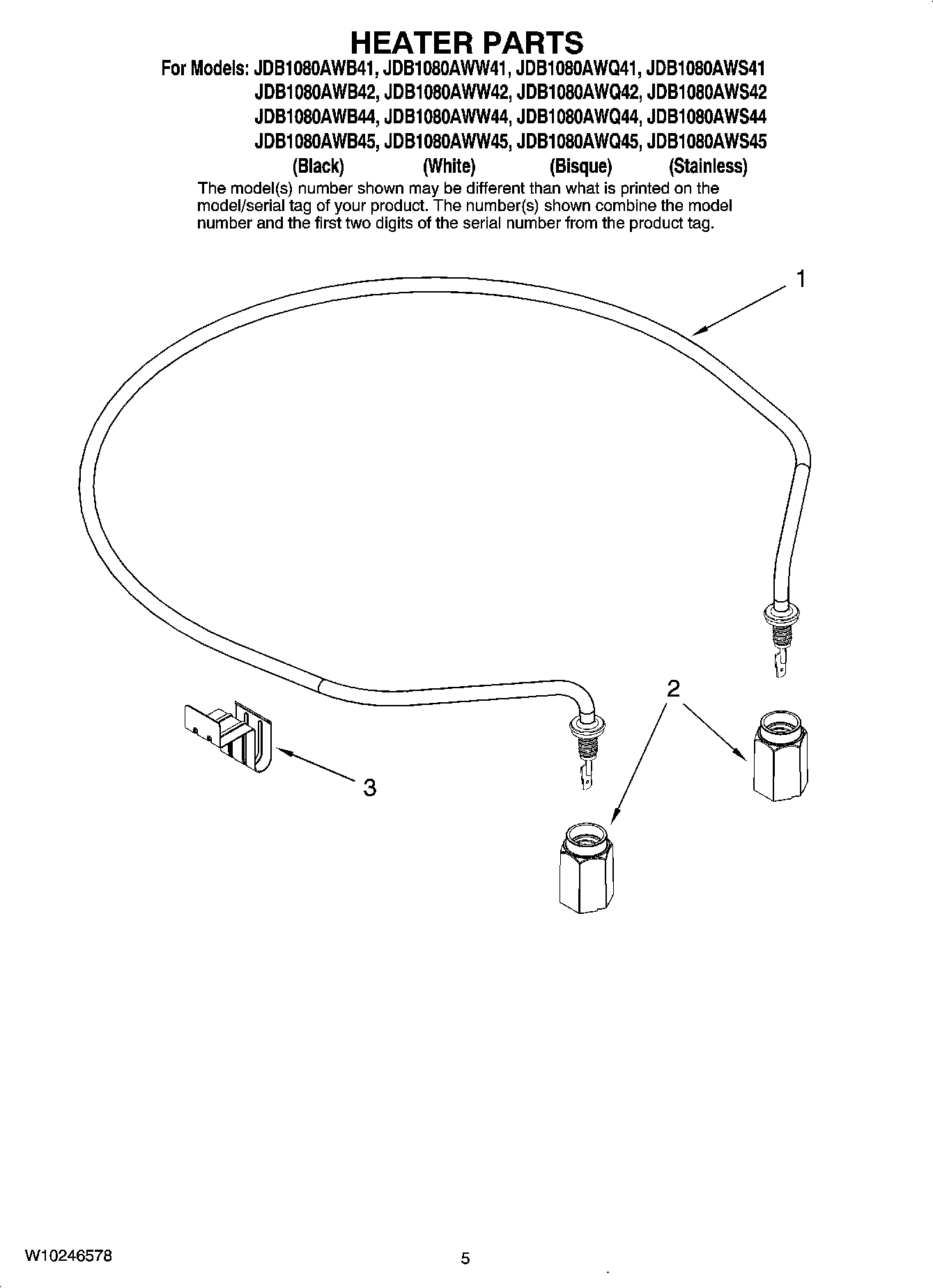

05 - HEATER PARTS

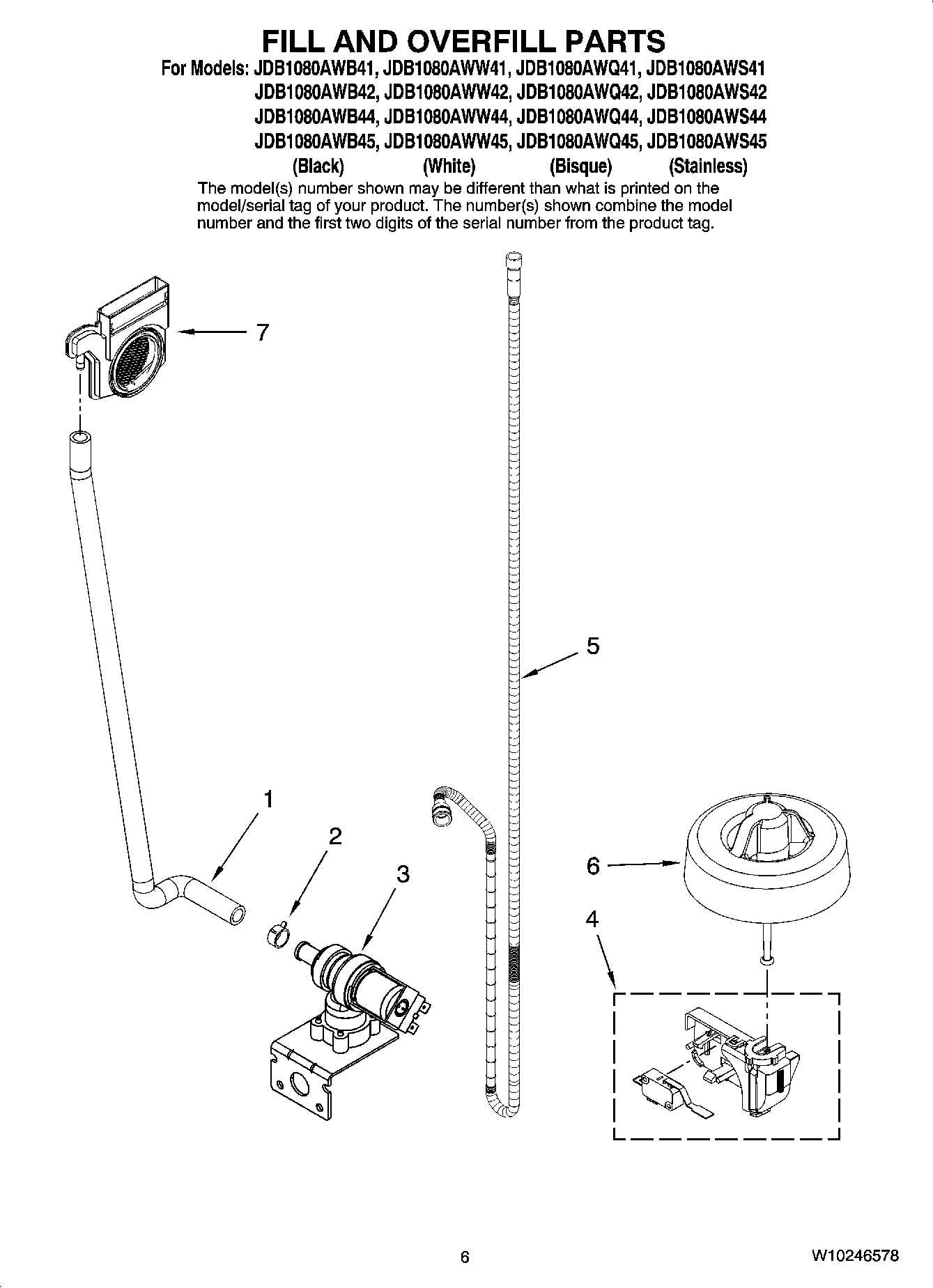

06 - FILL AND OVERFILL PARTS

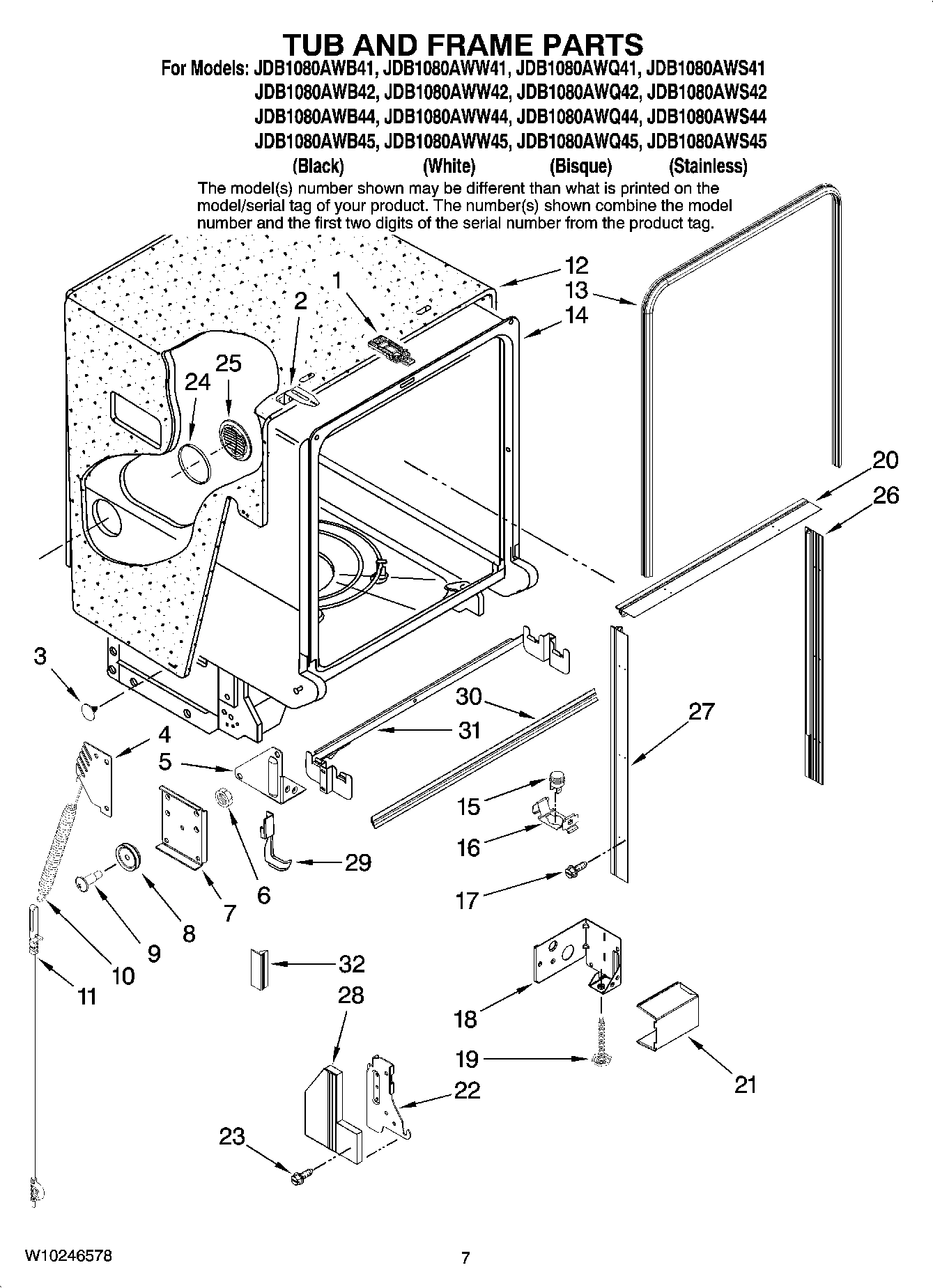

07 - TUB AND FRAME PARTS

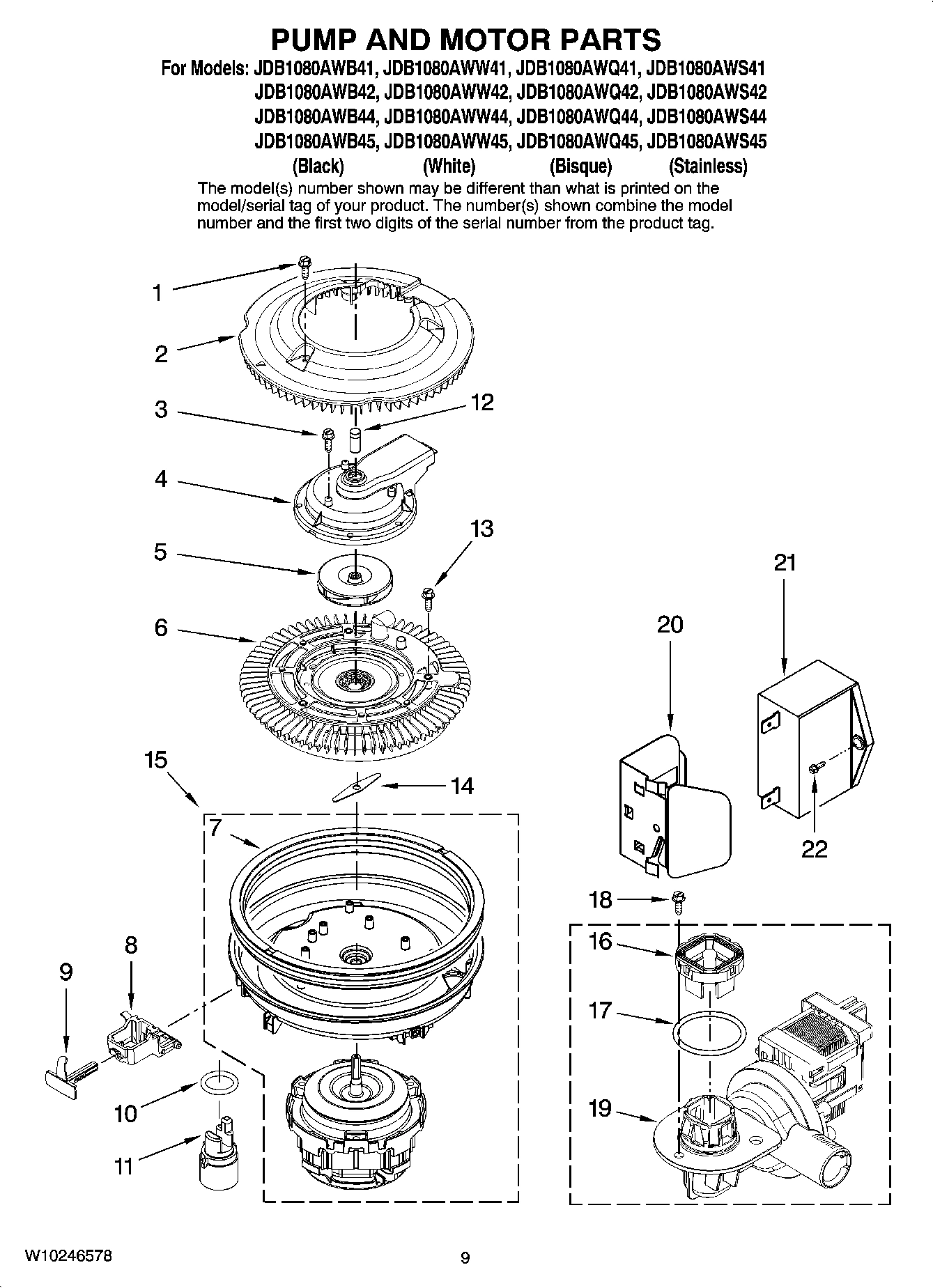

08 - PUMP AND MOTOR PARTS

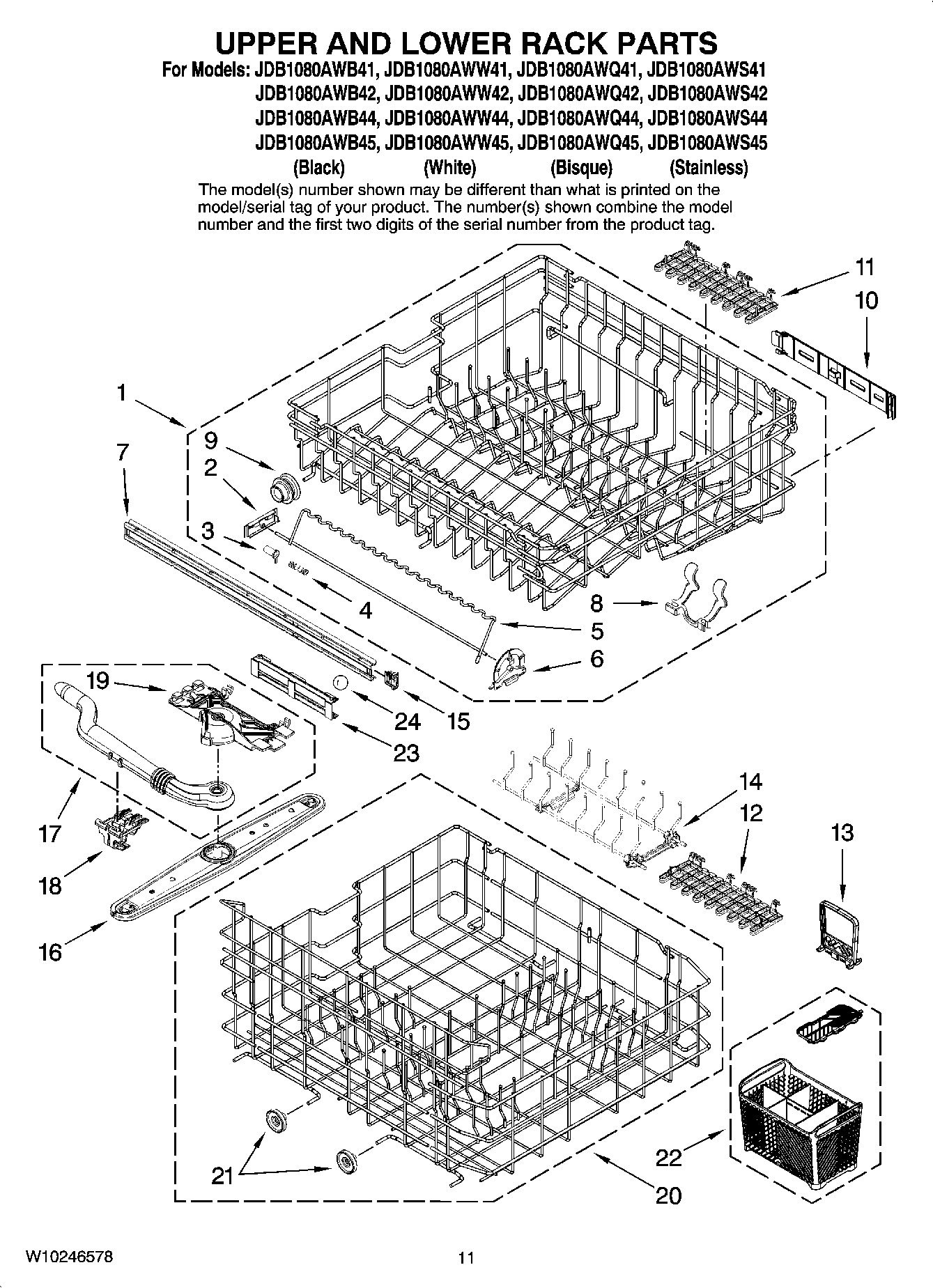

09 - UPPER AND LOWER RACK PARTS

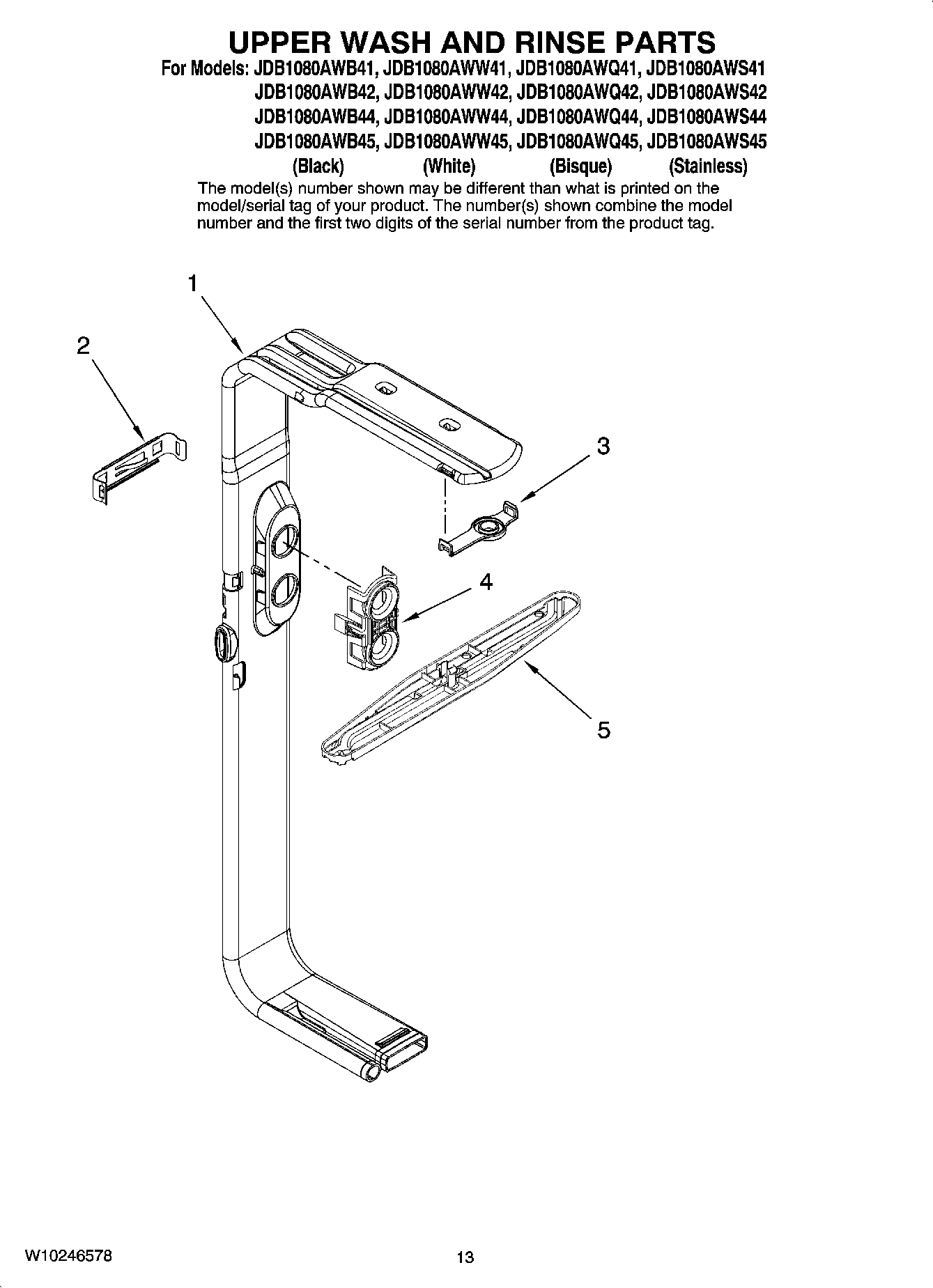

10 - UPPER WASH AND RINSE PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JDB1080AWS42 DISHWASHER
1
MAY 99002852 MAY 99002852 Contact Us For Availability
1
MAY W10119337 MAY W10119337 Contact Us For Availability
1
MAY 99002666 MAY 99002666 Contact Us For Availability
1
Dishrack, Upper Assembly MAY 99003216 Contact Us For Availability
1
Feed Tube Assembly MAY 99003081 Contact Us For Availability
2
Seal, Door (Bottm) MAY 99003045 Contact Us For Availability
2
MAY 99003033 MAY 99003033 Contact Us For Availability
2
MAY 99002648 MAY 99002648 Contact Us For Availability
2
MAY 99003468 MAY 99003468 Contact Us For Availability
2
MAY 99003109 MAY 99003109 Contact Us For Availability
3
MAY 99002753 MAY 99002753 Contact Us For Availability
3
Housing, Board Bottom MAY 99002576 Contact Us For Availability
3
MAY 99002653 MAY 99002653 Contact Us For Availability
3
MAY 99003032 MAY 99003032 Contact Us For Availability
3
MAY 99002640 MAY 99002640 Contact Us For Availability
3
MAY 99002668 MAY 99002668 Contact Us For Availability
3
MAY 99003111 MAY 99003111 Contact Us For Availability
4
Switch, Float MAY W10130103 Contact Us For Availability
4
Discharge, Housing Assembly MAY 99003145 Contact Us For Availability
4
MAY 99002715 MAY 99002715 Contact Us For Availability
4
Station, Docking (with Flapper) MAY 99003143 Contact Us For Availability
5
MAY 99002751 MAY 99002751 Contact Us For Availability
5
MAY 99002636 MAY 99002636 Contact Us For Availability
5
MAY 99003110 MAY 99003110 Contact Us For Availability
5
Wash Arm, Top (with Retainer) MAY 99002911 Contact Us For Availability
6
MAY W10130099 MAY W10130099 Contact Us For Availability
6
MAY 99003688 MAY 99003688 Contact Us For Availability
6
MAY 99003108 MAY 99003108 Contact Us For Availability
7
MAY 99003028 MAY 99003028 Contact Us For Availability
7
MAY 99003686 MAY 99003686 Contact Us For Availability
7
MAY 99003066 MAY 99003066 Contact Us For Availability
8
MAY 99002608 MAY 99002608 Contact Us For Availability
8
Clip, Cup MAY 99003107 Contact Us For Availability
8
Pad, Foam MAY 99003044 Contact Us For Availability
8
MAY 99003056 MAY 99003056 Contact Us For Availability
9
MAY 99003057 MAY 99003057 Contact Us For Availability
9
MAY 99003687 MAY 99003687 Contact Us For Availability
10
MAY 99002598 MAY 99002598 Contact Us For Availability
10
Screw (Access Pnl) (White) MAY 99001194 Contact Us For Availability
10
MAY 99003063 MAY 99003063 Contact Us For Availability
11
MAY 99003613 MAY 99003613 Contact Us For Availability
11
Shelf, Cup (Long) MAY 99003065 Contact Us For Availability
12
Seal, Toe Panel (Black) MAY 99002694 Contact Us For Availability
12
MAY 99003697 MAY 99003697 Contact Us For Availability
12
Shelf, Cup (Lower) MAY 99003074 Contact Us For Availability
13
MAY 99002664 MAY 99002664 Contact Us For Availability
13
Handle, Silverware Basket (Not used in Series MAY 99003077 Contact Us For Availability
14
Tub Assembly MAY W10142298 Contact Us For Availability
14
MAY 99003427 MAY 99003427 Contact Us For Availability
15
MAY 99002633 MAY 99002633 Contact Us For Availability
15
Wash Motor Assy. MAY 99003436 Contact Us For Availability
16
MAY 99001008 MAY 99001008 Contact Us For Availability
16
MAY 99003309 MAY 99003309 Contact Us For Availability
17
MAY 99002857 MAY 99002857 Contact Us For Availability
17
MAY 99002692 MAY 99002692 Contact Us For Availability
17
Wash Manifold Assembly MAY 99003142 Contact Us For Availability
18
MAY 99002740 MAY 99002740 Contact Us For Availability
18
MAY 99002637 MAY 99002637 Contact Us For Availability
19
MAY W10200518 MAY W10200518 Contact Us For Availability
19
Clip, Upper Wash Manifold (Front) MAY 99003072 Contact Us For Availability
20
MAY 99003036 MAY 99003036 Contact Us For Availability
20
MAY 99003440 MAY 99003440 Contact Us For Availability
20
Dishrack, Lower Assy (Incl Wheels) MAY 99003073 Contact Us For Availability
21
MAY 99002665 MAY 99002665 Contact Us For Availability
21
MAY 99002638 MAY 99002638 Contact Us For Availability
22
Support, Hinge (Left) MAY 99002929 Contact Us For Availability
22
MAY 99002601 MAY 99002601 Contact Us For Availability
23
MAY 99003069 MAY 99003069 Contact Us For Availability
24
MAY 99003068 MAY 99003068 Contact Us For Availability
25
MAY 99003078 MAY 99003078 Contact Us For Availability
26
MAY 99003035 MAY 99003035 Contact Us For Availability
27
Strip, Trim (Lft) MAY 99003034 Contact Us For Availability
28
MAY 99002761 MAY 99002761 Contact Us For Availability
28
MAY 99002762 MAY 99002762 Contact Us For Availability
29
Trim, Corner Edge (Left) MAY 99003038 Contact Us For Availability
29
Trim, Corner Edge (Right) MAY 99003039 Contact Us For Availability
31
Bracket, Support (Rear) MAY 99003087 Contact Us For Availability
32
Gap Seal, Toe Kick (Black) MAY 99002701 Contact Us For Availability
32
MAY 99002702 MAY 99002702 Contact Us For Availability
32
Gap Seal, Toe Kick (White) MAY 99002703 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
MAY 4396277 MAY 4396277 Contact Us For Availability
NI
MAY 4396897RP MAY 4396897RP Contact Us For Availability
NI
MAY 4396897RW MAY 4396897RW Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
MAY 8212486 MAY 8212486 Contact Us For Availability
NI
MAY 8212488RC MAY 8212488RC Contact Us For Availability
× ![]()
