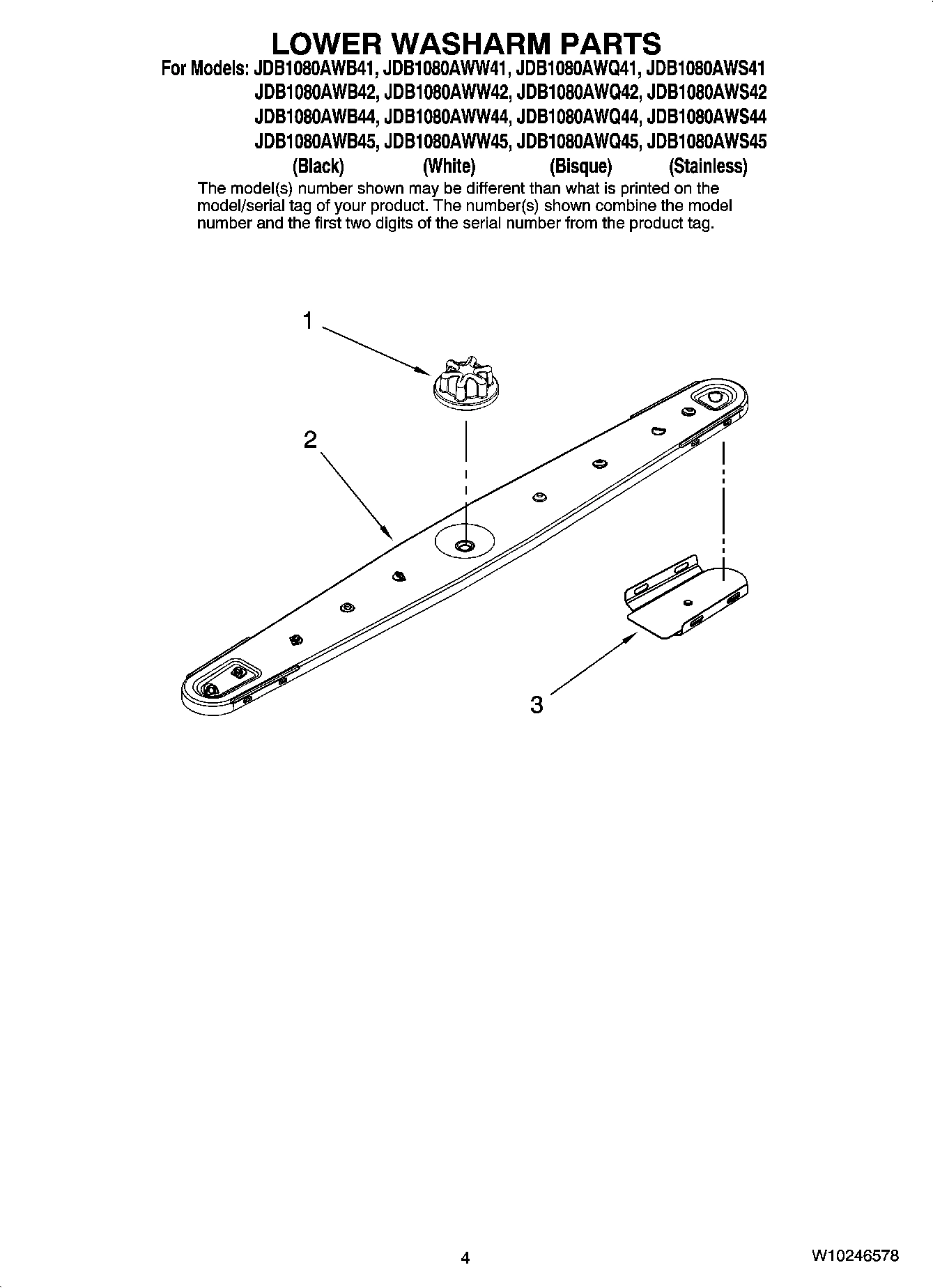

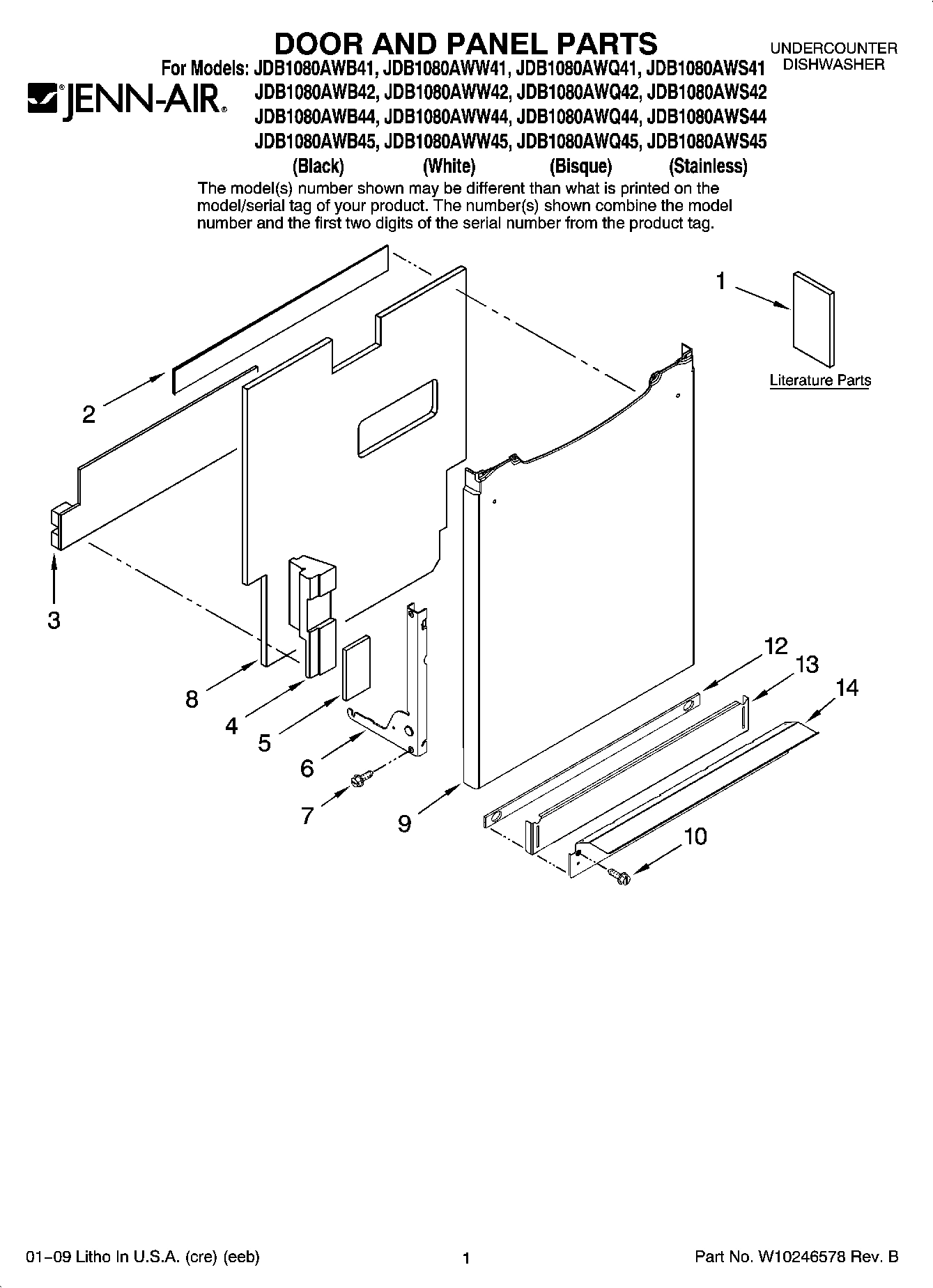

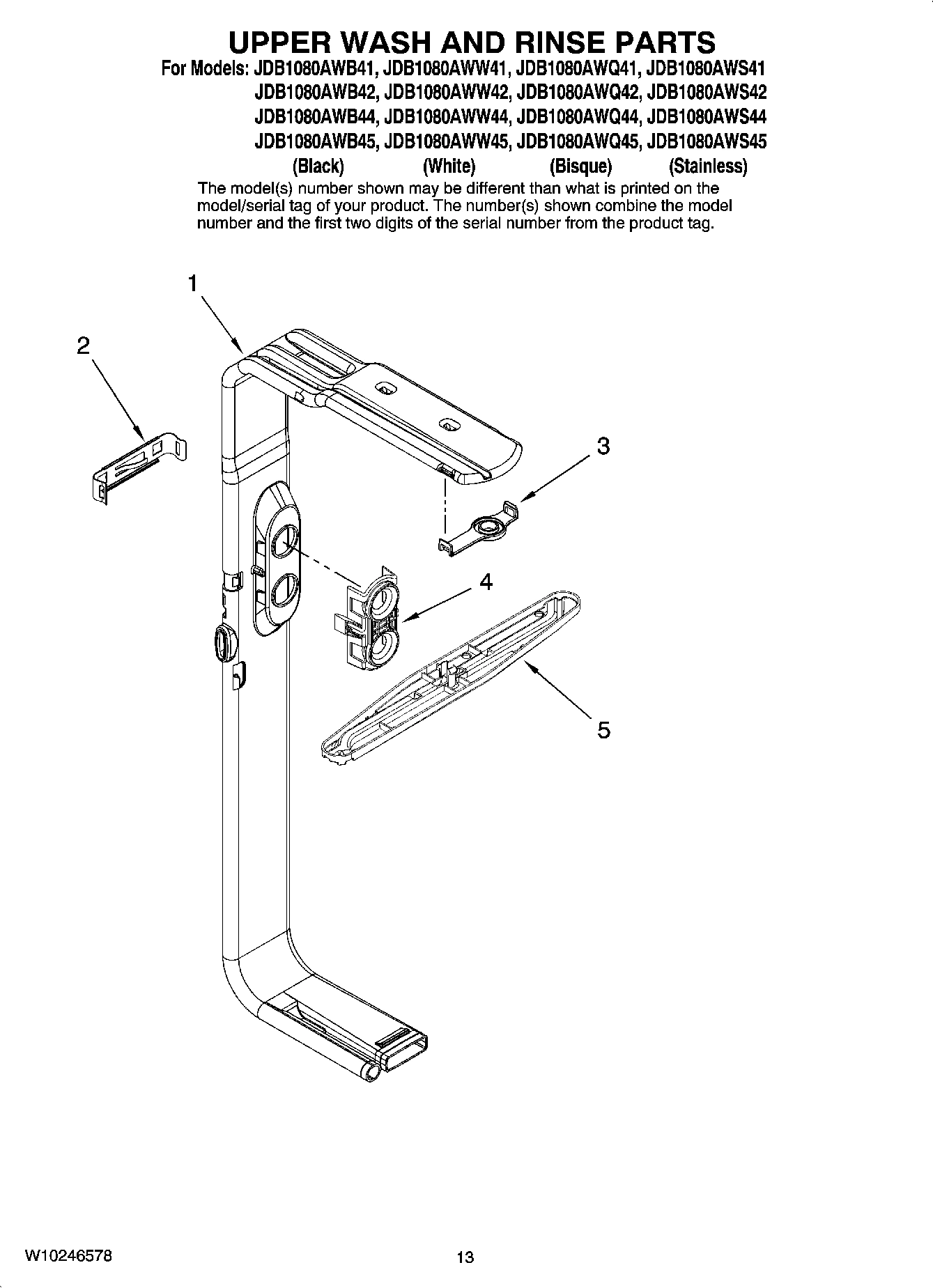

Model Whirlpool JDB1080AWS41 DISHWASHER – Common Parts &amp; Diagrams

1

WP99003083 Whirlpool Dishwasher Wash Cap Backorder WPL WP99003083 $5.87

1

Strike, Door WPL W10119337 Contact Us For Availability

1

HOUSING, BOARD (TOP) WPL 99002575 Contact Us For Availability

1

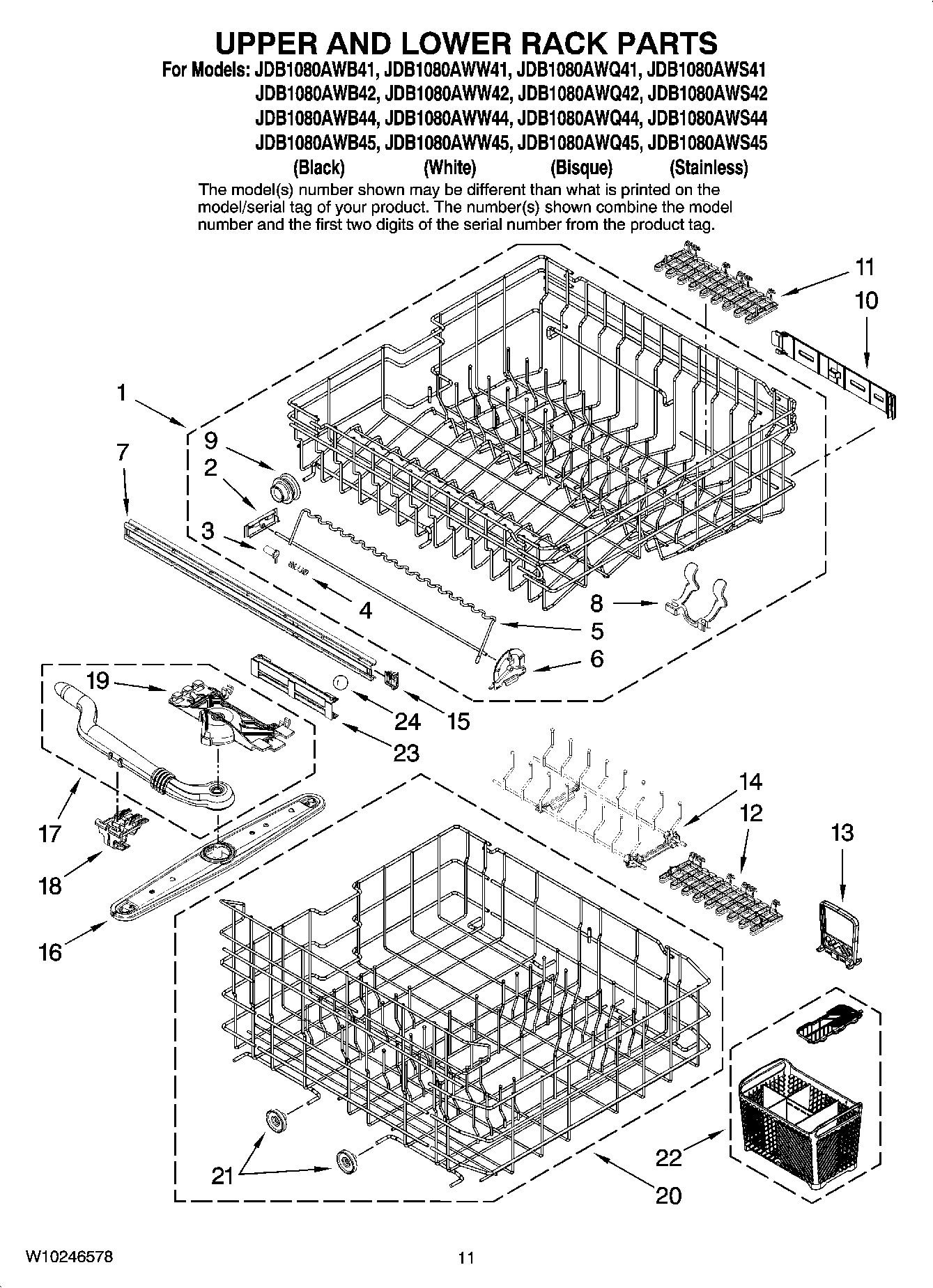

Dishrack, Upper Assembly WPL 99003216 Contact Us For Availability

1

Harness, Wiring WPL 99003308 Contact Us For Availability

1

SCREW WPL 99002666 Contact Us For Availability

1

Feed Tube Assembly WPL 99003081 Contact Us For Availability

2

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $5.02

2

BOARD, CONTROL WPL W10111823 Contact Us For Availability

2

BRACKET, CABINET MOUNTING WPL 99002648 Contact Us For Availability

2

REAR, VARILOCK WPL 99003109 Contact Us For Availability

2

Seal, Door (Bottm) WPL 99003045 Contact Us For Availability

2

Guard, Filter WPL 99003468 Contact Us For Availability

2

NUT, HEATER WPL 99003033 Contact Us For Availability

3

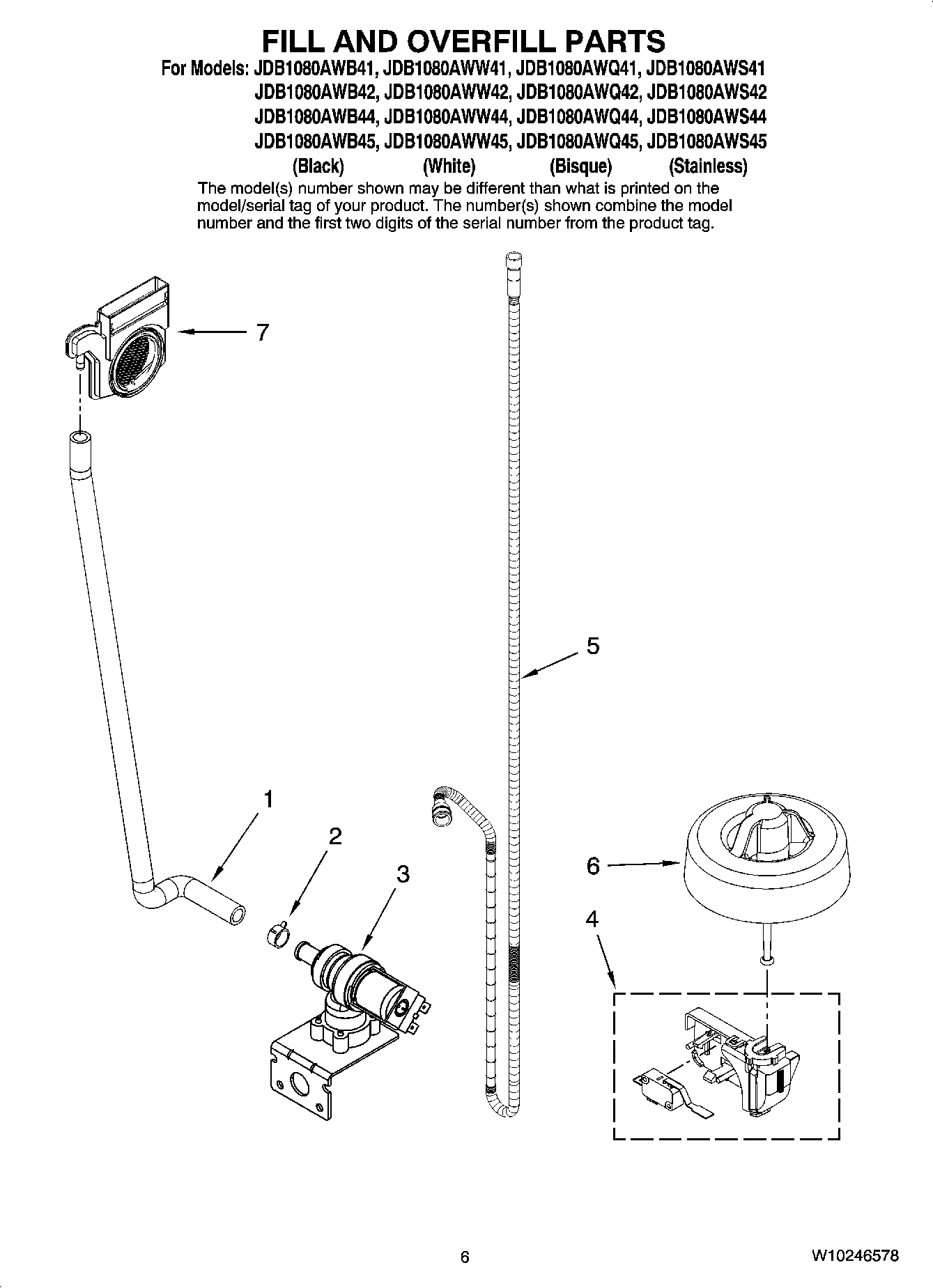

W11082871 Whirlpool Dishwasher Inlet Valve In Stock WPL W11082871 $119.87

3

Cap, Rinse Aid WPL 99003060 Contact Us For Availability

3

Fastener WPL 99002640 Contact Us For Availability

3

CUP, VARILOCK WPL 99003111 Contact Us For Availability

3

SHIELD, RADIANT WPL 99002653 Contact Us For Availability

3

Screw WPL 99002668 Contact Us For Availability

3

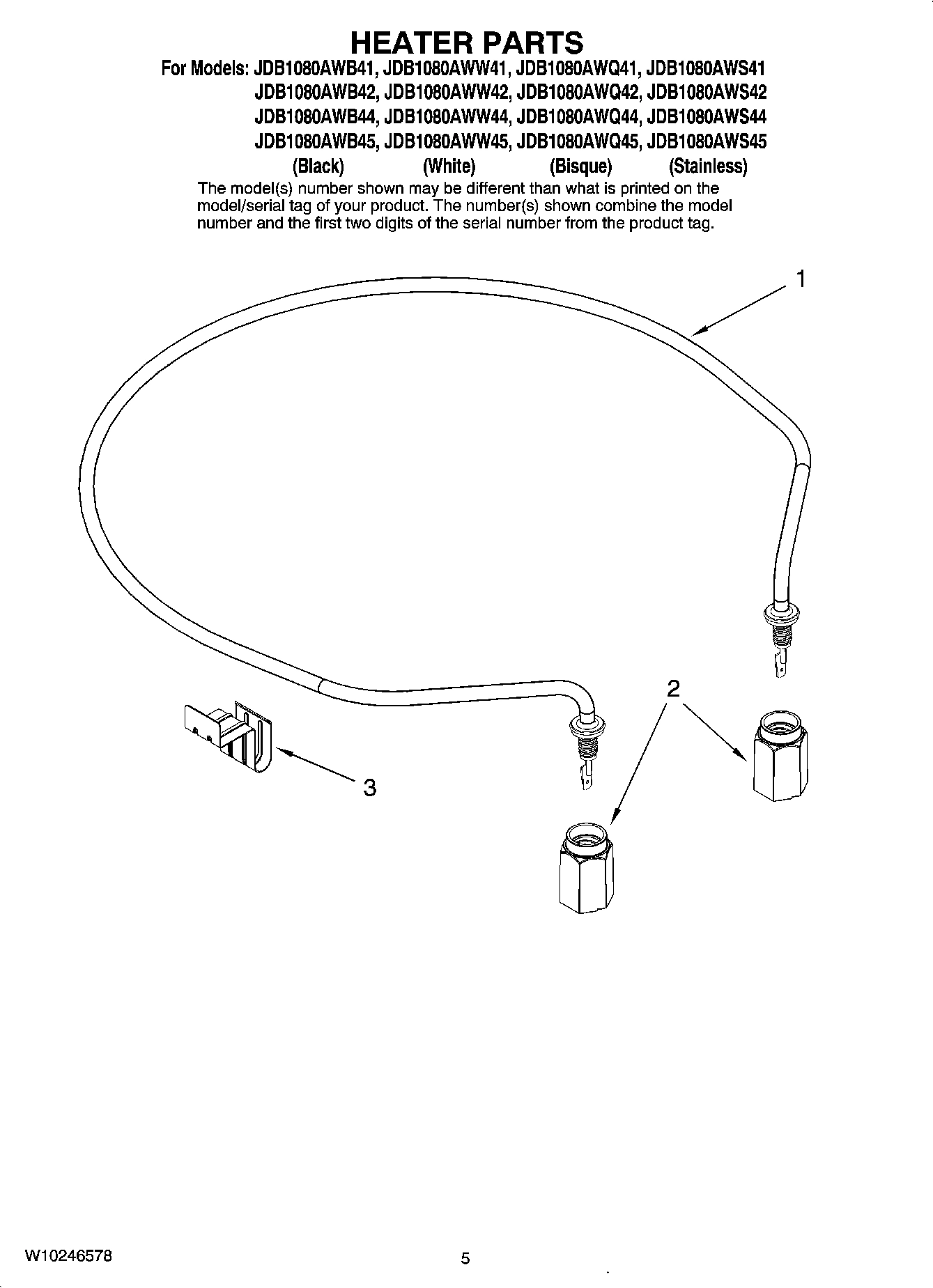

Bracket, Heater Support WPL 99003032 Contact Us For Availability

3

NOTE: If heater element is removed, it must b WPL ARI3074A55 Contact Us For Availability

4

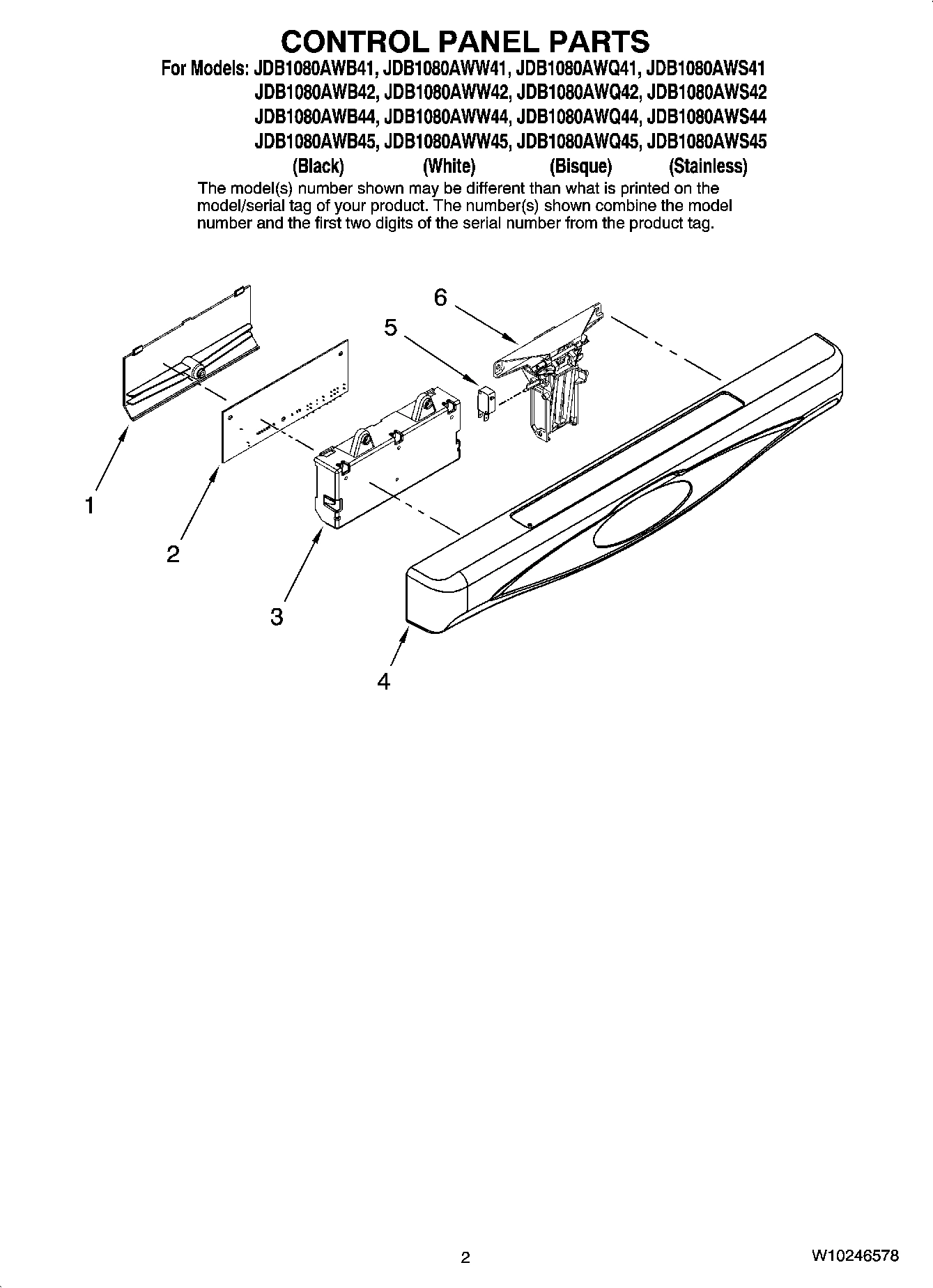

Panel, Control (Black) WPL 99003229 Contact Us For Availability

4

Panel, Control (Bisque) WPL 99003230 Contact Us For Availability

4

Panel, Control (White) WPL 99003231 Contact Us For Availability

4

SPRING, VARILOCK WPL 99002715 Contact Us For Availability

4

Dispenser, Rinse Aid WPL 99003320 Contact Us For Availability

4

Discharge, Housing Assembly WPL 99003145 Contact Us For Availability

4

Station, Docking (with Flapper) WPL 99003143 Contact Us For Availability

5

WP99002652 Whirlpool Drain Hose In Stock WPL WP99002652 $95.29

5

WP99002659 Whirlpool Impeller Backorder WPL WP99002659 $46.21

5

SWITCH, DOOR WPL 99002751 Contact Us For Availability

5

Bracket, Support (Left) WPL 99002636 Contact Us For Availability

5

SUPPORT, VARILOCK WPL 99003110 Contact Us For Availability

5

Wash Arm, Top (with Retainer) WPL 99002911 Contact Us For Availability

6

WPW10192799 Whirlpool Dishwasher Accumulator In Stock WPL WPW10192799 $144.02

6

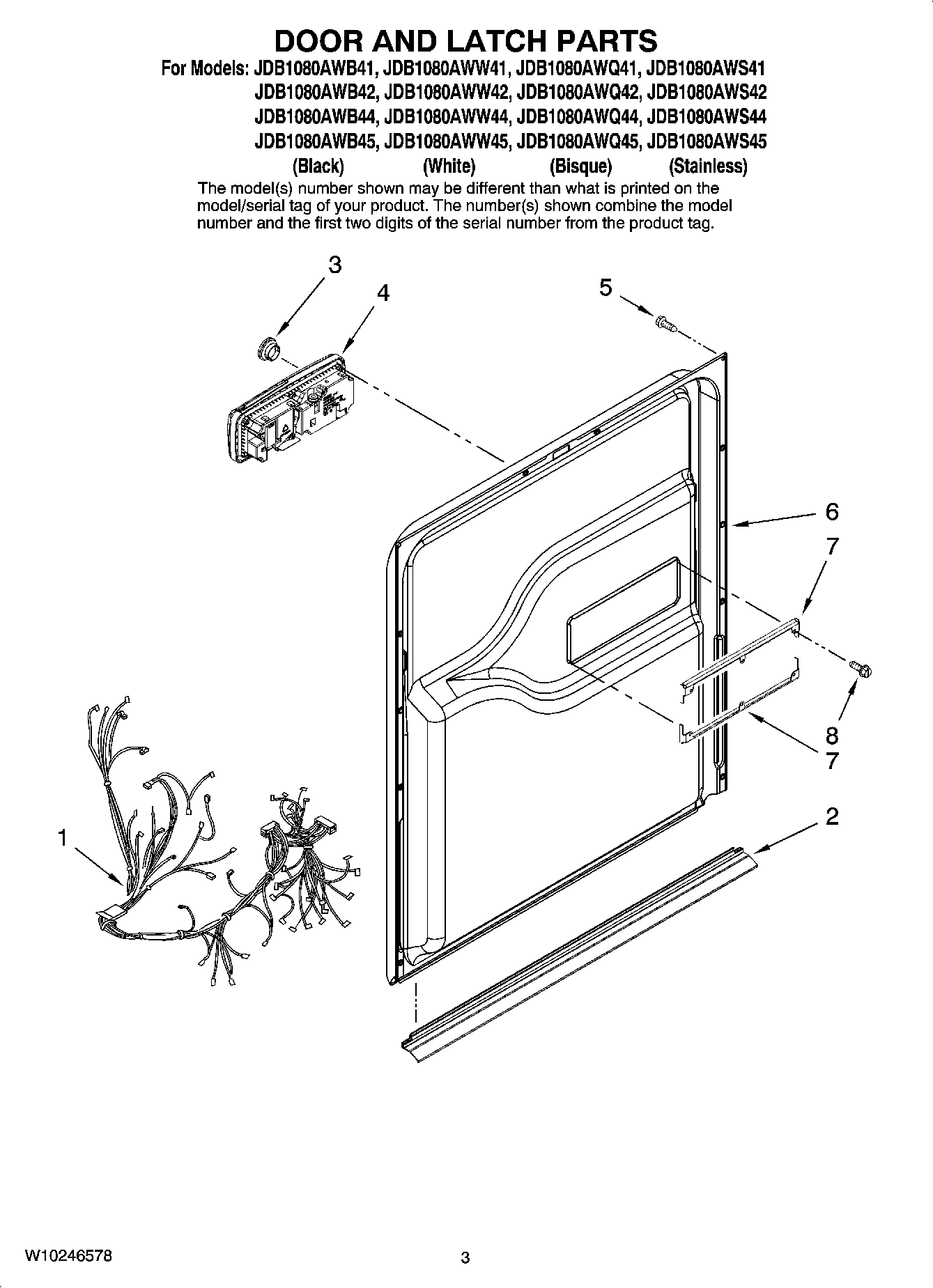

WPW10275768 Whirlpool Door Latch In Stock WPL WPW10275768 $48.40

6

Nut WPL 99003688 Contact Us For Availability

6

FRONT, VARILOCK WPL 99003108 Contact Us For Availability

6

Inner Door W/ Damper WPL 99003140 Contact Us For Availability

6

FLOAT WPL W10130099 Contact Us For Availability

7

BRACKET, CABLE WPL 99003686 Contact Us For Availability

7

RAIL, INNER SLIDE WPL 99003066 Contact Us For Availability

7

BRACKET, DISPENSER WPL 99002465 Contact Us For Availability

7

INLET, AIR/WATER WPL 99003028 Contact Us For Availability

7

GASKET, MOTOR MOUNT WPL 99003055 Contact Us For Availability

8

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $4.82

8

LEVER, MOTOR MOUNT WPL 99003056 Contact Us For Availability

8

Clip, Cup WPL 99003107 Contact Us For Availability

9

WP99003148 Whirlpool Dishwasher Wheel In Stock WPL WP99003148 $6.03

9

Panel, Front Deco (Stainless) WPL 99002775 Contact Us For Availability

9

Bolt, Shoulder WPL 99003687 Contact Us For Availability

9

PLUNGER, MOTOR MOUNT WPL 99003057 Contact Us For Availability

99002651 Whirlpool Dishwasher Turbidity Senso Backorder WPL 99002651 $14.02

WP6-912366 Whirlpool Dishwasher Screw Backorder WPL WP6-912366 $4.82

Screw (Access Pnl) (White) WPL 99001194 Contact Us For Availability

Screw (Access Pnl) (Bisque) WPL 99002114 Contact Us For Availability

SPRING, DOOR WPL 99002598 Contact Us For Availability

GUARD, RACK (HIGH SIDE) WPL 99003063 Contact Us For Availability

GUARD, RACK (LOW SIDE) WPL 99003064 Contact Us For Availability

11

WP99003446 Whirlpool Door Cable In Stock WPL WP99003446 $5.30

11

WPW10120019 Whirlpool Dishwasher Sensor Backorder WPL WPW10120019 $146.08

11

Shelf, Cup (Long) WPL 99003065 Contact Us For Availability

WPW10223013 Whirlpool Dishwasher Insulation P Backorder WPL WPW10223013 $59.09

Seal, Toe Panel (Black) WPL 99002694 Contact Us For Availability

Seal, Toe Panel (White) WPL 99002698 Contact Us For Availability

Shelf, Cup (Lower) WPL 99003074 Contact Us For Availability

Pivot, Wash Arm WPL 99003697 Contact Us For Availability

WP99003337 Whirlpool Door Seal Backorder WPL WP99003337 $171.11

Screw WPL 99002664 Contact Us For Availability

Panel, Toe (Black) WPL 99002765 Contact Us For Availability

Panel, Toe (White) WPL 99002766 Contact Us For Availability

Panel, Toe (Bisque) WPL 99002767 Contact Us For Availability

Handle, Silverware Basket (Not used in Series WPL 99003077 Contact Us For Availability

Support, Front (Black) WPL 99002859 Contact Us For Availability

Support, Front (White) WPL 99002860 Contact Us For Availability

Support, Front (Bisque) WPL 99002861 Contact Us For Availability

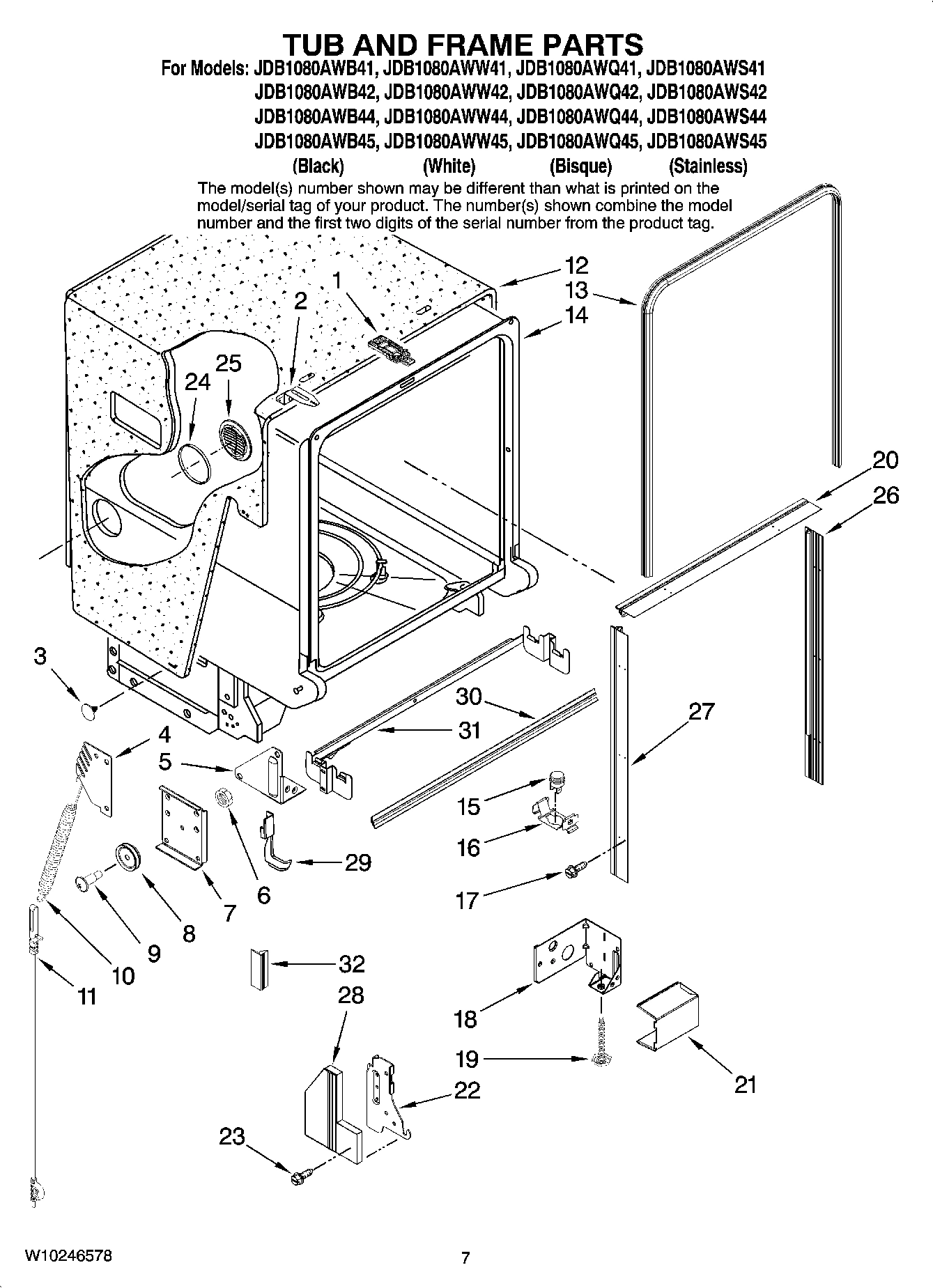

Tub Assembly WPL W10142298 Contact Us For Availability

Tine, Folding Assembly WPL 99003578 Contact Us For Availability

CHOPPER WPL 99003427 Contact Us For Availability

15

WP99003282 Whirlpool Dishwasher Rail Stop Backorder WPL WP99003282 $4.82

15

THERMOSTAT, LIMITING WPL 99002633 Contact Us For Availability

15

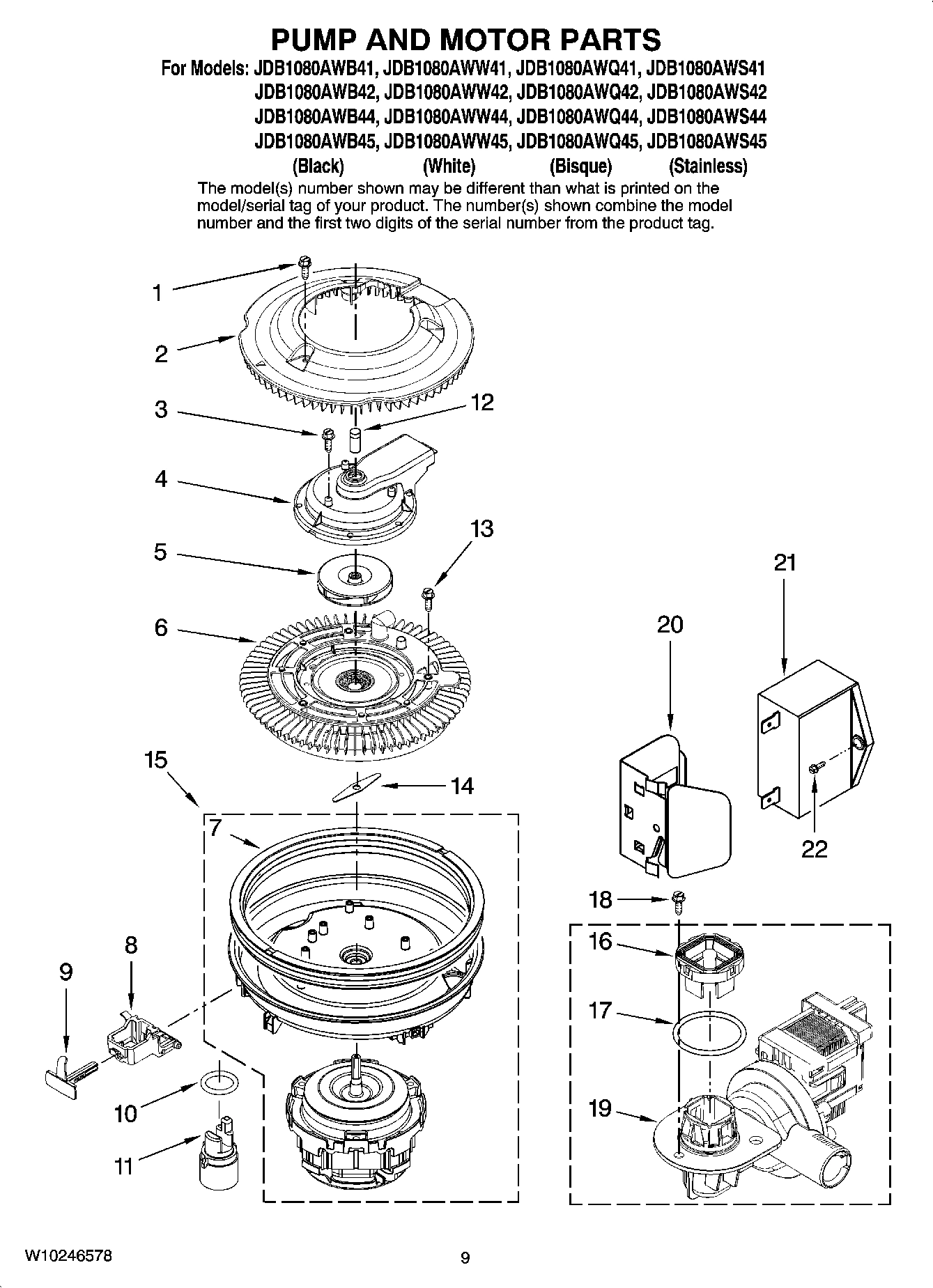

Wash Motor Assy. WPL 99003436 Contact Us For Availability

16

CLIP, THERMOSTAT WPL 99001008 Contact Us For Availability

16

FLAPPER, DRAIN PUMP INLET WPL 99003309 Contact Us For Availability

17

SCREW, TRIM MOUNTING WPL 99002692 Contact Us For Availability

17

Wash Manifold Assembly WPL 99003142 Contact Us For Availability

17

O-RING, DRAIN PUMP WPL 99002857 Contact Us For Availability

18

Bracket, Junction Box WPL 99002637 Contact Us For Availability

18

Clip, Upper Wash Manifold (Back) WPL 99003071 Contact Us For Availability

18

Screw WPL 99002740 Contact Us For Availability

19

WPW10143258 Whirlpool Dishwasher Leg Leveler Backorder WPL WPW10143258 $9.90

19

Clip, Upper Wash Manifold (Front) WPL 99003072 Contact Us For Availability

19

Drain Pump Assy. WPL W10200518 Contact Us For Availability

20

STRIP, TRIM (TOP) WPL 99003036 Contact Us For Availability

20

Dishrack, Lower Assy (Incl Wheels) WPL 99003073 Contact Us For Availability

20

SHIELD, CAPACITOR WPL 99003440 Contact Us For Availability

21

WP99003149 Whirlpool Rack Wheel In Stock WPL WP99003149 $9.56

21

COVER, JUNCTION BOX WPL 99002638 Contact Us For Availability

21

Capacitor WPL 99002665 Contact Us For Availability

WP6-918873 Whirlpool Silverware Basket In Stock WPL WP6-918873 $38.54

WPW10118637 Whirlpool Dishwasher Bracket Backorder WPL WPW10118637 $186.41

Support, Hinge (Left) WPL 99002929 Contact Us For Availability

Screw WPL 99002601 Contact Us For Availability

23

CAGE, BALL BEARING WPL 99003069 Contact Us For Availability

25

GRILL,AIR/WATER INLET WPL 99003078 Contact Us For Availability

26

STRIP, TRIM (RT) WPL 99003035 Contact Us For Availability

27

Strip, Trim (Lft) WPL 99003034 Contact Us For Availability

28

Backer, Hinge Seal (Left) WPL 99002761 Contact Us For Availability

28

Backer, Hinge Seal (Right) WPL 99002762 Contact Us For Availability

29

Trim, Corner Edge (Left) WPL 99003038 Contact Us For Availability

30

WP99003041 Whirlpool Dishwasher Trim Backorder WPL WP99003041 $69.04

31

Bracket, Support (Rear) WPL 99003087 Contact Us For Availability

32

Gap Seal, Toe Kick (Black) WPL 99002701 Contact Us For Availability

32

Gap Seal, Toe Kick (Bisque) WPL 99002702 Contact Us For Availability

32

Gap Seal, Toe Kick (White) WPL 99002703 Contact Us For Availability

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $20.75

4396277 Whirlpool Barrier Assembly Backorder WPL 4396277 $23.09

4396897RW Whirlpool Dishwasher Fill Hose In Stock WPL 4396897RW $25.16

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $21.50

8212486 Whirlpool Hose Assembly In Stock WPL 8212486 $39.62

8212488RC Whirlpool Dishwasher Installation K Backorder WPL 8212488RC $56.69

W10278635RP Whirlpool Dishwasher Fill Hose In Stock WPL W10278635RP $39.89

INSTALLATION KIT WPL ARI3075A32 Contact Us For Availability
