Model Whirlpool IMH16XVQ0 Microwave Oven 1.6 Cu. Ft. – Common Parts & Diagrams
05 - MAGNETRON AND TURNTABLE PARTS

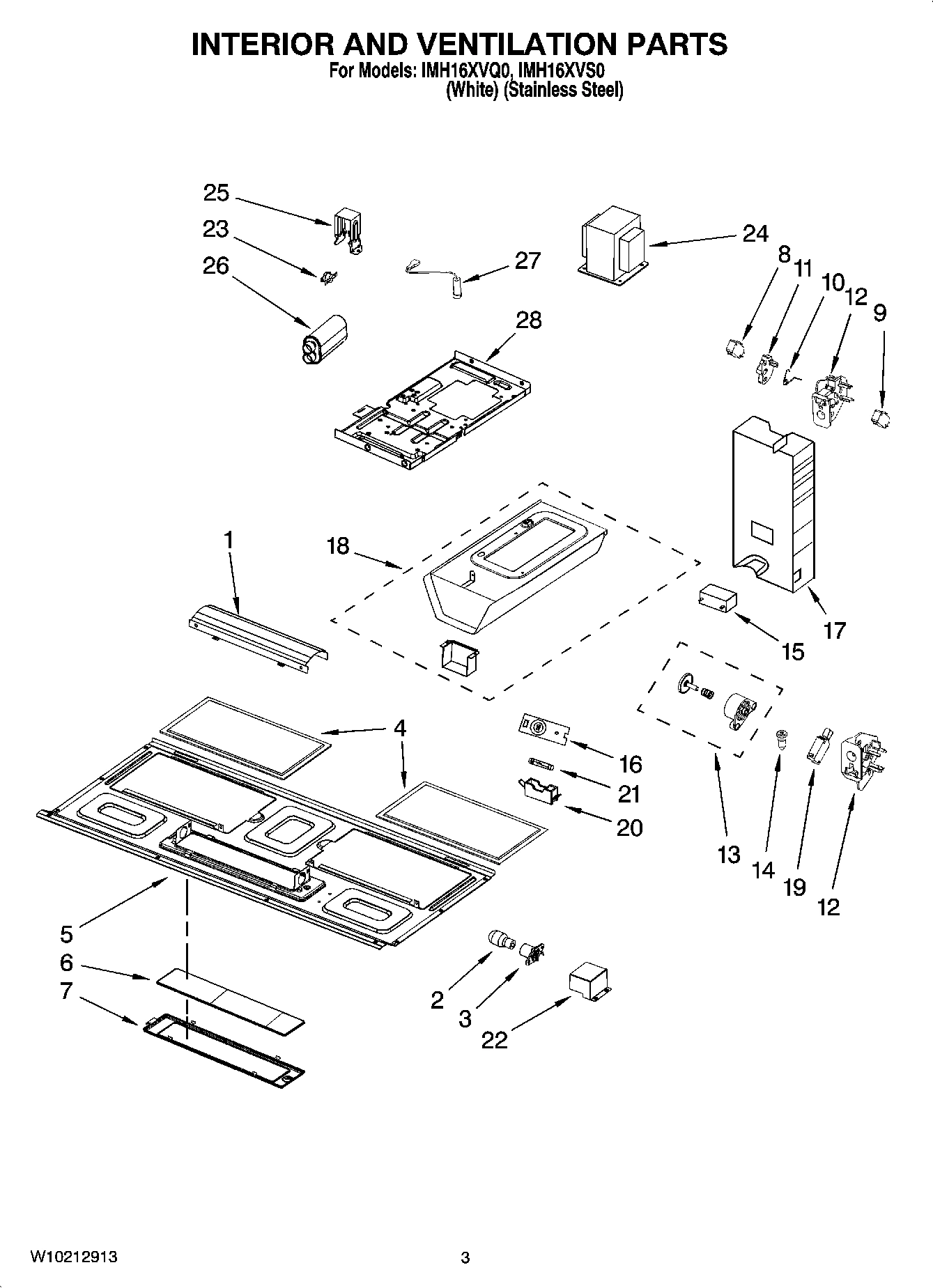

03 - INTERIOR AND VENTILATION PARTS

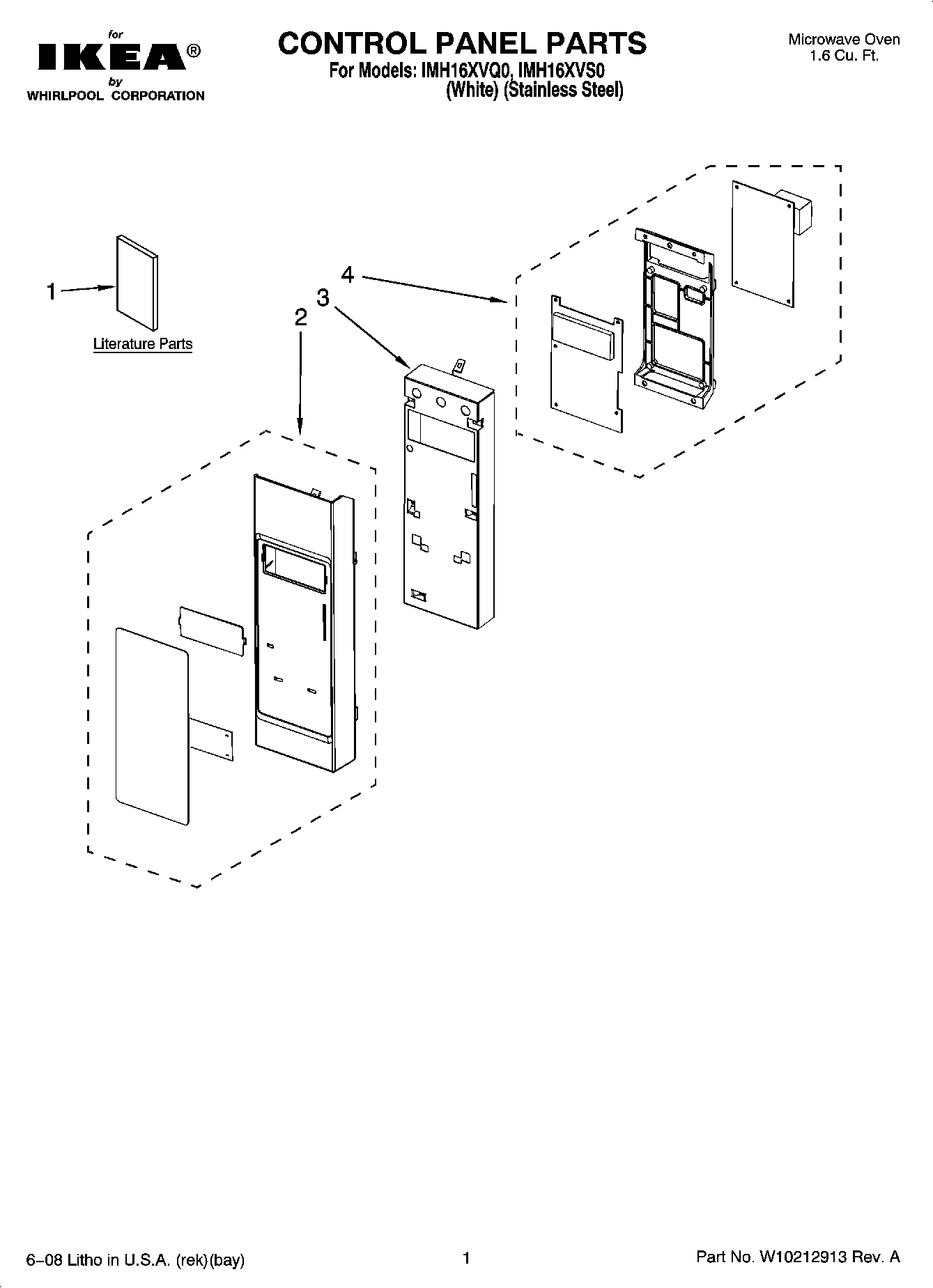

01 - CONTROL PANEL PARTS

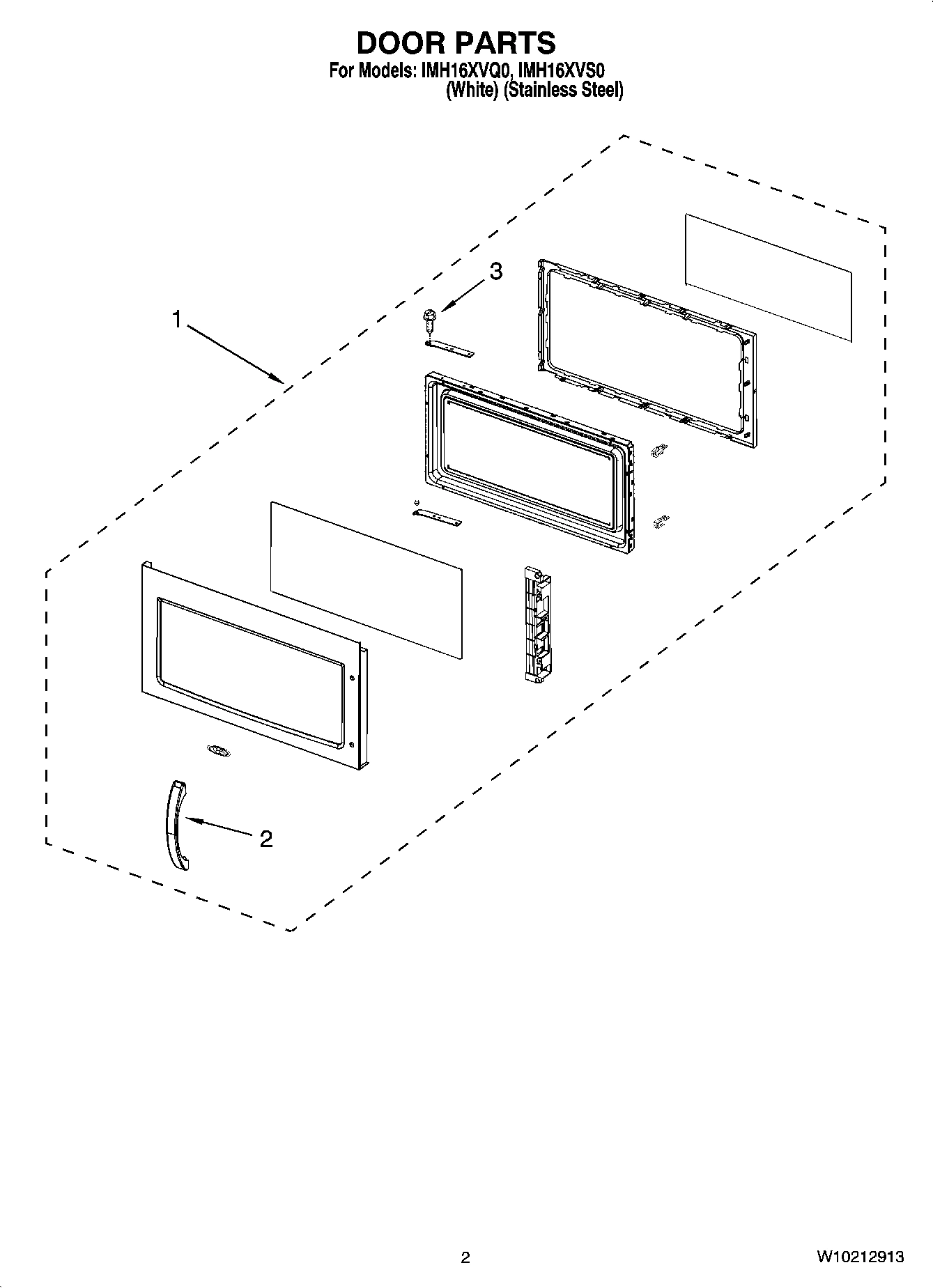

02 - DOOR PARTS

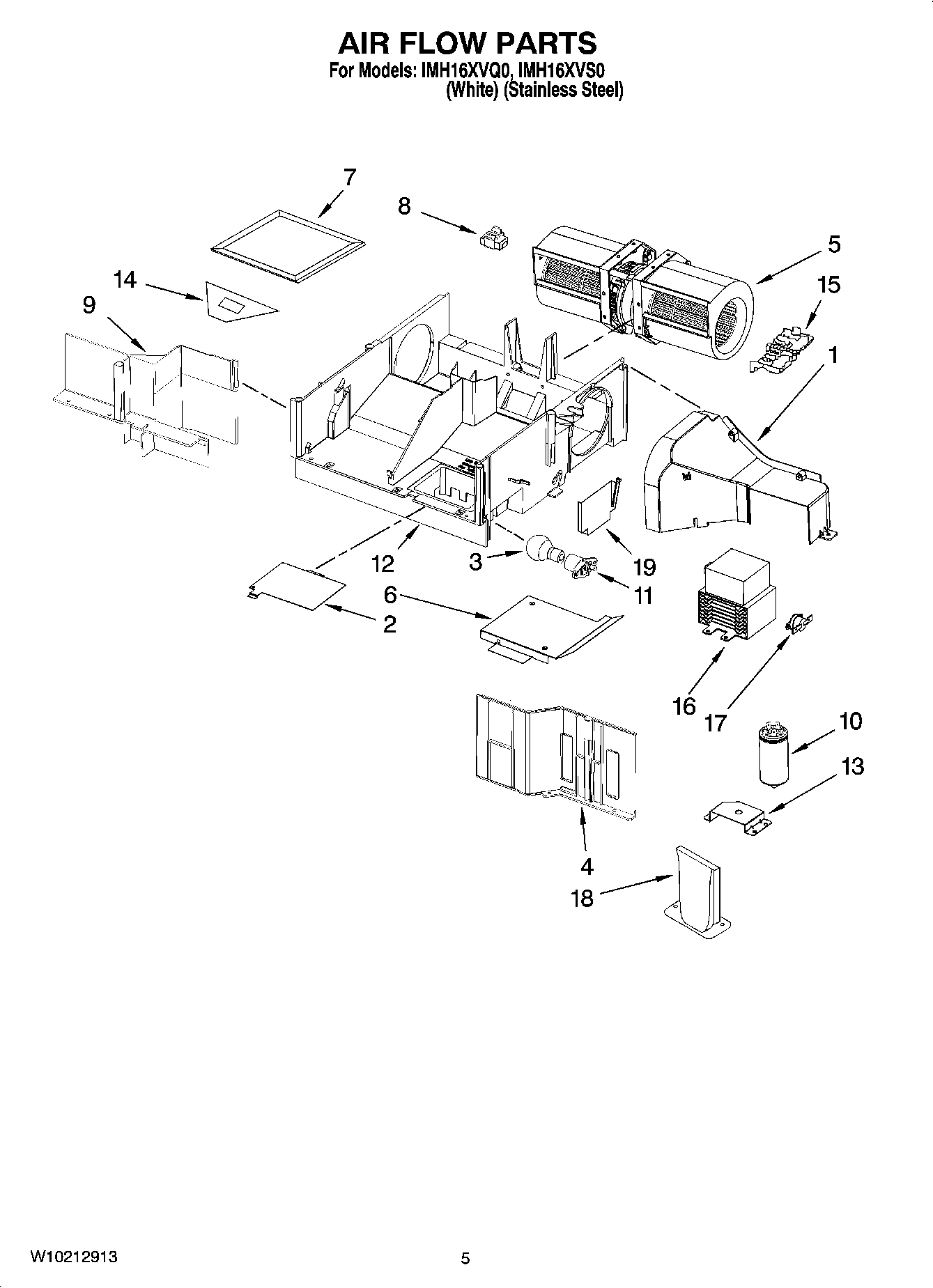

04 - AIR FLOW PARTS

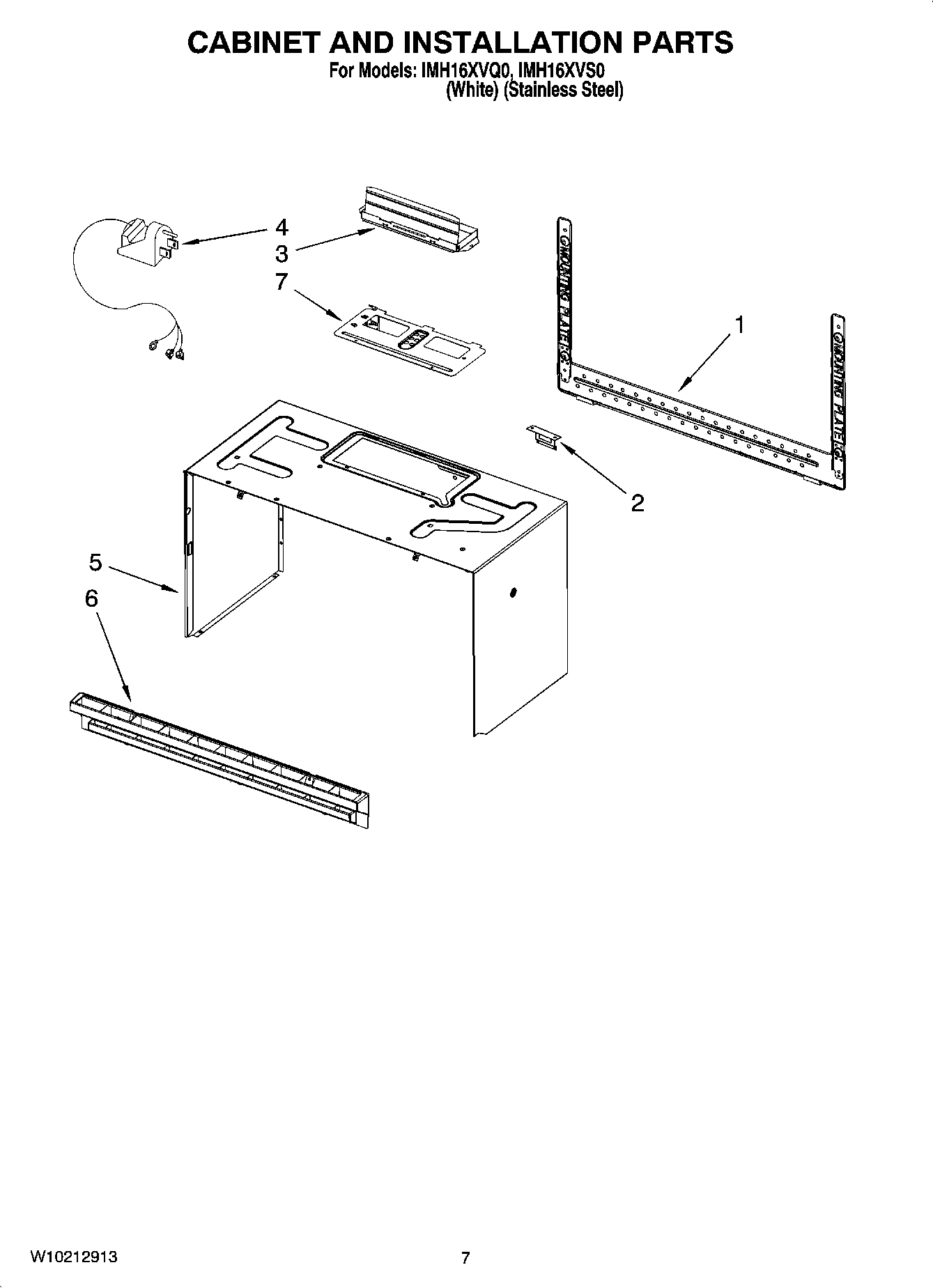

06 - CABINET AND INSTALLATION PARTS
Common parts from model Whirlpool IMH16XVQ0 Microwave Oven 1.6 Cu. Ft.
Template, Upper WPL 8206002 Contact Us For Availability
H.V. Wire Assy WPL 8206415 Contact Us For Availability
Miscellaneous WPL ARI152756A Contact Us For Availability
Grnd Wire, Filter WPL W10107760 Contact Us For Availability
Hdlmp/TT Wire Assy WPL W10163435 Contact Us For Availability
Ground Wire Assy WPL W10163438 Contact Us For Availability
Main Harness WPL W10212887 Contact Us For Availability
1
Cover, Inlet Includes Nails and Bushings WPL 8206389 Contact Us For Availability
1
Deflector, Air WPL 8206340 Contact Us For Availability
2
Panel Asy, Control Includes Lens and Membrane WPL W10211975 Contact Us For Availability
3
Bracket, Control WPL W10156814 Contact Us For Availability
4
Turntable WPL 4393799 No Longer Available
5
Case, Outer (White) WPL W10210836 Contact Us For Availability
5
Case, Outer (Black) WPL W10210839 Contact Us For Availability
6
Grille, Vent (White Model) WPL W10111339 Contact Us For Availability
6
Grille, Vent (Stainless Model) WPL W10111340 Contact Us For Availability
7
Plate, Damper WPL W10210832 Contact Us For Availability
9
Air Guide WPL W10138800 Contact Us For Availability
10
Filter WPL 8206624 Contact Us For Availability
12
Base Plate, Air Guide WPL W10210881 Contact Us For Availability
13
Brkt-Mntg, Filter WPL W10156815 Contact Us For Availability
14
Socket, Motor Wire WPL W10139750 Contact Us For Availability
15
Cover, Terminal WPL W10110598 Contact Us For Availability
19
Cover, Right Duct WPL W10210884 Contact Us For Availability
20
Holder, Fuse WPL W10117908 Contact Us For Availability
× ![]()
