Model Huebsch HWT211*M1102 Washer – Common Parts & Diagrams

Timer, Case and Plate

Timer and Bracket

Coin Slide Meter Case and Service Door

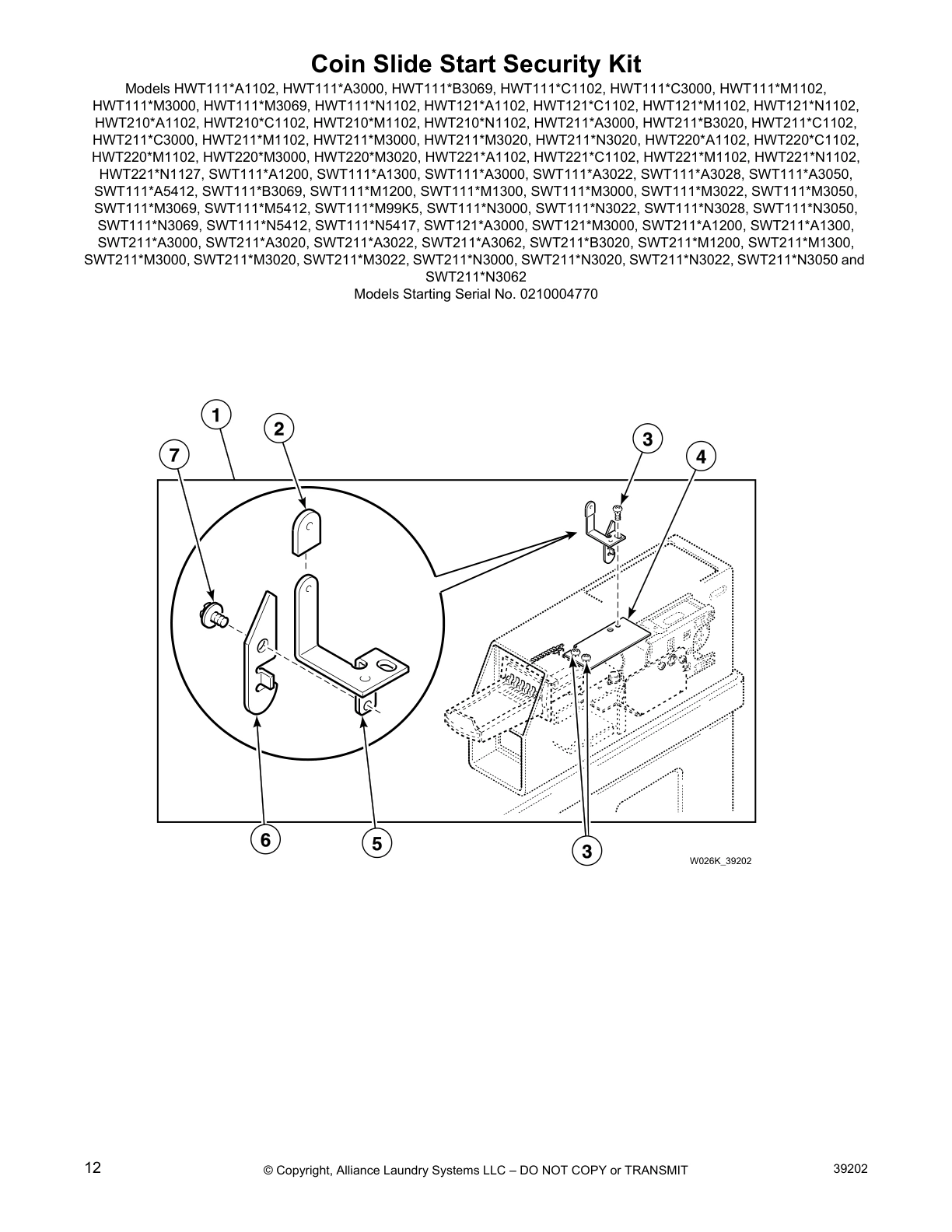

Coin Slide Start Security Kit

Meter Case and Service Door

Coin Drop, Meter Case and Service Door (Drawing 1 of 2)

Coin Drop, Meter Case and Service Door (Drawing 2 of 2)

Timer Case

Security Case and Card Reader

Control Panel, Control Hood and Controls (Drawing 1 of 18)

Control Panel, Control Hood and Controls (Drawing 2 of 18)

Control Panel, Control Hood and Controls (Drawing 3 of 18)

Control Panel, Control Hood and Controls (Drawing 4 of 18)

Control Panel, Control Hood and Controls (Drawing 5 of 18)

Control Panel, Control Hood and Controls (Drawing 6 of 18)

Control Panel, Control Hood and Controls (Drawing 8 of 18)

Control Panel, Control Hood and Controls (Drawing 9 of 18)

Control Panel, Control Hood and Controls (Drawing 10 of 18)

Control Hood

Control Panel and Controls

Control Panel, Control Hood and Controls (Drawing 11 of 18)

Control Panel, Control Hood and Controls (Drawing 12 of 18)

Control Panel, Control Hood and Controls (Drawing 13 of 18)

Control Panel, Control Hood and Controls (Drawing 14 of 18)

Control Panel, Control Hood and Controls (Drawing 15 of 18)

Control Panel, Control Hood and Controls (Drawing 16 of 18)

Control Panel, Control Hood and Controls (Drawing 17 of 18)

Control Panel, Control Hood and Controls (Drawing 18 of 18)

Lid and Lid Lock

Top Assembly and Shield

Lid

Top Assembly

Lid Switch

Fill Hose, Mixing Valve-to-Tub Cover Hose, Mixing Valve and Mounting Bracket

Mixing Valve

Fill Hose, Mixing Valve-to-Tub Cover Hose and Mounting Bracket

Motor and Mounting Bracket Assembly (Drawing 1 of 3)

Belt, Pump and Idler Assembly (Drawing 1 of 3)

Motor, Mounting Bracket, Belt and Idler Assembly

Motor and Mounting Bracket Assembly (Drawing 2 of 3)

Belt, Pump and Idler Assembly (Drawing 2 of 3)

Motor and Mounting Bracket Assembly (Drawing 3 of 3)

Belt, Pump and Idler Assembly (Drawing 3 of 3)

Common parts from model Huebsch HWT211*M1102 Washer

SPQ 524P3W SPQ 524P3W Contact Us For Availability

View on Model

29503 Speed Queen Clutch Assembly In Stock SPQ 29503 $42.99

View on Model

38155 Speed Queen MIX Valve Hose In Stock SPQ 38155 $21.11

View on Model

33562 Speed Queen Screw Tap Socket Head 10B-1 Backorder SPQ 33562 $5.49

View on Model

34601P Speed Queen Long Cycle Timer 115/60 In Stock SPQ 34601P $490.85

View on Model

38035P Speed Queen Motor Kit Backorder SPQ 38035P $517.95

View on Model

Mixing Valve Kit SPQ RB150001 Contact Us For Availability

View on Model

34754 Speed Queen Motor Shield Backorder SPQ 34754 $5.49

View on Model

39407 Speed Queen Mixer Valve Mounting Bracke Backorder SPQ 39407 $5.49

View on Model

33445 Speed Queen SPST Switch In Stock SPQ 33445 $6.37

View on Model

38384 Speed Queen Strain Relief Backorder SPQ 38384 $2.21

View on Model

F200116 Speed Queen Water Hose 3/8" x 60" FXF Backorder SPQ F200116 $22.51

View on Model

36164 Speed Queen Actuator In Stock SPQ 36164 $20.00

View on Model

200832 Speed Queen Timer Bracket for Vault Backorder SPQ 200832 $5.89

View on Model

34337 Speed Queen Flat Screw 6-32 x .340 In Stock SPQ 34337 $5.71

View on Model

802254 Speed Queen Washer Flow Restrictor Red In Stock SPQ 802254 $40.46

View on Model

34338 Speed Queen Hinge Gasket In Stock SPQ 34338 $5.49

View on Model

38011 Speed Queen Idler Lever Backorder SPQ 38011 $5.49

View on Model

39167WP Speed Queen Commercial Top Porcelain Backorder SPQ 39167WP $281.40

View on Model

789P3 Speed Queen Timer Bracket Kit - Long VA Backorder SPQ 789P3 $15.17

View on Model

803615 Speed Queen Washer Filter In Stock SPQ 803615 $3.68

View on Model

SPQ 39874LP SPQ 39874LP Contact Us For Availability

View on Model

523P3 Speed Queen Coin Funnel Kit In Stock SPQ 523P3 $19.78

View on Model

56461P Speed Queen Washer Dryer Idler/Rolley In Stock SPQ 56461P $7.34

View on Model

81392 Speed Queen Washer, .390 ID x 7/8 OD x Backorder SPQ 81392 $5.49

View on Model

210186 Speed Queen Idler Shaft In Stock SPQ 210186 $6.32

View on Model

37377 Speed Queen Capacitor In Stock SPQ 37377 $23.19

View on Model

D503673 Speed Queen Screw 5/16-18 x 2.25 PH F Backorder SPQ D503673 $3.64

View on Model

27222 Speed Queen Nut Retainer Backorder SPQ 27222 $5.49

View on Model

23008 Speed Queen Screw,HEX WA HD SEMS 10-24 In Stock SPQ 23008 $5.45

View on Model

33446 Speed Queen Washer Bushing In Stock SPQ 33446 $5.71

View on Model

10416 Speed Queen Roll Pin Backorder SPQ 10416 $1.97

View on Model

23748 Speed Queen Washer Retaining Ring In Stock SPQ 23748 $6.04

View on Model

36437 Speed Queen Right Lid Hinge In Stock SPQ 36437 $7.00

View on Model

ASSY,TLW IDLER PULLEY PKG'D In Stock SPQ 205552P $15.30

View on Model

36020 Speed Queen U-Type Nut #10-24 Backorder SPQ 36020 $5.49

View on Model

36438 Speed Queen Hinge In Stock SPQ 36438 $6.37

View on Model

38495P Speed Queen 120 Volt Mixing Valve Backorder SPQ 38495P $210.48

View on Model

21685 Speed Queen Bumper In Stock SPQ 21685 $5.49

View on Model

34500 Speed Queen Duckbill Backflow Preventer Backorder SPQ 34500 $5.49

View on Model

52909 Speed Queen Tap-HXWAHD 10B-16X.5 Screw Backorder SPQ 52909 $5.49

View on Model

Screw SPQ 201280P Contact Us For Availability

View on Model

202972 Speed Queen Idler Lever and Belt Kit Backorder SPQ 202972 $82.11

View on Model

210202 Speed Queen Spring Clip In Stock SPQ 210202 $6.04

View on Model

38174 Speed Queen Washer Agitate and Spin Bel In Stock SPQ 38174 $24.84

View on Model

205218P Speed Queen Heavy Duty Pump Assembly In Stock SPQ 205218P $151.78

View on Model

205217P Speed Queen Washer Direct Drive Drain In Stock SPQ 205217P $47.89

View on Model

35369 Speed Queen 5/16-18 x 1/2 Hex Flange Sc Backorder SPQ 35369 $5.49

View on Model

685846 Speed Queen #10-32 UNF Nylon Lock Nut Backorder SPQ 685846 $5.49

View on Model

204062 Speed Queen Washer Motor Mount and Iso Backorder SPQ 204062 $5.45

View on Model

200941 Speed Queen Motor Mount Bracket Backorder SPQ 200941 $36.88

View on Model

37772 Speed Queen Defrost Temperature Control Backorder SPQ 37772 $5.45

View on Model

24205 Speed Queen Knurled Nut 3/8-24 In Stock SPQ 24205 $5.49

View on Model

39897 Speed Queen Switch Knob In Stock SPQ 39897 $9.55

View on Model

20290 Speed Queen Washer 19/32" ID x 1.031" O In Stock SPQ 20290 $5.49

View on Model

20617 Speed Queen Inlet Hose 8 Feet Backorder SPQ 20617 $34.92

View on Model

20618 Speed Queen Inlet Hose 10 Feet Backorder SPQ 20618 $25.87

View on Model

23962 Speed Queen Screw Tap HXWAHD 8B-18X 3 In Stock SPQ 23962 $2.77

View on Model

24122 Speed Queen Mixing Valve Screen Backorder SPQ 24122 $5.83

View on Model

26354 Speed Queen Metercase Gasket Backorder SPQ 26354 $7.69

View on Model

27229 Speed Queen Shoulder Screw 1/4-20 Backorder SPQ 27229 $5.49

View on Model

27761 Speed Queen 3-Position Switch In Stock SPQ 27761 $20.91

View on Model

35889P Speed Queen Coin Pressure Switch Backorder SPQ 35889P $70.53

View on Model

38267 Speed Queen Rear Hood Panel Backorder SPQ 38267 $13.75

View on Model

39249 Speed Queen Washer 0.280 ID x 0.87 OD Backorder SPQ 39249 $5.49

View on Model

39874WP Speed Queen Service Door Assembly Backorder SPQ 39874WP $72.17

View on Model

52549 Speed Queen Washer 3/4" Washer/Dryer In Stock SPQ 52549 $3.68

View on Model

52566 Speed Queen Hex Nut 1/4-20 Jam UNC ZNC In Stock SPQ 52566 $5.49

View on Model

807398W Speed Queen Long Slide Meter Case Ass Backorder SPQ 807398W $290.07

View on Model

D500226 Speed Queen Tap Screw 8B-16 x 5/8 #6 Backorder SPQ D500226 $3.19

View on Model

D501086 Speed Queen Screw Tap SLSERHXWAHD8B-1 Backorder SPQ D501086 $5.49

View on Model

D503688 Speed Queen Indicator Screw 10B-16 x In Stock SPQ D503688 $5.49

View on Model

D504082 Speed Queen Washer Dryer Wave In Stock SPQ D504082 $3.68

View on Model

SPQ 201010QP SPQ 201010QP Contact Us For Availability

View on Model
