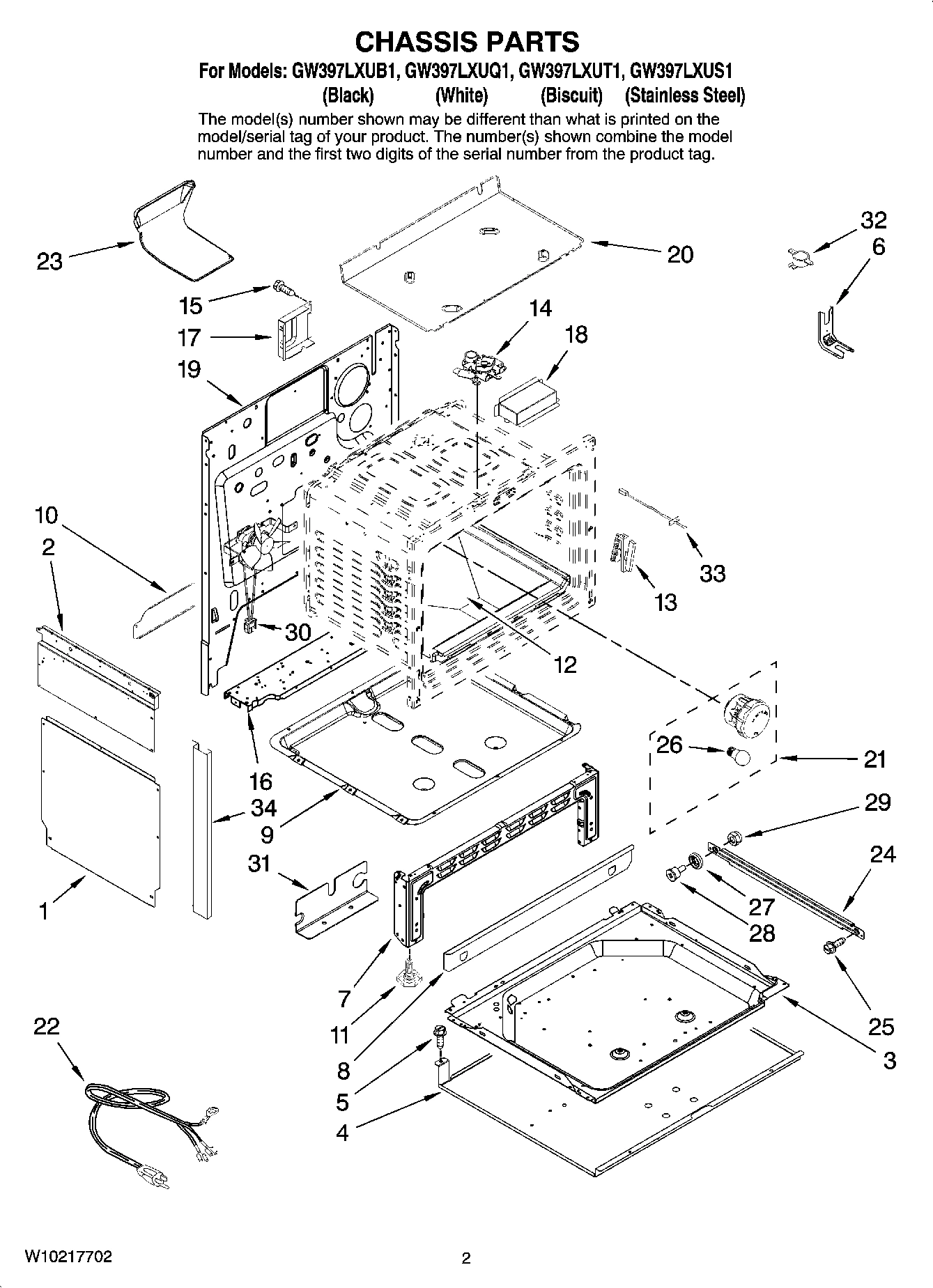

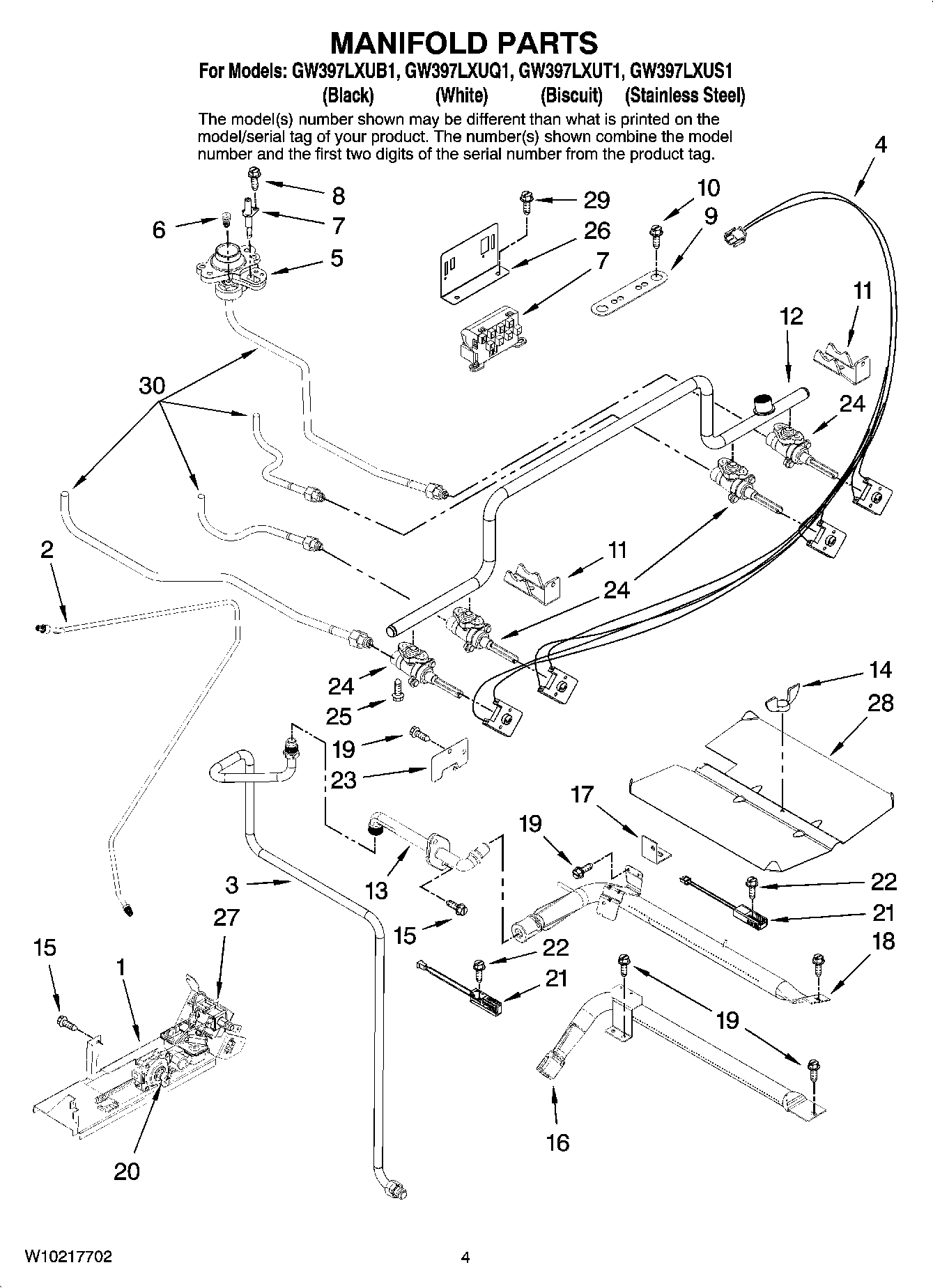

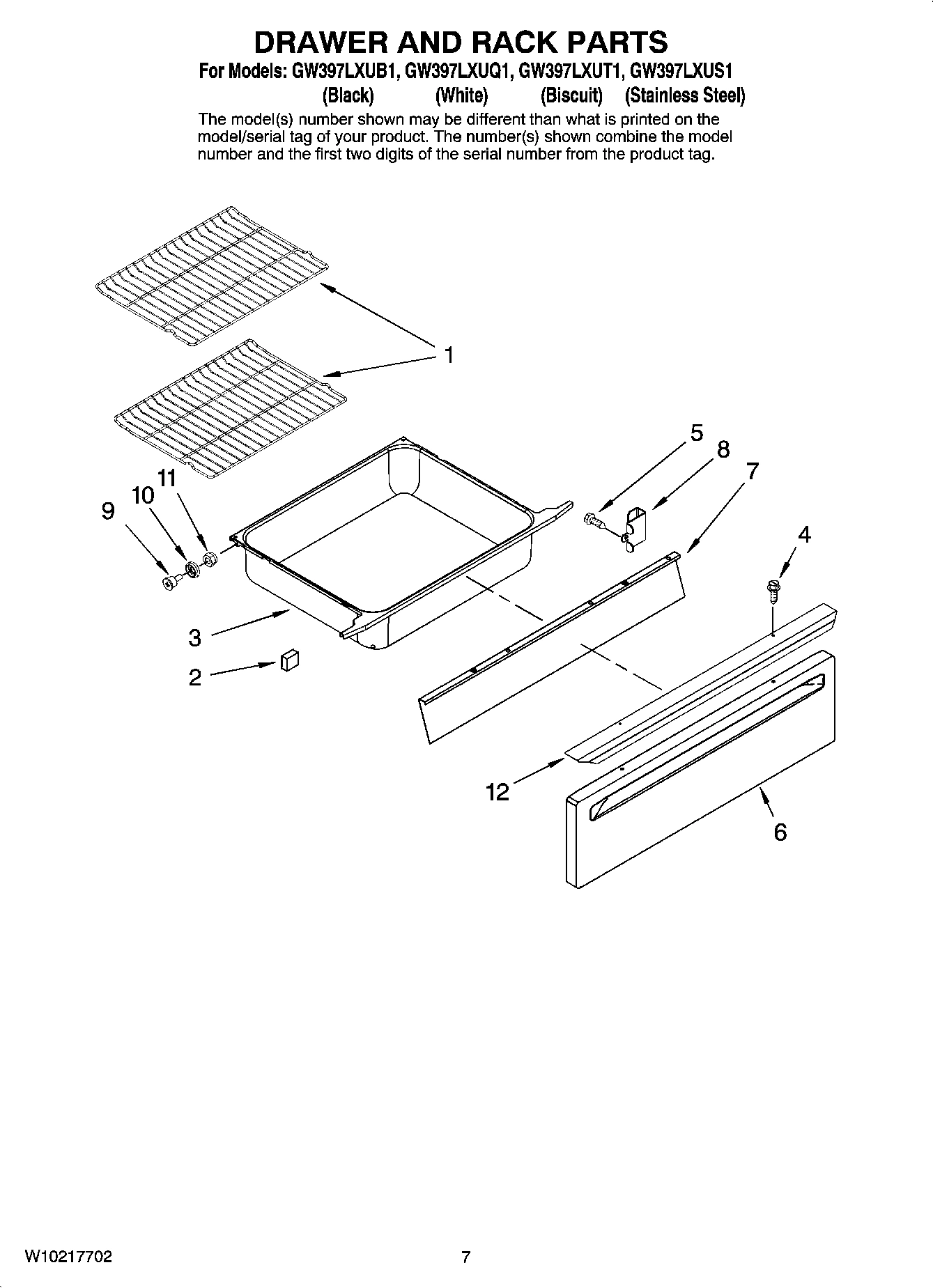

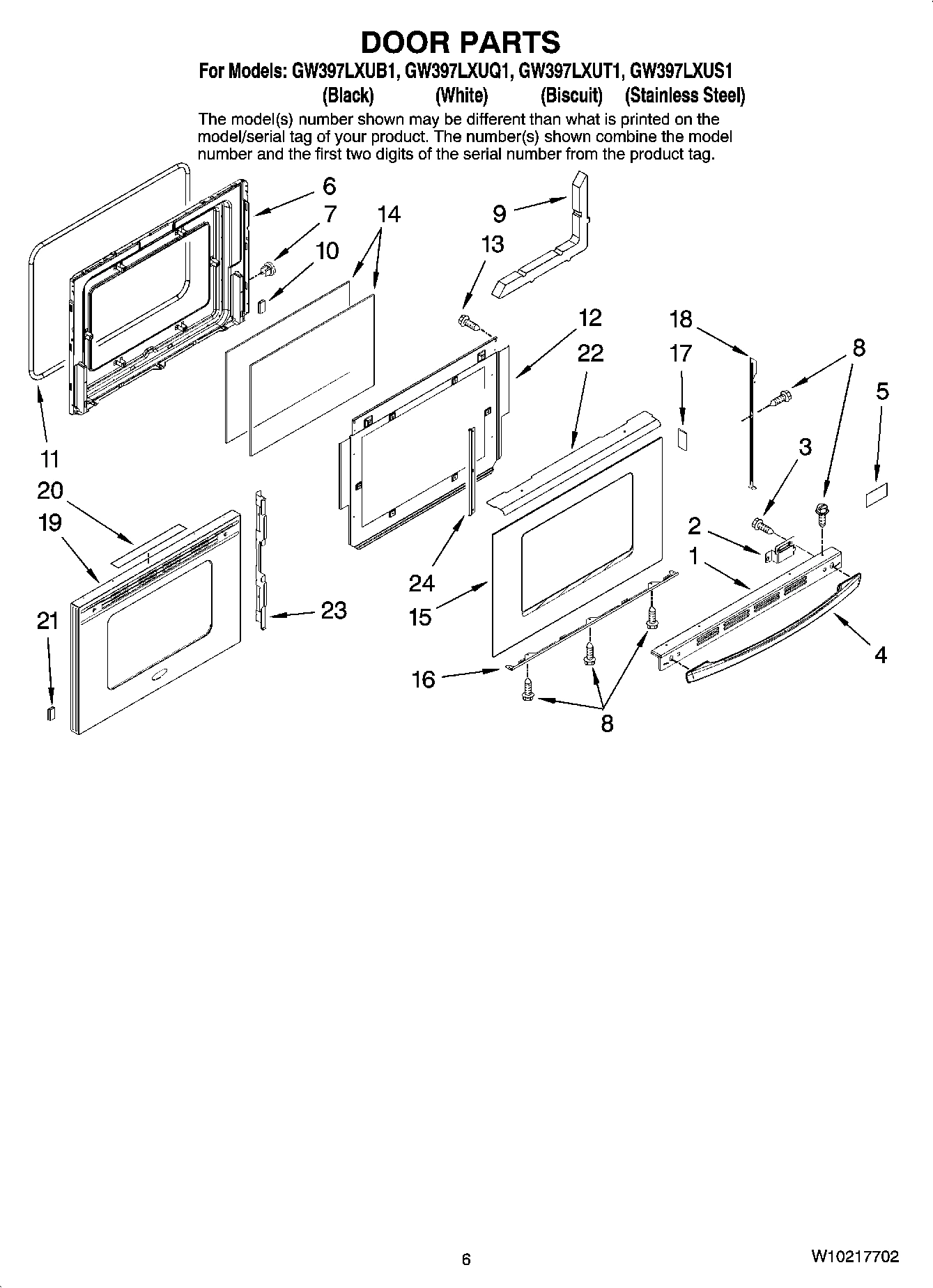

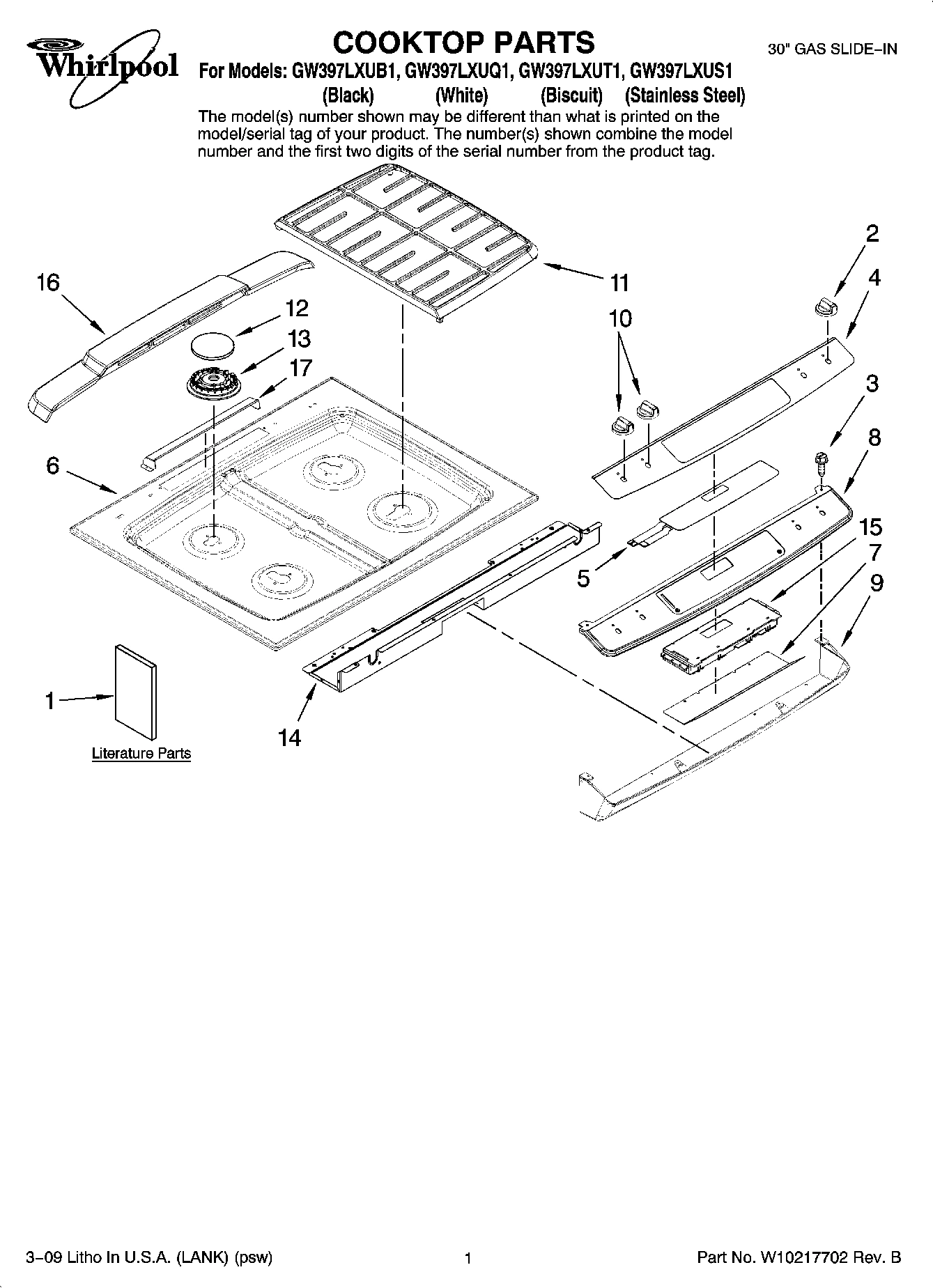

Model Whirlpool GW397LXUT1 30`` GAS SLIDE-IN – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.73

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.51

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.92

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $24.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.37

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $39.00

W10160396 Whirlpool Wire Harness Backorder WPL W10160396 $85.76

W10173467 Whirlpool Wire Harness Backorder WPL W10173467 $25.61

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $34.75

Spuds, LP Gas WPL W10168551 Contact Us For Availability

Foil, Aluminium Oven (18`` X 25``) WPL 241430 Contact Us For Availability

Insulation, Back WPL W10165725 Contact Us For Availability

Following Parts Not Illustrated WPL ARI151678A Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

Screw, Ground WPL 7101P02760 Contact Us For Availability

Harness, Sensor WPL 74010849 Contact Us For Availability

PAINT, BULK (1 qt.) (Black (Uncut)) WPL 799340 Contact Us For Availability

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

Following Parts Not Illustrated WPL ARI151679A Contact Us For Availability

REFINISHING MATERIAL WPL ARI151680A Contact Us For Availability

ACCESSORY PARTS WPL ARI151681A Contact Us For Availability

WIRING HARNESS PARTS WPL ARI151682A Contact Us For Availability

Harness, Main WPL W10160394 Contact Us For Availability

Insulation, Drawer WPL 7002P14060 Contact Us For Availability

Insulation, Lower Side WPL 74010986 Contact Us For Availability

Insulation, Wrap WPL 74010987 Contact Us For Availability

Insulation WPL ARI151677A Contact Us For Availability

1

WP3608F141-71 Whirlpool Door Trim Backorder WPL WP3608F141-71 $155.24

1

Cover, Bnr Valve WPL 74005465 Contact Us For Availability

1

Shield, Lower Side WPL 74010905 Contact Us For Availability

1

Trim, Door Top (Black) WPL W10165729 Contact Us For Availability

1

Trim, Door Top (Biscuit) WPL W10177497 Contact Us For Availability

2

2618F206-51 Whirlpool Panel Backorder WPL 2618F206-51 $90.10

2

3801F831-45 Whirlpool Bracket Assembly Backorder WPL 3801F831-45 $11.77

2

3801F832-45 Whirlpool Bracket Backorder WPL 3801F832-45 $16.76

2

W10177198 Whirlpool Knob Backorder WPL W10177198 $57.20

2

W10177201 Whirlpool Knob Backorder WPL W10177201 $16.99

2

Knob, AccuSimmer (Biscuit) WPL W10177203 Contact Us For Availability

2

Tubing, Gas Supply WPL 7506P53560 Contact Us For Availability

2

Panel, Shield (Left) WPL 74010821 Contact Us For Availability

3

74003640 Whirlpool Oven Screw Backorder WPL 74003640 $7.18

3

Tube, Broil WPL W10177238 Contact Us For Availability

3

Retainer, Bottom WPL 74009480 Contact Us For Availability

4

W10118431 Whirlpool Door Handle Backorder WPL W10118431 $138.60

4

WPW10118430 Whirlpool Door Handle Backorder WPL WPW10118430 $188.19

4

Harness, Valve Includes Switches WPL W10177102 Contact Us For Availability

4

Screw, Panel (S.Steel) WPL 74009538 Contact Us For Availability

4

Shield, Drawer WPL W10177095 Contact Us For Availability

4

Handle, Door (Biscuit) WPL W10118432 Contact Us For Availability

5

WPW10407680 Whirlpool Orifice Holder Backorder WPL WPW10407680 $44.75

5

WPW10407681 Whirlpool Orifice Holder Backorder WPL WPW10407681 $75.42

5

Orifice, Holder (9.2K (2) LF,RR) WPL 74010909 Contact Us For Availability

5

Name Plate WPL 8303810 Contact Us For Availability

6

W10156136 Whirlpool Orifice Backorder WPL W10156136 $67.83

6

W10156836 Whirlpool Orifice Backorder WPL W10156836 $67.76

6

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $3.70

6

Panel, Drawer Front (White) WPL 74003407 Contact Us For Availability

6

Panel, Drawer Front (Black) WPL 74003701 Contact Us For Availability

6

Panel, Drawer Front (Biscuit) WPL 74004966 Contact Us For Availability

6

Panel,Drawer Front (S.Steel) WPL W10196357 Contact Us For Availability

6

Orifice (5K (1) LR) WPL W10177436 Contact Us For Availability

6

Liner, Door WPL 74011456 Contact Us For Availability

7

WP74001574 Whirlpool Snap Nut Backorder WPL WP74001574 $7.13

7

Lining, Drawer WPL 2404F03051 Contact Us For Availability

7

Spark Module WPL 7431P06460 Contact Us For Availability

7

Oven, Front Lower WPL 74010882 Contact Us For Availability

8

W10828565 Whirlpool Screw Backorder WPL W10828565 $3.87

8

WP74009541 Whirlpool Screw Assembly Backorder WPL WP74009541 $4.77

8

WP74009958 Whirlpool Spark Electrode Assembly In Stock WPL WP74009958 $17.29

8

WP98008544 Whirlpool Screw Assembly In Stock WPL WP98008544 $9.07

8

Panel, Cntl Shield (Black) WPL W10177206 Contact Us For Availability

8

Bracket, Drawer WPL 74010896 Contact Us For Availability

8

Baffle, Oven Front WPL 74001219 Contact Us For Availability

9

WP74010043 Whirlpool Insulation Backorder WPL WP74010043 $48.60

9

WP8273062 Whirlpool Screw In Stock WPL WP8273062 $2.85

9

Pan, Burner WPL 74004465 Contact Us For Availability

9

Insulation, Door (Blk/White/Biscuit) WPL 74003647 Contact Us For Availability

W10177197 Whirlpool Knob Backorder WPL W10177197 $16.36

W10177202 Whirlpool Knob Backorder WPL W10177202 $57.04

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $6.56

Retainer, Base (4) WPL W10160530 Contact Us For Availability

Extension, Back WPL 74010815 Contact Us For Availability

WP74010805 Whirlpool Screw Backorder WPL WP74010805 $4.19

WPW10162384 Whirlpool Door Gasket In Stock WPL WPW10162384 $60.17

Grate, Burner (2) (Black) WPL W10177293 Contact Us For Availability

Nut, Lock WPL 7103P08260 Contact Us For Availability

3601F373-51 Whirlpool Baffle Backorder WPL 3601F373-51 $181.23

WP2205F054-19 Whirlpool Oven Bottom Backorder WPL WP2205F054-19 $473.10

WPW10144883 Whirlpool Door Handle Backorder WPL WPW10144883 $127.91

Bracket, Valve (4) WPL W10160655 Contact Us For Availability

13

74011142 Whirlpool Stove Range Oven Door Hing In Stock WPL 74011142 $78.54

13

W10177097 Whirlpool Dishwasher Manifold Backorder WPL W10177097 $218.70

13

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.90

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $105.30

74010819 Whirlpool Latch Assembly Backorder WPL 74010819 $171.84

WP74010901 Whirlpool Broil Fitting Assembly Backorder WPL WP74010901 $54.15

Glass, Inner (2) (Coated) WPL 74010231 Contact Us For Availability

74003975 Whirlpool Screw P1 (8ABX3/8-BLK) Backorder WPL 74003975 $10.90

Nut, Wing WPL 7103P03060 Contact Us For Availability

Glass, Includes Glass, Tape & Logo (White) WPL W10170228 Contact Us For Availability

Glass, Includes Glass, Tape & Logo (Black) WPL W10170229 Contact Us For Availability

Glass, Includes Glass, Tape & Logo (Biscuit) WPL W10170230 Contact Us For Availability

WP3807F708-71 Whirlpool Support Backorder WPL WP3807F708-71 $104.22

Screw WPL 7101P27460 Contact Us For Availability

Support, Valve/Reg WPL 74007129 Contact Us For Availability

Trim, Door Bottom (Black) WPL 74009686 Contact Us For Availability

Trim, Door Bottom (Biscuit) WPL 74009688 Contact Us For Availability

4005F810-51 Whirlpool Access Cover Backorder WPL 4005F810-51 $156.86

Burner, Bake WPL 74003960 Contact Us For Availability

Tape, Foil WPL 74003664 Contact Us For Availability

Tape, White WPL 74004224 Contact Us For Availability

Tape, Protective WPL W10168886 Contact Us For Availability

WP3608F116-70 Whirlpool Door Trim Backorder WPL WP3608F116-70 $82.12

WP3608F116-71 Whirlpool Door Trim Backorder WPL WP3608F116-71 $53.93

WP3608F117-70 Whirlpool Door Trim Backorder WPL WP3608F117-70 $82.05

WP3608F117-71 Whirlpool Door Trim Backorder WPL WP3608F117-71 $82.05

Support, Bake Bnr WPL W10177006 Contact Us For Availability

Cover, Door Lock WPL 74010845 Contact Us For Availability

Trim, Door Side (Biscuit, Right) WPL 74009696 Contact Us For Availability

Trim, Door Side (Biscuit, Left) WPL 74009697 Contact Us For Availability

19

Burner, Broil WPL 74004076 Contact Us For Availability

19

Back, Main Gas WPL 74011465 Contact Us For Availability

19

Pnl, Oven Dr(SST) WPL 7760P24260 Contact Us For Availability

20

74011048 Whirlpool Oven Insulation Backorder WPL 74011048 $53.08

20

WP7101P434-60 Whirlpool Screw Backorder WPL WP7101P434-60 $4.77

20

Bottom,Burner Box WPL W10177086 Contact Us For Availability

74007498 Whirlpool Range Flat Igniter In Stock WPL 74007498 $40.93

WP74006035 Whirlpool Regulator Backorder WPL WP74006035 $169.03

WP7407P182-60 Whirlpool Lamp Backorder WPL WP7407P182-60 $44.69

WP7432P136-60 Whirlpool Oven Igniter In Stock WPL WP7432P136-60 $56.23

Clip, Glass WPL 7112P03460 Contact Us For Availability

22

Screw WPL 7101P28260 Contact Us For Availability

22

Cord, Power WPL 74004438 Contact Us For Availability

22

Shi WPL 74011049 Contact Us For Availability

23

COVER, IGNITOR WIRE WPL 4005F42145 Contact Us For Availability

23

Box, Assy Vent WPL 74011923 Contact Us For Availability

23

WPL 74011050 WPL 74011050 Contact Us For Availability

3801F886-51 Whirlpool Mounting Bracket Backorder WPL 3801F886-51 $25.12

W10836481 Whirlpool Burner Valve In Stock WPL W10836481 $62.53

WPW10290838 Whirlpool Burner Valve In Stock WPL WPW10290838 $125.95

Runner, Drawer (2) WPL 74003565 Contact Us For Availability

25

Support, Screw (4) WPL 7101P33860 Contact Us For Availability

25

SCREW WPL 7101P01760 Contact Us For Availability

26

Support, Spark Mod WPL 3807F75245 Contact Us For Availability

26

BULB-OVEN WPL 7407P10360 Contact Us For Availability

27

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $5.15

27

WP7501P232-60 Whirlpool Valve Backorder WPL WP7501P232-60 $239.28

28

Shaft, Roller WPL 74005231 Contact Us For Availability

28

Baffle (Broil) WPL W10163813 Contact Us For Availability

28

Baffle (Bake) WPL W10179632 Contact Us For Availability

29

74005230 Whirlpool Oven Lock Nut (8-32) Backorder WPL 74005230 $10.90

W10177103 Whirlpool Burner Tube Backorder WPL W10177103 $30.09

WPW10586440 Whirlpool Blower Fan Backorder WPL WPW10586440 $169.12

Tube, Burner (RR) WPL W10177104 Contact Us For Availability

Tube, Burner (LF) WPL W10177105 Contact Us For Availability

Tube, Burner (LR) WPL W10177107 Contact Us For Availability

31

Bracket,Pwr Supply WPL W10177020 Contact Us For Availability

32

7450P030-60 Whirlpool Limit Switch Backorder WPL 7450P030-60 $61.59

33

12001655 Whirlpool Oven Sensor In Stock WPL 12001655 $24.34

34

WP3608F138-70 Whirlpool Side Trim Backorder WPL WP3608F138-70 $72.11

34

WP3608F138-71 Whirlpool Side Trim Assembly Backorder WPL WP3608F138-71 $53.08

34

Trim, Side (2) (Biscuit) WPL 74010833 Contact Us For Availability
