Model Whirlpool GH5184XPS3 MICROWAVE OVEN 1.8 Cu. Ft. – Common Parts & Diagrams

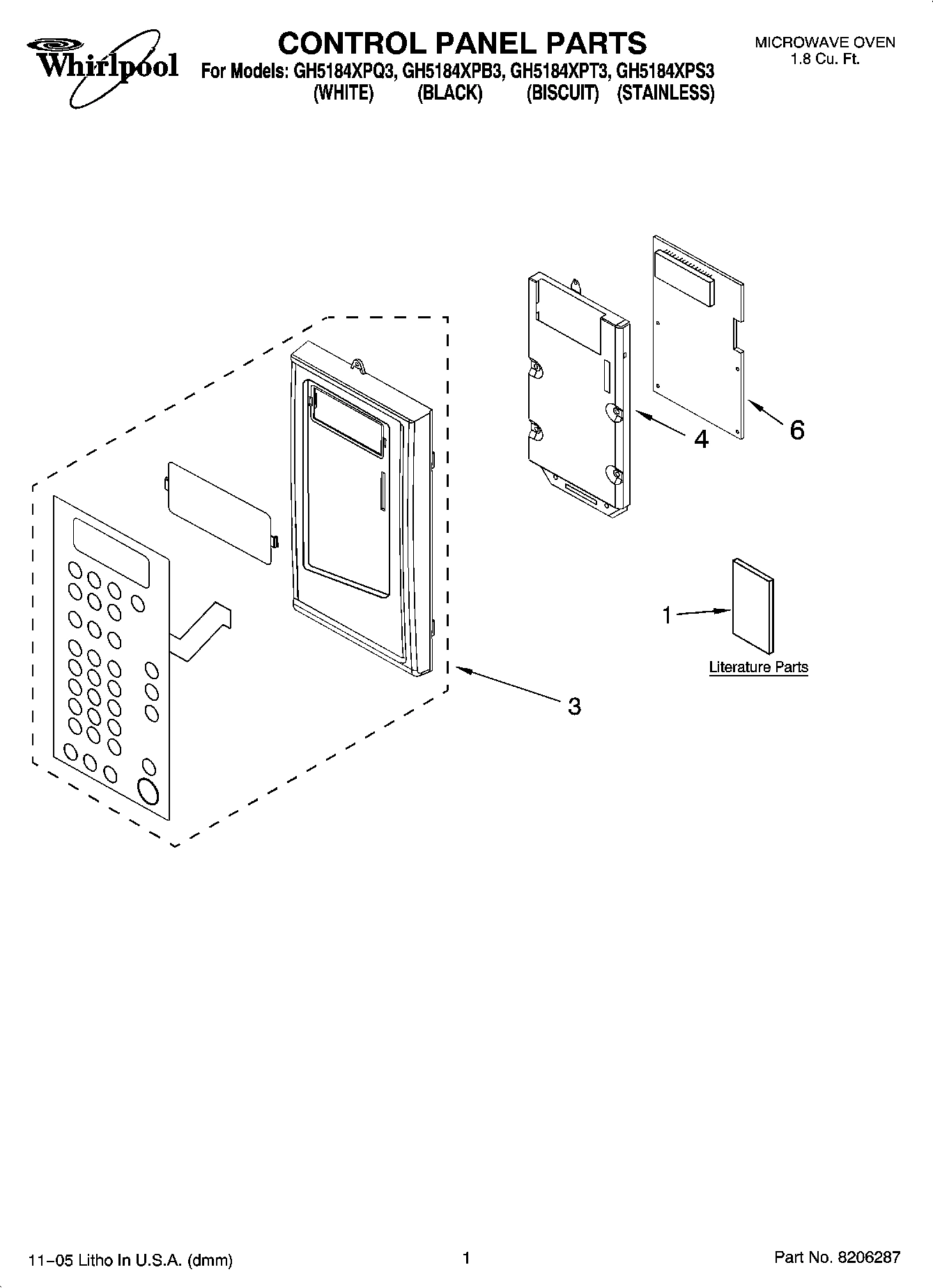

01 - CONTROL PANEL PARTS

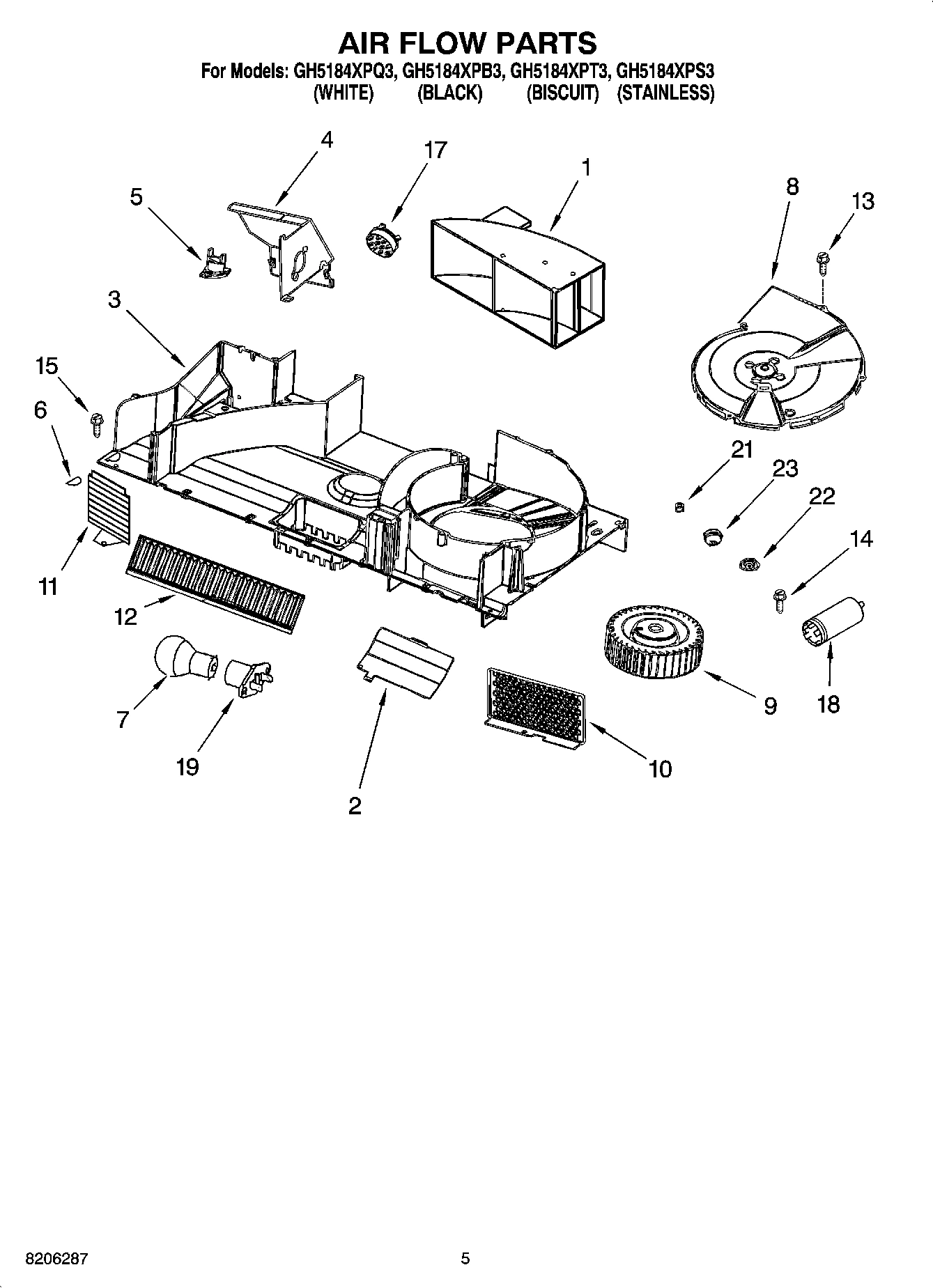

04 - AIR FLOW PARTS

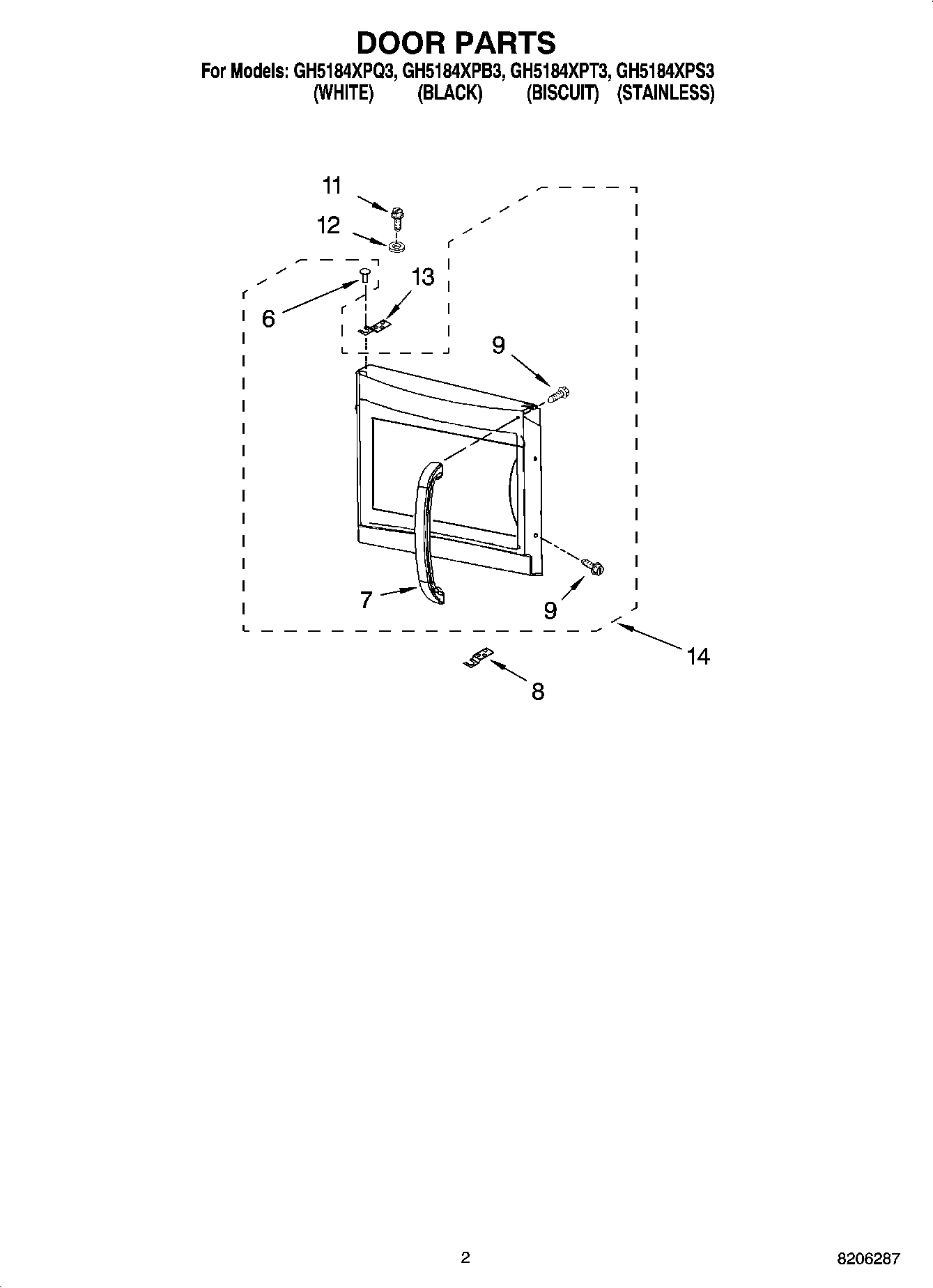

02 - DOOR PARTS

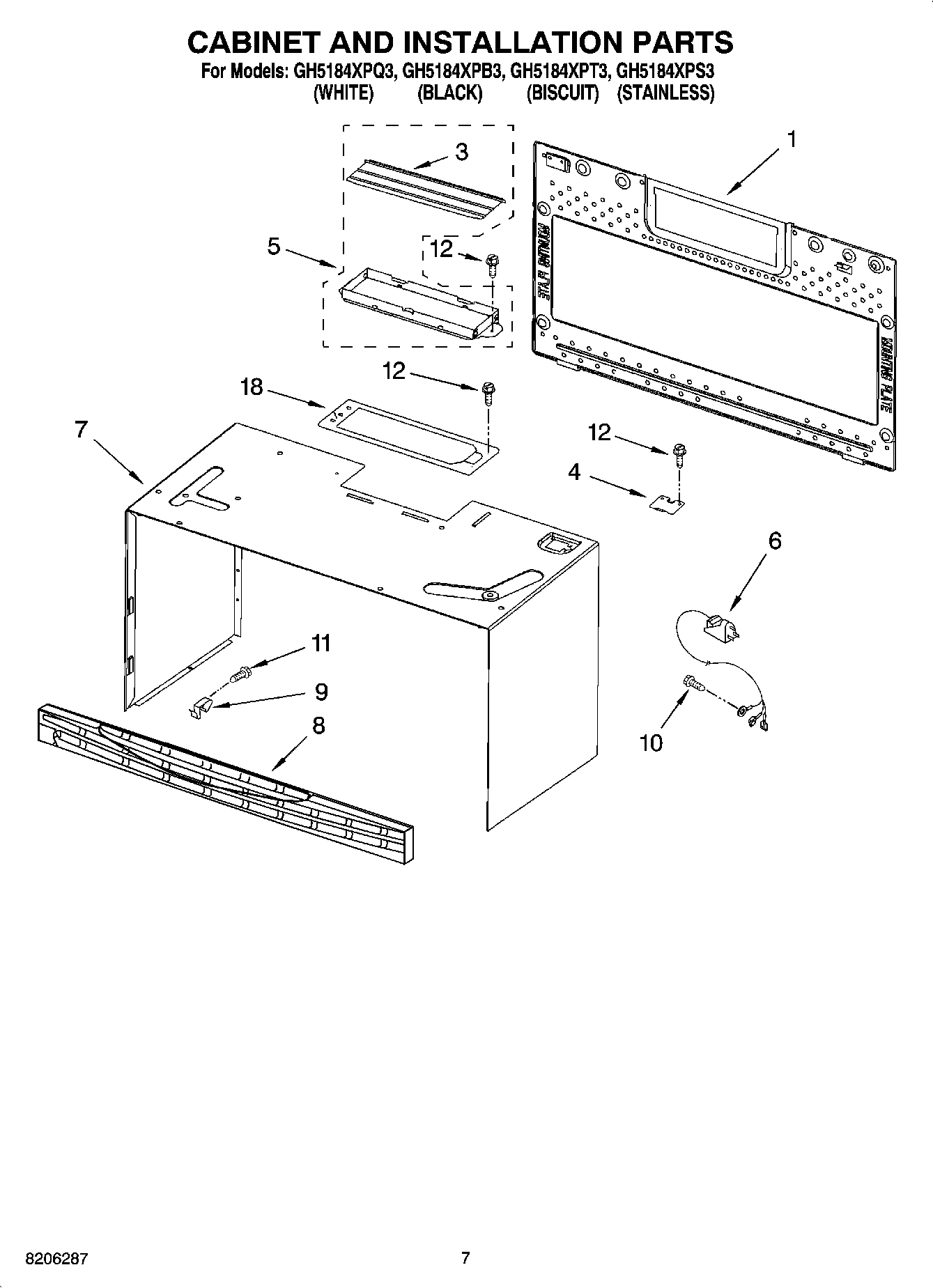

06 - CABINET AND INSTALLATION PARTS

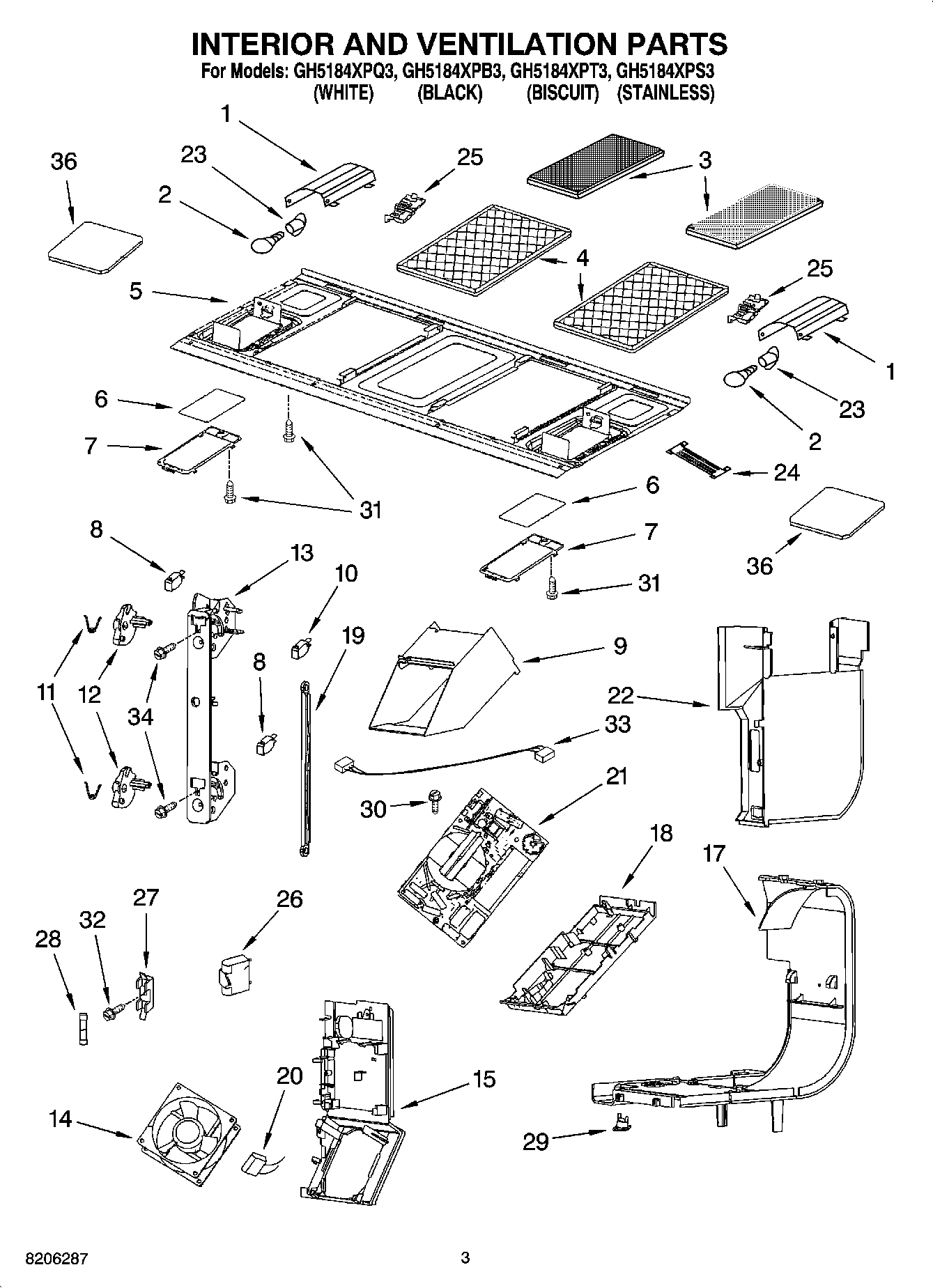

03 - INTERIOR AND VENTILATION PARTS

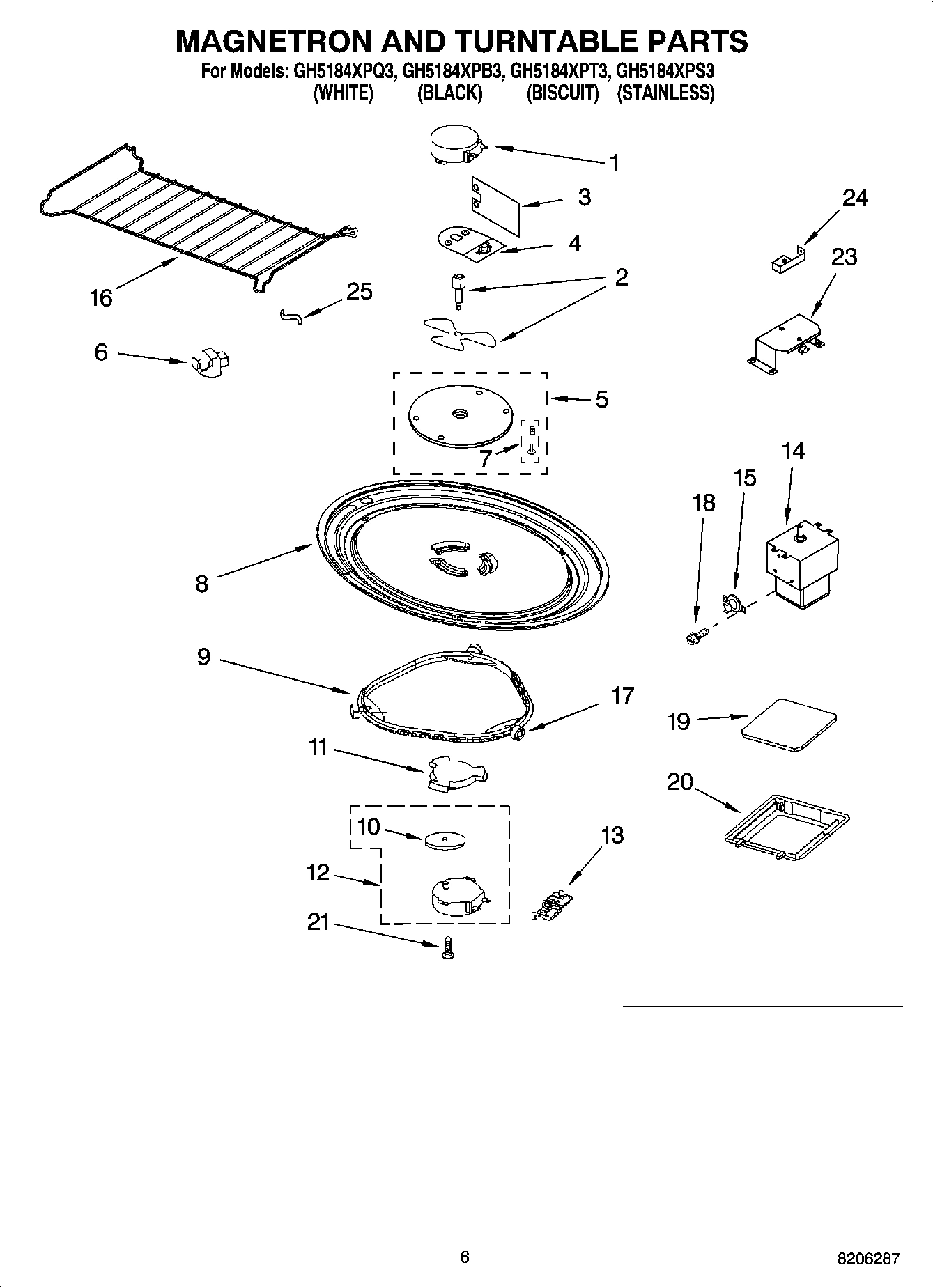

05 - MAGNETRON AND TURNTABLE PARTS
Common parts from model Whirlpool GH5184XPS3 MICROWAVE OVEN 1.8 Cu. Ft.
1
Plate, Mounting WPL 8206172 Contact Us For Availability
1
Reflector, Lamp WPL 8205096 Contact Us For Availability
1
Motor, Stirrer WPL 8205044 Contact Us For Availability
2
Stirrer Shaft/Blade WPL 8205202 Contact Us For Availability
4
Lid, Power Cord WPL 8184897 Contact Us For Availability
4
Thermostat/Bracket WPL 8184585 Contact Us For Availability
5
Cover, Inlet Includes Nails and Bushings WPL 8184604 Contact Us For Availability
5
Thermostat WPL 8183999 Contact Us For Availability
5
Plate, Bottom WPL 8205412 Contact Us For Availability
6
Hook, Rack (4) WPL 8204662 Contact Us For Availability
6
Pivot, Door WPL 8184922 Contact Us For Availability
6
Cord, Power WPL 8184898 Contact Us For Availability
6
Glass, Lamp WPL 8184141 Contact Us For Availability
7
Case, Outer (White) WPL 8205207 Contact Us For Availability
7
Case, Outer (Black) WPL 8205212 Contact Us For Availability
7
Case, Outer (Biscuit) WPL 8205213 Contact Us For Availability
7
Holder, Glass WPL 8184889 Contact Us For Availability
7
Nails/Bushings (5 of each) WPL 8184549 Contact Us For Availability
8
Turntable WPL 4393799 No Longer Available
8
Grille, Vent (Biscuit) WPL 8205216 Contact Us For Availability
8
Grille, Vent (Stainless) WPL 8205217 Contact Us For Availability
9
Cover, Inverter WPL 8184124 Contact Us For Availability
11
Screw WPL 8169475 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
12
Plate, Cam WPL 8205211 Contact Us For Availability
13
Support, Interlock WPL 8185189 Contact Us For Availability
13
Upper Hinge WPL 8204679 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
14
Fan, DC 12 Volt WPL 8184875 Contact Us For Availability
14
Complete Door (Black) WPL 8205414 Contact Us For Availability
14
Complete Door (Biscuit) WPL 8205415 Contact Us For Availability
14
Complete Door (White) WPL 8205413 Contact Us For Availability
14
Complete Door (Stainless) WPL 8205416 Contact Us For Availability
15
Screw WPL 8169474 Contact Us For Availability
15
Thermostat WPL 8183994 Contact Us For Availability
15
Housing, Fan WPL 8184894 Contact Us For Availability
16
Rack WPL 8184052 Contact Us For Availability
17
Wheel (3) WPL 4393861 Contact Us For Availability
17
Bracket, Holder WPL 8185032 Contact Us For Availability
18
Installation, Hardware WPL 8205947 Contact Us For Availability
18
Plate, Damper WPL 8169697 Contact Us For Availability
18
Template, Upper WPL 8184781 Contact Us For Availability
18
Miscellaneous WPL ARI148870A Contact Us For Availability
18
Holder, Inverter WPL 8184670 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
19
Rod-Locking Link WPL 8185190 Contact Us For Availability
19
Glass, Lamp WPL 8169499 Contact Us For Availability
20
Frame, Glass WPL 8169646 Contact Us For Availability
20
Capacitor, 125 V WPL 8184093 Contact Us For Availability
21
Spacer, Copper Pipe WPL 8184129 Contact Us For Availability
22
Plate, Damper WPL 8204674 Contact Us For Availability
22
Plate, Side WPL 8185031 Contact Us For Availability
23
Cushion, Mtr WPL 8169635 Contact Us For Availability
23
Holder, Lamp WPL 8184926 Contact Us For Availability
23
Thermostat/Bracket WPL 8184586 Contact Us For Availability
24
Cable WPL 8184887 Contact Us For Availability
24
Bracket, Plug WPL 8184669 Contact Us For Availability
25
Cover, Terminal WPL 8184202 Contact Us For Availability
26
Capacitor WPL 8184204 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 8183998 Contact Us For Availability
30
SCREW WPL 8184199 Contact Us For Availability
32
SCREW WPL 8184200 Contact Us For Availability
36
Foil, Lamp WPL 8184203 Contact Us For Availability
× ![]()
