Model Whirlpool GH5184XPB7 Microwave Oven 1.8 Cu. Ft. – Common Parts & Diagrams

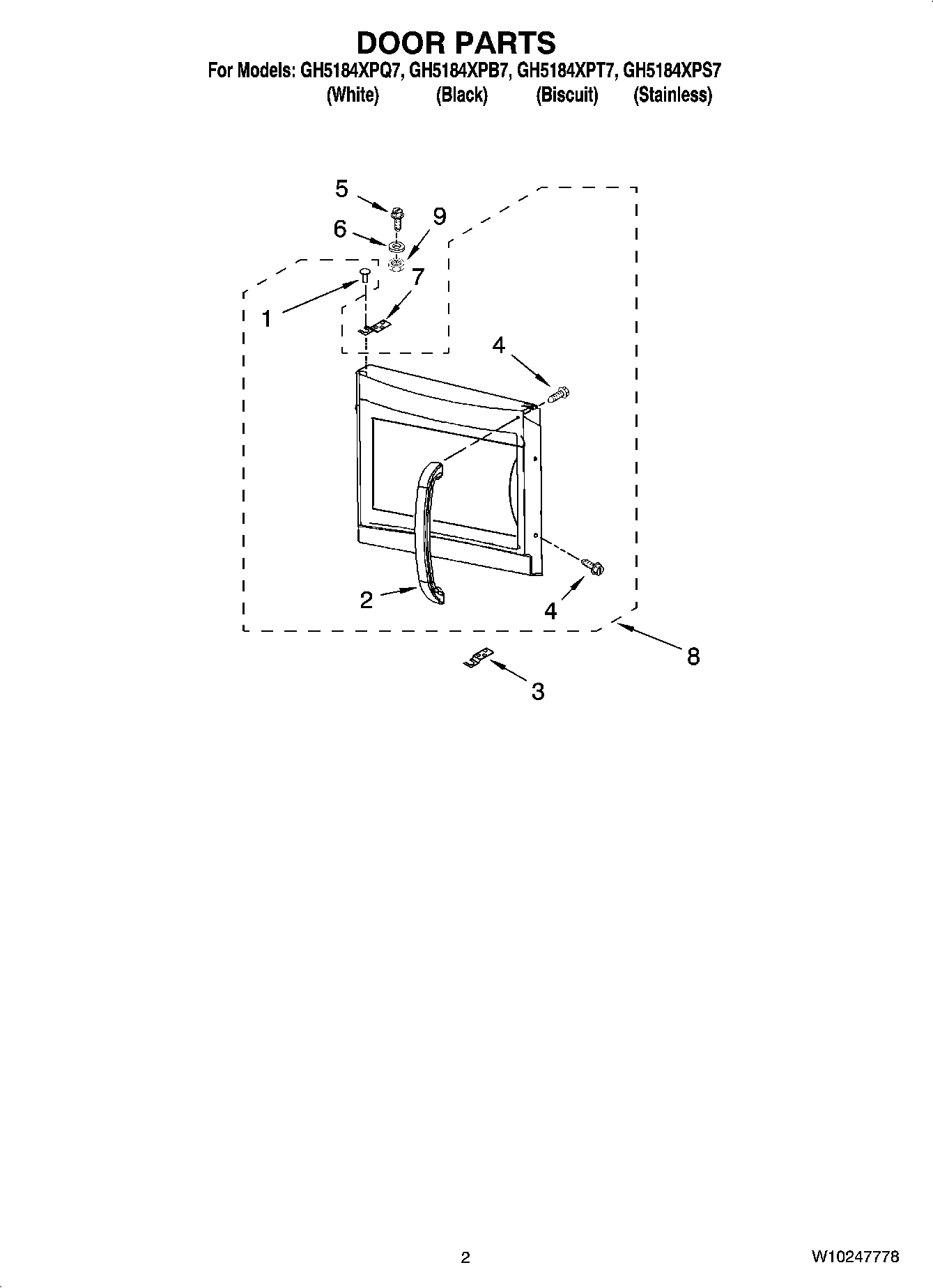

02 - DOOR PARTS

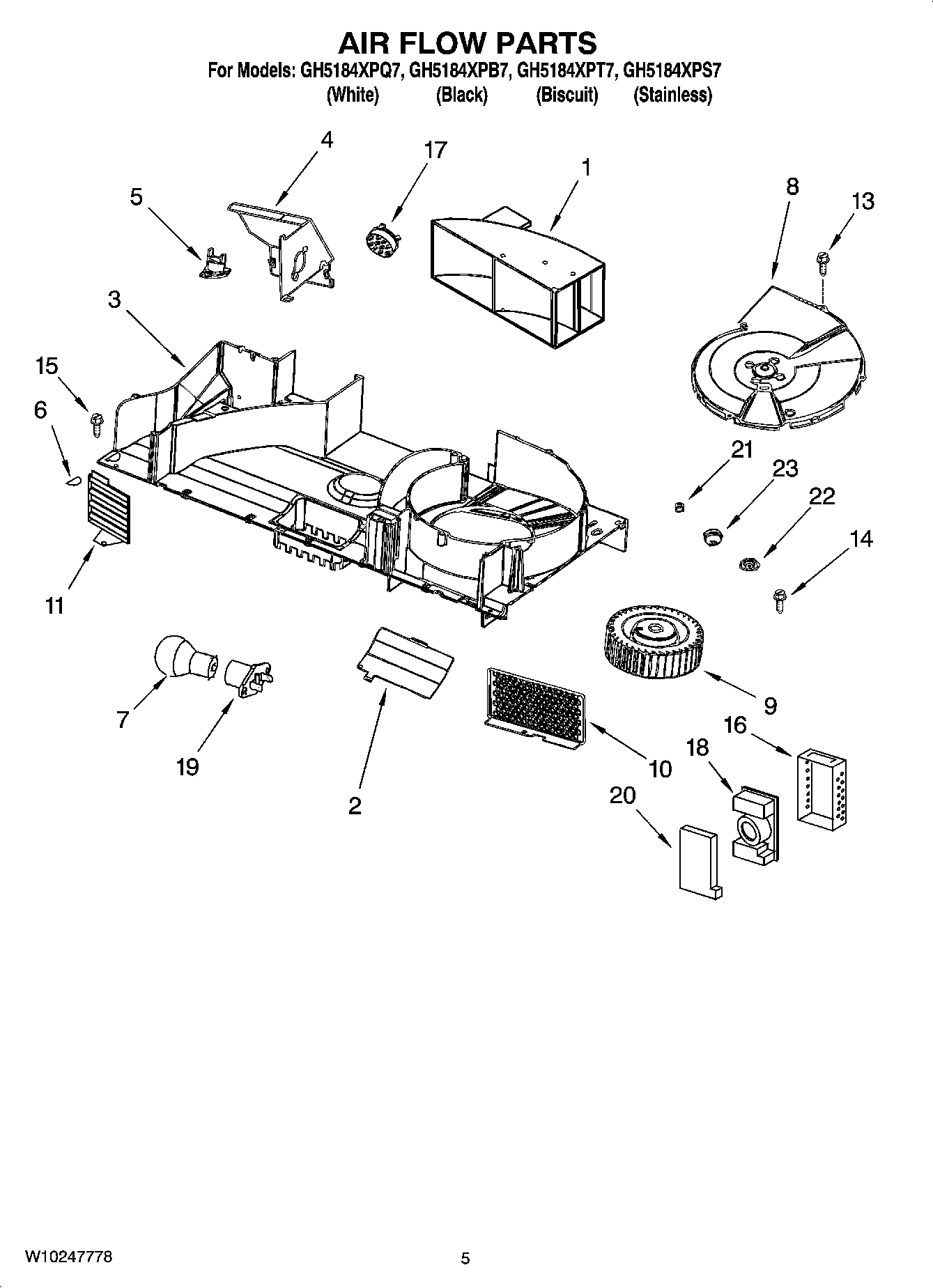

04 - AIR FLOW PARTS

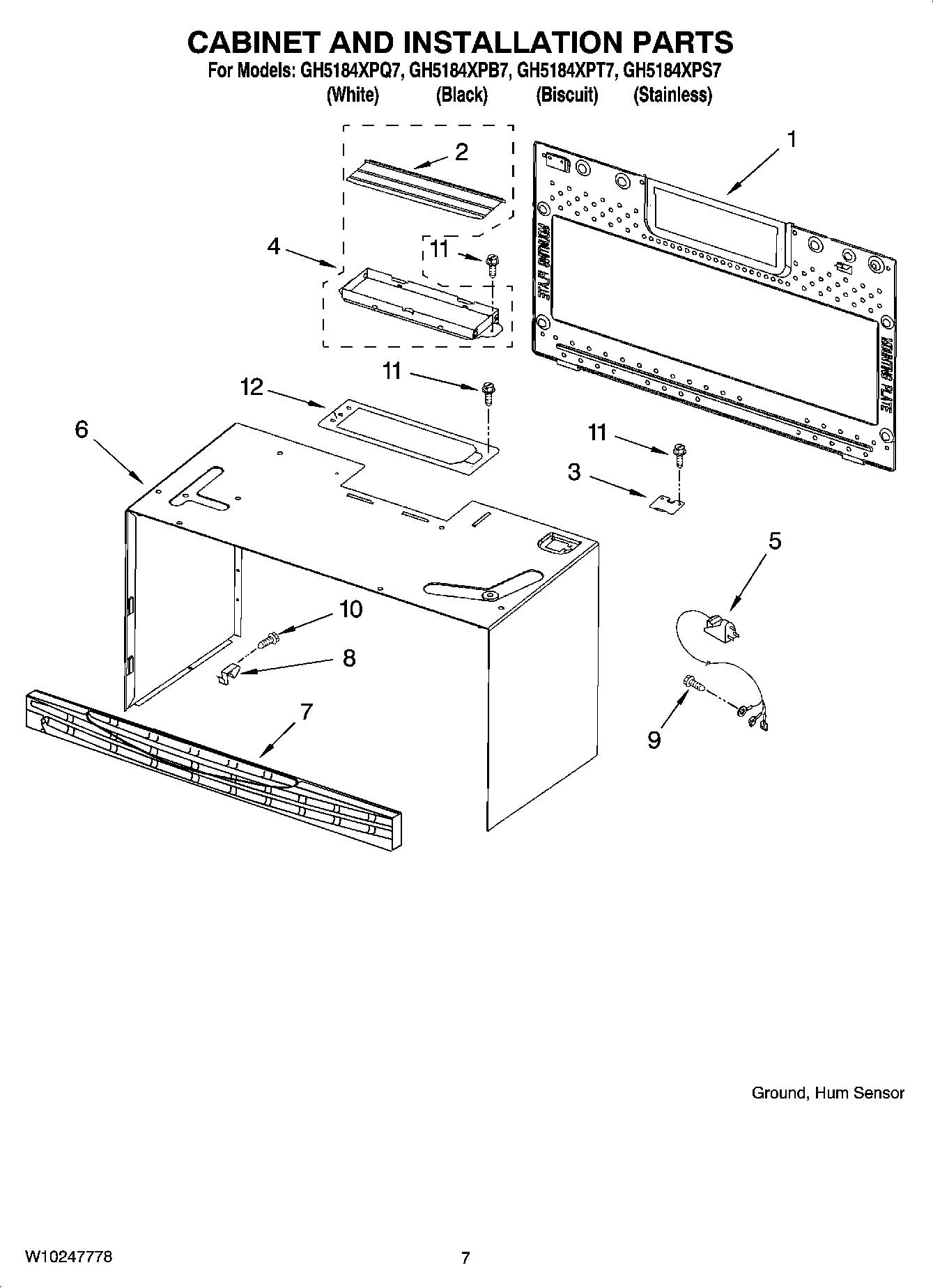

06 - CABINET AND INSTALLATION PARTS

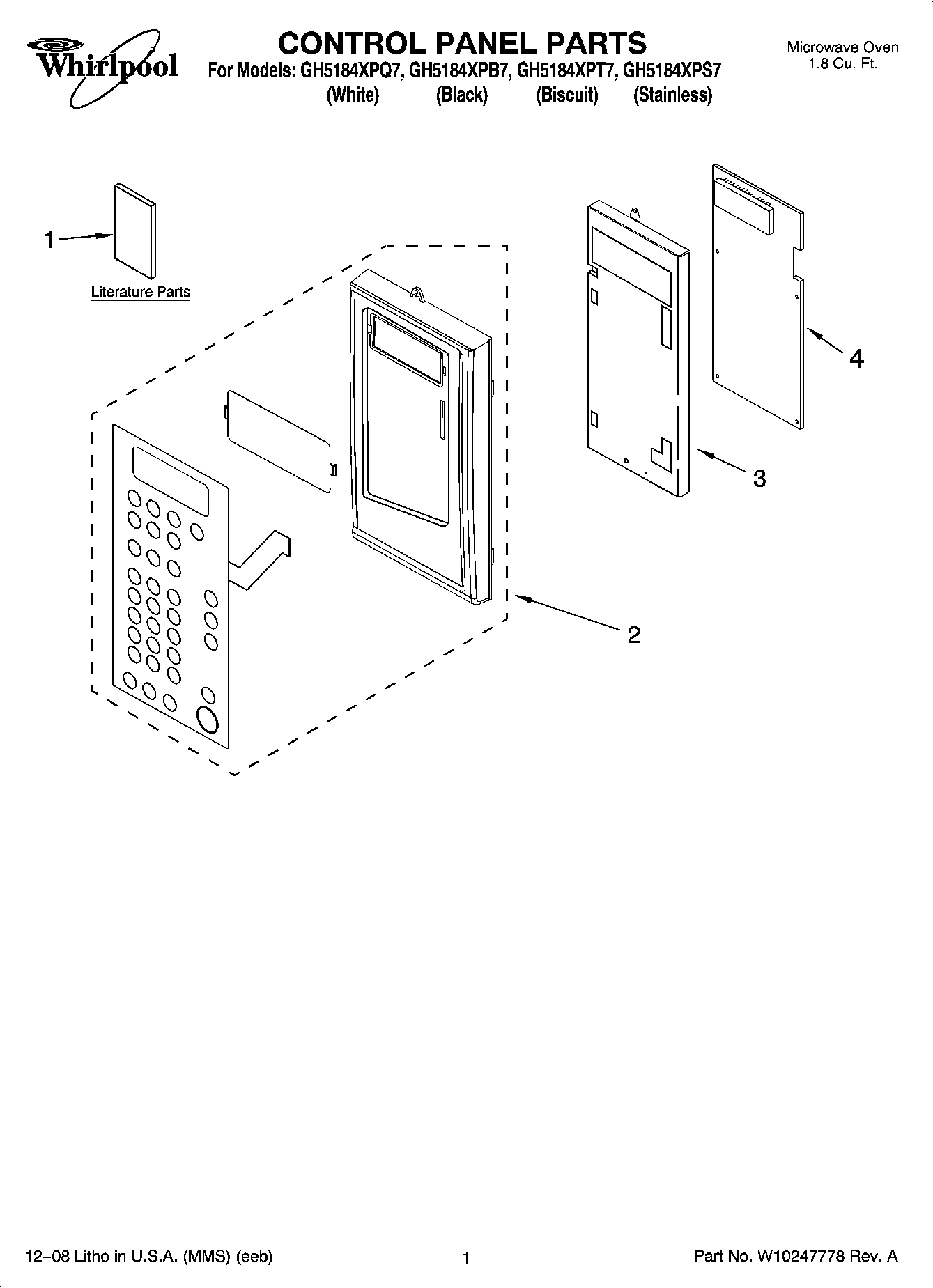

01 - CONTROL PANEL PARTS

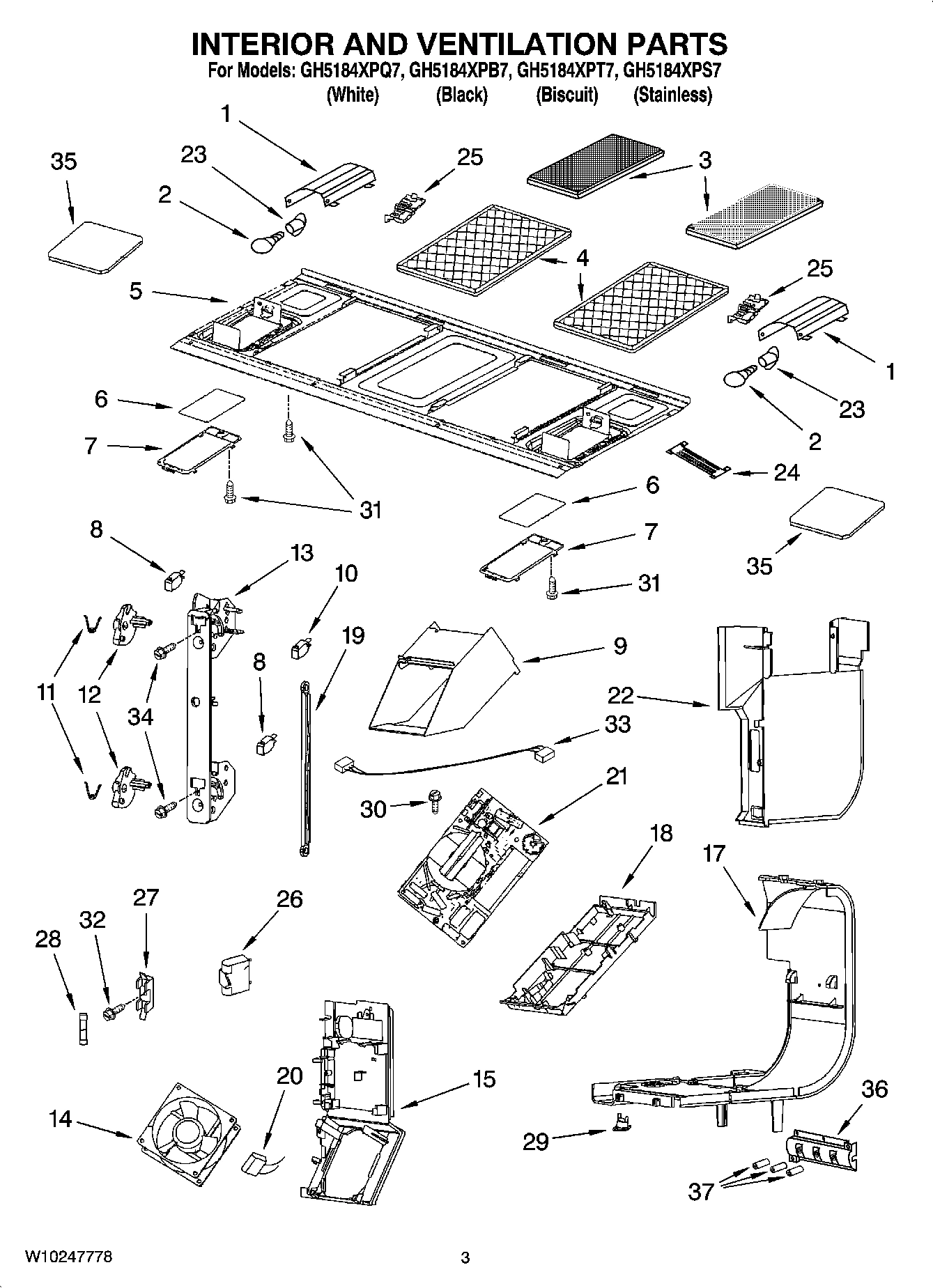

03 - INTERIOR AND VENTILATION PARTS

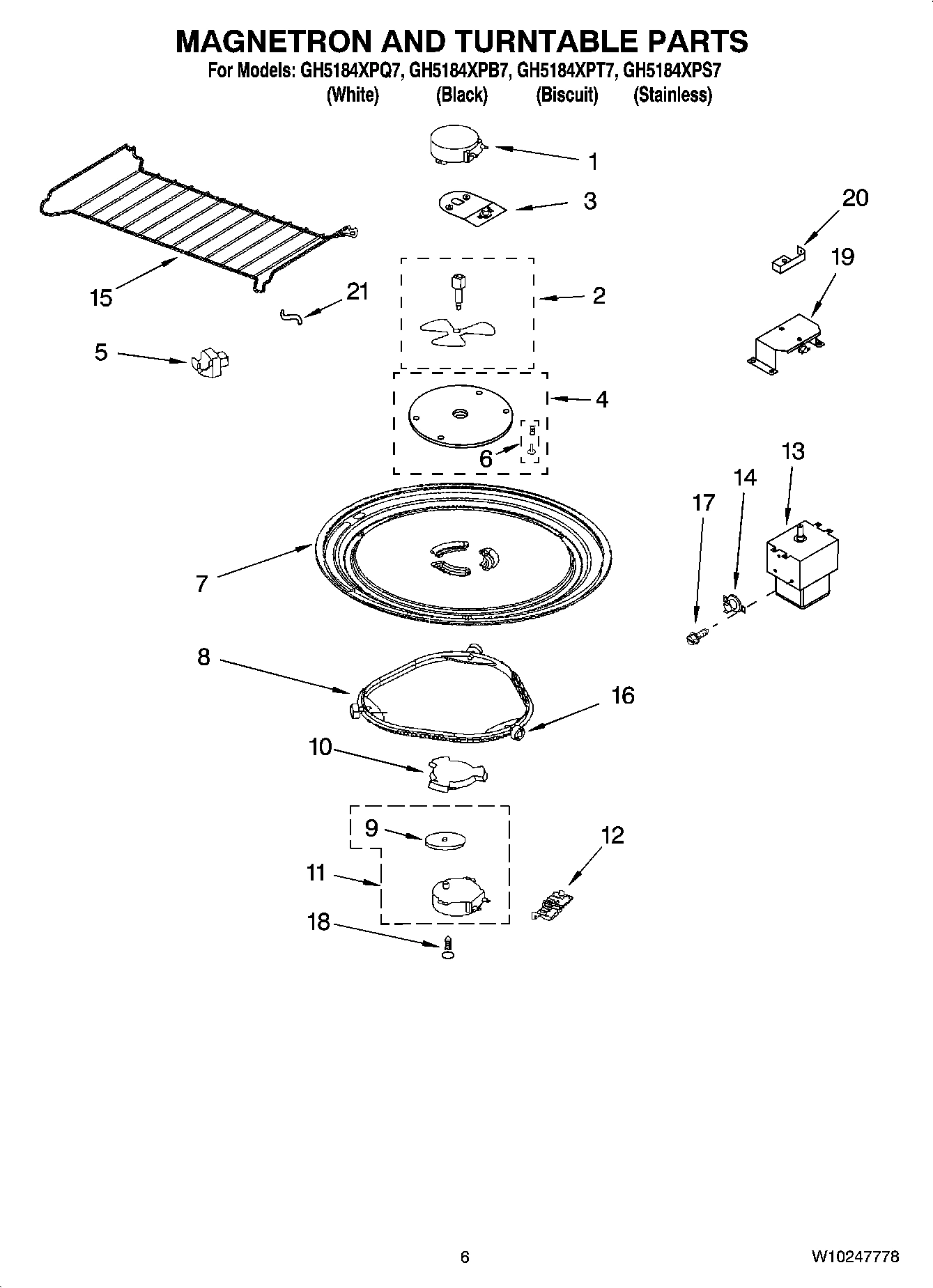

05 - MAGNETRON AND TURNTABLE PARTS
Common parts from model Whirlpool GH5184XPB7 Microwave Oven 1.8 Cu. Ft.
Installation, Hardware WPL 8205947 Contact Us For Availability
Harns-Wire Cavity Therm 2-3 WPL W10114265 Contact Us For Availability
1
Pivot, Door WPL 8184922 Contact Us For Availability
1
Cook Guide Label WPL 8205195 Contact Us For Availability
1
Instrctn, Instlltn WPL 8206579 Contact Us For Availability
1
Tech Sheet WPL W10132015 Contact Us For Availability
1
U & C Guide WPL W10170440 Contact Us For Availability
1
Reflector, Lamp WPL 8205096 Contact Us For Availability
1
Motor, Stirrer WPL 8205044 Contact Us For Availability
2
Panel Asy, Control Includes Lens and Membrane WPL W10246264 Contact Us For Availability
2
Panel Asy, Control Includes Lens and Membrane WPL W10247210 Contact Us For Availability
2
Panel Asy, Control Includes Lens and Membrane WPL W10247211 Contact Us For Availability
2
Panel Asy, Control Includes Lens and Membrane WPL W10247212 Contact Us For Availability
2
Stirrer Shaft/Blade WPL 8205202 Contact Us For Availability
3
Lid, Power Cord WPL 8184897 Contact Us For Availability
3
Bracket, Control WPL W10114256 Contact Us For Availability
3
Thermostat/Bracket WPL 8206454 Contact Us For Availability
4
Microcomputer WPL 8205421 Contact Us For Availability
4
Cover, Inlet Includes Nails and Bushings WPL 8184476 Contact Us For Availability
5
Thermostat WPL 8183999 Contact Us For Availability
5
Cord, Power WPL 8205640 Contact Us For Availability
5
Plate, Bottom WPL W10244597 Contact Us For Availability
6
Case, Outer (White) WPL 8206549 Contact Us For Availability
6
Case, Outer (Black) WPL 8206550 Contact Us For Availability
6
Case, Outer (Biscuit) WPL 8206551 Contact Us For Availability
6
Glass, Lamp WPL 8184141 Contact Us For Availability
6
Nails/Bushings (5 of each) WPL 8204659 Contact Us For Availability
7
Turntable WPL 4393799 Contact Us For Availability
7
Grille, Vent (Biscuit) WPL 8205216 Contact Us For Availability
7
Grille, Vent (Stainless) WPL 8205217 Contact Us For Availability
7
Holder, Glass WPL 8184889 Contact Us For Availability
8
Complete Door (Black) WPL 8205414 Contact Us For Availability
8
Complete Door (Biscuit) WPL 8205415 Contact Us For Availability
9
Motor, Fan Assy WPL W10114253 Contact Us For Availability
9
Screw WPL W10244601 Contact Us For Availability
9
Cover, Inverter WPL W10110596 Contact Us For Availability
10
Screw WPL 8169475 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
12
Plate, Damper WPL W10110597 Contact Us For Availability
12
Plate, Cam WPL 8205211 Contact Us For Availability
12
Cover, Terminal WPL W10110598 Contact Us For Availability
13
Support, Interlock WPL 8185189 Contact Us For Availability
14
Fan, DC 12 Volt WPL 8184875 Contact Us For Availability
14
Thermostat WPL 8183994 Contact Us For Availability
15
Screw WPL 8169474 Contact Us For Availability
15
Housing, Fan WPL 8184894 Contact Us For Availability
15
Rack WPL 8205549 Contact Us For Availability
16
Wheel (3) WPL 4393861 Contact Us For Availability
17
Humidity, Sensor WPL 8206446 Contact Us For Availability
17
Bracket, Holder WPL 8206565 Contact Us For Availability
17
Screw WPL W10244600 Contact Us For Availability
18
Holder, Inverter WPL 8184670 Contact Us For Availability
19
Rod-Locking Link WPL 8185190 Contact Us For Availability
19
Thermostat/Bracket WPL 8205578 Contact Us For Availability
20
Capacitor, 125 V WPL W10217709 Contact Us For Availability
20
Bracket, Plug WPL W10110595 Contact Us For Availability
21
Spacer, Copper Pipe WPL 8184129 Contact Us For Availability
22
Plate, Damper WPL 8204674 Contact Us For Availability
22
Plate, Side WPL 8185031 Contact Us For Availability
23
Cushion, Mtr WPL 8169635 Contact Us For Availability
23
Holder, Lamp WPL W10244596 Contact Us For Availability
24
Cable WPL 8184887 Contact Us For Availability
25
Cover, Terminal WPL 8184202 Contact Us For Availability
26
Capacitor WPL 8184204 Contact Us For Availability
27
Holder, Fuse WPL W10117908 Contact Us For Availability
29
Thermostat WPL 8183998 Contact Us For Availability
30
SCREW WPL 8184199 Contact Us For Availability
32
SCREW WPL 8184200 Contact Us For Availability
35
Foil, Lamp WPL 8184203 Contact Us For Availability
36
Brkt-Support Ferrite Holder WPL W10244598 Contact Us For Availability
37
Ferrite Ring WPL 8206086 Contact Us For Availability
× ![]()
