Model Whirlpool GBE22AA5PT ELECTRIC RANGE – Common Parts & Diagrams

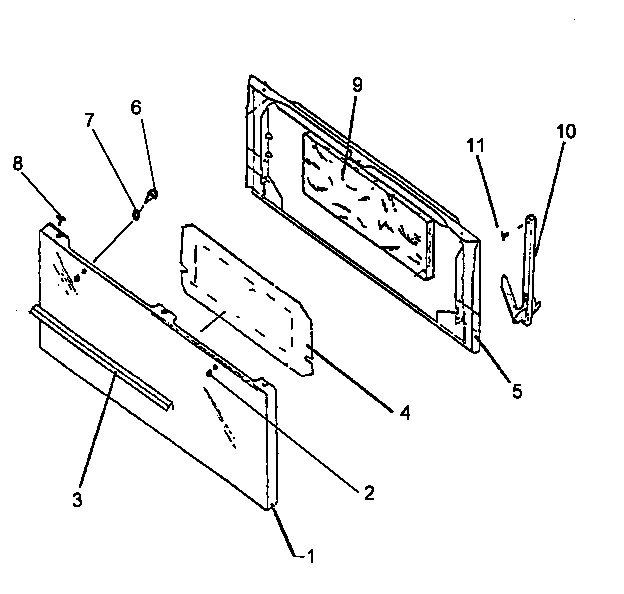

03 - DOOR ASSY

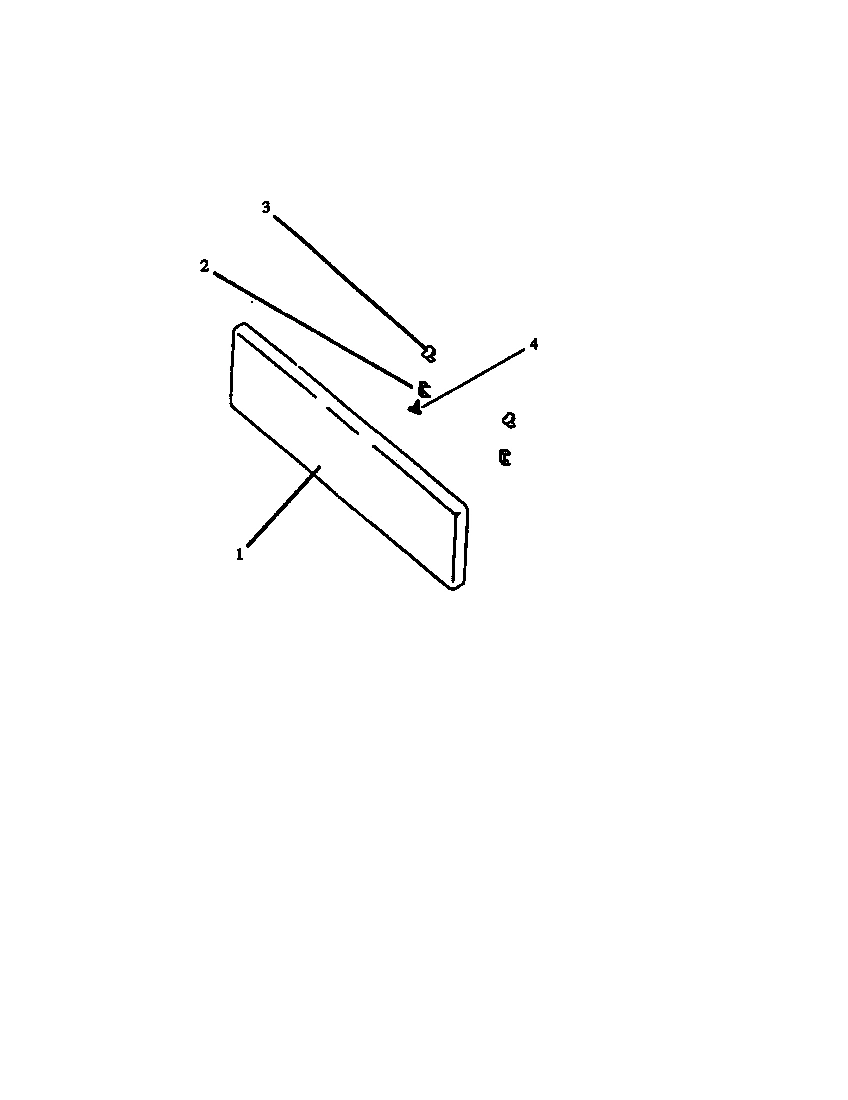

04 - FIXED PANEL ASSY

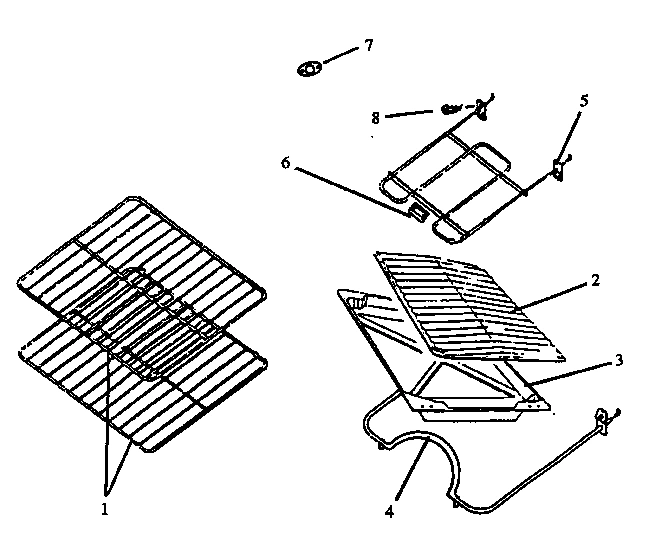

06 - OVEN COMPONENTS

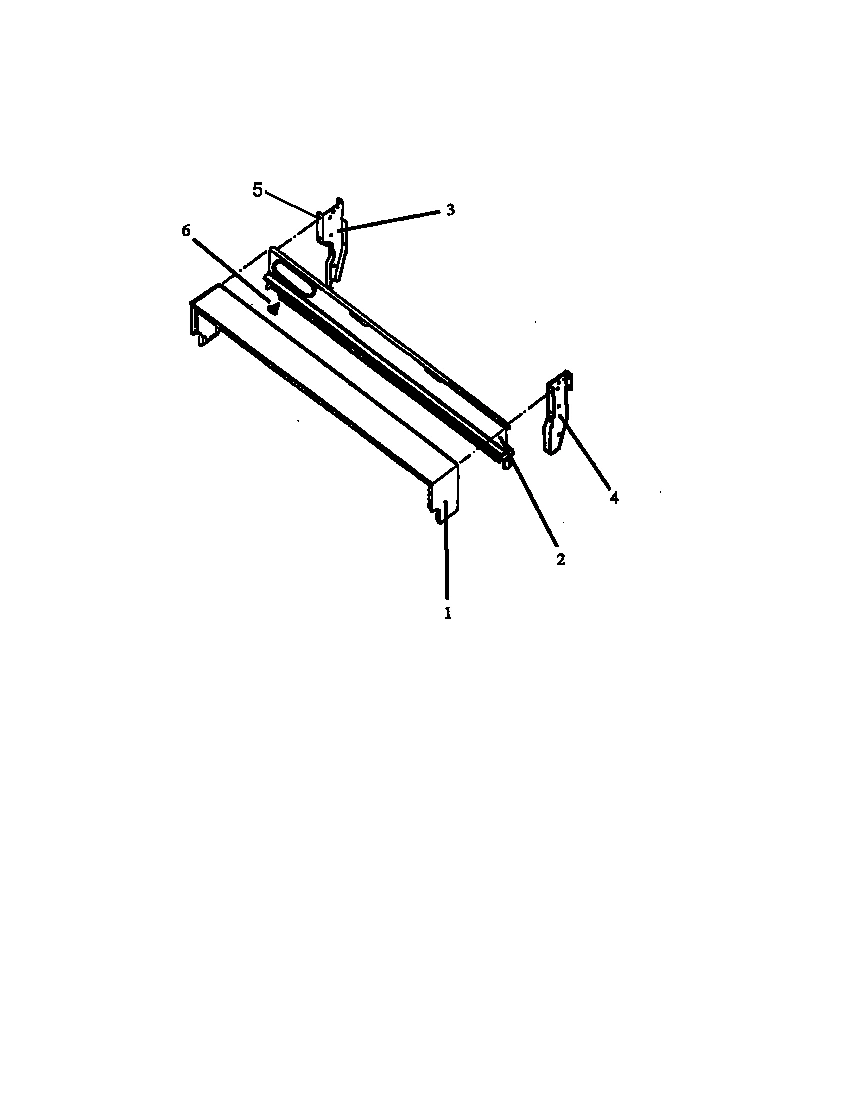

01 - BACKGUARD ASSY

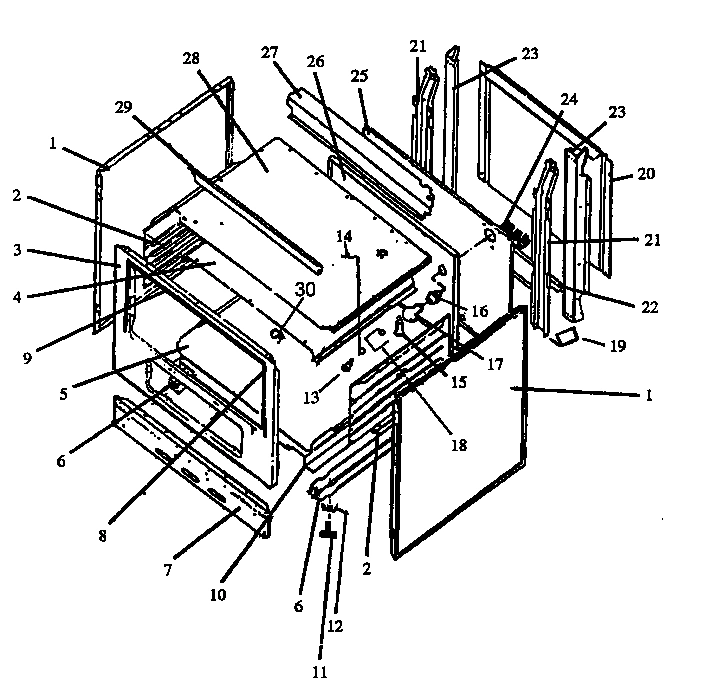

02 - CABINET ASSY

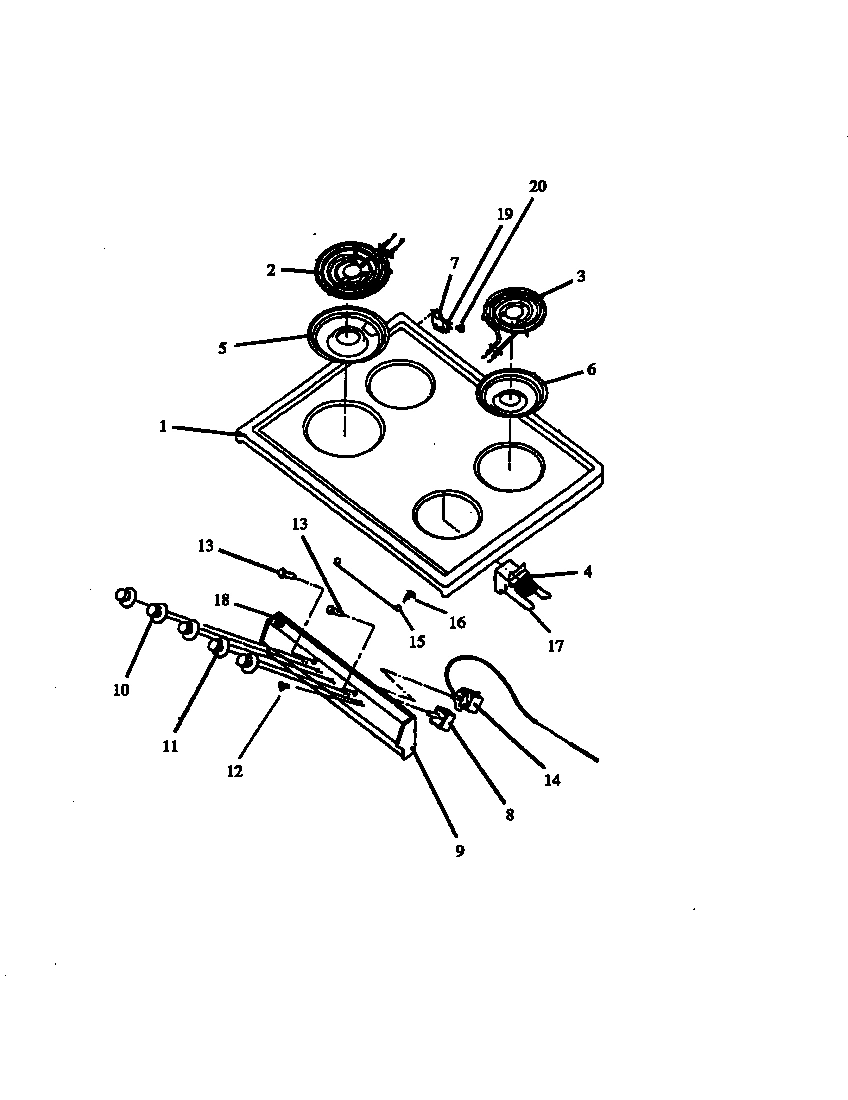

05 - MAIN TOP ASSY
Common parts from model Whirlpool GBE22AA5PT ELECTRIC RANGE
1
W/A PNL-FXD,20,PNT WPL 06538810L Contact Us For Availability
1
RACK, OVEN, 20`` WPL Y0312234 Contact Us For Availability
1
BACKGUARD FRAME WPL 0057317 Contact Us For Availability
1
PANEL,BODY SIDE (AL) WPL 313762L Contact Us For Availability
1
TOP, 20`` MAIN ELECTRIC (ALMOND WPL Y06461007L Contact Us For Availability
2
CLIP, BRACKET WPL Y06538700 Contact Us For Availability
2
PNL-FILLER 4 X20,GLENWOOD WPL Y02336014B Contact Us For Availability
2
LINER,OVEN SIDE WPL 0311807 Contact Us For Availability
3
HANDLE, OVEN DOOR (J) WPL Y0052776 Contact Us For Availability
3
SPRING CLIP WPL Y0088664 Contact Us For Availability
3
PAN, BROILER WPL 87722CG Contact Us For Availability
3
SUPPORT, BACKGUARD, L.H. WPL 0088666 Contact Us For Availability
3
MAIN FRONT, 20`` ELEC. WPL 310100E Contact Us For Availability
4
BAFFLE, OVEN DOOR 20`` WPL Y06567400 Contact Us For Availability
4
SUPPORT, BACKGUARD, R.H. WPL 0088667 Contact Us For Availability
4
LINER, OVEN TOP WPL 86924CG Contact Us For Availability
5
LINER, OVEN DOOR WPL 06567200E Contact Us For Availability
5
BROIL ELEMENT WPL Y0088867 Contact Us For Availability
5
SUB 63661, BUMPER, OV. DR. WPL Y0087002 Contact Us For Availability
5
LINER, OVEN BOTTOM WPL 88586CG Contact Us For Availability
6
SCREW, DOOR HANDLE WPL Y0311884 Contact Us For Availability
6
CLIP, T-STAT BULB WPL Y0088822 Contact Us For Availability
6
SCREW WPL 0310240 Contact Us For Availability
6
RAIL, BASE WPL 06555001 Contact Us For Availability
7
SEE NOTE WAFERED WASHER -- (INCLUDED W/HANDLE WPL Y00000000 Contact Us For Availability
7
DISC, THERMO WPL 0053357 Contact Us For Availability
7
PANEL, BASE TOE 20`` WPL Y06451503 Contact Us For Availability
7
HINGE, MAIN TOP (BLK) WPL Y02002702 Contact Us For Availability
8
SCREW No.10 X 1/2`` WPL Y0310804 Contact Us For Availability
8
SEAL, OVEN-SIDES WPL Y0056090 Contact Us For Availability
9
INSULATION,WRAPPER WPL Y07724400 Contact Us For Availability
9
SEAL, OVEN DOOR-TOP WPL Y0056494 Contact Us For Availability
9
MANIFOLD PANEL 20`` WPL Y0310482 Contact Us For Availability
10
HINGE, DOOR (J) WPL Y0311397 Contact Us For Availability
10
SUPPORT WPL Y0057213 Contact Us For Availability
11
KNOB, THERMOSTAT WPL Y0310527 Contact Us For Availability
12
SNAP-IN TEE NUT WPL Y0088571 Contact Us For Availability
13
WIRE CHANNEL SUPPORT WPL Y0088817 Contact Us For Availability
14
WIRE CHANNEL WPL 311010E Contact Us For Availability
14
THERMO-ELECT. WPL 0088758 Contact Us For Availability
15
OVEN VENT WPL 0088761 Contact Us For Availability
15
SUPPORT ROD WPL 0087023 Contact Us For Availability
16
SOCKET, OVEN LIGHT WPL Y0316385 Contact Us For Availability
16
SHOULDER SCREW WPL 0088779 Contact Us For Availability
17
MOUNTING BRKT. PLUG BLOCK WPL Y0302765 Contact Us For Availability
18
CAGE-LIGHT,OV,20 WPL Y07432600 Contact Us For Availability
19
NUT, SPEED, FLAT WPL Y0310032 Contact Us For Availability
20
SCREW No.10X1/2 BLUNT WPL Y0310363 Contact Us For Availability
22
ASSY REAR COVER WPL Y06519101 Contact Us For Availability
23
VERTICAL SUP. (J) WPL 0052742 Contact Us For Availability
25
SHIELD, MAIN BACK WPL 0311067 Contact Us For Availability
26
LINER, OVEN BACK (16``) WPL Y06472600E Contact Us For Availability
28
BURNER BOX, BOTTOM WPL 311000E Contact Us For Availability
29
SWITCH COVER WPL 0086933 Contact Us For Availability
30
CLIP, CAPILLARY WPL 0310802 Contact Us For Availability
NI
SCREW No.10 X 5/16 WPL 0310234 Contact Us For Availability
NI
ANGLE-SUPT, 14`` LG WPL Y00311400 Contact Us For Availability
NI
SAFE EDGE 1&9/16``BY 1/2`` WPL Y0310035 Contact Us For Availability
NI
SCREW-No.6X 1/2 HEX HD WPL Y07473800 Contact Us For Availability
× ![]()
