Model Maytag GB5526FEAS1 REFRIGERATOR – Common Parts & Diagrams

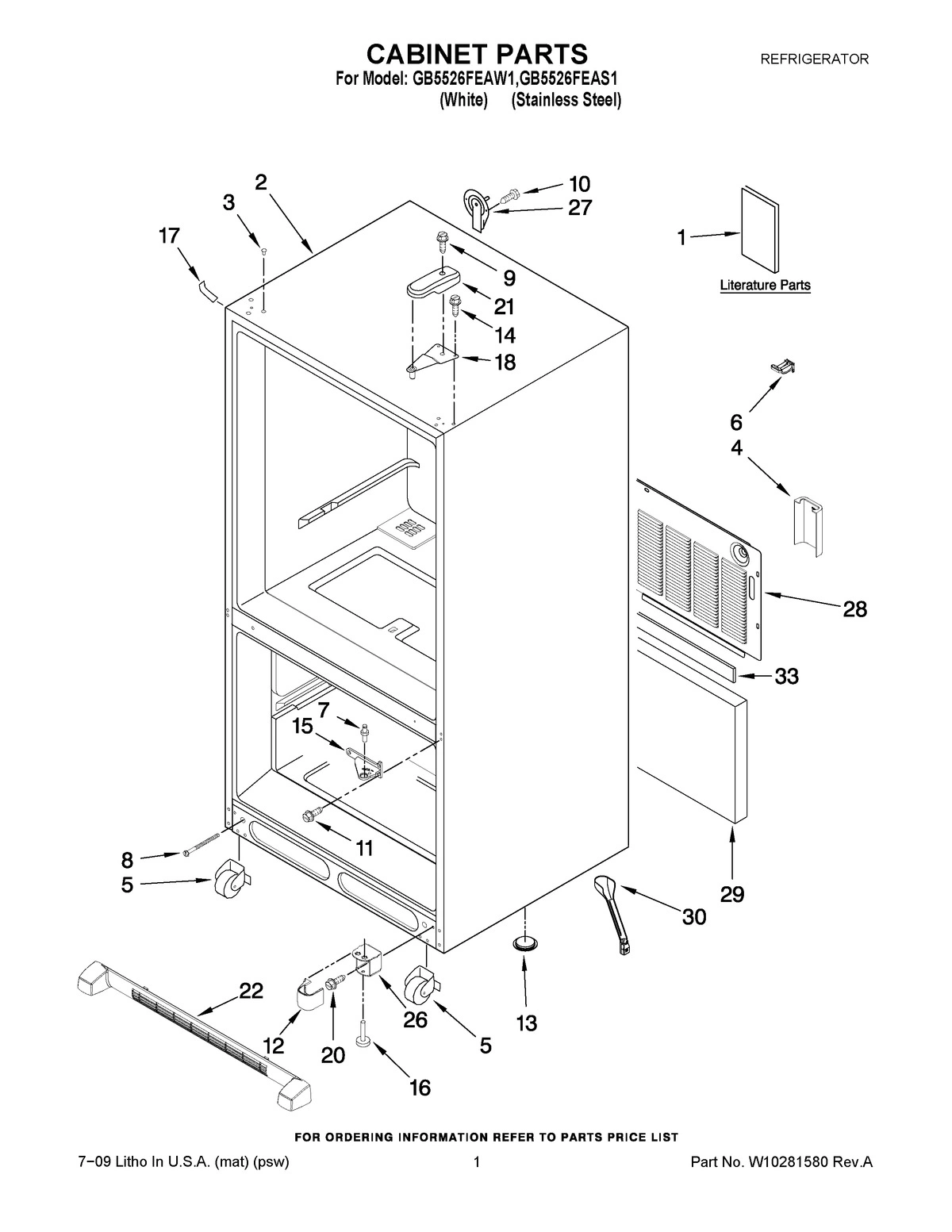

01 - CABINET PARTS

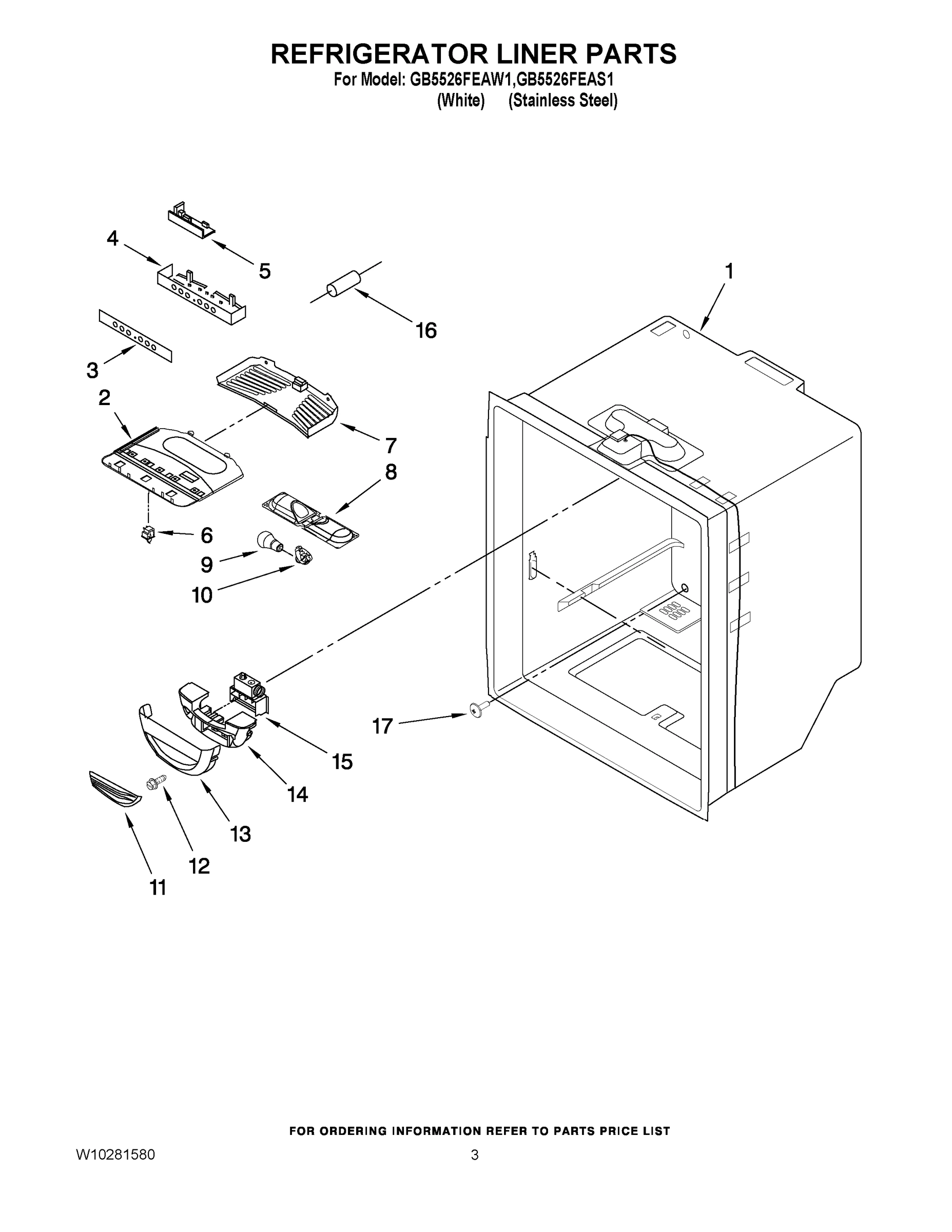

02 - REFRIGERATOR LINER PARTS

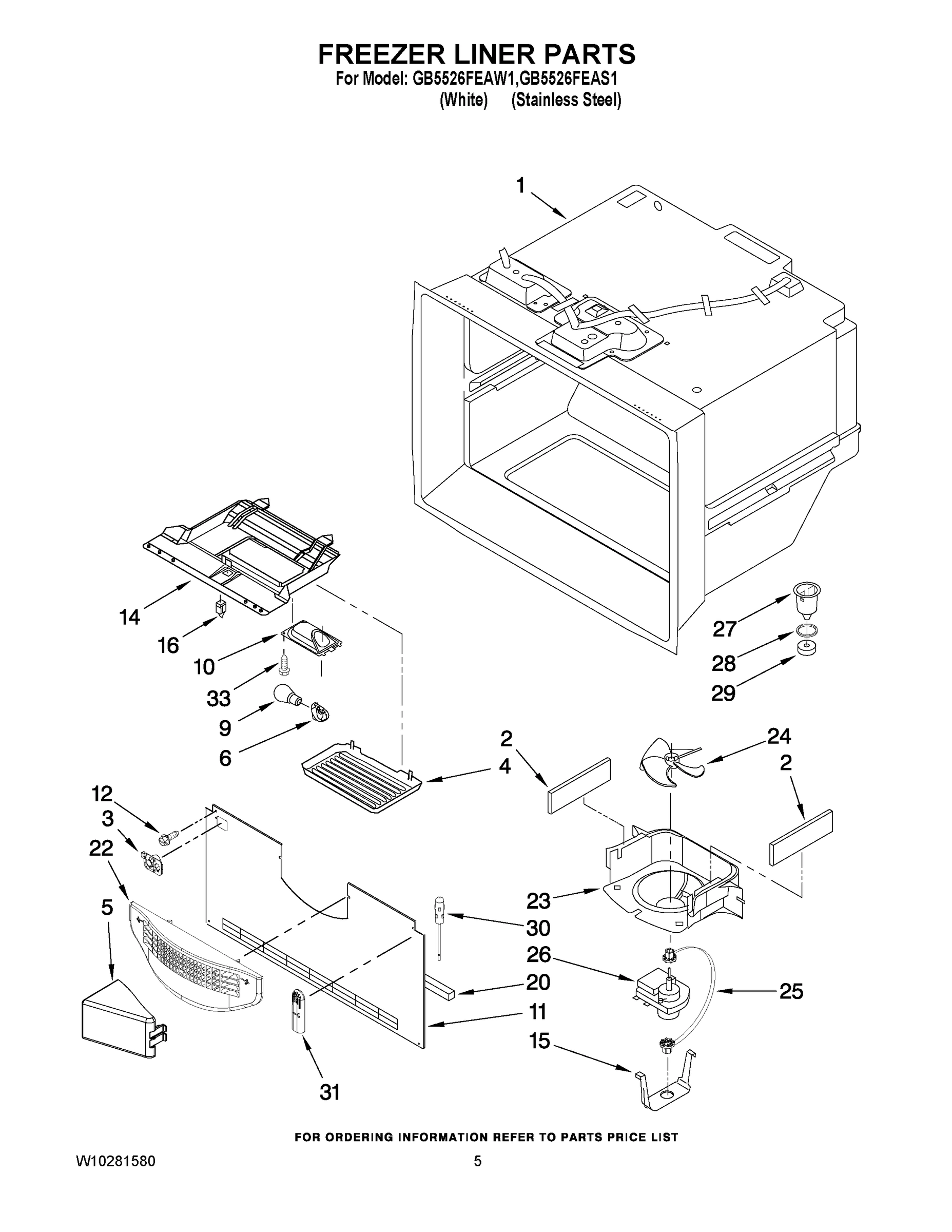

03 - FREEZER LINER PARTS

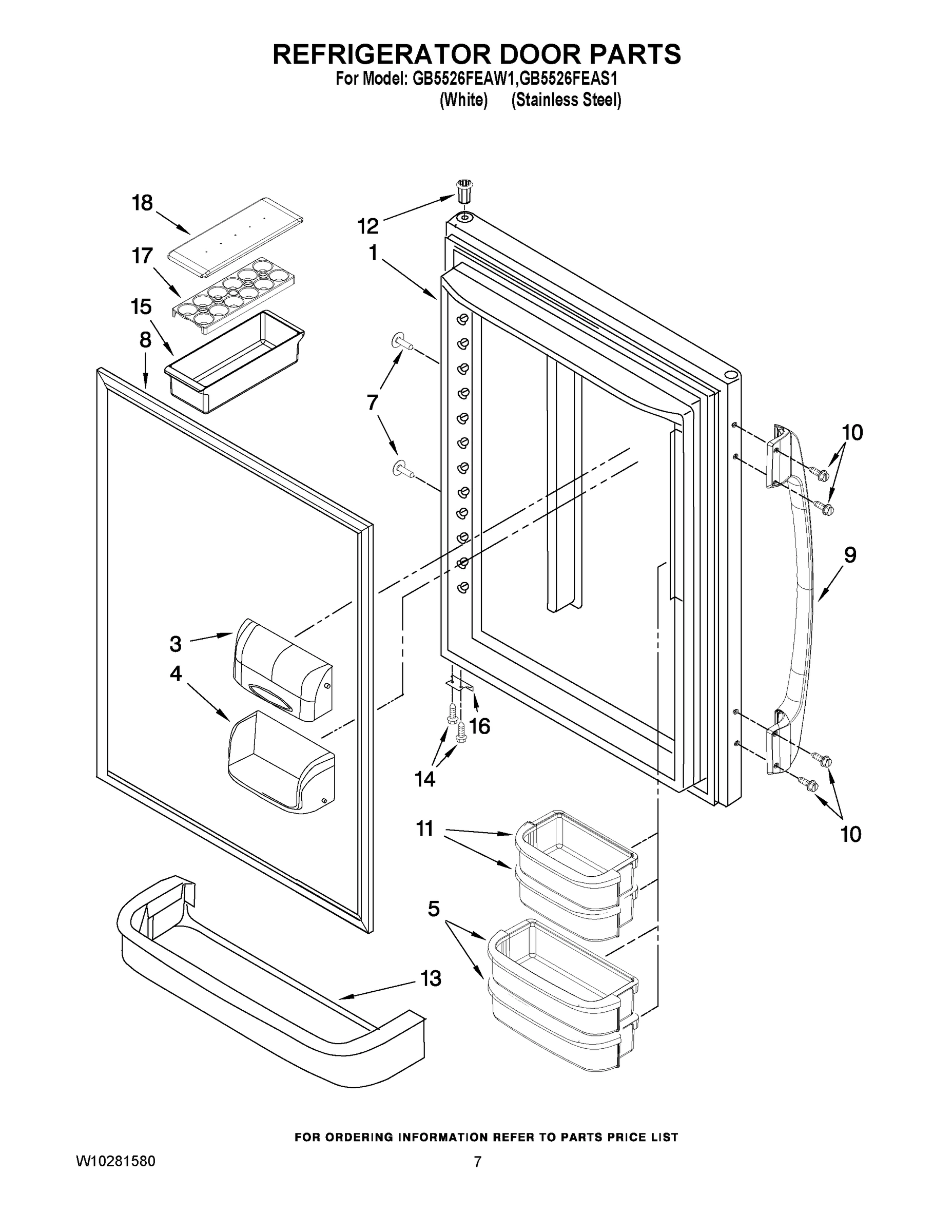

04 - REFRIGERATOR DOOR PARTS

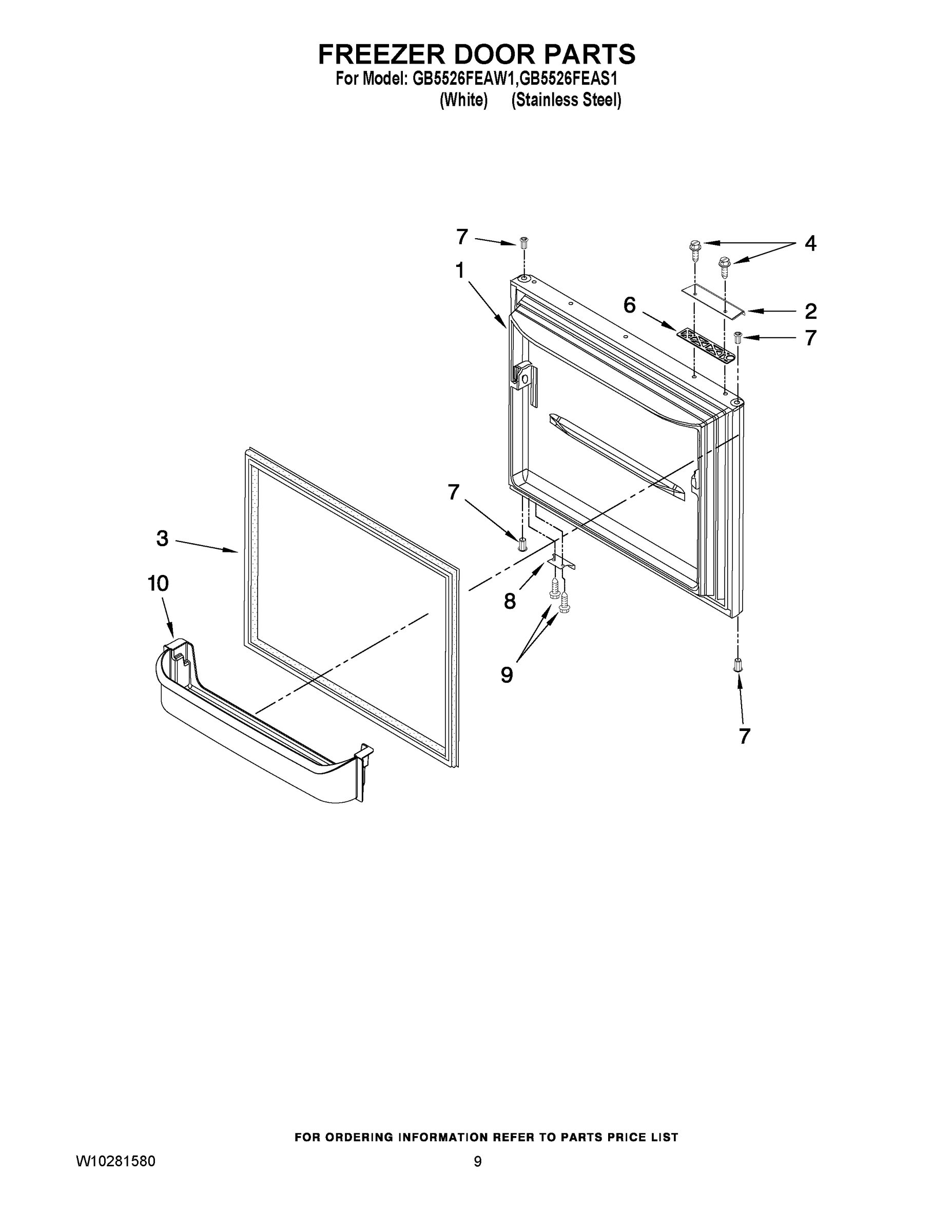

05 - FREEZER

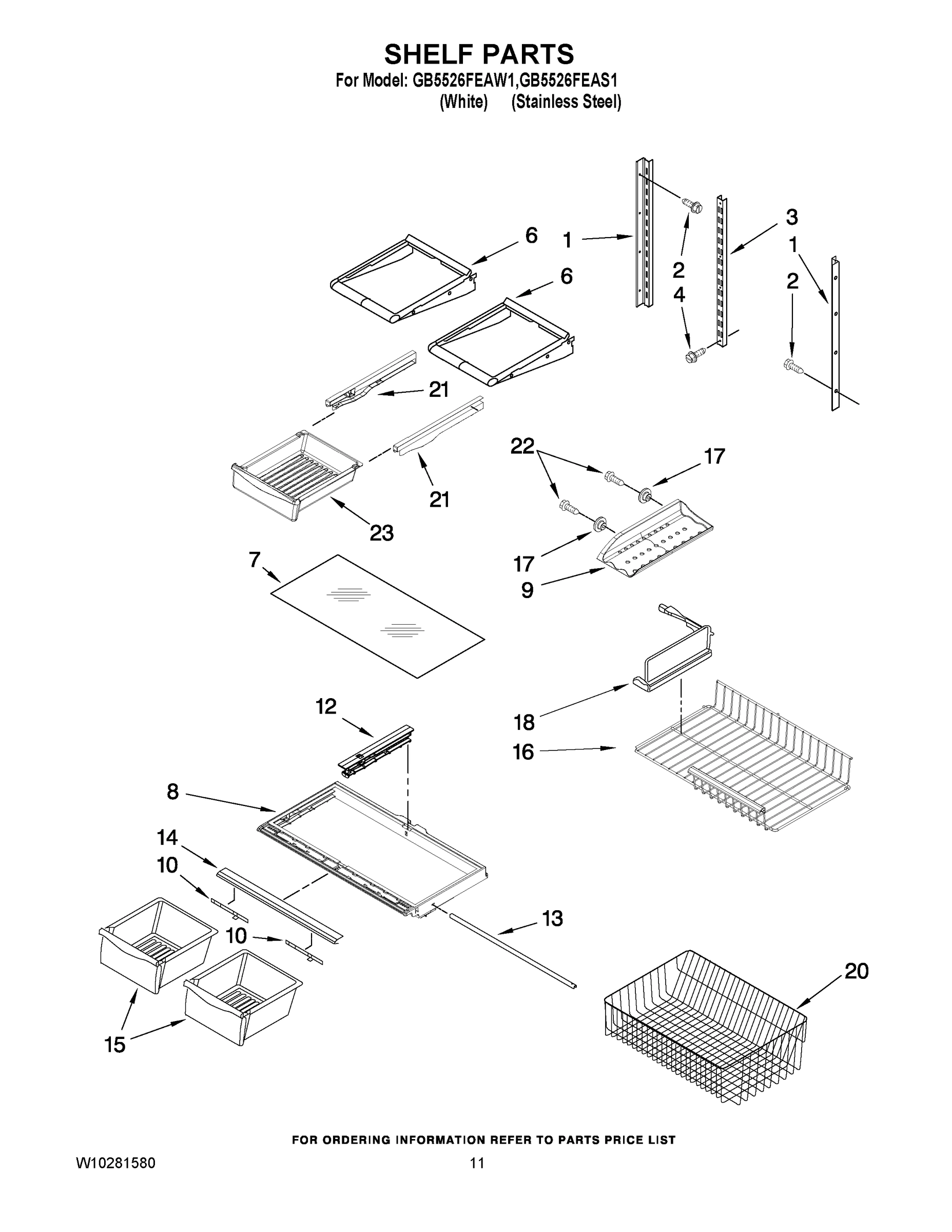

06 - SHELF PARTS

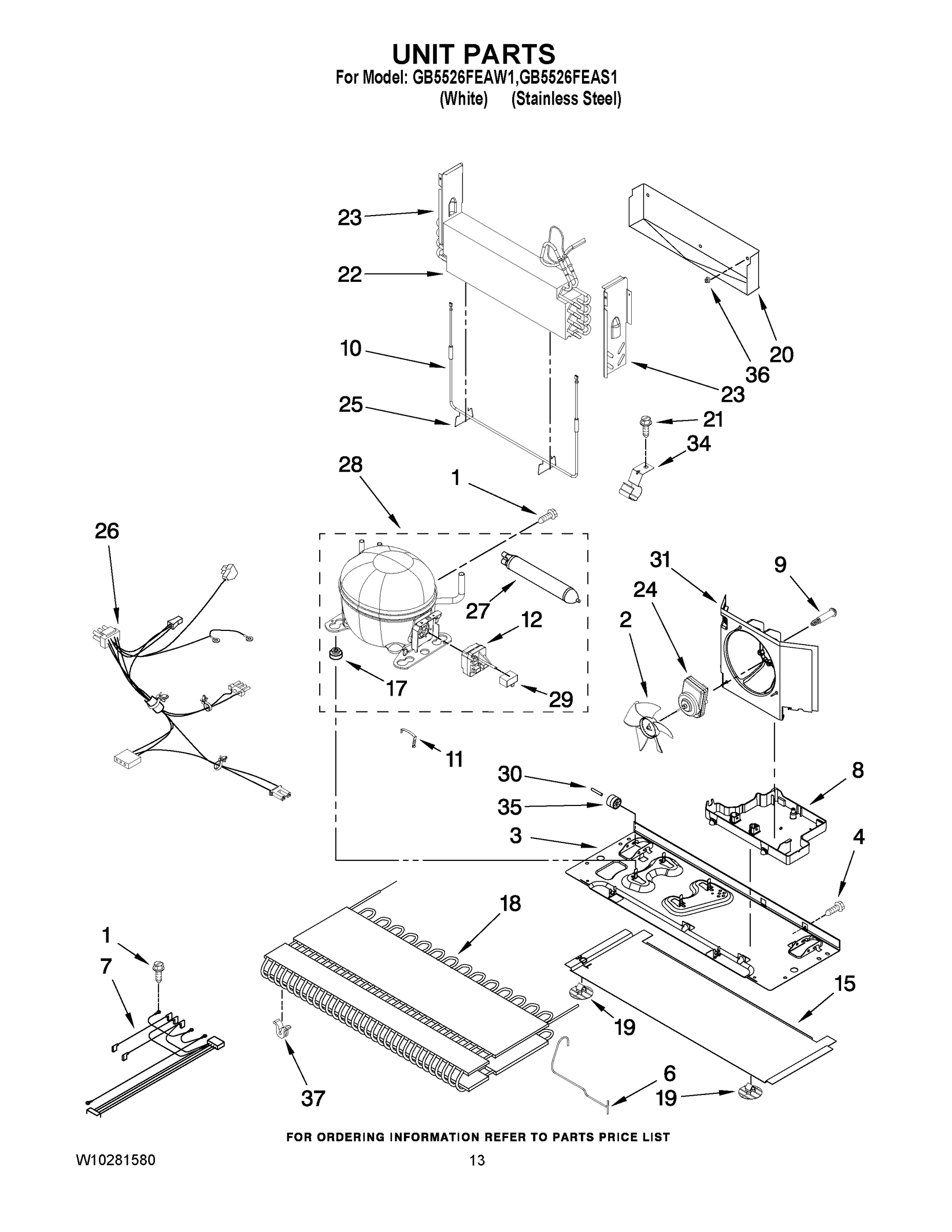

07 - UNIT PARTS

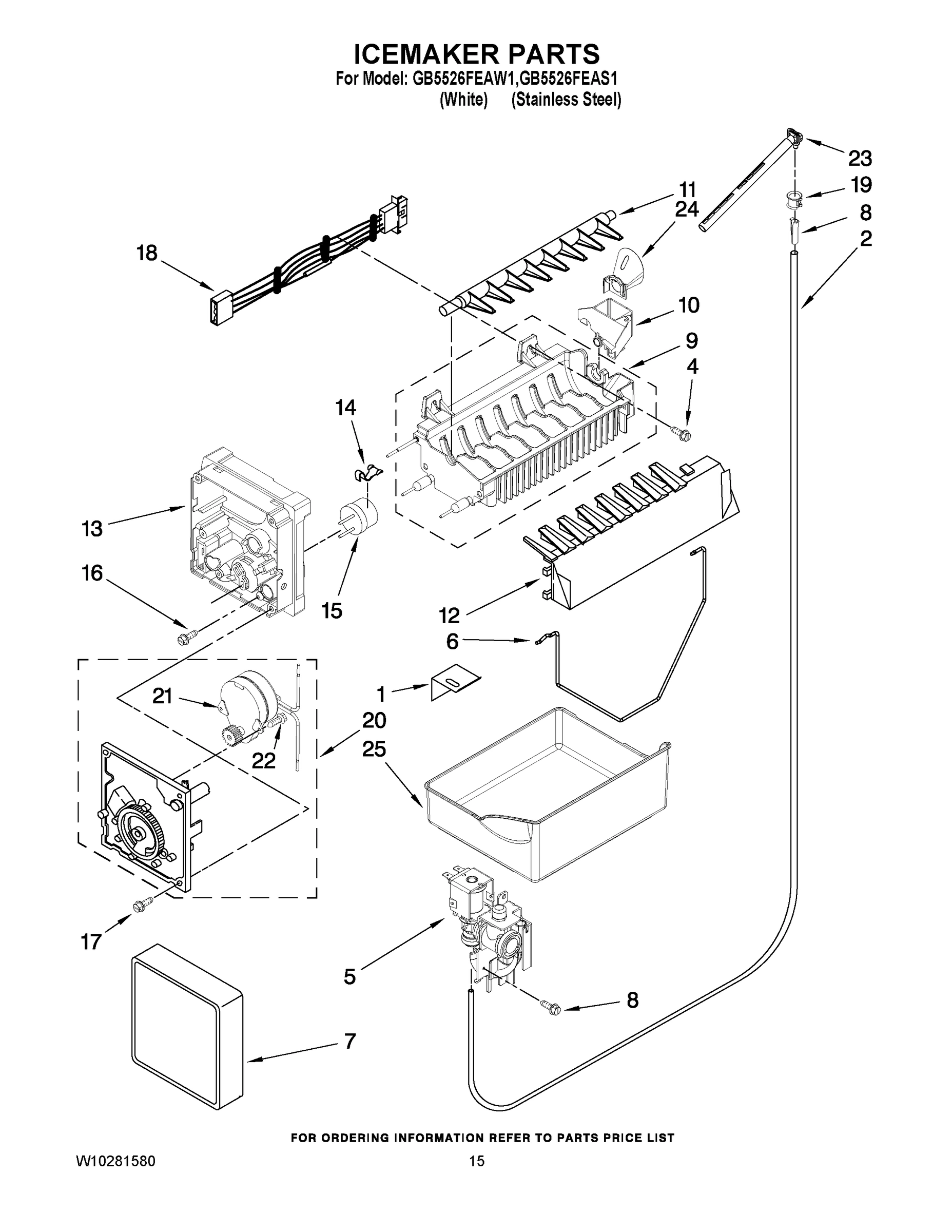

08 - ICEMAKER
09 - OPTIONAL
Common parts from model Maytag GB5526FEAS1 REFRIGERATOR
1
Refrigerator Door (w/ Insulation) (White) MAY 12658529WQ Contact Us For Availability
1
MAY 13023849SQ MAY 13023849SQ Contact Us For Availability
1
MAY 13024222SQ MAY 13024222SQ Contact Us For Availability
1
MAY 13024224WQ MAY 13024224WQ Contact Us For Availability
1
MAY W10251970 MAY W10251970 Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
Bracket, Ice Maker MAY 2256087 Contact Us For Availability
2
MAY 12806301 MAY 12806301 Contact Us For Availability
2
Gasket, Foam (2) MAY A3189392 Contact Us For Availability
2
MAY 12610803W MAY 12610803W Contact Us For Availability
2
MAY 12660007S MAY 12660007S Contact Us For Availability
2
MAY 12990513 MAY 12990513 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
MAY B5705333SP MAY B5705333SP Contact Us For Availability
3
MAY 12816515 MAY 12816515 Contact Us For Availability
3
MAY 12932103 MAY 12932103 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY W10164032 MAY W10164032 Contact Us For Availability
3
MAY W10164033 MAY W10164033 Contact Us For Availability
3
MAY W10273463 MAY W10273463 Contact Us For Availability
3
MAY W10210982 MAY W10210982 Contact Us For Availability
4
Housing, Electronic Control MAY 12806406 Contact Us For Availability
4
MAY 12804901 MAY 12804901 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
SCREW, HANDLE (WHITE) MAY 12990301 Contact Us For Availability
4
SCREW, HANDLE (STAINLESS) MAY 12991701 Contact Us For Availability
4
MAY 12990515 MAY 12990515 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAY W10001240 MAY W10001240 Contact Us For Availability
5
MAY 12580304 MAY 12580304 Contact Us For Availability
5
MAY 12868515 MAY 12868515 Contact Us For Availability
5
MAY W10157765 MAY W10157765 Contact Us For Availability
5
MAY 12801902V MAY 12801902V Contact Us For Availability
5
MAY W10158153 MAY W10158153 Contact Us For Availability
6
MAY W10216614 MAY W10216614 Contact Us For Availability
6
MAY C3680310V MAY C3680310V Contact Us For Availability
6
MAY W10134764V MAY W10134764V Contact Us For Availability
6
SPACER, HANDLE (STAINLESS) MAY 12647901S Contact Us For Availability
6
MAY 12647901W MAY 12647901W Contact Us For Availability
6
MAY 12463608 MAY 12463608 Contact Us For Availability
6
MAY W10217749 MAY W10217749 Contact Us For Availability
6
ARM, SHUTOFF MAY 12868001 Contact Us For Availability
7
MAY 10351005 MAY 10351005 Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
SCREW, HANDLE (BLACK) MAY 12991101 Contact Us For Availability
7
Bushing (Black) MAY 10961006B Contact Us For Availability
7
MAY 10961006W MAY 10961006W Contact Us For Availability
7
MAY 12204823 MAY 12204823 Contact Us For Availability
7
MAY W10225174 MAY W10225174 Contact Us For Availability
7
MAY 12582501 MAY 12582501 Contact Us For Availability
8
Bolt, Adjusting (Rear) MAY 12606103 Contact Us For Availability
8
MAY 12806601V MAY 12806601V Contact Us For Availability
8
MAY W10164030 MAY W10164030 Contact Us For Availability
8
Gasket, Door Magnetic (Black) MAY W10164031 Contact Us For Availability
8
MAY 10447111 MAY 10447111 Contact Us For Availability
8
Stop, Door (Black) MAY 10447112 Contact Us For Availability
8
MAY 12530901SP MAY 12530901SP Contact Us For Availability
8
MAY W10189185 MAY W10189185 Contact Us For Availability
8
MAY A3223101SP MAY A3223101SP Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
MAY 12990504 MAY 12990504 Contact Us For Availability
9
MAY A0282808V MAY A0282808V Contact Us For Availability
9
MAY 12658751W MAY 12658751W Contact Us For Availability
9
MAY 12846204S MAY 12846204S Contact Us For Availability
9
MAY 12646501V MAY 12646501V Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
9
MAY W10122523 MAY W10122523 Contact Us For Availability
10
Housing, Frz. Light MAY 12476401V Contact Us For Availability
10
MAY 12992801 MAY 12992801 Contact Us For Availability
10
RETAINER, DOOR SHELF MAY 12737501 Contact Us For Availability
10
Slide, Humidity MAY 12530805SP Contact Us For Availability
10
MAY 12729130 MAY 12729130 Contact Us For Availability
10
CUP, WATER FILL MAY 628515 Contact Us For Availability
11
MAY 12992201 MAY 12992201 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
MAY 12226115 MAY 12226115 Contact Us For Availability
11
MAY 12801901V MAY 12801901V Contact Us For Availability
11
STRAP, BALE MAY 2302129 Contact Us For Availability
11
MAY 627843 MAY 627843 Contact Us For Availability
12
COVER, HINGE WHITE MAY 12561901W Contact Us For Availability
12
MAY 12561901B MAY 12561901B Contact Us For Availability
12
Screw (2) MAY 12990604 Contact Us For Availability
12
SCREW (7) MAY 12990101 Contact Us For Availability
12
Rail, Center Crisper MAY 12530701 Contact Us For Availability
12
START PROTECT, COMBO (PRODUCTION) MAY 2312007 Contact Us For Availability
12
ICE STRIPPER MAY W10122563 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
RETAINER, DOOR MAY 12690501 Contact Us For Availability
13
BRACE, CRISPER FRAME MAY 12227302WD Contact Us For Availability
13
Support MAY 2194712 Contact Us For Availability
14
Screw (3) MAY 12992403 Contact Us For Availability
14
INSULATION MAY 13012402 Contact Us For Availability
14
Housing, Lighting MAY 12805001 Contact Us For Availability
14
MAY W10231337 MAY W10231337 Contact Us For Availability
14
Retainer MAY 2315522 Contact Us For Availability
15
MAY 12607103WD MAY 12607103WD Contact Us For Availability
15
MAY 12607104ED MAY 12607104ED Contact Us For Availability
15
MAY W10177399 MAY W10177399 Contact Us For Availability
15
CLIP, EVAP. MOTOR MAY 13058002 Contact Us For Availability
15
MAY 10423131SP MAY 10423131SP Contact Us For Availability
15
PAN, CRISPER (2) MAY 12531305SP Contact Us For Availability
15
MAY W10206336 MAY W10206336 Contact Us For Availability
15
THERMOSTAT ORDER 542369 CEMENT ALUMILASTIC) MAY 2321258 Contact Us For Availability
16
Foot Brake (2) MAY 10354002 Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
SHELF, GLIDE (UPPER) MAY 12694606 Contact Us For Availability
16
MAY W10001280 MAY W10001280 Contact Us For Availability
17
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
17
COVER, CORNER (WHITE) MAY 12587703W Contact Us For Availability
17
PLUG, BUTTON MAY M0310343 Contact Us For Availability
17
MAY 10436506S MAY 10436506S Contact Us For Availability
17
Grommet (4) MAY 10835903SP Contact Us For Availability
17
MAY 489464 MAY 489464 Contact Us For Availability
18
MAY 12566606ED MAY 12566606ED Contact Us For Availability
18
MAY 10436404S MAY 10436404S Contact Us For Availability
18
Divider, Upper Basket MAY 12693802 Contact Us For Availability
18
MAY W10135028 MAY W10135028 Contact Us For Availability
18
MAY 12975112 MAY 12975112 Contact Us For Availability
19
FASTENER, BASEPAN EXTENSION MAY W10206339 Contact Us For Availability
19
MAY M0114003SP MAY M0114003SP Contact Us For Availability
20
Screw (8) MAY 12991302 Contact Us For Availability
20
MAY 12739111 MAY 12739111 Contact Us For Availability
20
MAY 12225401WD MAY 12225401WD Contact Us For Availability
20
MODULE ASSEMBLY (INCLUDES ITEMS 21& 22) MAY W10122522 Contact Us For Availability
21
COVER, HINGE(BLACK) MAY 12477601B Contact Us For Availability
21
MAY 12477601W MAY 12477601W Contact Us For Availability
21
MOTOR (NOT AVAILABLE, ORDER No.20) MAY N/P Contact Us For Availability
21
GLIDE, LEFT MAY 12656601SP Contact Us For Availability
21
GLIDE, RIGHT MAY 12656602SP Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
22
Grille Assembly (Includes Clips) (Black) MAY 12734404B Contact Us For Availability
22
Grille Assembly (Includes Clips) (White) MAY 12734404W Contact Us For Availability
22
Cover, Fan Shroud MAY 13024803 Contact Us For Availability
22
MAY 12990601 MAY 12990601 Contact Us For Availability
22
MAY 12726401 MAY 12726401 Contact Us For Availability
22
Screw MAY 489136 Contact Us For Availability
23
SHROUD, EVAP.FAN MAY 13057901 Contact Us For Availability
23
MAY 12656504SP MAY 12656504SP Contact Us For Availability
23
DAM (LEFT SIDE) MAY 12225602 Contact Us For Availability
23
Dam (Right Side) MAY 12225702 Contact Us For Availability
23
MAY 10463203SP MAY 10463203SP Contact Us For Availability
24
Fan, Evaporator MAY 2169142 Contact Us For Availability
24
MAY 12825102 MAY 12825102 Contact Us For Availability
24
MAY 12918001 MAY 12918001 Contact Us For Availability
25
Grommet (2) MAY W10121318 Contact Us For Availability
25
MAY 12695001 MAY 12695001 Contact Us For Availability
26
MAY 12465002WD MAY 12465002WD Contact Us For Availability
26
MAY 12465005ED MAY 12465005ED Contact Us For Availability
26
MAY 10449516 MAY 10449516 Contact Us For Availability
26
MAY W10273559 MAY W10273559 Contact Us For Availability
27
MAY 12726003 MAY 12726003 Contact Us For Availability
27
FUNNEL, DRAIN (INCL. No. 28 & 29) MAY D7753903 Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
28
MAY W10211980 MAY W10211980 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & MAY W10223234 Contact Us For Availability
29
Insulation, Sound MAY 12820505 Contact Us For Availability
29
Gasket MAY B8381501 Contact Us For Availability
29
CAPACITOR MAY 2321245 Contact Us For Availability
30
MAY W10210987 MAY W10210987 Contact Us For Availability
30
MAY 12477202 MAY 12477202 Contact Us For Availability
31
MAY 12815301 MAY 12815301 Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
33
MAY B5759655 MAY B5759655 Contact Us For Availability
33
MAY 12991603V MAY 12991603V Contact Us For Availability
34
MAY 10547003 MAY 10547003 Contact Us For Availability
35
Roller (2) MAY 12477102 Contact Us For Availability
36
Clip, Evap (2) MAY 10623002 Contact Us For Availability
37
Grommet (4) MAY W10137529 Contact Us For Availability
100
COMPLETE ICE MAKER MAY W10190972 Contact Us For Availability
NI
MAY 12973503 MAY 12973503 Contact Us For Availability
NI
Harness, Lights (Freezer) MAY 13065802 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
Cleaner, Stainless Steel MAY 4396920 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BLACK (UNCUT)) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
× ![]()
