Model Whirlpool FES355YL2 ELECTRIC RANGE – Common Parts & Diagrams
02 - CONTROL PANEL

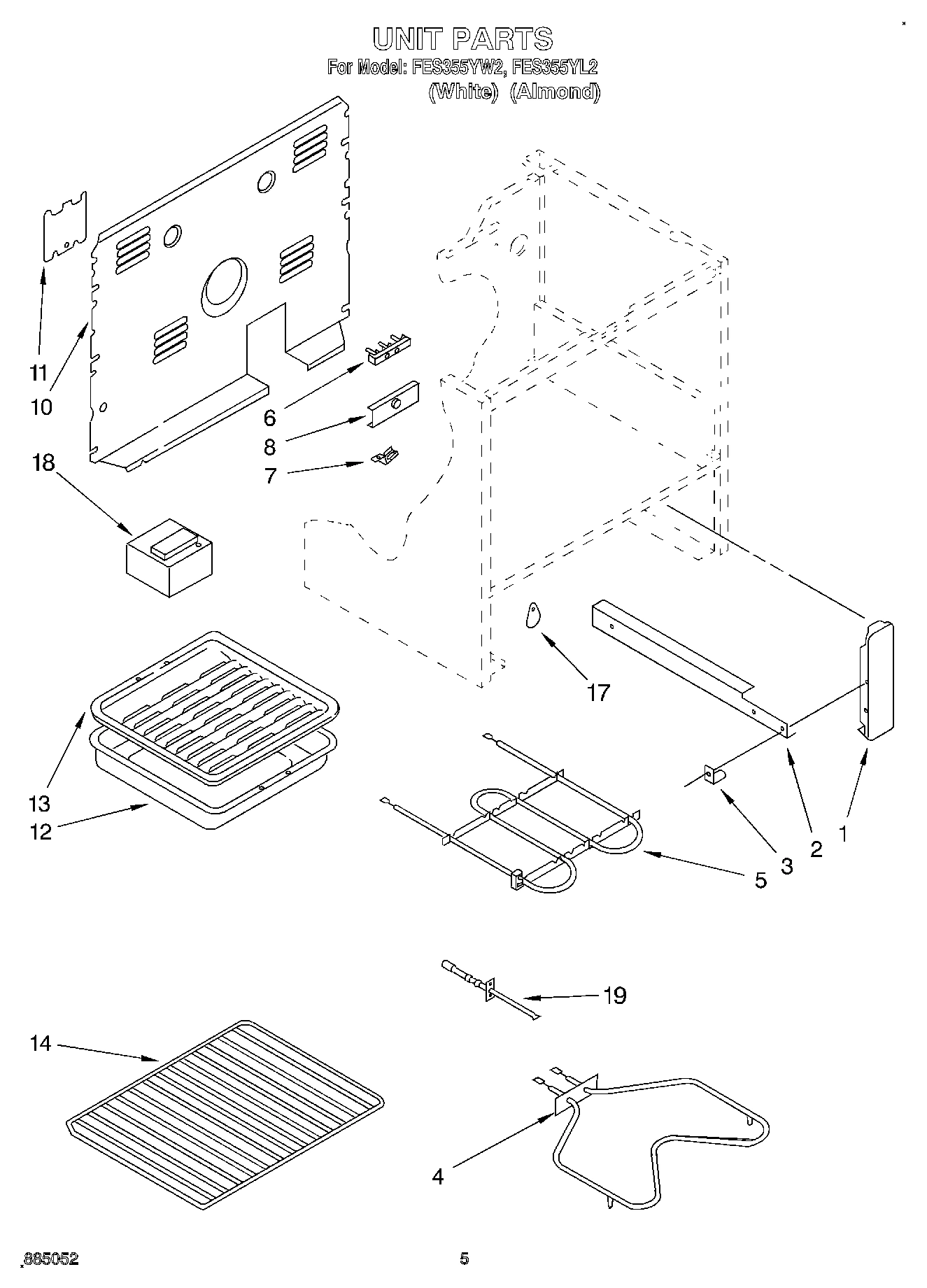

04 - UNIT

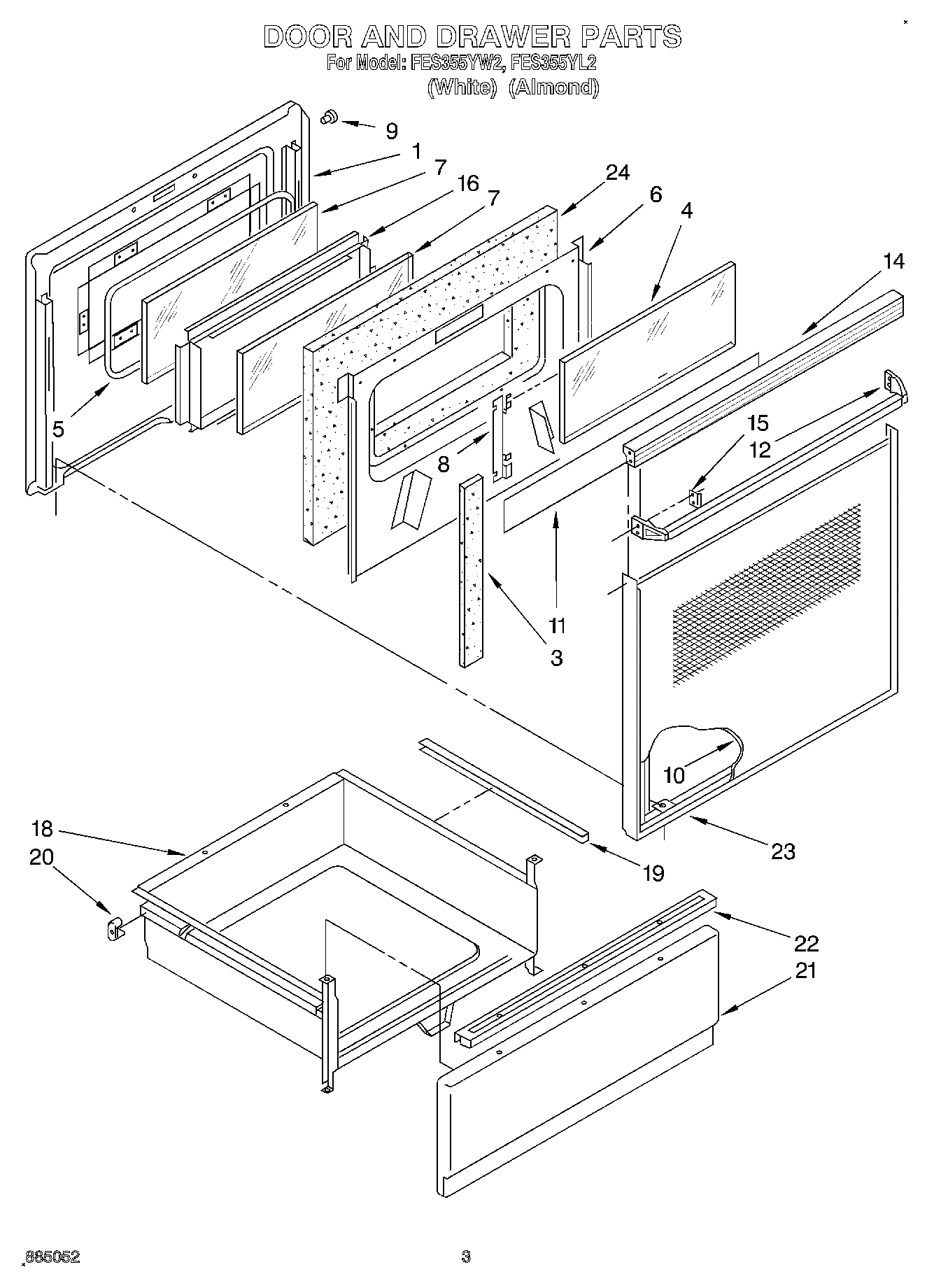

03 - DOOR AND DRAWER

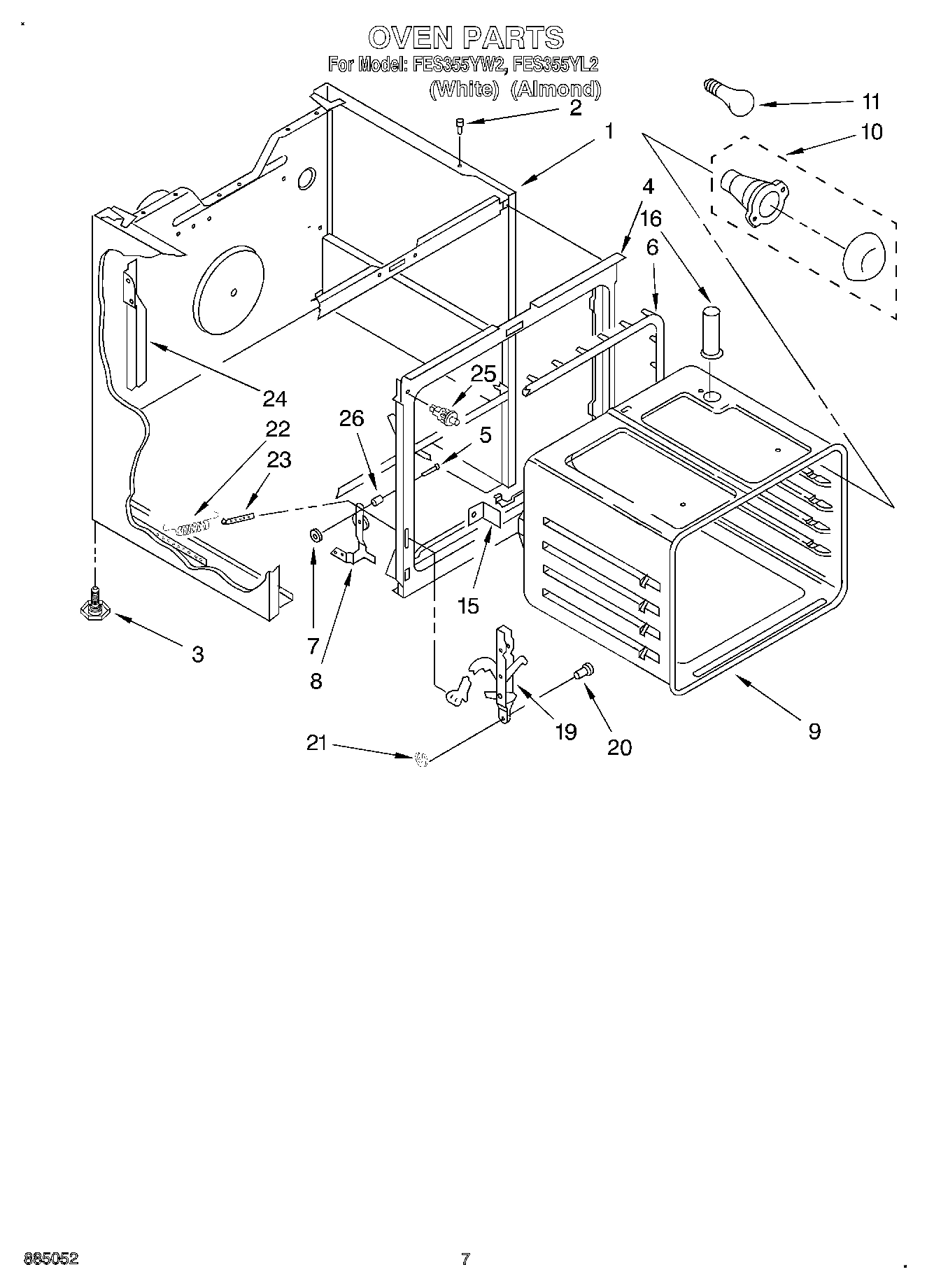

05 - OVEN

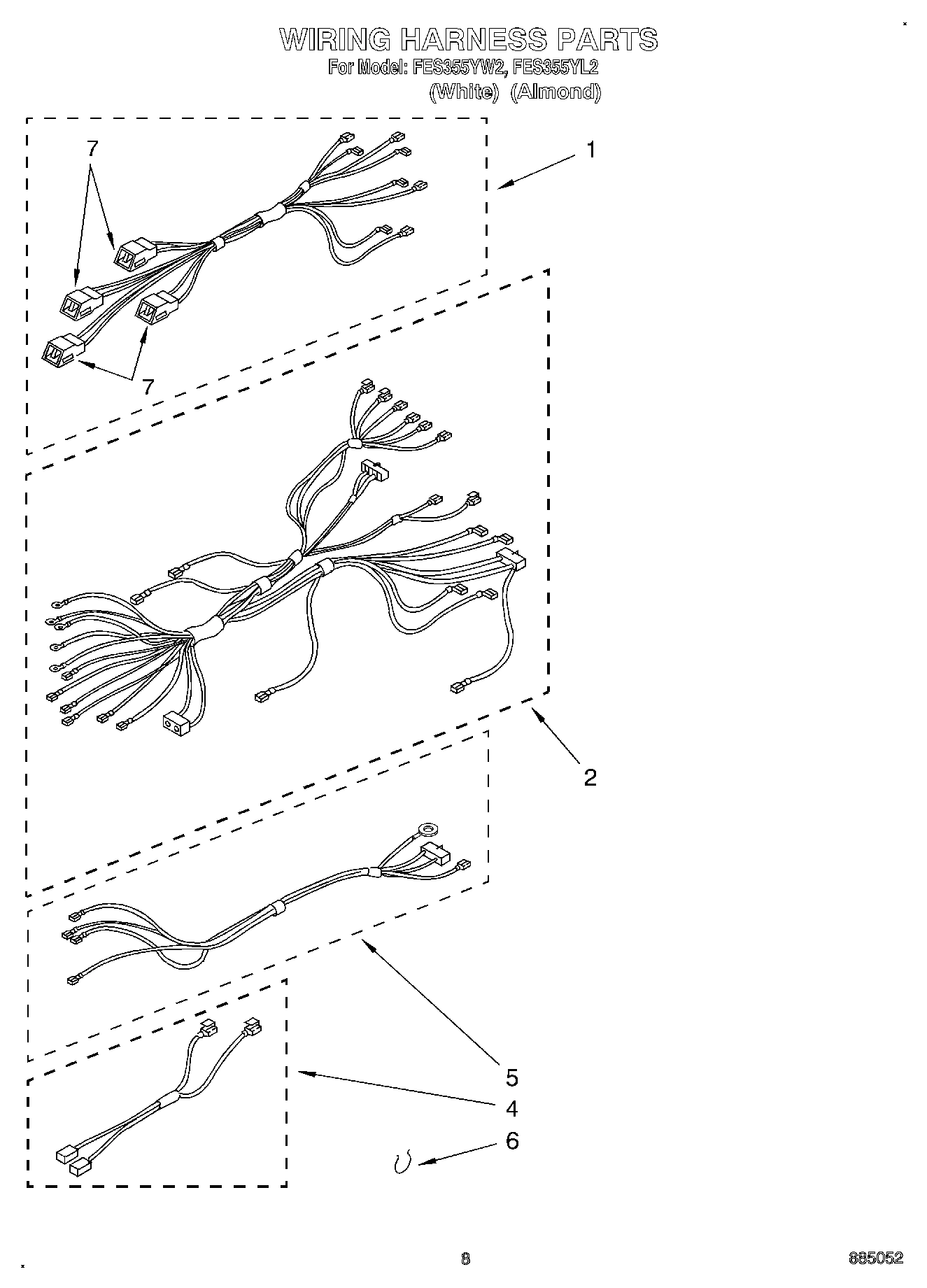

06 - WIRING HARNESS, LIT/OPTIONAL

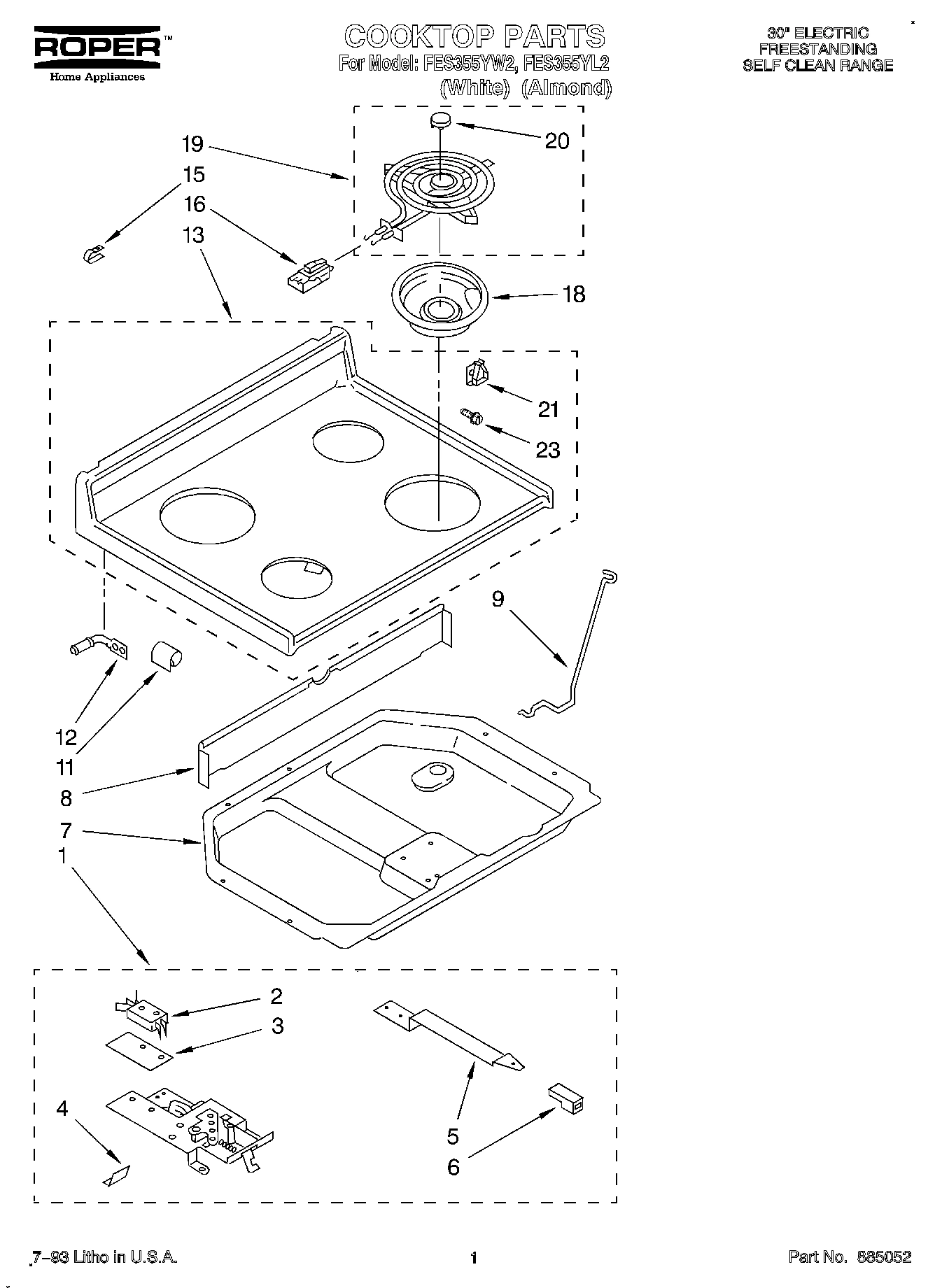

01 - COOKTOP
Common parts from model Whirlpool FES355YL2 ELECTRIC RANGE
WPL LIT3150400 WPL LIT3150400 Contact Us For Availability
WPL LIT3184482 WPL LIT3184482 Contact Us For Availability
WPL LIT3187321 WPL LIT3187321 Contact Us For Availability
WPL LIT3187491 WPL LIT3187491 Contact Us For Availability
WPL LIT677973 WPL LIT677973 Contact Us For Availability
1
Screw, 10-24 x 1/2 (2) WPL 247326 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
Harness, Wire (Surface unit) WPL 3149881 Contact Us For Availability
1
Latch Asm Complete W/Wire Harness (White/Almo WPL 3183961 Contact Us For Availability
2
Harness, Wire (Oven) WPL 3184480 Contact Us For Availability
2
Safety Switch WPL 3183096 Contact Us For Availability
2
Screw (2) WPL 98106 Contact Us For Availability
3
Seal, Fiberglass (2) WPL 3148441 Contact Us For Availability
3
Insulator, Switch WPL 309245 Contact Us For Availability
4
Glass, Clear WPL 3169202 Contact Us For Availability
4
Screw (1) WPL 3150537 Contact Us For Availability
4
Frame Front WPL 3176718 Contact Us For Availability
4
Harness, Wire (Oven Light) WPL 313154 Contact Us For Availability
4
Screw,6-3/8 (2) WPL 309258 Contact Us For Availability
4
Shield, Latch WPL 313035 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
5
Harness, Wire (Lock Switch) WPL 3184479 Contact Us For Availability
5
Handle, Latch (Screw (2)) WPL 308422 Contact Us For Availability
5
Handle, Latch (White/Almond) WPL 3169081 Contact Us For Availability
6
Knob, Latch (Black) WPL 3148684 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Seal, Door WPL 3169251 Contact Us For Availability
7
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
7
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
7
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
7
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
7
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
7
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
7
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
7
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
7
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
7
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
7
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
7
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
7
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
7
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
7
Grease WPL 261582 Contact Us For Availability
7
Coffee WPL 261886 Contact Us For Availability
7
New Avocado WPL 261888 Contact Us For Availability
7
Harvest Gold WPL 261890 Contact Us For Availability
7
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
7
Toast WPL 285365 Contact Us For Availability
7
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
7
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
7
Platinum (Uncut) WPL 285368 Contact Us For Availability
7
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
7
Pain WPL 72112 Contact Us For Availability
7
WPL 799832 WPL 799832 Contact Us For Availability
7
WPL 978883 WPL 978883 Contact Us For Availability
7
Box, Burner WPL 3169186 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30`` Pyro) WPL 3176611 Contact Us For Availability
9
Rod, Cooktop WPL 3148659 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
10
Glass, Panel (Black) WPL 3148185 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Foil, Door WPL 3169191 Contact Us For Availability
11
Bracket, Cooktop (2) WPL 307965 Contact Us For Availability
12
Indicator Light (2) WPL 313102 Contact Us For Availability
12
Handle, Door (Black) WPL 3149242 Contact Us For Availability
12
Handle, Door (Screw (4) 8A x 3/8) WPL 3149253 Contact Us For Availability
12
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
13
Cooktop (White) WPL 3170981 Contact Us For Availability
13
Cooktop (Almond) WPL 3170982 Contact Us For Availability
14
Top, Door (Screw) WPL 3149333 Contact Us For Availability
14
Rack, Oven (Straight) (Offset) WPL 308173 Contact Us For Availability
14
Top, Door (White-Almond) WPL 3148223 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
screw (6) WPL 3148443 Contact Us For Availability
16
Frame, Inner Glass WPL 3148234 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
16
Screw, 6-32 x 1/4 (4) WPL 3185059 Contact Us For Availability
17
Screw, (2) 10-32 x .437 WPL 3150532 Contact Us For Availability
17
Coverplate (2) WPL 311982 Contact Us For Availability
18
Block, Balance WPL 3149258 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
19
Sensor WPL 3148440 Contact Us For Availability
19
Screw (2) WPL 98520 Contact Us For Availability
19
Protector, Drawer Side (2) WPL 309329 Contact Us For Availability
19
Channel, Arm (2) WPL 3176709 Contact Us For Availability
20
Glide, Rear (2) WPL 307980 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
21
Panel Drawer (Black) WPL 309923 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Screw, 8-A x 1/2 (2) WPL 309029 Contact Us For Availability
22
Handle, Drawer WPL 3184530 Contact Us For Availability
23
Frame, Door WPL 3171530 Contact Us For Availability
24
Insulation WPL 3147951 Contact Us For Availability
24
Support, L.H. Post WPL 313196 Contact Us For Availability
24
Support, R.H. Post WPL 313197 Contact Us For Availability
25
Switch, Door (2) WPL 310345 Contact Us For Availability
26
Snubber, Door (2) WPL 309111 Contact Us For Availability
26
Insulation, Wrapper WPL 3169093 Contact Us For Availability
26
Insulation, Oven BAck WPL 3169094 Contact Us For Availability
× ![]()
