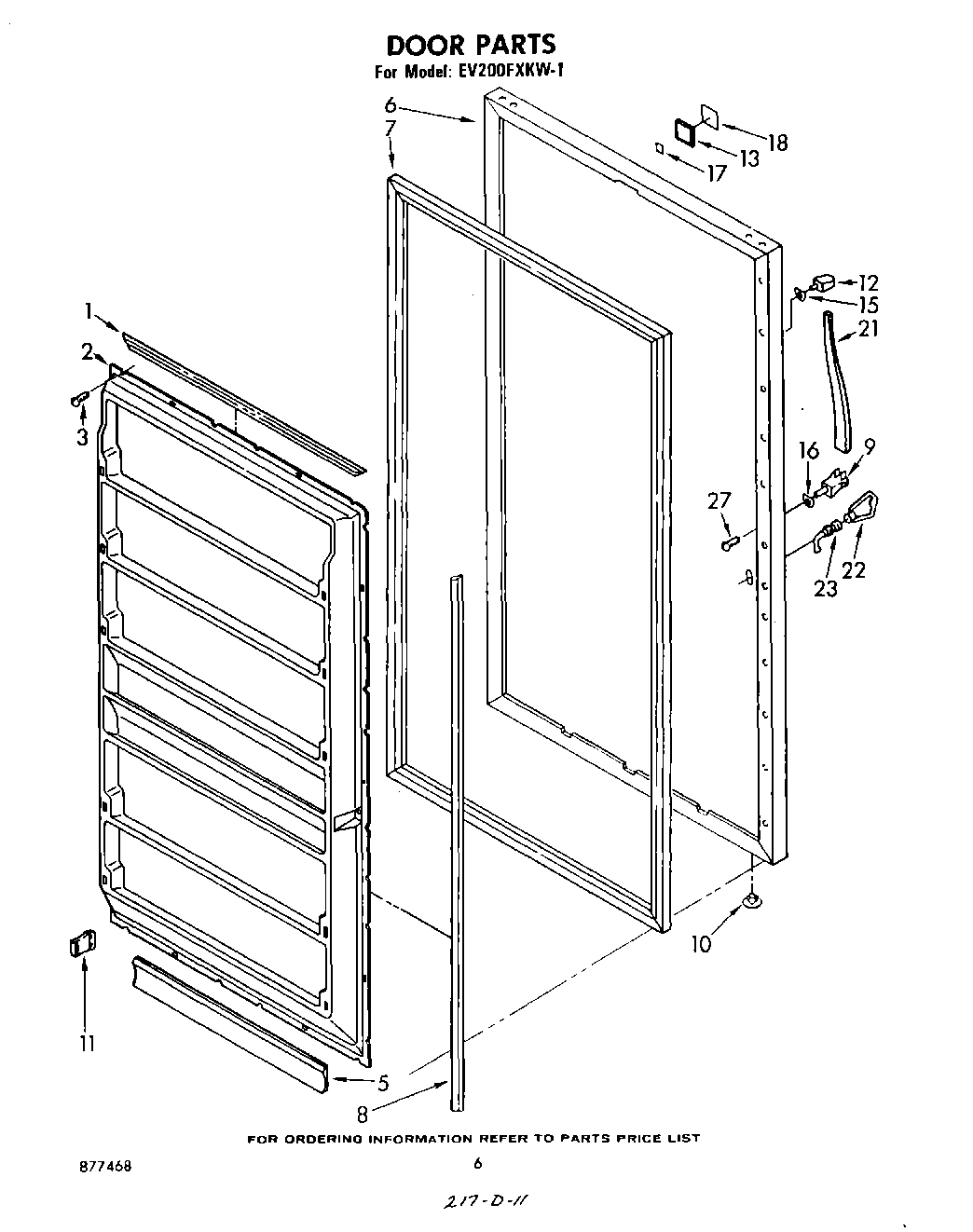

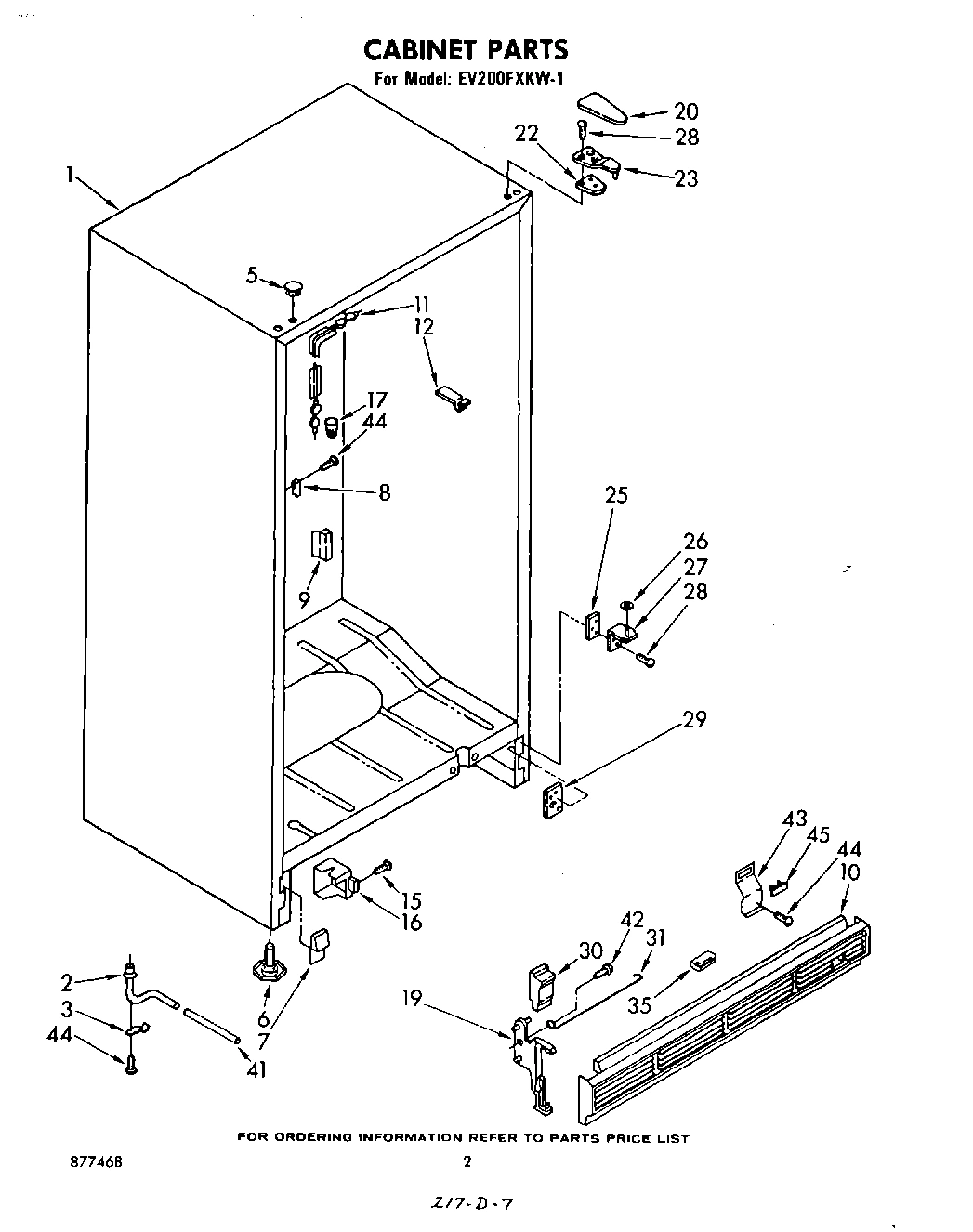

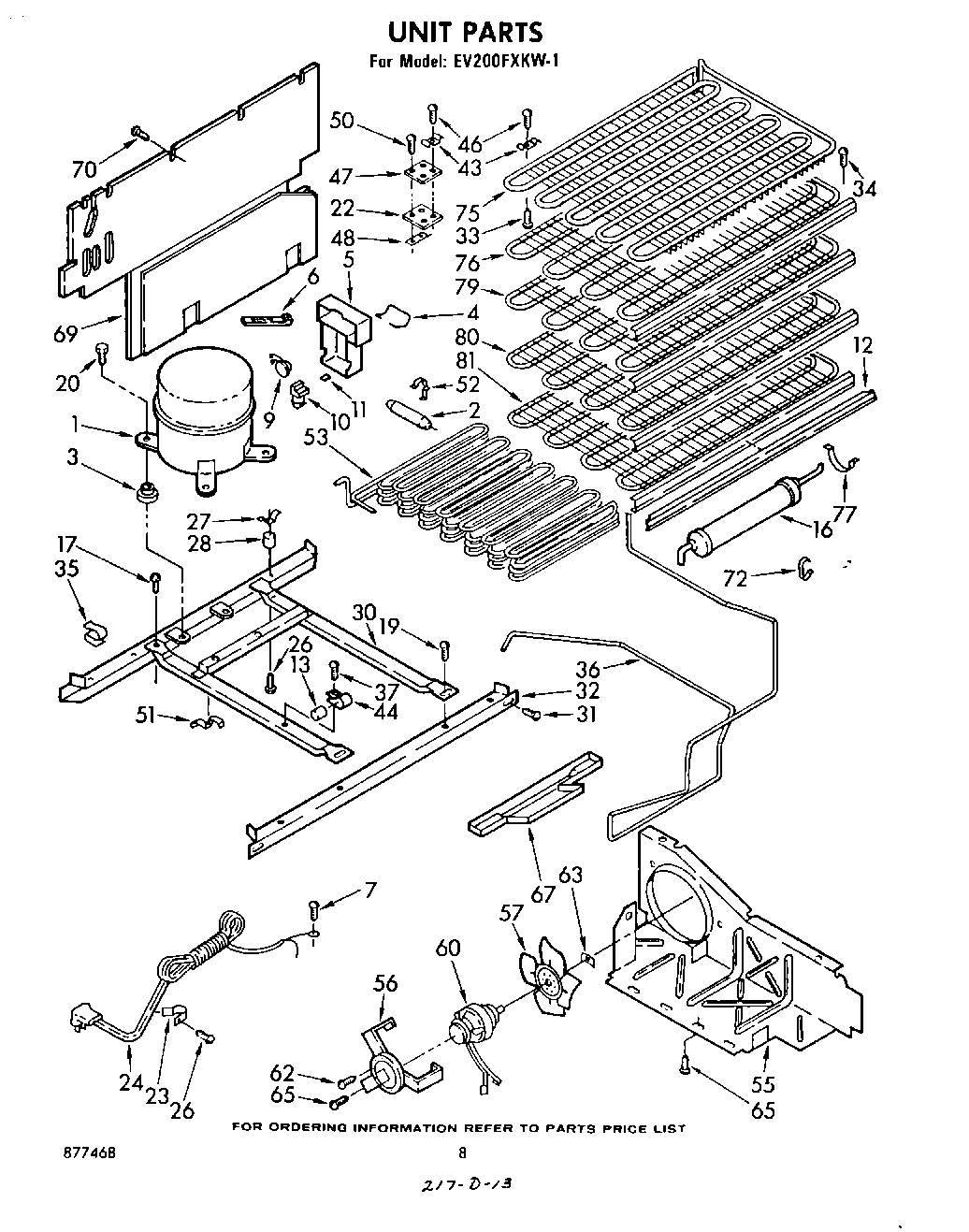

Model Whirlpool EV200FXKW1 VERTICAL FREEZER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

WPL 206925 WPL 206925 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

1

Retainer, Gasket (2) WPL 836118 Contact Us For Availability

1

Compressor WPL 464082 Contact Us For Availability

1

Cabinet (Not A Serviceable Part) WPL ARI56256A6 Contact Us For Availability

2

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

2

Panel, Interior Door WPL 942677 Contact Us For Availability

2

Extension, Fitting WPL 842257 Contact Us For Availability

3

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

3

Grommet (4) WPL 547283 Contact Us For Availability

3

Clip, Drain WPL 841648 Contact Us For Availability

4

Spring WPL 531318 Contact Us For Availability

5

Trim, Shelf (5) WPL 984900 Contact Us For Availability

5

Case WPL 549945 Contact Us For Availability

5

Plug, Hole (3) (White) WPL 842031 Contact Us For Availability

5

Plug, Hole (3) (Almond) WPL 989195 Contact Us For Availability

5

Plug, Hole (3) (Coffee) WPL 989875 Contact Us For Availability

5

Plug, Hole (3) (New Gold) WPL 989876 Contact Us For Availability

5

Plug, Hole (3) (New Avocado) WPL 989877 Contact Us For Availability

6

Panel, Exterior Door (White) WPL 942619 Contact Us For Availability

6

Panel, Exterior Door (Coffee) WPL 942620 Contact Us For Availability

6

Panel, Exterior Door (New Gold) WPL 942621 Contact Us For Availability

6

Panel, Exterior Door (New Avocado) WPL 942622 Contact Us For Availability

6

Panel, Exterior Door (Almond) WPL 942623 Contact Us For Availability

6

Strap, Tube WPL 851095 Contact Us For Availability

6

Leveler (2) WPL 836392 Contact Us For Availability

7

2188438A Whirlpool Freezer DOR Gasket Backorder WPL 2188438A $210.20

7

Filler Grille (White) WPL 838535 Contact Us For Availability

7

Filler, Grille (Coffee) WPL 989928 Contact Us For Availability

7

Filler, Grille (New Gold) WPL 989929 Contact Us For Availability

7

Filler, Grille (New Avocado) WPL 989930 Contact Us For Availability

7

Filler Grille (Almond) WPL 989931 Contact Us For Availability

8

Retainer, Side (2) WPL 836120 Contact Us For Availability

8

Strike, Lock WPL 991992 Contact Us For Availability

9

Cap, Handle WPL 982947 Contact Us For Availability

9

Overload WPL 549041 Contact Us For Availability

9

Cover, Strike Lock WPL 839865 Contact Us For Availability

Plug, Hole (2) WPL 534927 Contact Us For Availability

Relay WPL 989662 Contact Us For Availability

Grille, Exterior (White) WPL 842208 Contact Us For Availability

Grille, Exterior (Coffee) WPL 989948 Contact Us For Availability

Grille, Exterior (New Gold) WPL 989949 Contact Us For Availability

Grille, Exterior (New Avocado) WPL 989950 Contact Us For Availability

Grille, Exterior (Almond) WPL 989951 Contact Us For Availability

11

WP849996 Whirlpool Refrigerator Endcap Trim In Stock WPL WP849996 $5.99

11

Bumper WPL 547272 Contact Us For Availability

11

Heater, Stile WPL 936129 Contact Us For Availability

12

Cap, Handle WPL 982948 Contact Us For Availability

12

Trim, Shelf Front (4) WPL 934993 Contact Us For Availability

12

Retainer Clip (12) WPL 935663 Contact Us For Availability

13

Nameplate (Includes Items 17 & 18) WPL 945116 Contact Us For Availability

13

Dampener (2) WPL 510769 Contact Us For Availability

15

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

15

Shim, Handle End WPL 941918 Contact Us For Availability

16

Shim, Handle End WPL 941917 Contact Us For Availability

16

Heater & Tube Assembly WPL 987309 Contact Us For Availability

16

Box, Junction WPL 549947 Contact Us For Availability

17

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $6.92

17

Tape Strip WPL 991259 Contact Us For Availability

17

Connector, Screw-On WPL 850145 Contact Us For Availability

18

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

18

Insert, Nameplate WPL 945108 Contact Us For Availability

19

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

19

Breaker, Top WPL 940918 Contact Us For Availability

19

Support, Grille (2) WPL 844614 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $15.75

Breaker, L.S. WPL 839831 Contact Us For Availability

Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability

Cover, Hinge (Coffee) WPL 989895 Contact Us For Availability

Cover, Hinge (New Gold) WPL 989896 Contact Us For Availability

Cover, Hinge (New Avocado) WPL 989897 Contact Us For Availability

21

Clip WPL 939139 Contact Us For Availability

21

Handle, Center WPL 982978 Contact Us For Availability

Fitting, Drain WPL 842256 Contact Us For Availability

Key WPL 941380 Contact Us For Availability

Plate, Thermostat WPL 851289 Contact Us For Availability

Shim, Hinge WPL 836151 Contact Us For Availability

23

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

23

Lock Assembly WPL 941379 Contact Us For Availability

23

Hinge Assembly, Top WPL 842038 Contact Us For Availability

24

Breaker, R.S. WPL 836635 Contact Us For Availability

24

Cord, Service WPL 850626 Contact Us For Availability

25

Breaker, Bottom WPL 839829 Contact Us For Availability

25

Shim, Hinge WPL 836196 Contact Us For Availability

26

WP487576 Whirlpool Washer In Stock WPL WP487576 $5.99

26

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $4.99

26

Cover, Insulation WPL 836553 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

4389248 Whirlpool Refrigerator Thermostat Backorder WPL 4389248 $186.68

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $15.74

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $44.99

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 799344 WPL 799344 Contact Us For Availability

Enamel, Coffee (1 Qt. Uncut) WPL 261887 Contact Us For Availability

Enamel, New Avocado (1 Qt. Uncut) WPL 261889 Contact Us For Availability

Enamel, New Gold (1 Qt. Uncut) WPL 261891 Contact Us For Availability

Screw WPL 488818 Contact Us For Availability

Lacquer, Bright Aluminum (12 Oz. Spray Can) WPL 511881 Contact Us For Availability

BOOKLET, FREEZER WPL 656493 Contact Us For Availability

Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 851898 WPL 851898 Contact Us For Availability

WPL 877468 WPL 877468 Contact Us For Availability

WPL 942626 WPL 942626 Contact Us For Availability

WPL 942653 WPL 942653 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Clamp (4) WPL 548738 Contact Us For Availability

Hinge (Bottom) WPL 836686 Contact Us For Availability

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $4.82

Escutcheon, Thermostat WPL 843953 Contact Us For Availability

Grommet (4) WPL 548737 Contact Us For Availability

Screw, 12-14 x 3/4 (Repair) WPL 488949 Contact Us For Availability

29

Tap Plate WPL 836162 Contact Us For Availability

Track, Shelf (R.S.) WPL 653669 Contact Us For Availability

Track, Shelf (L.S.) WPL 653670 Contact Us For Availability

Frame WPL 548654 Contact Us For Availability

Insert, Air Baffle WPL 836372 Contact Us For Availability

31

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

31

Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability

31

Guard, Fan WPL 850156 Contact Us For Availability

32

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

32

Rail, Front WPL 941697 Contact Us For Availability

33

Shield, Light WPL 848158 Contact Us For Availability

33

Screw, 8 x 1-3/8 WPL 489056 Contact Us For Availability

34

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

34

Cover, Tube Entry WPL 839826 Contact Us For Availability

35

Clip (2) WPL 548745 Contact Us For Availability

35

Bumper (2) WPL 546131 Contact Us For Availability

36

Clamp, Tube WPL 488937 Contact Us For Availability

36

Exchanger, Heat WPL 943342 Contact Us For Availability

37

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

37

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

38

Container, Switch WPL 845051 Contact Us For Availability

39

Gasket WPL 845052 Contact Us For Availability

40

Switch, Power Saver WPL 845049 Contact Us For Availability

41

Escutcheon, Switch WPL 934924 Contact Us For Availability

41

Drain Hose WPL 842260 Contact Us For Availability

42

W11624204 Whirlpool Screw Backorder WPL W11624204 $8.89

43

Header Clamp Plate (2) WPL 510614 Contact Us For Availability

43

Bracket, Pilot Light WPL 842250 Contact Us For Availability

44

Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability

44

Clamp (2) WPL 510716 Contact Us For Availability

45

Light, Pilot WPL 530584 Contact Us For Availability

46

Screw, 8-32 x 7/16 WPL 488054 Contact Us For Availability

47

Shim, Thermostat Plate WPL 851290 Contact Us For Availability

48

Clip, Thermostat WPL 510754 Contact Us For Availability

50

Screw, 8-32 x 5/8 WPL 488436 Contact Us For Availability

51

Clip (2) WPL 548744 Contact Us For Availability

52

Clamp WPL 548508 Contact Us For Availability

53

Precooler & Condenser Assembly WPL 481846 Contact Us For Availability

55

Baffle, Air WPL 851979 Contact Us For Availability

56

Bracket WPL 548695 Contact Us For Availability

57

Blade, Fan WPL 989524 Contact Us For Availability

60

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $61.51

62

Screw (3) WPL 488868 Contact Us For Availability

63

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

65

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

67

Pan, Drip WPL 989269 Contact Us For Availability

69

Cover WPL 850457 Contact Us For Availability

72

Clip WPL 851332 Contact Us For Availability

75

Shelf, Evaporator (Top) WPL 987302 Contact Us For Availability

76

Shelf, Evaporator (2nd) WPL 987301 Contact Us For Availability

77

Clamp, Header WPL 513529 Contact Us For Availability

79

Shelf, Evaporator (3rd) WPL 987300 Contact Us For Availability

80

Shelf, Evaporator (4th) WPL 987299 Contact Us For Availability

81

Shelf, Evaporator (Bottom) WPL 987298 Contact Us For Availability
