Model Whirlpool ET22MTXPWR0 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
03 - REFRIGERATOR

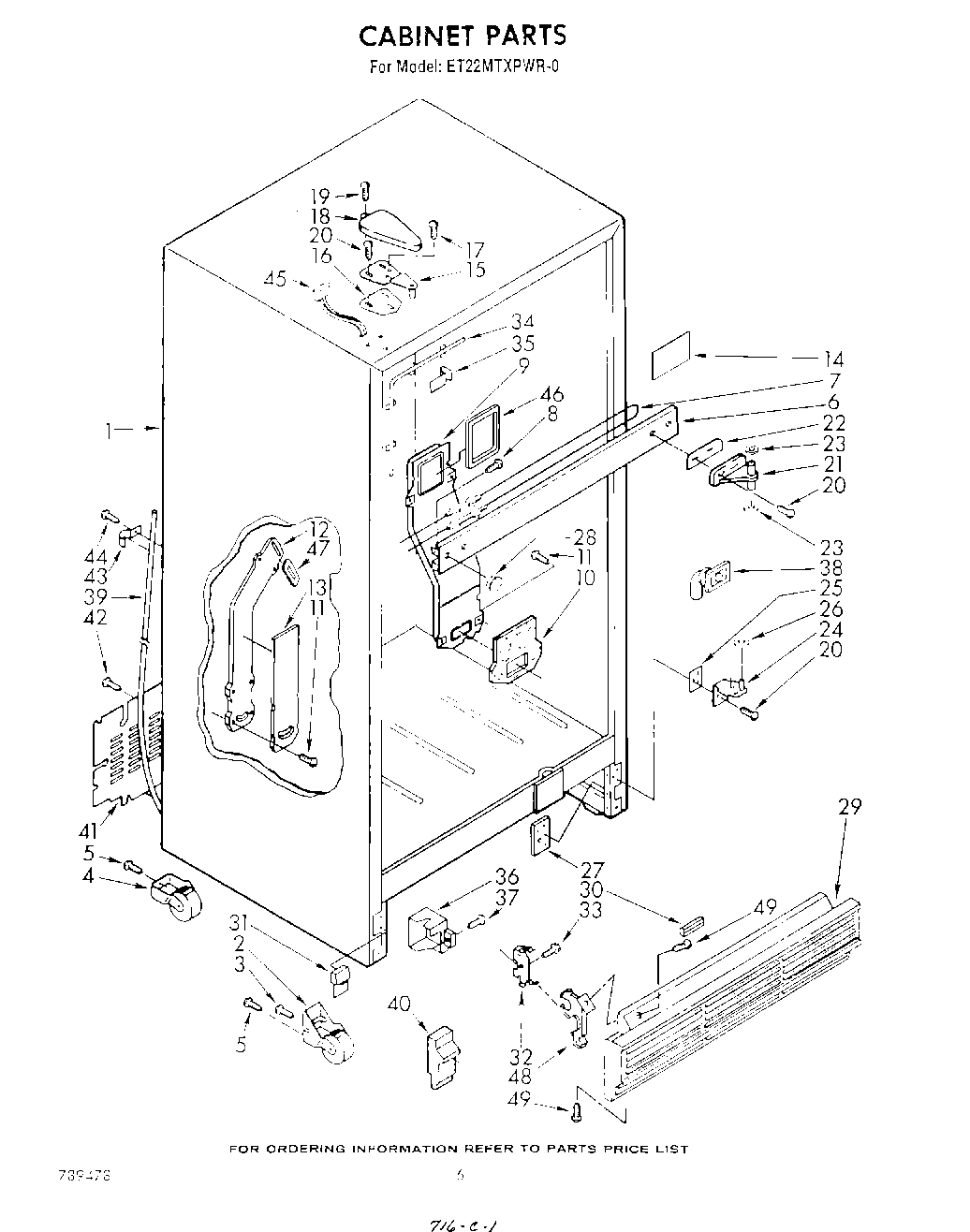

04 - CABINET

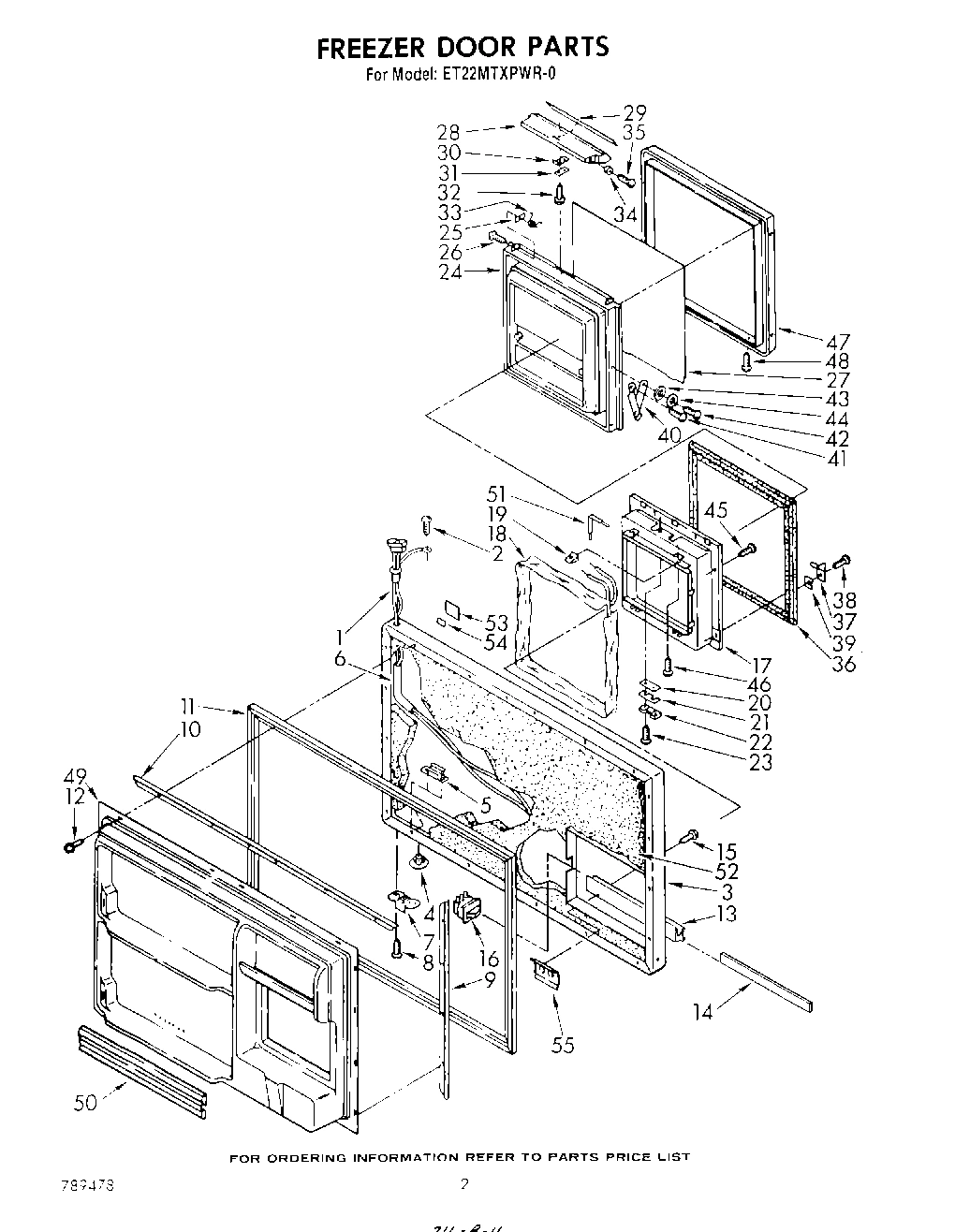

02 - FREEZER DOOR

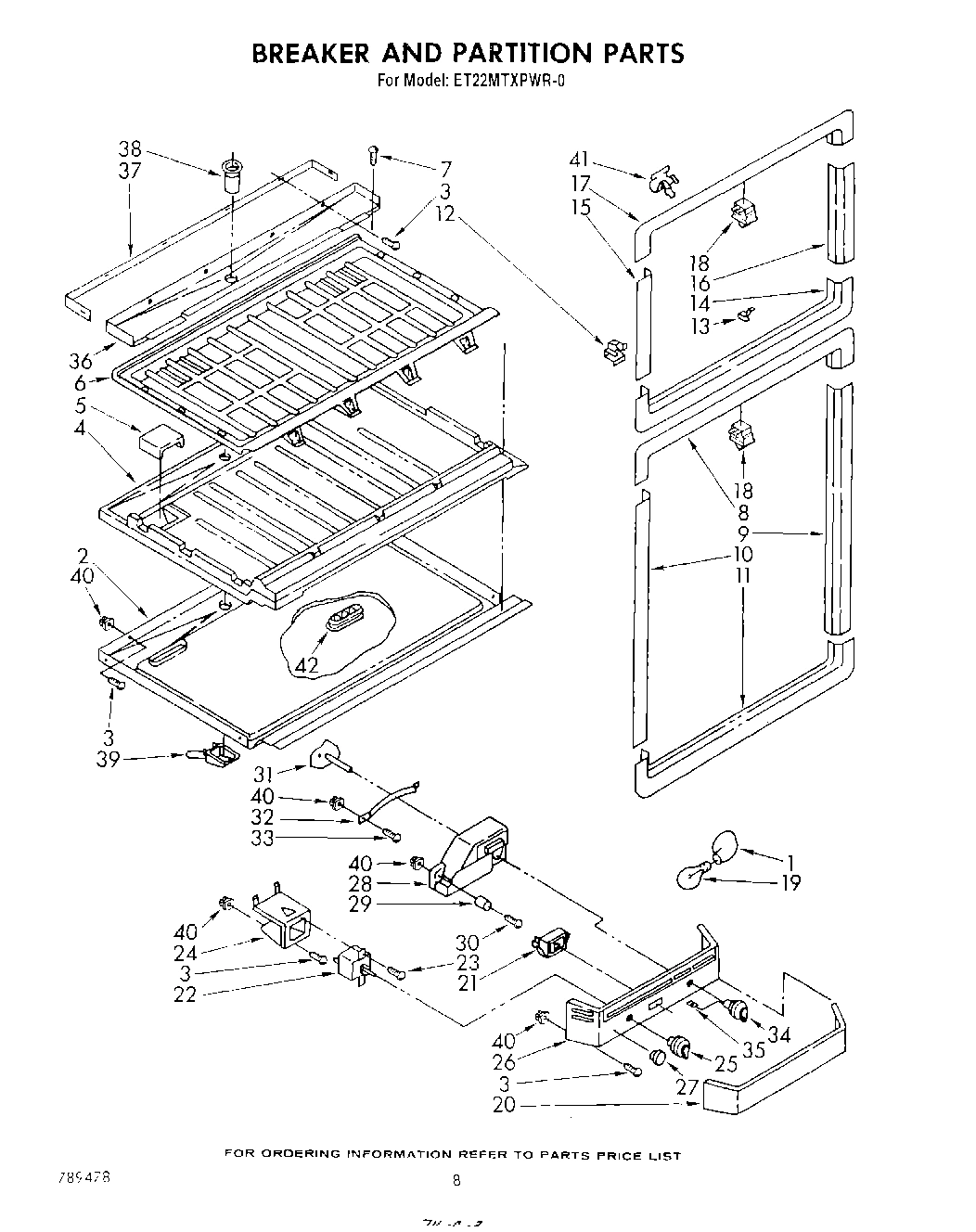

05 - BREAKER AND PARTITION

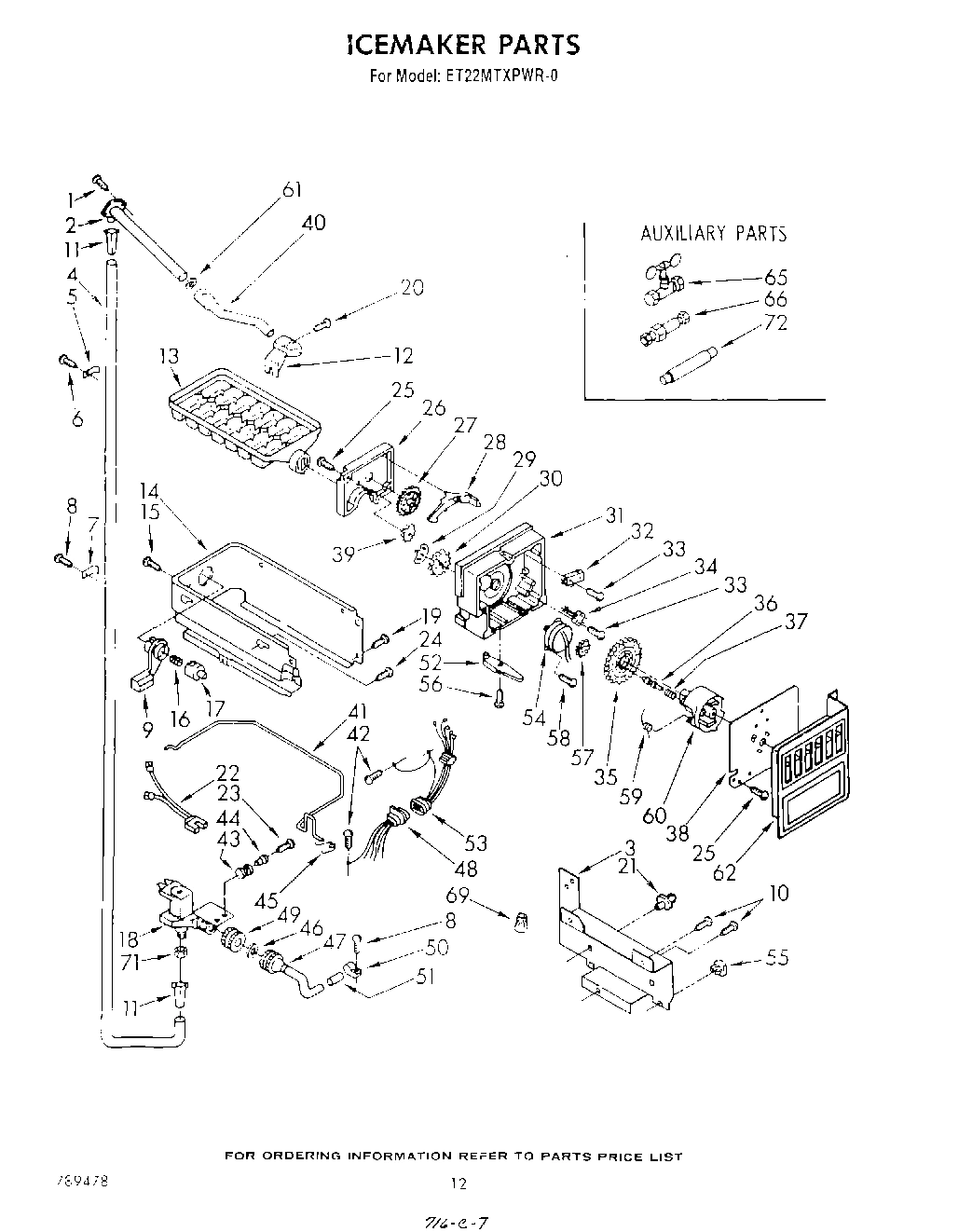

07 - ICE MAKER

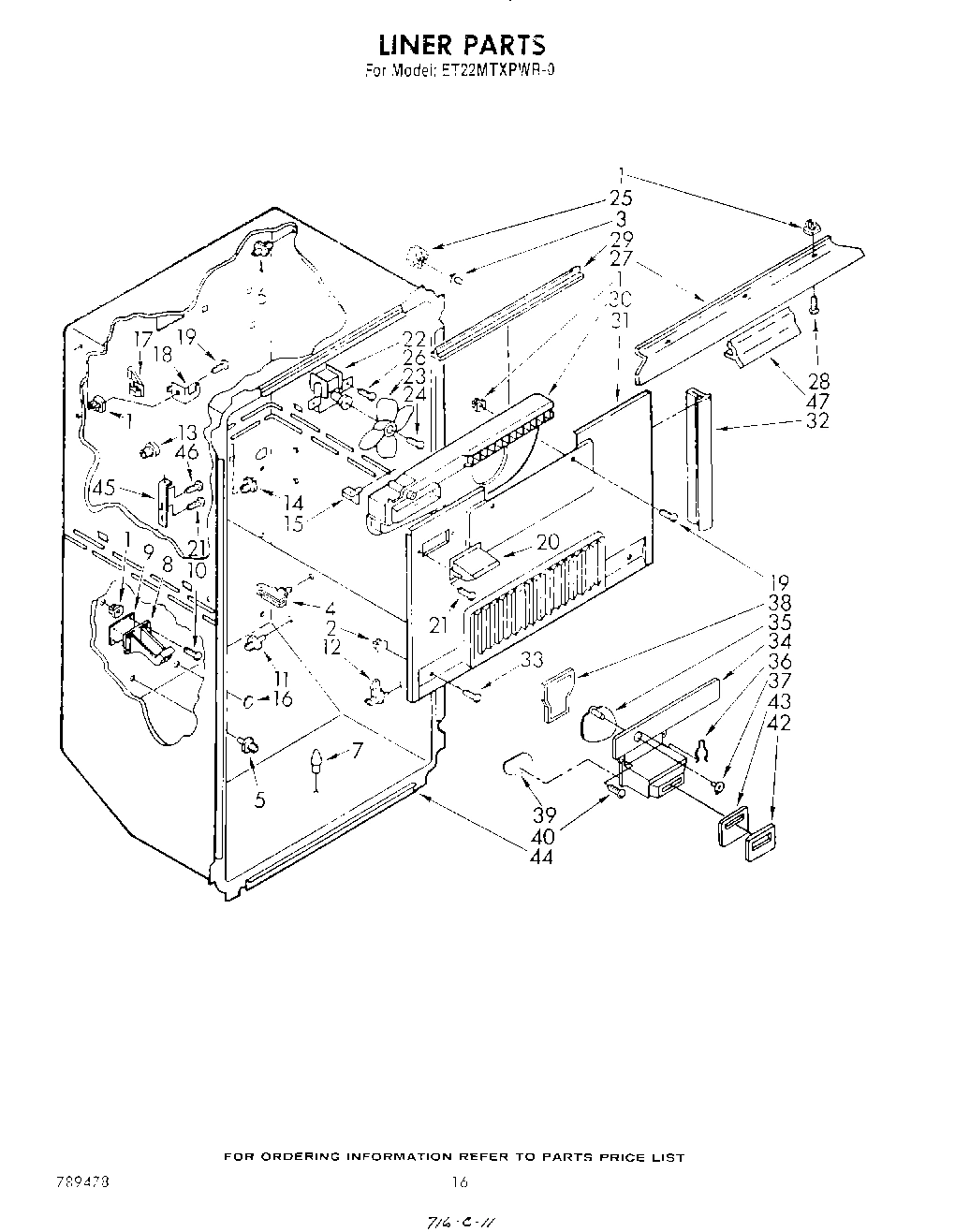

09 - LINER , NOT ILLUSTRATED AND OPTIONAL

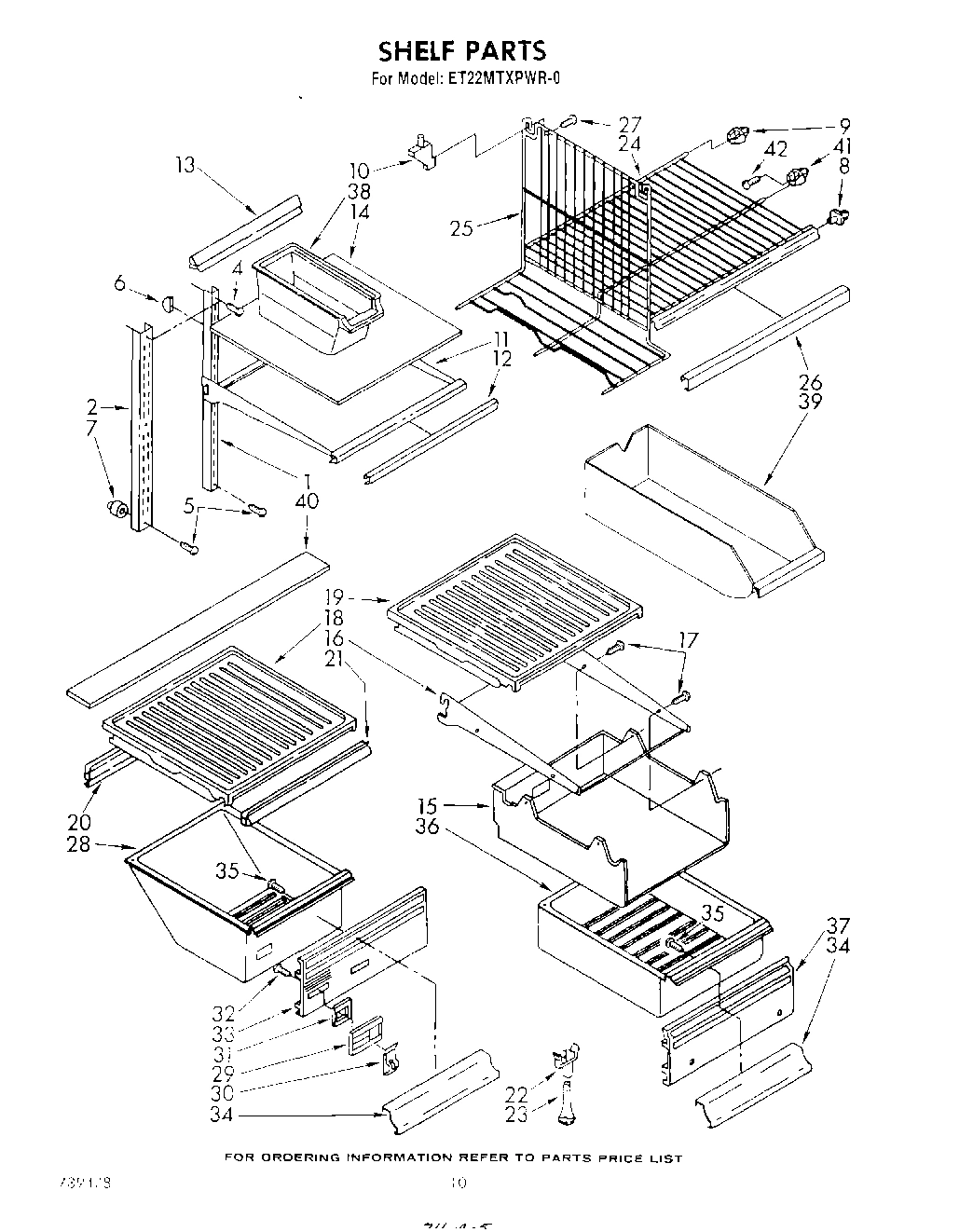

06 - SHELF

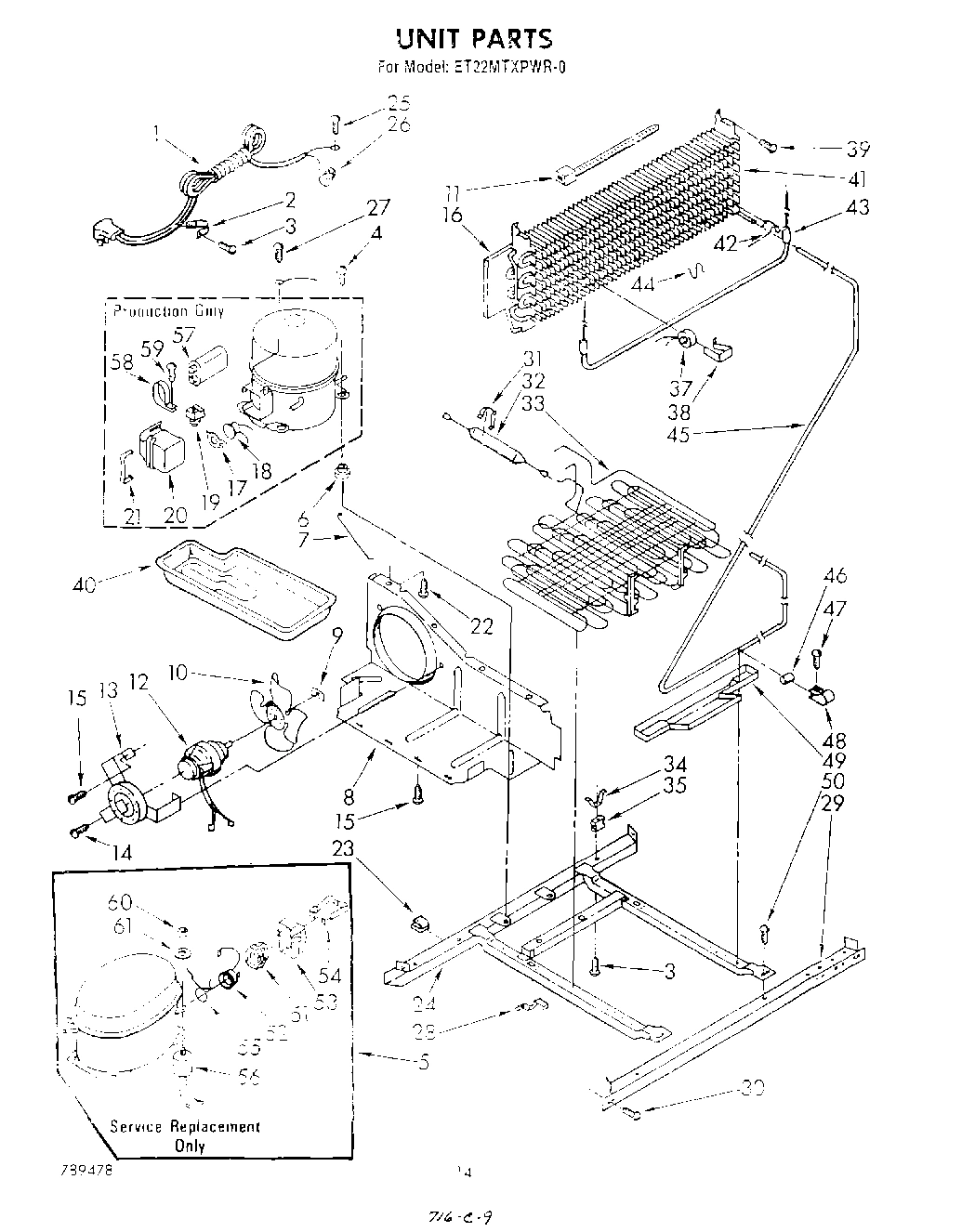

08 - UNIT
Common parts from model Whirlpool ET22MTXPWR0 TOP MOUNT REFRIGERATOR
WPL 261890 WPL 261890 Contact Us For Availability
WPL 285365 WPL 285365 Contact Us For Availability
WPL 285366 WPL 285366 Contact Us For Availability
WPL 350941 WPL 350941 Contact Us For Availability
WPL LIT1110226 WPL LIT1110226 Contact Us For Availability
WPL LIT1110228 WPL LIT1110228 Contact Us For Availability
WPL LIT789478 WPL LIT789478 Contact Us For Availability
WPL LIT946607 WPL LIT946607 Contact Us For Availability
1
Freezer, Crossover WPL 936187 Contact Us For Availability
1
Grommet WPL 842339 Contact Us For Availability
1
Shelf, Ladder (2) WPL 934267 Contact Us For Availability
1
Cord, Service WPL 850626 Contact Us For Availability
2
Bottom, Compartment Separator WPL 981010 Contact Us For Availability
2
Grommet WPL 848445 Contact Us For Availability
2
Shelf, Ladder Center WPL 936230 Contact Us For Availability
3
Freezer, Door Panel (Toast) WPL 1101346 Contact Us For Availability
3
Freezer, Door Panel (Platinum) WPL 1101347 Contact Us For Availability
3
Freezer, Door Panel (White) WPL 942978 Contact Us For Availability
3
Freezer, Door Panel (Golden Harvest) WPL 942980 Contact Us For Availability
3
Freezer, Door Panel (Almond) WPL 942982 Contact Us For Availability
3
Mounting Bracket WPL 989740 Contact Us For Availability
3
Screw, Grommet WPL 845722 Contact Us For Availability
4
Insulation, Separator WPL 981011 Contact Us For Availability
4
Screw, 8 x 1-1/4 WPL 488357 Contact Us For Availability
4
Stud, Light Lens WPL 935243 Contact Us For Availability
5
Insulation, Air Return WPL 836220 Contact Us For Availability
5
Shelf, Stud WPL 521516 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 488960 Contact Us For Availability
5
Screw (Repair) WPL 488980 Contact Us For Availability
5
Compressor (Include Items 51, 52, 53, 54, 55, WPL 482982 Contact Us For Availability
6
Center Rail (Toast) WPL 1100303 Contact Us For Availability
6
Center Rail (Platinum) WPL 1100304 Contact Us For Availability
6
Center Rail (White) WPL 836067 Contact Us For Availability
6
Center Rail (Golden Harvest) WPL 989909 Contact Us For Availability
6
Center Rail (Almond) WPL 989911 Contact Us For Availability
6
Tube, Door Wiring WPL 991372 Contact Us For Availability
6
Top, Compartment Separator WPL 981005 Contact Us For Availability
6
Stud WPL 526383 Contact Us For Availability
7
Grommet, Crisper Cover WPL 836409 Contact Us For Availability
7
Heater, Mullion WPL 989256 Contact Us For Availability
7
Bracket, Door Stop WPL 944035 Contact Us For Availability
7
Clamp, Tube WPL 836472 Contact Us For Availability
7
Screw Support, Center Ladder WPL 520959 Contact Us For Availability
7
Guard, Fan WPL 850156 Contact Us For Availability
8
Screw (Repair) WPL 487470 Contact Us For Availability
8
Screw (Repair) WPL 488930 Contact Us For Availability
8
Breaker, Mullion Bottom WPL 981036 Contact Us For Availability
8
Crisper Cover, Support Rear WPL 935241 Contact Us For Availability
8
Shelf, Stud WPL 529758 Contact Us For Availability
8
Baffle, Air WPL 850391 Contact Us For Availability
9
Air Duct WPL 945264 Contact Us For Availability
9
Retainer, Gasket Side (2) WPL 981033 Contact Us For Availability
9
Breaker Trim (R.S.) WPL 981039 Contact Us For Availability
9
Support & Cam WPL 627521 Contact Us For Availability
9
Spacer, Support Rear WPL 935911 Contact Us For Availability
9
Shelf Stud, Saddle (L.S.) WPL 523264 Contact Us For Availability
10
Spacer, Outlet Air Duct WPL 945265 Contact Us For Availability
10
Retainer, Gasket Top & Bottom (2) WPL 836118 Contact Us For Availability
10
Breaker Trim (L.S.) WPL 981040 Contact Us For Availability
10
Stud WPL 839213 Contact Us For Availability
10
Fan WPL 989524 Contact Us For Availability
11
Gasket, Magnetic Door WPL 986705 Contact Us For Availability
11
Breaker Trim, Bottom WPL 981003 Contact Us For Availability
11
Shelf Stud WPL 982281 Contact Us For Availability
11
Shelf, Cantilever WPL 936381 Contact Us For Availability
11
Strap WPL 851095 Contact Us For Availability
12
Air Duct, Meat Pan WPL 942227 Contact Us For Availability
12
Collar, Inlet WPL 844845 Contact Us For Availability
12
Shelf Stud WPL 981443 Contact Us For Availability
12
Trim, Shelf WPL 845610 Contact Us For Availability
13
Spacer, Meat Pan Outlet WPL 942232 Contact Us For Availability
13
Handle, Freezer Door WPL 989199 Contact Us For Availability
13
Breaker, Trim Clip WPL 534365 Contact Us For Availability
13
Screw Grommet WPL 538449 Contact Us For Availability
13
Reflector, Cantilever WPL 985083 Contact Us For Availability
13
Bracket WPL 548695 Contact Us For Availability
14
Seal, Strip WPL 985316 Contact Us For Availability
14
Insert, Handle WPL 1110224 Contact Us For Availability
14
Breaker Trim, Top WPL 981035 Contact Us For Availability
14
Frame WPL 627538 Contact Us For Availability
14
Stud WPL 509108 Contact Us For Availability
14
Glass, Cantilever WPL 1106047 Contact Us For Availability
15
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
15
Hinge, Top WPL 983608 Contact Us For Availability
15
Screw (Repair) WPL 488932 Contact Us For Availability
15
Breaker Trim (L.S.) Freezer WPL 981191 Contact Us For Availability
15
Screw, 8 x 1/2 WPL 489031 Contact Us For Availability
15
Retainer, Stud WPL 836374 Contact Us For Availability
15
Meat, Pan Housing WPL 942225 Contact Us For Availability
16
Shim, Hinge WPL 836192 Contact Us For Availability
16
Breaker Trim (R.S.) Freezer WPL 981047 Contact Us For Availability
16
Spring, Bearing WPL 627522 Contact Us For Availability
16
Hole, Plug WPL 519890 Contact Us For Availability
16
Cantilever, Pan Shelf WPL 942956 Contact Us For Availability
16
Baffle, Air WPL 981736 Contact Us For Availability
17
Spacer, Handle Door WPL 943188 Contact Us For Availability
17
Screw, 8-22 x 5/16 (4) WPL 489085 Contact Us For Availability
17
Housing, Door WPL 1101211 Contact Us For Availability
17
Breaker Trim, Top WPL 981002 Contact Us For Availability
17
Bearing WPL 627523 Contact Us For Availability
17
Retainer, Plug WPL 850208 Contact Us For Availability
17
Overload Spring WPL 943494 Contact Us For Availability
18
Hinge Cover (Toast) WPL 1100381 Contact Us For Availability
18
Hinge Cover (Platinum) WPL 1100382 Contact Us For Availability
18
Hinge Cover (Golden Harvest) WPL 989885 Contact Us For Availability
18
Heater, Housing WPL 989473 Contact Us For Availability
18
Receptacle, Bracket WPL 842825 Contact Us For Availability
18
Pan Slide & Cover (2) WPL 1110200 Contact Us For Availability
18
Overload WPL 945536 Contact Us For Availability
19
Screw, 6-32 x 1/2 WPL 488915 Contact Us For Availability
19
Speed Nut WPL 488390 Contact Us For Availability
19
Screw, 8-18 x 5/8 (4) WPL 488203 Contact Us For Availability
19
Pan Slide & Cover (Meat) WPL 1110204 Contact Us For Availability
19
Relay WPL 945535 Contact Us For Availability
20
Screw (Repair) WPL 488949 Contact Us For Availability
20
Retainer, Clip Strike WPL 988651 Contact Us For Availability
20
Light Lens WPL 983910 Contact Us For Availability
20
Air Duct, Extension WPL 988479 Contact Us For Availability
20
Crisper Gasket, Rear WPL 982158 Contact Us For Availability
20
Case WPL 943496 Contact Us For Availability
21
Hinge, Center WPL 836153 Contact Us For Availability
21
Shim, Strike WPL 988666 Contact Us For Availability
21
Stud WPL 842898 Contact Us For Availability
21
Crisper Gasket, Front WPL 983114 Contact Us For Availability
21
Spring WPL 943497 Contact Us For Availability
22
Support, Crisper Cover WPL 848562 No Longer Available
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Strike, Latch WPL 988649 Contact Us For Availability
22
Wiring, Water Valve WPL 549447 Contact Us For Availability
22
Screw, 8-15 x 3/8 WPL 488978 Contact Us For Availability
23
Post, Cripser Cover WPL 836410 Contact Us For Availability
23
Clip, Wire (2) WPL 548745 Contact Us For Availability
24
Hinge (Bottom) WPL 836686 Contact Us For Availability
24
Door, Tilt Ice WPL 1101213 Contact Us For Availability
24
Bracket WPL 848446 Contact Us For Availability
24
Shelf, Freezer WPL 942243 Contact Us For Availability
24
Frame WPL 945463 Contact Us For Availability
25
Shim, Hinge WPL 836196 Contact Us For Availability
25
Retainer Clip WPL 988650 Contact Us For Availability
25
Knob, Temperature WPL 836482 Contact Us For Availability
25
Grommet WPL 531933 Contact Us For Availability
25
Divider, Shelf WPL 942245 Contact Us For Availability
25
Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability
26
Screw (Repair) WPL 487980 Contact Us For Availability
26
Panel, Control WPL 942214 Contact Us For Availability
26
Cover, Gear WPL 627519 Contact Us For Availability
26
Connector Wire WPL 227991 Contact Us For Availability
26
Trim, Shelf Front WPL 942955 Contact Us For Availability
27
Tap Plate WPL 836162 Contact Us For Availability
27
Hole Plug WPL 534927 Contact Us For Availability
27
Overlay, Door WPL 943299 Contact Us For Availability
27
Gear & Cam WPL 627517 Contact Us For Availability
27
Baffle, Liner Top WPL 944297 Contact Us For Availability
28
Hole Plug (Toast) WPL 1100174 Contact Us For Availability
28
Hole Plug (Platinum) WPL 1100175 Contact Us For Availability
28
Hole, Plug (White) WPL 835974 Contact Us For Availability
28
Hole, Plug (Almond) WPL 989193 Contact Us For Availability
28
Hole Plug (Golden Harvest) WPL 989882 Contact Us For Availability
28
Handle, Door Tilt Ice WPL 988629 Contact Us For Availability
28
Air Diffuser WPL 836487 Contact Us For Availability
28
Lever, Cam WPL 627518 Contact Us For Availability
28
Pan, Crisper WPL 942248 Contact Us For Availability
28
Clip (2) WPL 548744 Contact Us For Availability
29
Exterior, Grille (Toast) WPL 1100307 Contact Us For Availability
29
Exterior, Grille (Platinum) WPL 1100308 Contact Us For Availability
29
Exterior, Grille (White) WPL 944233 Contact Us For Availability
29
Exterior, Grille (Golden Harvest) WPL 944235 Contact Us For Availability
29
Exterior, Grille (Almond) WPL 944237 Contact Us For Availability
29
Insert, Handle WPL 988663 Contact Us For Availability
29
Cam & Pinion WPL 627516 Contact Us For Availability
29
Sealing Gasket WPL 984497 Contact Us For Availability
29
Housing, Humidity Control WPL 942234 Contact Us For Availability
29
Rail, Front WPL 548662 Contact Us For Availability
30
Bumper, Grille WPL 546131 Contact Us For Availability
30
Latch, Door WPL 988647 Contact Us For Availability
30
Gear WPL 627736 Contact Us For Availability
30
Scroll, Fan WPL 988474 Contact Us For Availability
30
Slide Control WPL 942235 Contact Us For Availability
31
Filler, Grille (Toast) WPL 1100182 Contact Us For Availability
31
Filler, Grille (Platinum) WPL 1100183 Contact Us For Availability
31
C WPL 838535 Contact Us For Availability
31
WPL 989929 WPL 989929 Contact Us For Availability
31
WPL 989931 WPL 989931 Contact Us For Availability
31
Retainer, Latch WPL 988725 Contact Us For Availability
31
Damper, Air WPL 836247 Contact Us For Availability
31
Housing, Control WPL 627530 Contact Us For Availability
31
Cover, Evaporator WPL 937712 Contact Us For Availability
31
Seal, Control WPL 942236 Contact Us For Availability
31
Clamp WPL 548508 Contact Us For Availability
32
WPL 989068 WPL 989068 Contact Us For Availability
32
Retainer, Damper WPL 836493 Contact Us For Availability
32
Gasket, Evaporator Cover WPL 991074 Contact Us For Availability
32
Screw, 6-19 x 7/16 WPL 489041 Contact Us For Availability
33
Spring, Handle (Right Side) WPL 988726 Contact Us For Availability
33
Spring, Handle (Left Side) WPL 988727 Contact Us For Availability
33
Screw, 4-24 x 3/4 WPL 488360 Contact Us For Availability
33
Screw (Repair) WPL 488994 Contact Us For Availability
33
Front Cover, Crisper WPL 1109037 Contact Us For Availability
33
Condenser & Precooler WPL 945525 Contact Us For Availability
34
WPL 934447 WPL 934447 Contact Us For Availability
34
Spacer, Handle WPL 988730 Contact Us For Availability
34
Switch, Water Valve WPL 627727 Contact Us For Availability
34
Control Panel, Meat Pan WPL 1110203 Contact Us For Availability
34
Overlay, Front Cover WPL 984749 Contact Us For Availability
34
Clamp (4) WPL 548738 Contact Us For Availability
35
WPL 935663 WPL 935663 Contact Us For Availability
35
Knob, Retainer WPL 837444 Contact Us For Availability
35
Gear, Drive WPL 627504 Contact Us For Availability
35
Damper Control WPL 942228 Contact Us For Availability
35
Screw (Repair) WPL 488132 Contact Us For Availability
35
Grommet (4) WPL 943447 Contact Us For Availability
36
WPL 549948 WPL 549948 Contact Us For Availability
36
Gasket, Door Tilt Ice WPL 988654 Contact Us For Availability
36
Drain Pan WPL 981008 Contact Us For Availability
36
Pin, Drive WPL 627509 Contact Us For Availability
36
Retainer, Spring WPL 942959 Contact Us For Availability
36
Pan, Meat WPL 849020 Contact Us For Availability
37
Hinge, Door WPL 936910 Contact Us For Availability
37
Knob, Control WPL 837445 Contact Us For Availability
37
Gasket, Drain Pan WPL 981046 Contact Us For Availability
37
Spring WPL 627508 Contact Us For Availability
37
Front Cover, Meat WPL 1110206 Contact Us For Availability
38
WPL 841687 WPL 841687 Contact Us For Availability
38
Fitting, Drain Pan WPL 841770 Contact Us For Availability
38
Plate WPL 627513 Contact Us For Availability
38
Seal, Control Panel WPL 942231 Contact Us For Availability
38
Clamp WPL 513584 Contact Us For Availability
39
Shim, Hinge WPL 988728 Contact Us For Availability
39
Cup, Drain WPL 841708 Contact Us For Availability
39
Gear & Pinion WPL 627735 Contact Us For Availability
39
Damper, Foam Pad WPL 942229 Contact Us For Availability
39
Ice Cube Pan WPL 1101205 Contact Us For Availability
40
WPL 836372 WPL 836372 Contact Us For Availability
40
Door Stop WPL 988658 Contact Us For Availability
40
Inlet Tube WPL 988451 Contact Us For Availability
40
Crisper, Light Lens WPL 935242 Contact Us For Availability
40
Tray, Evaporator WPL 849331 Contact Us For Availability
41
WPL 850459 WPL 850459 Contact Us For Availability
41
Screw, 10-32 x 5/16 WPL 488953 Contact Us For Availability
41
Breaker Retainer Clip WPL 848478 Contact Us For Availability
41
Arm, Shutoff WPL 627617 Contact Us For Availability
41
Shelf, Saddle WPL 990261 Contact Us For Availability
41
Evaporator WPL 1105112 Contact Us For Availability
42
Air Return, Grommet WPL 946683 Contact Us For Availability
42
Screw, Ground WPL 488542 Contact Us For Availability
42
Backup Plate WPL 943024 Contact Us For Availability
42
Clip, Heater (2) WPL 850721 Contact Us For Availability
43
WPL 836077 WPL 836077 Contact Us For Availability
43
Washer, Plain WPL 488944 Contact Us For Availability
43
Grommet (2) WPL 510723 Contact Us For Availability
43
Seal, Control Panel WPL 943023 Contact Us For Availability
43
Heater, Defrost WPL 992911 Contact Us For Availability
44
Lockwasher WPL 488945 Contact Us For Availability
44
Eyelet Spacer (2) WPL 510906 Contact Us For Availability
44
Liner (Not A Serviceable Part) WPL ARI50127A4 Contact Us For Availability
44
Support, Heater WPL 851358 Contact Us For Availability
45
WPL 936183 WPL 936183 Contact Us For Availability
45
Spring, Shutoff Arm WPL 627526 Contact Us For Availability
45
Support, Icemaker WPL 983861 Contact Us For Availability
45
Exchanger, Heat WPL 945531 Contact Us For Availability
46
WPL 945047 WPL 945047 Contact Us For Availability
46
Dampener (2) WPL 510769 Contact Us For Availability
47
WPL 876029 WPL 876029 Contact Us For Availability
47
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
47
WPL 799344 WPL 799344 Contact Us For Availability
47
WPL 945046 WPL 945046 Contact Us For Availability
47
Front, Cover Housing (Toast) WPL 1100395 Contact Us For Availability
47
Front, Cover Housing (Pl WPL 1100396 Contact Us For Availability
47
WPL 1110223 WPL 1110223 Contact Us For Availability
47
WPL 935055 WPL 935055 Contact Us For Availability
47
WPL 943070 WPL 943070 Contact Us For Availability
47
Tube, Inlet Valve WPL 836200 Contact Us For Availability
47
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
47
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
47
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
47
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
47
WPL 72112 WPL 72112 Contact Us For Availability
47
WPL 799832 WPL 799832 Contact Us For Availability
47
WPL 799833 WPL 799833 Contact Us For Availability
47
WPL 799908 WPL 799908 Contact Us For Availability
47
WPL 944298 WPL 944298 Contact Us For Availability
47
WPL 978883 WPL 978883 Contact Us For Availability
48
WPL 487820 WPL 487820 Contact Us For Availability
48
Harness (Cabinet) WPL 482254 Contact Us For Availability
48
Clamp (2) WPL 510716 Contact Us For Availability
49
WPL 1101358 WPL 1101358 Contact Us For Availability
49
Nut, Valve WPL 537588 Contact Us For Availability
49
Pan, Drip WPL 945572 Contact Us For Availability
50
Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability
50
WPL 1110222 WPL 1110222 Contact Us For Availability
51
WPL 482672 WPL 482672 Contact Us For Availability
52
Lever, Shutoff WPL 627524 Contact Us For Availability
52
Overload WPL 483054 Contact Us For Availability
53
WPL 945116 WPL 945116 Contact Us For Availability
53
Harness (Ice Maker) WPL 627611 Contact Us For Availability
53
Cover, Terminal WPL 1105015 Contact Us For Availability
54
WPL 991259 WPL 991259 Contact Us For Availability
54
Motor WPL 627726 Contact Us For Availability
54
Strap WPL 938384 Contact Us For Availability
55
WPL 941242 WPL 941242 Contact Us For Availability
55
Grommet WPL 987994 Contact Us For Availability
55
Overload Spring WPL 1114190 Contact Us For Availability
56
Capacitor WPL 482996 Contact Us For Availability
57
Gear, Timer WPL 627503 Contact Us For Availability
57
Running Capacitor (Use With Production Compre WPL 1101183 Contact Us For Availability
58
Screw, 6-20 x 3/8 (2) WPL 488985 Contact Us For Availability
58
Clamp, Capacitor WPL 1101184 Contact Us For Availability
59
Spring WPL 627507 Contact Us For Availability
60
Cam WPL 627506 Contact Us For Availability
60
Nut WPL 489142 Contact Us For Availability
61
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
61
Washer WPL 489143 Contact Us For Availability
61
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
62
Cover, Front WPL 1110208 Contact Us For Availability
65
Valve, Shutoff (1/4`` x 1/4``) WPL 541157 Contact Us For Availability
66
Union, 1/4`` x 3/16`` WPL 512503 Contact Us For Availability
72
Filter Kit WPL 978488 Contact Us For Availability
× ![]()
