Model Whirlpool ET18JKXMWR3 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

1

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

1

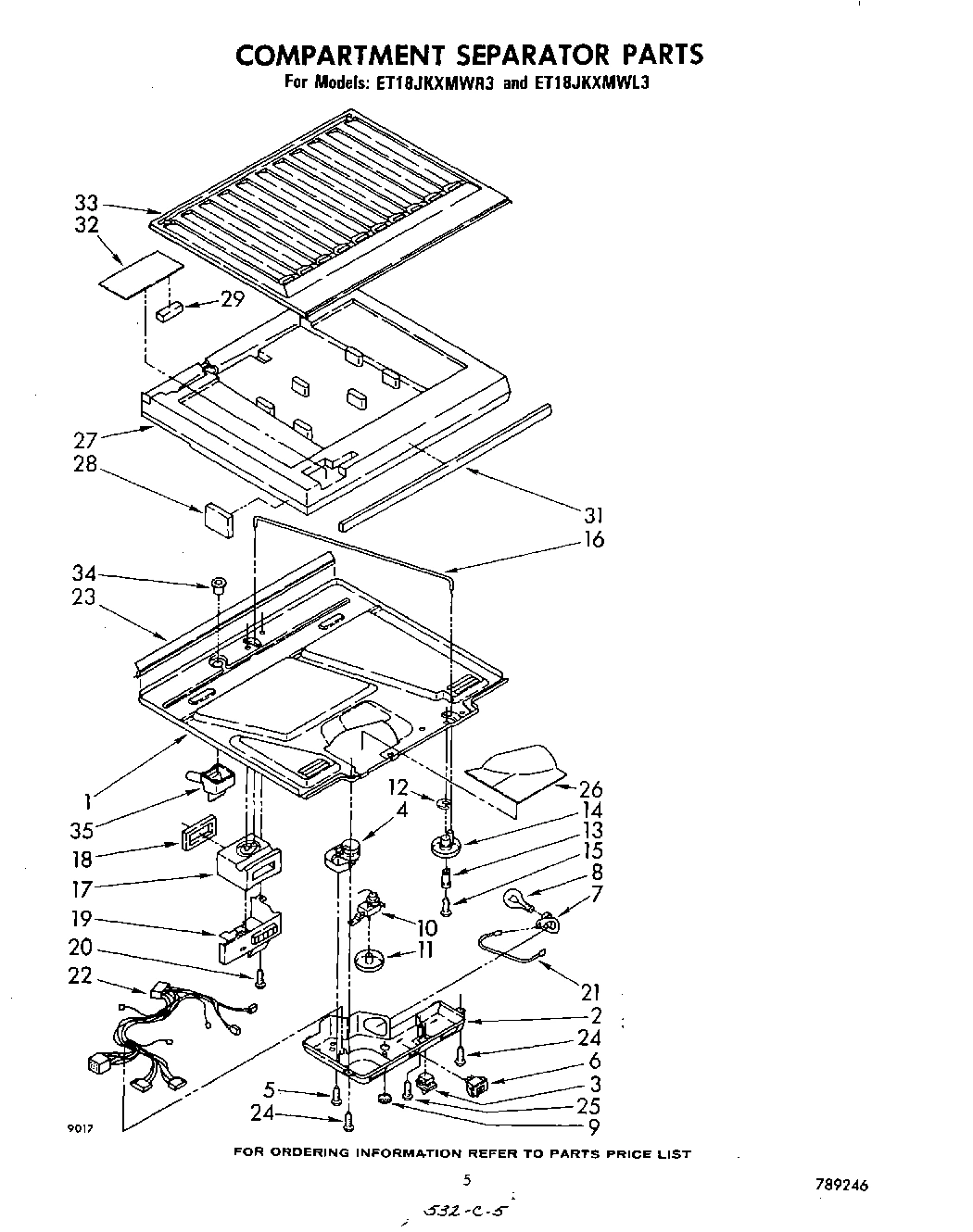

Bottom, Compartment Separator WPL 943711 Contact Us For Availability

1

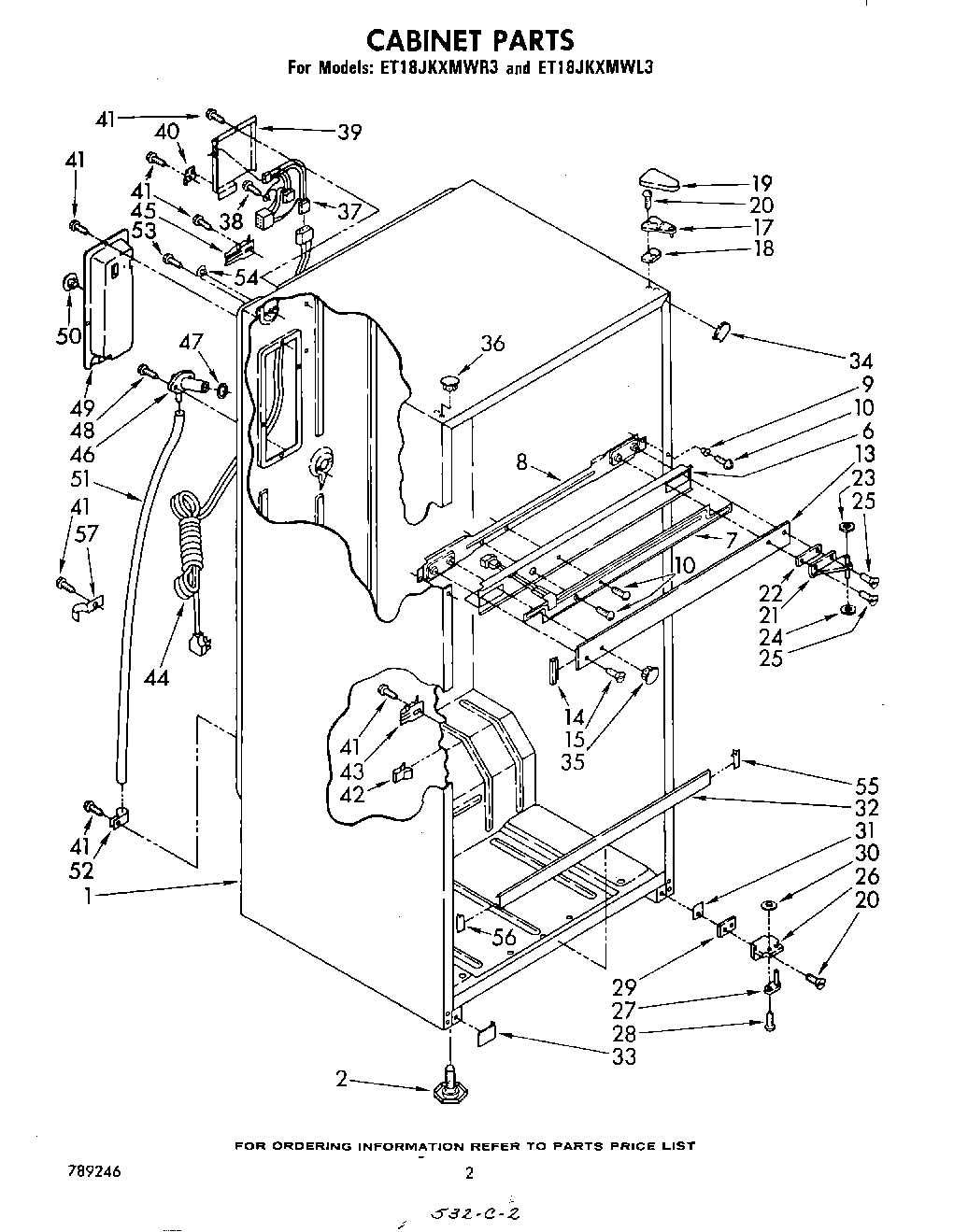

Cabinet (Not A Serviceable Part) WPL ARI43955A5 Contact Us For Availability

1

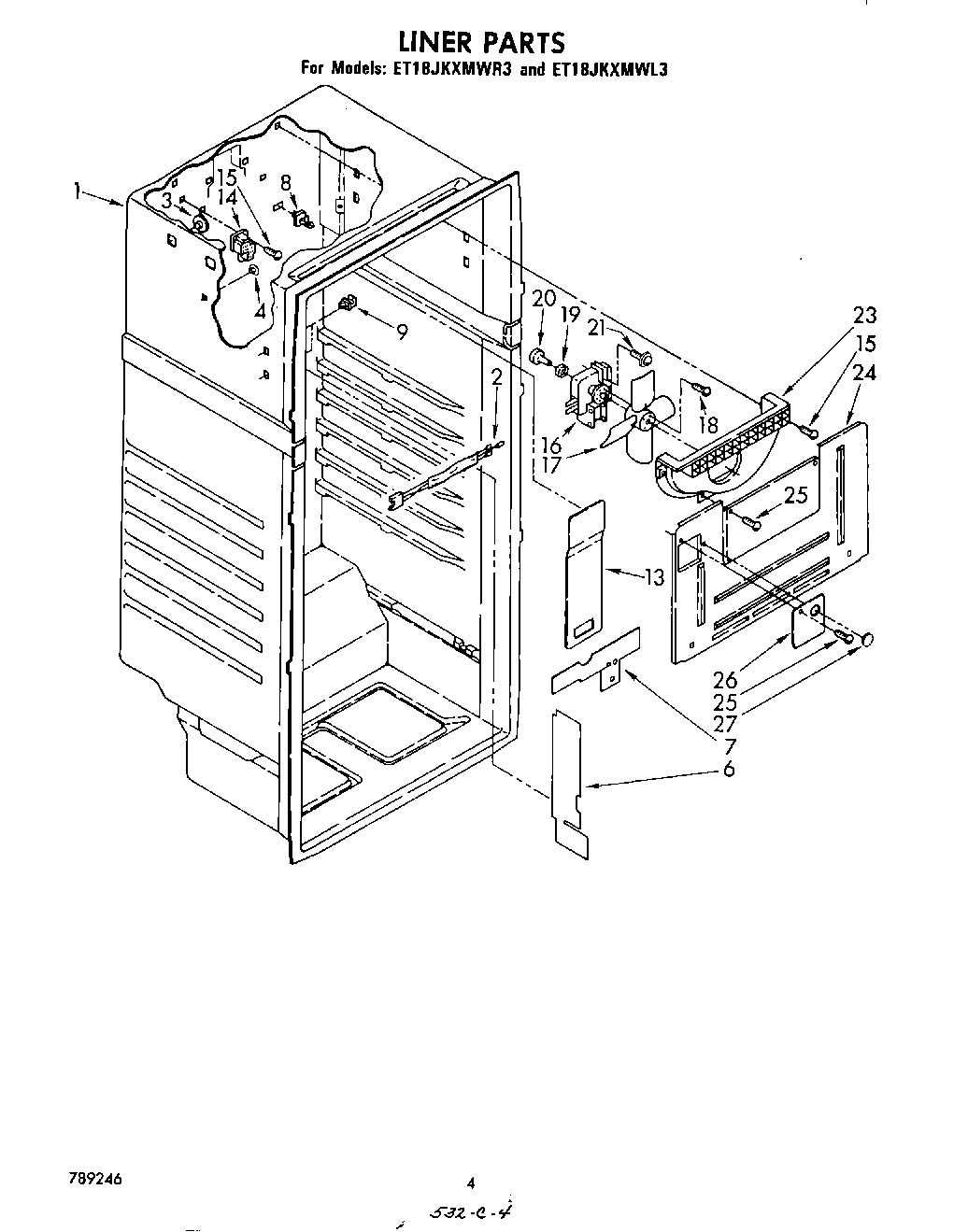

Liner (Not A Serviceable Part) WPL ARI43956A2 Contact Us For Availability

1

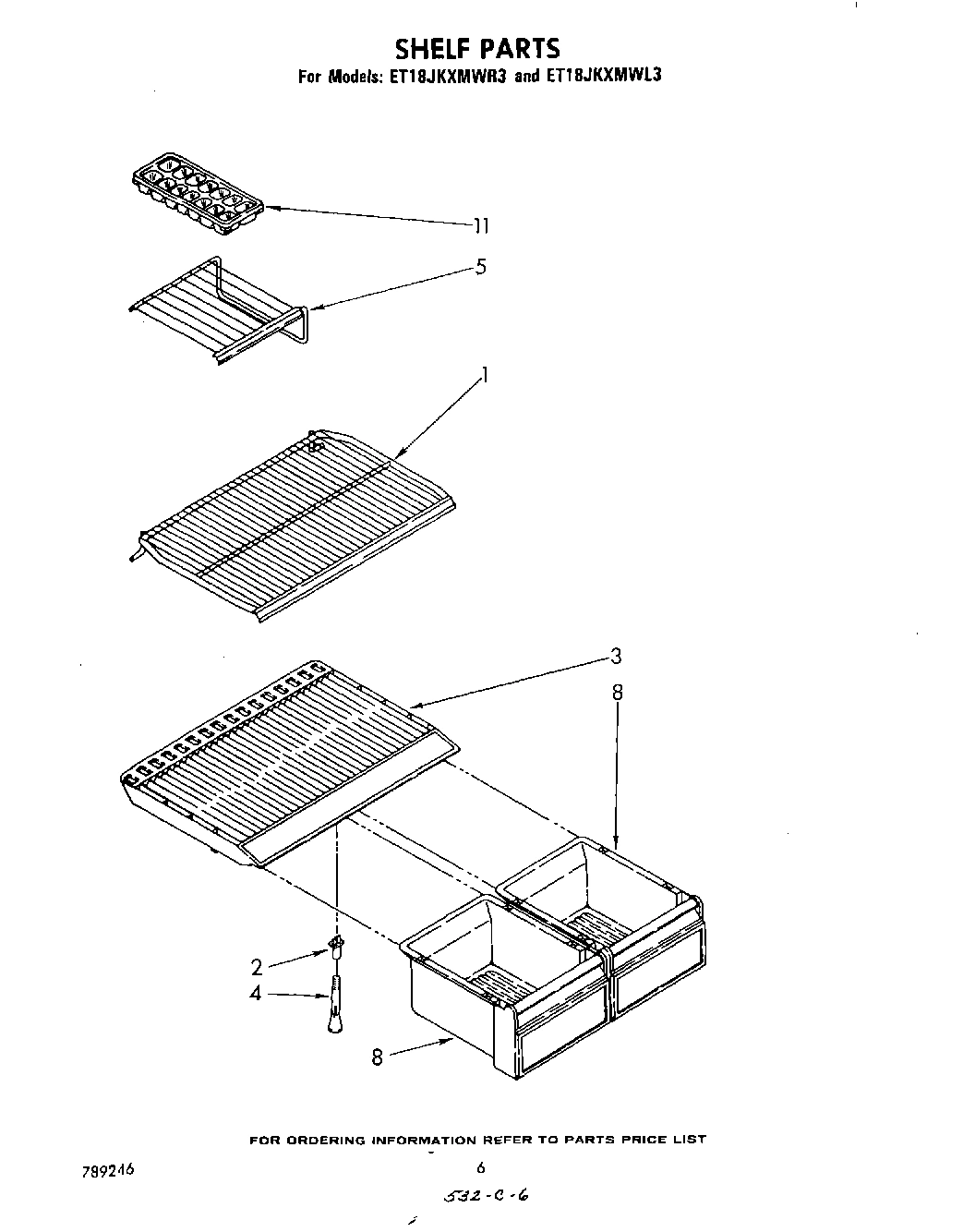

Shelf, Pullout (3) WPL 943719 Contact Us For Availability

2

Box, Control WPL 942757 Contact Us For Availability

2

Leveler WPL 944766 Contact Us For Availability

2

Bumper (2) WPL 1103640 Contact Us For Availability

2

Wiring, Fan Motor WPL 943796 Contact Us For Availability

2

Support, Crisper Cover WPL 1103731 Contact Us For Availability

3

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

3

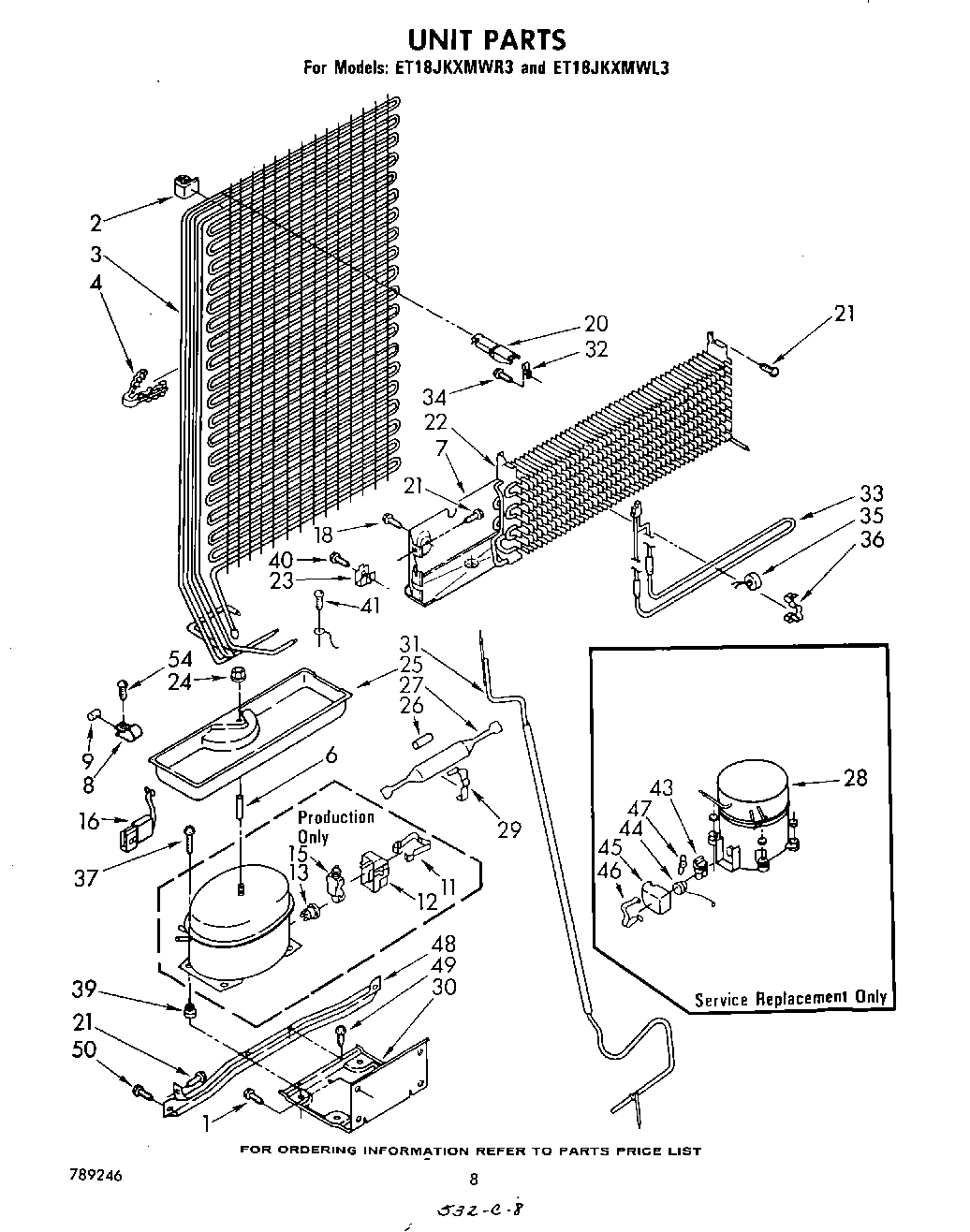

Condenser & Precooler Assembly WPL 1101003 Contact Us For Availability

3

Hole Plug WPL 944795 Contact Us For Availability

3

Crisper Cover (For Platinum Model Only) WPL 943731 Contact Us For Availability

3

Cover, Crisper WPL 946429 Contact Us For Availability

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

4

Post, Cripser Cover WPL 836410 Contact Us For Availability

4

Timer, Defrost (10 Hour) WPL 945486 Contact Us For Availability

4

Clip Tube (2) WPL 942739 Contact Us For Availability

5

WP487353 Whirlpool Refrigerator Screw In Stock WPL WP487353 $4.82

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $4.82

5

Shelf, Ice Cube Pan WPL 1100799 Contact Us For Availability

6

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $4.82

6

Screw (Repair) WPL 488930 Contact Us For Availability

6

Frame, Center Rail WPL 943698 Contact Us For Availability

6

Spacer WPL 942816 Contact Us For Availability

6

Side, Electric Shield WPL 942751 Contact Us For Availability

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $4.82

7

Hole Plug (Toast) WPL 1100188 Contact Us For Availability

7

Hole Plug (Platinum) WPL 1100189 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

Hole Plug (Coffee) WPL 989892 Contact Us For Availability

7

Heater, Mullion WPL 943691 Contact Us For Availability

7

Heat Shield Evaporator WPL 943765 Contact Us For Availability

7

Top, Electric Shield WPL 946351 Contact Us For Availability

8

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $6.45

8

Door Gasket, Magnetic WPL 946991 Contact Us For Availability

8

Door Gasket, Magnetic (For Platinum Model Onl WPL 946993 Contact Us For Availability

8

Center Rail, Bracket WPL 943699 Contact Us For Availability

8

Tube Clamp WPL 510716 Contact Us For Availability

8

Stud, Evaporator (2) WPL 942750 Contact Us For Availability

8

Pan, Crisper WPL 943735 Contact Us For Availability

8

Crisper Pan (For Platinum Model Only) WPL 946438 Contact Us For Availability

9

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

9

Stud Hook (2) WPL 939065 Contact Us For Availability

9

Ferrule, Center Rail WPL 942737 Contact Us For Availability

9

Dampener WPL 945593 Contact Us For Availability

10

1123394 Whirlpool Refrigerator Cold Control T Backorder WPL 1123394 $148.53

10

819342 Whirlpool Refrigerator Endcap Kit In Stock WPL 819342 $37.99

10

Screw, 8-32 x 1/2 WPL 489129 Contact Us For Availability

11

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $8.99

11

Knob, Thermostat WPL 943798 Contact Us For Availability

11

Spring, Relay Case WPL 938384 Contact Us For Availability

12

Handle, Center WPL 982946 Contact Us For Availability

12

Lockwasher WPL 489053 Contact Us For Availability

12

Case, Relay WPL 1105015 Contact Us For Availability

Shim, Handle WPL 943187 Contact Us For Availability

Shim, Handle End (Side) WPL 992872 Contact Us For Availability

Spacer, Knob WPL 937105 Contact Us For Availability

Center Rail (Platinum) WPL 1100677 Contact Us For Availability

Center Rail (Toast) WPL 1100678 Contact Us For Availability

Center Rail (White) WPL 943692 Contact Us For Availability

Center Rail (Coffee) WPL 943694 Contact Us For Availability

Center Rail (Golden Harvest) WPL 943695 Contact Us For Availability

Center Rail (Almond) WPL 943697 Contact Us For Availability

Overload WPL 946616 Contact Us For Availability

Cover, Air Duct WPL 943707 Contact Us For Availability

Spacer, Handle Door WPL 943188 Contact Us For Availability

Knob, Air Control WPL 935727 Contact Us For Availability

Filler, Center Rail (2) (Platinum) WPL 1100679 Contact Us For Availability

Filler, Center Rail (2) (Toast) WPL 1100680 Contact Us For Availability

Filler, Center Rail (2) (White) WPL 946320 Contact Us For Availability

Filler, Center Rail (2) (Almond) WPL 946321 Contact Us For Availability

Filler, Center Rail (2) (Coffee) WPL 946322 Contact Us For Availability

Filler, Center Rail (2) (Golden Harvest) WPL 946323 Contact Us For Availability

Terminal Block, Multiple WPL 942842 Contact Us For Availability

W11624204 Whirlpool Screw Backorder WPL W11624204 $8.89

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $4.82

Screw, 10-32 x 3/8 WPL 489097 Contact Us For Availability

Relay WPL 946615 Contact Us For Availability

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $65.89

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $4.82

Rod, Connecting WPL 943713 Contact Us For Availability

Housing Plug WPL 1101082 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $59.86

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

Air Diffuser Assembly WPL 942762 Contact Us For Availability

Shim, Hinge Top WPL 1100513 Contact Us For Availability

WP1101634 Whirlpool Refrigerator Cover In Stock WPL WP1101634 $7.46

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $4.82

Gasket, Air Diffuser WPL 942765 Contact Us For Availability

Shim, Top Hinge WPL 1100509 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $15.75

Interior Door Panel (For Platinum Model Only) WPL 945886 Contact Us For Availability

Interior Door Panel WPL 946827 Contact Us For Availability

Cover, Air Diffuser WPL 942767 Contact Us For Availability

Hinge Cover (Toast) WPL 1100172 Contact Us For Availability

Hinge, Cover (Coffee) WPL 989895 Contact Us For Availability

Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability

Grommet (2) WPL 531933 Contact Us For Availability

20

Trim, Door (2) WPL 946819 Contact Us For Availability

20

Condenser, Stand-Off WPL 1100636 Contact Us For Availability

20

Spacer, Fan Motor (2) WPL 935701 Contact Us For Availability

21

Hinge, Center WPL 944788 Contact Us For Availability

21

Wiring Assembly WPL 937078 Contact Us For Availability

21

Screw, 8 x 1-1/4 WPL 489042 Contact Us For Availability

Wiring, Assembly Control Box WPL 942769 Contact Us For Availability

Shim, Hinge Center WPL 836155 Contact Us For Availability

Shim, Center (Repair) WPL 836195 Contact Us For Availability

Evaporator WPL 943762 Contact Us For Availability

4386951 Whirlpool Refrigerator Clip In Stock WPL 4386951 $4.55

Compartment Door, Butter WPL 946998 Contact Us For Availability

Gasket, Bottom Separator WPL 943734 Contact Us For Availability

Scroll, Fan WPL 942846 Contact Us For Availability

WP487939 Whirlpool Refrigerator Nut In Stock WPL WP487939 $4.82

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $5.99

Clip, Medallion WPL 843213 Contact Us For Availability

Evaporator Cover WPL 943741 Contact Us For Availability

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $4.82

Screw, 8-15 x 1-1/2 WPL 488864 Contact Us For Availability

Screw (Repair) WPL 488949 Contact Us For Availability

Evaporator Tray WPL 1101002 Contact Us For Availability

WP2217784 Whirlpool Refrigerator Cover In Stock WPL WP2217784 $32.12

Medallion (Toast) WPL 1100194 Contact Us For Availability

Medallion (Platinum) WPL 1100195 Contact Us For Availability

Medallion (White) WPL 848382 Contact Us For Availability

Medallion (Coffee) WPL 989901 Contact Us For Availability

Medallion (Golden Harvest) WPL 989903 Contact Us For Availability

Medallion (Almond) WPL 989904 Contact Us For Availability

Insulation, Filler WPL 942817 Contact Us For Availability

Hinge Butt, Bottom WPL 944783 Contact Us For Availability

Restrictor Sleeve WPL 510446 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

Insulation, Compartment Separator WPL 943714 Contact Us For Availability

Hole Plug WPL 1103725 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $15.74

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

W10439652 Whirlpool Refrigerator Compressor Backorder WPL W10439652 $282.18

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 876029 WPL 876029 Contact Us For Availability

WPL 479502 WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

Tech Sheet (Service Information) WPL 1101011 Contact Us For Availability

Energy Guide Label WPL 1101603 Contact Us For Availability

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 509929 WPL 509929 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 789246 WPL 789246 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 799908 WPL 799908 Contact Us For Availability

WPL 946415 WPL 946415 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Pad (2) WPL 946367 Contact Us For Availability

Protector, Wiring WPL 944998 Contact Us For Availability

Shim, Bottom Hinge (White) WPL 1100778 Contact Us For Availability

Shim, Bottom Hinge (Almond) WPL 1100779 Contact Us For Availability

Shim, Bottom Hinge (Coffee) WPL 1100780 Contact Us For Availability

Shim, Bottom Hinge (Golden Harvest) WPL 1100781 Contact Us For Availability

Shim, Bottom Hinge (Toas WPL 1100783 Contact Us For Availability

WPL 1100784 WPL 1100784 Contact Us For Availability

Clamp, Drier WPL 547637 Contact Us For Availability

30

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $4.99

30

Unit Mounting Plate WPL 942860 Contact Us For Availability

Insulation, Center Rail WPL 943715 Contact Us For Availability

WPL 1100685 WPL 1100685 Contact Us For Availability

WPL 1100686 WPL 1100686 Contact Us For Availability

WPL 942818 WPL 942818 Contact Us For Availability

WPL 942819 WPL 942819 Contact Us For Availability

WPL 942820 WPL 942820 Contact Us For Availability

WPL 942822 WPL 942822 Contact Us For Availability

Exchanger, Heat WPL 1101007 Contact Us For Availability

Shield, Compartment Separator WPL 942772 Contact Us For Availability

WPL 1100669 WPL 1100669 Contact Us For Availability

WPL 1100670 WPL 1100670 Contact Us For Availability

WPL 943685 WPL 943685 Contact Us For Availability

WPL 943686 WPL 943686 Contact Us For Availability

WPL 943687 WPL 943687 Contact Us For Availability

WPL 943689 WPL 943689 Contact Us For Availability

Clip, Stand Off WPL 1100707 Contact Us For Availability

Separator, Compartment (Top) WPL 943716 Contact Us For Availability

WPL 1100681 WPL 1100681 Contact Us For Availability

WPL 1100682 WPL 1100682 Contact Us For Availability

WPL 943552 WPL 943552 Contact Us For Availability

WPL 944831 WPL 944831 Contact Us For Availability

WPL 944832 WPL 944832 Contact Us For Availability

WPL 944833 WPL 944833 Contact Us For Availability

Heater, Defrost WPL 943764 Contact Us For Availability

Drain Insert, Separator WPL 942849 Contact Us For Availability

WPL 1100683 WPL 1100683 Contact Us For Availability

WPL 1100684 WPL 1100684 Contact Us For Availability

WPL 942807 WPL 942807 Contact Us For Availability

WPL 942808 WPL 942808 Contact Us For Availability

WPL 942809 WPL 942809 Contact Us For Availability

WPL 942811 WPL 942811 Contact Us For Availability

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

WP4387499 Whirlpool Refrigerator Bimetallic D In Stock WPL WP4387499 $72.99

Cup, Drain WPL 939191 Contact Us For Availability

WPL 1100687 WPL 1100687 Contact Us For Availability

WPL 1100688 WPL 1100688 Contact Us For Availability

WPL 940086 WPL 940086 Contact Us For Availability

WPL 940087 WPL 940087 Contact Us For Availability

WPL 940088 WPL 940088 Contact Us For Availability

WPL 940089 WPL 940089 Contact Us For Availability

WPL 1100176 WPL 1100176 Contact Us For Availability

WPL 1100177 WPL 1100177 Contact Us For Availability

WPL 842031 WPL 842031 Contact Us For Availability

WPL 989195 WPL 989195 Contact Us For Availability

WPL 989875 WPL 989875 Contact Us For Availability

WPL 989876 WPL 989876 Contact Us For Availability

Clamp WPL 942873 Contact Us For Availability

37

WPL 942844 WPL 942844 Contact Us For Availability

38

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $4.82

39

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

39

WPL 942845 WPL 942845 Contact Us For Availability

40

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

40

WPL 944741 WPL 944741 Contact Us For Availability

41

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $6.92

42

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $6.42

43

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

43

Relay WPL 549500 Contact Us For Availability

44

WPL 937360 WPL 937360 Contact Us For Availability

44

Overload WPL 936073 Contact Us For Availability

45

WPL 937357 WPL 937357 Contact Us For Availability

45

cover WPL 549336 Contact Us For Availability

46

WPL 942813 WPL 942813 Contact Us For Availability

46

Strap WPL 549342 Contact Us For Availability

47

WPL 940121 WPL 940121 Contact Us For Availability

47

Overload Spring WPL 549086 Contact Us For Availability

48

WP98165 Whirlpool Screw In Stock WPL WP98165 $4.82

48

Rail, Unit Mounting WPL 943755 Contact Us For Availability

49

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

49

WPL 942853 WPL 942853 Contact Us For Availability

50

WPL 655411 WPL 655411 Contact Us For Availability

50

Screw, 1/4-28 x 1 WPL 488973 Contact Us For Availability

51

8316810 Whirlpool Refrigerator Drain Tube Backorder WPL 8316810 $78.15

52

WPL 519405 WPL 519405 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $13.22

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

WPL 1100671 WPL 1100671 Contact Us For Availability

WPL 1100672 WPL 1100672 Contact Us For Availability

WPL 944700 WPL 944700 Contact Us For Availability

WPL 944701 WPL 944701 Contact Us For Availability

WPL 944702 WPL 944702 Contact Us For Availability

WPL 944703 WPL 944703 Contact Us For Availability

WPL 1100673 WPL 1100673 Contact Us For Availability

WPL 1100674 WPL 1100674 Contact Us For Availability

WPL 944705 WPL 944705 Contact Us For Availability

WPL 944706 WPL 944706 Contact Us For Availability

WPL 944707 WPL 944707 Contact Us For Availability

WPL 944708 WPL 944708 Contact Us For Availability

57

WPL 1103015 WPL 1103015 Contact Us For Availability
