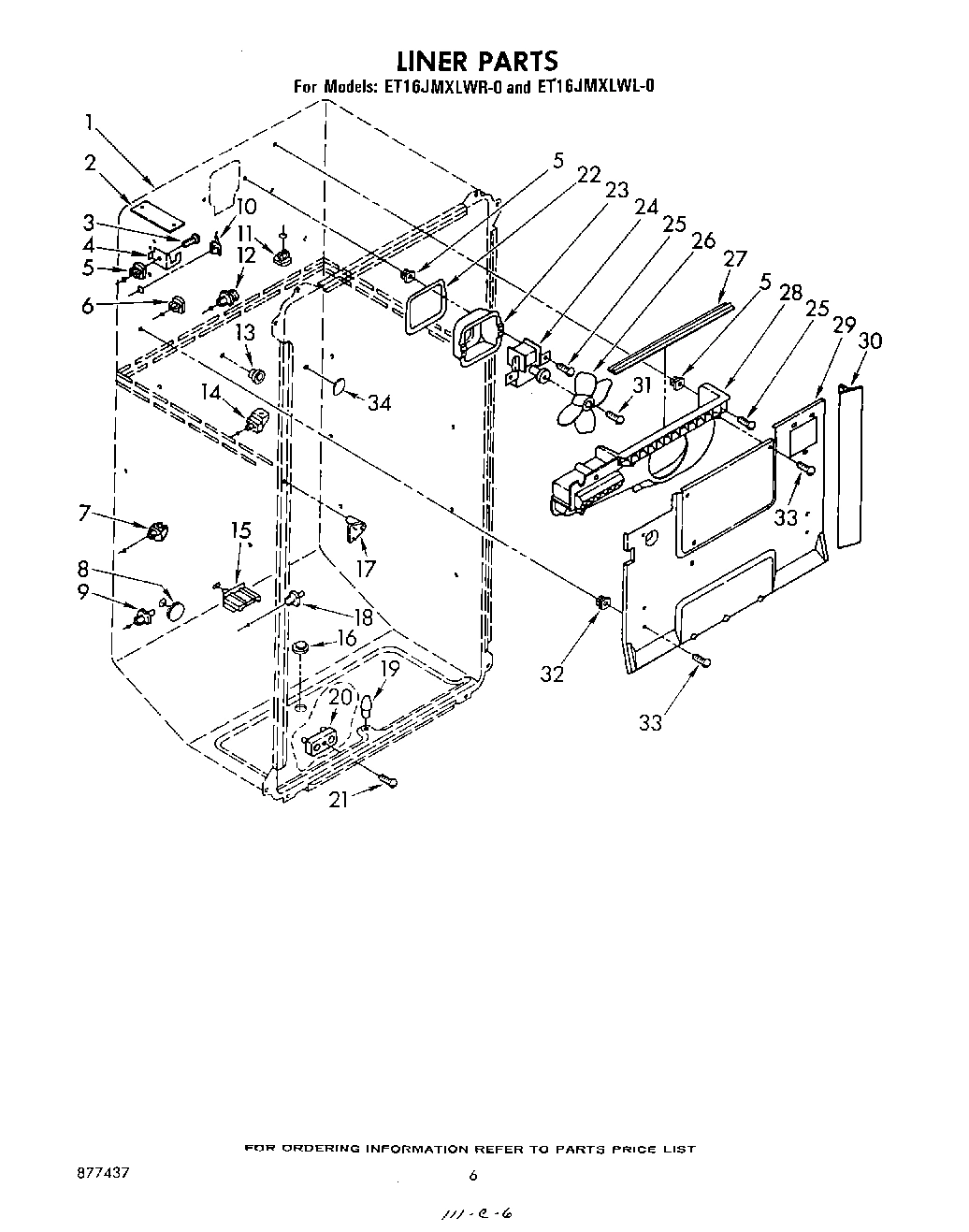

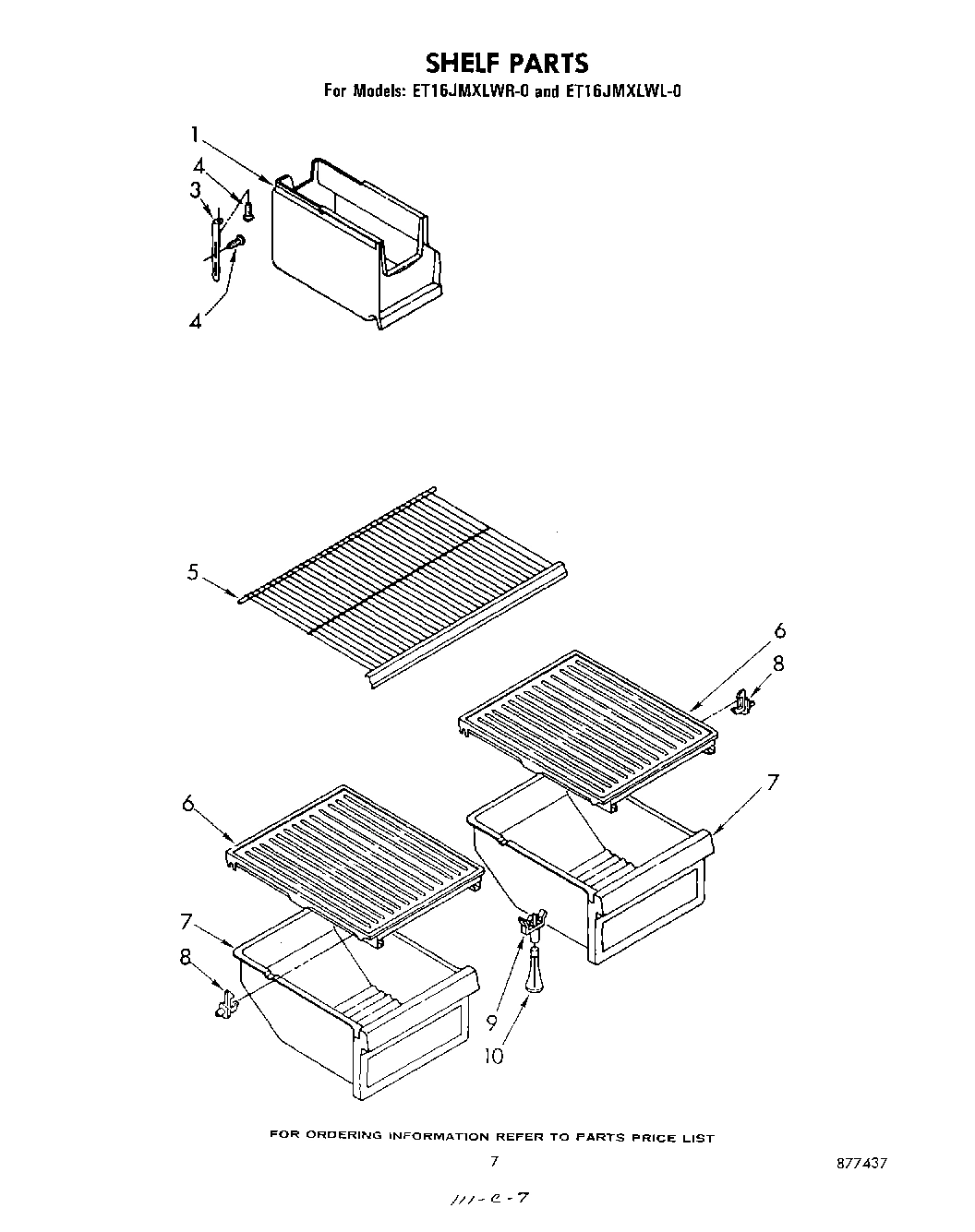

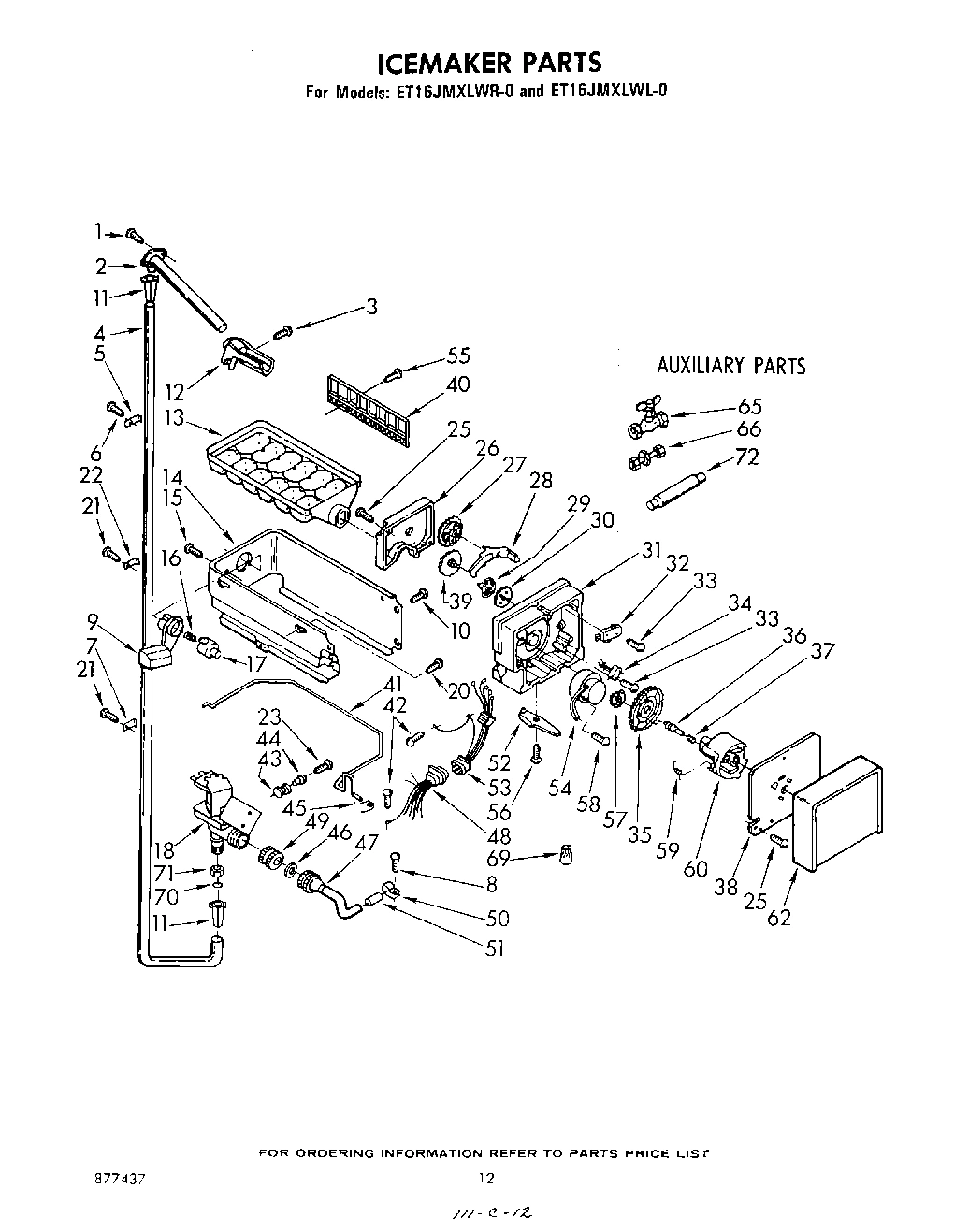

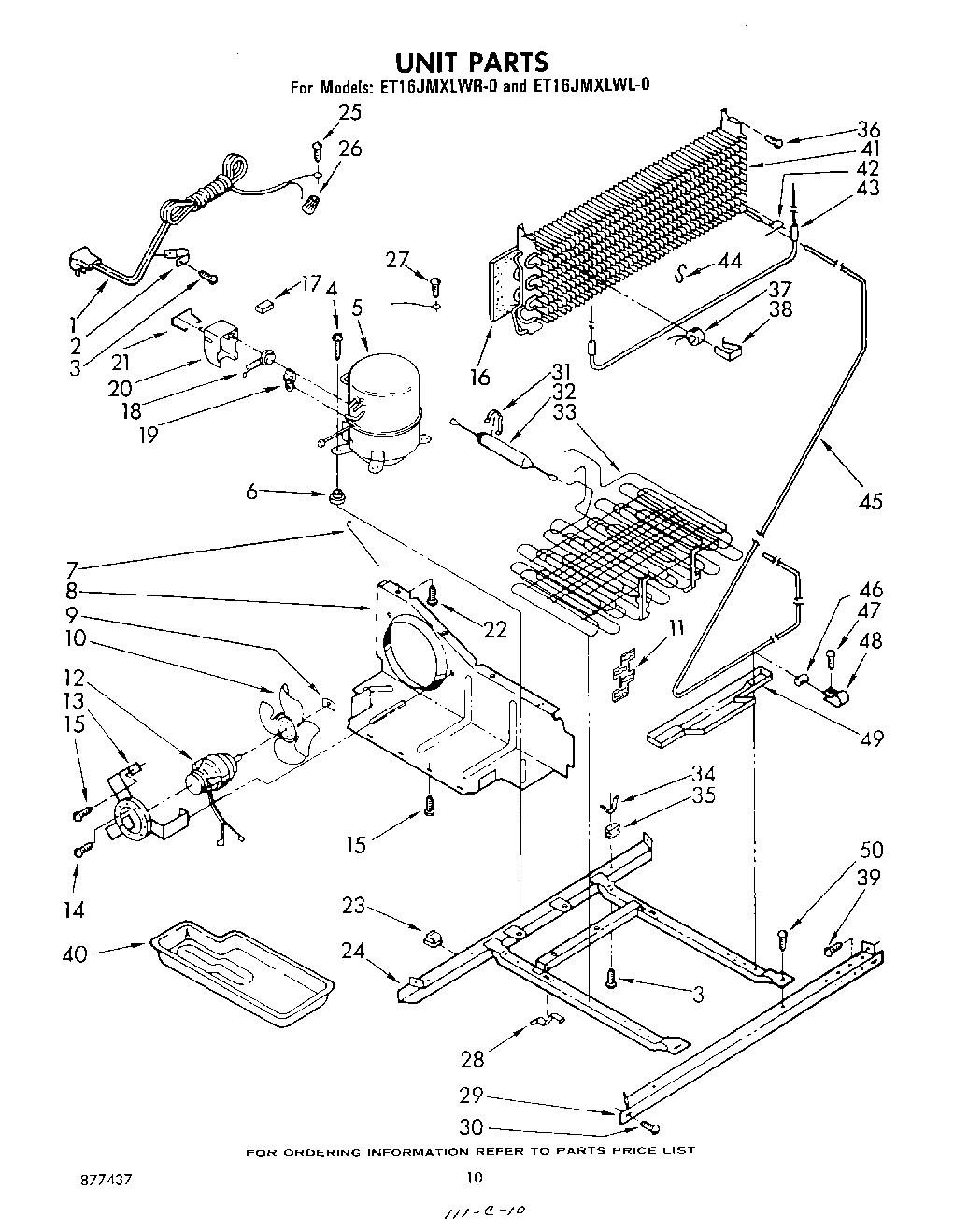

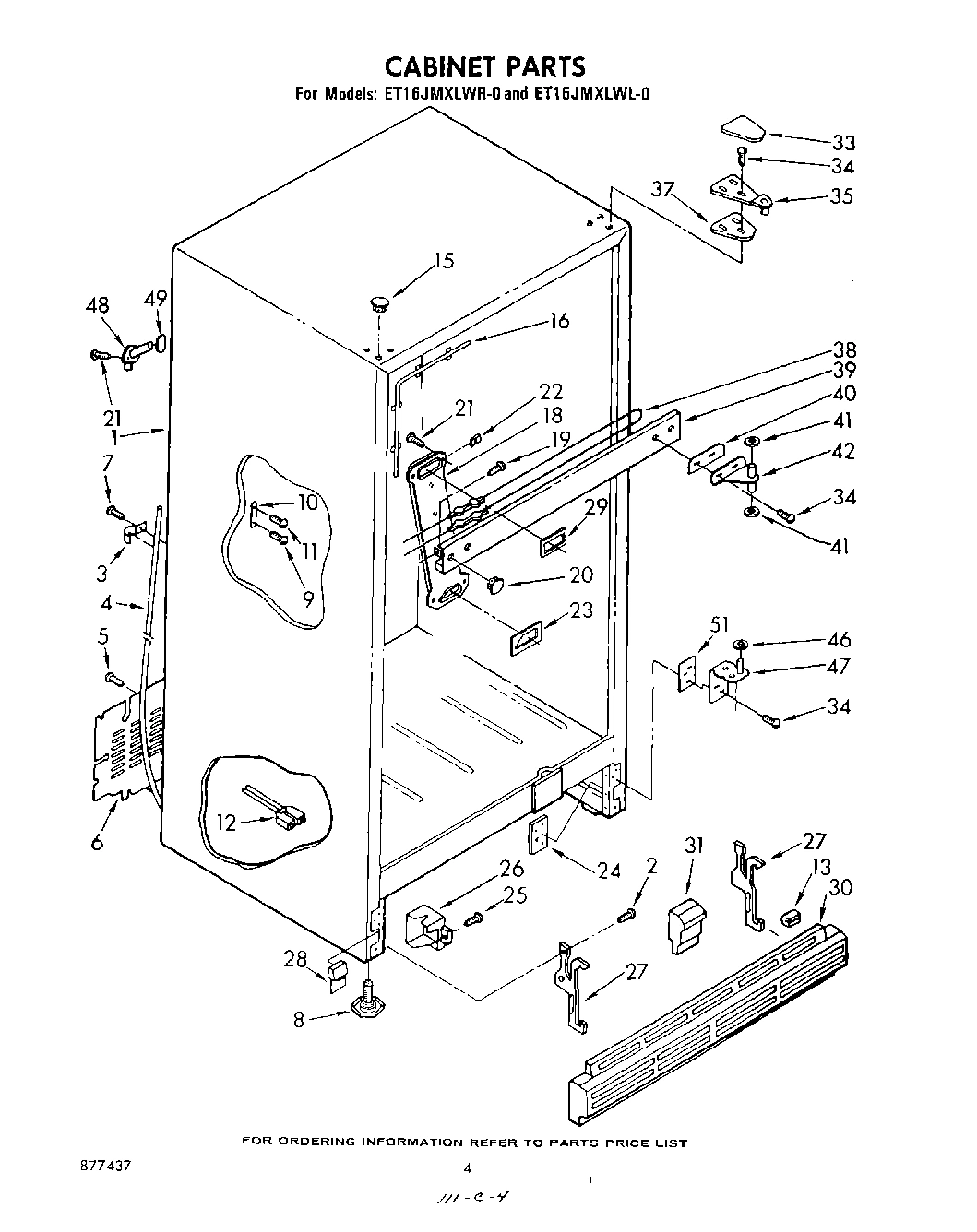

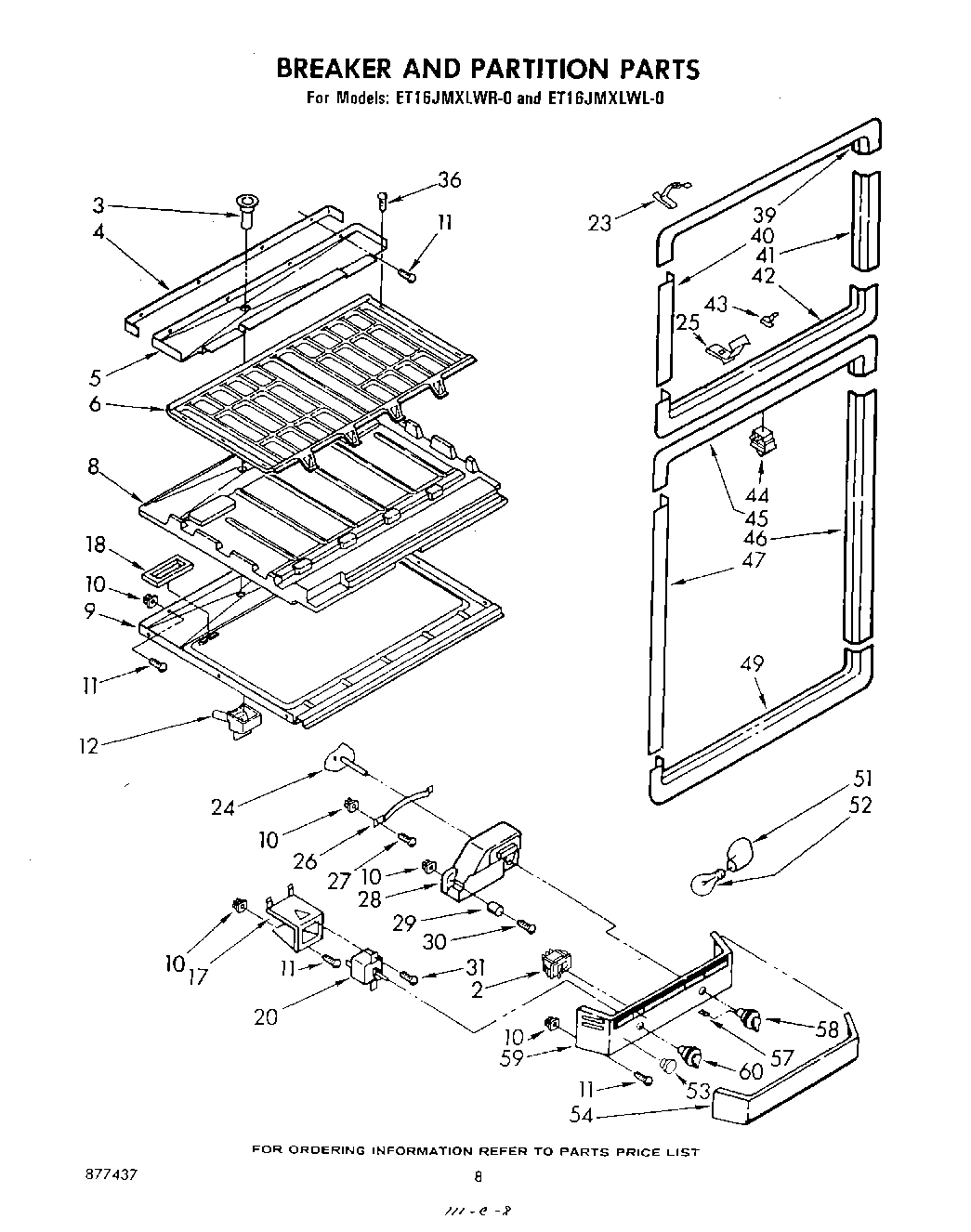

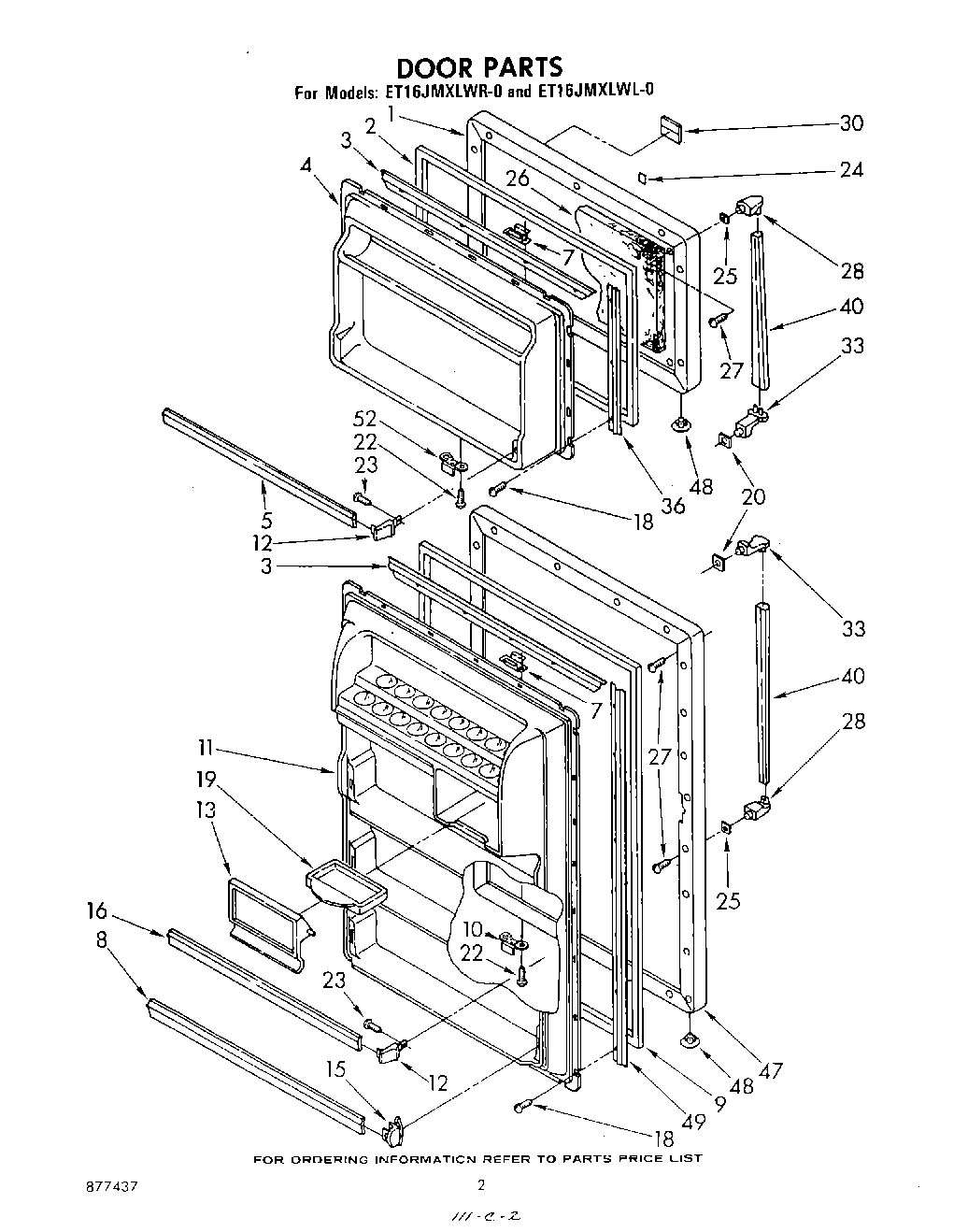

Model Whirlpool ET16JMXLWR0 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

1

WP98165 Whirlpool Screw In Stock WPL WP98165 $4.82

1

Door, Freezer R.H. (Also Order Item 26) (Whit WPL 944122 Contact Us For Availability

1

Door, Freezer R.H. (Also Order Item 26) (Coff WPL 944123 Contact Us For Availability

1

Door, Freezer R.H. (Also Order Item 26) (Gold WPL 944124 Contact Us For Availability

1

Door, Freezer R.H. (Also Order Item 26) (New WPL 944125 Contact Us For Availability

1

Door, Freezer R.H. (Also Order Item 26) (Almo WPL 944126 Contact Us For Availability

1

Door, Freezer R.H. (Also Order Item 26) (Whit WPL 944128 Contact Us For Availability

1

Door, Freezer R.H. (Also Order Item 26) (Coff WPL 944129 Contact Us For Availability

1

Door, Freezer R.H. (Also Order Item 26) (Gold WPL 944130 Contact Us For Availability

1

Door, Freezer R.H. (Also Order Item 26) (New WPL 944131 Contact Us For Availability

1

Door, Freezer R.H. (Also Order Item 26) (Almo WPL 944132 Contact Us For Availability

1

Cabinet (Not A Serviceable Part) WPL ARI42897A7 Contact Us For Availability

1

Ice Pan WPL 938847 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI42898A7 Contact Us For Availability

1

Cord, Service WPL 850626 Contact Us For Availability

2

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $5.99

2

Gasket, Freezer Door WPL 942903 Contact Us For Availability

2

Gasket, Tube Fitting WPL 983360 Contact Us For Availability

3

Retainer, Top & Bottom (2) WPL 836115 Contact Us For Availability

3

Support, Icemaker WPL 983861 Contact Us For Availability

4

8316810 Whirlpool Refrigerator Drain Tube Backorder WPL 8316810 $78.15

4

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $15.88

4

Panel, Interior WPL 943145 Contact Us For Availability

4

Bracket, Wiring WPL 842825 Contact Us For Availability

4

Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability

5

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $7.20

5

NLA:SCREW Backorder WPL WPW10141645 $4.82

5

Trim, Shelf WPL 943147 Contact Us For Availability

5

Shelf, Wire (2) WPL 985283 Contact Us For Availability

5

Grommet WPL 842339 Contact Us For Availability

5

Compressor WPL 464082 Contact Us For Availability

6

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

6

Cover WPL 850639 Contact Us For Availability

6

Cover, Pan Slide (2) WPL 836448 Contact Us For Availability

6

Grommet WPL 502037 Contact Us For Availability

6

Grommet (4) WPL 547283 Contact Us For Availability

7

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $10.05

7

Pan, Crisper WPL 935135 Contact Us For Availability

7

Stud, Saddle (R.S.) (2) WPL 523263 Contact Us For Availability

7

Stud, Saddle (L.S.) (2) WPL 523264 Contact Us For Availability

7

Guard, Fan WPL 850156 Contact Us For Availability

7

Clamp, Tube (2) WPL 836472 Contact Us For Availability

8

W11624204 Whirlpool Screw Backorder WPL W11624204 $8.89

8

Stud, Crisper Cover (2) WPL 836423 Contact Us For Availability

8

Trim Shelf WPL 943144 Contact Us For Availability

8

Leveler (2) WPL 836392 Contact Us For Availability

8

Hole Plug (2) WPL 519890 Contact Us For Availability

8

Baffle, Air WPL 850764 Contact Us For Availability

9

Support, Cover WPL 848562 No Longer Available

9

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

9

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

9

Stud, Crisper Cover (2) WPL 536475 Contact Us For Availability

9

Gasket, Refrigerator Door WPL 942299 Contact Us For Availability

9

Support & Cam WPL 627521 Contact Us For Availability

Post, Cover WPL 836410 Contact Us For Availability

Bracket, Door Stop WPL 944036 Contact Us For Availability

Strap, Ground WPL 547603 Contact Us For Availability

Retainer, Plug WPL 850208 Contact Us For Availability

Fan WPL 989524 Contact Us For Availability

Screw, 8-18 x 5/8 WPL 488203 Contact Us For Availability

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $5.99

Panel, Interior WPL 943140 Contact Us For Availability

Screw, 8-32 x 1-1/2 WPL 488684 Contact Us For Availability

Grommet WPL 538449 Contact Us For Availability

Spacer Condenser (4) WPL 987210 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $61.51

Support, Door Trim (2) WPL 943135 Contact Us For Availability

Wire Assembly (Water Valve) WPL 549447 Contact Us For Availability

Stud (2) WPL 842898 Contact Us For Availability

Collar, Inlet WPL 842895 Contact Us For Availability

627711 Whirlpool Refrigerator Ice Flex Tray Backorder WPL 627711 $5.88

Door, Butter WPL 938729 Contact Us For Availability

Bumper (2) WPL 546131 Contact Us For Availability

Grommet, Wiring WPL 851020 Contact Us For Availability

Bracket, Motor WPL 548695 Contact Us For Availability

14

Stud, Retainer (4) WPL 836374 Contact Us For Availability

14

Screw (Use W/938164 Motor) (3) WPL 488868 Contact Us For Availability

14

Frame WPL 627538 Contact Us For Availability

Retainer, Door Trim (2) WPL 943143 Contact Us For Availability

Plug, Hole (3) (White) WPL 842031 Contact Us For Availability

Plug, Hole (3) (Almond) WPL 989195 Contact Us For Availability

Plug, Hole (3) (Coffee) WPL 989875 Contact Us For Availability

Plug, Hole (3) (Golden Harvest) WPL 989876 Contact Us For Availability

Plug, Hole (3) (New Avocado) WPL 989877 Contact Us For Availability

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

Stud, Crisper Support WPL 836412 Contact Us For Availability

Screw, 8-18 x 1/2 WPL 488867 Contact Us For Availability

Trim, Shelf (2) WPL 943142 Contact Us For Availability

Stile, Heater WPL 531670 Contact Us For Availability

Drain Cover WPL 835370 Contact Us For Availability

Baffle, Evaporator WPL 937289 Contact Us For Availability

Spring, Bearing WPL 627522 Contact Us For Availability

17

Spacer, Liner (2) WPL 836040 Contact Us For Availability

17

Bumper WPL 547272 Contact Us For Availability

17

Bearing WPL 627523 Contact Us For Availability

4318047 Whirlpool Water Valve In Stock WPL 4318047 $36.90

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

Duct, Air WPL 934057 Contact Us For Availability

Stud, Shelf (4) WPL 521878 Contact Us For Availability

Overload WPL 549041 Contact Us For Availability

19

Post, Grommet WPL 836409 Contact Us For Availability

19

Screw (Repair) WPL 487470 Contact Us For Availability

19

Relay WPL 989662 Contact Us For Availability

Shim Handle WPL 941917 Contact Us For Availability

Plug, Hole (2) (White) WPL 835974 Contact Us For Availability

Plug, Hole (2) (Almond) WPL 989193 Contact Us For Availability

Plug, Hole (2) (Coffee) WPL 989881 Contact Us For Availability

Plug, Hole (2) (Golden Harvest) WPL 989882 Contact Us For Availability

Plug, Hole (2) (New Avocado) WPL 989883 Contact Us For Availability

Spacer, Liner (8) WPL 539760 Contact Us For Availability

Case, Relay WPL 549945 Contact Us For Availability

21

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

21

Screw, 10 x 13/16 WPL 488286 Contact Us For Availability

21

Spring WPL 531318 Contact Us For Availability

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $4.82

Tube Clamp WPL 836077 Contact Us For Availability

Nut, Speed (4) WPL 488564 Contact Us For Availability

Gasket, Motor Cover WPL 836475 Contact Us For Availability

Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability

23

Gasket Outlet WPL 934058 Contact Us For Availability

23

Cover, Motor WPL 836474 Contact Us For Availability

23

Clip, Wire (2) WPL 548745 Contact Us For Availability

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $65.89

Tape WPL 991259 Contact Us For Availability

Plate, Tap WPL 836162 Contact Us For Availability

Frame WPL 548655 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

Shim Handle WPL 941918 Contact Us For Availability

Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $59.86

Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability

Box, Junction WPL 549948 Contact Us For Availability

Cover, Gear WPL 627519 Contact Us For Availability

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $6.92

Screw (2) WPL 488818 Contact Us For Availability

Support, Grille (2) WPL 844614 Contact Us For Availability

Sealing Gasket WPL 984497 Contact Us For Availability

Gear & Cam WPL 627517 Contact Us For Availability

End, Handle Bottom WPL 982948 Contact Us For Availability

Fill, Grille WPL 934569 Contact Us For Availability

Scroll, Fan WPL 842829 Contact Us For Availability

Clip (2) WPL 548744 Contact Us For Availability

Lever, Cam WPL 627518 Contact Us For Availability

Gasket Inlet WPL 836565 Contact Us For Availability

Cover, Evaporator WPL 984485 Contact Us For Availability

Rail, Front WPL 941699 Contact Us For Availability

Cam & Pinion WPL 627516 Contact Us For Availability

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

Insert, Nameplate WPL 945119 Contact Us For Availability

Grille WPL 934567 Contact Us For Availability

Gasket, Cover (2) (15-3/4``) WPL 981749 Contact Us For Availability

Gasket, Cover (2) (10``) WPL 983997 Contact Us For Availability

Gear WPL 627736 Contact Us For Availability

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $4.82

Insert, Air Baffle WPL 836372 Contact Us For Availability

Clamp WPL 548508 Contact Us For Availability

Housing, Control WPL 627530 Contact Us For Availability

32

627512 Whirlpool Refrigerator MICR Switch Backorder WPL 627512 $23.80

32

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

32

Grommet (4) WPL 848445 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $15.75

End, Handle WPL 982947 Contact Us For Availability

Cover, Hinge (Coffee) WPL 989895 Contact Us For Availability

Cover, Hinge (Golden Harvest) WPL 989896 Contact Us For Availability

Cover, Hinge (New Avocado) WPL 989897 Contact Us For Availability

Condenser & Precooler WPL 481846 Contact Us For Availability

Screw, 4-24 x 3/4 WPL 488360 Contact Us For Availability

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $4.82

Screw (Repair) WPL 488949 Contact Us For Availability

Grommet Drain Fitting WPL 943920 Contact Us For Availability

Clamp (4) WPL 548738 Contact Us For Availability

Switch, Water Valve WPL 627727 Contact Us For Availability

35

Hinge & Shim (Top) WPL 842039 Contact Us For Availability

35

Grommet (4) WPL 548737 Contact Us For Availability

35

Gear, Drive WPL 627504 Contact Us For Availability

36

Retainer, WPL 836119 Contact Us For Availability

36

Pin, Drive WPL 627509 Contact Us For Availability

37

WP4387489 Whirlpool Refrigerator Bi-Metal Def In Stock WPL WP4387489 $67.31

37

Shim, Top Hinge (.030) WPL 836151 Contact Us For Availability

37

Spring WPL 627508 Contact Us For Availability

38

Heater, Mullion WPL 989254 Contact Us For Availability

38

Clamp WPL 513584 Contact Us For Availability

38

Plate WPL 627513 Contact Us For Availability

Rail, Center (White) WPL 836066 Contact Us For Availability

Rail, Center (Almond) WPL 989191 Contact Us For Availability

Rail, Center (Coffee) WPL 989905 Contact Us For Availability

Rail, Center (Golden Harvest) WPL 989906 Contact Us For Availability

Rail, Center (New Avocado) WPL 989907 Contact Us For Availability

Gear & Pinion WPL 627735 Contact Us For Availability

Tray, Evaporating WPL 842041 Contact Us For Availability

WPL 982943 WPL 982943 Contact Us For Availability

Shim (.030) WPL 836155 Contact Us For Availability

Package Guard WPL 981270 Contact Us For Availability

41

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $5.99

41

Evaporator WPL 938352 Contact Us For Availability

41

Arm, Shutoff WPL 627607 Contact Us For Availability

42

WPL 836153 WPL 836153 Contact Us For Availability

42

Clip, Heater (2) WPL 850721 Contact Us For Availability

42

Screw, Ground WPL 488542 Contact Us For Availability

43

Heater, Defrost WPL 992930 Contact Us For Availability

43

Grommet (2) WPL 510723 Contact Us For Availability

44

Support, Heater WPL 851358 Contact Us For Availability

44

Eyelet Spacer (2) WPL 510906 Contact Us For Availability

45

Exchanger, Heat WPL 943336 Contact Us For Availability

45

Spring, Shutoff Arm WPL 627526 Contact Us For Availability

46

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

46

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $4.99

46

Dampener (2) WPL 510769 Contact Us For Availability

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

WPL 944108 WPL 944108 Contact Us For Availability

WPL 944109 WPL 944109 Contact Us For Availability

WPL 944110 WPL 944110 Contact Us For Availability

WPL 944111 WPL 944111 Contact Us For Availability

WPL 944112 WPL 944112 Contact Us For Availability

WPL 944114 WPL 944114 Contact Us For Availability

WPL 944115 WPL 944115 Contact Us For Availability

WPL 944116 WPL 944116 Contact Us For Availability

WPL 944117 WPL 944117 Contact Us For Availability

WPL 944118 WPL 944118 Contact Us For Availability

WPL 836686 WPL 836686 Contact Us For Availability

WPL 836687 WPL 836687 Contact Us For Availability

Tube, Inlet Valve WPL 836200 Contact Us For Availability

WPL 534927 WPL 534927 Contact Us For Availability

WPL 989197 WPL 989197 Contact Us For Availability

WPL 989878 WPL 989878 Contact Us For Availability

WPL 989879 WPL 989879 Contact Us For Availability

WPL 989880 WPL 989880 Contact Us For Availability

WPL 942546 WPL 942546 Contact Us For Availability

Harness (Cabinet) WPL 482254 Contact Us For Availability

WPL 836117 WPL 836117 Contact Us For Availability

WPL 940121 WPL 940121 Contact Us For Availability

Pan, Drip WPL 989269 Contact Us For Availability

Nut, Valve WPL 537588 Contact Us For Availability

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Clamp Tube WPL 510716 Contact Us For Availability

Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

51

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.91

51

WPL 836196 WPL 836196 Contact Us For Availability

52

WPL 944035 WPL 944035 Contact Us For Availability

52

Lever, Shutoff WPL 627524 Contact Us For Availability

53

Harness (Ice Maker) WPL 627527 Contact Us For Availability

54

Motor WPL 627726 Contact Us For Availability

56

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $6.83

57

Gear, Timer WPL 627503 Contact Us For Availability

58

Knob, Control (Includes Illus. 57) WPL 837445 Contact Us For Availability

58

Screw, 6-20 x 3/8 WPL 488985 Contact Us For Availability

59

Panel, Control WPL 942214 Contact Us For Availability

59

Spring WPL 627507 Contact Us For Availability

60

Knob, Thermostat WPL 836482 Contact Us For Availability

60

Cam WPL 627506 Contact Us For Availability

62

Cover, Front WPL 936738 Contact Us For Availability

65

Valve, Shutoff (1/4`` x 1/4``) WPL 541157 Contact Us For Availability

66

Union, 1/4`` x 3/16`` WPL 512503 Contact Us For Availability

69

Nut, Wire WPL 227991 Contact Us For Availability

70

Ring, ``O`` WPL 488794 Contact Us For Availability

71

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $15.74

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Enamel, Coffee (1 Qt. Uncut) WPL 261887 Contact Us For Availability

Enamel, Avocado (1 Qt. Uncut) WPL 261889 Contact Us For Availability

Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability

WPL 515393 WPL 515393 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 877437 WPL 877437 Contact Us For Availability

WPL 942912 WPL 942912 Contact Us For Availability

WPL 942913 WPL 942913 Contact Us For Availability

WPL 943003 WPL 943003 Contact Us For Availability

WPL 943379 WPL 943379 Contact Us For Availability

WPL 978488 WPL 978488 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability
