Model Whirlpool ET16JKXLWR0 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
03 - CABINET
04 - LINER

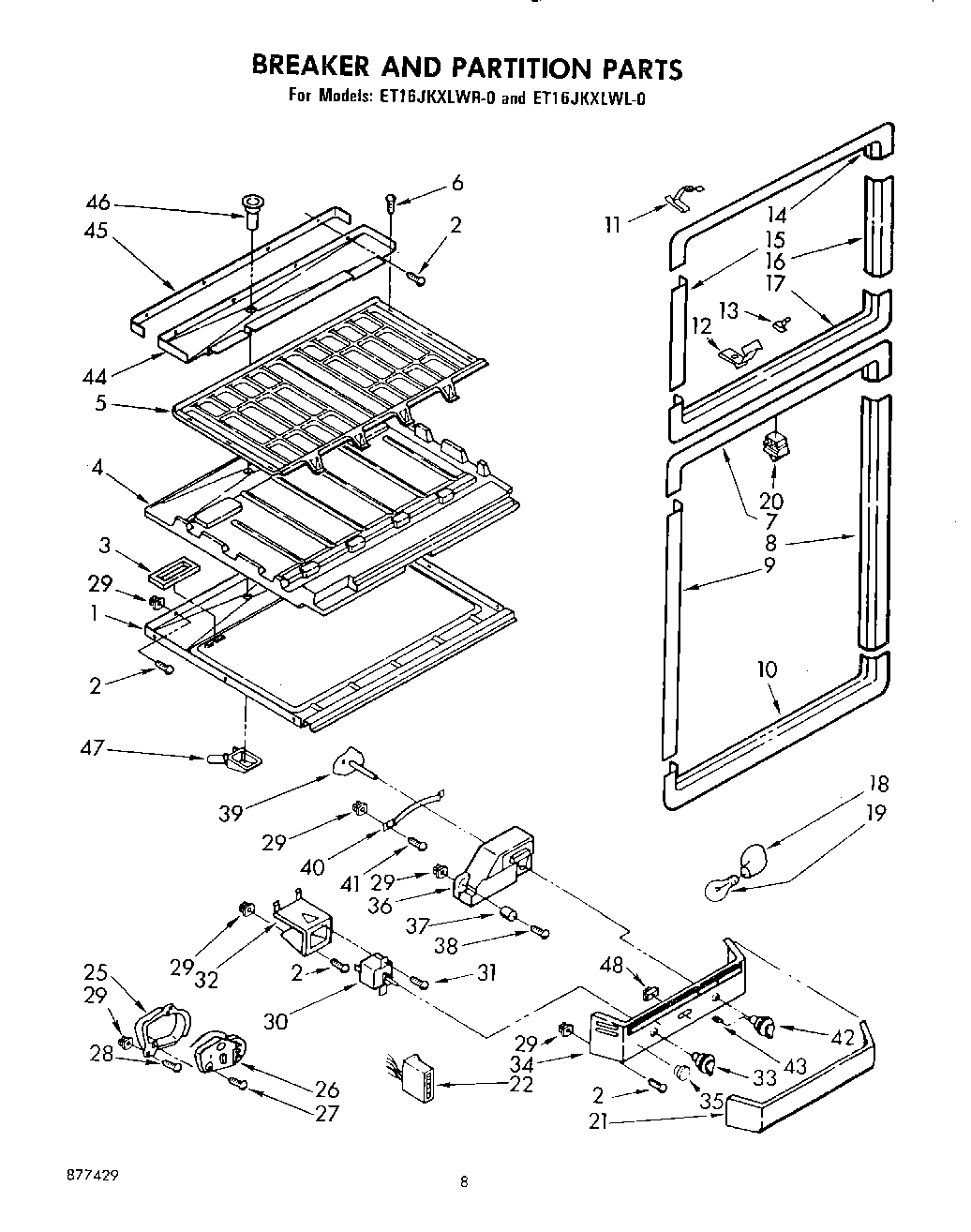

06 - BREAKER AND PARTITION

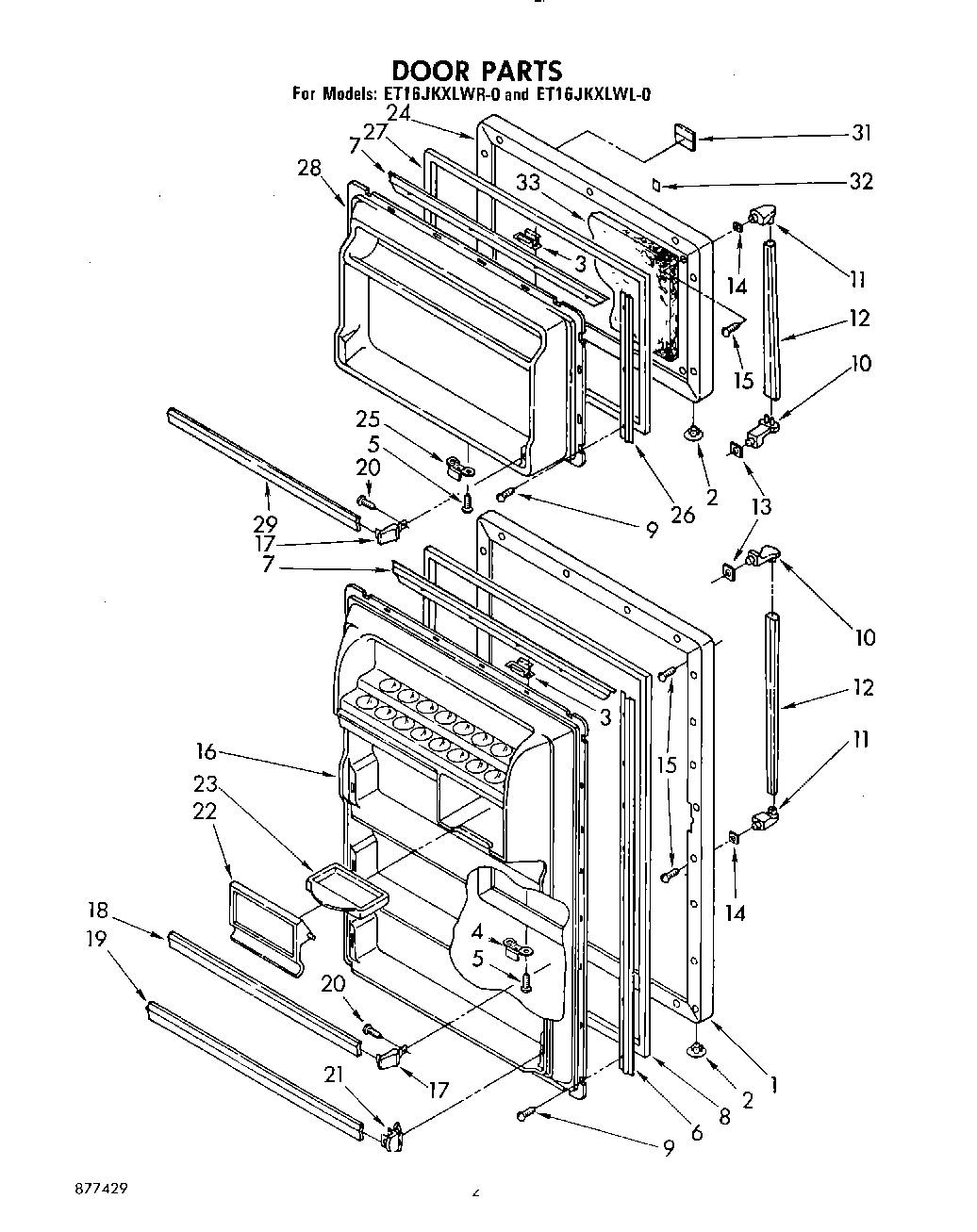

02 - DOOR

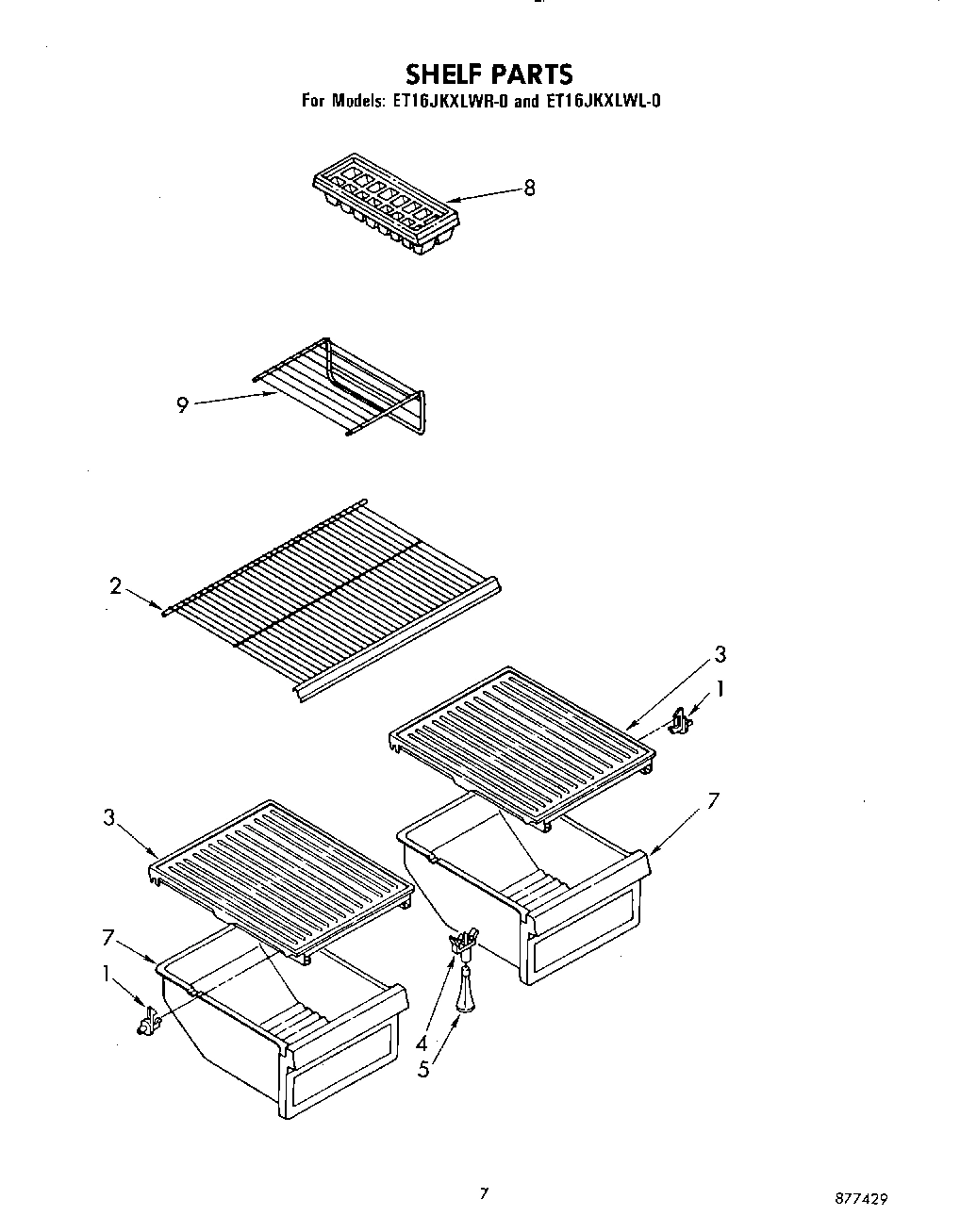

05 - SHELF

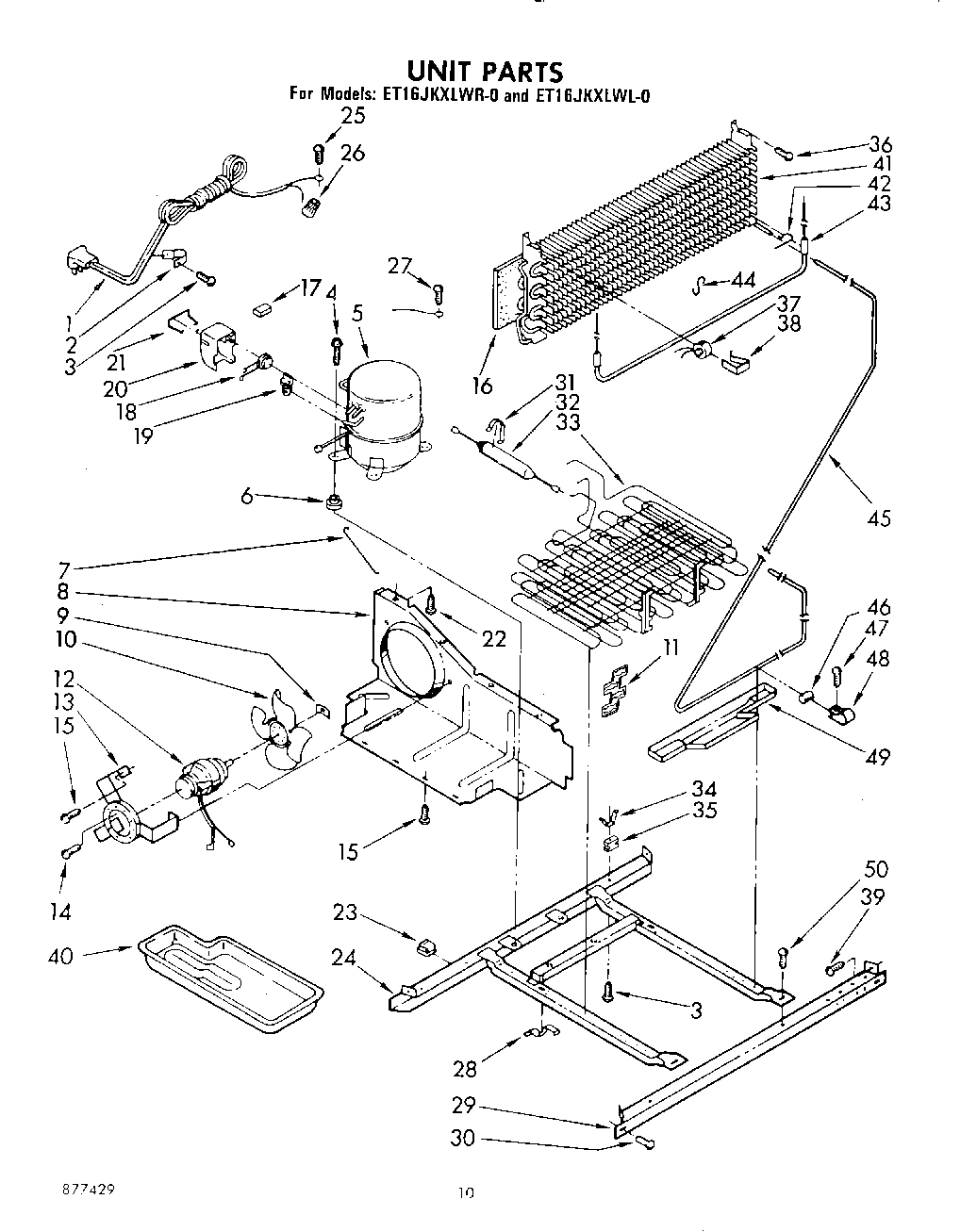

07 - UNIT, LIT/OPTIONAL
Common parts from model Whirlpool ET16JKXLWR0 TOP MOUNT REFRIGERATOR
1
Shelf Stud (2) WPL 836423 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI42700A5 Contact Us For Availability
1
Bottom, Compartment Separator WPL 981737 Contact Us For Availability
1
Door, Refrigerator (R.H. Model) (White) WPL 944108 Contact Us For Availability
1
Door, Refrigerator (R.H. Model) (Coffee) WPL 944109 Contact Us For Availability
1
Door, Refrigerator (R.H. Model) (Golden Harve WPL 944110 Contact Us For Availability
1
Door, Refrigerator (R.H. Model) (New Avocado) WPL 944111 Contact Us For Availability
1
Door, Refrigerator R.H. (Almond) WPL 944112 Contact Us For Availability
1
Door, Refrigerator L.H. (White) WPL 944114 Contact Us For Availability
1
Door, Refrigerator L.H. (Coffee) WPL 944115 Contact Us For Availability
1
Door, Refrigerator L.H. (Golden Harvest) WPL 944116 Contact Us For Availability
1
Door, Refrigerator L.H. (New Avocado) WPL 944117 Contact Us For Availability
1
Door, Refrigerator L.H. (Almond) WPL 944118 Contact Us For Availability
1
Cord, Service WPL 850626 Contact Us For Availability
2
Hole, Plug WPL 519890 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Hole Plug (2) (Coffee) WPL 989878 Contact Us For Availability
2
Hole Plug (2) (Golden Harvest) WPL 989879 Contact Us For Availability
2
Hole Plug (2) (New Avocado) WPL 989880 Contact Us For Availability
2
Shelf, Plain (2) WPL 985283 Contact Us For Availability
3
Gasket, Air Return (2) WPL 981725 Contact Us For Availability
3
Cover, Pan Slide (2) WPL 836448 Contact Us For Availability
4
Support, Cover WPL 848562 No Longer Available
4
Hole, Plug WPL 659598 Contact Us For Availability
4
Insulation, Compartment Separator WPL 991171 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
4
Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability
5
Post, Cover WPL 836410 Contact Us For Availability
5
Grommet, Water Inlet WPL 534348 Contact Us For Availability
5
Compartment, Separator Top WPL 848421 Contact Us For Availability
5
Compressor WPL 464082 Contact Us For Availability
6
Grommet WPL 848445 Contact Us For Availability
6
Retainer, Gasket Side (2) WPL 836117 Contact Us For Availability
6
Grommet (4) WPL 547283 Contact Us For Availability
7
Shelf Stud (2) WPL 536475 Contact Us For Availability
7
Breaker, Mullion (Bottom) WPL 836177 Contact Us For Availability
7
Retainer, Gasket Top & Bottom (2) WPL 836115 Contact Us For Availability
7
Pan, Crisper (2) WPL 935135 Contact Us For Availability
7
Guard, Fan WPL 850156 Contact Us For Availability
8
Stud, Crisper Support WPL 836412 Contact Us For Availability
8
Breaker Trim R.S. WPL 836028 Contact Us For Availability
8
Gasket, Door Magnetic WPL 942299 Contact Us For Availability
8
Baffle, Air WPL 850764 Contact Us For Availability
9
Grommet, Crisper Cover WPL 836409 Contact Us For Availability
9
Breaker Trim L.S. WPL 836032 Contact Us For Availability
9
Cover, Ice Tray WPL 982511 Contact Us For Availability
10
Shelf Stud WPL 521878 Contact Us For Availability
10
Breaker Trim, Bottom WPL 836176 Contact Us For Availability
10
End, Handle WPL 982947 Contact Us For Availability
10
Fan WPL 989524 Contact Us For Availability
11
Stud, Saddle R.S. (3) WPL 523263 Contact Us For Availability
11
Stud, Saddle (L.S.) (2) WPL 523264 Contact Us For Availability
11
Breaker Retainer Clip WPL 845807 Contact Us For Availability
11
End, Handle WPL 982948 Contact Us For Availability
11
Spacer Condenser WPL 987210 Contact Us For Availability
12
Clip, Mullion (2) WPL 836090 Contact Us For Availability
12
Handle, Center WPL 982943 Contact Us For Availability
13
Retainer, Stud (4) WPL 836374 Contact Us For Availability
13
Breaker Trim Clip (6) WPL 534365 Contact Us For Availability
13
Shim, Handle End WPL 941917 Contact Us For Availability
13
Bracket, Motor WPL 548695 Contact Us For Availability
14
Breaker Trim, Top Freezer WPL 836178 Contact Us For Availability
14
Shim, Handle End WPL 941918 Contact Us For Availability
14
Screw (Use W/938164 Motor) (3) WPL 488868 Contact Us For Availability
15
Spacer (2) WPL 836040 Contact Us For Availability
15
Breaker Trim, R.S. WPL 836027 Contact Us For Availability
15
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
15
Screw (2) WPL 488818 Contact Us For Availability
16
Spacer (8) WPL 539760 Contact Us For Availability
16
Breaker Trim, L.S. WPL 836031 Contact Us For Availability
16
Panel, Interior WPL 943140 Contact Us For Availability
16
Baffle, Evaporator WPL 937289 Contact Us For Availability
17
Breaker Trim, Mullion Top WPL 836222 Contact Us For Availability
17
Support & Trim End (2) WPL 943135 Contact Us For Availability
17
Bumper WPL 547272 Contact Us For Availability
18
Wiring, Ice Maker WPL 481658 Contact Us For Availability
18
Trim Shelf WPL 943142 Contact Us For Availability
18
Overload WPL 549041 Contact Us For Availability
19
Hole Plug, Evaporator WPL 659776 Contact Us For Availability
19
Trim Shelf WPL 943144 Contact Us For Availability
19
Relay WPL 989662 Contact Us For Availability
20
Hole Plug (Golden Harvest) WPL 989882 Contact Us For Availability
20
Hole Plug (New Avocado) WPL 989883 Contact Us For Availability
20
Receptacle Cap WPL 850738 Contact Us For Availability
20
Case, Relay WPL 549945 Contact Us For Availability
21
Hole Plug (White) WPL 842031 Contact Us For Availability
21
Hole Plug (Almond) WPL 989195 Contact Us For Availability
21
Hole Plug (Coffee) WPL 989875 Contact Us For Availability
21
Hole Plug (Golden Harvest) WPL 989876 Contact Us For Availability
21
Hole Plug (New Avocado) WPL 989877 Contact Us For Availability
21
Cover, Motor WPL 836474 Contact Us For Availability
21
Light Lens WPL 983910 Contact Us For Availability
21
Retainer, Door Trim (2) WPL 943143 Contact Us For Availability
21
Spring WPL 531318 Contact Us For Availability
22
Grille WPL 934567 Contact Us For Availability
22
Gasket, Cover WPL 836475 Contact Us For Availability
22
Wiring Defrost Timer WPL 481782 Contact Us For Availability
22
Compartment, Door Butter WPL 938729 Contact Us For Availability
22
Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability
23
Bumper, Grille (2) WPL 546131 Contact Us For Availability
23
Clip, Wire (2) WPL 548745 Contact Us For Availability
24
Filler, Corner WPL 934569 Contact Us For Availability
24
Door, Freezer R.H. (White) WPL 944122 Contact Us For Availability
24
Door, Freezer R.H. (Coffee) WPL 944123 Contact Us For Availability
24
Door, Freezer R.H. (Golden Harvest) WPL 944124 Contact Us For Availability
24
Door, Freezer R.H. (New Avocado) WPL 944125 Contact Us For Availability
24
Doo WPL 944126 Contact Us For Availability
24
WPL 944128 WPL 944128 Contact Us For Availability
24
WPL 944129 WPL 944129 Contact Us For Availability
24
WPL 944130 WPL 944130 Contact Us For Availability
24
WPL 944131 WPL 944131 Contact Us For Availability
24
WPL 944132 WPL 944132 Contact Us For Availability
24
Frame WPL 548655 Contact Us For Availability
25
Support, Grille (2) WPL 844614 Contact Us For Availability
25
Container Timer WPL 983079 Contact Us For Availability
25
WPL 944035 WPL 944035 Contact Us For Availability
25
Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability
26
Timer, Defrost WPL 851161 Contact Us For Availability
26
WPL 836119 WPL 836119 Contact Us For Availability
26
Nut, Wire WPL 227991 Contact Us For Availability
27
Gasket, Sealing WPL 935068 Contact Us For Availability
27
Screw, 8 x 1-3/8 (2) WPL 488678 Contact Us For Availability
27
WPL 942903 WPL 942903 Contact Us For Availability
28
Scroll, Fan WPL 935067 Contact Us For Availability
28
WPL 943145 WPL 943145 Contact Us For Availability
28
Clip (2) WPL 548744 Contact Us For Availability
29
Grommet WPL 842339 Contact Us For Availability
29
Evaporator, Cover White WPL 983991 Contact Us For Availability
29
WPL 943147 WPL 943147 Contact Us For Availability
29
Rail, Front WPL 941699 Contact Us For Availability
30
Stile, Heater WPL 531670 Contact Us For Availability
30
Gasket, Evaporator WPL 981749 Contact Us For Availability
31
Wire, Water Valve WPL 548734 Contact Us For Availability
31
WPL 945111 WPL 945111 Contact Us For Availability
31
Clamp WPL 548508 Contact Us For Availability
32
Box, Junction WPL 549947 Contact Us For Availability
32
Drain Hole Cover WPL 835370 Contact Us For Availability
32
Bracket, Thermostat WPL 848446 Contact Us For Availability
32
WPL 991259 WPL 991259 Contact Us For Availability
33
Shelf Stud Hook WPL 651590 Contact Us For Availability
33
Knob, Temperature WPL 836482 Contact Us For Availability
33
Condenser & Precooler WPL 481846 Contact Us For Availability
34
Duct, Air WPL 934057 Contact Us For Availability
34
Drain Fitting Grommet WPL 943920 Contact Us For Availability
34
Panel, Control WPL 942214 Contact Us For Availability
34
Clamp (4) WPL 548738 Contact Us For Availability
35
Gasket Inlet WPL 836565 Contact Us For Availability
35
Grommet (4) WPL 548737 Contact Us For Availability
36
Gasket, Inlet WPL 934058 Contact Us For Availability
36
Air Diffuser WPL 836487 Contact Us For Availability
37
WPL 488564 WPL 488564 Contact Us For Availability
38
Screw, 8 x 1-1/4 (2) WPL 488357 Contact Us For Availability
38
Clamp WPL 513584 Contact Us For Availability
39
Damper, Air WPL 836247 Contact Us For Availability
40
Tray, Evaporating WPL 842041 Contact Us For Availability
40
WPL 836077 WPL 836077 Contact Us For Availability
40
Retainer, Damper WPL 836493 Contact Us For Availability
41
WPL 836372 WPL 836372 Contact Us For Availability
41
Evaporator WPL 938352 Contact Us For Availability
42
WPL 850639 WPL 850639 Contact Us For Availability
42
Control Knob WPL 837445 Contact Us For Availability
42
Clip, Heater (2) WPL 850721 Contact Us For Availability
43
Knob, Retainer WPL 837444 Contact Us For Availability
43
Heater, Defrost WPL 992930 Contact Us For Availability
44
WPL 942546 WPL 942546 Contact Us For Availability
44
Drain Pan WPL 836198 Contact Us For Availability
44
Support, Heater WPL 851358 Contact Us For Availability
45
WPL 940121 WPL 940121 Contact Us For Availability
45
Gasket, Drain Pan WPL 843289 Contact Us For Availability
45
Exchanger, Heat WPL 943336 Contact Us For Availability
46
Fitting, Drain Pan WPL 841770 Contact Us For Availability
46
Dampener (2) WPL 510769 Contact Us For Availability
47
Cup, Drain WPL 943918 Contact Us For Availability
48
Clamp (2) WPL 510716 Contact Us For Availability
49
Pan, Drip WPL 989269 Contact Us For Availability
50
WPL 978029 WPL 978029 Contact Us For Availability
50
WPL 876029 WPL 876029 Contact Us For Availability
50
WPL 479502 WPL 479502 Contact Us For Availability
50
WPL 799344 WPL 799344 Contact Us For Availability
50
Enamel, Coffee (13 Oz. Spray Can) WPL 261886 Contact Us For Availability
50
Enamel, Coffee (1 Qt. Uncut) WPL 261887 Contact Us For Availability
50
xEnamel, Avocado (13 Oz. Spray Can) WPL 261888 Contact Us For Availability
50
Enamel, Avocado (1 Qt. Uncut) WPL 261889 Contact Us For Availability
50
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
50
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
50
Primer, White (13 Oz. Spra WPL 35094 Contact Us For Availability
50
WPL 350941 WPL 350941 Contact Us For Availability
50
WPL 488454 WPL 488454 Contact Us For Availability
50
WPL 515393 WPL 515393 Contact Us For Availability
50
WPL 542639 WPL 542639 Contact Us For Availability
50
WPL 72108 WPL 72108 Contact Us For Availability
50
WPL 79934 WPL 79934 Contact Us For Availability
50
WPL 799351 WPL 799351 Contact Us For Availability
50
WPL 799832 WPL 799832 Contact Us For Availability
50
WPL 799833 WPL 799833 Contact Us For Availability
50
WPL 877429 WPL 877429 Contact Us For Availability
50
WPL 941676 WPL 941676 Contact Us For Availability
50
WPL 942905 WPL 942905 Contact Us For Availability
50
WPL 942906 WPL 942906 Contact Us For Availability
50
WPL 943003 WPL 943003 Contact Us For Availability
50
WPL 97802 WPL 97802 Contact Us For Availability
50
WPL 978028 WPL 978028 Contact Us For Availability
50
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
