Model Whirlpool ET14JKXMWR5 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

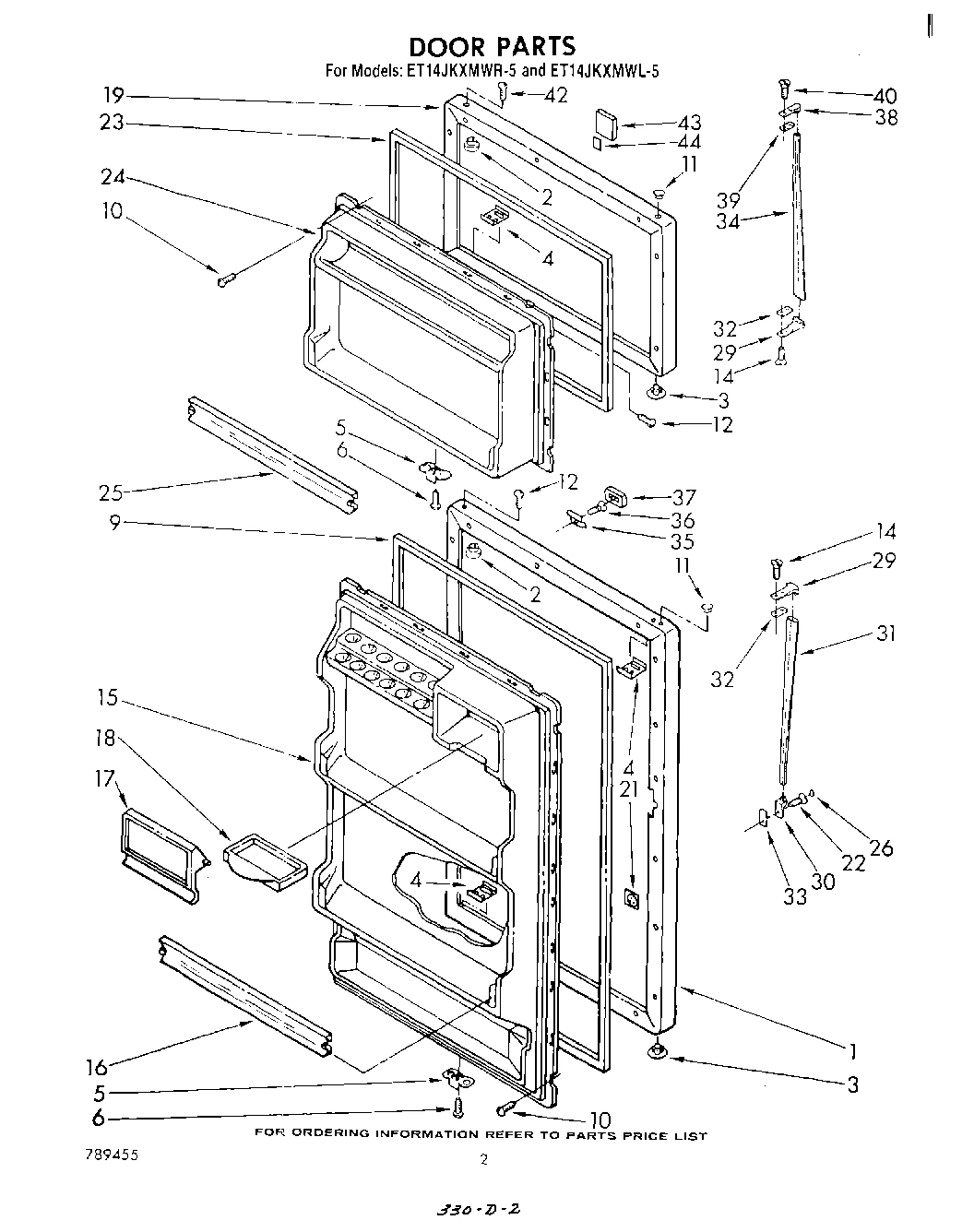

02 - DOOR

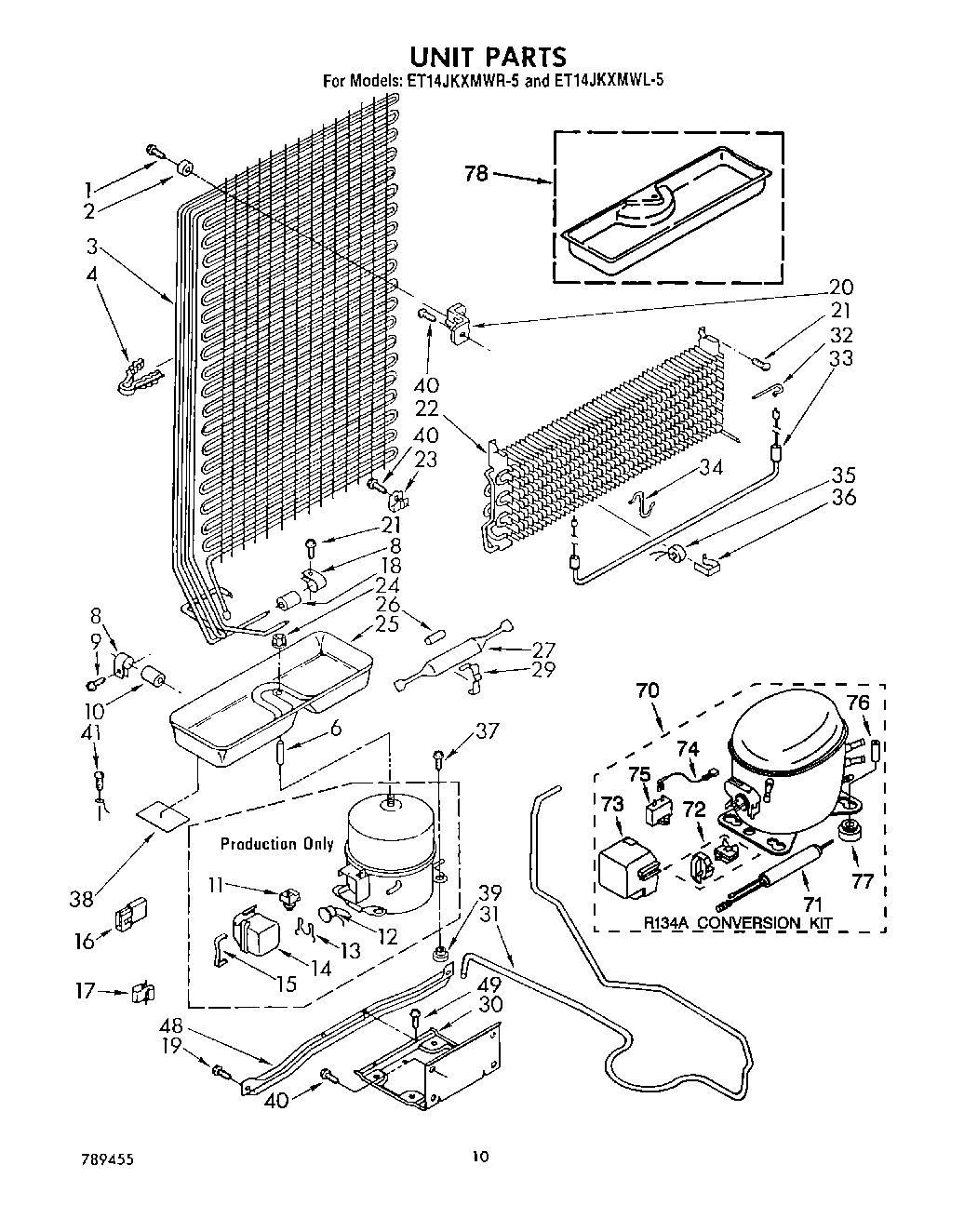

06 - UNIT

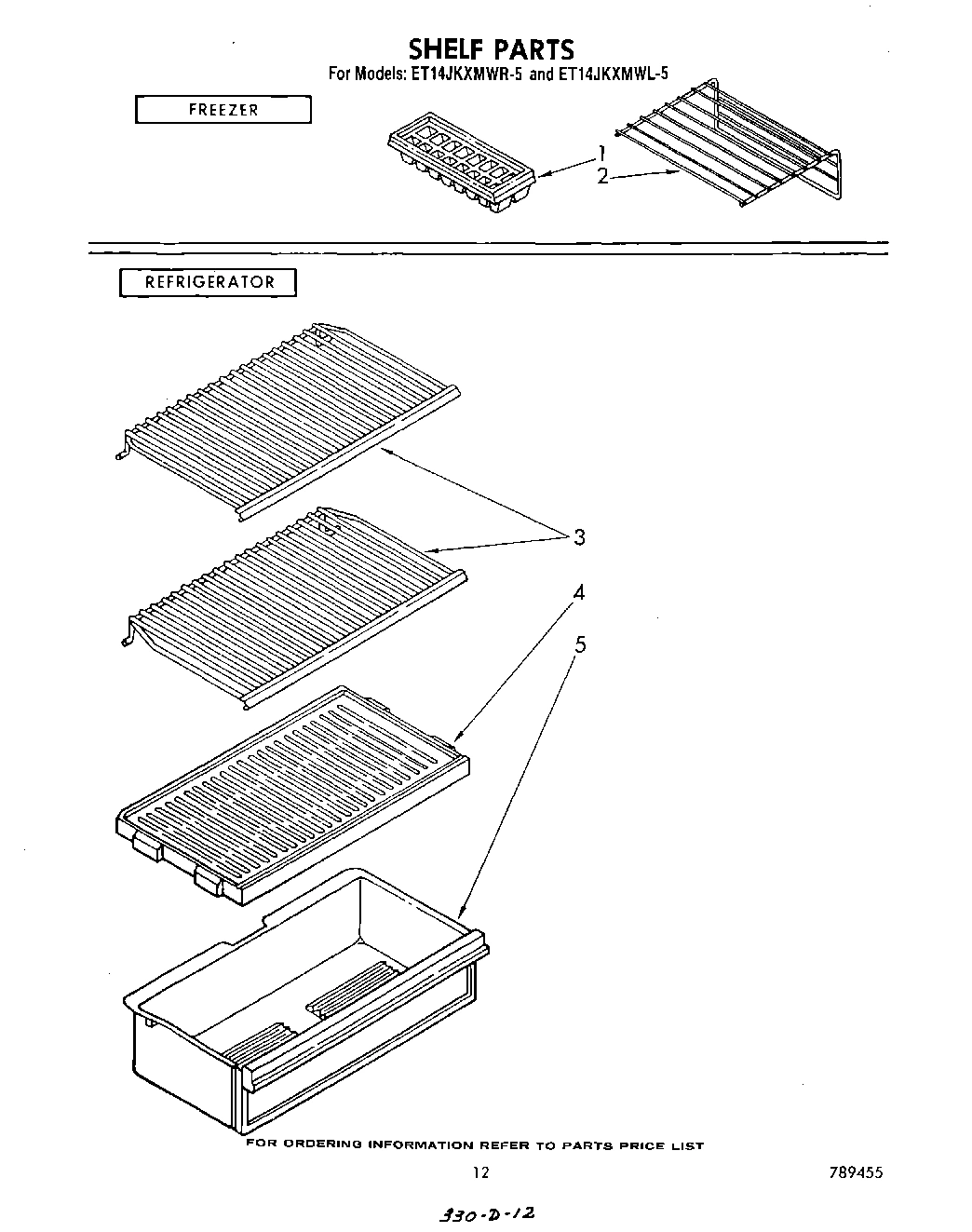

07 - SHELF

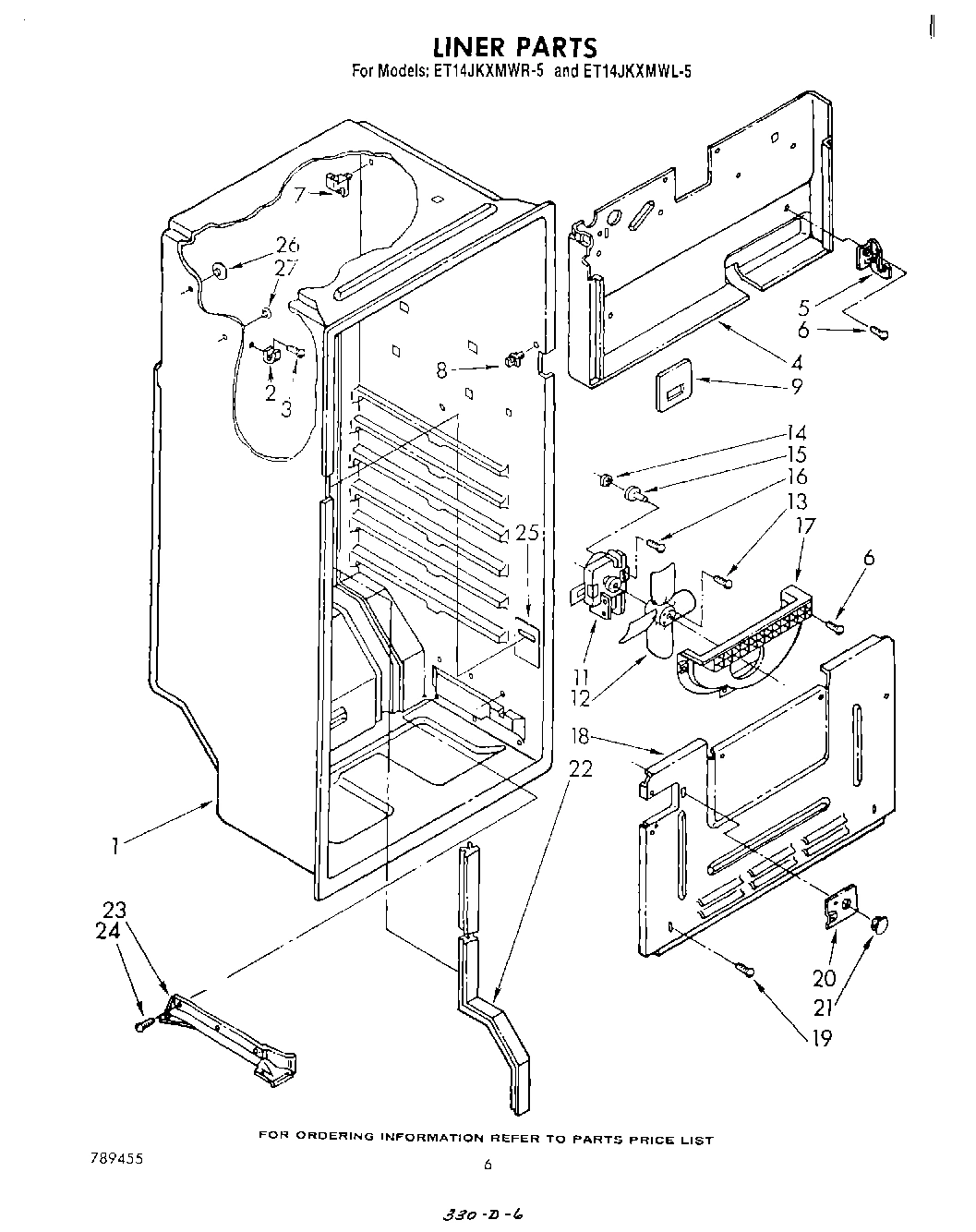

04 - LINER , LIT/OPTIONAL

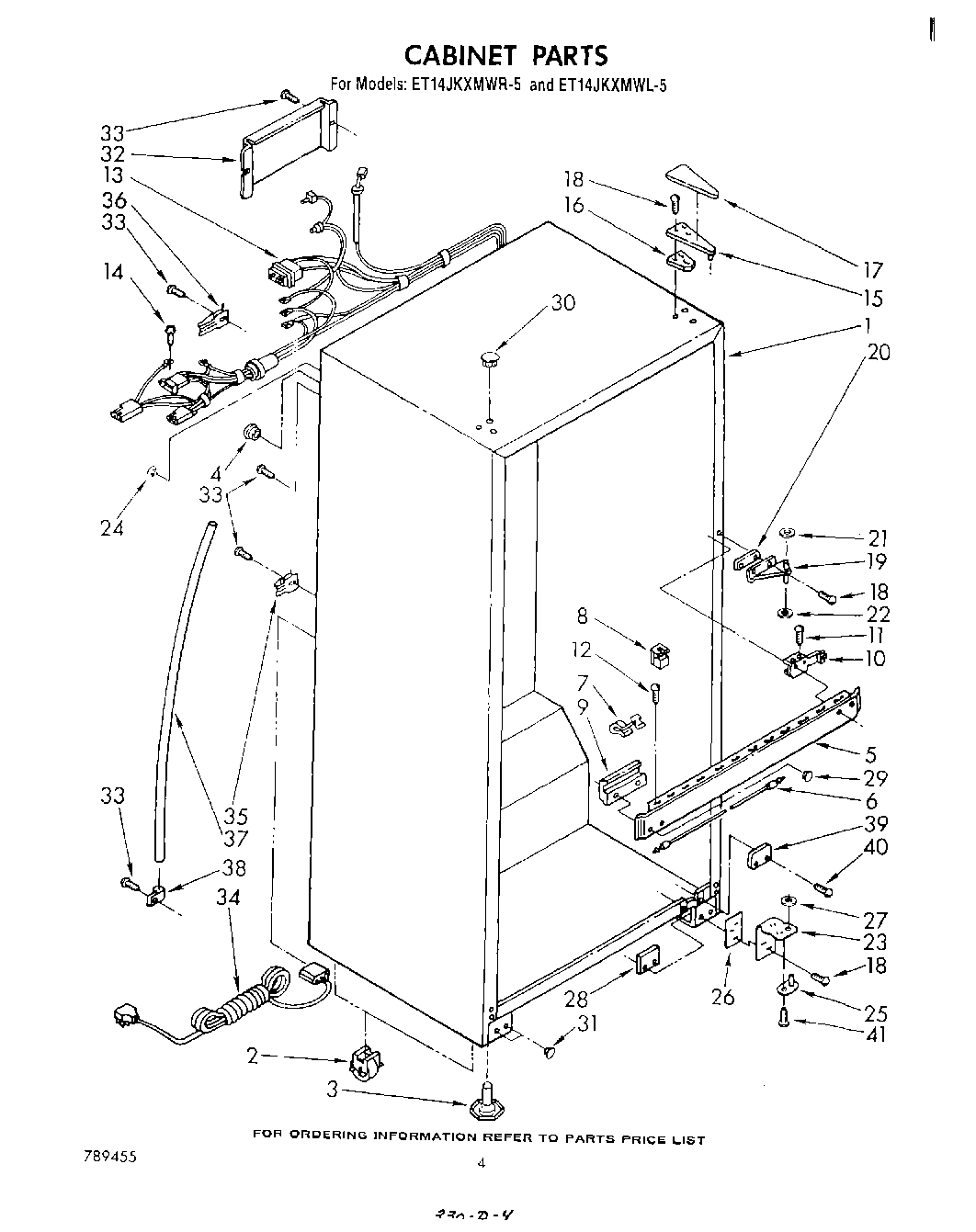

03 - CABINET

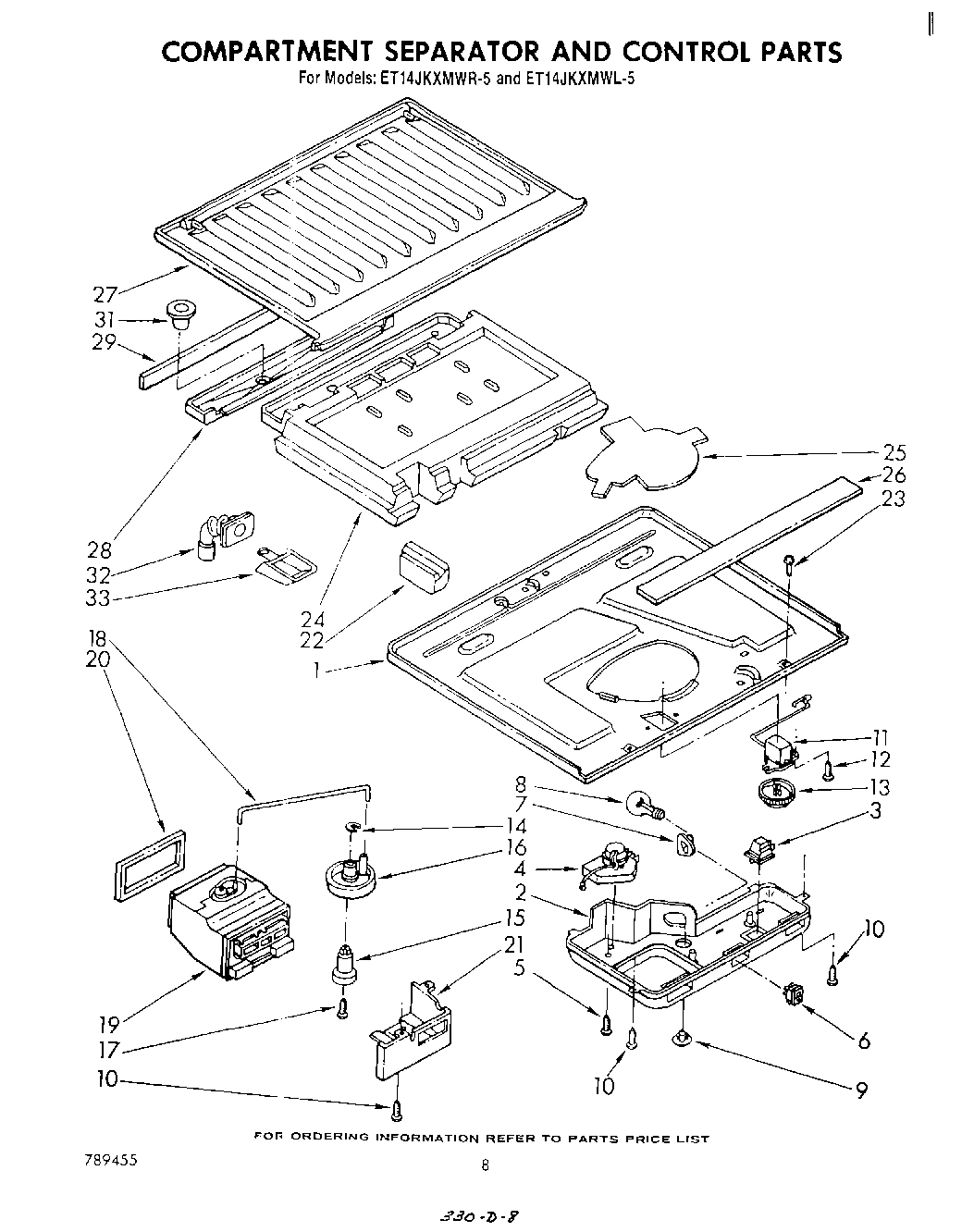

05 - COMPARTMENT SEPARATOR AND CONTROL
Common parts from model Whirlpool ET14JKXMWR5 TOP MOUNT REFRIGERATOR
WPL LIT1100050 WPL LIT1100050 Contact Us For Availability
WPL LIT789455 WPL LIT789455 Contact Us For Availability
WPL LIT942279 WPL LIT942279 Contact Us For Availability
WPL LIT946685 WPL LIT946685 Contact Us For Availability
1
Screw, 8 x 7/8 (2) WPL 487888 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI42036A9 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI42035A8 Contact Us For Availability
1
Bottom, Compartment Separator WPL 935714 Contact Us For Availability
2
Bumper (2) WPL 204349 Contact Us For Availability
2
Cover, Ice Cube Pan WPL 946979 Contact Us For Availability
2
Bracket, Wire Receptacle WPL 939050 Contact Us For Availability
2
Roller, Front & Rear (4) WPL 937216 Contact Us For Availability
2
Box, Control WPL 935726 Contact Us For Availability
3
condenser & precooler assembly WPL 943305 Contact Us For Availability
3
Pullout Shelf (2) WPL 935750 Contact Us For Availability
4
Clip Tube (2) WPL 942739 Contact Us For Availability
4
Crisper Cover WPL 935744 Contact Us For Availability
4
Heat Shield WPL 935699 Contact Us For Availability
4
Defrost Timer, Mallory WPL 943435 Contact Us For Availability
5
Pan, Crisper WPL 1110018 Contact Us For Availability
5
Evaporator, Support WPL 935700 Contact Us For Availability
5
Center Rail (Toast) WPL 1100221 Contact Us For Availability
5
Center Rail (Platinum) WPL 1100222 Contact Us For Availability
5
Center Rail (White) WPL 935685 Contact Us For Availability
5
Center Rail (Golden Harvest) WPL 935687 Contact Us For Availability
5
Center Rail (Almond) WPL 935689 Contact Us For Availability
6
Spacer WPL 938275 Contact Us For Availability
6
Heater, Mullion WPL 938278 Contact Us For Availability
7
Support, Stud WPL 939203 Contact Us For Availability
7
Breaker, Trim Cup WPL 534365 Contact Us For Availability
8
Stud Hook WPL 939065 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
8
Spacer WPL 940024 Contact Us For Availability
9
Cover, Air Duct WPL 935696 Contact Us For Availability
9
Center, Rail Shim WPL 939034 Contact Us For Availability
10
Dampener WPL 1108064 Contact Us For Availability
10
Bracket, Center Rail WPL 935692 Contact Us For Availability
11
Relay WPL 943317 Contact Us For Availability
12
Overload WPL 943318 Contact Us For Availability
12
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
13
Overload Spring WPL 943320 Contact Us For Availability
13
Cabinet, Wiring Assembly WPL 946681 Contact Us For Availability
13
Knob, Thermostat WPL 937144 Contact Us For Availability
14
Terminal Cover WPL 943321 Contact Us For Availability
14
Grommet WPL 531933 Contact Us For Availability
14
Lockwasher WPL 489053 Contact Us For Availability
15
Terminal Cover Strap WPL 943322 Contact Us For Availability
15
Spacer, Fan Motor WPL 935701 Contact Us For Availability
15
Hinge, Top WPL 842039 Contact Us For Availability
15
Spacer, Knob WPL 937105 Contact Us For Availability
16
Screw, 8 x 1-1/4 WPL 489042 Contact Us For Availability
16
Shim, Hinge Top WPL 836192 Contact Us For Availability
16
Knob, Air Control WPL 935727 Contact Us For Availability
17
Scroll Fan WPL 836179 Contact Us For Availability
17
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
17
Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability
18
Dampener WPL 945593 Contact Us For Availability
18
Evaporator Cover WPL 946212 Contact Us For Availability
18
Screw (Repair) WPL 488949 Contact Us For Availability
18
Connecting Rod WPL 937142 Contact Us For Availability
19
Hinge, Center WPL 836153 Contact Us For Availability
19
Air Diffuser WPL 935721 Contact Us For Availability
20
Condenser Bracket (2) WPL 510721 Contact Us For Availability
20
Shim, Hinge Center WPL 836155 Contact Us For Availability
20
Gasket, Air Diffuser WPL 937225 Contact Us For Availability
21
Hole Plug WPL 1103725 Contact Us For Availability
21
Cover, Air Diffuser WPL 937226 Contact Us For Availability
22
Evaporator WPL 938360 Contact Us For Availability
22
Cover Tube, Rear WPL 935704 Contact Us For Availability
22
Rear Corner, Block WPL 939056 Contact Us For Availability
23
Cover Tube, Bottom WPL 941776 Contact Us For Availability
23
Hinge, Bottom WPL 935735 Contact Us For Availability
24
Hole Plug WPL 655411 Contact Us For Availability
24
Insulation, Compartment Separator WPL 939272 Contact Us For Availability
25
Hinge Pin WPL 654366 Contact Us For Availability
25
Tray, Evaporator WPL 935781 Contact Us For Availability
25
Shield, Wiring WPL 946207 Contact Us For Availability
25
Heat Shield WPL 937227 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
26
Shim, Bottom WPL 935737 Contact Us For Availability
26
Center Rail, Seal Strip WPL 937086 Contact Us For Availability
27
WPL 876029 WPL 876029 Contact Us For Availability
27
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
27
WPL 799344 WPL 799344 Contact Us For Availability
27
xEnamel, Gold (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
27
Enamel, Gold (1 Qt. Uncut) WPL 261891 Contact Us For Availability
27
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
27
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
27
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
27
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
27
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
27
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
27
WPL 72112 WPL 72112 Contact Us For Availability
27
WPL 799832 WPL 799832 Contact Us For Availability
27
WPL 799833 WPL 799833 Contact Us For Availability
27
WPL 799908 WPL 799908 Contact Us For Availability
27
WPL 944795 WPL 944795 Contact Us For Availability
27
WPL 978883 WPL 978883 Contact Us For Availability
27
Top, Compartment Separator WPL 935717 Contact Us For Availability
28
Tap Plate, Bottom WPL 935743 Contact Us For Availability
28
Drain Pan WPL 935718 Contact Us For Availability
29
Drier Clamp WPL 547637 Contact Us For Availability
29
Hole Plug (Platinum) WPL 1100687 Contact Us For Availability
29
Hole Plug (Toast) WPL 1100688 Contact Us For Availability
29
Hole Plug (White) WPL 940086 Contact Us For Availability
29
Hole Plug (Almond) WPL 940087 Contact Us For Availability
29
Hole Plug (Golden Harvest) WPL 940089 Contact Us For Availability
29
Gasket, Drain Pan WPL 937064 Contact Us For Availability
30
Unit Mounting Plate WPL 942860 Contact Us For Availability
30
Hole Plug (3) (Toast) WPL 1100176 Contact Us For Availability
30
Hole Plug (3) (Platinum) WPL 1100177 Contact Us For Availability
30
Hole Plug (3) (White) WPL 842031 Contact Us For Availability
30
Hole Plug (3) (Almond) WPL 989195 Contact Us For Availability
30
Hole Plug (3) (Golden Harvest) WPL 989876 Contact Us For Availability
31
Heat Exchanger WPL 945554 Contact Us For Availability
31
Hole Plug (Toast) WPL 1100223 Contact Us For Availability
31
Hole Plug (Platinum) WPL 1100224 Contact Us For Availability
31
Hole Plug (White) WPL 941416 Contact Us For Availability
31
Hole Plug (Almond) WPL 941417 Contact Us For Availability
31
Hole Plug (Golden Harvest) WPL 941419 Contact Us For Availability
31
Separator, Drain Insert WPL 937359 Contact Us For Availability
32
Spacer, Top WPL 943188 Contact Us For Availability
32
Heater Clip WPL 850721 Contact Us For Availability
32
Cover, Wiring WPL 946218 Contact Us For Availability
32
Fitting, Drain WPL 937062 Contact Us For Availability
33
Shim, Bottom WPL 992872 Contact Us For Availability
33
Heater, Defrost WPL 935798 Contact Us For Availability
33
Cup, Drain WPL 937065 Contact Us For Availability
34
Support, Heater WPL 851358 Contact Us For Availability
34
WPL 937360 WPL 937360 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
36
WPL 937357 WPL 937357 Contact Us For Availability
38
Sound Pad Deadner WPL 301774 Contact Us For Availability
39
WPL 943187 WPL 943187 Contact Us For Availability
39
WPL 1100697 WPL 1100697 Contact Us For Availability
39
WPL 1100698 WPL 1100698 Contact Us For Availability
39
WPL 935707 WPL 935707 Contact Us For Availability
39
WPL 935709 WPL 935709 Contact Us For Availability
39
WPL 935711 WPL 935711 Contact Us For Availability
40
WPL 488895 WPL 488895 Contact Us For Availability
41
WPL 488714 WPL 488714 Contact Us For Availability
42
WPL 489112 WPL 489112 Contact Us For Availability
43
WPL 945119 WPL 945119 Contact Us For Availability
44
WPL 991259 WPL 991259 Contact Us For Availability
48
Unit Mounting Rail WPL 945448 Contact Us For Availability
50
Nut WPL 489142 Contact Us For Availability
51
Washer WPL 489143 Contact Us For Availability
70
Install Kit & Item 78 WPL 482801 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388008 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
78
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
78
Tray, Evaporator (Required When Replacing Com WPL 1101002 Contact Us For Availability
78
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
