Model Whirlpool EJT181XKWR2 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
03 - CABINET

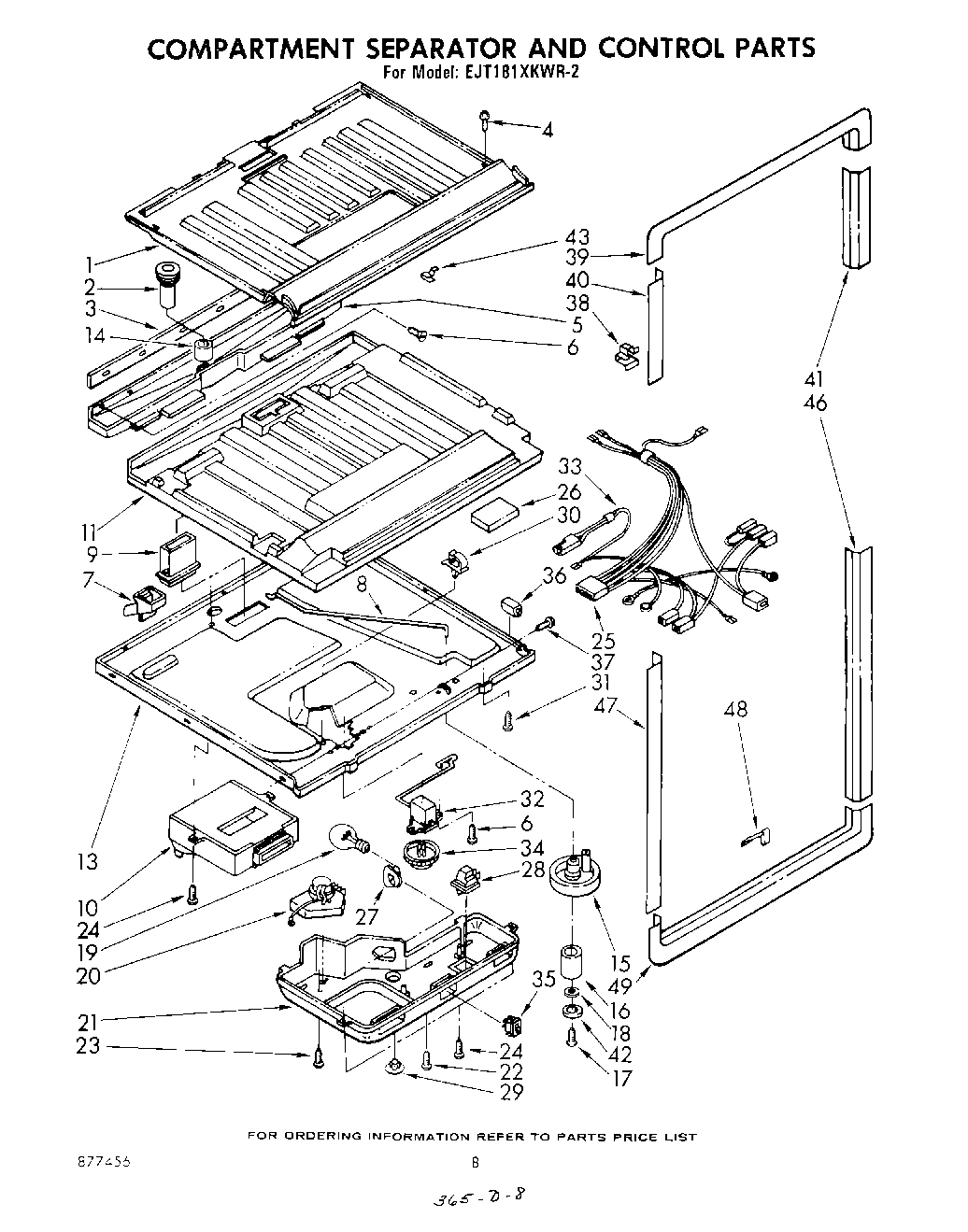

06 - COMPARTMENT SEPARATOR AND CONTROL

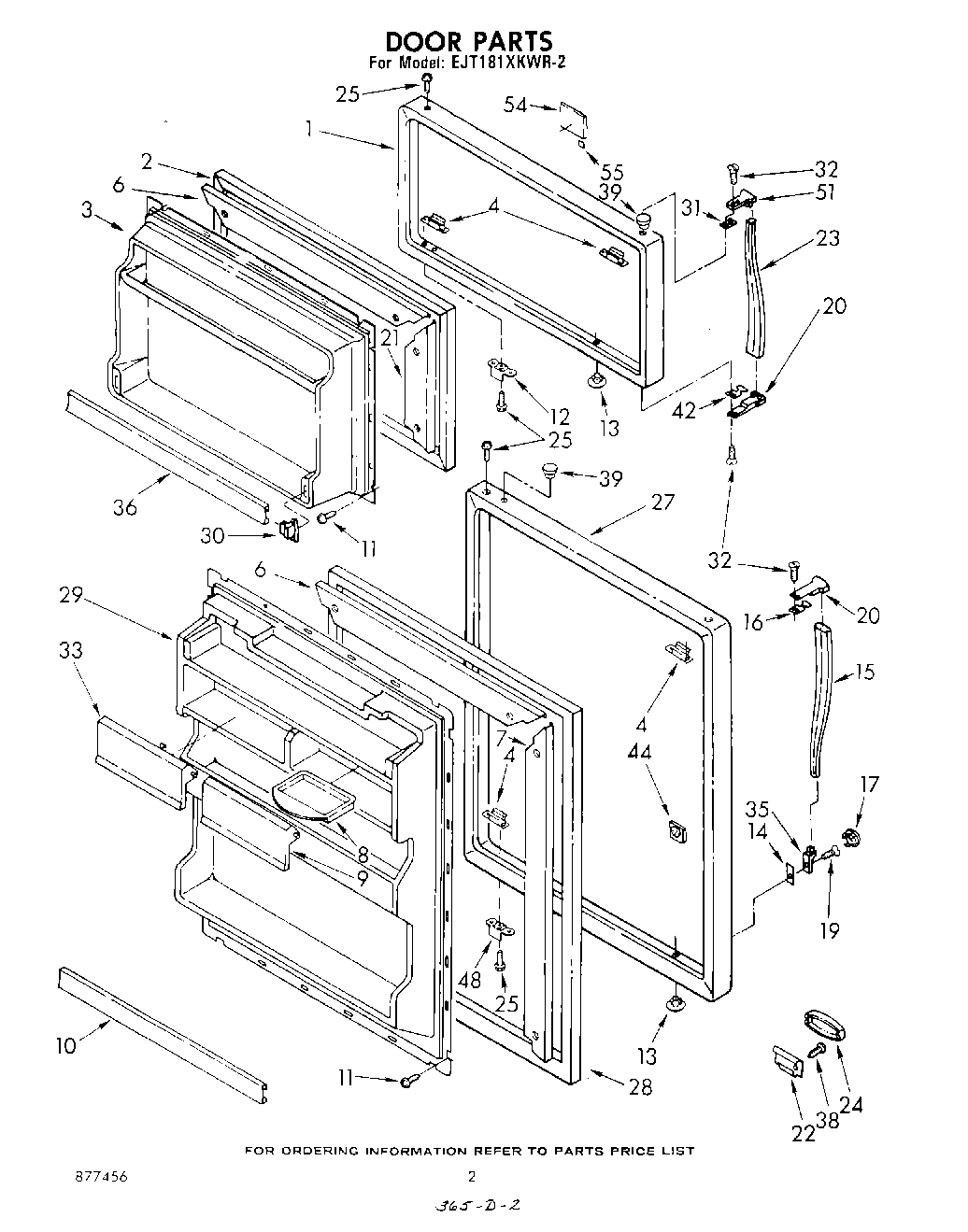

02 - DOOR

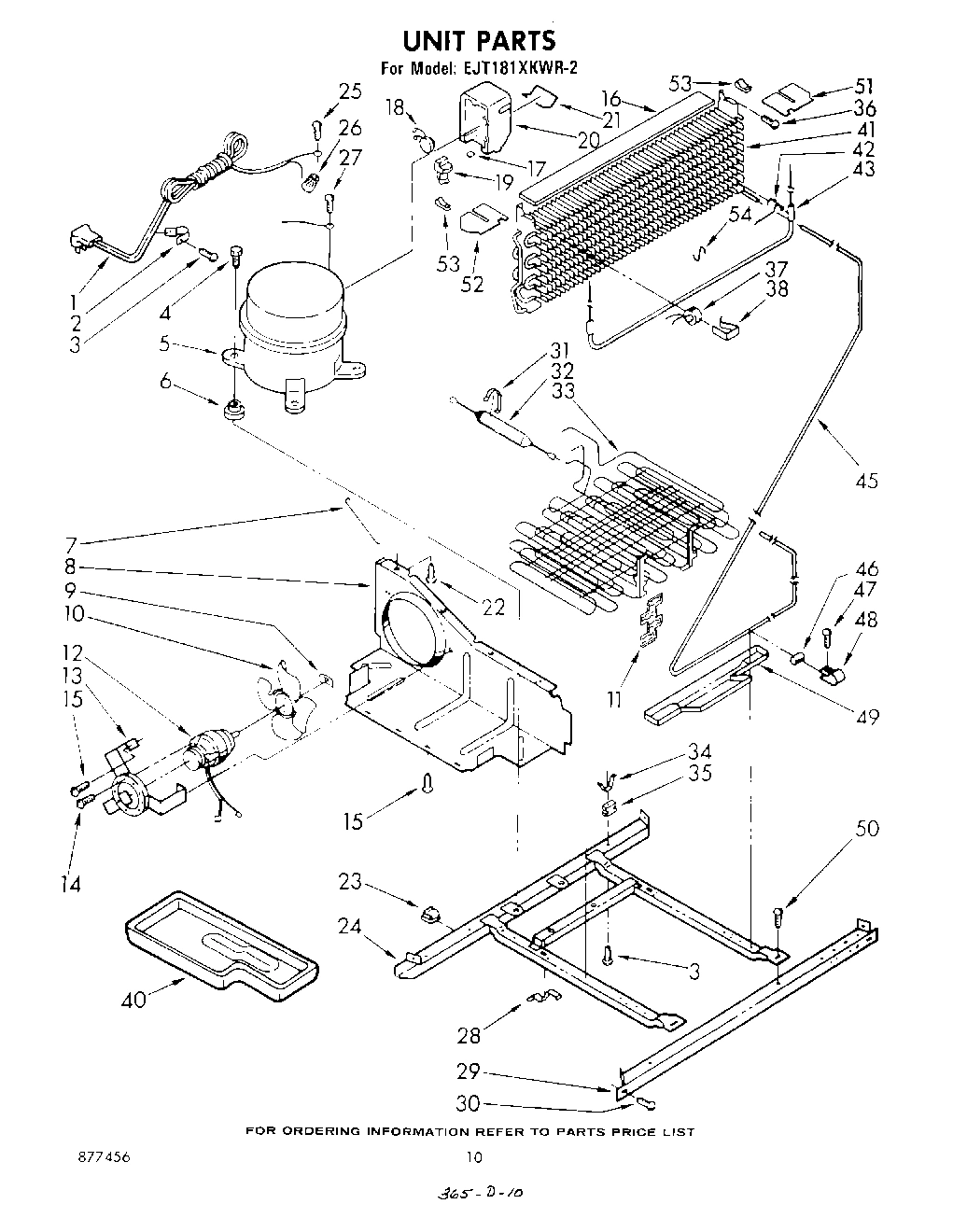

07 - UNIT , PARTS NOT ILLUSTRATED

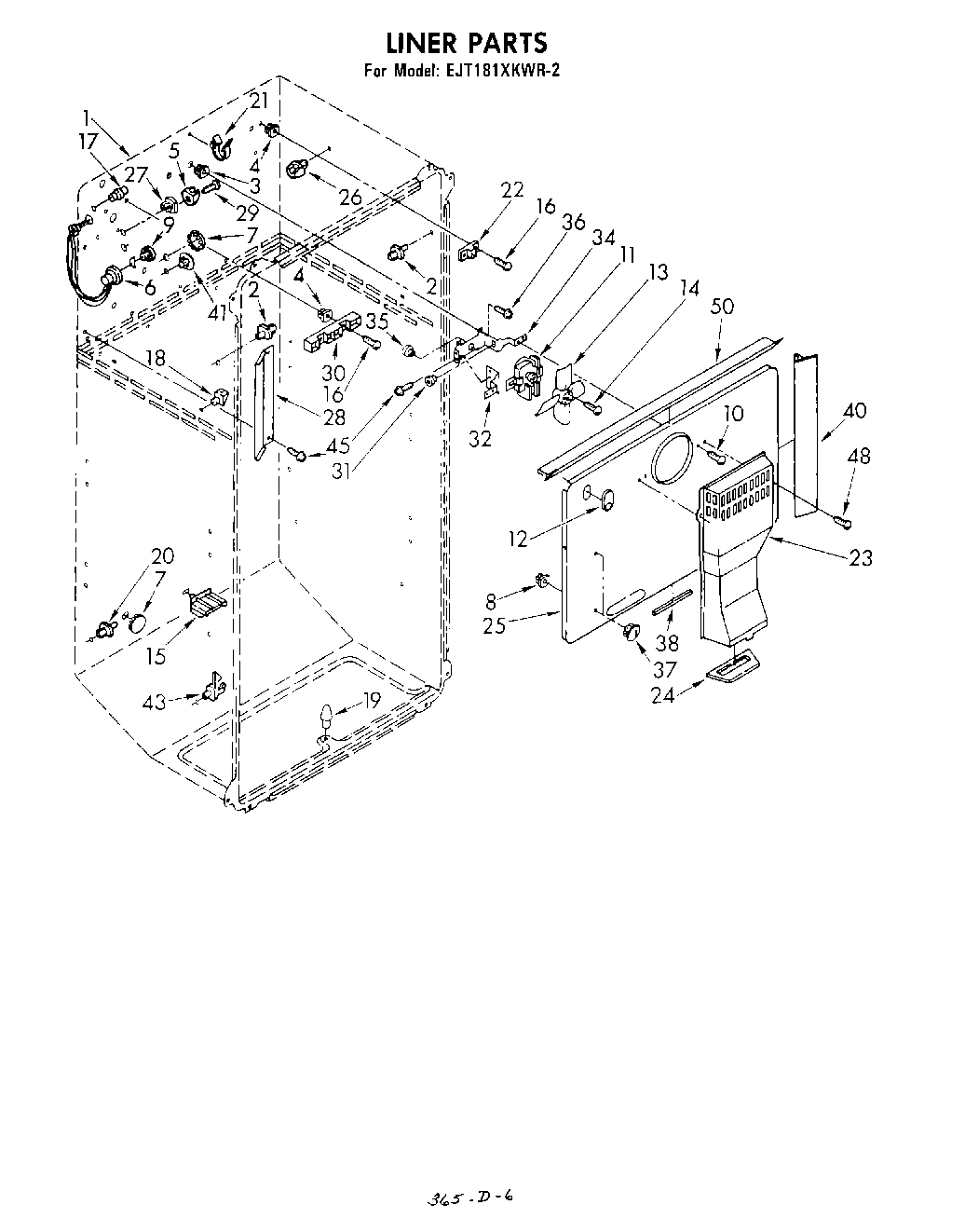

04 - LINER

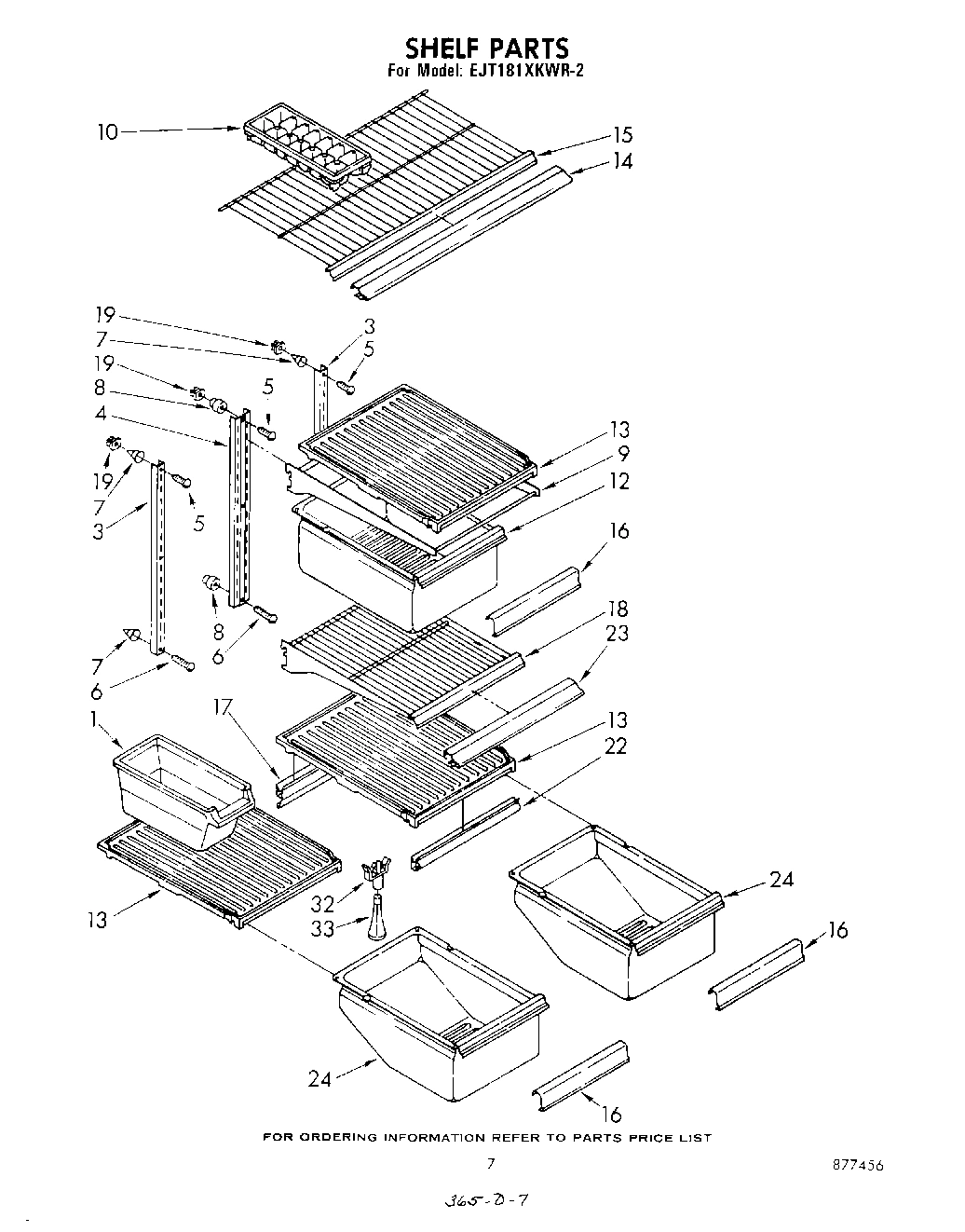

05 - SHELF
Common parts from model Whirlpool EJT181XKWR2 TOP MOUNT REFRIGERATOR
WPL 261886 WPL 261886 Contact Us For Availability
WPL 261888 WPL 261888 Contact Us For Availability
WPL 261890 WPL 261890 Contact Us For Availability
WPL 350941 WPL 350941 Contact Us For Availability
1
Top, Compartment Separator WPL 937257 Contact Us For Availability
1
Door, Freezer (White) WPL 944141 Contact Us For Availability
1
Door, Freezer (Coffee) WPL 944142 Contact Us For Availability
1
Door, Freezer (Golden Harvest) WPL 944143 Contact Us For Availability
1
Door, Freezer (New Avocado) WPL 944144 Contact Us For Availability
1
Door, Freezer (Almond) WPL 944145 Contact Us For Availability
1
Cord, Service WPL 850626 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI39431A4 Contact Us For Availability
2
Drain Insert WPL 836088 Contact Us For Availability
2
Gasket, Freezer Door WPL 987037 Contact Us For Availability
2
Stud, Shelf (2) WPL 521878 Contact Us For Availability
3
Gasket, Drain Pan WPL 937292 Contact Us For Availability
3
Panel, Interior WPL 940681 Contact Us For Availability
3
Grommet (2) WPL 941700 Contact Us For Availability
3
Ladder (2) WPL 934267 Contact Us For Availability
4
Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability
4
Grommet (4) WPL 937252 Contact Us For Availability
4
Ladder (1) WPL 936230 Contact Us For Availability
5
Drain Pan WPL 937291 Contact Us For Availability
5
Compressor WPL 464082 Contact Us For Availability
5
Stud, Saddle WPL 836492 Contact Us For Availability
5
Screw, 8 x 1-1/4 (3) WPL 488357 Contact Us For Availability
6
Retainer, Top & Bottom (2) WPL 836115 Contact Us For Availability
6
Grommet (4) WPL 547283 Contact Us For Availability
6
Liner Wiring (Ice Maker) WPL 937264 Contact Us For Availability
6
Screw, 8-32 x 1-1/4 WPL 488960 Contact Us For Availability
6
Screw (Repair) WPL 488980 Contact Us For Availability
7
Cup, Drain WPL 939191 Contact Us For Availability
7
Retainer, Side (2) WPL 836117 Contact Us For Availability
7
Guard, Fan WPL 850156 Contact Us For Availability
7
Plug, Hole (4) WPL 519890 Contact Us For Availability
8
Connecting Rod WPL 937271 Contact Us For Availability
8
Baffle, Air WPL 850764 Contact Us For Availability
8
Grommet (4) WPL 848445 Contact Us For Availability
8
Support, Ladder (2) WPL 520959 Contact Us For Availability
9
Air Duct Extension WPL 939078 Contact Us For Availability
9
Door, Butter WPL 940678 Contact Us For Availability
9
Cap, Receptacle WPL 850738 Contact Us For Availability
9
Pan Shelf, Cantilever WPL 937316 Contact Us For Availability
10
Air Diffuser WPL 937283 Contact Us For Availability
10
Trim, Shelf (3) WPL 939359 Contact Us For Availability
10
Fan WPL 989524 Contact Us For Availability
11
Insulation, Compartment Separator WPL 937256 Contact Us For Availability
11
Spacer Condenser WPL 987210 Contact Us For Availability
12
Bracket, Door Stop WPL 944035 Contact Us For Availability
12
Hole, Plug Tube WPL 659776 Contact Us For Availability
12
Pan, Meat WPL 937327 Contact Us For Availability
13
Bottom, Compartment Separator WPL 941712 Contact Us For Availability
13
Plug, Hole (White) WPL 534927 Contact Us For Availability
13
Plug, Hole (Almond) WPL 989197 Contact Us For Availability
13
Plug, Hole (Coffee) WPL 989878 Contact Us For Availability
13
Plug, Hole (Golden Harvest) WPL 989879 Contact Us For Availability
13
Plug, Hole (New Avocado) WPL 989880 Contact Us For Availability
13
Bracket, Motor WPL 548695 Contact Us For Availability
13
Blade, Fan WPL 839859 Contact Us For Availability
13
Cover, Pan Slide (3) WPL 943791 Contact Us For Availability
14
Shim, Handle WPL 992872 Contact Us For Availability
14
Drain Tube WPL 940117 Contact Us For Availability
14
Screw (Use W/851618 Motor) (3) WPL 488868 Contact Us For Availability
14
Trim, Shelf WPL 937309 Contact Us For Availability
15
Knob, Air Control WPL 937270 Contact Us For Availability
15
Screw, 8 x 3/8 (3) WPL 488624 Contact Us For Availability
15
Handle, Center WPL 982946 Contact Us For Availability
15
Stud, Crisper Support WPL 836412 Contact Us For Availability
15
Shelf, Wire WPL 937328 Contact Us For Availability
16
Spacer, Knob WPL 941767 Contact Us For Availability
16
Baffle, Evaporator WPL 937289 Contact Us For Availability
16
Overlay (3) WPL 937322 Contact Us For Availability
17
Screw WPL 489074 Contact Us For Availability
17
Bumper WPL 547272 Contact Us For Availability
17
Stud WPL 526383 Contact Us For Availability
17
Gasket, Rear WPL 982157 Contact Us For Availability
18
Washer WPL 489071 Contact Us For Availability
18
Overload WPL 549041 Contact Us For Availability
18
Stud, Retainer (4) WPL 836374 Contact Us For Availability
18
Shelf (3) WPL 937330 Contact Us For Availability
19
Grommet, Post WPL 836409 Contact Us For Availability
19
Relay WPL 989662 Contact Us For Availability
19
Grommet WPL 842339 Contact Us For Availability
20
Stud, Shelf (2) WPL 536475 Contact Us For Availability
20
Defrost Timer (8 Hr.) WPL 938035 Contact Us For Availability
20
Case, Relay WPL 549945 Contact Us For Availability
21
Box, Control WPL 935726 Contact Us For Availability
21
Fastener, Wire WPL 851039 Contact Us For Availability
21
Retainer, Side (2) WPL 836119 Contact Us For Availability
21
Spring WPL 531318 Contact Us For Availability
22
Screw, 8 x 1-3/8 (2) WPL 488678 Contact Us For Availability
22
Clip, Medallion WPL 843213 Contact Us For Availability
22
Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability
22
Terminal Block (Single) WPL 937254 Contact Us For Availability
22
Gasket, Front WPL 937319 Contact Us For Availability
23
Handle, Center WPL 982944 Contact Us For Availability
23
Clip, Wire (2) WPL 548745 Contact Us For Availability
23
Air Duct WPL 937282 Contact Us For Availability
23
Trim, Shelf WPL 937315 Contact Us For Availability
24
Medallion (White) WPL 848382 Contact Us For Availability
24
Medallion (Coffee) WPL 989901 Contact Us For Availability
24
Medallion (New Avocado) WPL 989902 Contact Us For Availability
24
Medallion (Golden Harvest) WPL 989903 Contact Us For Availability
24
Medallion (Almond) WPL 989904 Contact Us For Availability
24
Frame WPL 548655 Contact Us For Availability
24
Sealing Gasket WPL 939099 Contact Us For Availability
24
Pan, Crisper WPL 937336 Contact Us For Availability
25
Control Box Wiring WPL 941722 Contact Us For Availability
25
Screw (Repair) WPL 488930 Contact Us For Availability
25
Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability
25
Cover, Evaporator WPL 937287 Contact Us For Availability
26
Insulation (2) WPL 939083 Contact Us For Availability
26
Nut, Wire WPL 227991 Contact Us For Availability
26
Stud, Saddle (R.S.) WPL 523263 Contact Us For Availability
27
Door, Refrigerator (White) WPL 944134 Contact Us For Availability
27
Door, Refrigerator (Coffee) WPL 944135 Contact Us For Availability
27
Door, Refrigerator (Golden Harvest) WPL 944136 Contact Us For Availability
27
Door, Refrigerator (New Avocado) WPL 944137 Contact Us For Availability
27
Door, Refrigerator (Almond) WPL 944138 Contact Us For Availability
27
Grommet WPL 538449 Contact Us For Availability
28
Gasket, Refrigerator Door WPL 987036 Contact Us For Availability
28
Clip (2) WPL 548744 Contact Us For Availability
28
Wiring Shield WPL 937269 Contact Us For Availability
29
Drain Fitting WPL 939271 Contact Us For Availability
29
Panel, Interior WPL 940677 Contact Us For Availability
29
Rail, Front WPL 548663 Contact Us For Availability
30
Retainer, Door Trim (2) WPL 839975 Contact Us For Availability
30
Grille (White) WPL 841669 Contact Us For Availability
30
Grille (Coffee) WPL 989940 Contact Us For Availability
30
Grille (New Avocado) WPL 989942 Contact Us For Availability
30
Grille (Golden Harvest) WPL 989944 Contact Us For Availability
30
Grille (Almond) WPL 989946 Contact Us For Availability
30
Terminal Block (Multiple) WPL 937253 Contact Us For Availability
31
Shim, Handle WPL 943187 Contact Us For Availability
31
Insert, Air Baffle WPL 836372 Contact Us For Availability
31
Screw, 8 x 1 (2) WPL 488206 Contact Us For Availability
31
Clamp WPL 548508 Contact Us For Availability
31
Grommet (3) WPL 548268 Contact Us For Availability
32
Support, Cover WPL 848562 No Longer Available
32
Gasket, Seal WPL 940121 Contact Us For Availability
32
Screw (Repair) WPL 488923 Contact Us For Availability
32
Bracket, Double WPL 937277 Contact Us For Availability
33
Cover, Hinge (Coffee) WPL 989895 Contact Us For Availability
33
Cover, Hinge (Golden Harvest) WPL 989896 Contact Us For Availability
33
Cove WPL 989897 Contact Us For Availability
33
Wiring Assembly (Ground & Test) WPL 941725 Contact Us For Availability
33
Utility, Door WPL 940679 Contact Us For Availability
33
Condenser & Precooler Assembly WPL 481846 Contact Us For Availability
33
Post, Cover WPL 937340 Contact Us For Availability
34
WPL 488949 WPL 488949 Contact Us For Availability
34
Knob, Thermostat WPL 937144 Contact Us For Availability
34
Clamp (4) WPL 548738 Contact Us For Availability
34
Bracket, Single WPL 937278 Contact Us For Availability
35
WPL 842039 WPL 842039 Contact Us For Availability
35
Grommet (4) WPL 548737 Contact Us For Availability
35
Grommet WPL 531933 Contact Us For Availability
36
WPL 942478 WPL 942478 Contact Us For Availability
36
Wiring Protector (2) WPL 939143 Contact Us For Availability
36
Trim, Shelf WPL 938632 Contact Us For Availability
37
WPL 836151 WPL 836151 Contact Us For Availability
38
WPL 941681 WPL 941681 Contact Us For Availability
38
Clip, Liner WPL 941876 Contact Us For Availability
38
Clamp WPL 513584 Contact Us For Availability
38
Gasket, Sealing WPL 939199 Contact Us For Availability
39
WPL 836066 WPL 836066 Contact Us For Availability
39
WPL 989191 WPL 989191 Contact Us For Availability
39
WPL 989905 WPL 989905 Contact Us For Availability
39
WPL 989906 WPL 989906 Contact Us For Availability
39
WPL 989907 WPL 989907 Contact Us For Availability
39
Breaker, Freezer (Top) WPL 937263 Contact Us For Availability
39
WPL 989196 WPL 989196 Contact Us For Availability
39
WPL 989892 WPL 989892 Contact Us For Availability
39
WPL 989894 WPL 989894 Contact Us For Availability
40
Tray, Evaporating WPL 842041 Contact Us For Availability
40
WPL 836155 WPL 836155 Contact Us For Availability
40
Breaker, Freezer (L.S.) WPL 941709 Contact Us For Availability
40
Gasket (2) WPL 981750 Contact Us For Availability
41
Breaker, Freezer (R.S.) WPL 941708 Contact Us For Availability
41
Evaporator WPL 938337 Contact Us For Availability
41
Plug, Hole (2) WPL 659598 Contact Us For Availability
42
WPL 943188 WPL 943188 Contact Us For Availability
42
WPL 836153 WPL 836153 Contact Us For Availability
42
``O`` Ring Seal WPL 489072 Contact Us For Availability
42
Clip, Heater (2) WPL 850721 Contact Us For Availability
43
Stud, Shelf (2) WPL 836423 Contact Us For Availability
43
WPL 987524 WPL 987524 Contact Us For Availability
43
Clip (3) WPL 534365 Contact Us For Availability
43
Heater, Defrost WPL 937302 Contact Us For Availability
45
Exchanger, Heat WPL 943348 Contact Us For Availability
46
Breaker, Refrigerator R.S. WPL 937258 Contact Us For Availability
46
Dampener (2) WPL 510769 Contact Us For Availability
47
WPL 836159 WPL 836159 Contact Us For Availability
47
Breaker, Refrigerator L.S. WPL 937259 Contact Us For Availability
48
Clip, Wrapper (11) WPL 939139 Contact Us For Availability
48
WPL 944036 WPL 944036 Contact Us For Availability
48
Clamp (2) WPL 510716 Contact Us For Availability
49
WPL 654366 WPL 654366 Contact Us For Availability
49
Breaker, Refrigerator (Bottom) WPL 937260 Contact Us For Availability
49
Pan, Drip WPL 989269 Contact Us For Availability
50
WPL 488714 WPL 488714 Contact Us For Availability
50
Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability
50
Gasket, Top WPL 939103 Contact Us For Availability
51
WPL 836196 WPL 836196 Contact Us For Availability
51
Baffle, R.S. WPL 939106 Contact Us For Availability
52
Baffle, L.S. WPL 939105 Contact Us For Availability
53
Retainer, Baffle (2) WPL 939104 Contact Us For Availability
54
WPL 978029 WPL 978029 Contact Us For Availability
54
WPL 876029 WPL 876029 Contact Us For Availability
54
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
54
WPL 799344 WPL 799344 Contact Us For Availability
54
WPL 945120 WPL 945120 Contact Us For Availability
54
Enamel, Coffee (1 Qt. Uncut) WPL 261887 Contact Us For Availability
54
Enamel, New Avocado (1 Qt. Uncut) WPL 261889 Contact Us For Availability
54
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
54
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
54
CEMENT, ALU WPL 542639 Contact Us For Availability
54
WPL 72108 WPL 72108 Contact Us For Availability
54
WPL 799340 WPL 799340 Contact Us For Availability
54
WPL 799351 WPL 799351 Contact Us For Availability
54
WPL 799832 WPL 799832 Contact Us For Availability
54
WPL 799833 WPL 799833 Contact Us For Availability
54
WPL 851358 WPL 851358 Contact Us For Availability
54
WPL 877456 WPL 877456 Contact Us For Availability
54
WPL 940758 WPL 940758 Contact Us For Availability
54
WPL 940798 WPL 940798 Contact Us For Availability
54
WPL 941726 WPL 941726 Contact Us For Availability
54
WPL 978028 WPL 978028 Contact Us For Availability
54
WPL 978883 WPL 978883 Contact Us For Availability
55
WPL 488681 WPL 488681 Contact Us For Availability
55
WPL 991259 WPL 991259 Contact Us For Availability
× ![]()
