Model Whirlpool EHS2672L ELECTRIC RANGE – Common Parts & Diagrams
04 - OVEN COMPONENTS

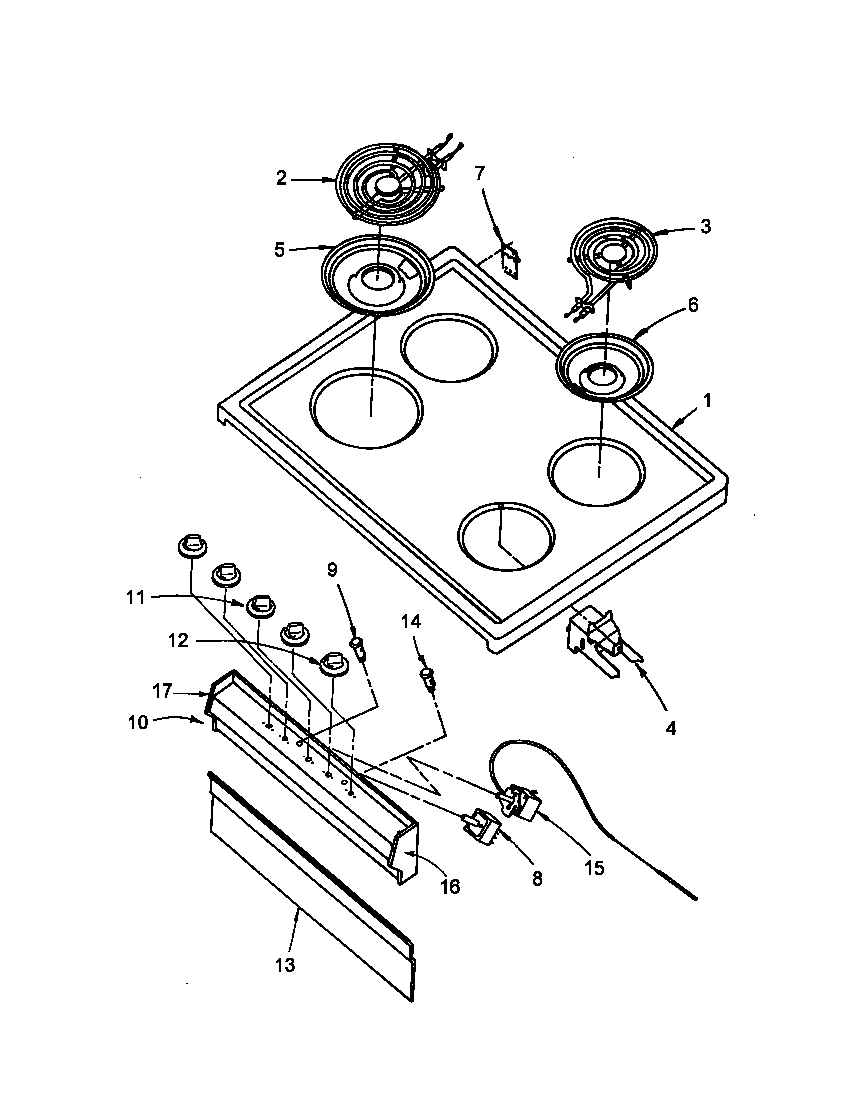

03 - MAIN TOP

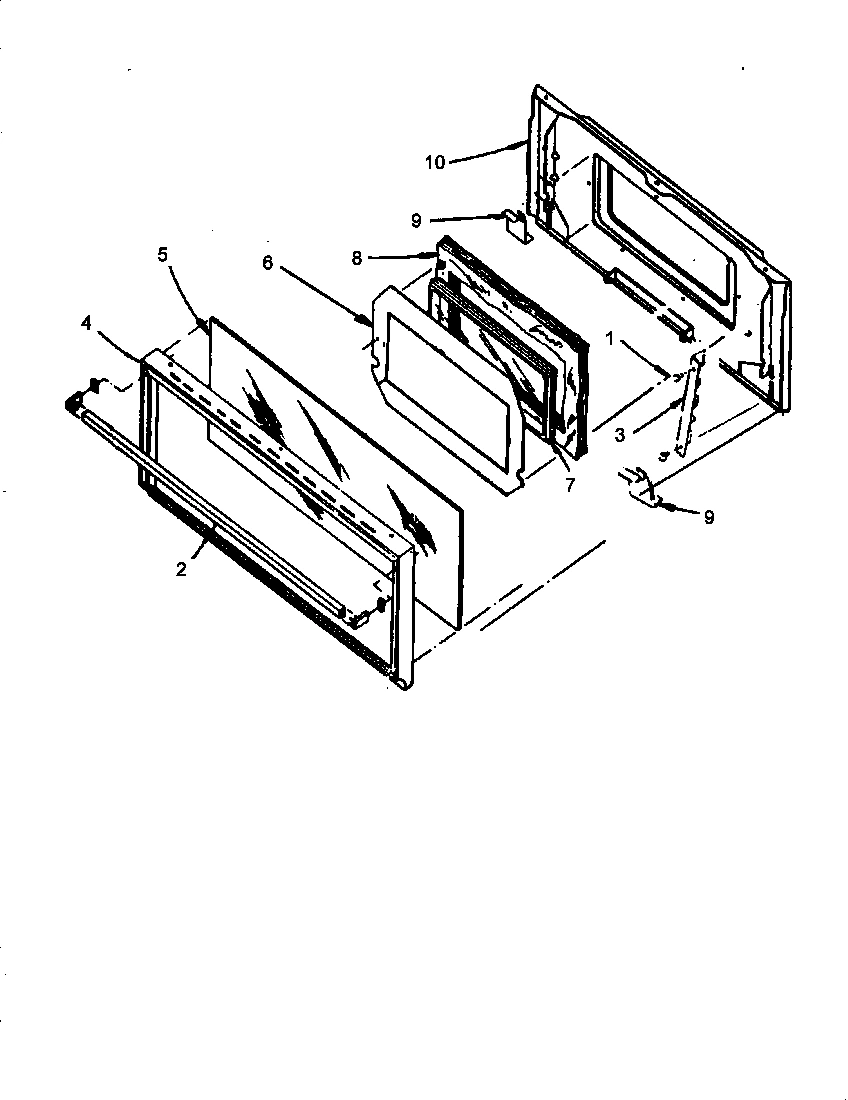

05 - OVEN DOOR

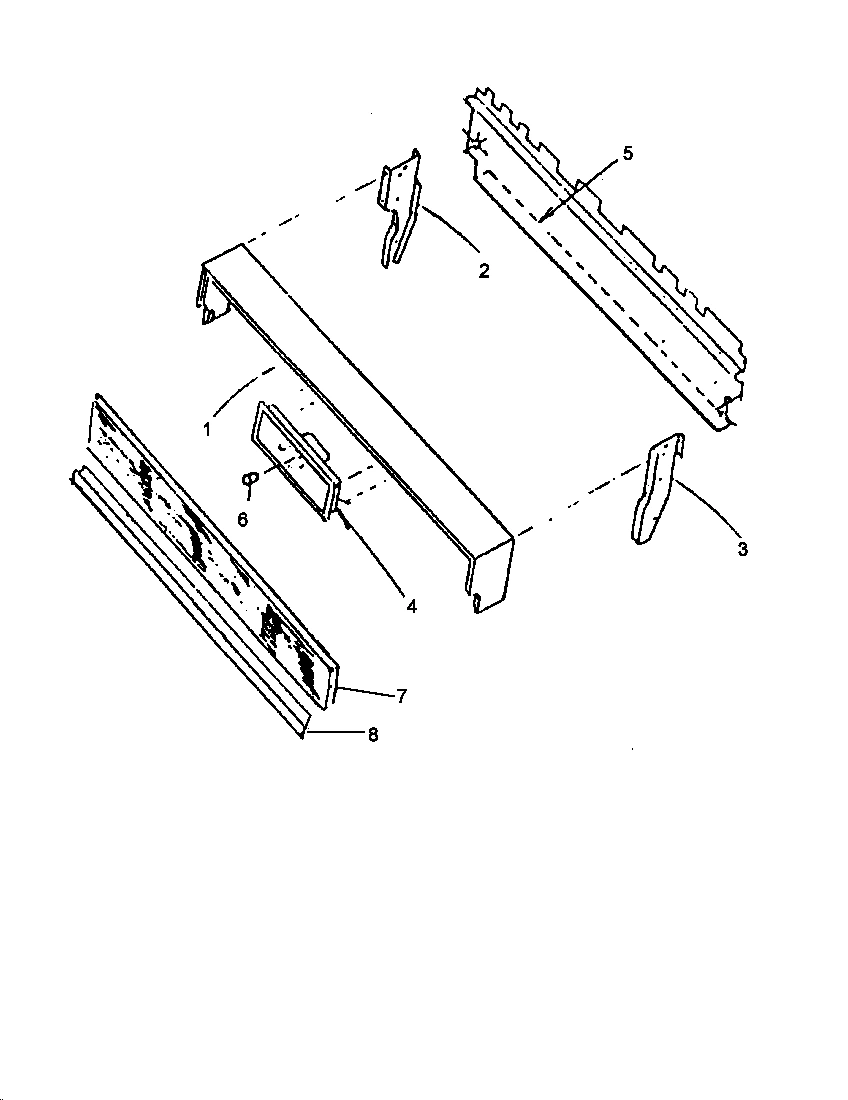

01 - BACKGUARD
06 - STORAGE DRAWER

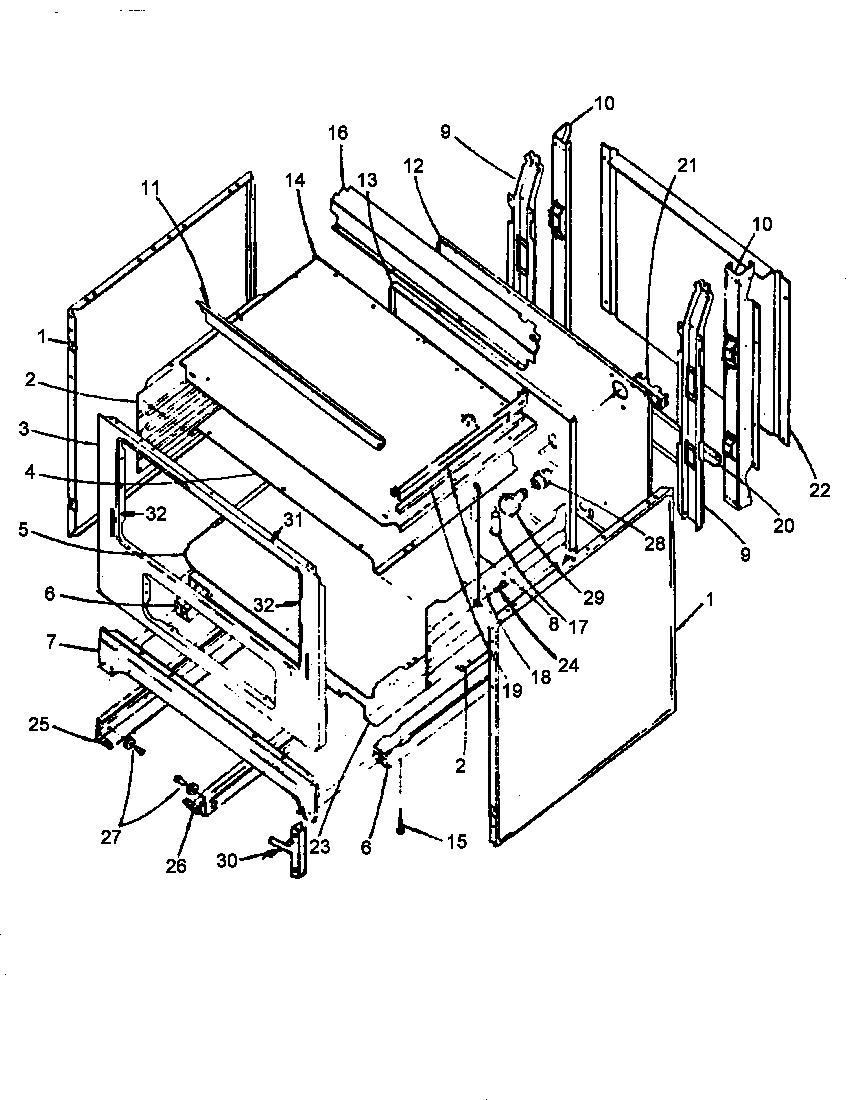

02 - CABINET
Common parts from model Whirlpool EHS2672L ELECTRIC RANGE
1
OVEN RACK, 24`` WPL Y0312235 Contact Us For Availability
1
TOP, 24`` MAIN ELECTRIC (ALMOND WPL Y06461009L Contact Us For Availability
1
SUB 63661, BUMPER, OV. DR. WPL Y0087002 Contact Us For Availability
1
BACKGUARD FRAME WPL 0057324 Contact Us For Availability
1
STORAGE DRAWER WPL 0310536 Contact Us For Availability
1
PANEL,BODY SIDE (AL) WPL 313762L Contact Us For Availability
2
HANDLE, DOOR (J) WPL Y0057316 Contact Us For Availability
2
BACKGUARD SUPPORT, LH WPL Y0056474 Contact Us For Availability
2
PANEL, STORAGE DRAWER (ALMOND) WPL 313757L Contact Us For Availability
2
LINER,OVEN SIDE WPL 0311807 Contact Us For Availability
3
PAN, BROILER WPL 87722CG Contact Us For Availability
3
BACKGUARD SUPPORT, RH WPL 0056475 Contact Us For Availability
3
OVEN DOOR HANDLE, 18`` WPL Y0088812 Contact Us For Availability
3
FRAME, MAIN FRONT 24`` WPL Y06473101E Contact Us For Availability
4
FRAME, OVEN DOOR SS WPL 0312827 Contact Us For Availability
4
CLOCK WPL Y0055037 Contact Us For Availability
4
HANDLE SPACER, PLASTIC (J) WPL Y0310818 Contact Us For Availability
4
LINER, OVEN TOP (24` RANGE) WPL Y06469800E Contact Us For Availability
5
BROIL ELEMENT WPL Y0088867 Contact Us For Availability
5
BUMPER-RUBBER 1/4`` WPL Y02068100 Contact Us For Availability
5
GLASS OVEN DOOR WPL 0312830 Contact Us For Availability
5
WIRE COVER WPL Y0310990 Contact Us For Availability
5
OVEN BOTTOM (24``) (ENAM) WPL 310689E Contact Us For Availability
6
CLIP, T-STAT BULB WPL Y0088822 Contact Us For Availability
6
BAFFLE DOOR BACKER WPL 0312824 Contact Us For Availability
6
KNOB, CLOCK WPL 314923B Contact Us For Availability
6
GLIDE, DRAWER (WHT) WPL Y07674900 Contact Us For Availability
6
RAIL, BASE WPL 06554900 Contact Us For Availability
7
HINGE, MAIN TOP (BLK) WPL Y02002702 Contact Us For Availability
7
WINDOW, OVEN DOOR (2) PANE WPL Y07729700 Contact Us For Availability
7
GLASS, BACKGUARD WPL Y0055025 Contact Us For Availability
7
BUMPER-RUBBER 1/4`` WPL Y0088788 Contact Us For Availability
7
PANEL, BASE TOE 24`` WPL Y0054693 Contact Us For Availability
8
SWITCH, INFINITE WPL 0055044 Contact Us For Availability
8
INSULATION OVEN DOOR WPL Y0312833 Contact Us For Availability
8
BASE-BKGD,24``W/HOLES WPL Y02330026B Contact Us For Availability
8
NUT, SPEED, FLAT WPL Y0310032 Contact Us For Availability
8
SUPPORT ROD WPL 0087023 Contact Us For Availability
9
LIGHT, PILOT WPL 0088640 Contact Us For Availability
9
BRACKET, BUMPER MOUNT {J} WPL Y0311752 Contact Us For Availability
9
VERTICAL SUP. (J) WPL 0052742 Contact Us For Availability
10
PNL, MANIFOLD ELECTRIC WPL 0055005 Contact Us For Availability
10
BACKER, OVEN DOOR WPL 06490300E Contact Us For Availability
10
SUPPORT, REAR, VERTICAL {J} WPL 0056477 Contact Us For Availability
11
KNOB, TOP BURNER WPL Y0055033 Contact Us For Availability
11
COVER SWITCH WPL 0086934 Contact Us For Availability
12
KNOB, THERMOSTAT WPL Y0055034 Contact Us For Availability
12
BACK, MAIN ELECTRIC 24`` WPL Y06478201 Contact Us For Availability
13
LINER, OVEN RACK WPL Y06469500E Contact Us For Availability
14
LIGHT, INDICATOR WPL Y0088777 Contact Us For Availability
14
BURNER BOX BOTTOM WPL 311001E Contact Us For Availability
15
THERMO-ELECT. WPL 0088758 Contact Us For Availability
16
END CAP, RH WPL 0086976 Contact Us For Availability
16
BURNER BOX REAR COVER WPL Y0311033 Contact Us For Availability
17
END CAP, LH WPL 0086975 Contact Us For Availability
17
OVEN VENT WPL 0088761 Contact Us For Availability
18
WIRE CHANNEL WPL 311010E Contact Us For Availability
19
WIRE CHANNEL SUPPORT WPL Y0088817 Contact Us For Availability
20
SUPPORT, BOTTOM WIRE COVER WPL Y0086753 Contact Us For Availability
22
WIRE COVER, MAIN BACK WPL Y0086751 Contact Us For Availability
24
SHOULDER SCREW WPL 0088779 Contact Us For Availability
25
TRACK, LOWER L.H. WPL 0310522 Contact Us For Availability
26
TRACK, LOWER R.H. WPL Y0310523 Contact Us For Availability
27
PIN, BROILER ROLLER WPL 04007001 Contact Us For Availability
28
SOCKET, OVEN LIGHT WPL Y0316385 Contact Us For Availability
30
HINGE, OVEN DOOR WPL Y0086789 Contact Us For Availability
31
SEAL, OVEN-TOP & BOTTOM 24`` WPL Y0056092 Contact Us For Availability
32
SEAL, OVEN-SIDES WPL Y0056090 Contact Us For Availability
NI
DISC, THERMO WPL 0053357 Contact Us For Availability
NI
SCREW WPL 0055047 Contact Us For Availability
NI
SCREW WPL 0312238 Contact Us For Availability
NI
SCREW {J} WPL Y0056088 Contact Us For Availability
NI
SWITCH, ROCKER WPL Y07634800 Contact Us For Availability
NI
CLIP, SPEED (DOZ) {J} WPL 0310033 Contact Us For Availability
NI
SCREW No.10 X 1/2`` WPL Y0310804 Contact Us For Availability
NI
SCREW, DOOR HANDLE WPL Y0311884 Contact Us For Availability
NI
BUMPER ``L`` SHAPED WPL Y0312836 Contact Us For Availability
NI
BRACKET, CLOCK WPL 0088373 Contact Us For Availability
NI
PIN, CONNECTOR WPL Y0087016 Contact Us For Availability
NI
CONNECTOR WPL Y0088643 Contact Us For Availability
NI
ROLLER WPL Y0311545 Contact Us For Availability
NI
SCREW WPL 0087709 Contact Us For Availability
NI
SHIELD, INSULATION (J) WPL 0310064 Contact Us For Availability
NI
SCREW No.10 X 5/16 WPL 0310234 Contact Us For Availability
NI
CLIP, CAPILLARY WPL 0310802 Contact Us For Availability
NI
BLOCK, TERMINAL WPL 0312161 Contact Us For Availability
NI
RAIL, BASE WPL 06555001 Contact Us For Availability
NI
SCREW No.10 WPL 07596600 Contact Us For Availability
NI
BRASS HEX NUT WPL Y0087714 Contact Us For Availability
NI
SNAP-IN TEE NUT WPL Y0088571 Contact Us For Availability
NI
CAGE, OVEN LIGHT WPL Y0088635 Contact Us For Availability
NI
SCREW, 10 X 1-1/2 WPL Y01000300 Contact Us For Availability
NI
SCREW-No.10X9/16 DECR,BL WPL Y01001303 Contact Us For Availability
NI
SCREW-6X 3/8 TRS HD WPL Y01021001 Contact Us For Availability
NI
SAFE EDGE 1&9/16``BY 1/2`` WPL Y0310035 Contact Us For Availability
NI
INSULATION,WRAPPER WPL Y0310039 Contact Us For Availability
NI
CLAMP, SPEED WPL Y0310113 Contact Us For Availability
NI
SCREW No.10X1/2 BLUNT WPL Y0310363 Contact Us For Availability
NI
BUSHING WPL Y0312160 Contact Us For Availability
NI
SCREW-No.6X 1/2 HEX HD WPL Y07473800 Contact Us For Availability
NI
SCREW, No.8-32 X 5/16 PPH (BL WPL Y07584700 Contact Us For Availability
NI
WPL Y07697600 WPL Y07697600 Contact Us For Availability
× ![]()
