Model Whirlpool ED19HKXRNR3 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

1

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $6.90

1

Frame WPL 1105198 Contact Us For Availability

1

Support, Light Lens (R.S.) WPL 842355 Contact Us For Availability

1

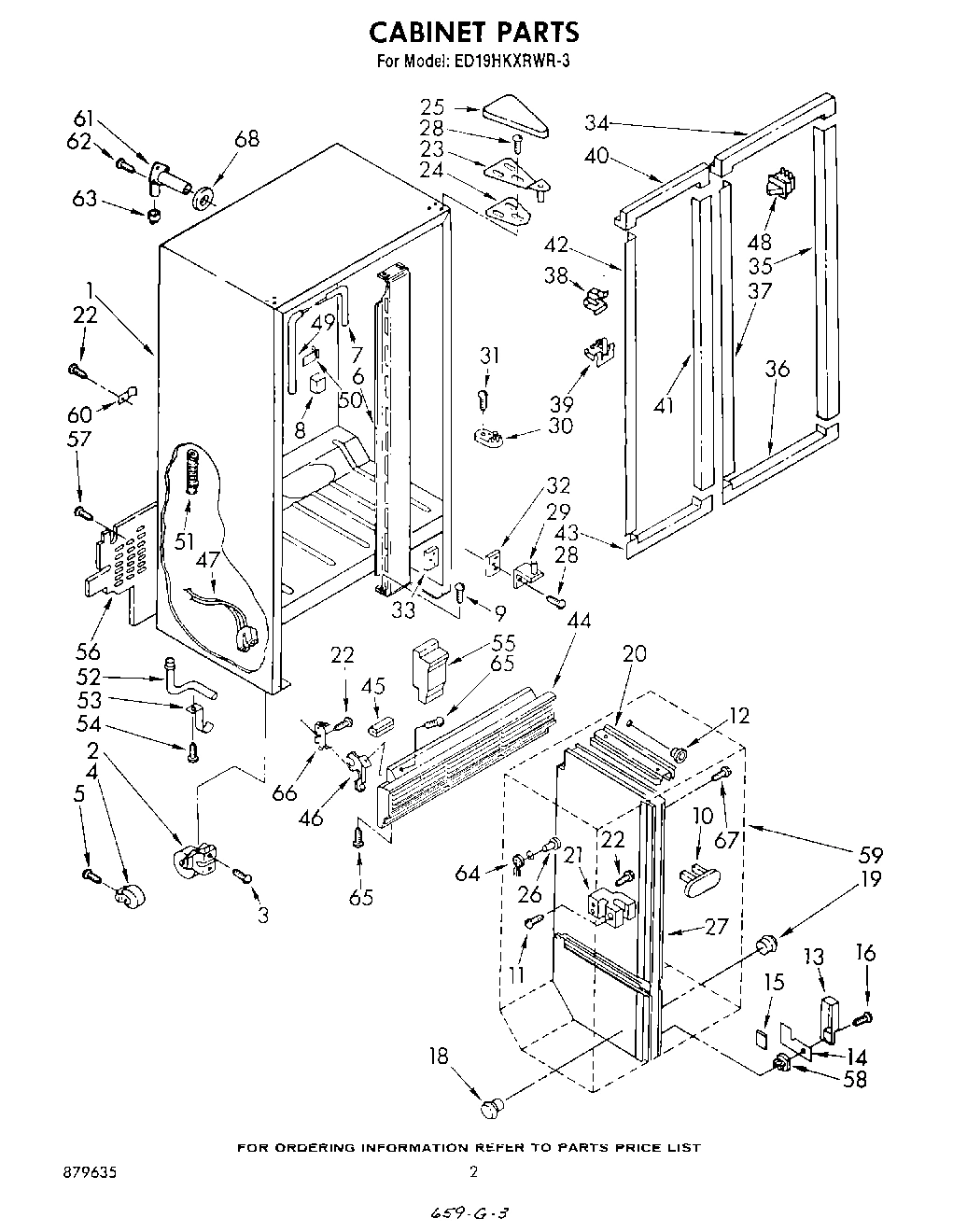

Cabinet (Not A Serviceable Part) WPL ARI25665A5 Contact Us For Availability

1

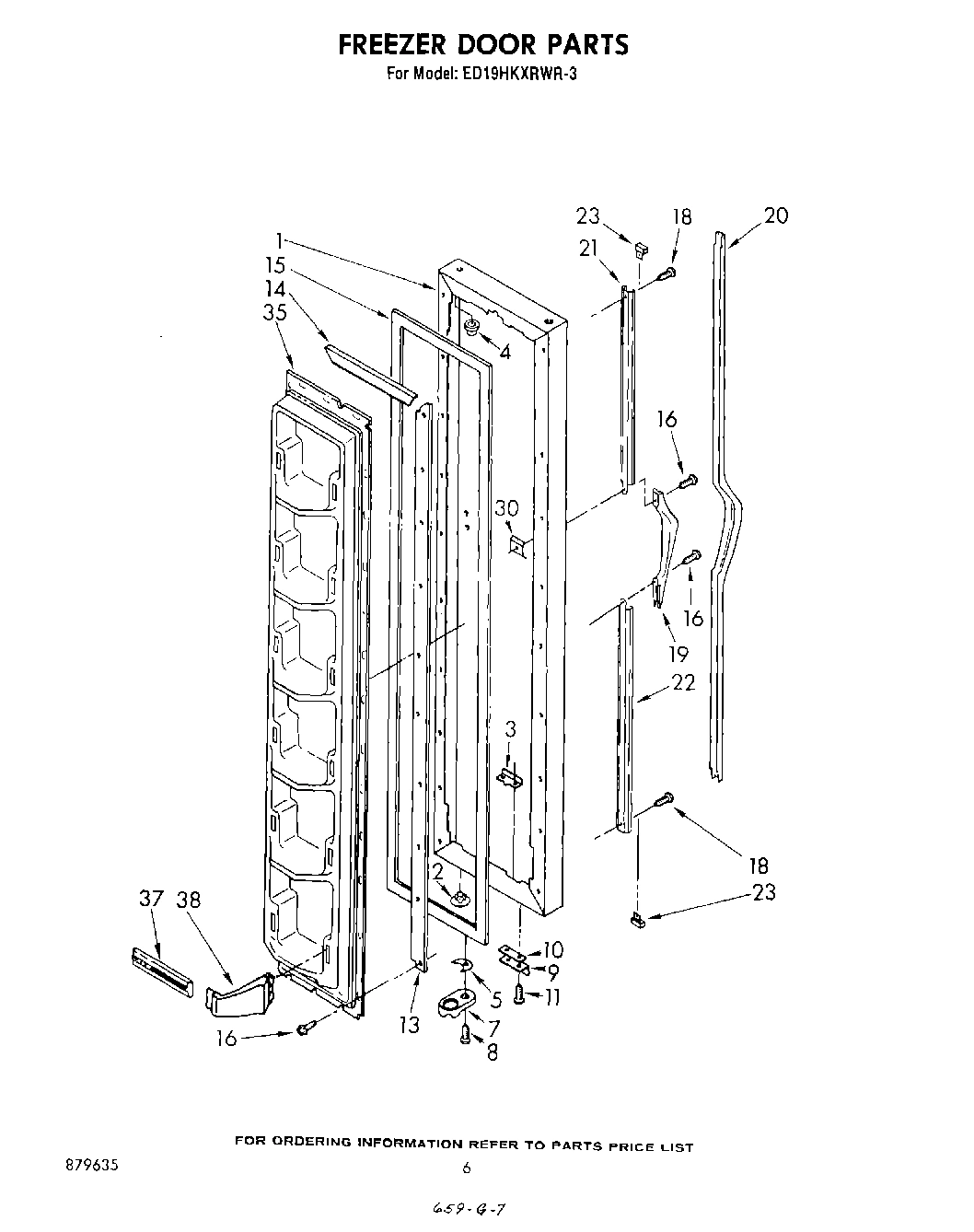

Freezer, Door Panel (Toast) WPL 1100366 Contact Us For Availability

1

Freezer, Door Panel (Platinum) WPL 1100367 Contact Us For Availability

1

Freezer, Door Panel (White) WPL 936639 Contact Us For Availability

1

Freezer, Door Panel (Golden Harvest) WPL 936641 Contact Us For Availability

1

Freezer, Door Panel (Almond) WPL 936643 Contact Us For Availability

2

Box, Control WPL 984550 Contact Us For Availability

2

Compressor KIt Includes Items (22, 23, 25, 26 WPL 819194 Contact Us For Availability

2

Support, Light Lens (L.S.) WPL 842356 Contact Us For Availability

2

Roller, Front WPL 981127 Contact Us For Availability

2

Hole Plug WPL 534927 Contact Us For Availability

3

Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability

3

Clip, Tubular WPL 843945 Contact Us For Availability

3

Screw, 5/16-24 x 1 WPL 488681 Contact Us For Availability

3

Tap Plate WPL 988402 Contact Us For Availability

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Bracket, Mounting WPL 1105220 Contact Us For Availability

4

Shelf Stud (2) WPL 652675 Contact Us For Availability

4

Cap, Hinge Sleeve (2) WPL 509929 Contact Us For Availability

5

Control Box Front WPL 934045 Contact Us For Availability

5

Grommet, Compressor (4) WPL 1105200 Contact Us For Availability

5

Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability

5

Shelf Stud (2) WPL 845986 Contact Us For Availability

6

Screw (4) WPL 489139 Contact Us For Availability

6

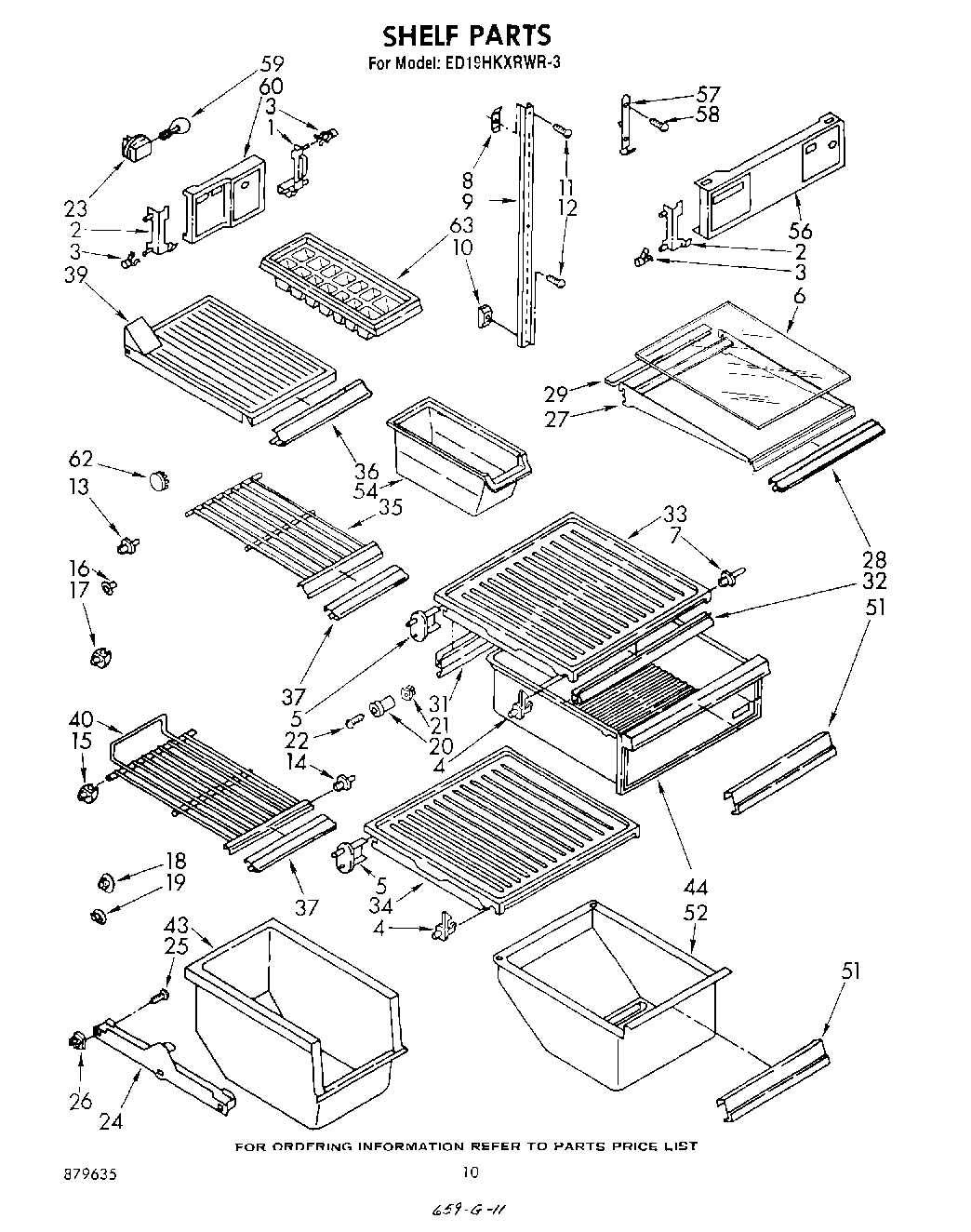

Glass, Shelf WPL 1109001 Contact Us For Availability

6

Center, Mullion Rail (Toast) WPL 1100362 Contact Us For Availability

6

Center, Mullion Rail (Platinum) WPL 1100363 Contact Us For Availability

6

Center, Mullion Rail (White) WPL 985979 Contact Us For Availability

6

Center, Mullion Rail (Golden Harvest) WPL 989925 Contact Us For Availability

6

Center, Mullion Rail (Almond) WPL 989927 Contact Us For Availability

7

4318165 Whirlpool Refrigerator Door Closure C In Stock WPL 4318165 $11.99

7

WP819470 Whirlpool Refrigerator Thermostat In Stock WPL WP819470 $98.55

7

Shelf Stud (2) WPL 536475 Contact Us For Availability

7

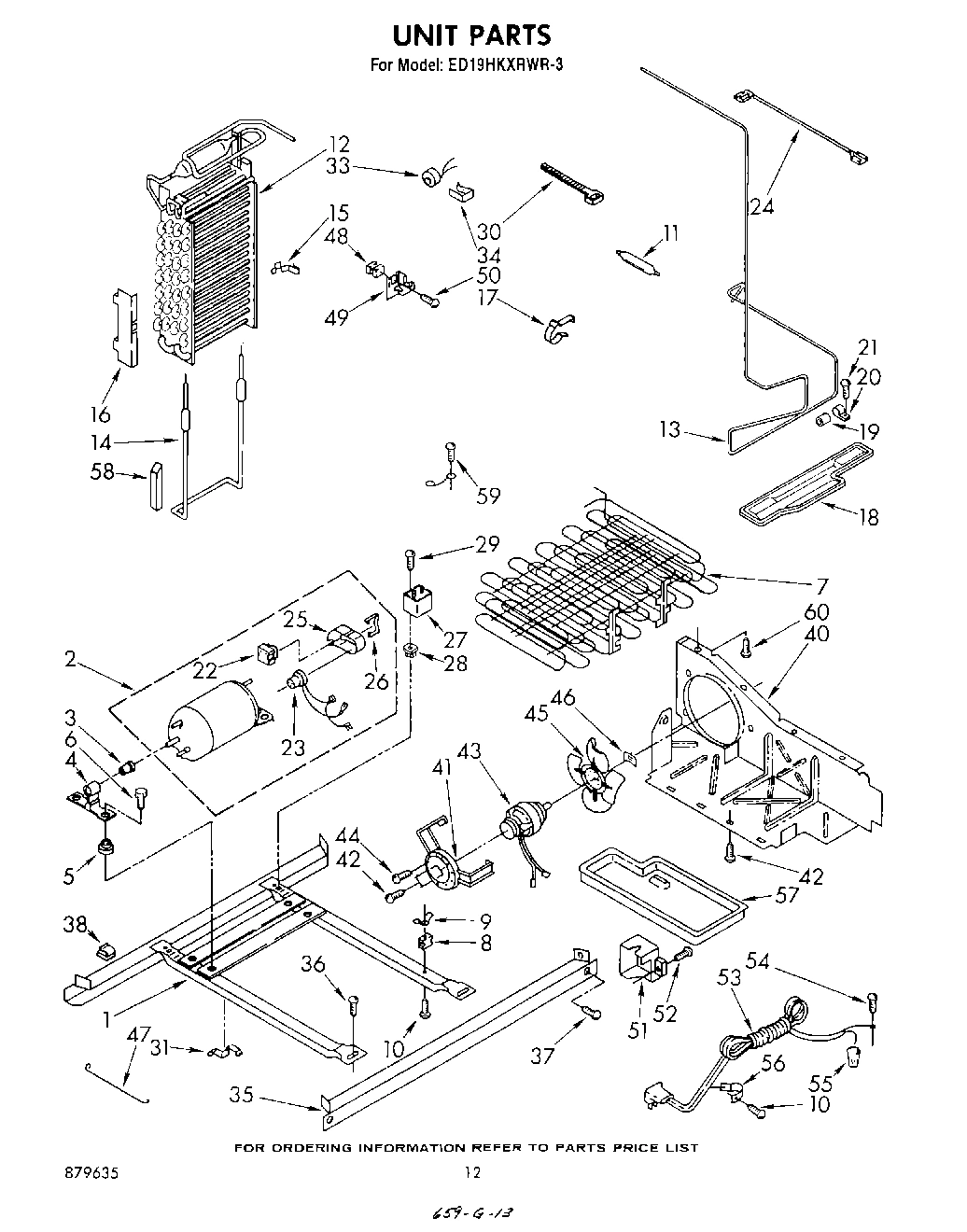

Condenser Assembly WPL 943480 Contact Us For Availability

7

Heater, Mullion WPL 851874 Contact Us For Availability

8

WP1104787 Whirlpool Refrigerator Shim Backorder WPL WP1104787 $4.82

8

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

8

Grommet, Mounting (4) WPL 943447 Contact Us For Availability

8

Screw Anchor WPL 512923 Contact Us For Availability

8

Retainer, Clip WPL 510291 Contact Us For Availability

9

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

9

Clamp, Mounting (4) WPL 548738 Contact Us For Availability

9

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

9

Shelf, Ladder WPL 934264 Contact Us For Availability

9

Bracket, Door Stop WPL 988420 Contact Us For Availability

10

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $19.90

10

Mullion, Stabilizer WPL 836080 Contact Us For Availability

10

Shim WPL 988421 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

Knob, Temperature WPL 836482 Contact Us For Availability

Screw, 8 x 1-1/4 WPL 488357 Contact Us For Availability

Screw, 8 x 3/4 WPL 488280 Contact Us For Availability

Screw, 8 x 5/8 WPL 488549 Contact Us For Availability

Screw (Repair) WPL 488930 Contact Us For Availability

Duct, Air WPL 842399 Contact Us For Availability

Evaporator Assembly WPL 945577 Contact Us For Availability

Screw, 8-32 x 1-1/4 WPL 488960 Contact Us For Availability

Screw (Repair) WPL 488980 Contact Us For Availability

Grommet, Wiring WPL 851020 Contact Us For Availability

Baffle, Air WPL 987954 Contact Us For Availability

Heat, Exchanger WPL 1105201 Contact Us For Availability

Shelf, Stud WPL 529758 Contact Us For Availability

Escutcheon Meat WPL 984101 Contact Us For Availability

Retainer, Gasket (Side) (2) WPL 836120 Contact Us For Availability

482469 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482469 $106.99

WP549433 Whirlpool Refrigerator Heater Backorder WPL WP549433 $119.54

Shelf Stud WPL 521878 Contact Us For Availability

Slide Meat WPL 984102 Contact Us For Availability

Retainer, Gasket Top & Bottom (2) WPL 836122 Contact Us For Availability

2188405A Whirlpool Refrigerator Door Gasket Backorder WPL 2188405A $223.28

Blade, Fan WPL 992920 Contact Us For Availability

Heater, Clamp (4) WPL 549419 Contact Us For Availability

Shelf Support WPL 210518 Contact Us For Availability

Pad, Foam WPL 992358 Contact Us For Availability

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $4.82

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

Shield, Heat (2) WPL 549435 Contact Us For Availability

Grommet WPL 533881 Contact Us For Availability

Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability

Fan, Bracket Double WPL 548263 Contact Us For Availability

Drier, Clamp WPL 548508 Contact Us For Availability

Shelf Stud Saddle (R.S.) WPL 523263 Contact Us For Availability

Shelf Stud, Saddle (L.S.) WPL 523264 Contact Us For Availability

Fan, Bracket Single WPL 548264 Contact Us For Availability

Pan, Drip WPL 945572 Contact Us For Availability

Hole, Plug WPL 519890 Contact Us For Availability

Retainer, Hole WPL 843888 Contact Us For Availability

Screw, 10-32 x 5/8 WPL 488928 Contact Us For Availability

Fan Mounting Grommet WPL 548268 Contact Us For Availability

Dampener (2) WPL 510769 Contact Us For Availability

Stud, Retainer WPL 512900 Contact Us For Availability

Insert, Hole WPL 843887 Contact Us For Availability

Handle WPL 987009 Contact Us For Availability

Tube Clamp (2) WPL 510716 Contact Us For Availability

Stud, Shelf WPL 658944 Contact Us For Availability

Gasket, Divider WPL 842435 Contact Us For Availability

Insert, Handle (Cherry Hill) WPL 1108722 Contact Us For Availability

Insert, Handle (Black Levant) WPL 1111550 Contact Us For Availability

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

Screw Grommet WPL 538449 Contact Us For Availability

Mullion, Stabilizer Divider WPL 836079 Contact Us For Availability

Insert Retainer (Top) WPL 987008 Contact Us For Availability

W11624204 Whirlpool Screw Backorder WPL W11624204 $8.89

Baffle, Liner Top WPL 836216 Contact Us For Availability

Start Relay WPL 1105209 Contact Us For Availability

Screw, 8-15 x 1-1/4 WPL 487559 Contact Us For Availability

Insert Retainer (Bottom) WPL 987010 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

Overload WPL 1105210 Contact Us For Availability

Hinge, Top WPL 842039 Contact Us For Availability

End Cap (2) WPL 987006 Contact Us For Availability

Scroll Fan WPL 991285 Contact Us For Availability

Capacitor, Wiring WPL 1105190 Contact Us For Availability

Slide, Freezer Bin WPL 982321 Contact Us For Availability

Shim, Hinge WPL 836192 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $15.75

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $4.82

Terminal Cover WPL 1105221 Contact Us For Availability

Screw, 8 x 1 (4) WPL 487979 Contact Us For Availability

Hinge Cover (Toast) WPL 1100172 Contact Us For Availability

Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability

26

Strap, Cover WPL 1105222 Contact Us For Availability

26

Receptacle Cap WPL 850738 Contact Us For Availability

Air, Scoop Assembly (Includes Illus. 28) WPL 841269 Contact Us For Availability

Running Capacitor WPL 1105212 Contact Us For Availability

Shelf Cantilever WPL 936796 Contact Us For Availability

Divider Mullion Assembly WPL 985463 Contact Us For Availability

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $4.82

Gasket, Air Scoop WPL 844871 Contact Us For Availability

Screw Grommet WPL 509812 Contact Us For Availability

Trim Shelf WPL 935337 Contact Us For Availability

Screw (Repair) WPL 488949 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

Retainer, Damper WPL 938439 Contact Us For Availability

Retainer, Glass WPL 936838 Contact Us For Availability

Hinge Bottom (R.H) WPL 986763 Contact Us For Availability

Hinge Bottom (L.H) WPL 986764 Contact Us For Availability

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $4.82

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.60

Control Knob Assembly WPL 837445 Contact Us For Availability

Strap WPL 851095 Contact Us For Availability

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $4.70

Knob, Retainer WPL 837444 Contact Us For Availability

Clip, Unit Cover WPL 548744 Contact Us For Availability

Crisper Gasket Rear WPL 987420 Contact Us For Availability

Screw (Repair) WPL 488913 Contact Us For Availability

32

Cover, Evaporator WPL 984466 Contact Us For Availability

32

Crisper Gasket Front WPL 987419 Contact Us For Availability

32

Shim, Hinge Bottom WPL 836196 Contact Us For Availability

WP4387489 Whirlpool Refrigerator Bi-Metal Def In Stock WPL WP4387489 $67.31

Grommet WPL 848445 Contact Us For Availability

Pan Slide & Cover WPL 1108716 Contact Us For Availability

Tap Plate (2) WPL 836162 Contact Us For Availability

34

Clamp WPL 513584 Contact Us For Availability

34

Pan Slide & Cover WPL 983817 Contact Us For Availability

34

Trim, Breaker (Top) WPL 843335 Contact Us For Availability

End Cap, Cover WPL 836144 Contact Us For Availability

Unit, Rail WPL 548662 Contact Us For Availability

Shelf, Freezer WPL 981498 Contact Us For Availability

Trim, Breaker (R.S.) WPL 842178 Contact Us For Availability

Interior, Door Panel WPL 937457 Contact Us For Availability

36

Gasket, Evaporator WPL 841606 Contact Us For Availability

36

Trim Solid Shelf WPL 841025 Contact Us For Availability

36

Trim, Breaker (Bottom) WPL 836446 Contact Us For Availability

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

Air Diffuser Assembly WPL 946145 Contact Us For Availability

Trim, Shelf Front WPL 849263 Contact Us For Availability

Trim, Breaker (L.S.) WPL 836213 Contact Us For Availability

Trim, Door Shelf (5) WPL 1108763 Contact Us For Availability

WP849996 Whirlpool Refrigerator Endcap Trim In Stock WPL WP849996 $5.99

Gasket, Air Diffuser WPL 842394 Contact Us For Availability

Clip, Wire WPL 548745 Contact Us For Availability

Breaker Trim Clip WPL 836090 Contact Us For Availability

39

836667 Whirlpool Refrigerator Spacer Backorder WPL 836667 $6.88

39

Solid Shelf WPL 837202 Contact Us For Availability

39

Breaker, Clip WPL 849479 Contact Us For Availability

40

Air, Baffle WPL 850764 Contact Us For Availability

40

Shelf, Ice Cube Pan WPL 982219 Contact Us For Availability

40

Breaker Trim, Top Freezer WPL 843334 Contact Us For Availability

41

Drain Pan Assembly WPL 842404 Contact Us For Availability

41

Fan, Mountig Bracket WPL 548695 Contact Us For Availability

41

Breaker Trim, (R.S.) Freezer WPL 836108 Contact Us For Availability

42

Fitting, Drain Pan WPL 841770 Contact Us For Availability

42

Breaker Trim WPL 836174 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $61.51

Gasket, Drain Pan WPL 845564 Contact Us For Availability

Bin, Freezer WPL 1108719 Contact Us For Availability

WPL 836447 WPL 836447 Contact Us For Availability

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $8.39

Cap, Drain WPL 842259 Contact Us For Availability

Pan, Crisper WPL 1108718 Contact Us For Availability

WPL 1100307 WPL 1100307 Contact Us For Availability

WPL 1100308 WPL 1100308 Contact Us For Availability

WPL 944233 WPL 944233 Contact Us For Availability

WPL 944235 WPL 944235 Contact Us For Availability

WPL 944237 WPL 944237 Contact Us For Availability

45

Cover, Heat Exchanger WPL 836514 Contact Us For Availability

45

Fan, Blade WPL 989524 Contact Us For Availability

45

WPL 546131 WPL 546131 Contact Us For Availability

46

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

46

WP944224 Whirlpool Refrigerator Support Backorder WPL WP944224 $4.82

46

Grommet, Inlet Tube WPL 659776 Contact Us For Availability

47

Defrost Timer, 10 Hr. WPL 943435 Contact Us For Availability

47

Guard, Fan Motor WPL 850156 Contact Us For Availability

47

WPL 548734 WPL 548734 Contact Us For Availability

48

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

48

WP3388228 Whirlpool Screw In Stock WPL WP3388228 $4.99

48

Grommet WPL 944454 Contact Us For Availability

49

Grille WPL 835740 Contact Us For Availability

49

Support, Evaporator WPL 842436 Contact Us For Availability

49

WPL 934447 WPL 934447 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $15.74

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Enamel, Gold (1 Qt. Uncut) WPL 261891 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability

Wiring Defrost Timer WPL 481782 Contact Us For Availability

Kit, Evaporator Repair (Aluminum Epoxy) WPL 484310 Contact Us For Availability

WPL 515393 WPL 515393 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 799908 WPL 799908 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL 935663 WPL 935663 Contact Us For Availability

51

Box, Junction WPL 549947 Contact Us For Availability

51

Overlay, Pan WPL 988255 Contact Us For Availability

51

WPL 836068 WPL 836068 Contact Us For Availability

52

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

52

Pan, Meat WPL 1108715 Contact Us For Availability

52

WPL 841646 WPL 841646 Contact Us For Availability

53

Cord, Service WPL 850626 Contact Us For Availability

53

WPL 841648 WPL 841648 Contact Us For Availability

54

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $17.72

54

Screw, Ground WPL 488474 Contact Us For Availability

54

WPL 488978 WPL 488978 Contact Us For Availability

55

Wire Connector WPL 227991 Contact Us For Availability

55

WPL 836372 WPL 836372 Contact Us For Availability

56

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

56

Light Lens, Refrigerator WPL 943218 Contact Us For Availability

56

WPL 850457 WPL 850457 Contact Us For Availability

57

NLA:SCREW Backorder WPL WPW10141645 $4.82

57

Tray, Evaporating WPL 842041 Contact Us For Availability

57

Support, Light Lens WPL 984552 Contact Us For Availability

58

WPL 842339 WPL 842339 Contact Us For Availability

58

Baffle, Air Evaporator WPL 652985 Contact Us For Availability

59

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $6.92

59

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

59

WPL ARI25666A6 WPL ARI25666A6 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8` WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Light Lens, Freezer WPL 985456 Contact Us For Availability

WPL 836077 WPL 836077 Contact Us For Availability

61

WPL 653113 WPL 653113 Contact Us For Availability

62

WP98165 Whirlpool Screw In Stock WPL WP98165 $4.82

62

Hole, Plug WPL 659598 Contact Us For Availability

63

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $6.69

63

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $8.99

64

WPL 481658 WPL 481658 Contact Us For Availability

65

WPL 489085 WPL 489085 Contact Us For Availability

66

WPL 989068 WPL 989068 Contact Us For Availability

68

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $6.17
