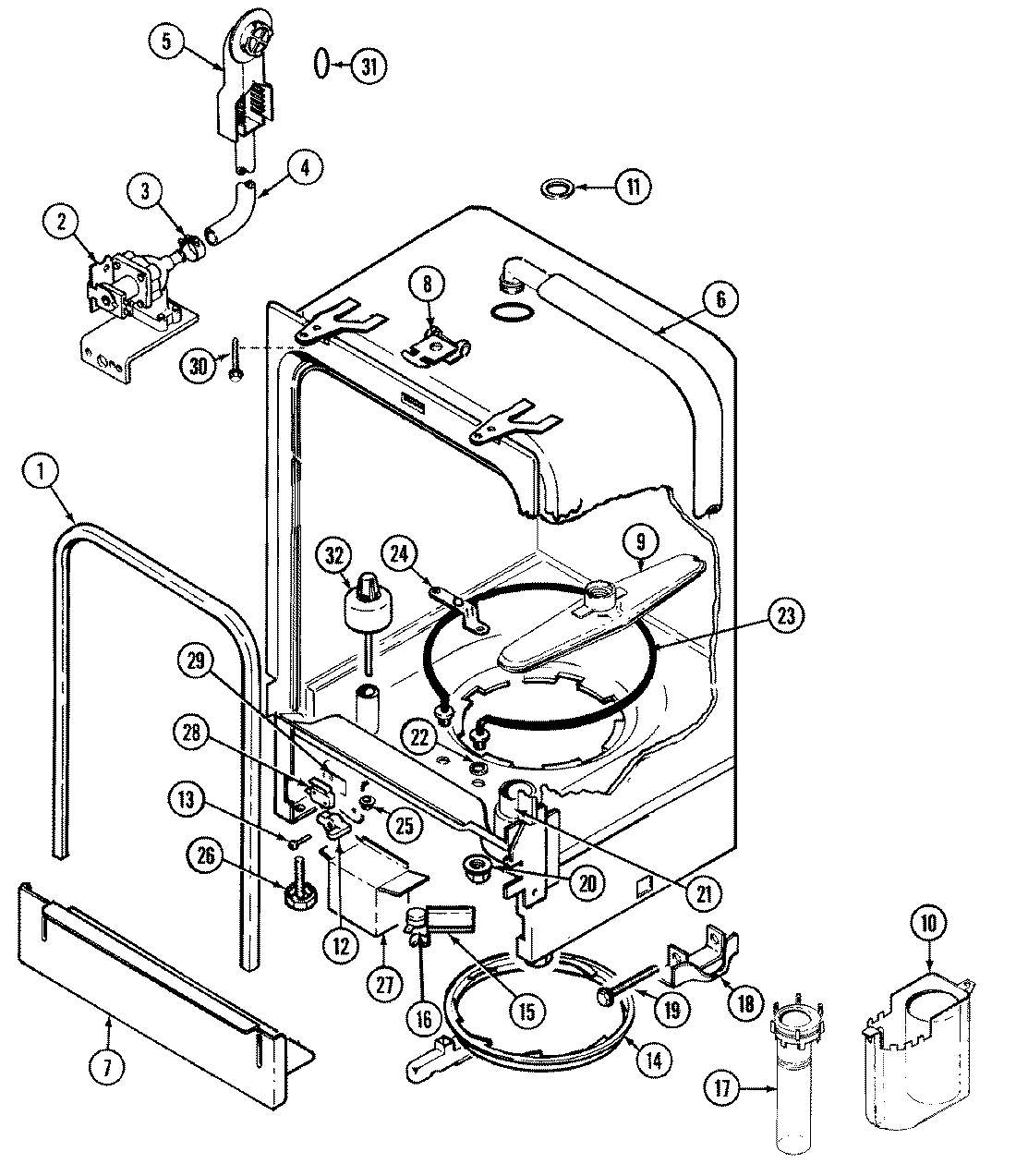

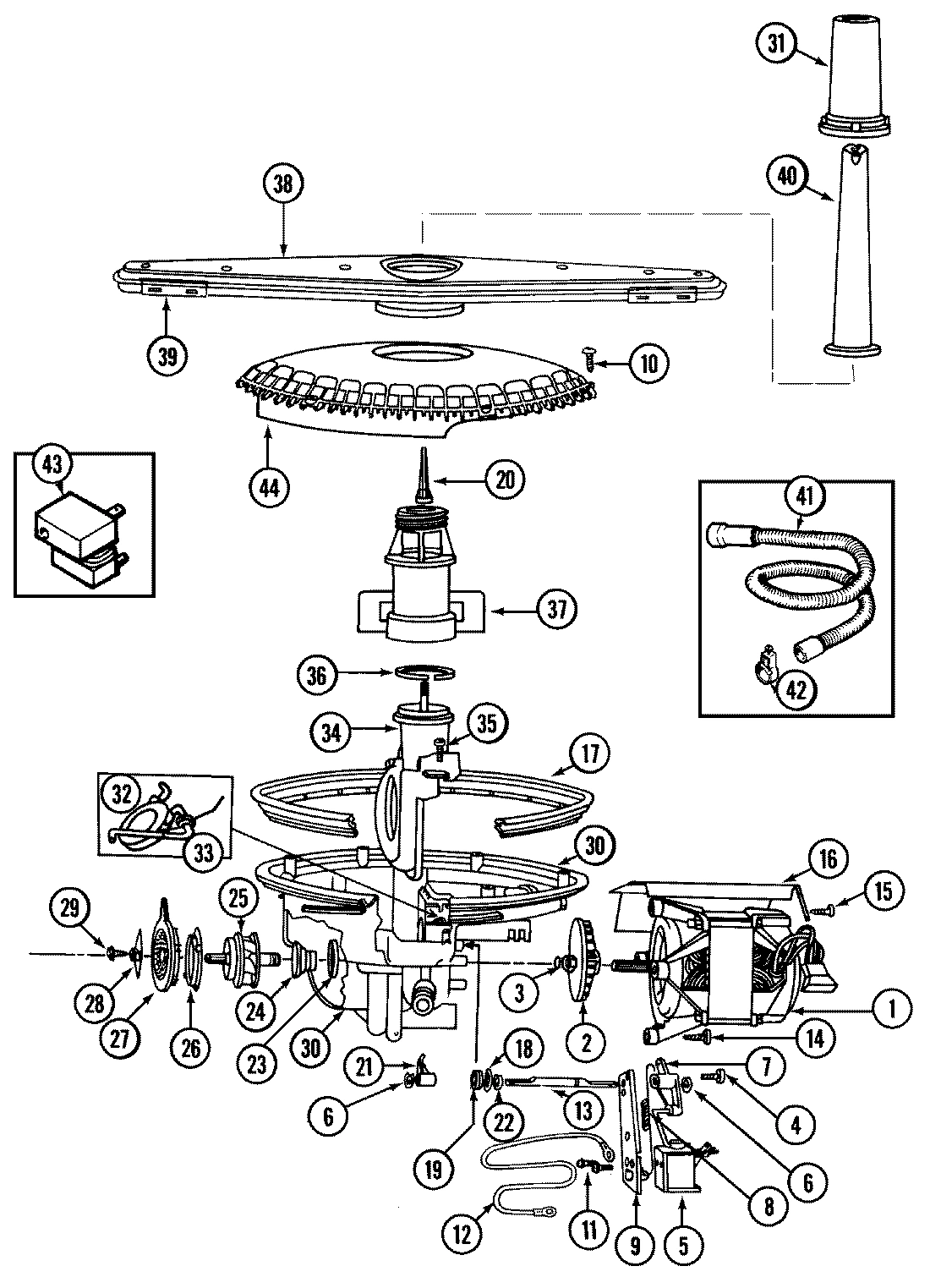

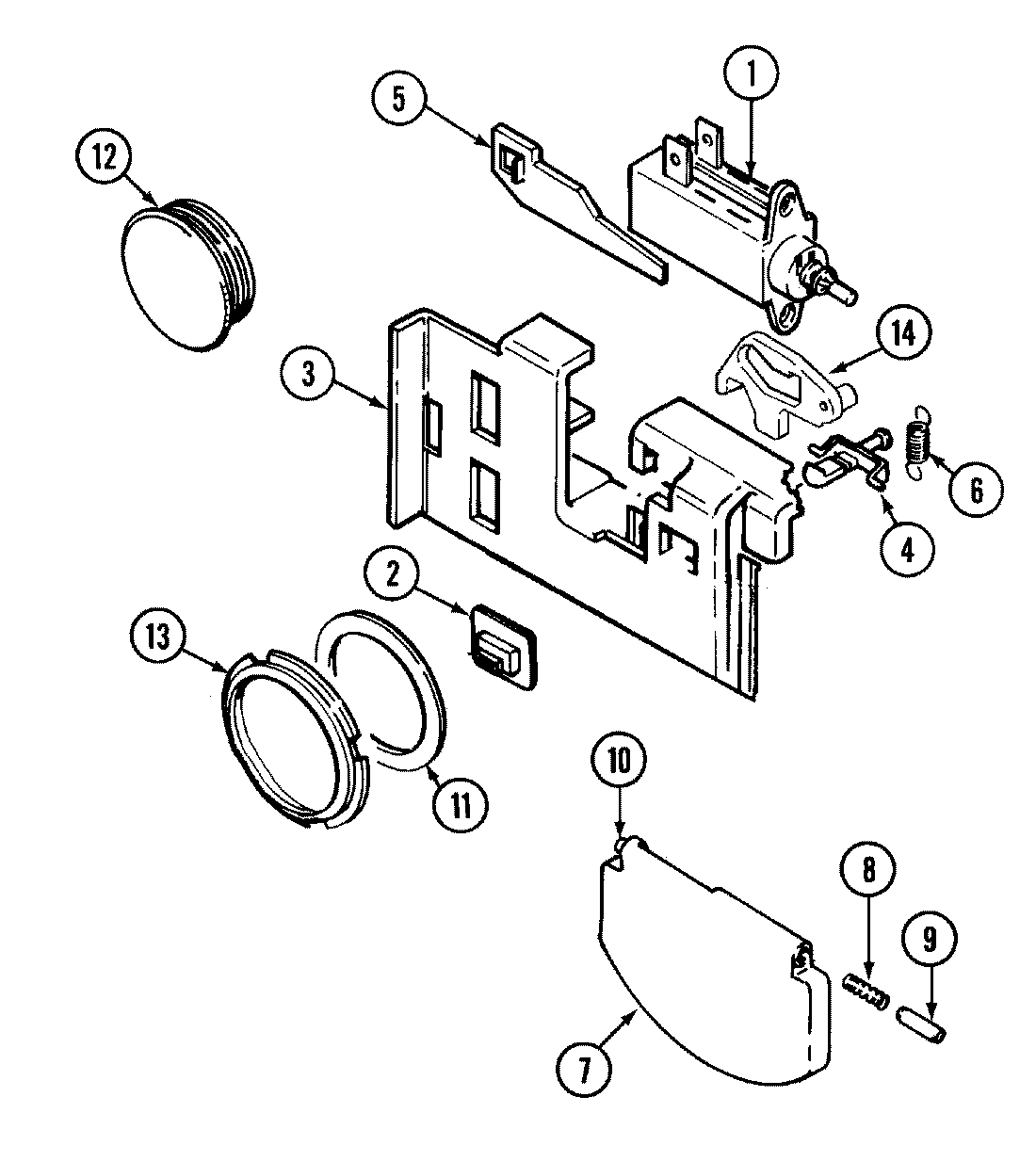

Model Whirlpool DWUA300AAX DISHWASHER – Common Parts &amp; Diagrams

1

WP902899 Whirlpool Dishwasher Wax Motor Backorder WPL WP902899 $58.41

1

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $5.02

1

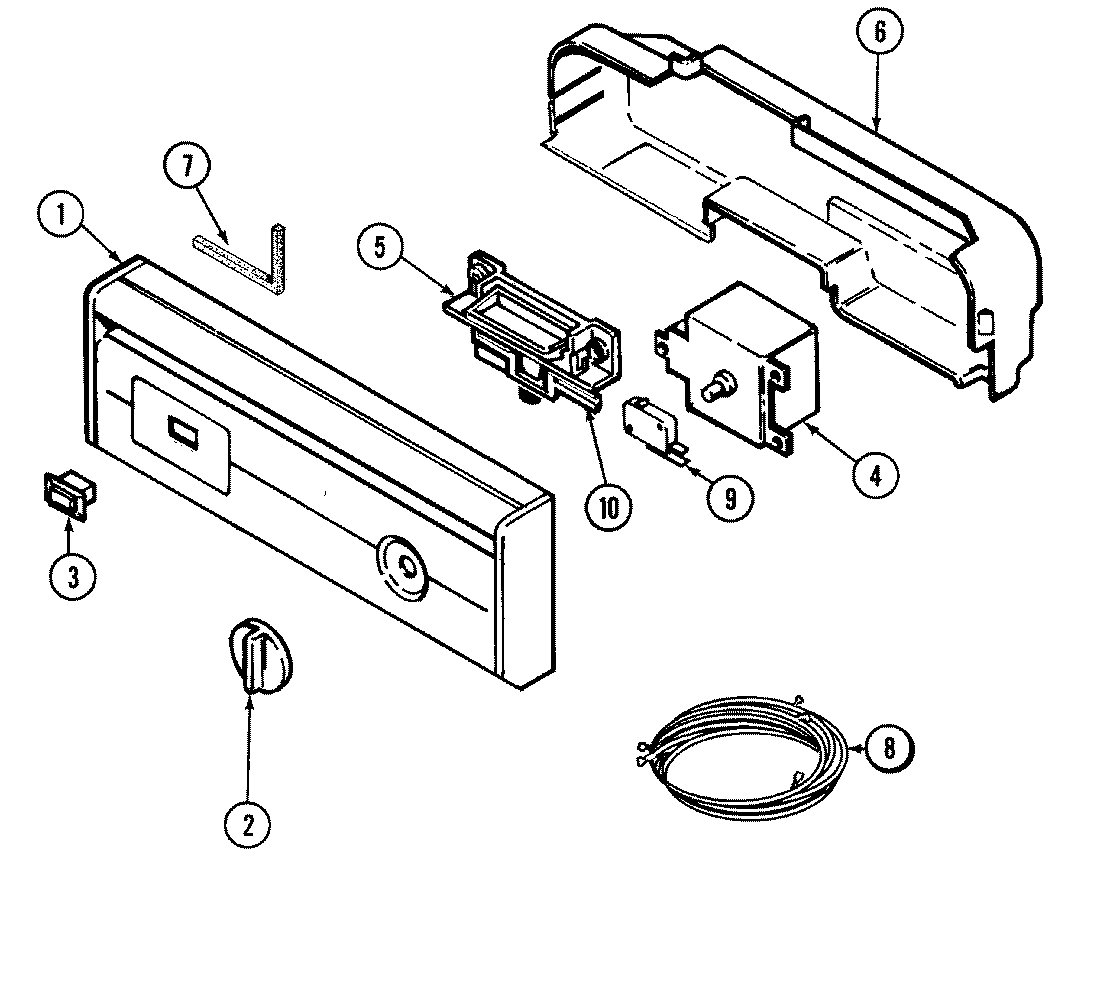

PANEL, CONTROL WPL 99001535 Contact Us For Availability

1

MOTOR (W/O-RING & FAN) WPL 99001070 Contact Us For Availability

1

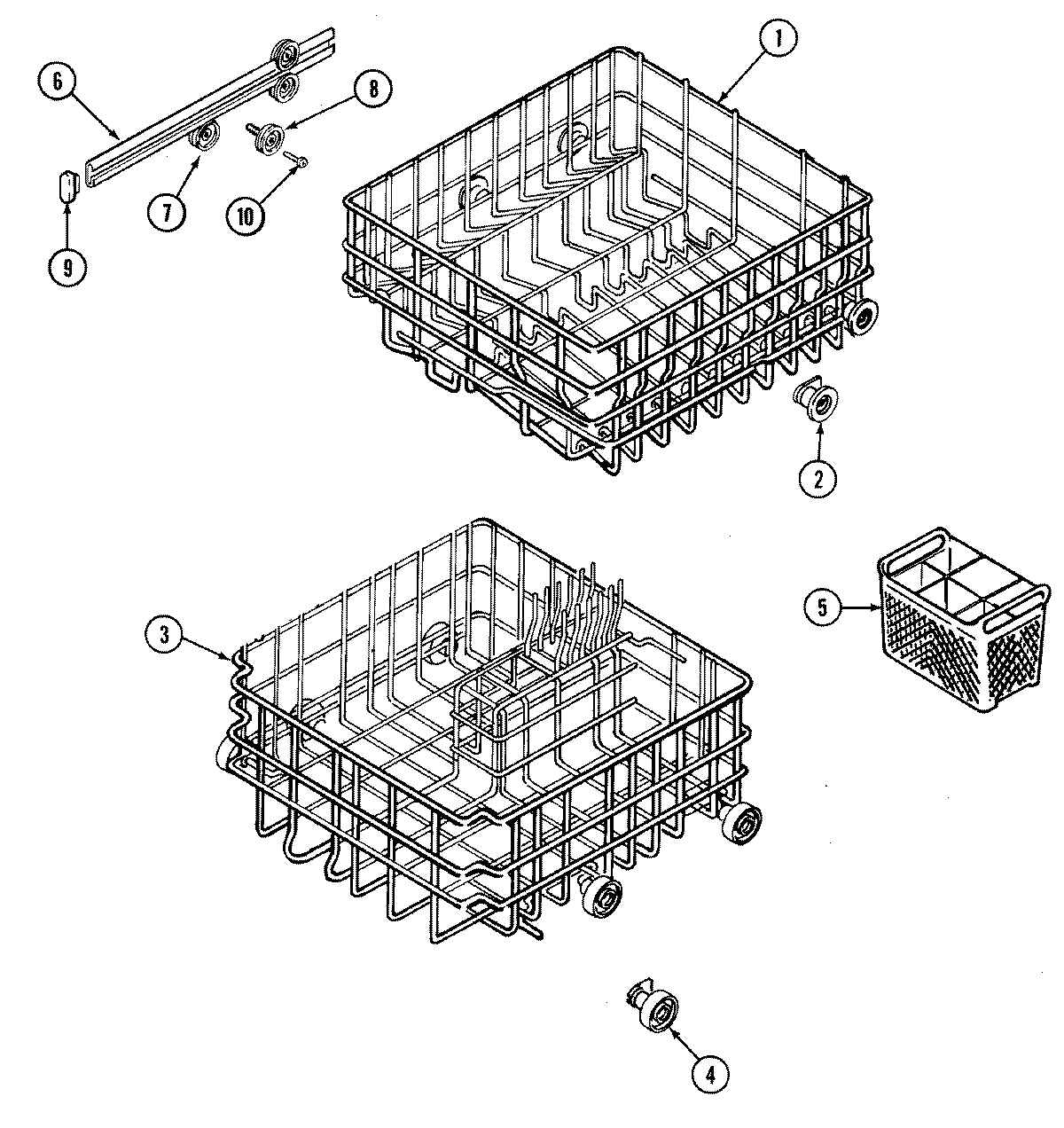

RACK (UPR) WPL 903919 Contact Us For Availability

2

WP903093 Whirlpool Dishwasher Rack Wheel In Stock WPL WP903093 $9.83

2

WP99001553 Whirlpool Dishwasher Grommet Backorder WPL WP99001553 $48.03

2

KNOB, TIMER WPL 903496 Contact Us For Availability

2

SPRING, MOTOR FAN WPL 99001145 Contact Us For Availability

2

FAN, MOTOR WPL Y912903 Contact Us For Availability

2

VALVE, WATER WPL 99001358 Contact Us For Availability

3

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $5.02

3

SCREW WPL Y913157 Contact Us For Availability

3

SWITCH,ROCKER WPL 903495 Contact Us For Availability

3

SHIELD, CONTROL WPL 913180 Contact Us For Availability

3

RETAINER, IMPELLER WPL Y913173 Contact Us For Availability

3

``O`` RING, MOTOR WPL Y913174 Contact Us For Availability

3

RACK (LWR) WPL 903921 Contact Us For Availability

4

HOSE, INJECTOR WPL 912633 Contact Us For Availability

4

RIVET WPL 912024 Contact Us For Availability

4

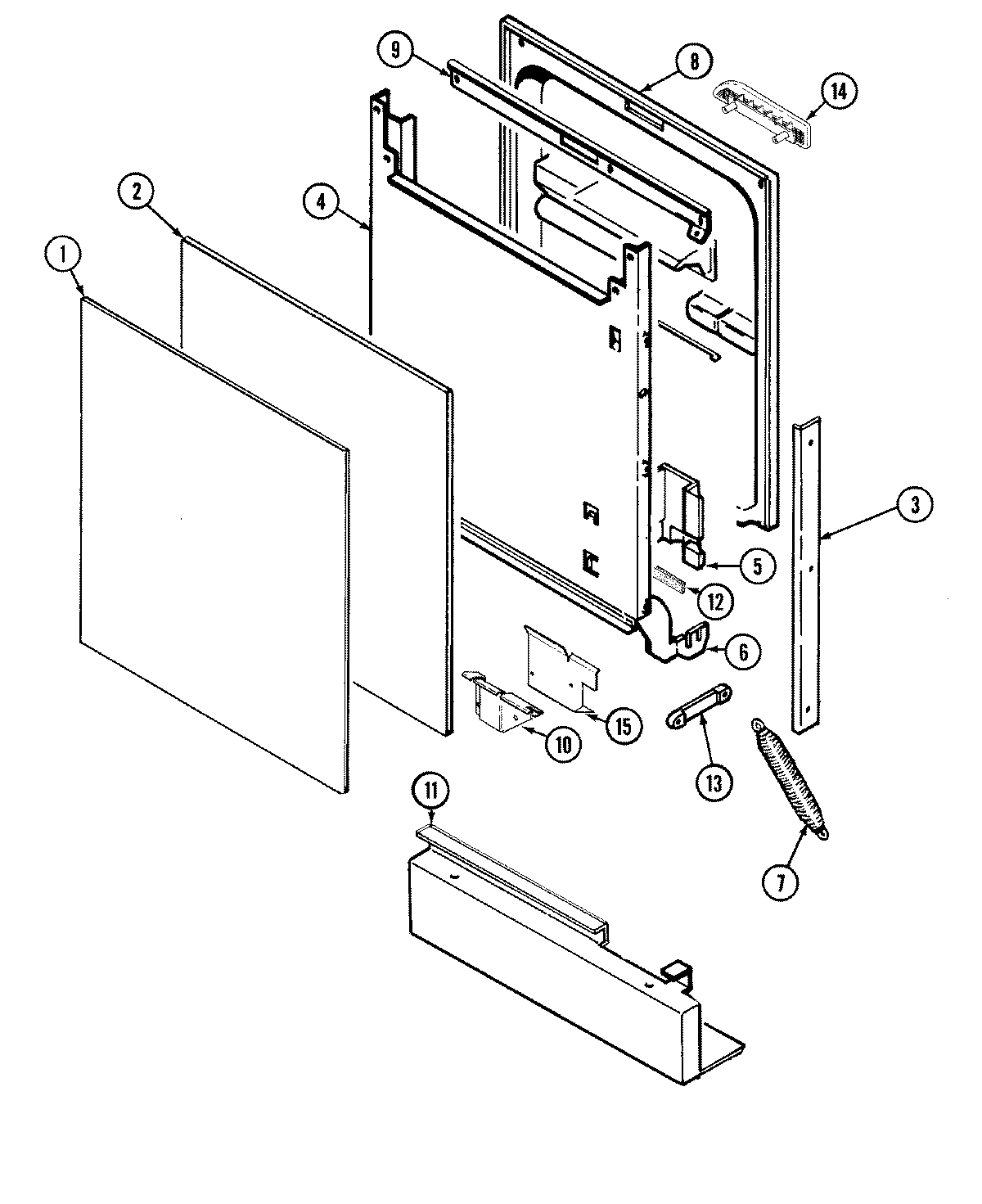

DOOR ASSY (BLK) WPL 99001361 Contact Us For Availability

4

TRIM, BOTTOM (BLK) WPL Y912936 Contact Us For Availability

4

TIMER WPL 903497 Contact Us For Availability

4

WHEEL ASSEMBLY (LWR) WPL 903815 Contact Us For Availability

5

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $4.82

5

WP6-904023 Whirlpool Drain Solenoid Backorder WPL WP6-904023 $126.08

5

RETAINER, WIRE WPL Y912666 Contact Us For Availability

5

SLIDER WPL 99001289 Contact Us For Availability

5

INJECTOR, WATER WPL 912533 Contact Us For Availability

5

BASKET, SILVERWARE WPL Y912919 Contact Us For Availability

6

WPW10116816 Whirlpool Dishwasher Spring Backorder WPL WPW10116816 $4.67

6

HINGE (LT) WPL 903070 Contact Us For Availability

6

HINGE (RT) WPL 903071 Contact Us For Availability

6

SCREW WPL 99001075 Contact Us For Availability

6

BARRIER, CONTROL PANEL WPL Y912937 Contact Us For Availability

6

``E`` CLIP, ``D`` SHAFT WPL Y913109 Contact Us For Availability

6

HOSE, TOP SHOWER WPL 912647 Contact Us For Availability

7

WP6-912366 Whirlpool Dishwasher Screw Backorder WPL WP6-912366 $4.82

7

WP912652 Whirlpool Dishwasher Spring In Stock WPL WP912652 $6.58

7

LID, DETERGENT CUP WPL 903483 Contact Us For Availability

7

LINER, VENT WPL Y913116 Contact Us For Availability

7

SEAL, VENT OUTLET WPL Y913177 Contact Us For Availability

7

CRANK, ``D`` SHAFT WPL 913099 Contact Us For Availability

7

PANEL, TOE (BLK) WPL 912640 Contact Us For Availability

8

WPY912798 Whirlpool Dishwasher Tub Washer Whe Backorder WPL WPY912798 $4.82

8

DOOR, INNER (NON RINSE-AID) WPL 99001549 Contact Us For Availability

8

DOOR, INNER WPL Y912918 Contact Us For Availability

8

SPRING, CUP LID WPL Y912547 Contact Us For Availability

8

WIRE HARNESS, MAIN WPL 99001171 Contact Us For Availability

8

SPRING, RETURN WPL Y913201 Contact Us For Availability

8

SPRING, LATCH WPL 912648 Contact Us For Availability

8

RETAINER, LATCH WPL 912650 Contact Us For Availability

8

HOOK, LATCH WPL 99001355 Contact Us For Availability

8

SCREW, LATCH WPL Y912873 Contact Us For Availability

9

99002254 Whirlpool Dishwasher Door Switch wit Backorder WPL 99002254 $65.29

9

WP6-912678 Whirlpool Hinge Pin In Stock WPL WP6-912678 $6.02

9

WP99002136 Whirlpool Rack Stop Backorder WPL WP99002136 $8.05

9

BAR, REINFORCEMENT WPL Y913093 Contact Us For Availability

9

SEAL, REINFORCEMENT WPL Y913178 Contact Us For Availability

9

BRACKET, SOLENOID WPL Y913203 Contact Us For Availability

W10834433 Whirlpool Dishwasher Handle Backorder WPL W10834433 $84.91

WP99002947 Whirlpool Tub Wheel In Stock WPL WP99002947 $7.80

COVER, WIRE (BLK) WPL 912642 Contact Us For Availability

VENT, INLET WPL Y913095 Contact Us For Availability

PANEL, ACCESS (BLK) WPL 912637 Contact Us For Availability

GASKET WPL Y912835 Contact Us For Availability

MANUAL, USE & CARE WPL 99001536 Contact Us For Availability

WASHER, TUB TOP WPL 910069 Contact Us For Availability

12

PLUG, RINSE AID WPL Y913092 Contact Us For Availability

12

WIRE, GROUND WPL 903882 Contact Us For Availability

12

LEVER, ACTUATOR WPL 912014 Contact Us For Availability

WP912653 Whirlpool Dishwasher Door Spring Lin In Stock WPL WP912653 $5.30

NUT, RESERVOIR WPL Y913060 Contact Us For Availability

``D`` SHAFT WPL 913105 Contact Us For Availability

PIN, LEVER PIVOT WPL 912015 Contact Us For Availability

COVER, VENT WPL Y912910 Contact Us For Availability

PIVOT WPL 99001287 Contact Us For Availability

SCREW, MOTOR WPL Y912892 Contact Us For Availability

RING, LOCKING WPL Y912686 Contact Us For Availability

WP179051 Whirlpool Screw Backorder WPL WP179051 $4.82

SHIELD, TUB (BLK) WPL 912641 Contact Us For Availability

PLUG, THERMOSTAT WPL 99001007 Contact Us For Availability

CLIP, THERMOSTAT WPL 99001008 Contact Us For Availability

16

SHIELD, MOTOR WPL Y912931 Contact Us For Availability

16

THERMOSTAT, LIMITING WPL 99001006 Contact Us For Availability

17

GASKET, PUMP WPL 912529 Contact Us For Availability

17

TUBE, INLET WPL Y913096 Contact Us For Availability

18

WASHER, SHAFT SEAL WPL 913106 Contact Us For Availability

18

BRACKET, ADJUSTING WPL 912651 Contact Us For Availability

19

WP913108 Whirlpool Dishwasher Seal In Stock WPL WP913108 $4.82

19

SCREW, ADJUSTING BRACKET WPL 912613 Contact Us For Availability

20

NUT, SPRAY ARM SUPPORT WPL Y912930 Contact Us For Availability

20

NUT, HEATING ELEMENT WPL 912645 Contact Us For Availability

21

SCREW WPL 912622 Contact Us For Availability

21

LIFTER WPL Y913200 Contact Us For Availability

21

CAP, AIR INLET WPL Y912659 Contact Us For Availability

22

``E`` CLIP, ``D`` SHAFT WPL 913110 Contact Us For Availability

22

O-RING, HEATER WPL Y913079 Contact Us For Availability

23

SEAT, SEAL WPL 903494 Contact Us For Availability

23

ELEMENT, HEATING WPL 903096 Contact Us For Availability

24

SEAL HEAD ASSY. WPL 903493 Contact Us For Availability

24

BRACKET, HEATING ELEMENT WPL Y912541 Contact Us For Availability

25

IMPELLER, PUMP WPL 903962 Contact Us For Availability

26

WPW10143258 Whirlpool Dishwasher Leg Leveler Backorder WPL WPW10143258 $9.90

26

RING, WEAR WPL Y912901 Contact Us For Availability

27

PLATE, CHOPPER WPL Y912913 Contact Us For Availability

27

BOX, TERMINAL WPL 912563 Contact Us For Availability

28

CHOPPER WPL Y913274 Contact Us For Availability

28

SCREW WPL 912012 Contact Us For Availability

29

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

29

SCREW, CHOPPER WPL 913275 Contact Us For Availability

29

BRACKET, WATER LEVEL SWITCH WPL 912656 Contact Us For Availability

30

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

30

HOUSING, PUMP WPL Y912902 Contact Us For Availability

31

SEAL RING, INJECTOR WPL 912644 Contact Us For Availability

32

WP99002363 Whirlpool Dishwasher Float Backorder WPL WP99002363 $6.02

32

FLAPPER, DRAIN WPL Y912924 Contact Us For Availability

33

SPRING, FLAPPER WPL Y913202 Contact Us For Availability

34

VOLUTE, PUMP (W/SHAFT) WPL Y912915 Contact Us For Availability

35

SCREW, PUMP VOLUTE WPL Y912891 Contact Us For Availability

36

SEAL, RING WPL Y912904 Contact Us For Availability

37

WPY912900 Whirlpool Dishwasher Support In Stock WPL WPY912900 $69.02

38

ARM, WASH (LWR) WPL 903489 Contact Us For Availability

39

SHIELD, RADIANT WPL Y912895 Contact Us For Availability

40

WPY912912 Whirlpool Dishwasher Spray Tower Backorder WPL WPY912912 $54.39

41

WPY913158 Whirlpool Dishwasher Drain Hose Backorder WPL WPY913158 $22.88

43

RELAY, MOTOR WPL 903482 Contact Us For Availability

43

SCREW, RELAY WPL 912612 Contact Us For Availability

43

BRACKET, RELAY WPL Y913156 Contact Us For Availability

44

STRAINER WPL Y912917 Contact Us For Availability

NI

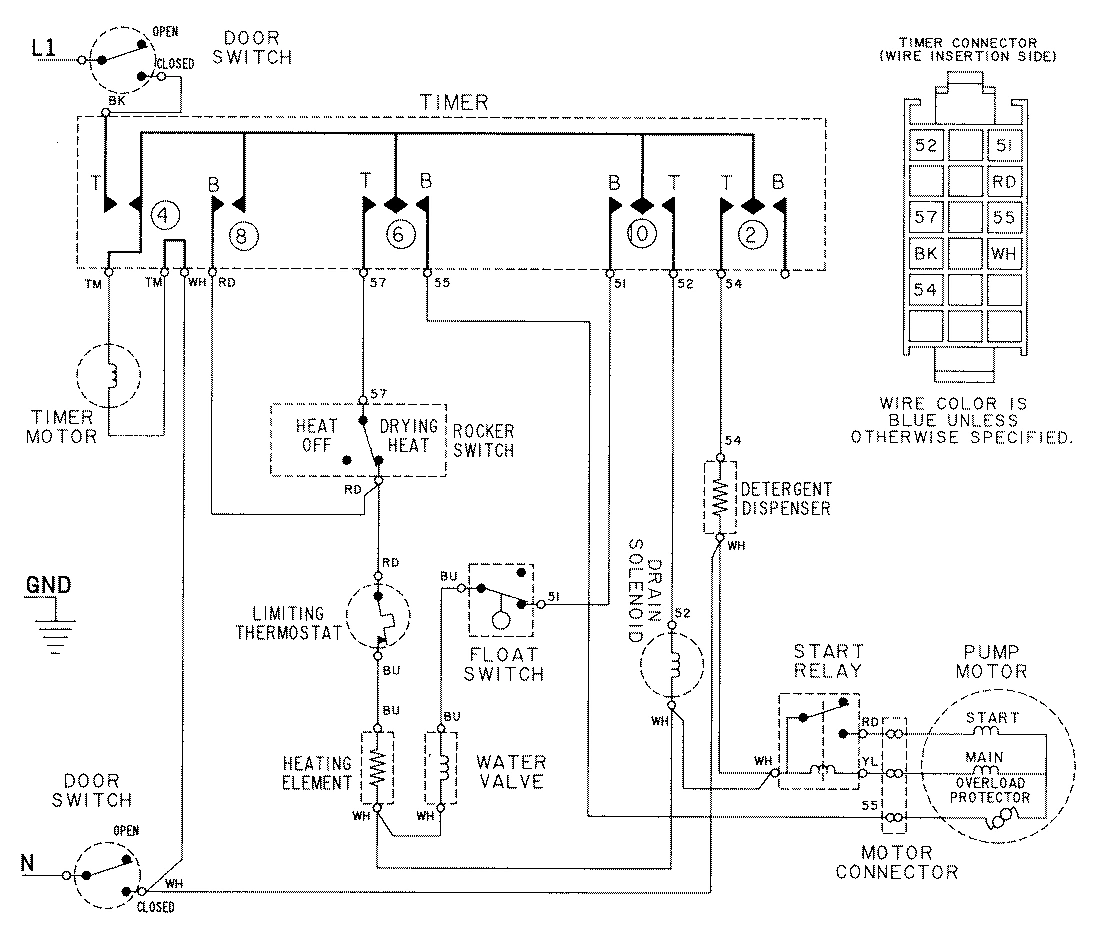

WIRING INFORMATION WPL 15001460 Contact Us For Availability
