Model Whirlpool DW860A DISHWASHER – Common Parts &amp; Diagrams

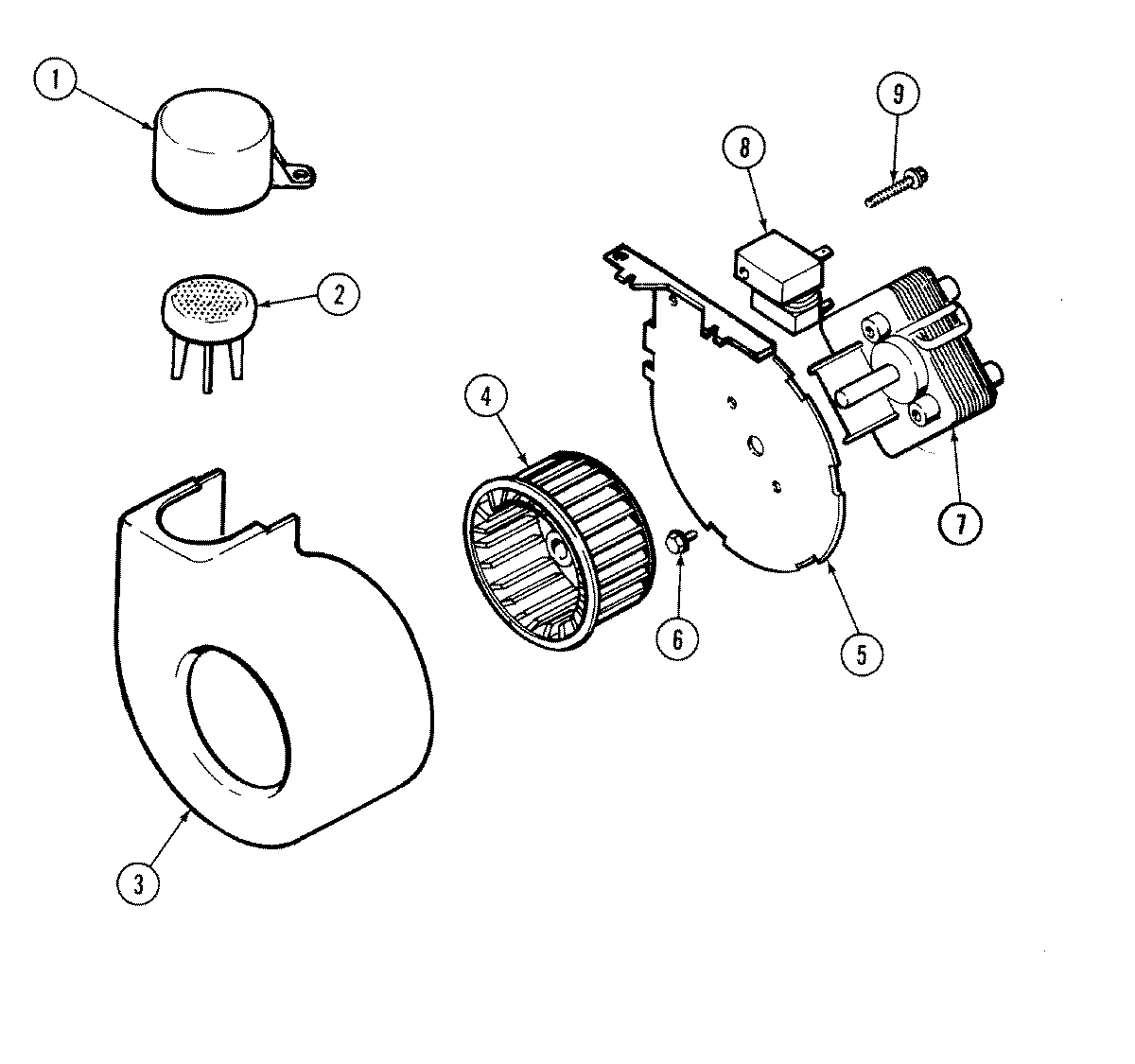

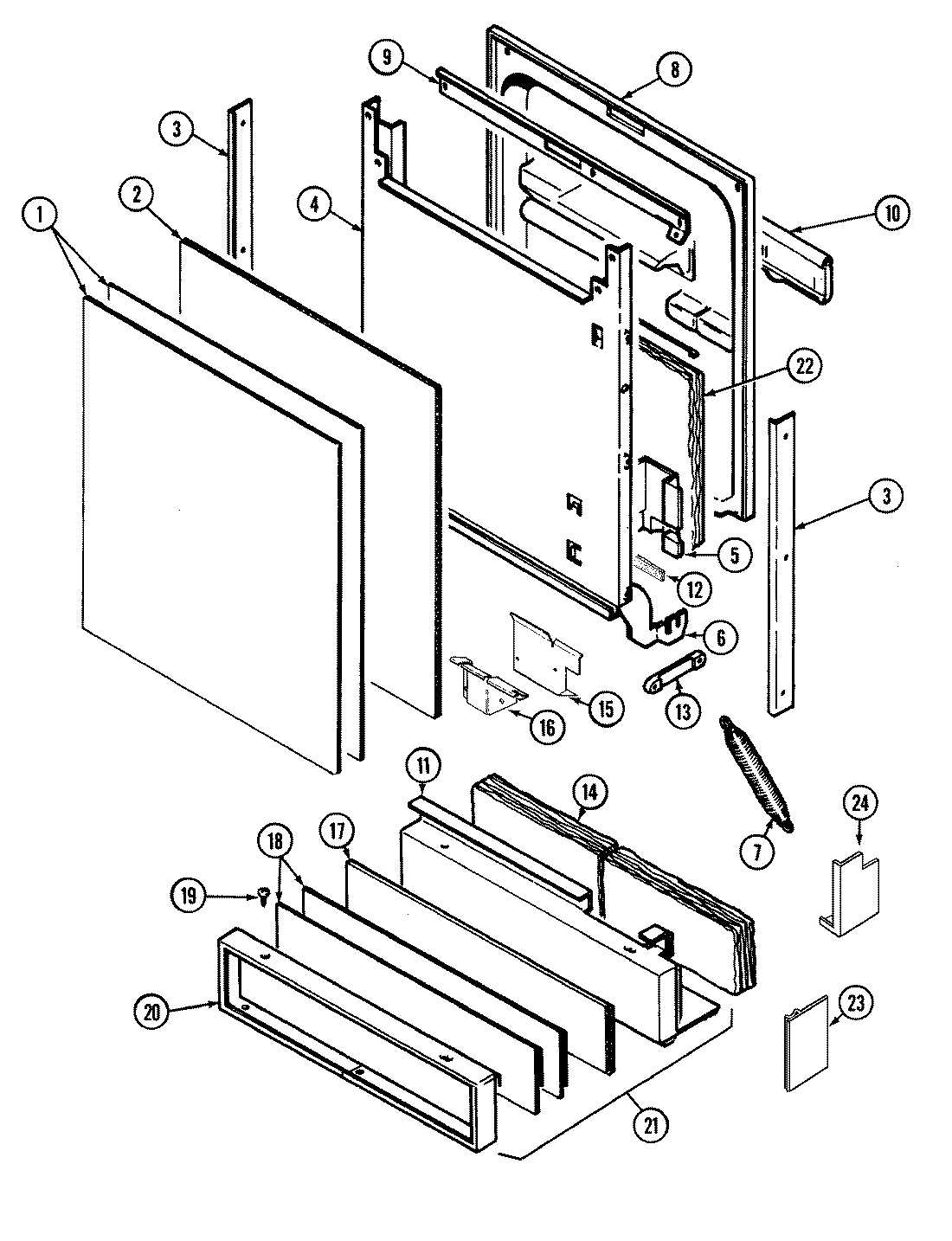

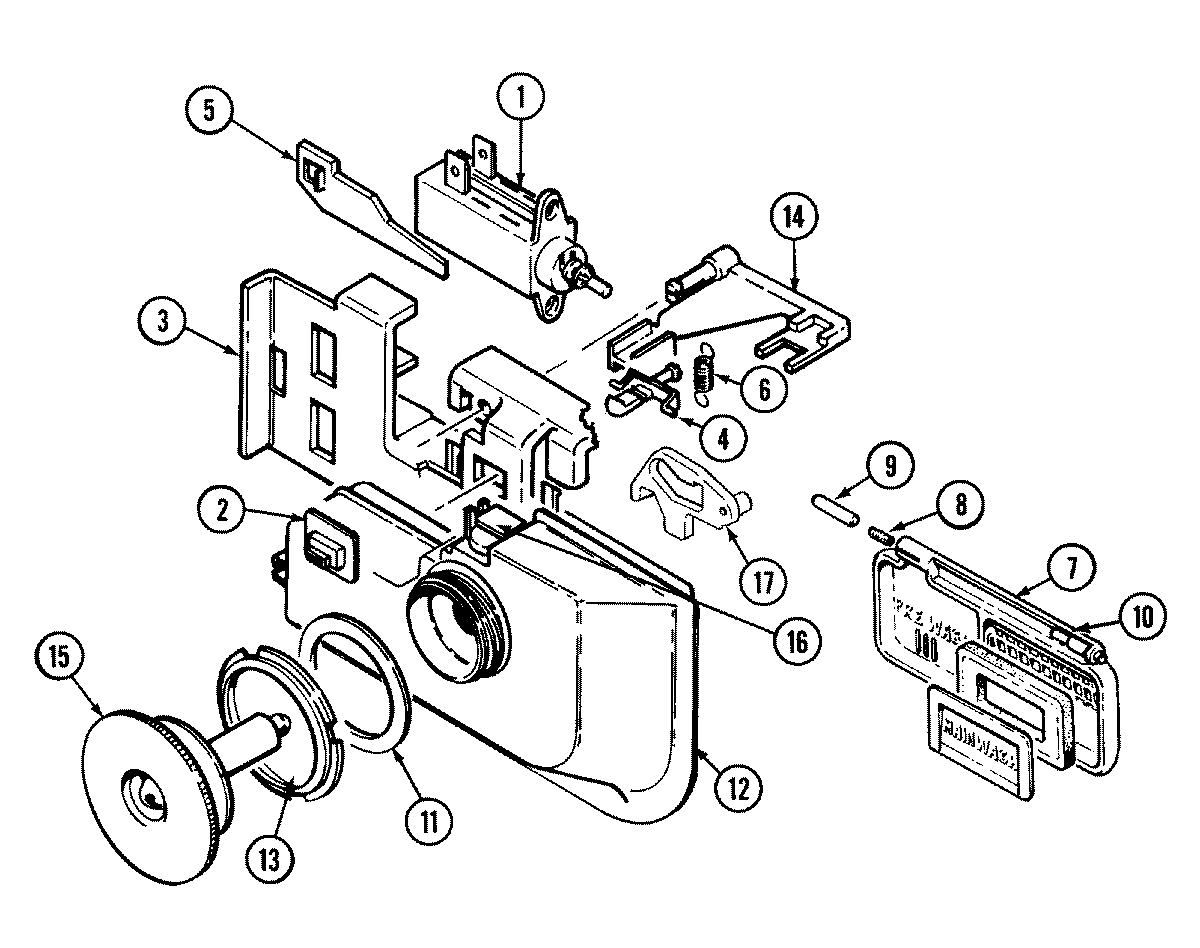

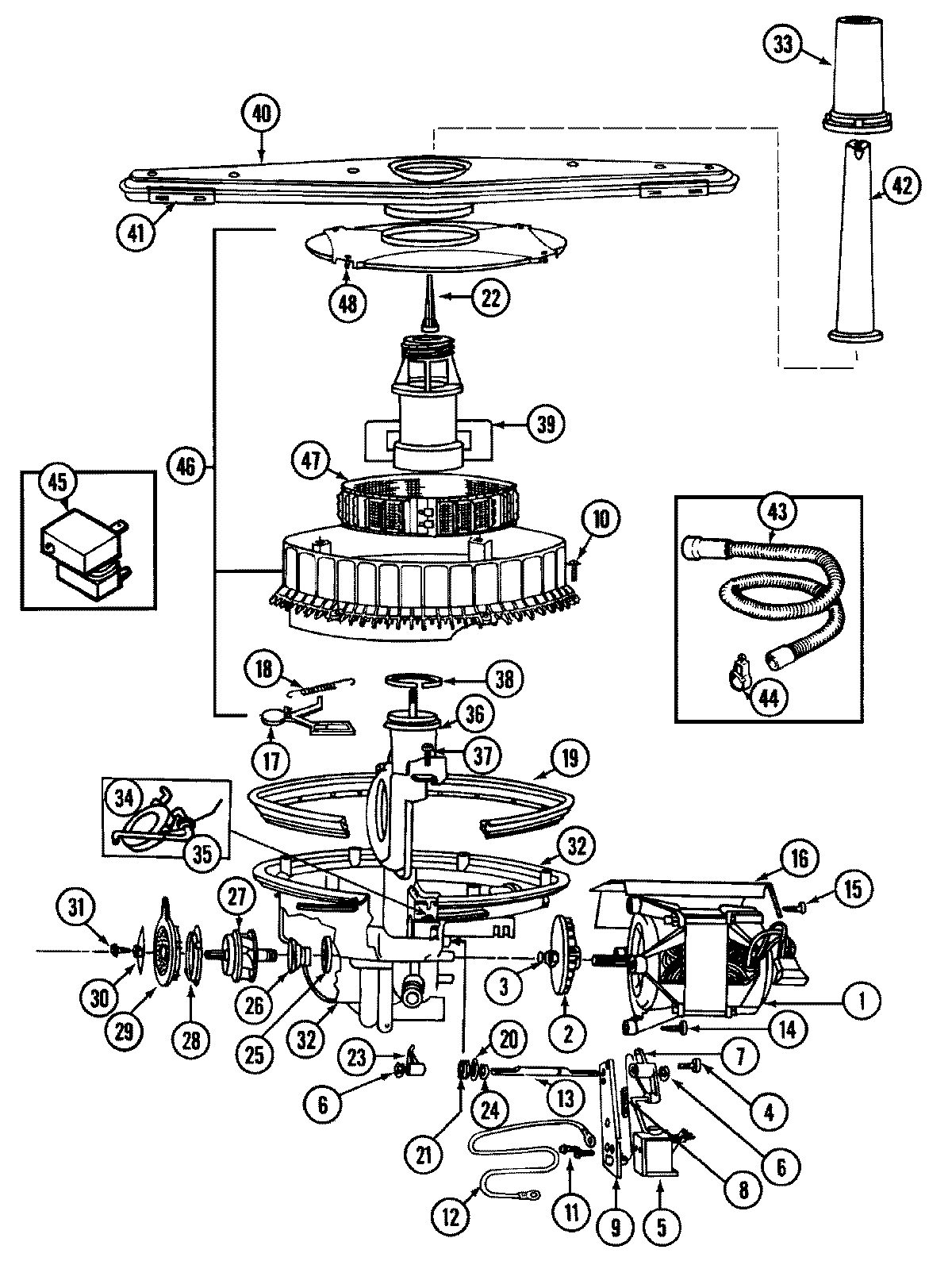

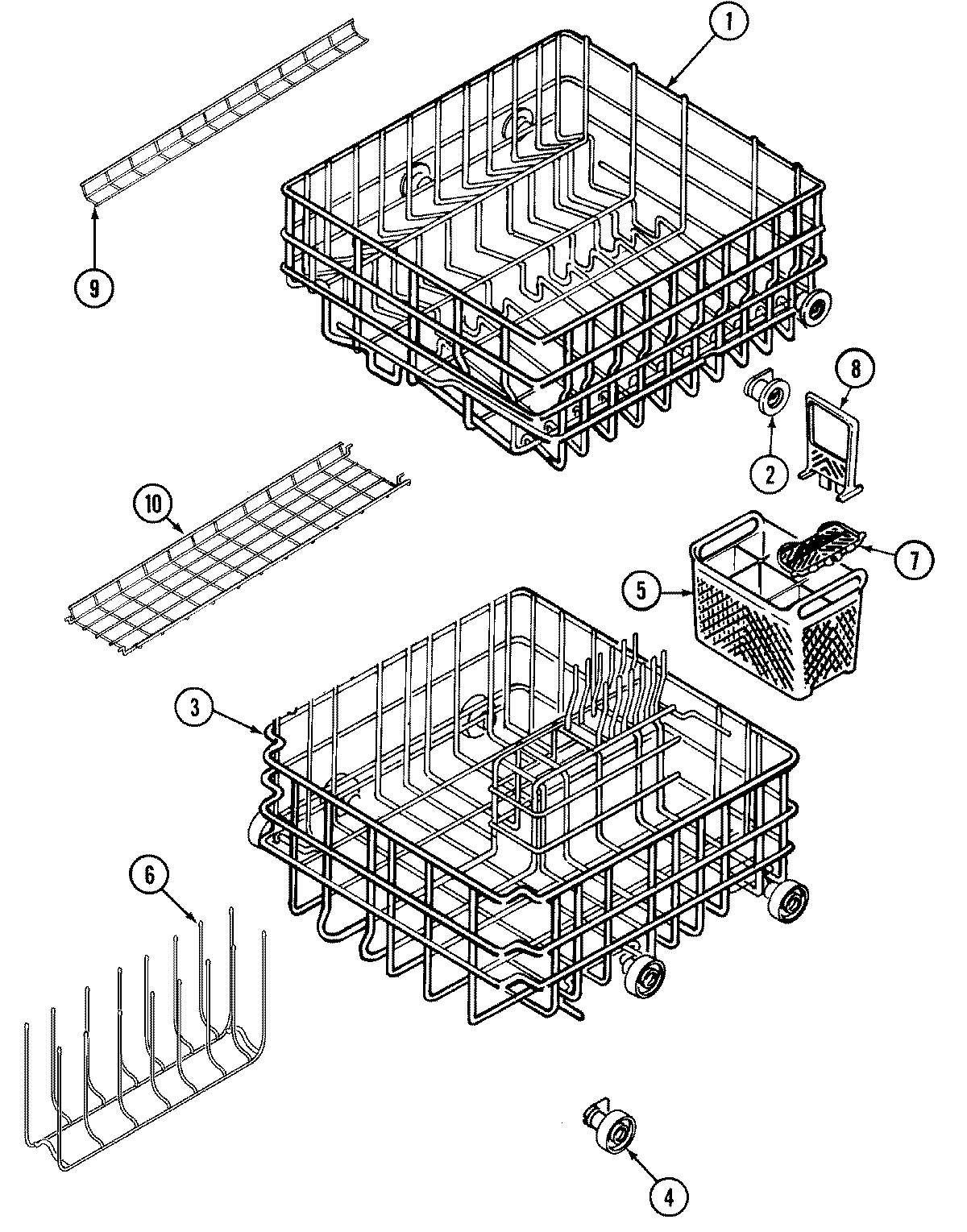

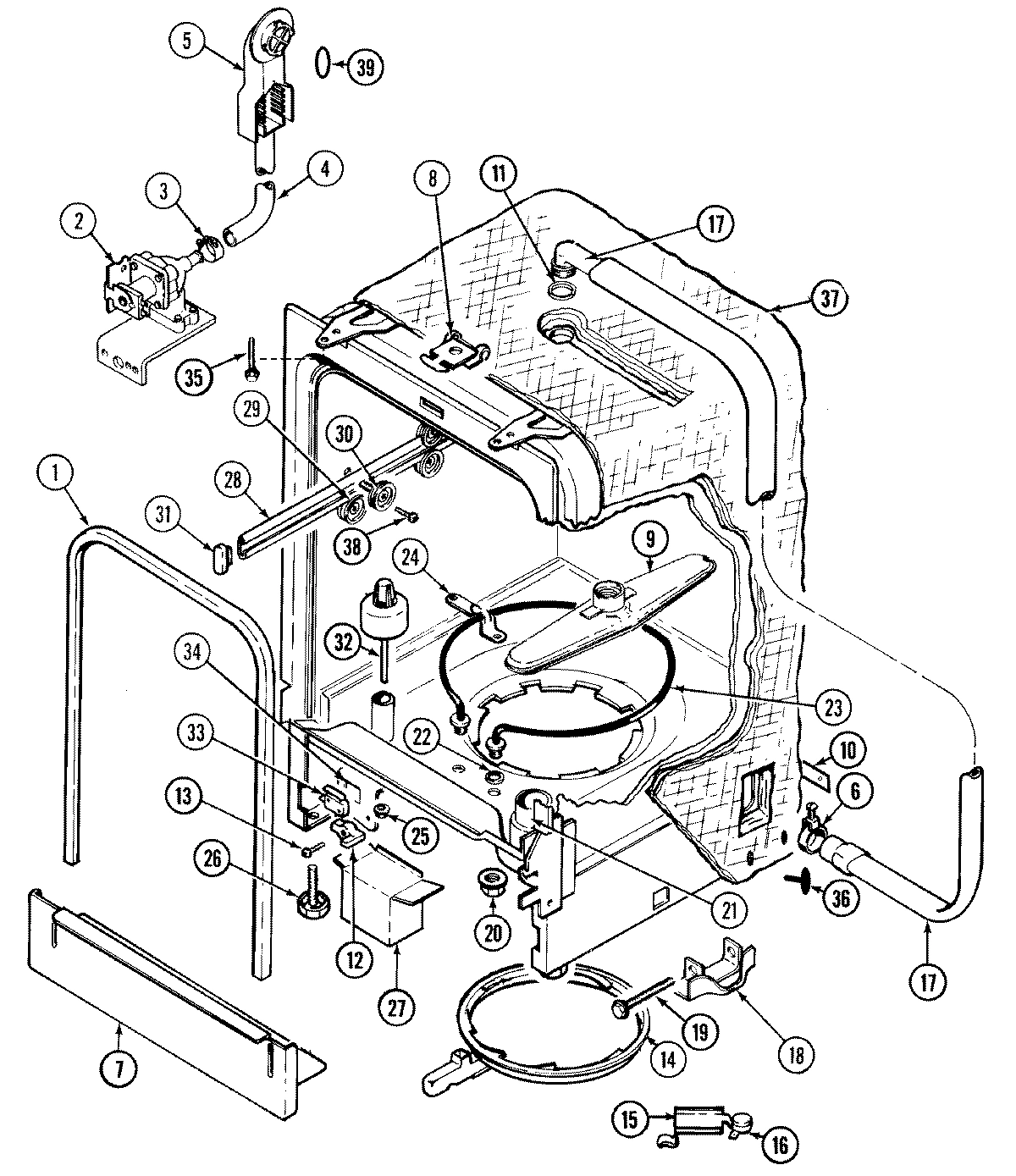

1

WP902899 Whirlpool Dishwasher Wax Motor Backorder WPL WP902899 $58.41

1

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $5.02

1

INSERT, FRONT PANEL (WHT/BLK) WPL 912520 Contact Us For Availability

1

TRIM, BOTTOM (STNLS) WPL 912522 Contact Us For Availability

1

TRIM, PANEL (LWR-ALM) WPL 99001244 Contact Us For Availability

1

RACK (UPR) WPL 903918 Contact Us For Availability

1

SCREW WPL 912622 Contact Us For Availability

1

CAP, AIR INLET WPL Y912659 Contact Us For Availability

1

MOTOR W/``O`` RING & FAN WPL 903936 Contact Us For Availability

1

MOTOR (W/O-RING & FAN) WPL 99001070 Contact Us For Availability

2

GROMMET, DISPENSER WPL W10131752 No Longer Available

2

WP903093 Whirlpool Dishwasher Rack Wheel In Stock WPL WP903093 $9.83

2

WP99001359 Whirlpool Dishwasher Water Valve In Stock WPL WP99001359 $48.23

2

WP99001553 Whirlpool Dishwasher Grommet Backorder WPL WP99001553 $48.03

2

FILLER, FRONT PANEL WPL 912521 Contact Us For Availability

2

SPRING, MOTOR FAN WPL 99001145 Contact Us For Availability

2

FAN, MOTOR WPL Y912903 Contact Us For Availability

2

SCREEN, BLOWER VALVE WPL Y912660 Contact Us For Availability

2

BAFFLE, WATER WPL Y913085 Contact Us For Availability

3

912619 Whirlpool Dishwasher Trim Screw P-1 Backorder WPL 912619 $8.39

3

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $5.02

3

TRIM, DOOR (ALM) WPL 99001242 Contact Us For Availability

3

SCREW, TRIM STRIP (ALM) WPL 99001243 Contact Us For Availability

3

TRIM, SIDE (STNLS) WPL Y912783 Contact Us For Availability

3

RACK (LWR) WPL 903923 Contact Us For Availability

3

RETAINER, IMPELLER WPL Y913173 Contact Us For Availability

3

``O`` RING, MOTOR WPL Y913174 Contact Us For Availability

3

HOUSING, BLOWER WPL 912556 Contact Us For Availability

3

RETAINER WPL Y912673 Contact Us For Availability

4

HOSE, INJECTOR WPL 912633 Contact Us For Availability

4

DOOR, OUTER WPL 903821 Contact Us For Availability

4

WHEEL ASSEMBLY (LWR) WPL 903815 Contact Us For Availability

4

WHEEL, BLOWER WPL 902902 Contact Us For Availability

5

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $4.82

5

WP6-904023 Whirlpool Drain Solenoid Backorder WPL WP6-904023 $126.08

5

WP6-918873 Whirlpool Silverware Basket In Stock WPL WP6-918873 $38.54

5

RETAINER, WIRE WPL Y912666 Contact Us For Availability

5

INJECTOR, WATER WPL 912533 Contact Us For Availability

5

PLATE, BLOWER WPL 912557 Contact Us For Availability

5

SLIDER WPL 99001289 Contact Us For Availability

5

LATCH, SLIDER WPL Y912675 Contact Us For Availability

6

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

6

WPW10116816 Whirlpool Dishwasher Spring Backorder WPL WPW10116816 $4.67

6

HINGE (LT) WPL 903070 Contact Us For Availability

6

HINGE (RT) WPL 903071 Contact Us For Availability

6

INSERT, LOWER RACK WPL 903859 Contact Us For Availability

6

``E`` CLIP, ``D`` SHAFT WPL Y913109 Contact Us For Availability

7

WP6-912366 Whirlpool Dishwasher Screw Backorder WPL WP6-912366 $4.82

7

WP6-920587 Whirlpool Dishwasher Shield Backorder WPL WP6-920587 $4.55

7

WP912652 Whirlpool Dishwasher Spring In Stock WPL WP912652 $6.58

7

LID, DETERGENT CUP WPL 903108 Contact Us For Availability

7

PANEL, TOE (BLK) WPL 912640 Contact Us For Availability

7

CLIP, GROUNDING WPL 912882 Contact Us For Availability

7

PANEL, TOE (BLK) WPL Y912694 Contact Us For Availability

7

CRANK, ``D`` SHAFT WPL 913099 Contact Us For Availability

7

MOTOR, BLOWER WPL 902900 Contact Us For Availability

8

DOOR ASSY. (W/DAMPER) WPL 99001092 Contact Us For Availability

8

HANDLE, SILVERWARE BASKET WPL Y912708 Contact Us For Availability

8

SPRING, LATCH WPL 912648 Contact Us For Availability

8

HOOK, LATCH WPL 912649 Contact Us For Availability

8

RETAINER, LATCH WPL 912650 Contact Us For Availability

8

SCREW, LATCH WPL Y912873 Contact Us For Availability

8

SPRING, RETURN WPL Y913201 Contact Us For Availability

8

RELAY, MOTOR WPL 903482 Contact Us For Availability

8

SPRING, CUP LID WPL Y912547 Contact Us For Availability

9

WP6-912678 Whirlpool Hinge Pin In Stock WPL WP6-912678 $6.02

9

BAR, REINFORCEMENT WPL Y912668 Contact Us For Availability

9

SHELF, UPPER RACK WPL 903861 Contact Us For Availability

9

CLIP, UPPER RACK SHELF WPL Y912984 Contact Us For Availability

9

BRACKET, SOLENOID WPL Y913203 Contact Us For Availability

9

SCREW, RELAY WPL 912612 Contact Us For Availability

10

STRAP, SUPPORT WPL 912654 Contact Us For Availability

11

PANEL, ACCESS (BLK) WPL 912636 Contact Us For Availability

11

WASHER, TUB TOP WPL 910069 Contact Us For Availability

11

GASKET, RESERVOIR WPL Y913061 Contact Us For Availability

12

WP99002833 Whirlpool Dishwasher Reservoir Backorder WPL WP99002833 $48.45

12

LEVER, ACTUATOR WPL 912014 Contact Us For Availability

12

WIRE, GROUND WPL 903882 Contact Us For Availability

WP912653 Whirlpool Dishwasher Door Spring Lin In Stock WPL WP912653 $5.30

PIN, LEVER PIVOT WPL 912015 Contact Us For Availability

``D`` SHAFT WPL 913105 Contact Us For Availability

NUT, RESERVOIR WPL Y913060 Contact Us For Availability

INSULATION, ACCESS PANEL WPL Y912836 Contact Us For Availability

RING, LOCKING WPL Y912686 Contact Us For Availability

SCREW, MOTOR WPL Y912892 Contact Us For Availability

ACTUATOR, RINSE AID WPL 912576 Contact Us For Availability

ACTUATOR, RINSE AID WPL 99001290 Contact Us For Availability

15

WP179051 Whirlpool Screw Backorder WPL WP179051 $4.82

15

SHIELD, TUB (BLK) WPL 912641 Contact Us For Availability

15

CLIP, THERMOSTAT WPL 99001008 Contact Us For Availability

COVER, WIRE (BLK) WPL 912642 Contact Us For Availability

THERMOSTAT, BOOST (36TX02) WPL 99001005 Contact Us For Availability

THERMOSTAT, LIMITING WPL 99001006 Contact Us For Availability

SHIELD, MOTOR WPL Y912931 Contact Us For Availability

PLUNGER ASSEMBLY WPL 903124 Contact Us For Availability

FILLER, ACCESS PANEL WPL 912525 Contact Us For Availability

HOSE, TOP SHOWER WPL 912647 Contact Us For Availability

VALVE, FILTER WPL Y913135 Contact Us For Availability

PIVOT WPL 99001287 Contact Us For Availability

18

INSERT, ACCESS PANEL(ALM/HWHT) WPL 912528 Contact Us For Availability

18

BRACKET, ADJUSTING WPL 912651 Contact Us For Availability

18

SPRING, FILTER VALVE WPL Y913134 Contact Us For Availability

WP912618 Whirlpool Dishwasher Screw Backorder WPL WP912618 $4.82

SCREW (TOP-ALM) WPL 99001246 Contact Us For Availability

SCREW, ADJUSTING BRACKET WPL 912613 Contact Us For Availability

GASKET, PUMP WPL 912529 Contact Us For Availability

WASHER, SHAFT SEAL WPL 913106 Contact Us For Availability

TRIM, ACCESS PANEL (FORMED) WPL 912526 Contact Us For Availability

TRIM, ACCESS PANEL (ALM) WPL 99001245 Contact Us For Availability

NUT, HEATING ELEMENT WPL 912645 Contact Us For Availability

SLEEVE, INSULATING WPL 99001333 Contact Us For Availability

21

WP913108 Whirlpool Dishwasher Seal In Stock WPL WP913108 $4.82

21

PANEL ASSY., ACCESS WPL 99001091 Contact Us For Availability

WP6-920580 Whirlpool Dishwasher Insulation Pa Backorder WPL WP6-920580 $20.64

DAMPER, SOUND (BTM) WPL Y912751 Contact Us For Availability

DAMPER, SOUND (TOP) WPL Y912752 Contact Us For Availability

WASHER, HEATING ELEMENT WPL 910603 Contact Us For Availability

NUT, SPRAY ARM SUPPORT WPL Y912930 Contact Us For Availability

23

BARRIER (BLK) WPL 99001206 Contact Us For Availability

23

ELEMENT, HEATING WPL 903096 Contact Us For Availability

23

LIFTER WPL Y913200 Contact Us For Availability

WP4312464 Whirlpool Refrigerator Screw Backorder WPL WP4312464 $4.82

SHIELD, ACCESS PANEL (RT) WPL Y912809 Contact Us For Availability

SHIELD, ACCESS PANEL (LT) WPL Y912810 Contact Us For Availability

SHIELD, WIRING-CANADA WPL Y912811 Contact Us For Availability

BRACKET, HEATING ELEMENT WPL Y912541 Contact Us For Availability

``E`` CLIP, ``D`` SHAFT WPL 913110 Contact Us For Availability

25

SEAT, SEAL WPL 903494 Contact Us For Availability

26

WPW10143258 Whirlpool Dishwasher Leg Leveler Backorder WPL WPW10143258 $9.90

26

SEAL HEAD ASSY. WPL 903493 Contact Us For Availability

27

BOX, TERMINAL WPL 912563 Contact Us For Availability

27

IMPELLER, PUMP WPL 903962 Contact Us For Availability

28

RING, WEAR WPL Y912901 Contact Us For Availability

29

PLATE, CHOPPER WPL Y912913 Contact Us For Availability

30

WPY912798 Whirlpool Dishwasher Tub Washer Whe Backorder WPL WPY912798 $4.82

30

CHOPPER WPL Y913274 Contact Us For Availability

31

WP99002136 Whirlpool Rack Stop Backorder WPL WP99002136 $8.05

31

SCREW, CHOPPER WPL 913275 Contact Us For Availability

32

WP99002363 Whirlpool Dishwasher Float Backorder WPL WP99002363 $6.02

32

FLOAT WPL 99001187 Contact Us For Availability

32

HOUSING, PUMP WPL Y912902 Contact Us For Availability

33

SCREW WPL 912012 Contact Us For Availability

34

BRACKET, WATER LEVEL SWITCH WPL 912656 Contact Us For Availability

34

FLAPPER, DRAIN WPL Y912924 Contact Us For Availability

35

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

35

SPRING, FLAPPER WPL Y913202 Contact Us For Availability

36

FASTENER, INSULATION WPL 911917 Contact Us For Availability

36

VOLUTE, PUMP (W/SHAFT) WPL Y912915 Contact Us For Availability

WPW10223013 Whirlpool Dishwasher Insulation P Backorder WPL WPW10223013 $59.09

DAMPER, SOUND (TOP-BACK) WPL 912747 Contact Us For Availability

DAMPER, SOUND (BACK) WPL 912749 Contact Us For Availability

DAMPER, SOUND (LT) WPL Y912744 Contact Us For Availability

DAMPER, SOUND (RT) WPL Y912745 Contact Us For Availability

DAMPER, SOUND (TOP-FRT) WPL Y913097 Contact Us For Availability

SCREW, PUMP VOLUTE WPL Y912891 Contact Us For Availability

38

WP99002947 Whirlpool Tub Wheel In Stock WPL WP99002947 $7.80

38

SEAL, RING WPL Y912904 Contact Us For Availability

39

WPY912900 Whirlpool Dishwasher Support In Stock WPL WPY912900 $69.02

39

SEAL RING, INJECTOR WPL 912644 Contact Us For Availability

40

ARM, LOWER SPRAY (W/SHIELD) WPL 904026 Contact Us For Availability

41

SHIELD, RADIANT WPL Y912895 Contact Us For Availability

42

WPY912912 Whirlpool Dishwasher Spray Tower Backorder WPL WPY912912 $54.39

43

WPY913158 Whirlpool Dishwasher Drain Hose Backorder WPL WPY913158 $22.88

46

FILTER ASSY. WPL 903736 Contact Us For Availability

47

FILTER, PUMP WPL Y913131 Contact Us For Availability

48

COVER, FILTER WPL Y913132 Contact Us For Availability
