Model Whirlpool DU8900XT4 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

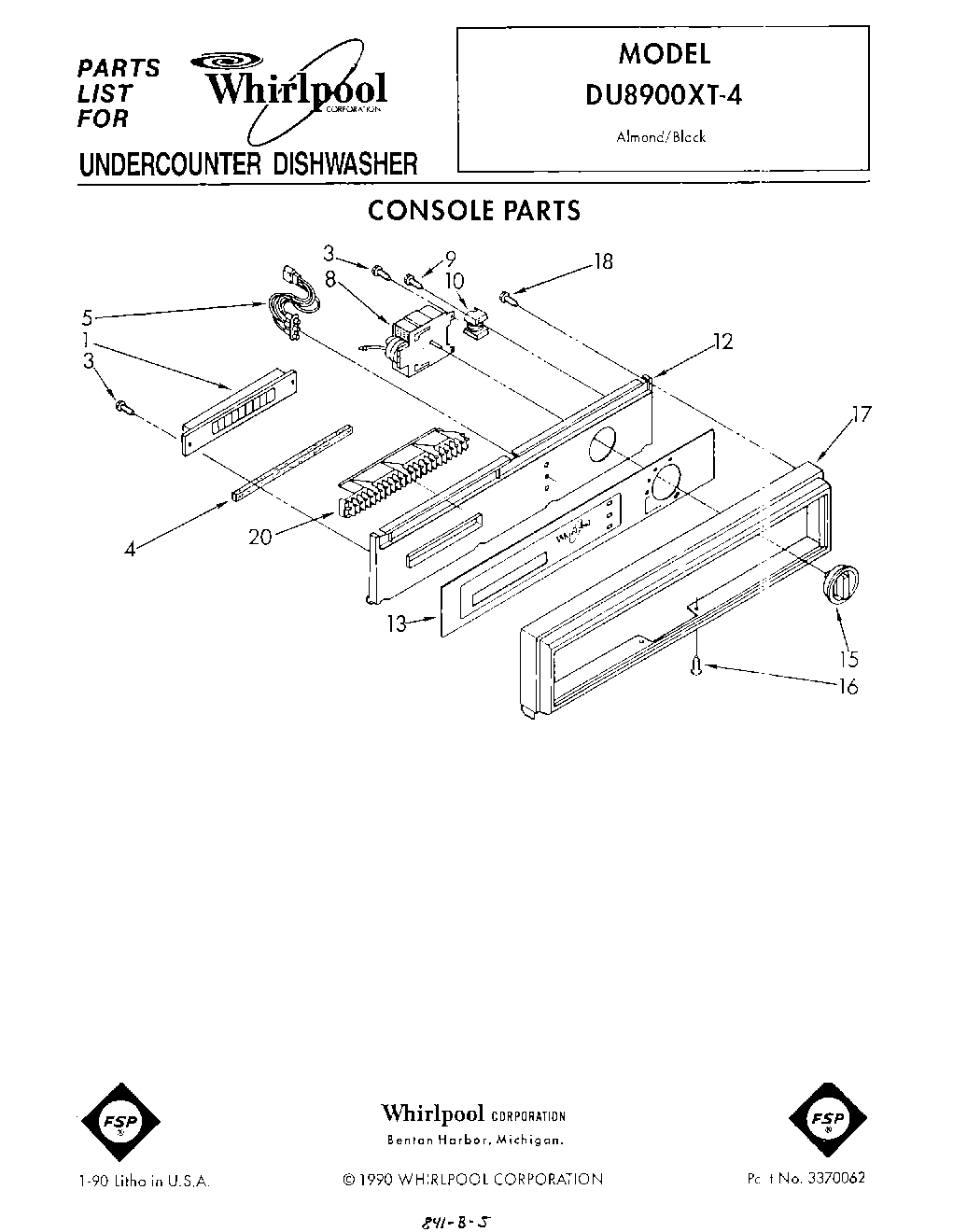

01 - CONSOLE

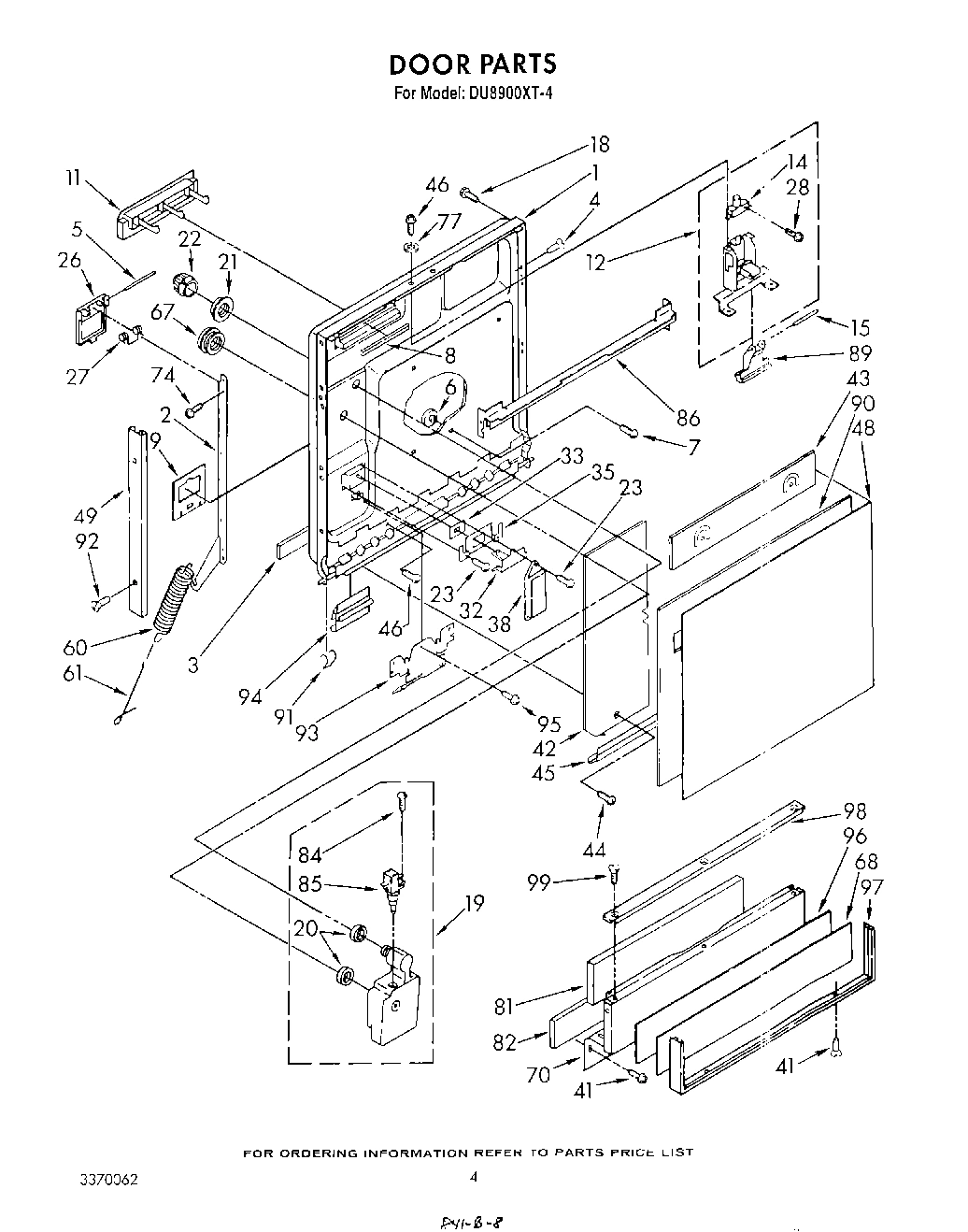

03 - DOOR

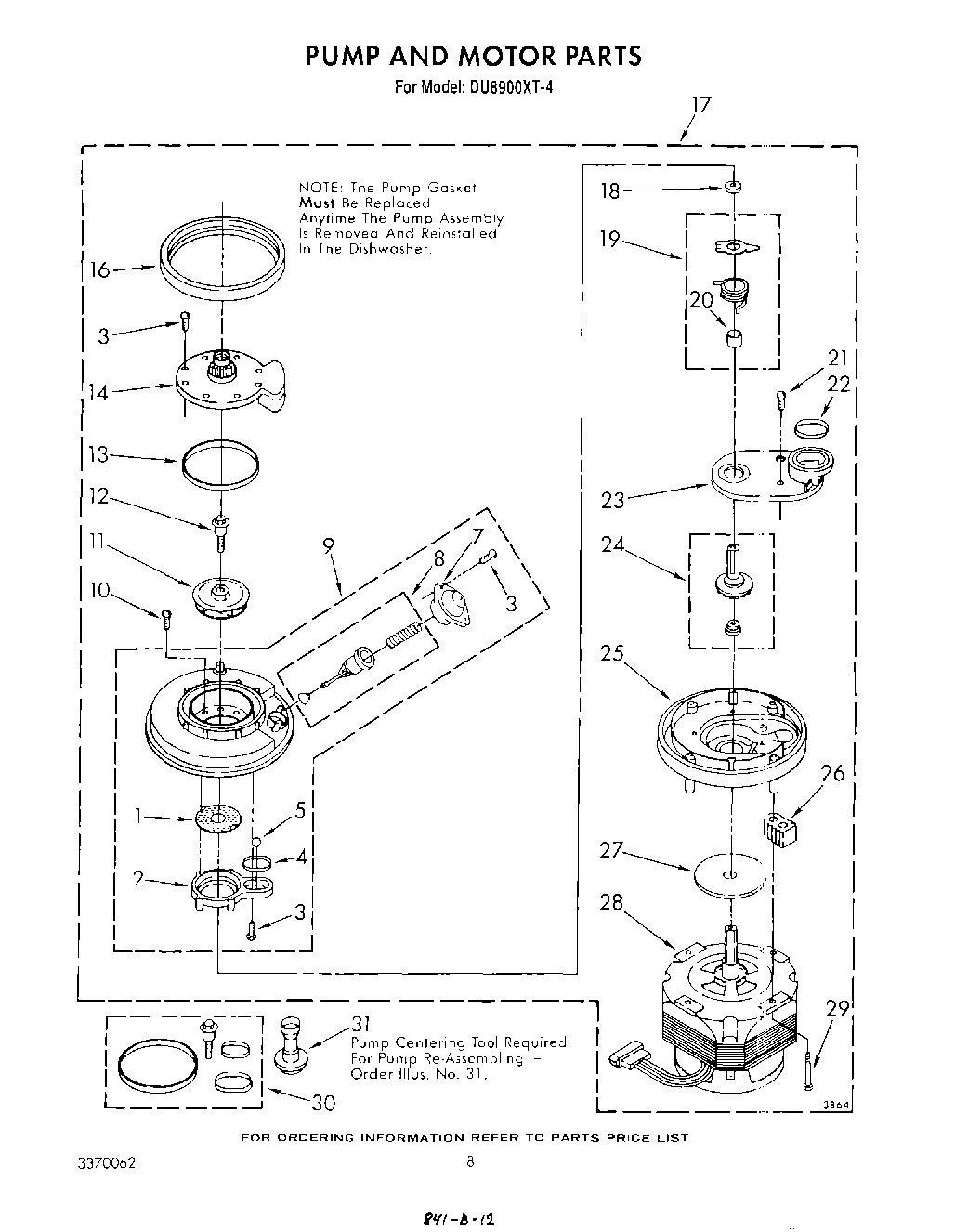

06 - PUMP AND MOTOR

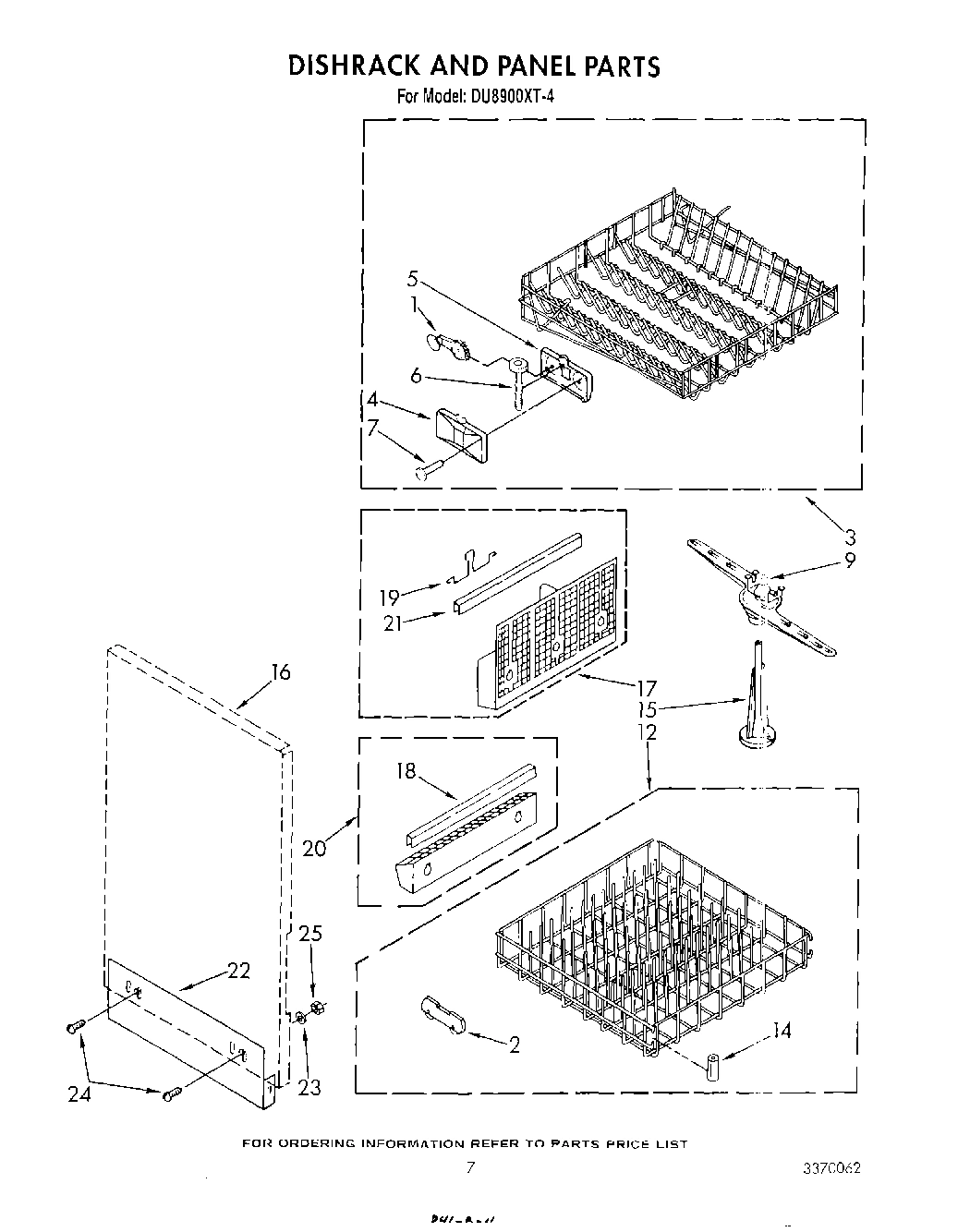

05 - DISHRACK AND PANEL

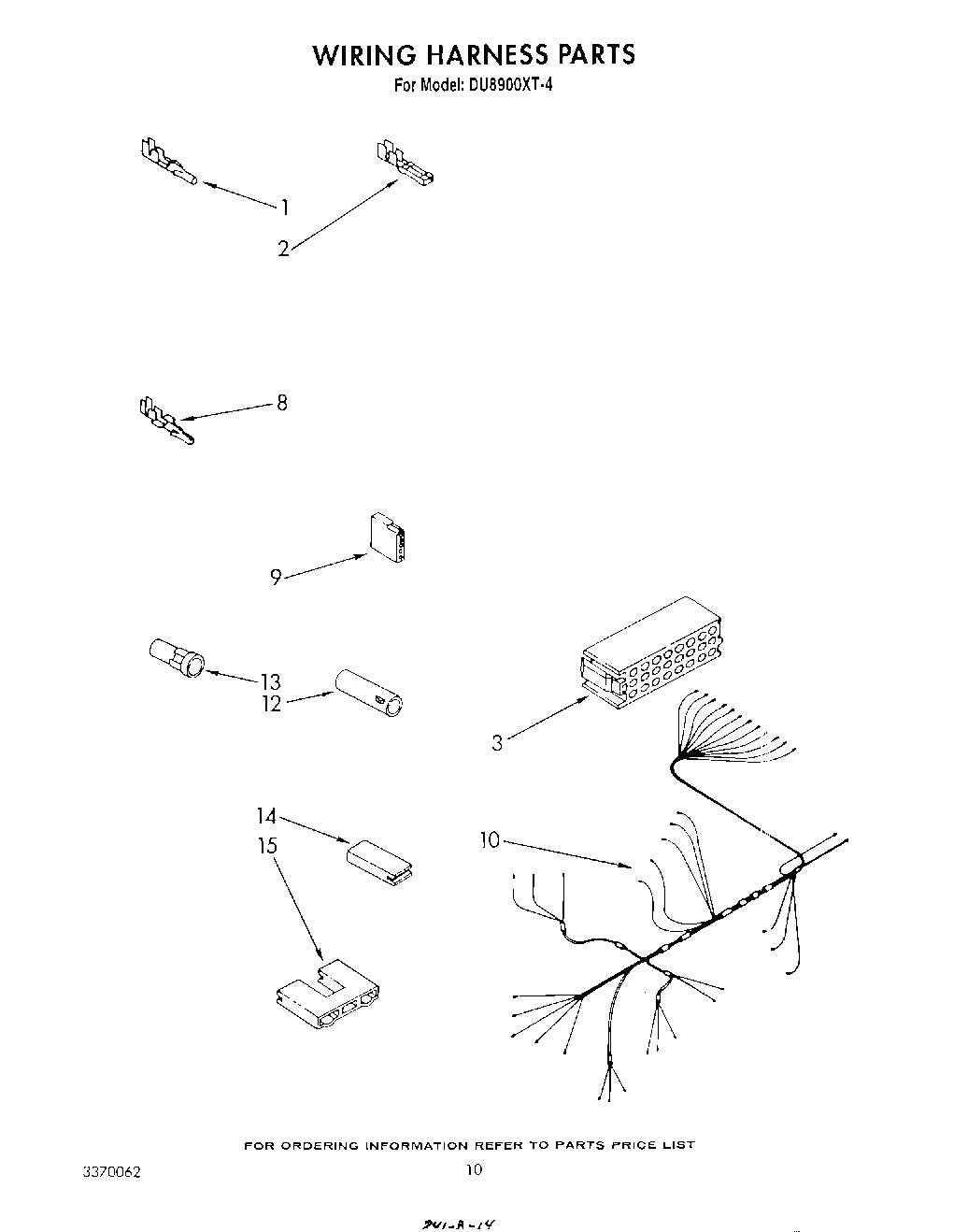

07 - WIRING HARNESS

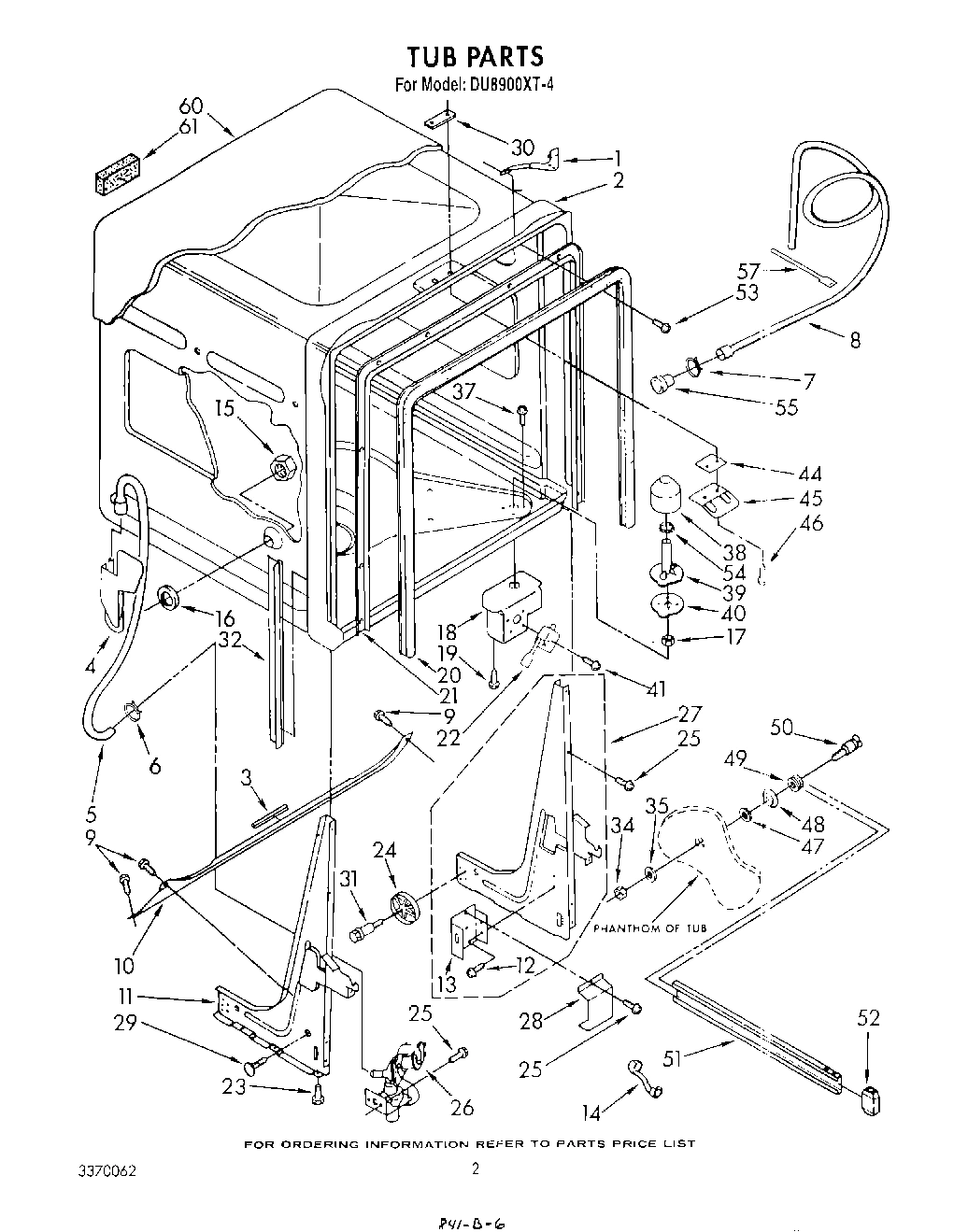

02 - TUB , LITERATURE AND OPTIONAL

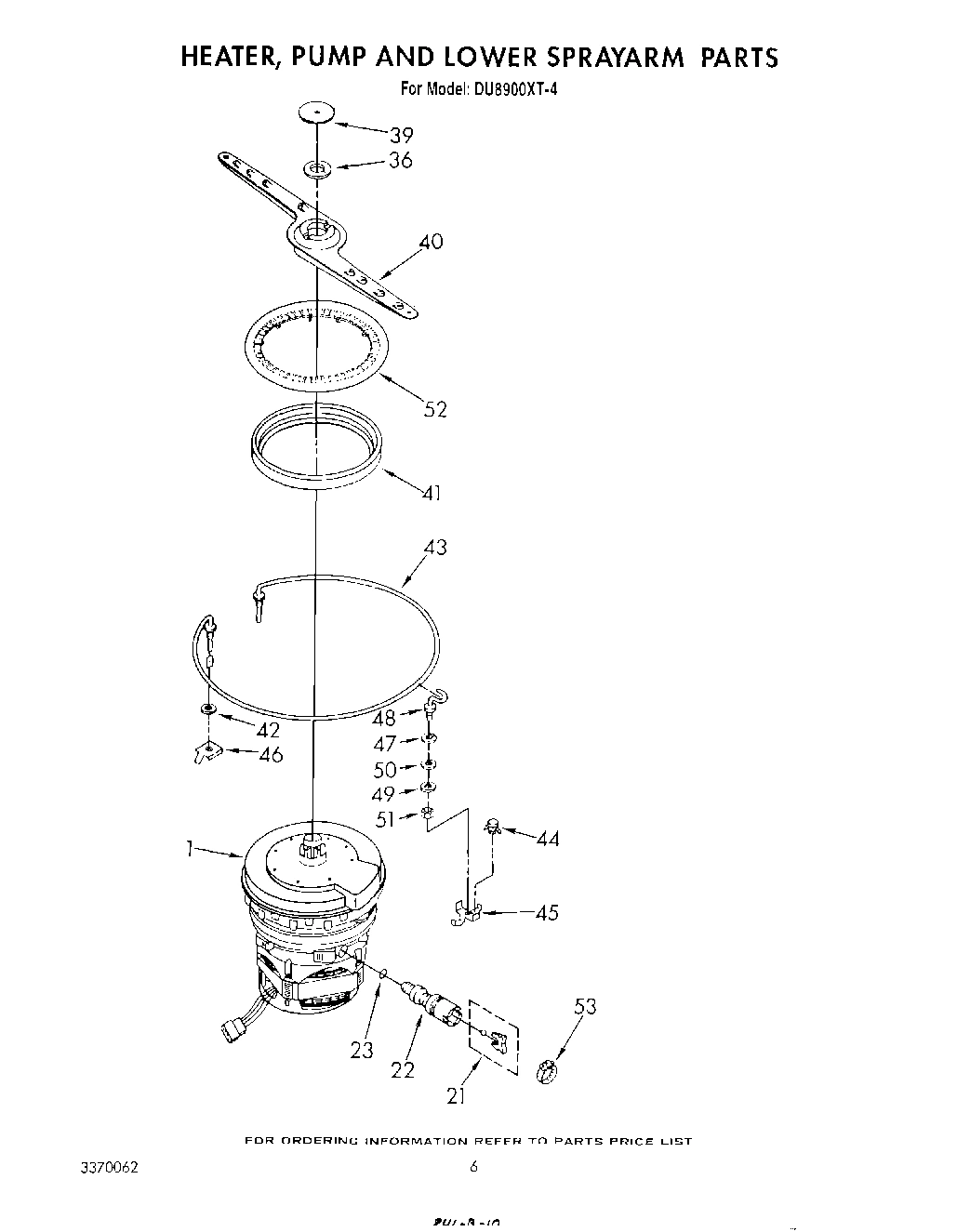

04 - HEATER, PUMP AND LOWER SPRAY ARM
Common parts from model Whirlpool DU8900XT4 UNDERCOUNTER DISHWASHER
WPL LIT304289 WPL LIT304289 Contact Us For Availability
WPL LIT3367007 WPL LIT3367007 Contact Us For Availability
WPL LIT3367228 WPL LIT3367228 Contact Us For Availability
WPL LIT3367997 WPL LIT3367997 Contact Us For Availability
WPL LIT3370048 WPL LIT3370048 Contact Us For Availability
WPL LIT3370062 WPL LIT3370062 Contact Us For Availability
1
Plate, Perforated (Includes Item 5) (Also Ord WPL 302720 Contact Us For Availability
1
Pump & Motor Assembly (Includes Item 41) WPL 3367725 Contact Us For Availability
1
Wheel & Gear Assembly (4) WPL 304200 Contact Us For Availability
1
Bracket, Mounting (2) WPL 300796 Contact Us For Availability
2
Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 3367173 Contact Us For Availability
2
Terminal, Female WPL 304759 Contact Us For Availability
2
tub assembly WPL 3367464 Contact Us For Availability
3
Disconnect Block, Timer WPL 3369366 Contact Us For Availability
3
Edge Protector WPL 303294 Contact Us For Availability
4
Cover, Housing (2) WPL 304202 Contact Us For Availability
4
Inlet, Water WPL 3367572 Contact Us For Availability
5
Ball, Check WPL 302709 Contact Us For Availability
5
Housing, Gear (2) WPL 304208 Contact Us For Availability
5
Hose, Inlet WPL 3368563 Contact Us For Availability
6
Worm, Dishrack (2) WPL 304203 Contact Us For Availability
7
Cover, Valve WPL 302721 Contact Us For Availability
8
Valve Stem Kit (Includes Items 12, 13 & 22) S WPL 302738 Contact Us For Availability
9
Spray Arm WPL 304204 Contact Us For Availability
9
Separator Assembly (Includes Items 12, 13 & 2 WPL 303883 Contact Us For Availability
9
Receptacle (5-Circuit) WPL 719585 Contact Us For Availability
10
Screw, 8-18 x 1-5/8 (4) WPL 302717 Contact Us For Availability
10
Harness, Wiring WPL 3367996 Contact Us For Availability
10
Brace WPL 3368647 Contact Us For Availability
11
Leg & Hinge Assembly, L.H. WPL 3367284 Contact Us For Availability
12
Receptacle WPL 351296 Contact Us For Availability
12
Screw, 8-32 x 3/8 WPL 718178 Contact Us For Availability
13
Plug WPL 351297 Contact Us For Availability
13
Box, Terminal WPL 300067 Contact Us For Availability
14
Outlet, Pump (Includes Illus. 13) WPL 302730 Contact Us For Availability
14
Bumper (2) WPL 717970 Contact Us For Availability
14
Connector Block (Alternate) WPL 301219 Contact Us For Availability
14
Connector Block (Alternate) WPL 358736 Contact Us For Availability
14
Relief, Strain WPL 717563 Contact Us For Availability
15
Tower WPL 304170 Contact Us For Availability
15
Connector, Block (Alternate) WPL 300708 Contact Us For Availability
15
Connector Block (Alternate) WPL 374230 Contact Us For Availability
15
Nut, 7/8-16 WPL 713799 Contact Us For Availability
16
Gasket, Pump WPL 717000 Contact Us For Availability
16
Panel, Reversible Side WPL ARI24446A6 Contact Us For Availability
16
Gasket WPL 713878 Contact Us For Availability
17
Nut, 1/8 WPL 717488 Contact Us For Availability
17
Silverware Basket WPL 304166 Contact Us For Availability
18
Bushing, Grind WPL 302707 Contact Us For Availability
18
Bracket, Overflow WPL 719342 Contact Us For Availability
19
Handle, Basket WPL 300086 Contact Us For Availability
19
Screw, 8 x 1/2 (3) WPL 718250 Contact Us For Availability
20
Gasket WPL 3368007 Contact Us For Availability
20
Sleeve, Drain Impeller WPL 302705 Contact Us For Availability
20
Utensil Basket Assembly WPL 304163 Contact Us For Availability
21
Retainer & Seal WPL 3368002 Contact Us For Availability
21
Trim, Basket WPL 717528 Contact Us For Availability
21
Check Ball & Retainer WPL 675488 Contact Us For Availability
22
Seal, Drain Cover WPL 302704 Contact Us For Availability
22
Panel, Lower Side WPL 3367549 Contact Us For Availability
22
Switch, Pressure WPL 660741 Contact Us For Availability
23
Cover, Drain (Also Order Item 30) See Note A. WPL 302723 Contact Us For Availability
23
``O`` Ring WPL 95080 Contact Us For Availability
24
Wheel, Leg WPL 302819 Contact Us For Availability
24
Screw (2) WPL 9419621 Contact Us For Availability
25
Base, Pump (Includes Item 24) (Also Order Ite WPL 3367204 Contact Us For Availability
26
Valve, Water Inlet WPL 300453 Contact Us For Availability
27
Leg & Hinge Assembly, R.H. WPL 3367498 Contact Us For Availability
28
Cover, Terminal Box WPL 300068 Contact Us For Availability
28
Motor (Includes Items 24, 27 & 31) (Also Orde WPL 3367726 Contact Us For Availability
29
Screw (4) WPL 3369331 Contact Us For Availability
30
Pump Seal Kit (Includes Items 4, 13 & 22) WPL 675505 Contact Us For Availability
30
Nut, Twin Spring WPL 303080 Contact Us For Availability
31
Tool, Pump Centering WPL 303918 Contact Us For Availability
31
Screw, Shoulder WPL 3370031 Contact Us For Availability
32
Lever, Catch WPL 300119 Contact Us For Availability
32
Retainer, Sound Shield WPL 3368112 Contact Us For Availability
33
Seal, Lever WPL 300105 Contact Us For Availability
34
Locknut, 10-32 (8) WPL 718829 Contact Us For Availability
35
Washer (8) WPL 717624 Contact Us For Availability
36
Bearing, Nozzle WPL 719576 Contact Us For Availability
38
Actuator WPL 300109 Contact Us For Availability
38
Float WPL 718035 Contact Us For Availability
39
Cap, Nozzle WPL 3367910 Contact Us For Availability
39
Standpipe, Overflow WPL 719967 Contact Us For Availability
40
Gasket, Overflow WPL 719966 Contact Us For Availability
40
Spray Arm, Lower WPL 302767 Contact Us For Availability
41
Screw, 4-40 x 5/8 WPL 302203 Contact Us For Availability
42
Barrier, Door WPL 303906 Contact Us For Availability
43
Barrier, Console WPL 303908 Contact Us For Availability
43
Heater WPL 660318 Contact Us For Availability
44
Shim WPL 712302 Contact Us For Availability
44
Thermostat WPL 661504 Contact Us For Availability
45
Panel, Edging (Door) WPL 304047 Contact Us For Availability
45
Strike WPL 300233 Contact Us For Availability
45
Bracket WPL 3368272 Contact Us For Availability
46
Nut, 7/16 x 20 (2) WPL 718537 Contact Us For Availability
47
Washer (8) WPL 718750 Contact Us For Availability
47
Washer, Retainer (2) WPL 717289 Contact Us For Availability
48
Panel, Front WPL 304668 Contact Us For Availability
48
Washer, Cup (8) WPL 718817 Contact Us For Availability
48
Support, Heater (2) WPL 717096 Contact Us For Availability
49
Trim, Door R.H. WPL 3367206 Contact Us For Availability
49
Trim, Door (L.H.) WPL 3367207 Contact Us For Availability
49
Wheel Assembly (8) WPL 300844 Contact Us For Availability
49
Washer (2) WPL 711284 Contact Us For Availability
50
Screw, Shoulder WPL 712499 Contact Us For Availability
50
Washer (2) WPL 14351 Contact Us For Availability
51
Track (2) WPL 300846 Contact Us For Availability
51
Nut (2) WPL 120614 Contact Us For Availability
52
End Cap, Track (4) WPL 300845 Contact Us For Availability
52
Grate WPL 303469 Contact Us For Availability
53
Screw, 8-18 x 5/8 (10) WPL 3368008 Contact Us For Availability
54
Gasket (2) WPL 301662 Contact Us For Availability
55
Insert, Cup-Hose WPL 301656 Contact Us For Availability
61
WPL 799344 WPL 799344 Contact Us For Availability
61
Retainer, Spring WPL 716401 Contact Us For Availability
61
Coffee (Uncut) WPL 261887 Contact Us For Availability
61
New Avocado (Uncut) WPL 261889 Contact Us For Availability
61
Golden Harvest WPL 261890 Contact Us For Availability
61
Golden Harvest (Uncut) WPL 261891 Contact Us For Availability
61
Toast WPL 285365 Contact Us For Availability
61
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
61
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
61
Platinum (Uncut) WPL 285368 Contact Us For Availability
61
Block, Foam WPL 3368107 Contact Us For Availability
61
WPL 350941 WPL 350941 Contact Us For Availability
61
WPL 675476 WPL 675476 Contact Us For Availability
61
WPL 675506 WPL 675506 Contact Us For Availability
61
WPL 72112 WPL 72112 Contact Us For Availability
61
WPL 799640 WPL 799640 Contact Us For Availability
61
WPL 978883 WPL 978883 Contact Us For Availability
67
Cap, Drip WPL 718576 Contact Us For Availability
68
Panel, Access WPL 3367012 Contact Us For Availability
70
Plate, Toe WPL 3367671 Contact Us For Availability
77
Washer WPL 300237 Contact Us For Availability
81
Shield, Sound WPL 304660 Contact Us For Availability
82
Shield, Sound WPL 304661 Contact Us For Availability
84
Screw, 4-20 x 3/8 (2) WPL 304444 Contact Us For Availability
85
Actuator WPL 304443 Contact Us For Availability
86
Rail, Support WPL 304391 Contact Us For Availability
89
Lever, Release WPL 304408 Contact Us For Availability
90
Spacer, Corrugated WPL 3368569 Contact Us For Availability
91
Clip, Wire (2) WPL 301857 Contact Us For Availability
92
Screw (4) WPL 3367288 Contact Us For Availability
93
Shield, Harness WPL 303362 Contact Us For Availability
94
Retainer, Clip WPL 3367720 Contact Us For Availability
96
Spacer, Corrugated WPL 303755 Contact Us For Availability
97
Trim, Access Panel WPL 303753 Contact Us For Availability
98
Trim, Access Panel Top WPL 303754 Contact Us For Availability
× ![]()
