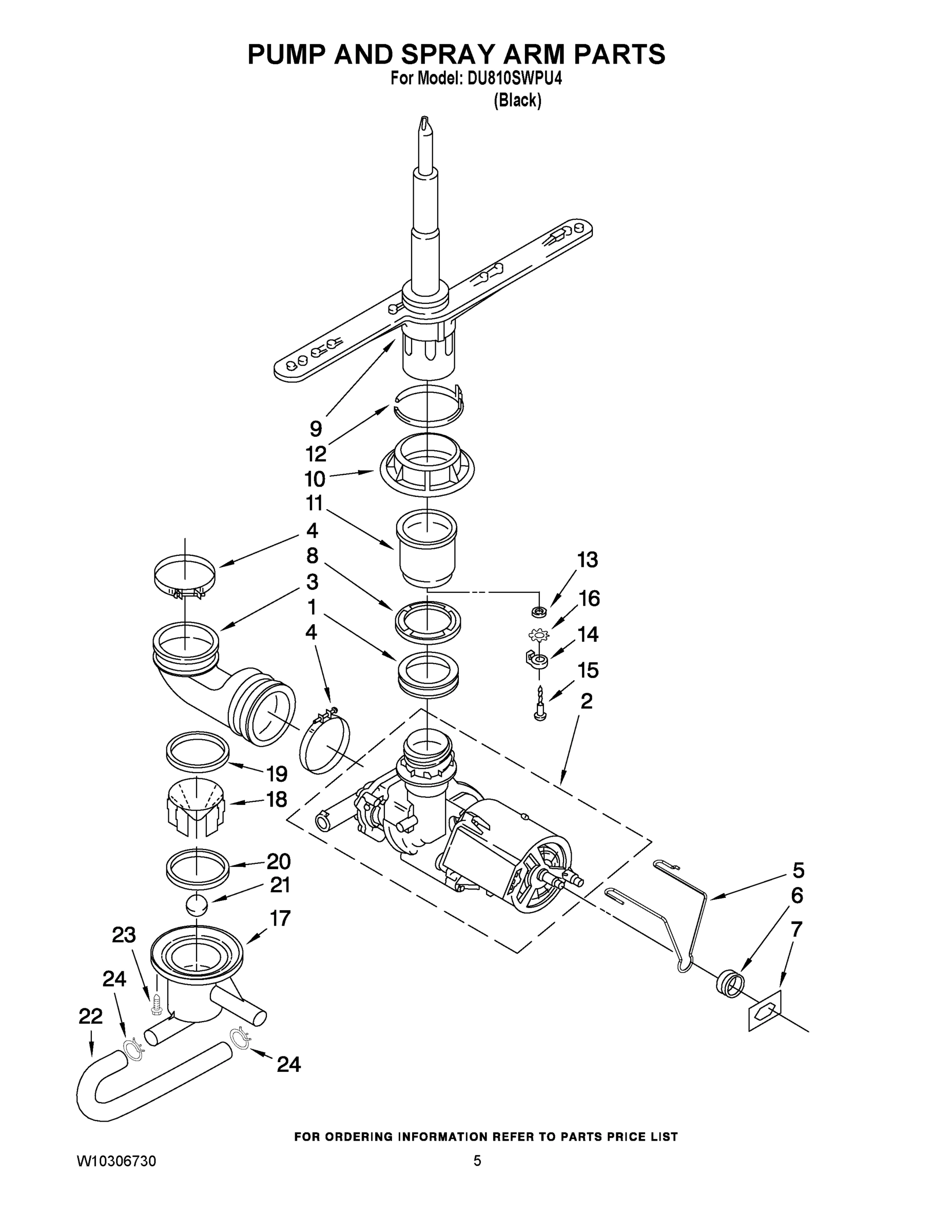

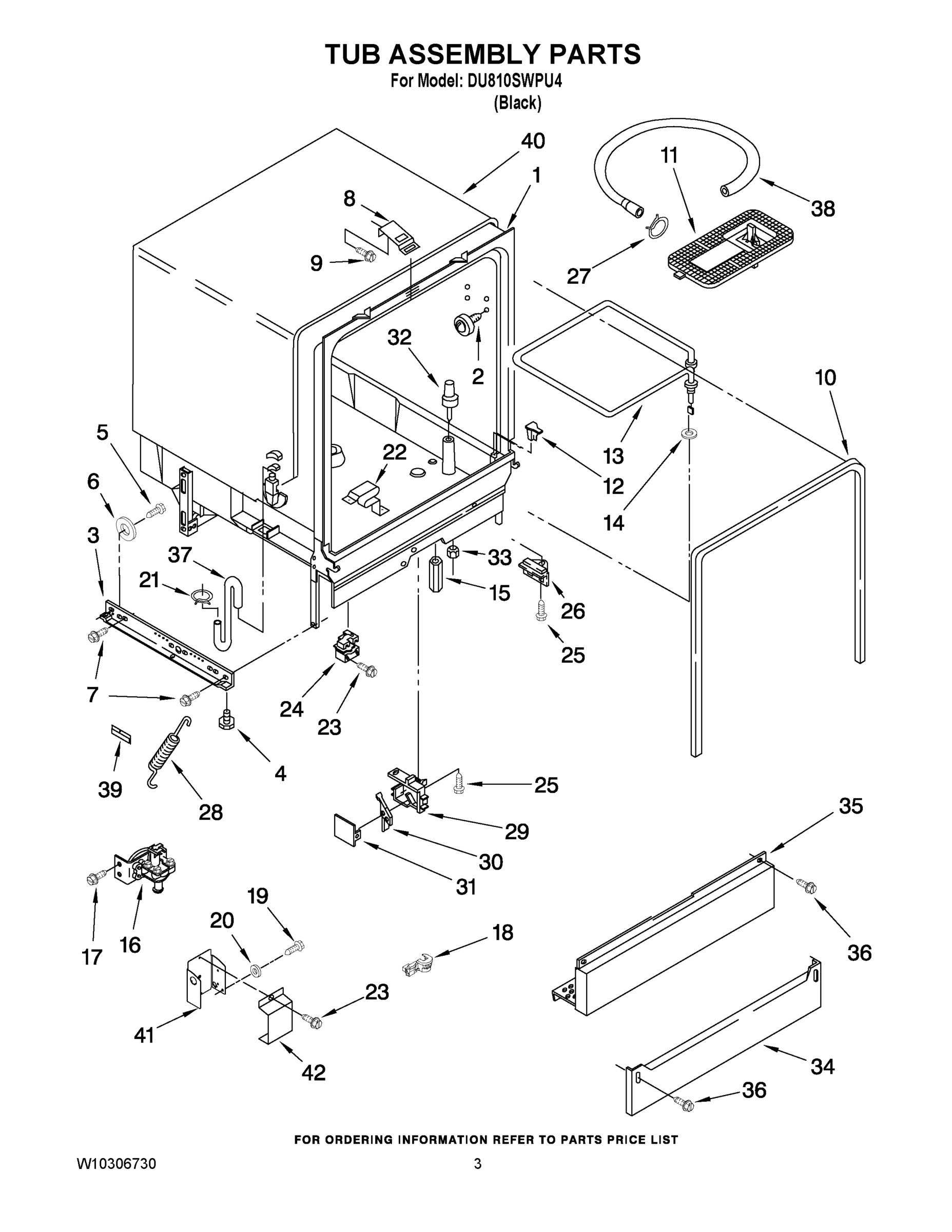

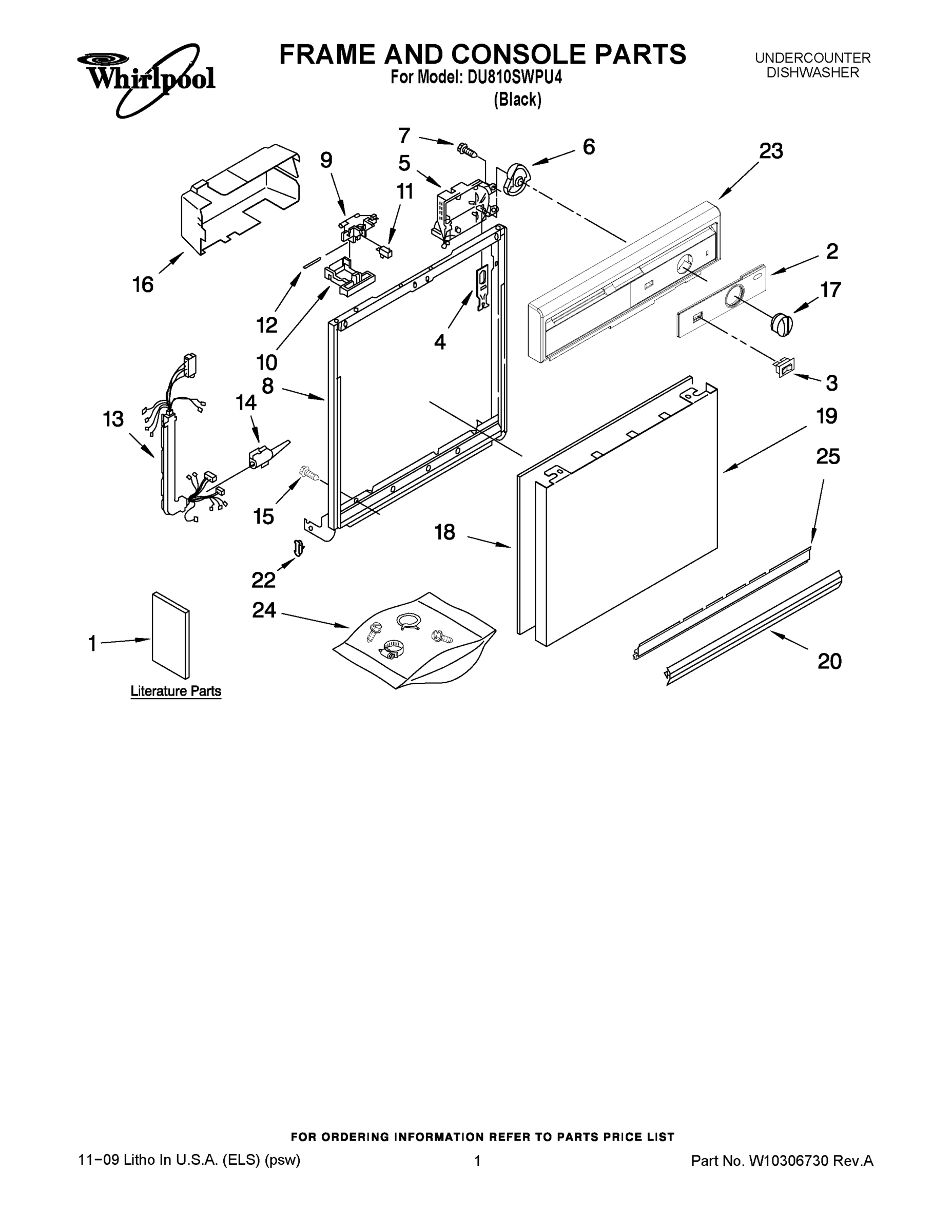

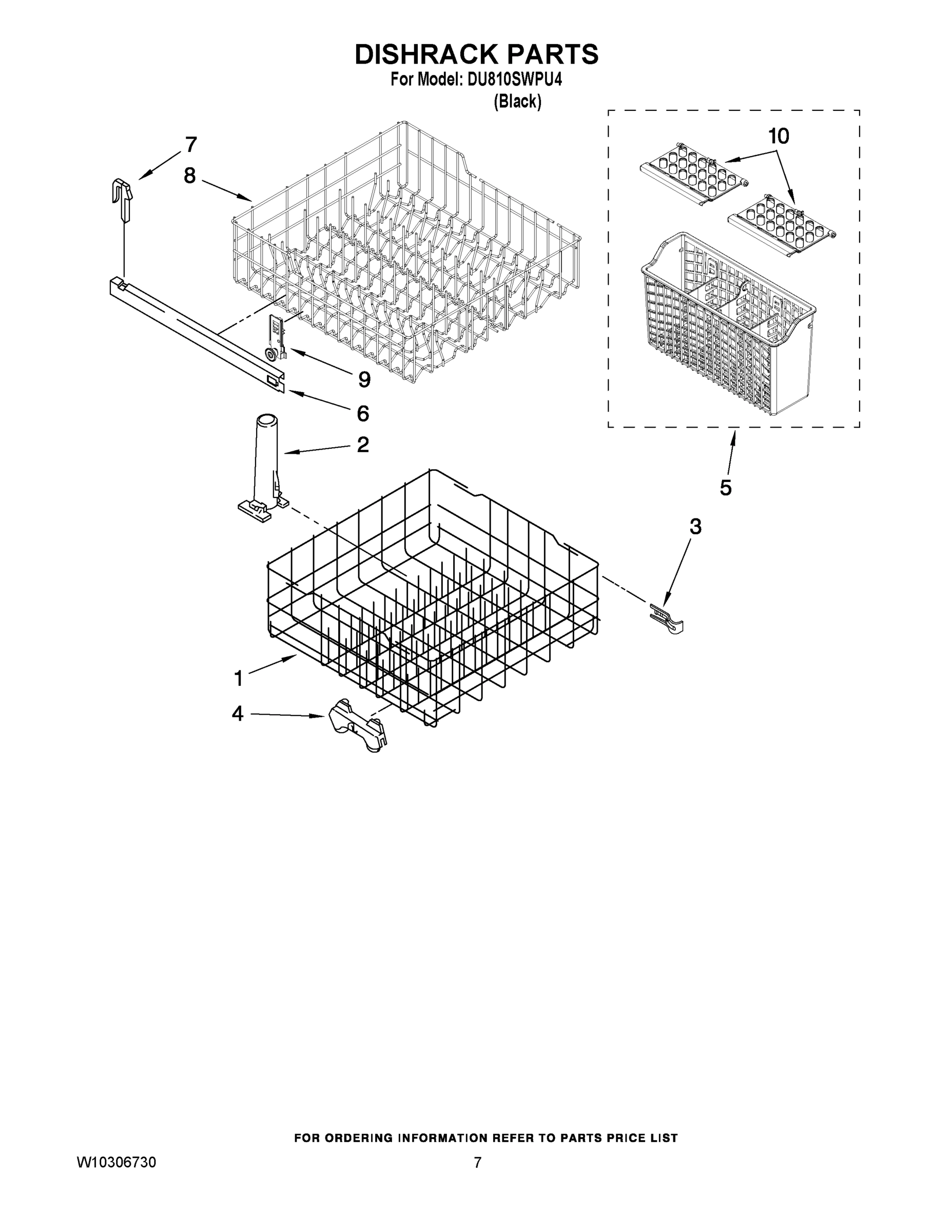

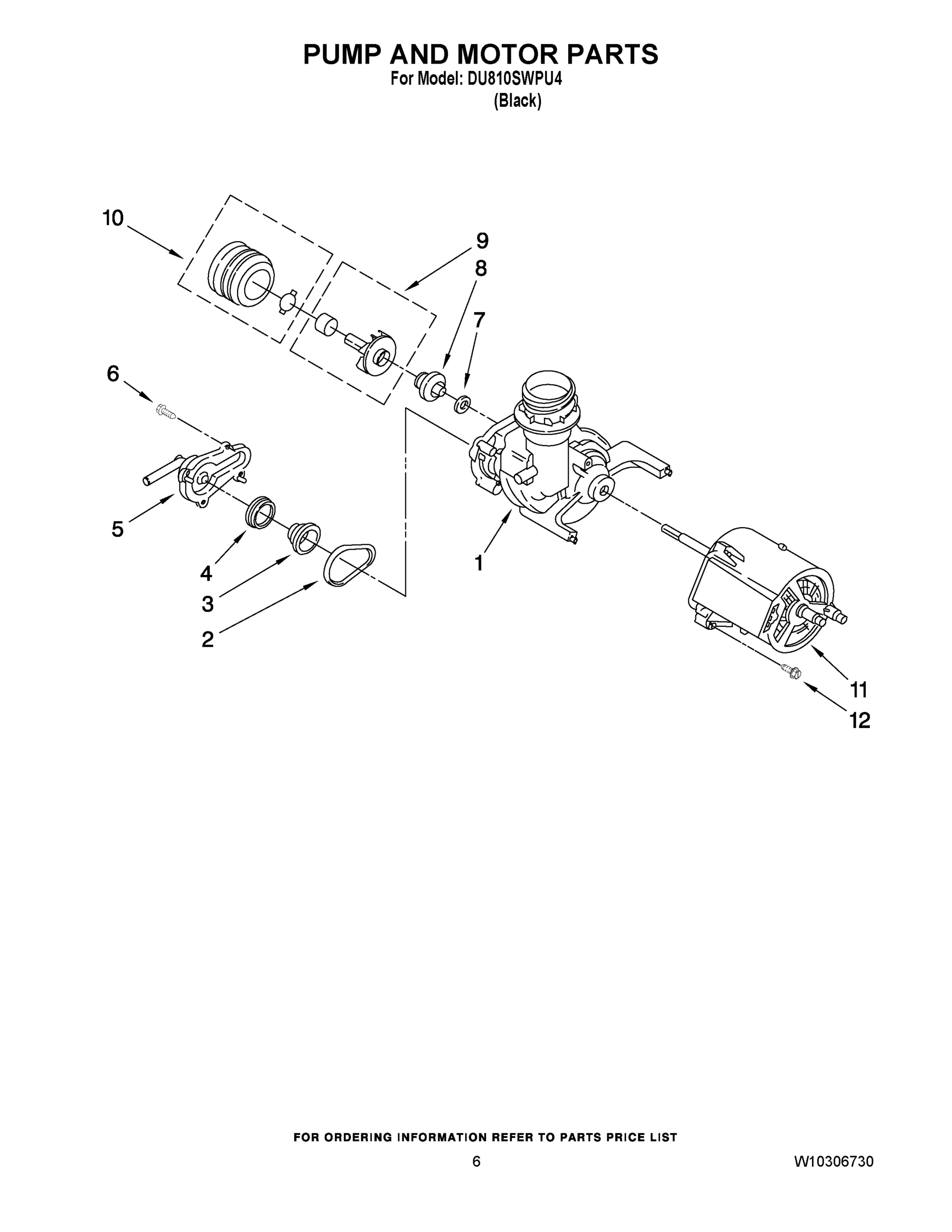

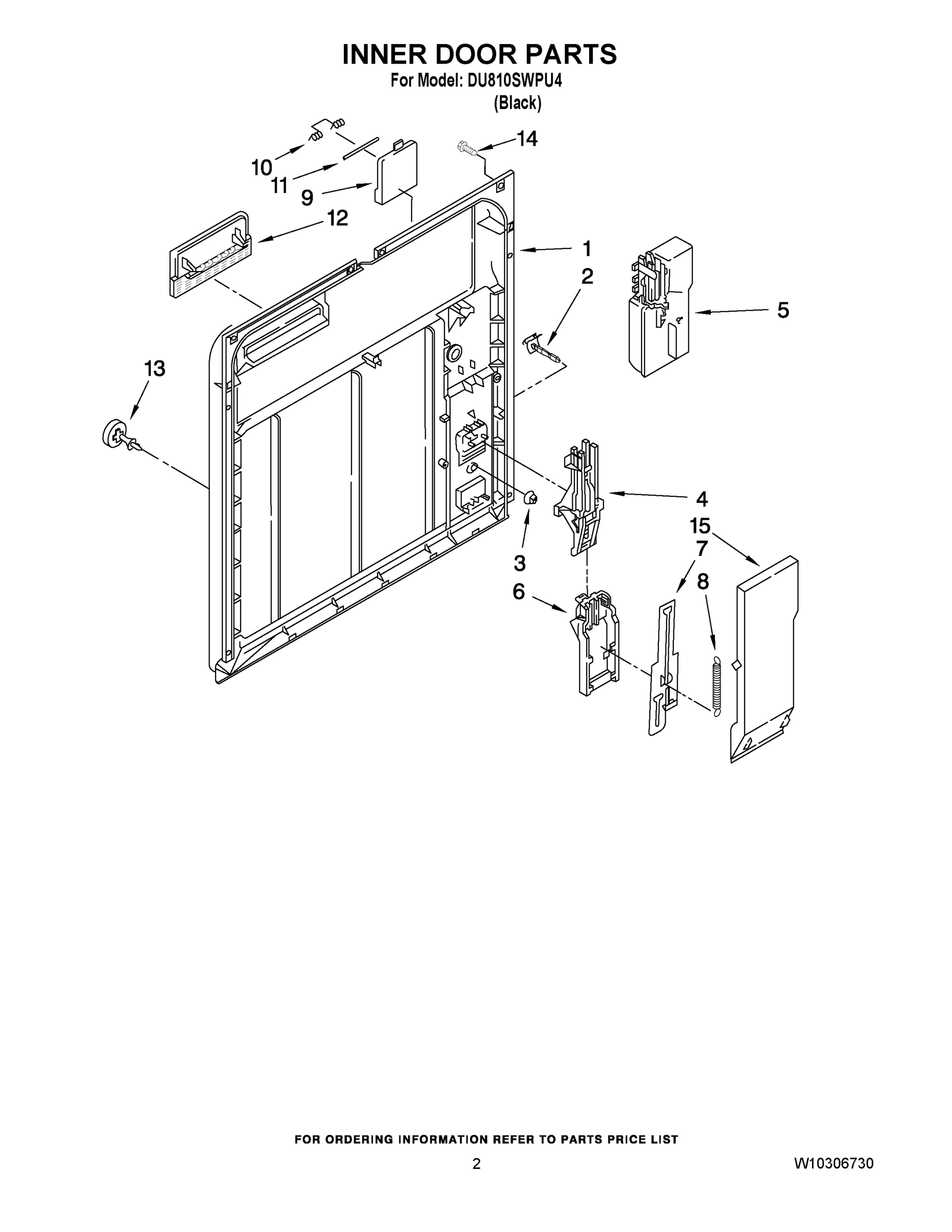

Model Whirlpool DU810SWPU4 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

1

WP8528310 Whirlpool Dishwasher Inner Door Backorder WPL WP8528310 $144.15

1

Grommet, Pump Seal WPL 3369037 Contact Us For Availability

2

WP3369031 Whirlpool Dishwasher Seal Backorder WPL WP3369031 $5.61

2

WP8268825 Whirlpool Dishwasher Protector In Stock WPL WP8268825 $41.77

2

WP8528831 Whirlpool Dishwasher Mounting Backorder WPL WP8528831 $9.16

3

8051729 Whirlpool Dishwasher Switch Backorder WPL 8051729 $52.35

3

W11189178 Whirlpool Dishwasher Hose Backorder WPL W11189178 $12.95

3

WP3385142 Whirlpool Dishwasher Bumper Backorder WPL WP3385142 $59.82

3

Diaphragm WPL 8563504 Contact Us For Availability

4

WP3369529 Whirlpool Dishwasher Follower Backorder WPL WP3369529 $35.44

4

WP8268645 Whirlpool Dishwasher Lower Dishrack In Stock WPL WP8268645 $36.67

4

Clamp (2) WPL 3400959 Contact Us For Availability

4

Ring, Diaphragm WPL 3369029 Contact Us For Availability

5

WP8052027 Whirlpool Dishwasher Dispenser Backorder WPL WP8052027 $55.40

5

WP8539107 Whirlpool Silverware Basket Backorder WPL WP8539107 $56.71

5

Cover, Drain Valve WPL 3369030 Contact Us For Availability

5

Support, Motor WPL W10113908 Contact Us For Availability

6

WP302819 Whirlpool Dishwasher Wheel Backorder WPL WP302819 $4.19

6

WP3368921 Whirlpool Screw In Stock WPL WP3368921 $1.73

6

WP3385089 Whirlpool Track In Stock WPL WP3385089 $44.96

6

WP8271510 Whirlpool Dishwasher Cam Backorder WPL WP8271510 $3.22

6

Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability

7

Seal Seat WPL 3369020 Contact Us For Availability

8

WP3368999 Whirlpool Dishwasher Spring In Stock WPL WP3368999 $2.85

8

WP3385557 Whirlpool Dishwasher Head Seal Backorder WPL WP3385557 $54.70

8

WP9743028 Whirlpool Dishwasher Frame Backorder WPL WP9743028 $84.87

8

Plate, Latch WPL 3378149 Contact Us For Availability

8

Washer, Grommet WPL 3369038 Contact Us For Availability

9

WP3378138 Whirlpool Cover Assembly In Stock WPL WP3378138 $14.73

9

WP3380854 Whirlpool Door Latch Bolt In Stock WPL WP3380854 $41.10

9

WPW10204131 Whirlpool Dishwasher Dishrack Adj In Stock WPL WPW10204131 $4.20

9

SPRAY ARM, ASSEMBLY LOWER WPL W10164258 Contact Us For Availability

8539093 Whirlpool Dishwasher Lid Backorder WPL 8539093 $20.48

WP3369012 Whirlpool Dishwasher Disk Mount Backorder WPL WP3369012 $35.92

WP8066018 Whirlpool Spring Assembly In Stock WPL WP8066018 $3.07

Lever, Latch (Black) WPL 3369457 Contact Us For Availability

11

WP3369322 Whirlpool Cover Assembly Backorder WPL WP3369322 $59.72

11

WP3372028 Whirlpool Hinge Pin In Stock WPL WP3372028 $5.42

11

Motor WPL 8283457 Contact Us For Availability

3368922 Whirlpool Dishwasher TORX Screw Backorder WPL 3368922 $7.18

WP3369045 Whirlpool Dishwasher Seal Backorder WPL WP3369045 $5.85

WP3371710 Whirlpool Dishwasher Screen Backorder WPL WP3371710 $4.19

WP8528862 Whirlpool Dishwasher Water Deflecto In Stock WPL WP8528862 $36.65

Pin, Switch WPL 3368955 Contact Us For Availability

13

WP3378134 Whirlpool Dishwasher Cap In Stock WPL WP3378134 $4.19

13

WPW10082894 Whirlpool Dishwasher Heater Backorder WPL WPW10082894 $57.83

13

Washer WPL 3369044 Contact Us For Availability

14

3371746 Whirlpool Dishwasher Bearing Backorder WPL 3371746 $14.93

14

3376405 Whirlpool Dishwasher Elbow Backorder WPL 3376405 $10.04

14

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $3.46

15

WP3400892 Whirlpool Dishwasher Screw Backorder WPL WP3400892 $3.22

15

WPW10477552 Whirlpool Dishwasher Terminal Nut In Stock WPL WPW10477552 $4.20

15

Cover, Drip WPL 3371569 Contact Us For Availability

16

W10844024 Whirlpool Water Inlet Valve In Stock WPL W10844024 $47.34

16

Washer, Curved WPL 3371634 Contact Us For Availability

17

8275308 Whirlpool Dishwasher Timer Knob Backorder WPL 8275308 $59.85

17

Collector Assembly w/Check Valve WPL 8520839 Contact Us For Availability

18

W11384788 Whirlpool Dishwasher Relief Straine Backorder WPL W11384788 $16.76

18

WP8520841 Whirlpool Dishwasher Hose Adapter Backorder WPL WP8520841 $4.19

18

Spacer, Corrugated WPL 3368979 Contact Us For Availability

19

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $3.22

19

WP8520843 Whirlpool Dishwasher Seal Backorder WPL WP8520843 $4.74

20

WP3369177 Whirlpool Dishwasher Seal Backorder WPL WP3369177 $6.31

20

WP3378128 Whirlpool Dishwasher Washer In Stock WPL WP3378128 $3.22

20

Retainer, Panel WPL 3374010 Contact Us For Availability

21

WP3369178 Whirlpool Dishwasher Check Ball In Stock WPL WP3369178 $4.81

22

3379740 Whirlpool Dishwasher Heater Support Backorder WPL 3379740 $49.96

22

8520842 Whirlpool Dishwasher Hose Backorder WPL 8520842 $65.79

22

WP3373234 Whirlpool Dishwasher Bearing Backorder WPL WP3373234 $6.90

23

W10072730 Whirlpool Dishwasher Console Backorder WPL W10072730 $127.68

23

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.46

24

W10102260 Whirlpool Dishwasher Motor Relay Backorder WPL W10102260 $94.12

24

Clamp WPL 371499 Contact Us For Availability

25

WP3374716 Whirlpool Dishwasher Channel Backorder WPL WP3374716 $40.03

26

WP3368928 Whirlpool Dishwasher Fuse Backorder WPL WP3368928 $43.93

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.53

29

Housing, Float Switch WPL 8318218 Contact Us For Availability

31

8318219 Whirlpool Dishwasher Cover Housing Backorder WPL 8318219 $6.96

32

WP8519552 Whirlpool Dishwasher Float In Stock WPL WP8519552 $45.34

33

Nut WPL 717488 Contact Us For Availability

36

WP302868 Whirlpool Screw In Stock WPL WP302868 $3.07

38

WP3374077 Whirlpool Dishwasher Drain Hose In Stock WPL WP3374077 $58.43

39

Friction Pad WPL 8052018 Contact Us For Availability

42

300068 Whirlpool Dishwasher Cover Assembly Backorder WPL 300068 $18.40

285006 Whirlpool Spray In Stock WPL 285006 $31.20

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.73

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.37

W10840471 Whirlpool Dishwasher Touch Up In Stock WPL W10840471 $15.70

WP676453 Whirlpool Dishwasher Touch-Up In Stock WPL WP676453 $17.50

WP676455 Whirlpool Dishwasher Touch-Up In Stock WPL WP676455 $18.30

DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability
