Model Whirlpool DU1099XT3 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams
05 - PUMP AND MOTOR

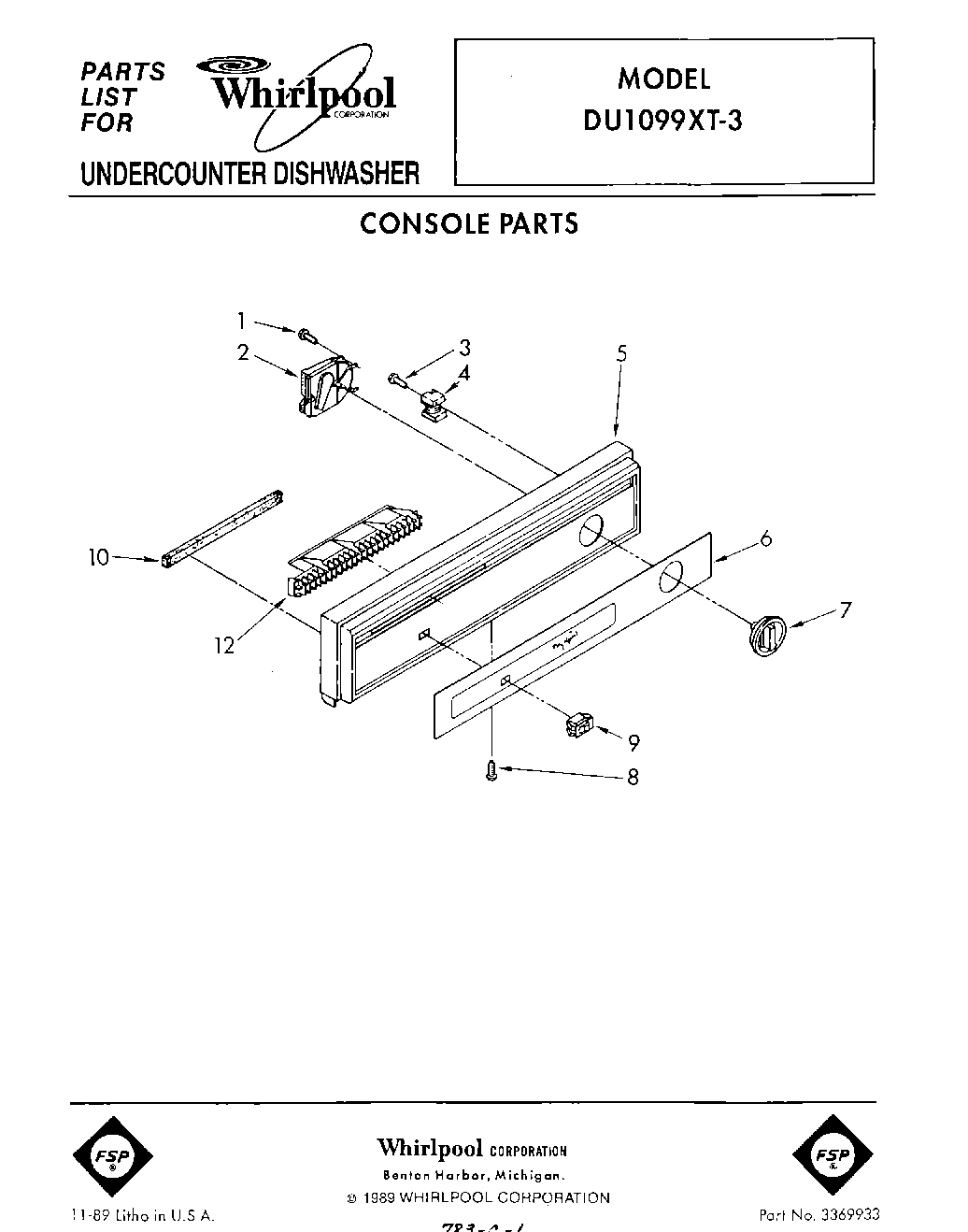

01 - CONSOLE

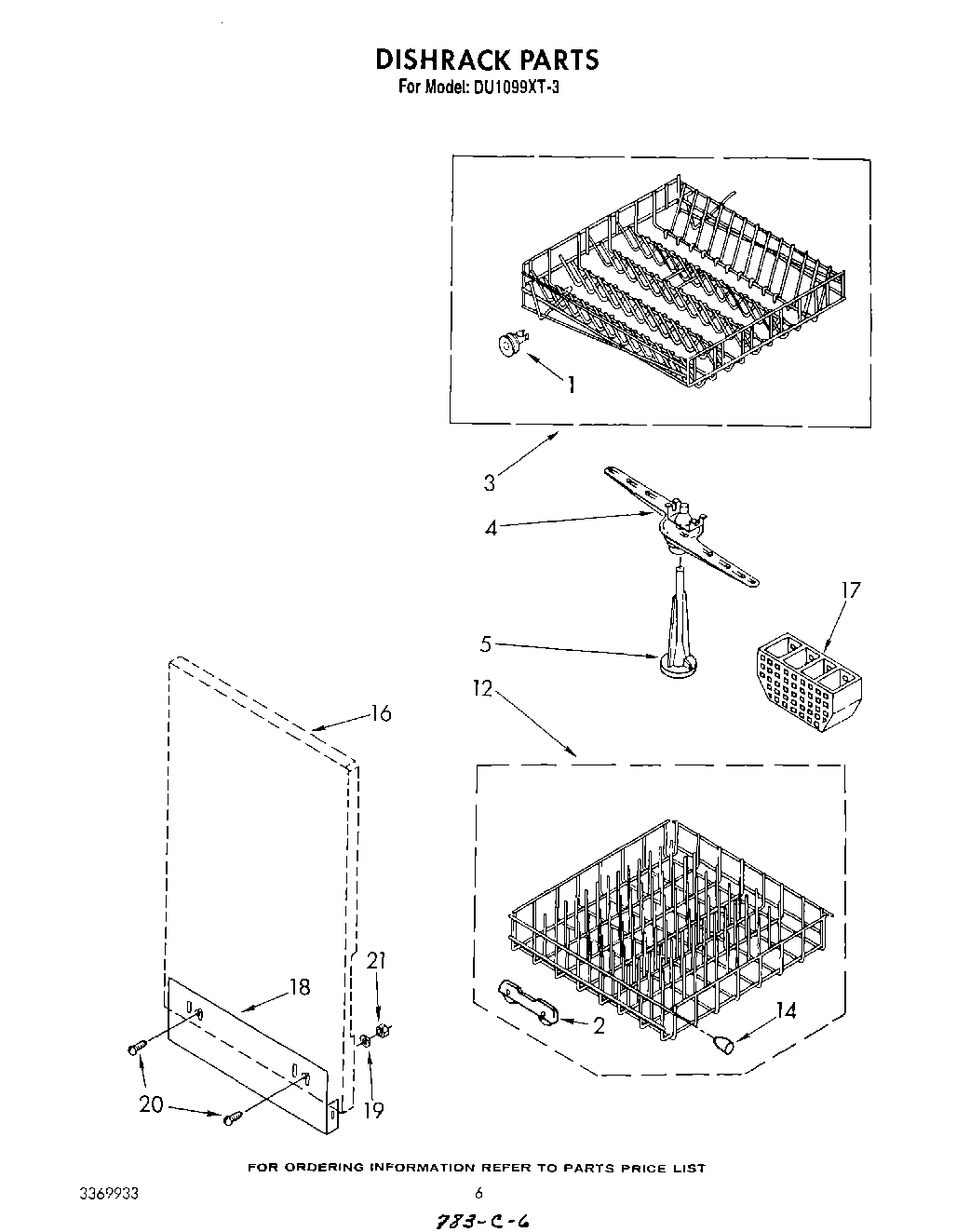

04 - DISHRACK

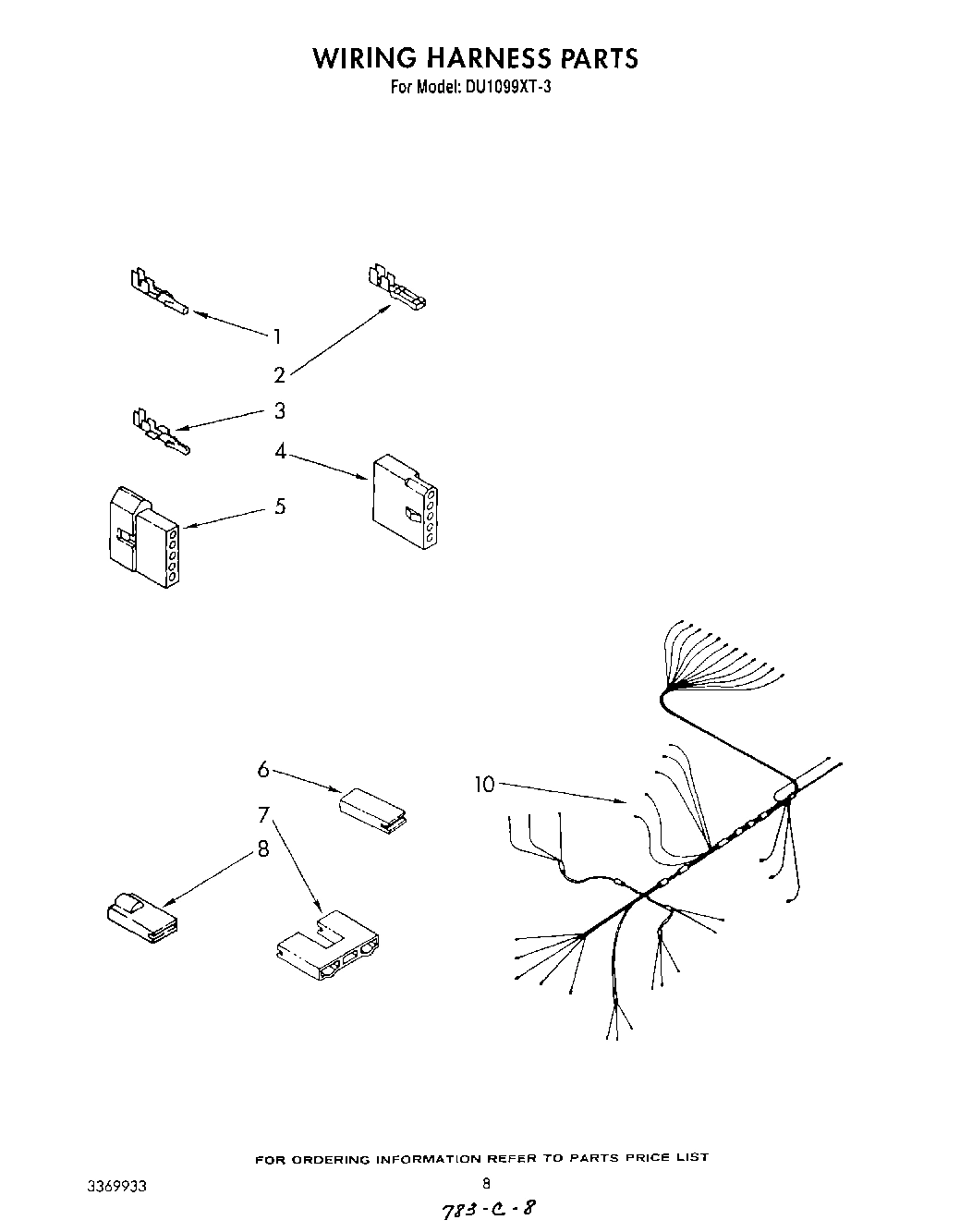

06 - WIRING HARNESS

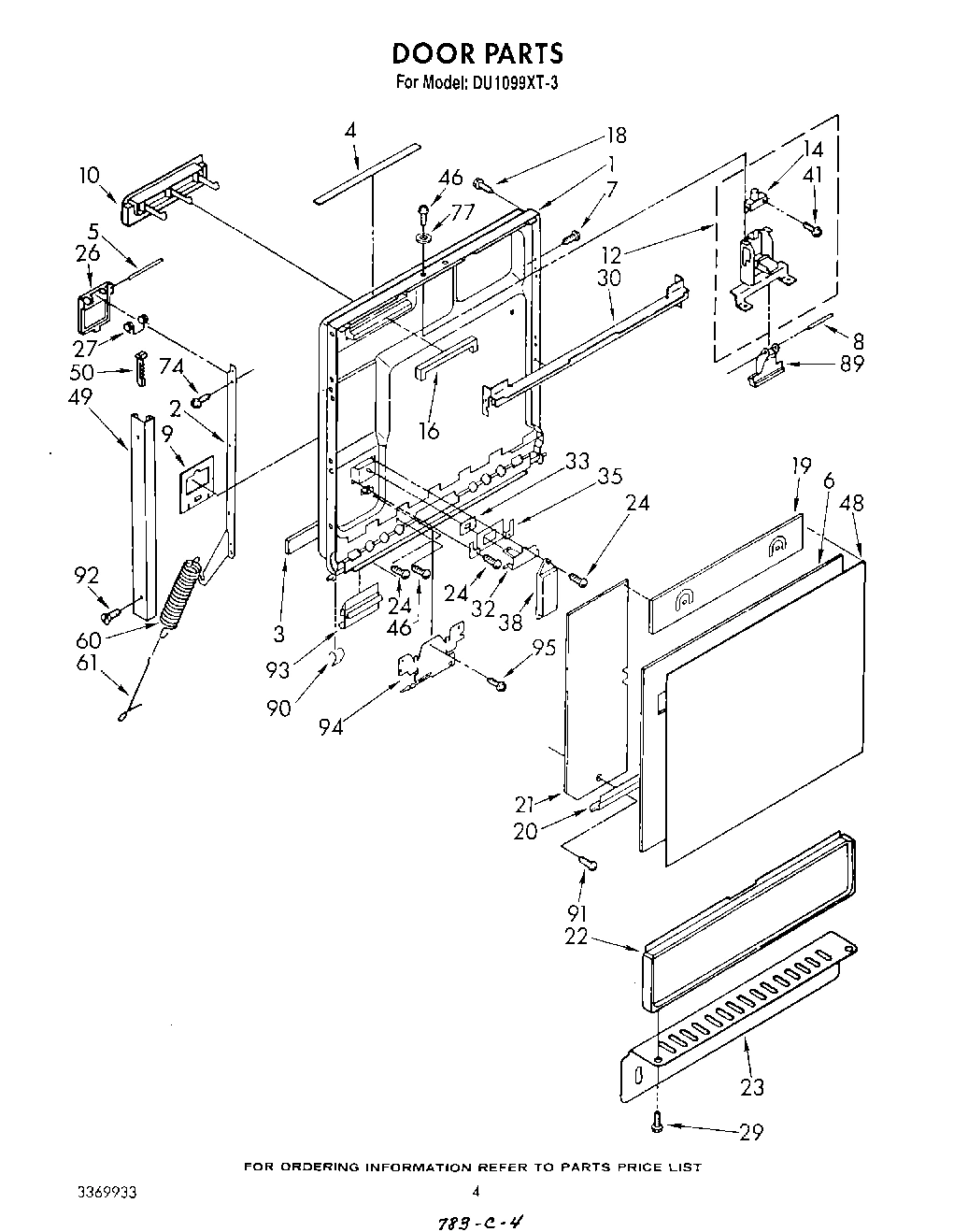

03 - DOOR

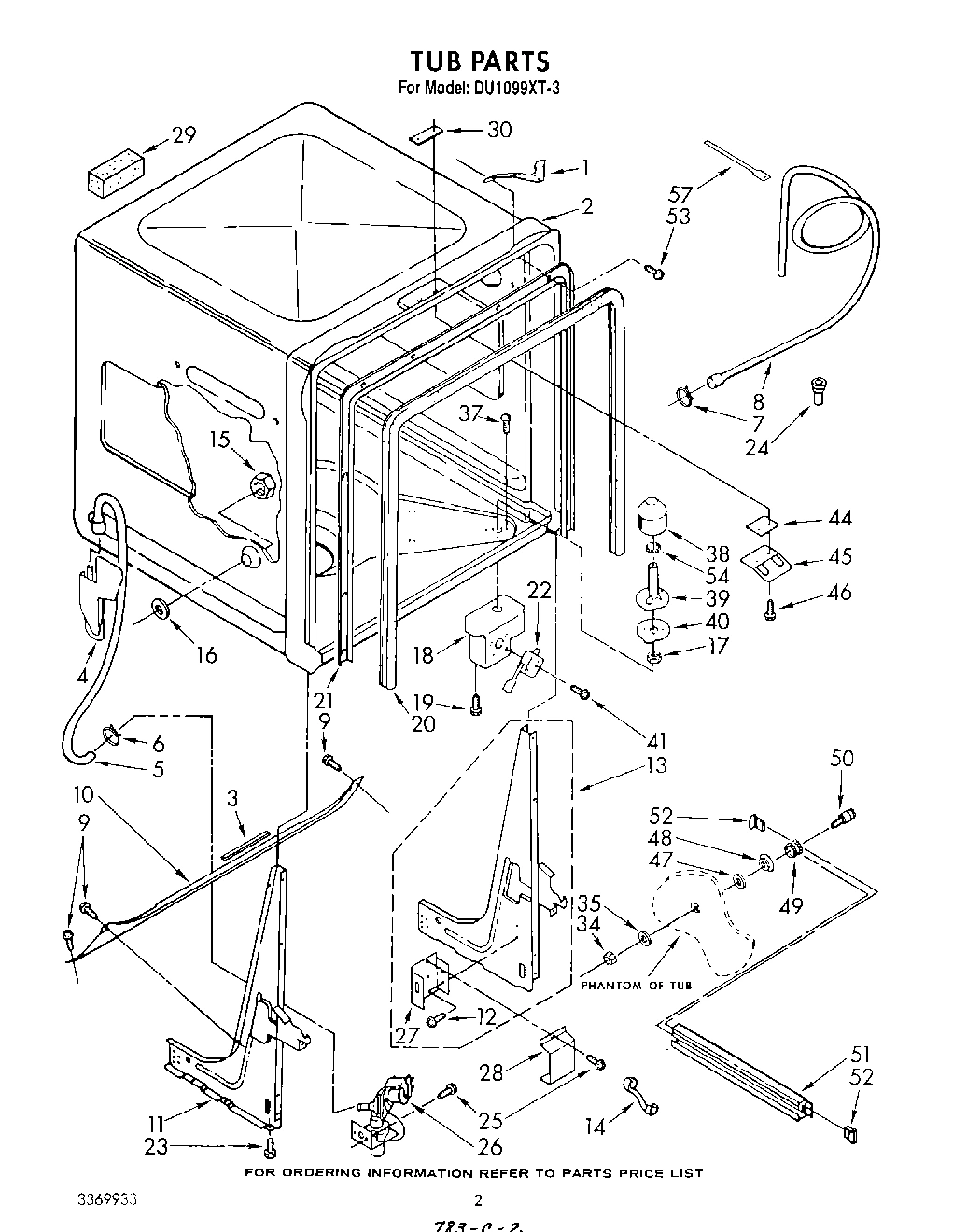

02 - TUB , LITERATURE AND OPTIONAL
Common parts from model Whirlpool DU1099XT3 UNDERCOUNTER DISHWASHER
WPL LIT3367228 WPL LIT3367228 Contact Us For Availability
WPL LIT3368022 WPL LIT3368022 Contact Us For Availability
WPL LIT3368593 WPL LIT3368593 Contact Us For Availability
WPL LIT3369933 WPL LIT3369933 Contact Us For Availability
1
Wheel & Axle Assembly (4) WPL 300995 Contact Us For Availability
1
Door, Inner WPL 3367387 Contact Us For Availability
1
Bracket, Mounting (2) WPL 300796 Contact Us For Availability
2
Terminal, Female WPL 352088 Contact Us For Availability
2
Seal, Ring WPL 718259 Contact Us For Availability
2
Support, Door (R.H.) WPL 3367201 Contact Us For Availability
2
Support, Door (L.H.) WPL 3367202 Contact Us For Availability
2
tub assembly WPL 3367464 Contact Us For Availability
3
Gasket, Door WPL 717921 Contact Us For Availability
3
Edge Protector WPL 303294 Contact Us For Availability
4
Spray Arm, Upper WPL 304204 Contact Us For Availability
4
Receptacle (5-Circuit) WPL 719585 Contact Us For Availability
4
Label, Users Guide WPL 302081 Contact Us For Availability
4
Inlet, Water WPL 3367572 Contact Us For Availability
5
Tower WPL 304170 Contact Us For Availability
5
Cap, 5 Pin WPL 719584 Contact Us For Availability
5
Hose, Inlet WPL 3368563 Contact Us For Availability
6
Insert, Decorative WPL 3368117 Contact Us For Availability
6
Connector Block WPL 301219 Contact Us For Availability
6
Spacer, Corrugared WPL 3368569 Contact Us For Availability
7
Knob, Timer WPL 3367282 Contact Us For Availability
7
Terminal Insulator WPL 300708 Contact Us For Availability
8
Insulator .250 Terminal WPL 358736 Contact Us For Availability
8
Pin, Pivot (2) WPL 300234 Contact Us For Availability
8
Hose, Drain WPL 303452 Contact Us For Availability
9
Barrier WPL 303978 Contact Us For Availability
10
Seal, Foam WPL 3368537 Contact Us For Availability
10
Harness, Wiring WPL 3368868 Contact Us For Availability
10
Screen, Vent WPL 300246 Contact Us For Availability
10
Brace WPL 3368647 Contact Us For Availability
11
Leg & Hinge Assembly, L.H. WPL 3367284 Contact Us For Availability
12
Grill, Vent WPL 304602 Contact Us For Availability
12
Latch Assembly WPL 3367058 Contact Us For Availability
12
Screw, 8-32 x 3/8 Hex Washer Head Slotted Tap WPL 718178 Contact Us For Availability
13
Leg & Hinge Assembly, R.H. WPL 3367538 Contact Us For Availability
14
Bumper WPL 304490 Contact Us For Availability
14
Switch, Interlock WPL 660951 Contact Us For Availability
14
Relief, Strain WPL 717563 Contact Us For Availability
15
Nut, 7/8-16 Polypropylene (1) WPL 713799 Contact Us For Availability
16
Panel, Reversible Side WPL ARI23155A2 Contact Us For Availability
16
Baffle, Vent WPL 719860 Contact Us For Availability
16
Gasket WPL 713878 Contact Us For Availability
17
Nut, 1/8 Self-Threading (1) WPL 717488 Contact Us For Availability
18
Panel, Lower Side WPL 3367549 Contact Us For Availability
18
Screw, 8-18x1-7/8 Pan Hd Mach St. Stl. (2) WPL 304233 Contact Us For Availability
18
Bracket, Overflow WPL 719342 Contact Us For Availability
19
Barrier, Console WPL 303908 Contact Us For Availability
19
Screw, 8 x 1/2 Hi-Lo Blunt Point (3) WPL 718250 Contact Us For Availability
20
Bearing, Nozzle WPL 719576 Contact Us For Availability
20
Gasket WPL 3368007 Contact Us For Availability
20
Screw, Lower Side Panel Mounting (2) WPL 9419621 Contact Us For Availability
20
Edging, Panel WPL 304047 Contact Us For Availability
21
Retainer & Seal WPL 3368002 Contact Us For Availability
21
Barrier, Door WPL 303906 Contact Us For Availability
22
Switch, Pressure WPL 660741 Contact Us For Availability
23
Plate, Toe WPL 3367470 Contact Us For Availability
24
Insert, Cup-Hose WPL 301656 Contact Us For Availability
26
Cap, Nozzle WPL 3367910 Contact Us For Availability
26
Valve, Water Inlet WPL 660995 Contact Us For Availability
27
Box, Terminal WPL 300067 Contact Us For Availability
28
Cover, Terminal Box WPL 300068 Contact Us For Availability
29
Block, Foam (2) WPL 3368107 Contact Us For Availability
30
Gasket, Pump WPL 717000 Contact Us For Availability
30
Rail, Support WPL 304391 Contact Us For Availability
30
Nut, Twin Spring WPL 303080 Contact Us For Availability
32
Lever, Catch WPL 300119 Contact Us For Availability
33
Seal, Lever WPL 300105 Contact Us For Availability
34
Locknut, 10-32 (8) WPL 718829 Contact Us For Availability
35
Retainer WPL 300104 Contact Us For Availability
35
Washer (8) WPL 717624 Contact Us For Availability
38
Actuator WPL 300109 Contact Us For Availability
38
Float WPL 718035 Contact Us For Availability
39
Standpipe, Overflow WPL 719967 Contact Us For Availability
40
Gasket, Overflow WPL 719966 Contact Us For Availability
41
Screw, 6-32 x 1 (1) WPL 301582 Contact Us For Availability
41
Screw, 4-40 x 9/16 Hex Head Slotted Thread Cu WPL 302203 Contact Us For Availability
44
Shim WPL 712302 Contact Us For Availability
45
Strike WPL 300233 Contact Us For Availability
47
Washer (8) WPL 718750 Contact Us For Availability
48
Panel, Front WPL ARI23154A2 Contact Us For Availability
48
Washer, Cup (8) WPL 718817 Contact Us For Availability
49
Trim, Door R.H. WPL 3367999 Contact Us For Availability
49
Trim, Door L.H. WPL 3368000 Contact Us For Availability
49
Wheel Assembly (8) WPL 300844 Contact Us For Availability
50
Clip, Trim Guard (2) WPL 3367172 Contact Us For Availability
50
Screw, Shoulder (8) WPL 712499 Contact Us For Availability
51
Track (2) WPL 300846 Contact Us For Availability
52
End Cap, Track (4) WPL 300845 Contact Us For Availability
53
Screw, 8-18 x 5/8 Indented Hex-Head (10) WPL 3368008 Contact Us For Availability
54
Gasket (2) WPL 301662 Contact Us For Availability
57
WPL 799344 WPL 799344 Contact Us For Availability
57
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
57
Golden Harvest WPL 261890 Contact Us For Availability
57
Golden Harvest (Uncut) WPL 261891 Contact Us For Availability
57
WPL 675476 WPL 675476 Contact Us For Availability
57
WPL 675506 WPL 675506 Contact Us For Availability
57
WPL 799340 WPL 799340 Contact Us For Availability
57
WPL 799640 WPL 799640 Contact Us For Availability
61
Retainer, Spring WPL 716401 Contact Us For Availability
77
Washer WPL 300237 Contact Us For Availability
89
Lever, Release WPL 304408 Contact Us For Availability
90
Clip, Wire WPL 301857 Contact Us For Availability
92
Screw, 8 - 18 Oval Head (4) WPL 3367288 Contact Us For Availability
93
Retainer, Clip WPL 3367720 Contact Us For Availability
94
Shield, Harness WPL 303362 Contact Us For Availability
95
Screw, 8A x 3/8 Hex\ Head\ T\a\pping WPL 303090 Contact Us For Availability
× ![]()
