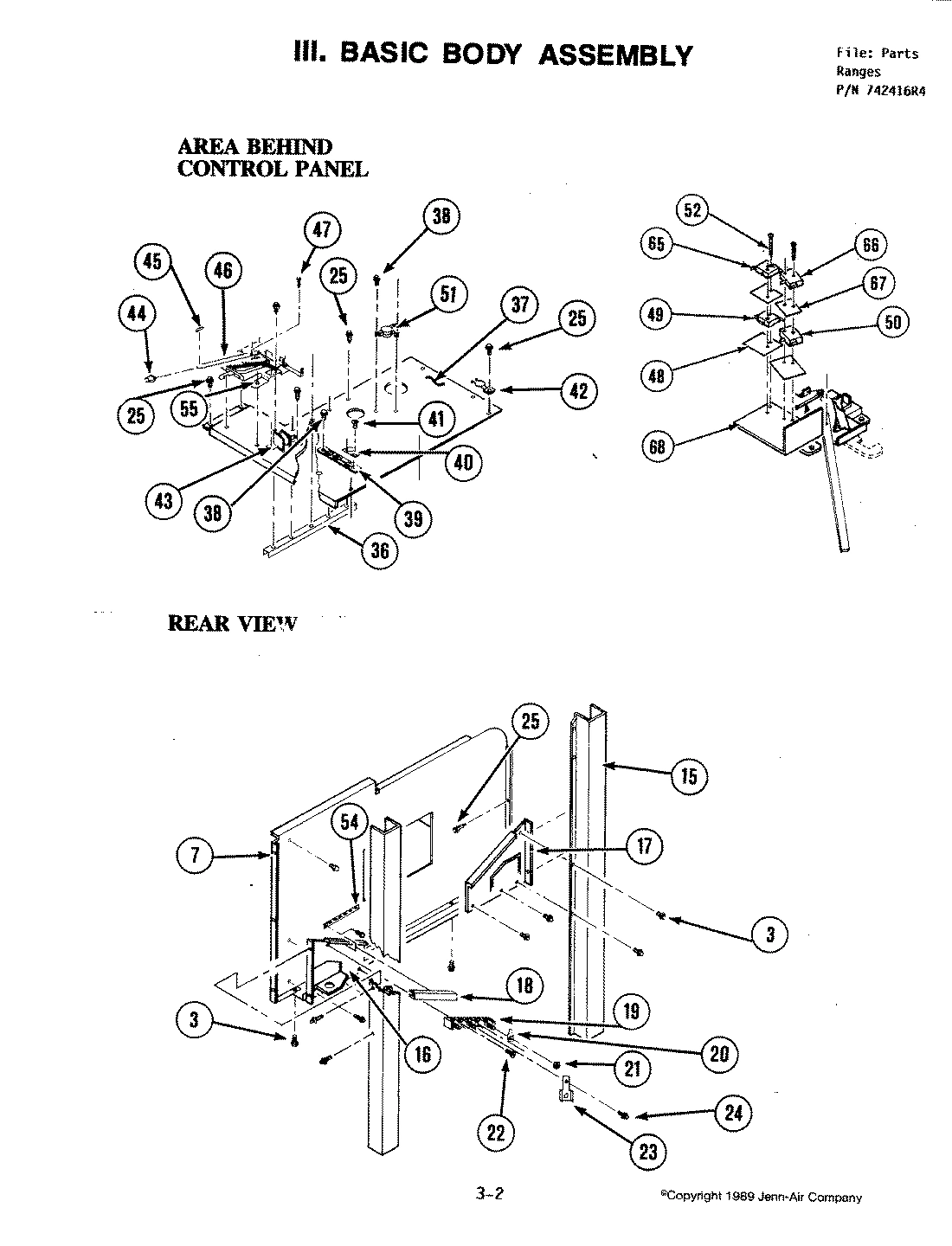

Model Whirlpool D140-C ELECTRIC RANGE – Common Parts &amp; Diagrams

1

FRAME, OVEN DOOR WPL 703780 Contact Us For Availability

1

CLOSURE, FRONT WPL 702329 Contact Us For Availability

1

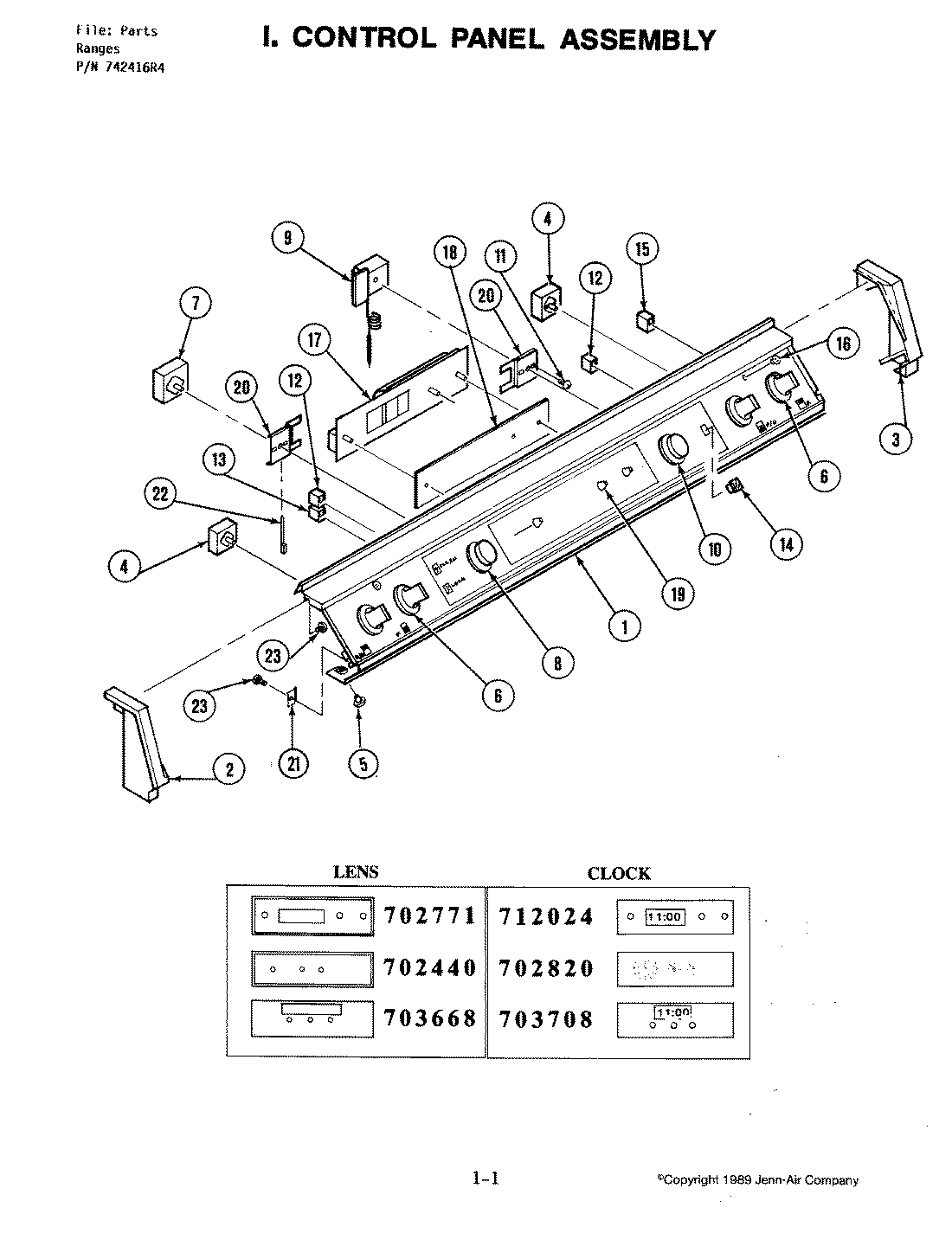

PANEL, CONTROL WPL 702383 Contact Us For Availability

1

BRACKET, MOUNTING MOTOR WPL Y702542 Contact Us For Availability

1

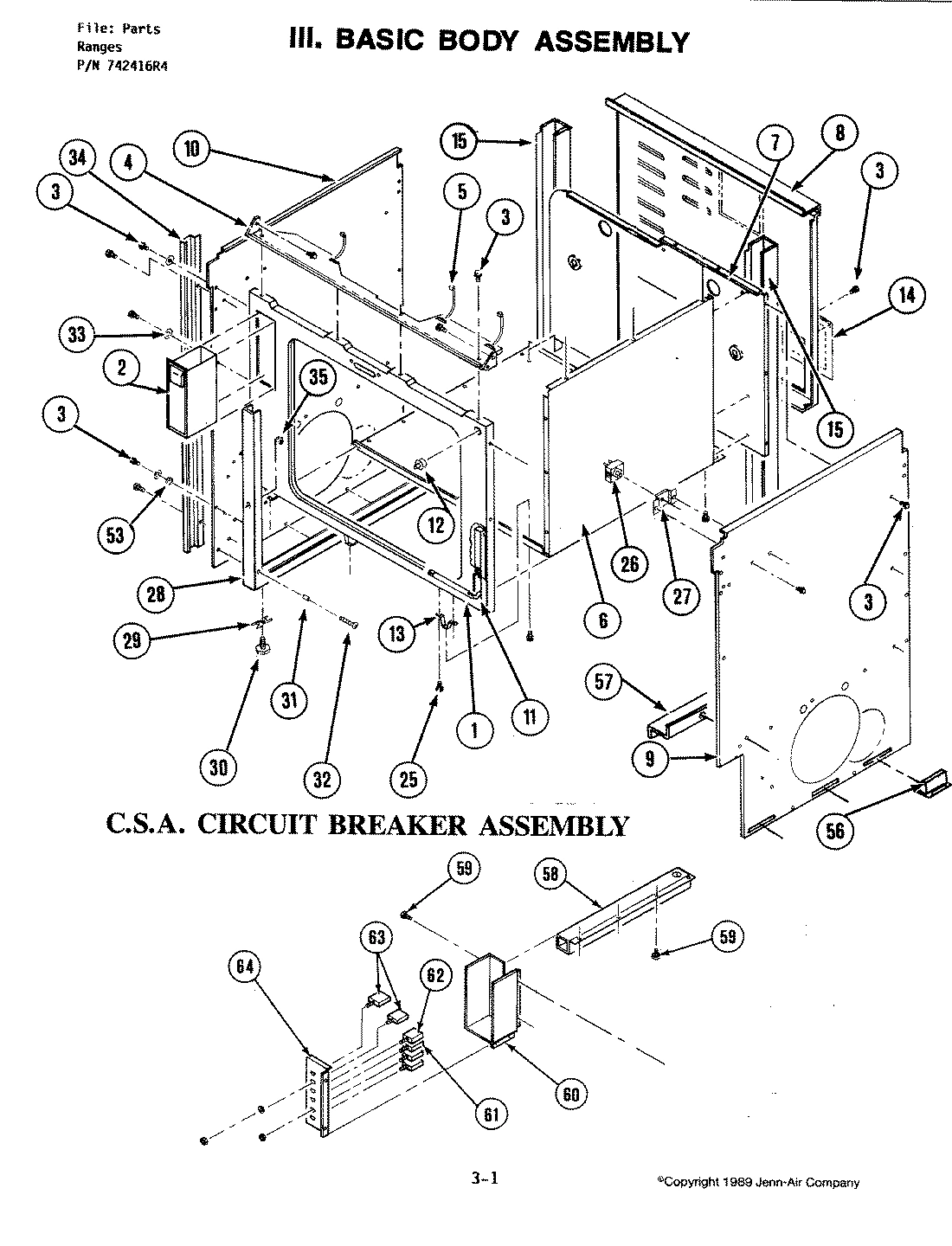

WELD, OVEN ASSY. WPL 712012 Contact Us For Availability

1

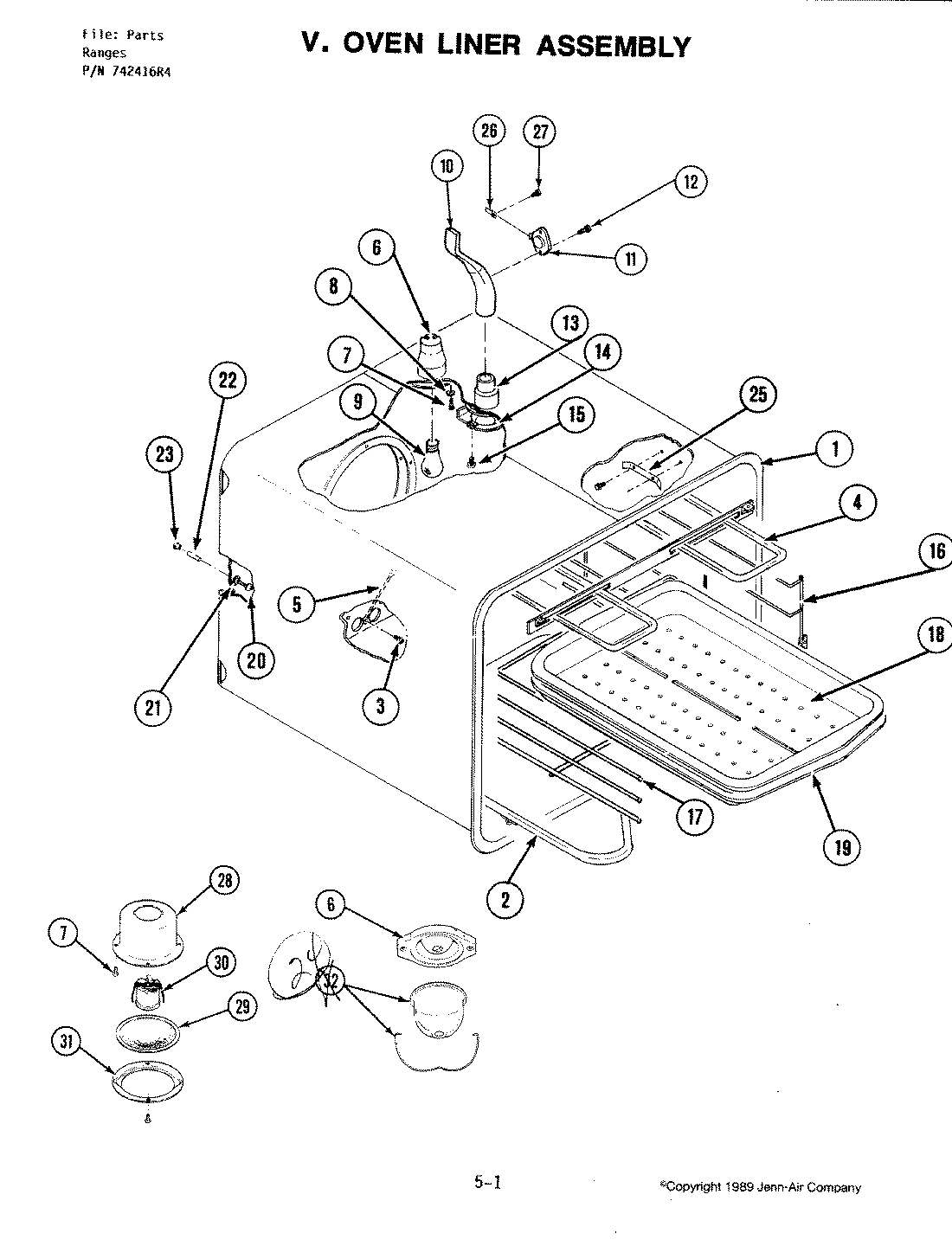

LINER WPL 712375 Contact Us For Availability

1

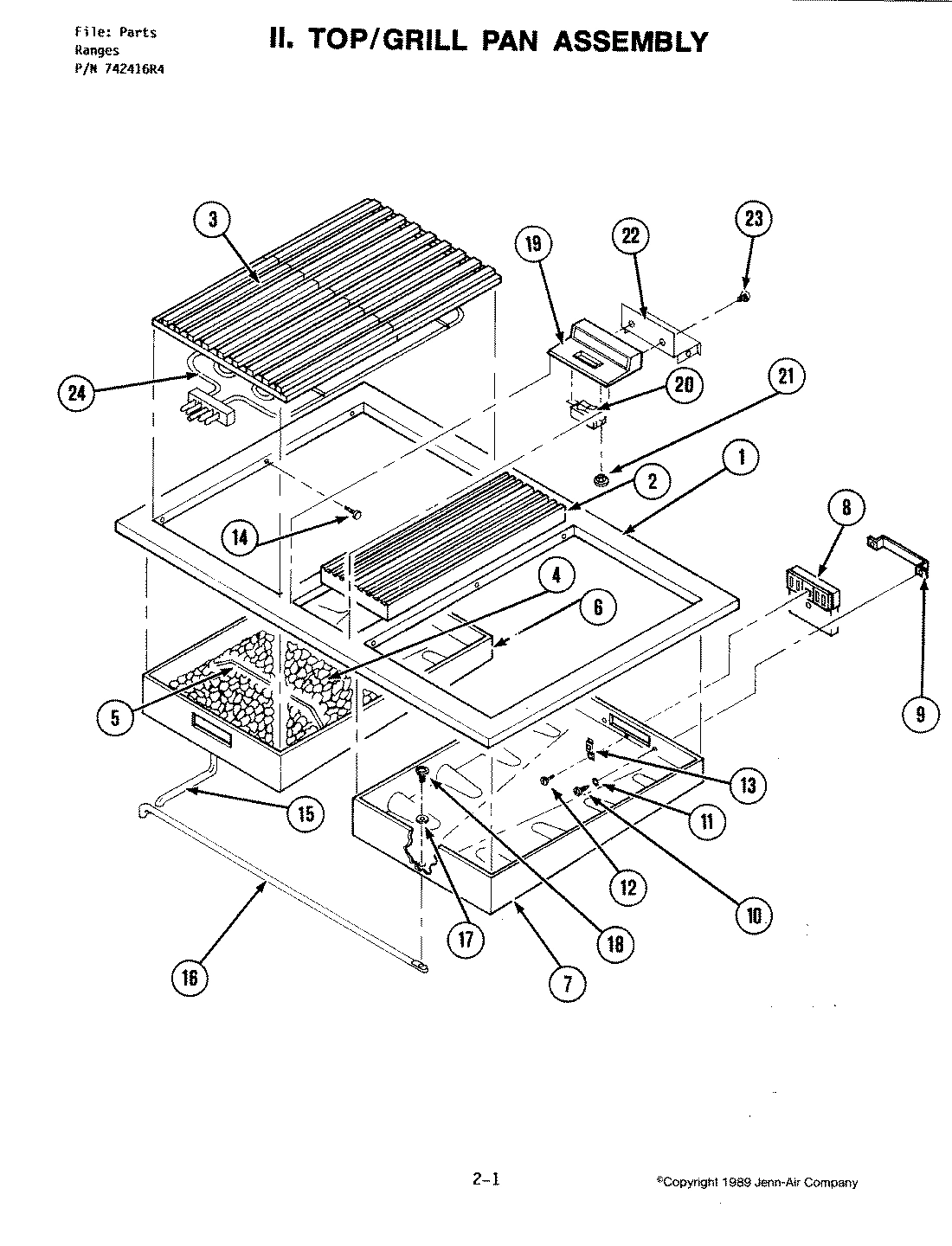

TOP WPL 701853 Contact Us For Availability

2

WPY04100019 Whirlpool Bake Element In Stock WPL WPY04100019 $95.39

2

WPY707702 Whirlpool Locknut Backorder WPL WPY707702 $4.82

2

HANDLE, DOOR WPL Y702322 Contact Us For Availability

2

HANDLE, DOOR WPL Y703429 Contact Us For Availability

2

CONTAINER,GREASE ASSEMBLY WPL Y712001 Contact Us For Availability

2

CAP, END (LT) WPL 702388 Contact Us For Availability

2

MOTOR, FAN WPL Y702549 Contact Us For Availability

2

GRILL, AIR WPL 702568 Contact Us For Availability

3

POST, MOUNTING WPL 701832 Contact Us For Availability

3

PAD, MOUNTING WPL Y703430 Contact Us For Availability

3

CAP, END (RT) WPL Y702387 Contact Us For Availability

3

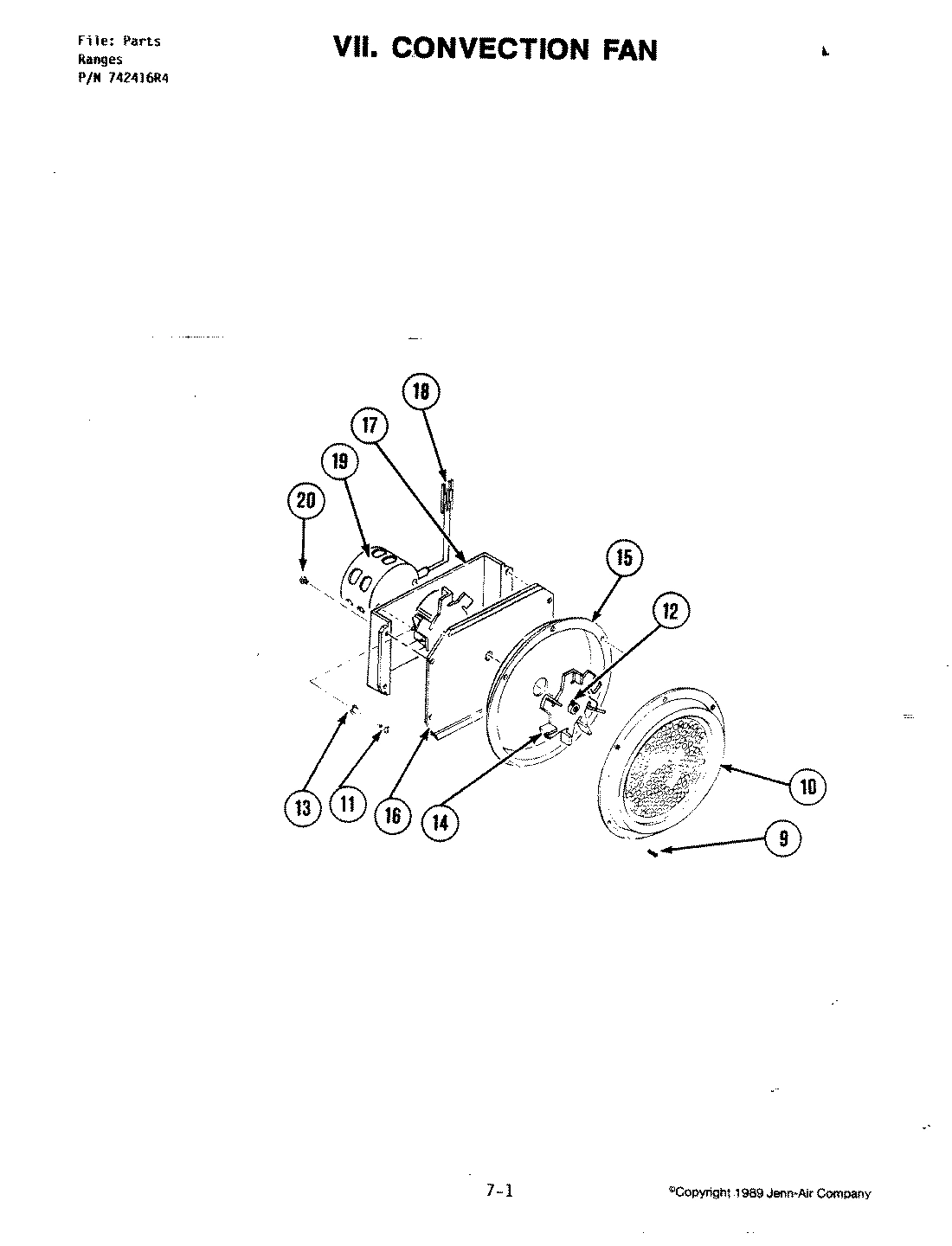

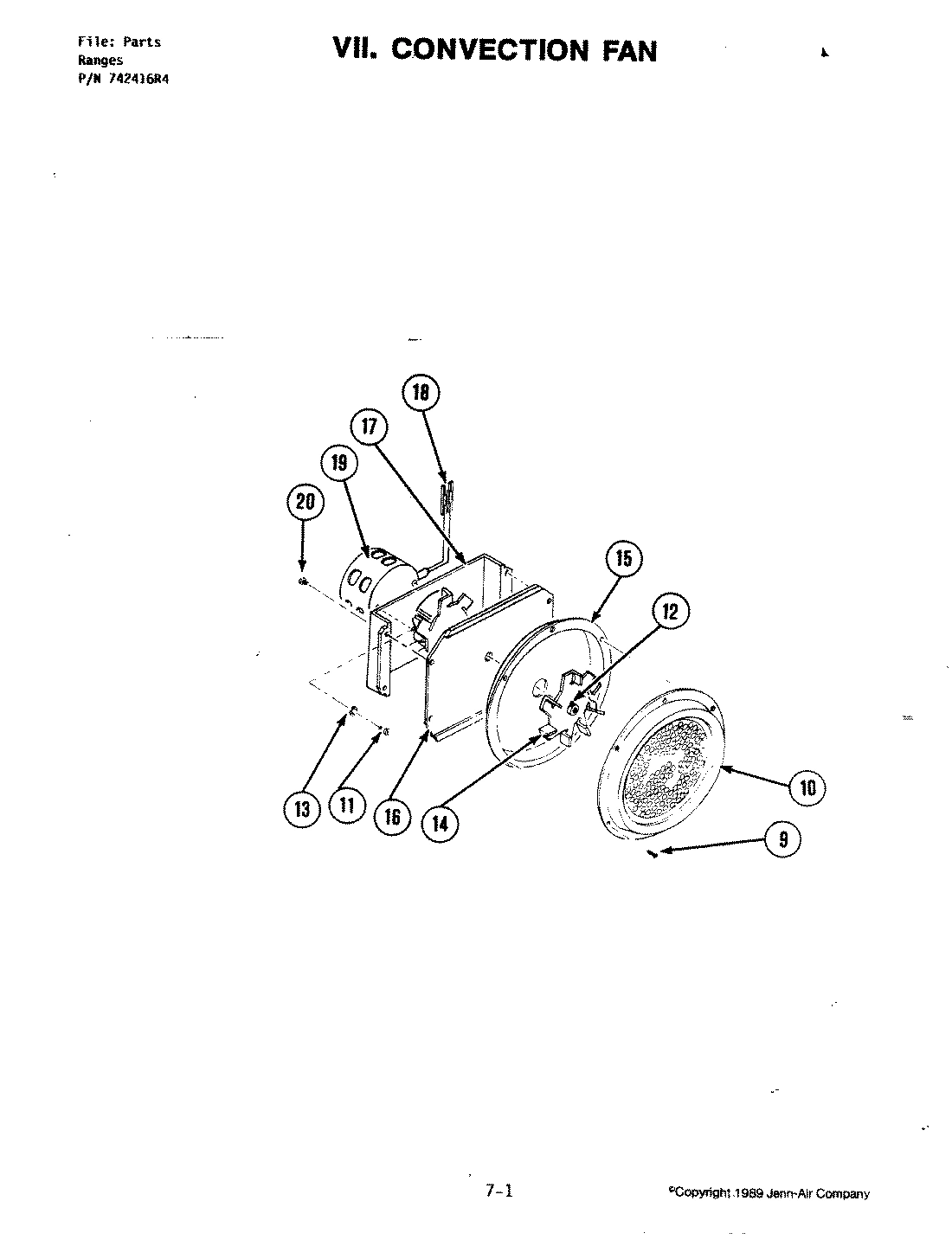

BLADE, FAN WPL Y702525 Contact Us For Availability

3

COVER, MOTOR WPL Y702734 Contact Us For Availability

3

GRATE WPL 707886 Contact Us For Availability

4

W11120791 Whirlpool Range Surface Element Inf In Stock WPL W11120791 $70.11

4

W11120795 Whirlpool Infinite Switch In Stock WPL W11120795 $65.22

4

WPY04100015 Whirlpool Bake Element Backorder WPL WPY04100015 $117.04

4

ANGLE, MOUNT WPL 712002 Contact Us For Availability

4

LIMITER, THERMAL WPL 702715 Contact Us For Availability

4

PLATE, ROCK WPL 708929 Contact Us For Availability

5

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $5.02

5

SUPPORT, ROCK PLATE WPL 700819 Contact Us For Availability

5

GLASS, SCREENED WPL Y702321 Contact Us For Availability

5

GLASS, SCREENED (BLK) WPL Y703774 Contact Us For Availability

5

WIRE, GROUND WPL 702643 Contact Us For Availability

5

MOTOR WPL 702650 Contact Us For Availability

5

FOAM, URETHANE WPL Y715957 Contact Us For Availability

6

12200034 Whirlpool Infinite Switch Knob Kit ( Backorder WPL 12200034 $75.53

6

BUSHING WPL 715939 Contact Us For Availability

6

BUSHING WPL Y703433 Contact Us For Availability

6

PANEL, BOTTOM & SIDE (RT) WPL Y702319 Contact Us For Availability

6

PLATE, BACK WPL Y702345 Contact Us For Availability

6

RECEPTACLE, LIGHT WPL 715281 Contact Us For Availability

6

BAND, MOTOR WPL Y707393 Contact Us For Availability

6

PAN, GRILL (LT) WPL 701955 Contact Us For Availability

6

WIRE,KIT WPL 712021 Contact Us For Availability

6

WIRE, YELLOW WPL Y712014 Contact Us For Availability

6

WIRE, RED WPL Y712015 Contact Us For Availability

6

WIRE, BLACK WPL Y712017 Contact Us For Availability

7

712022K Whirlpool K4+ RH/WR/CNT Backorder WPL 712022K $136.57

7

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $4.82

7

WP5708M005-60 Whirlpool Wire Harness Backorder WPL WP5708M005-60 $60.93

7

WP5708M007-60 Whirlpool Wire Harness Backorder WPL WP5708M007-60 $93.43

7

WP5708M008-60 Whirlpool Dishwasher Wire Harne Backorder WPL WP5708M008-60 $60.93

7

WP5708M081-60 Whirlpool Wire Harness Backorder WPL WP5708M081-60 $24.23

7

WASHER WPL Y700446 Contact Us For Availability

7

COVER,LOUVER WPL 703619 Contact Us For Availability

7

BACK, INNER WPL Y702306 Contact Us For Availability

7

SWITCH, SELECTOR WPL Y703146 Contact Us For Availability

7

SCREW WPL 715485 Contact Us For Availability

7

PAN, GRILL (RT) WPL Y701956 Contact Us For Availability

8

M0282005 Whirlpool Nut Backorder WPL M0282005 $5.10

8

WP3191454 Whirlpool Surface Element Backorder WPL WP3191454 $134.26

8

WPY702434 Whirlpool Receptacle Backorder WPL WPY702434 $74.48

8

SCREW WPL Y700570 Contact Us For Availability

8

KNOB, SELECTOR-UPPER WPL 703502 Contact Us For Availability

8

KNOB, SELECTOR-UPPER WPL Y703059 Contact Us For Availability

8

SCREW WPL Y707402 Contact Us For Availability

9

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

9

WP71003558 Whirlpool Isolator Backorder WPL WP71003558 $7.84

9

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $4.82

9

PANEL, PERFORATED WPL 702323 Contact Us For Availability

9

PANEL, PERFORATED (UPR) WPL 703784 Contact Us For Availability

9

PANEL,SIDE (RT) WPL 703485 Contact Us For Availability

9

THERMOSTAT WPL 703145 Contact Us For Availability

9

BRACKET WPL Y702698 Contact Us For Availability

WPY703499 Whirlpool Dishwasher Thermostat Kno Backorder WPL WPY703499 $35.72

WPY707985 Whirlpool Wheel Assembly Backorder WPL WPY707985 $116.81

BAFFLE-DOOR WPL 702305 Contact Us For Availability

PANEL, SIDE (LT) WPL 703484 Contact Us For Availability

PLATE, CONVECTION FRONT WPL 701707 Contact Us For Availability

TUBE, VENT WPL 702730 Contact Us For Availability

71002058 Whirlpool Screw 8-32 x 0.18 Backorder WPL 71002058 $4.41

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $4.67

LINER, OVEN DOOR WELD WPL 712189 Contact Us For Availability

HINGE WPL Y703419 Contact Us For Availability

LIMIT, OVEN WPL Y702107 Contact Us For Availability

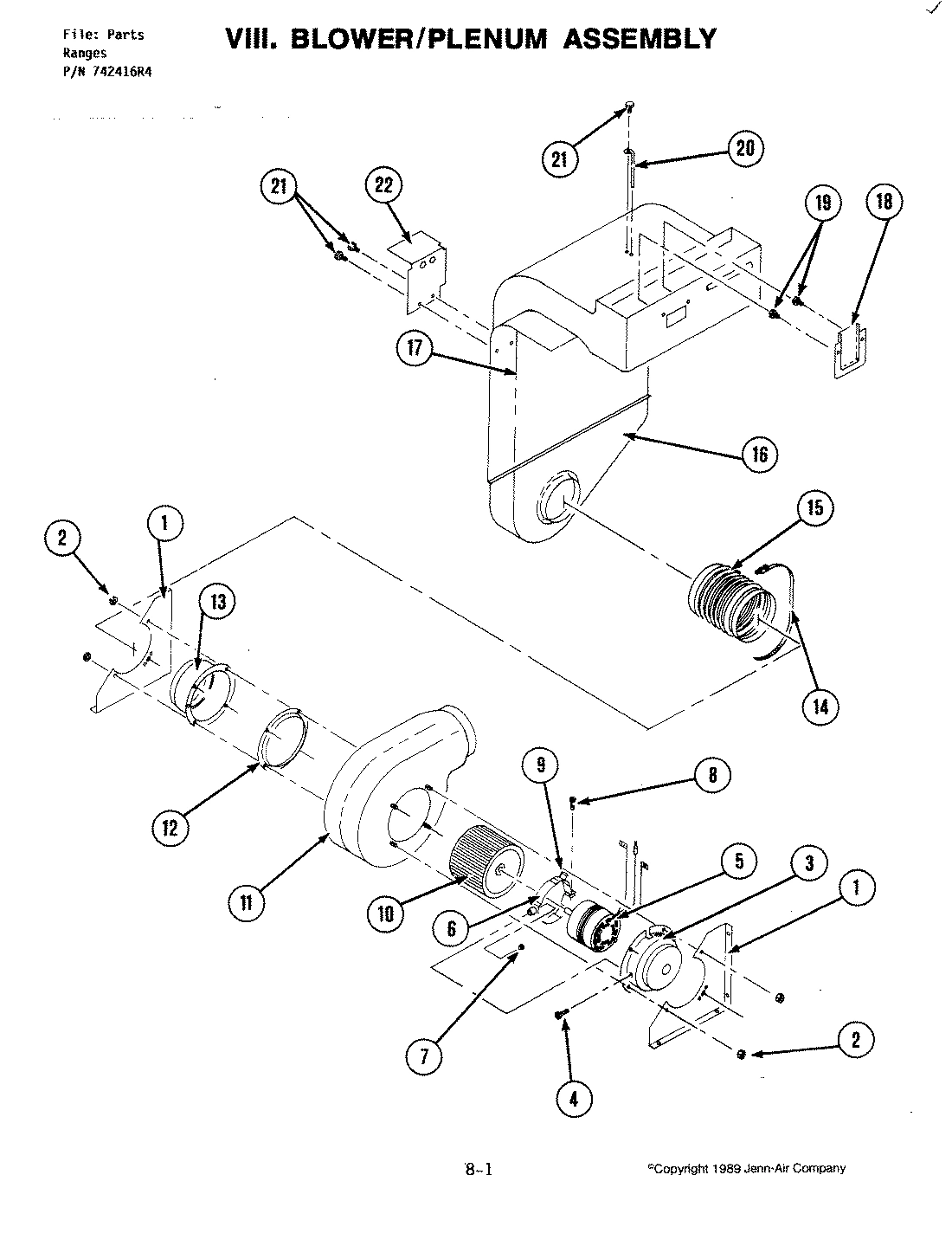

SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability

WASHER WPL Y707664 Contact Us For Availability

WP355214 Whirlpool Screw In Stock WPL WP355214 $5.30

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

NUT, PUSH-IN WPL 702657 Contact Us For Availability

SWITCH, DOOR WPL 701666 Contact Us For Availability

LIGHT, INDICATOR 240V WPL Y702394 Contact Us For Availability

SCREW, SET WPL 701709 Contact Us For Availability

RING, INLET WPL Y702295 Contact Us For Availability

74004835 Whirlpool Clip In Stock WPL 74004835 $7.31

BRACKET, HAT WPL 702658 Contact Us For Availability

WASHER, LOCK WPL 715910 Contact Us For Availability

TUBE, VENT WPL 701738 Contact Us For Availability

ADAPTER, RESTRICTOR RING WPL Y702296 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

BRACKET, STAND-OFF WPL 701652 Contact Us For Availability

COVER, ACCESS(R.H) WPL 702333 Contact Us For Availability

LENS, PILOT LIGHT WPL Y702351 Contact Us For Availability

WHEEL, CONVECTION WPL 701711 Contact Us For Availability

SHIELD, VENT WPL Y702632 Contact Us For Availability

CLAMP, HOSE WPL Y702331 Contact Us For Availability

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $5.02

PACK, WINDOW WPL 703804 Contact Us For Availability

SUPPORT, TUBE WPL 702302 Contact Us For Availability

PLATE, CONVECTION BACK WPL 701712 Contact Us For Availability

SUPPORT, RACK WPL 702701 Contact Us For Availability

DUCT, FLEXIBLE WPL Y702326 Contact Us For Availability

TUBE, DRAIN (LEFT) WPL Y702463 Contact Us For Availability

CLIP, RETAINER WPL Y700503 Contact Us For Availability

LENS, PILOT LIGHT WPL Y702615 Contact Us For Availability

COVER, MOTOR FRONT WPL 701713 Contact Us For Availability

PLENUM, LOWER ASSEMBLY WPL 712007 Contact Us For Availability

TUBE, DRAIN (RIGHT) WPL Y702327 Contact Us For Availability

INSULATION WPL 702293 Contact Us For Availability

CLOCK & LENS ASSY. WPL 712024 Contact Us For Availability

PLATE, MOTOR MOUNT WPL Y700601 Contact Us For Availability

RACK, OVEN WPL Y702339 Contact Us For Availability

PLENUM, UPPER WPL 712025 Contact Us For Availability

WASHER, TEFLON WPL 702747 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $39.84

WPY702338 Whirlpool Oven Seal In Stock WPL WPY702338 $107.11

LENS, CLOCK WPL 702771 Contact Us For Availability

CONNECTOR, 1/4`` IN-LINE WPL Y715563 Contact Us For Availability

COVER, VENT WPL Y702475 Contact Us For Availability

NUT, DRAIN TUBE WPL 702748 Contact Us For Availability

PLUG, OVEN DOOR WELD WPL 712011 Contact Us For Availability

KNOB, CLOCK WPL Y702547 Contact Us For Availability

MOTOR, CONVECTION WPL 701715 Contact Us For Availability

ESCUTCHEON WPL 715381 Contact Us For Availability

INSULATION, BOTTOM WPL 702292 Contact Us For Availability

BRACKET, CLOCK WPL 702617 Contact Us For Availability

SCREW WPL 701744 Contact Us For Availability

STOP, FILTER WPL Y702656 Contact Us For Availability

SWITCH, ROCKER WPL Y702546 Contact Us For Availability

7103P166-60 Whirlpool Nut Backorder WPL 7103P166-60 $12.26

CLIP WPL Y700834 Contact Us For Availability

BRACKET, RETAINING WPL 702616 Contact Us For Availability

WASHER WPL 701736 Contact Us For Availability

WP71002111 Whirlpool Grease Filter In Stock WPL WP71002111 $19.68

SPACER, OVEN WPL 701741 Contact Us For Availability

ENCLOSURE, SIDE (RIGHT) WPL 702183 Contact Us For Availability

CORD, RECEPTACLE MOTOR WPL 702735 Contact Us For Availability

STRAIN, RELIEF WPL Y702696 Contact Us For Availability

CORD, POWER (MOTOR) WPL Y702733 Contact Us For Availability

BRACKET, FILLER WPL 702581 Contact Us For Availability

23

WP179051 Whirlpool Screw Backorder WPL WP179051 $4.82

23

SCREW, HEX WPL Y702976 Contact Us For Availability

23

NUT, TEE WPL 715294 Contact Us For Availability

24

WP5700M426-60 Whirlpool Heating Element Backorder WPL WP5700M426-60 $264.85

24

ELEMENT,GRILL ASSEMBLY WPL Y700457 Contact Us For Availability

25

INSULATION-SIDES,TOP,BOTTOM WPL 702282 Contact Us For Availability

25

INSULATION-BACK WPL 702283 Contact Us For Availability

25

CLIP, BULB WPL Y701745 Contact Us For Availability

26

SWITCH, BROIL CYCLE WPL 701698 Contact Us For Availability

27

BRACKET WPL 702729 Contact Us For Availability

28

CHANNEL, SUPPORT WPL 703483 Contact Us For Availability

28

RAIL, SUPPORT ASSEMBLY WPL 712192 Contact Us For Availability

28

RECEPTACLE, HOLDER WPL 704142 Contact Us For Availability

29

INSULATION-TOP & SIDES WPL 702279 Contact Us For Availability

29

ANCHOR LEVEL WPL 700903 Contact Us For Availability

29

LENS, LIGHT WPL Y704143 Contact Us For Availability

30

W11117769 Whirlpool Refrigerator Leveler Backorder WPL W11117769 $12.02

30

PLATE, LATCH (UPPER) WPL Y712010 Contact Us For Availability

30

RECEPTACLE, SNAP-IN WPL Y704145 Contact Us For Availability

31

RETAINER, LENS WPL Y704144 Contact Us For Availability

32

LIGHT LENS (KIT) WPL 712282 Contact Us For Availability

33

WASHER, CONICAL WPL 702462 Contact Us For Availability

34

TRIM, SIDE WPL 703486 Contact Us For Availability

43

PIN, COTTER WPL Y701686 Contact Us For Availability

53

WASHER, FLAT WPL 712005 Contact Us For Availability

54

ANGLE, OVEN SUPPORT WPL 702336 Contact Us For Availability

57

SWITCH, SELECTOR WPL 700743 Contact Us For Availability

57

WIRE HARNESS WPL 702541 Contact Us For Availability

57

FF CARTON WPL Y702741 Contact Us For Availability

58

WIREWAY WPL 703492 Contact Us For Availability

60

ENCLOSURE, CIRCUIT BREAKER WPL 702523 Contact Us For Availability

61

BREAKER, CIRCUIT WPL Y715443 Contact Us For Availability

62

CIRCUIT BREAKER (15 AMP) WPL 701774 Contact Us For Availability

63

HARNESS, CIRCUIT BREAKER WPL 702612 Contact Us For Availability

63

BREAKER, CIRCUIT (30 AMP) WPL Y702613 Contact Us For Availability

64

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

64

COVER, CIRCUIT BREAKER WPL 702524 Contact Us For Availability

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 $3.49

WP59002061 Whirlpool Microwave Screw Backorder WPL WP59002061 $5.02

WP7403P899-60 Whirlpool Safety Switch Backorder WPL WP7403P899-60 $148.74

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $19.62

WPL W10124350 WPL W10124350 Contact Us For Availability

GUSSETT (RT) WPL 702556 Contact Us For Availability

GUSSETT (LT) WPL 702557 Contact Us For Availability

INSULATOR WPL 702898 Contact Us For Availability

NUT WPL 707161 Contact Us For Availability

SCREW WPL 701526 Contact Us For Availability

BRACKET,STIFFENER WPL 702697 Contact Us For Availability

PANEL, TOP WPL 702318 Contact Us For Availability

WPL Y701623 WPL Y701623 Contact Us For Availability

WPL Y702750 WPL Y702750 Contact Us For Availability

TIE, MOUNT CABLE WPL 702746 Contact Us For Availability

WPL Y702526 WPL Y702526 Contact Us For Availability

KNOB, LEVER WPL 701670 Contact Us For Availability

SPRING, KNOB WPL 701671 Contact Us For Availability

WPL Y702299 WPL Y702299 Contact Us For Availability

SCREW WPL 707407 Contact Us For Availability

WPL Y702350 WPL Y702350 Contact Us For Availability

WPL Y702360 WPL Y702360 Contact Us For Availability

WPL Y702359 WPL Y702359 Contact Us For Availability

SCREW WPL 702380 Contact Us For Availability

WPL Y702607 WPL Y702607 Contact Us For Availability

WPL Y702332 WPL Y702332 Contact Us For Availability
