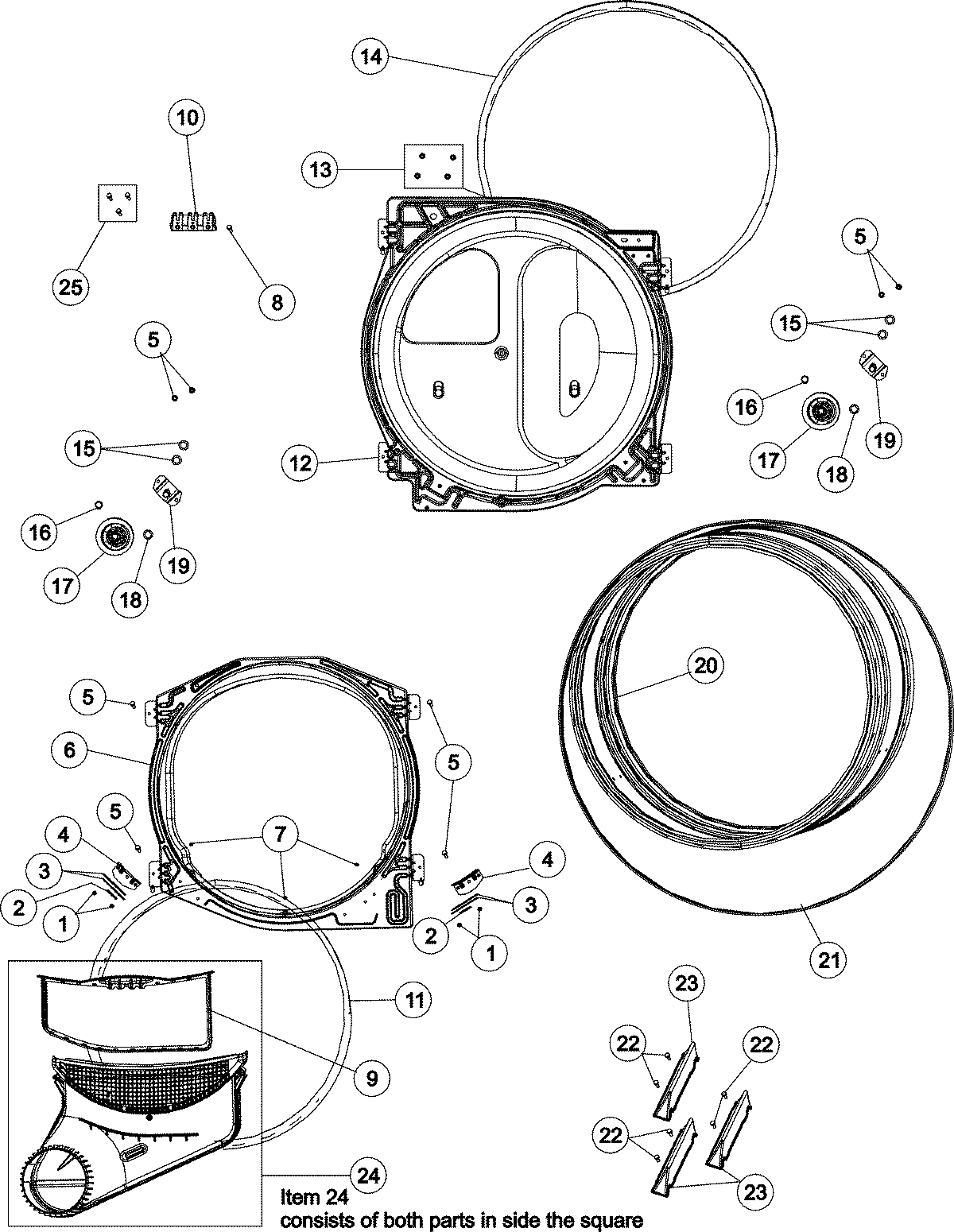

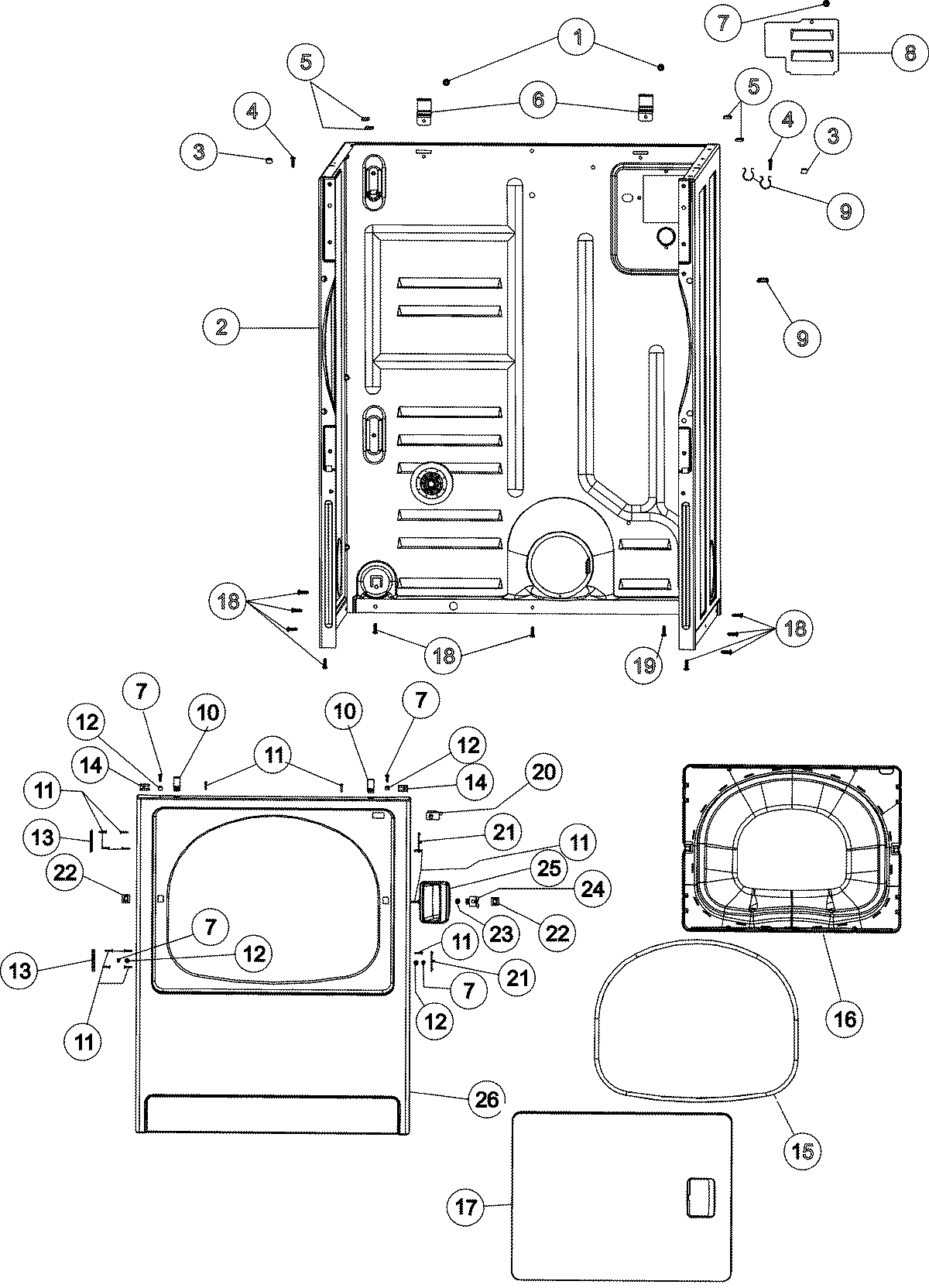

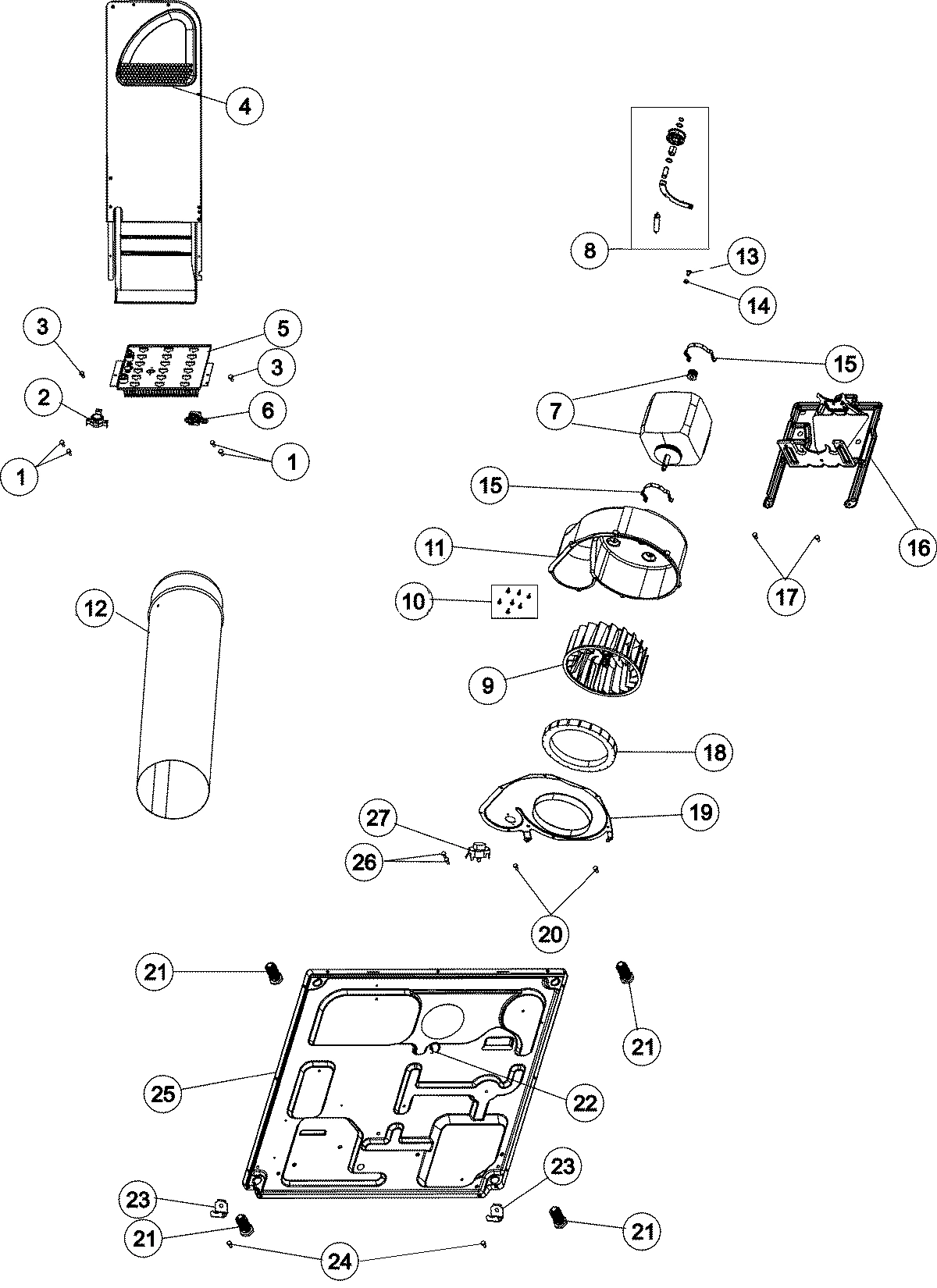

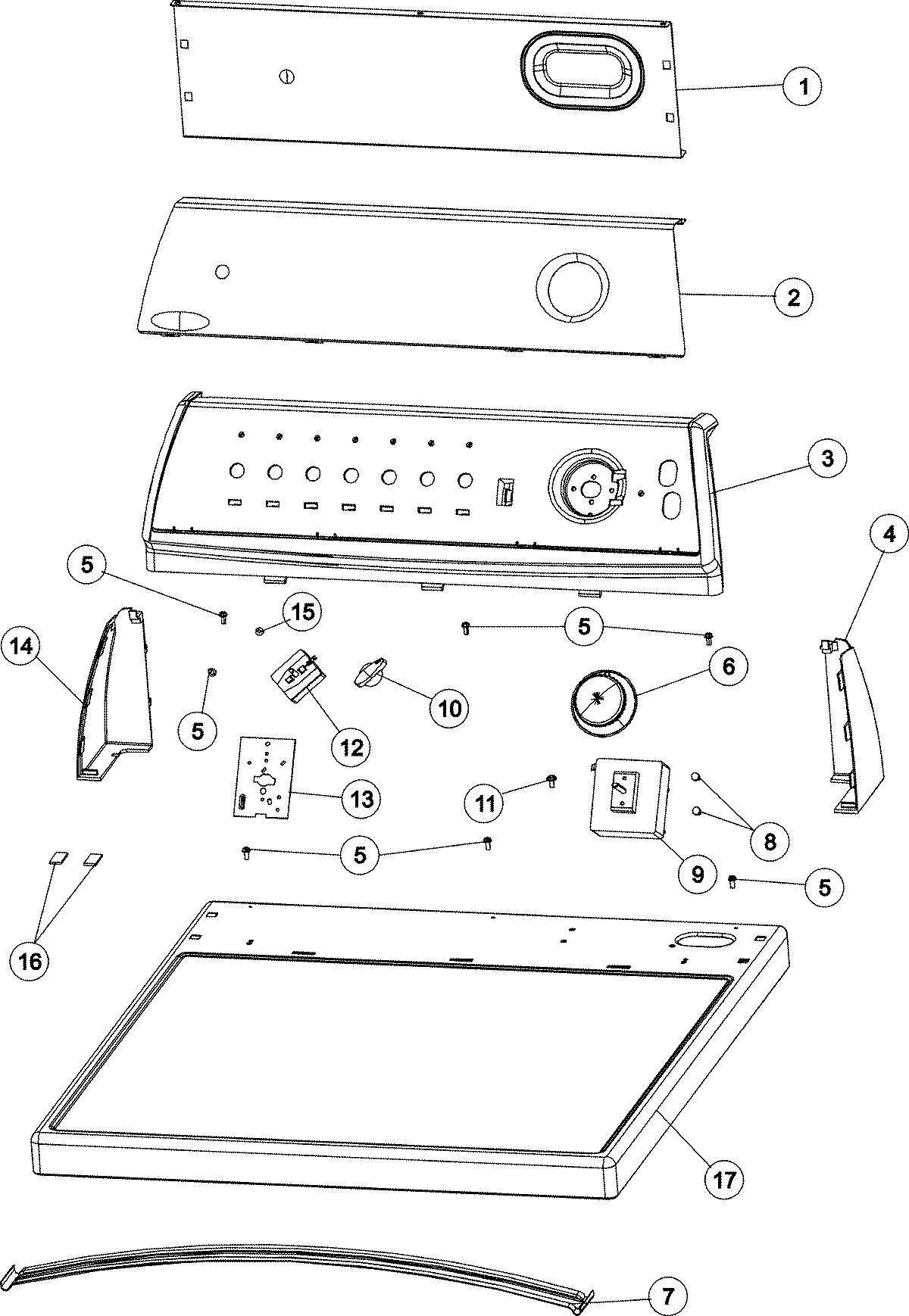

Model Whirlpool CYE3005AKW ELECTRIC DRYER – Common Parts &amp; Diagrams

1

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

1

SHIELD, BACKGUARD WPL 37001233 Contact Us For Availability

2

WPW10116735 Whirlpool Dryer High Limit Thermo In Stock WPL WPW10116735 $52.45

2

PAD, FELT-COIN WPL 500121 Contact Us For Availability

2

FACIA WPL 37001224 Contact Us For Availability

3

FRAME (WHT), CONTROL PANEL WPL 21001552 Contact Us For Availability

4

WP37001036 Whirlpool Glide Bracket In Stock WPL WP37001036 $50.00

4

ENDCAP, PANEL (RT-WHT) WPL 21001636 Contact Us For Availability

4

ASSEMBLY, HEATER DUCT WPL 503605 Contact Us For Availability

5

WPY503978 Whirlpool Heating Element In Stock WPL WPY503978 $42.92

6

WP40113801 Whirlpool Dryer High Limit Thermal In Stock WPL WP40113801 $7.57

6

HINGE, TOP WPL 500003 Contact Us For Availability

6

KNOB/SKIRT, TIMER (WHT) WPL 31001388 Contact Us For Availability

6

ASSY,BLKHD FRONT CO WPL 503756W Contact Us For Availability

7

BRACE, TOP WPL 56486 Contact Us For Availability

7

SCREW, No.8AB-16X3/4 FH WPL 37001030 Contact Us For Availability

7

MOTOR & PULLEY 240V/60HZ WPL 37001253 Contact Us For Availability

8

WP37001287 Whirlpool Dryer Idler Lever Shaft In Stock WPL WP37001287 $30.33

8

SCREW, No.12 X 9/16 WPL 501285 Contact Us For Availability

9

56000 Whirlpool Blower Wheel In Stock WPL 56000 $54.20

9

WP37001142 Whirlpool Lint Filter Backorder WPL WP37001142 $70.37

9

TIMER, EXPORT WPL 37001250 Contact Us For Availability

SHIELD, TERMINAL BLOCK WPL 37001299 Contact Us For Availability

BLOCK, TERMINAL WPL 61923 Contact Us For Availability

KNOB, SELECTOR (WHT) WPL 21001544 Contact Us For Availability

SCREW, No.8 X 3/8 IND H WPL 31260 Contact Us For Availability

11

HOUSING, BLOWER WPL 56020 Contact Us For Availability

12

SWITCH, TWO POS (ON/OFF)ROTARY WPL 31001443 Contact Us For Availability

12

BULKHEAD, REAR (WHT) WPL 504801W Contact Us For Availability

12

DUCT, EXHAUST WPL 505518 Contact Us For Availability

13

SHIELD, CONTROL (1 POS.) WPL 21001517 Contact Us For Availability

13

SCREW, 1/4-20 UNC HEX WPL 500824 Contact Us For Availability

14

WP37001132 Whirlpool Felt Seal In Stock WPL WP37001132 $31.71

14

WPW10139757 Whirlpool Nut Backorder WPL WPW10139757 $4.82

14

ENDCAP, PANEL (LT-WHT) WPL 21001629 Contact Us For Availability

15

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

15

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.82

15

SEAL, FRONT PANEL WPL 504005 Contact Us For Availability

16

WP23748 Whirlpool Retaining Ring In Stock WPL WP23748 $7.39

16

SEAL & LINER, ASSY(INNER DOOR) WPL 37001028 Contact Us For Availability

16

MOUNT, MOTOR WPL 503613 Contact Us For Availability

17

WP37001042 Whirlpool Dryer Drum Support Rolle In Stock WPL WP37001042 $12.64

17

DOOR, DRYER (WHT) WPL 37001029 Contact Us For Availability

17

COVER, TOP - WHITE/DRYER WPL 37001232 Contact Us For Availability

18

WASHER, WAVE WPL Y504082 Contact Us For Availability

18

SEAL, BLOWER HOUSING WPL 37001119 Contact Us For Availability

19

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

19

WP40113601 Whirlpool Dryer Roller Bracket In Stock WPL WP40113601 $47.42

19

COVER, BLOWER HOUSING WPL 500078 Contact Us For Availability

20

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $21.70

20

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.82

20

ASSEMBLY, CYLINDER (WHT) WPL 504467W Contact Us For Availability

21

WP40111201 Whirlpool Dryer Drum Belt In Stock WPL WP40111201 $15.99

21

LEG, LEVELING (PLASTIC) WPL Y500101 Contact Us For Availability

21

PLUG, HINGE HOLE WPL 503126 Contact Us For Availability

22

LA-1003 Whirlpool Dryer Door Catch and Metal In Stock WPL LA-1003 $13.15

22

SCREW, 10BT-12 X 1 TAP WPL Y62588 Contact Us For Availability

22

CLIP, WIRE WPL 504034 Contact Us For Availability

23

BAFFLE, (WHT) WPL 37001125 Contact Us For Availability

23

STRIKE, DOOR (METAL) WPL 500039 Contact Us For Availability

23

CLIP, FRONT PANEL WPL 37001145 Contact Us For Availability

24

WP27001200 Whirlpool Screw Backorder WPL WP27001200 $4.82

24

BRACKET,DOOR STRIKE WPL 40116201 Contact Us For Availability

24

AIR DUCT ASSEMBLY WPL 37001141 Contact Us For Availability

25

HANDLE, DOOR (WHT) WPL 33001241 Contact Us For Availability

25

SCREW PKG, TERMINAL BLOCK WPL 37001300 Contact Us For Availability

25

DRYER BASE WPL 37001156 Contact Us For Availability

26

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

26

FRONT PANEL - WHITE WPL 37001154 Contact Us For Availability

27

THERMOSTAT WPL Y308037 Contact Us For Availability

WP3400094 Whirlpool Screw Backorder WPL WP3400094 $4.82

SVC MAN, DOM DRYER GAS WPL 16026315 Contact Us For Availability

MANUAL, USE & CARE WPL 2202687 Contact Us For Availability

CLAMP, POWER CORD WPL 33002258 Contact Us For Availability

NUT, POWER CORD CLAMP WPL 33002260 Contact Us For Availability

HARNESS, WIRE - EXPORT WPL 37001260 Contact Us For Availability

TAPE, FOAM WPL 40083101 Contact Us For Availability

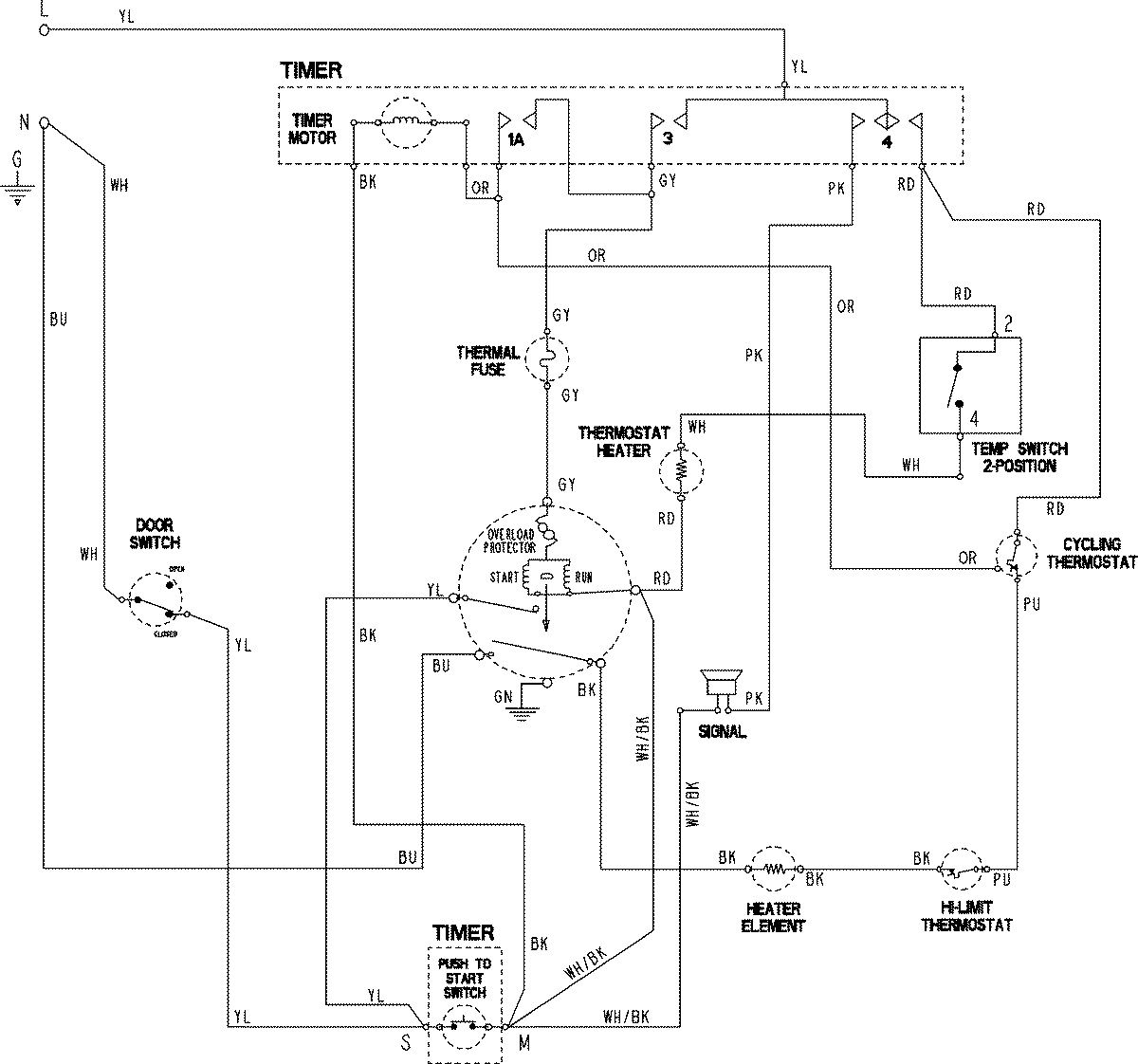

WIRING INFORMATION WPL 15003845 Contact Us For Availability
