Model Whirlpool CREA600ACE ELECTRIC RANGE – Common Parts & Diagrams
02 - DOOR/DRAWER (SERIES 10)

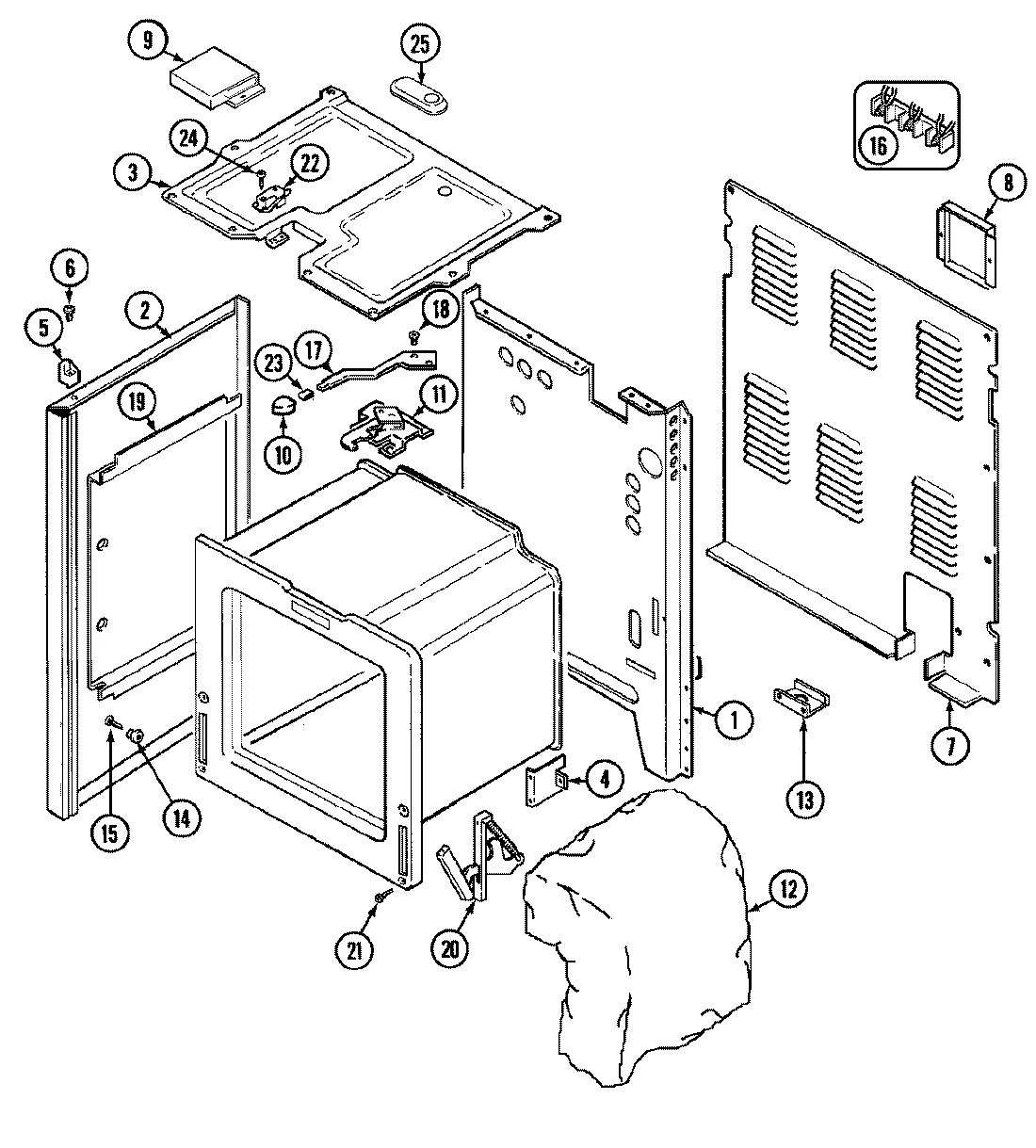

01 - BODY

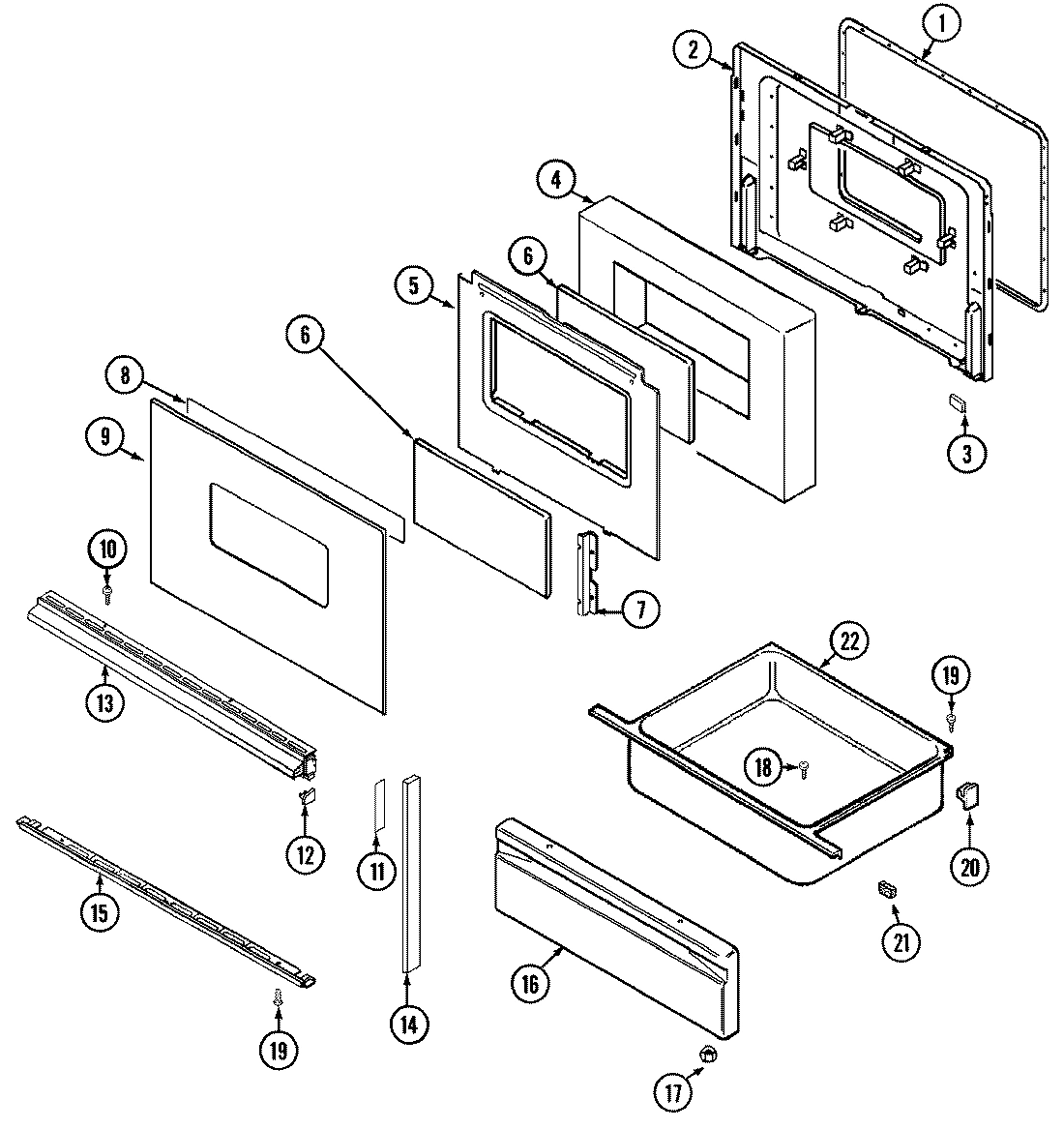

03 - DOOR/DRAWER (SERIES 34)

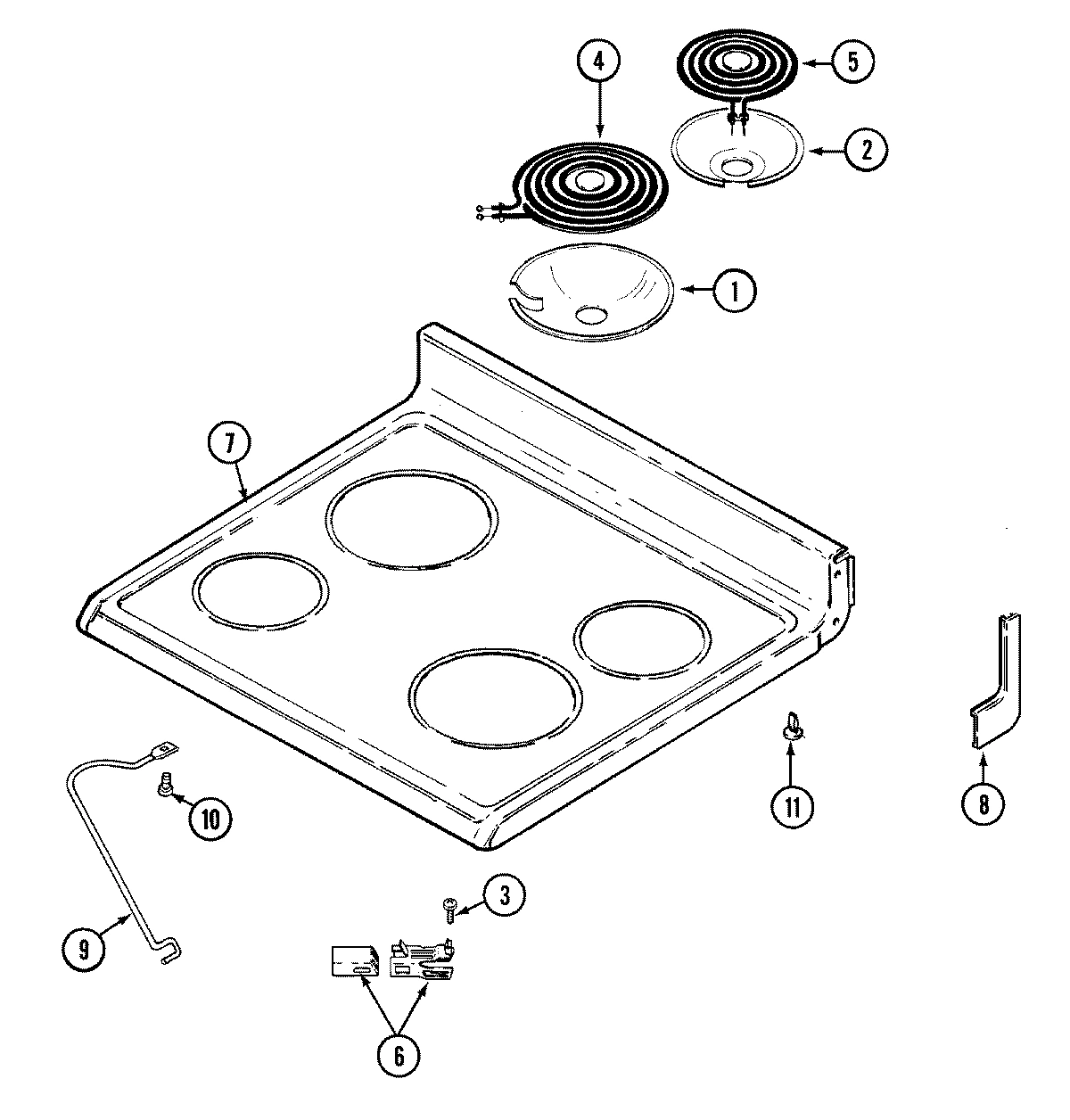

05 - TOP ASSEMBLY

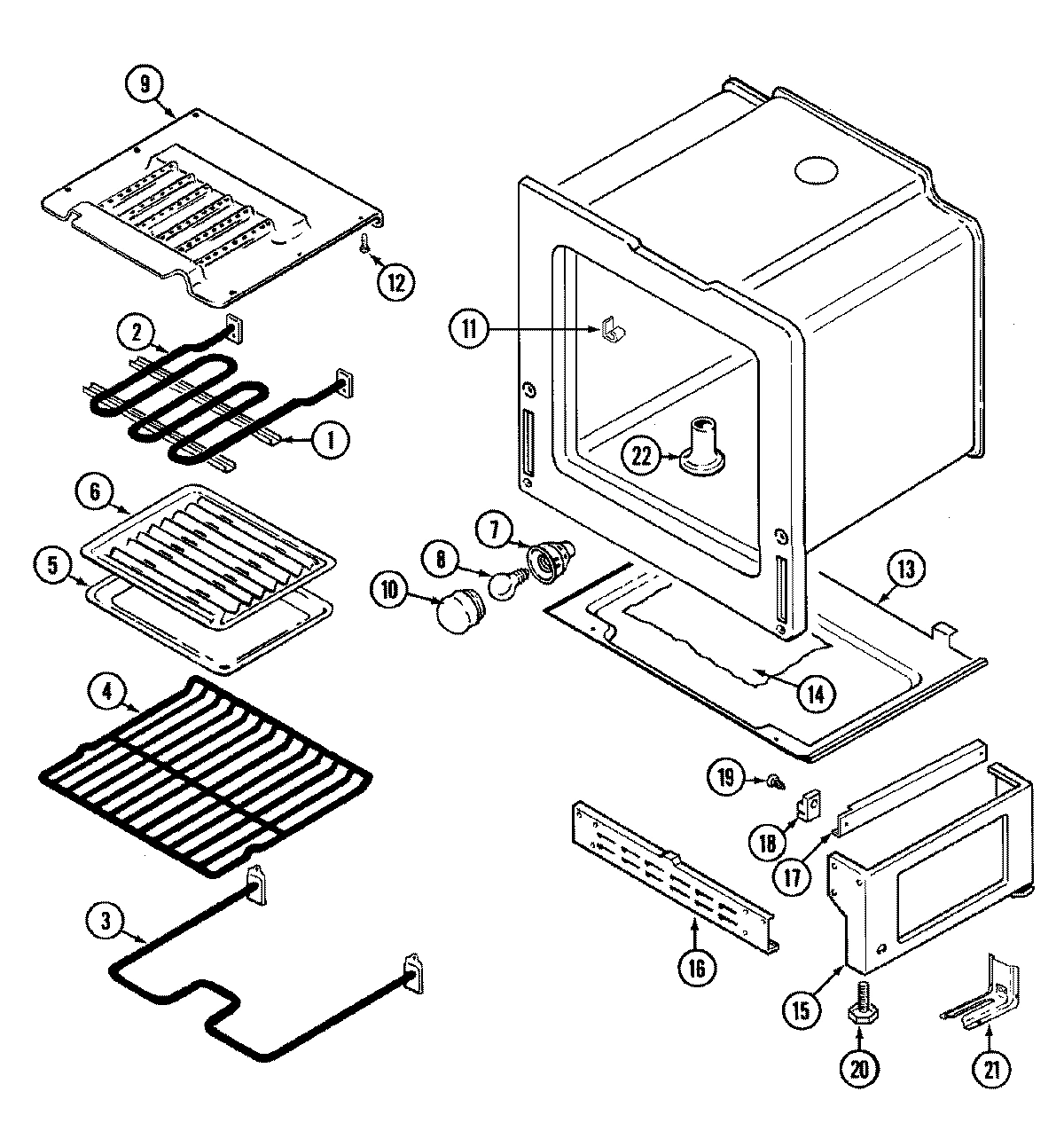

04 - OVEN/BASE

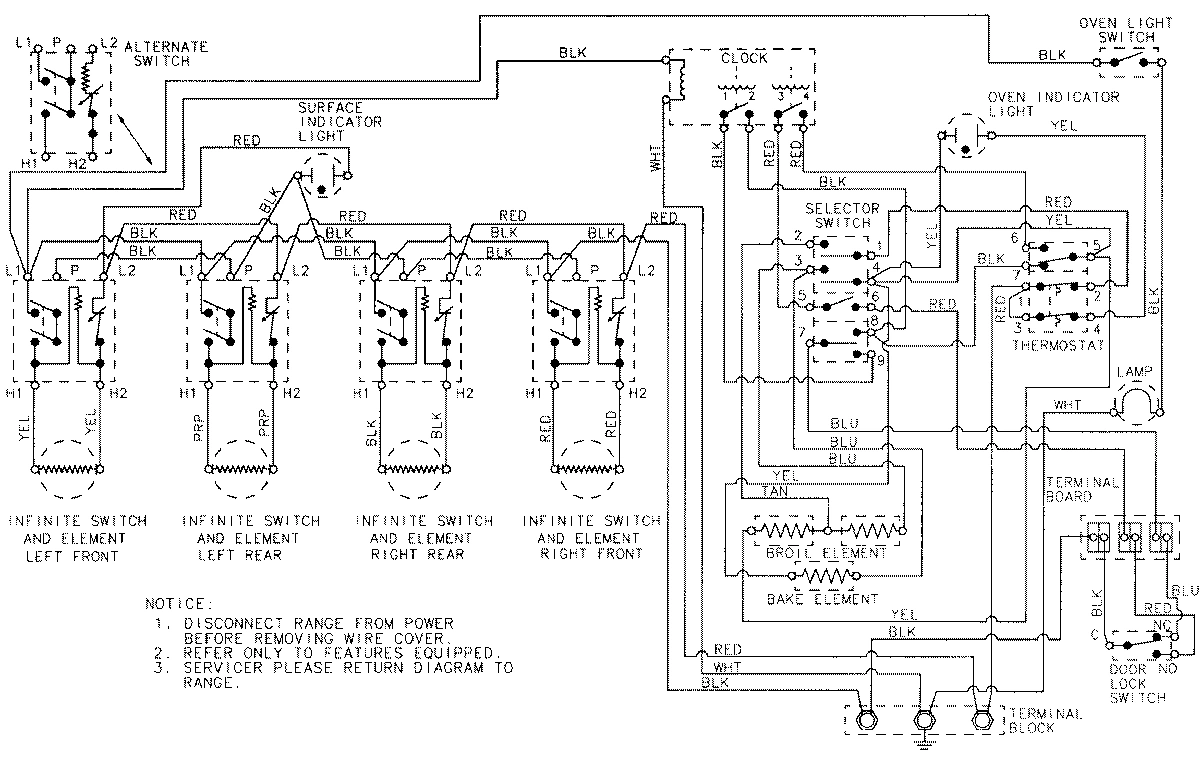

06 - WIRING INFORMATION
Common parts from model Whirlpool CREA600ACE ELECTRIC RANGE
1
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
1
BACK, MAIN WPL 74001772 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
2
LINING, DOOR WPL 2402W20919 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 74001884 Contact Us For Availability
2
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
2
ELEMENT, BROIL WPL Y04000057 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
BOX, BURNER WPL 74001132 Contact Us For Availability
3
BOX, BURNER----NA WPL 74001753 Contact Us For Availability
3
SCREW WPL 7118P01360 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
GLASS, INNER WPL 74001841 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
7
INSULATION, DOOR WPL 4804F05160 Contact Us For Availability
7
COVER, WIRE WPL 4005F45551 Contact Us For Availability
7
RETAINER, GLASS WPL 74001844 Contact Us For Availability
7
TOP, MAIN (WHT) WPL 2002W10381 Contact Us For Availability
7
RECEPTACLE, BULB WPL 74003125 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F23651 Contact Us For Availability
8
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
8
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
8
NUT, SPEED WPL 7103P04460 Contact Us For Availability
8
END CAP, TOP (RT-WHT) WPL 7746P03260 Contact Us For Availability
8
END CAP, TOP (LT-WHT) WPL 7746P03360 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
9
COVER, LATCH ASSY. WPL 4005F39880 Contact Us For Availability
9
GLASS, DOOR (WHT) WPL 7902P32860 Contact Us For Availability
9
SUPPORT, TOP WPL 74001170 Contact Us For Availability
9
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
10
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
10
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
10
HANDLE, DOOR LATCH (WHT) WPL 7701P13360 Contact Us For Availability
10
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
10
SCREW 3/8`` WPL 7101P14160 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
11
CHANNEL, AIR WPL 3818F05251 Contact Us For Availability
11
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
11
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
11
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
11
LATCH ASSY. WPL 74003032 Contact Us For Availability
11
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
11
TAPE, END CAP WPL 8270P09360 Contact Us For Availability
11
GLIDE WPL 8016P01560 Contact Us For Availability
11
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
12
END CAP (RT) WPL 7744P07560 Contact Us For Availability
12
END CAP (LT) WPL 7744P07660 Contact Us For Availability
12
SEAL WPL 7208P00260 Contact Us For Availability
12
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
12
INSULATION, BACK WPL 4804F03860 Contact Us For Availability
12
END CAP, HANDLE (RT-WHT) WPL 74002738 Contact Us For Availability
12
END CAP, HANDLE (LT-WHT) WPL 74002739 Contact Us For Availability
13
HANDLE, DOOR (WHT) WPL 7701P10560 Contact Us For Availability
13
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
13
HANDLE, DOOR (WHT) WPL 74001171 Contact Us For Availability
13
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
14
END CAP, DOOR (WHT) WPL 7744P06560 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
END CAP, DOOR (WHT) WPL 74002342 Contact Us For Availability
14
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
15
SCREW (WHT) WPL 7101P30860 Contact Us For Availability
15
TRIM, BOTTOM (WHT) WPL 7744P10360 Contact Us For Availability
15
SCREW WPL 7101P34560 Contact Us For Availability
15
SCREW WPL 7101P29060 Contact Us For Availability
15
PEDESTAL (SIDES) WPL 4020W01380 Contact Us For Availability
15
PEDESTAL, SIDE WPL 74003016 Contact Us For Availability
16
PANEL, DRAWER (WHT) WPL 2416F03962 Contact Us For Availability
16
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
16
BOARD, TERMINAL WPL 7401P04160 Contact Us For Availability
16
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
17
NUT, NYLON WPL 7103P04560 Contact Us For Availability
17
LEVER, DOOR LATCH WPL 74001725 Contact Us For Availability
17
LEVER, LATCH (GRY) WPL 74002973 Contact Us For Availability
17
LEVER, DOOR LATCH WPL 8009P02460 Contact Us For Availability
17
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
18
SUPPORT, DRAWER WPL 74002312 Contact Us For Availability
18
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
18
WASHER WPL 7109P01560 Contact Us For Availability
19
TAPE WPL 8270P09860 Contact Us For Availability
19
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
19
SCREW WPL 7101P33460 Contact Us For Availability
20
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
20
HINGE WPL 7106P05660 Contact Us For Availability
20
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
21
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
21
SCREW WPL 7101P11560 Contact Us For Availability
21
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
21
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
22
DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability
22
SWITCH, DOOR LATCH WPL 74001708 Contact Us For Availability
22
SWITCH, DOOR LATCH WPL 7403P36360 Contact Us For Availability
22
TUBE, VENT WPL 8026P01960 Contact Us For Availability
23
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
23
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
24
SCREW WPL 7101P10360 Contact Us For Availability
25
COVER, VENT WPL 4005F43245 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001147 Contact Us For Availability
× ![]()
