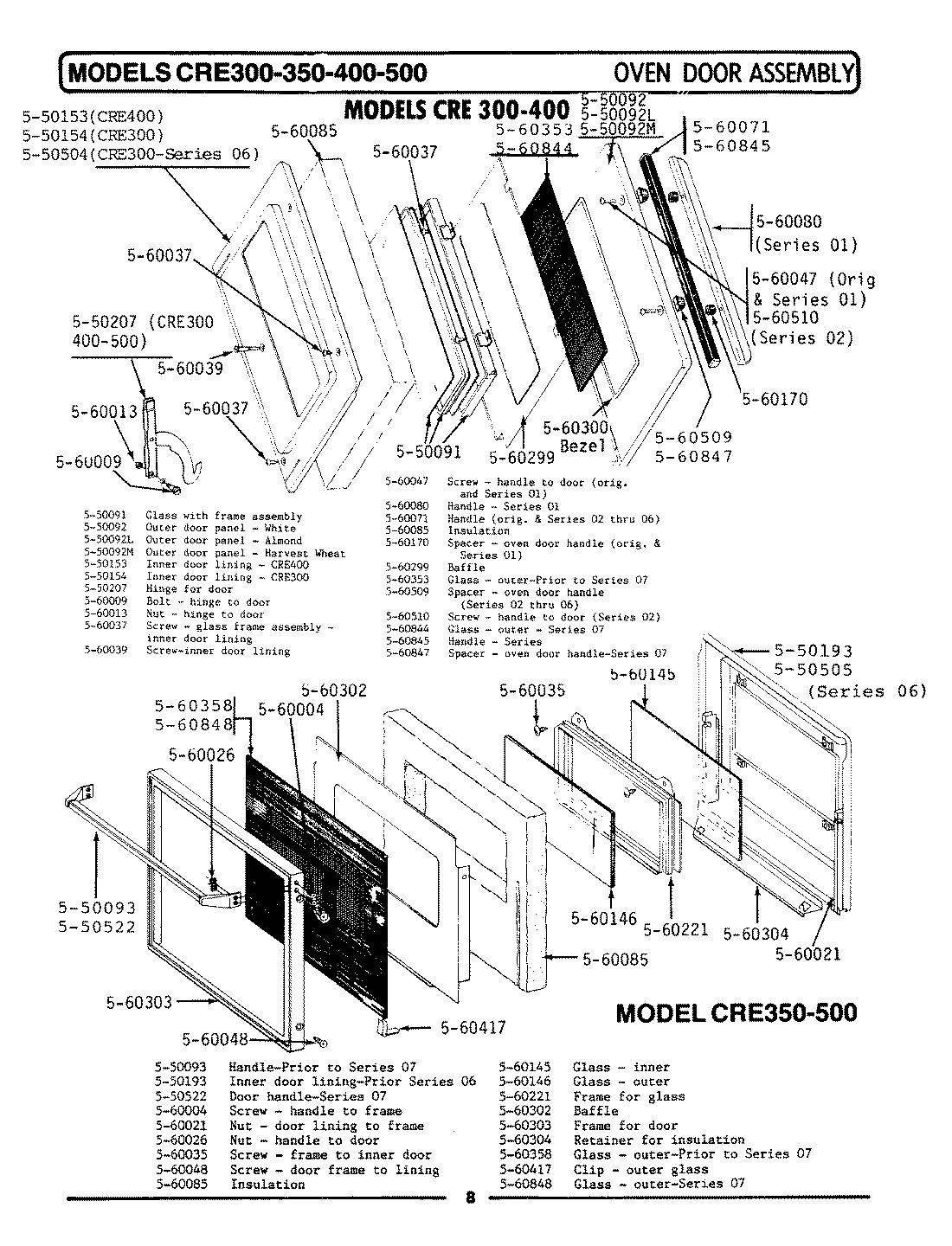

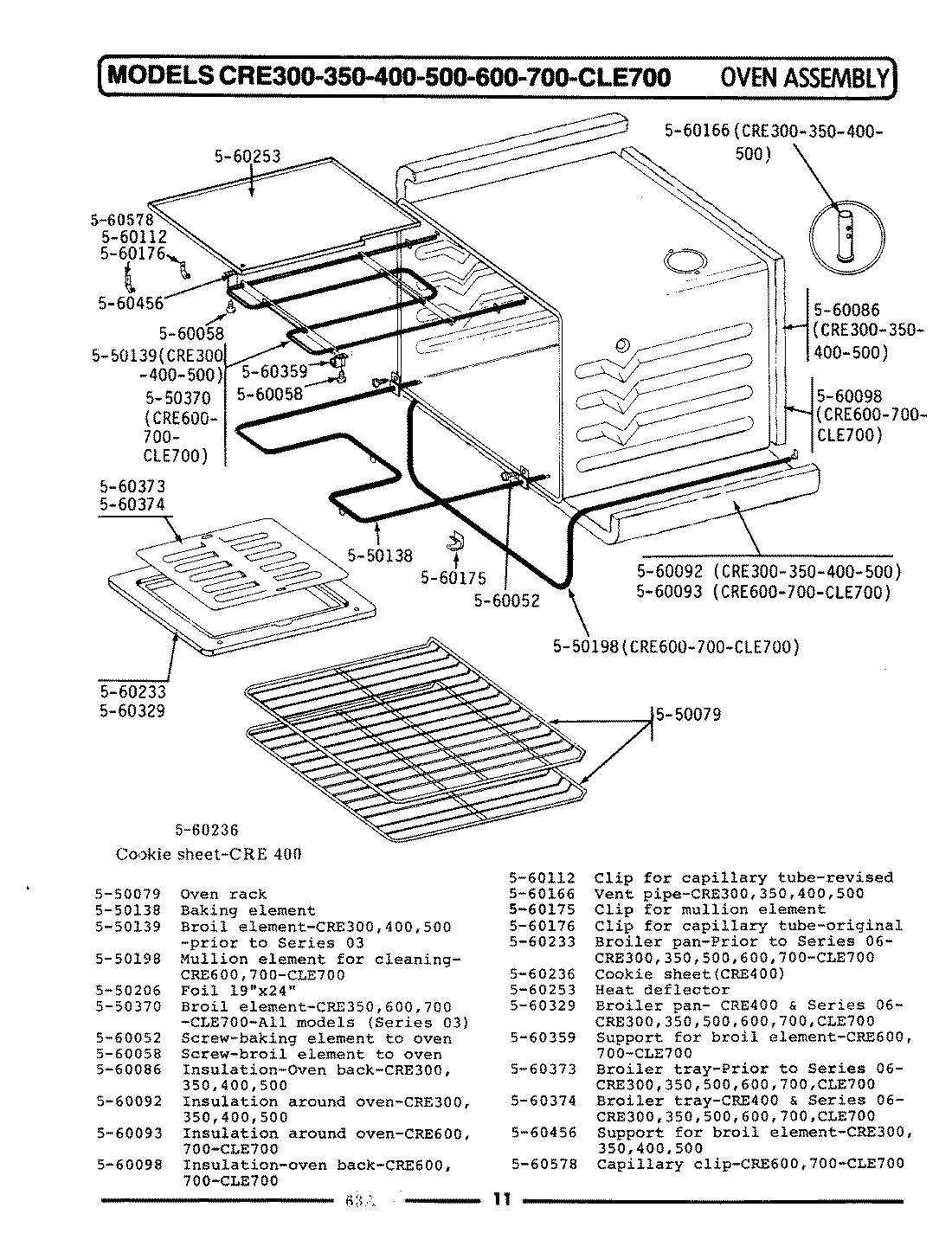

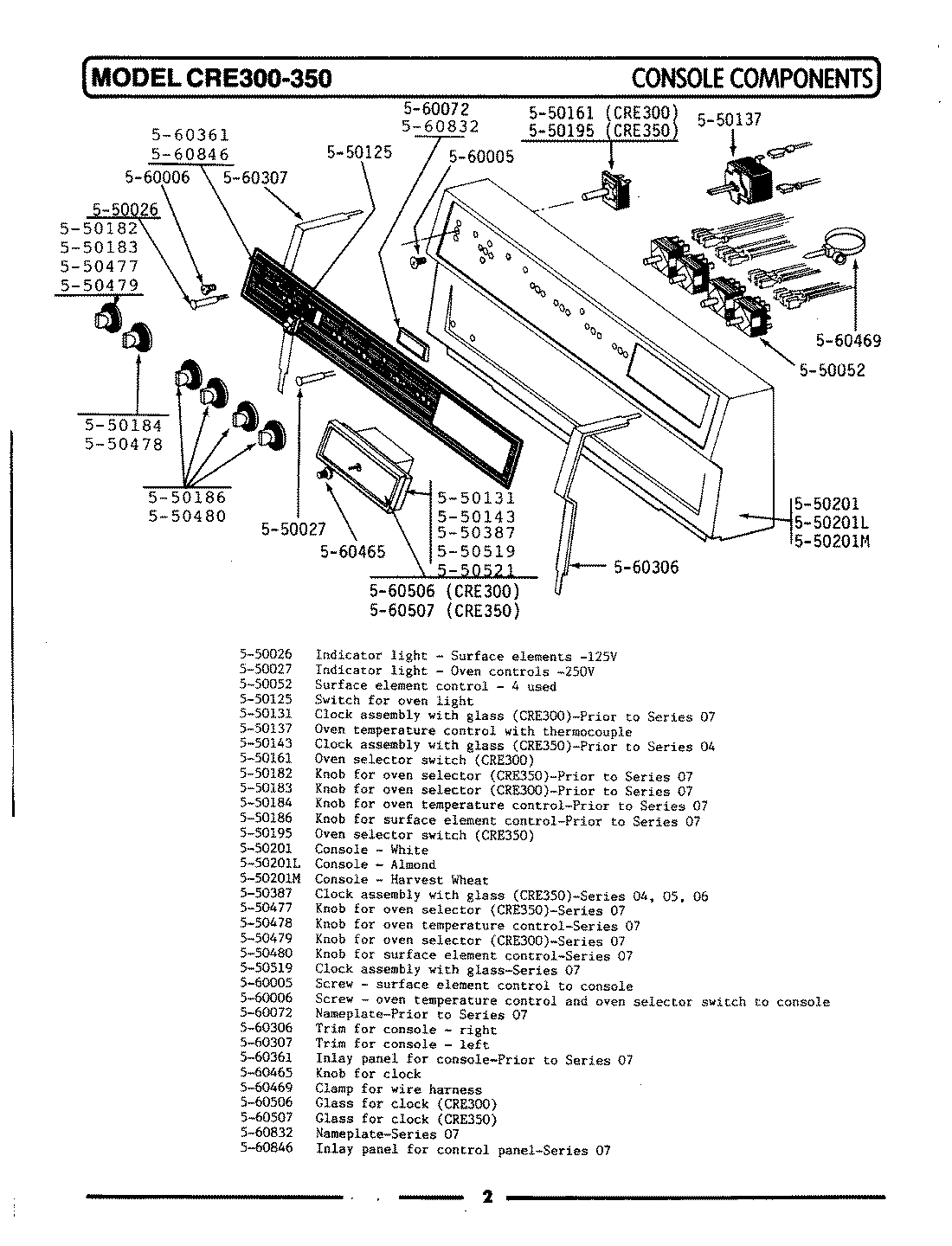

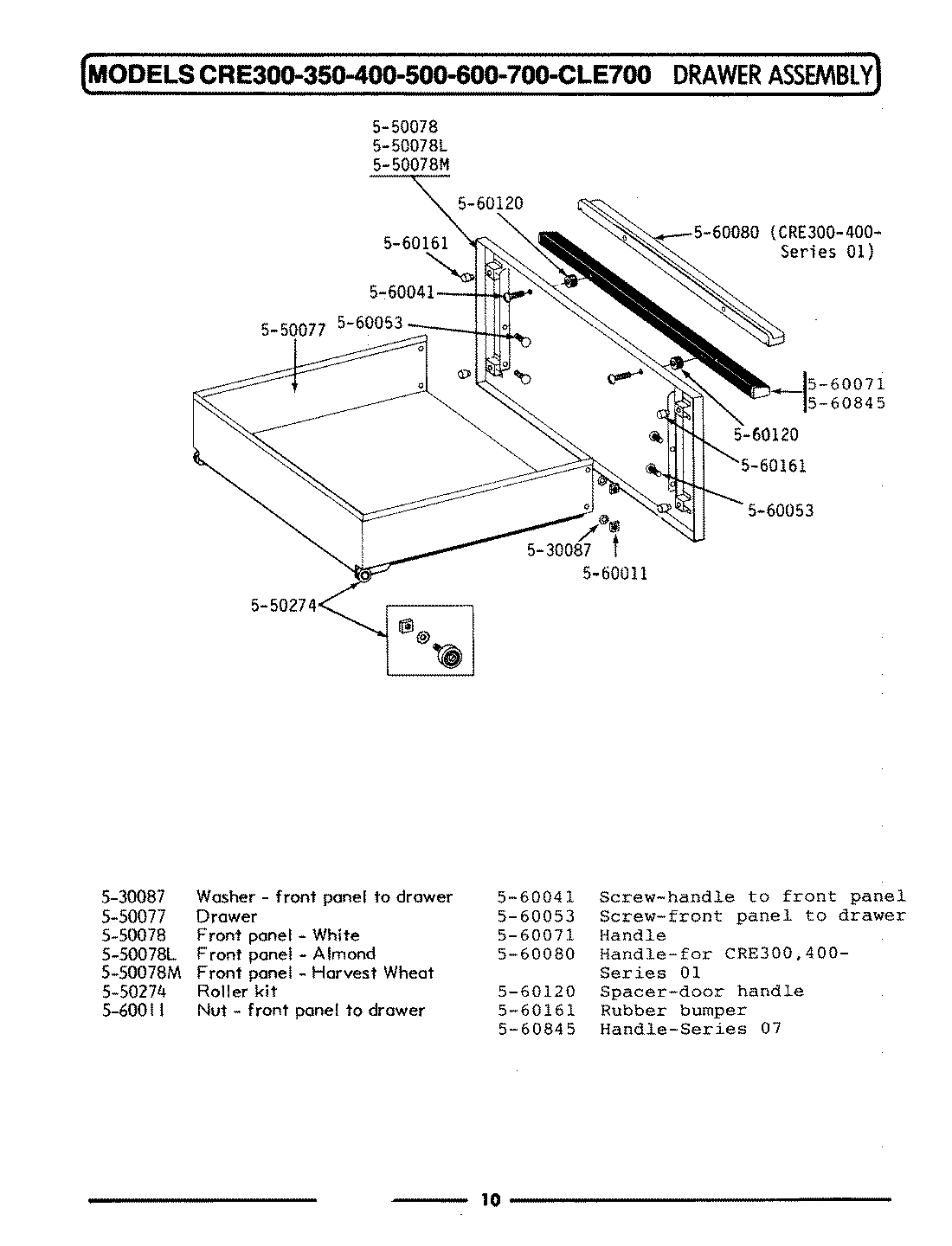

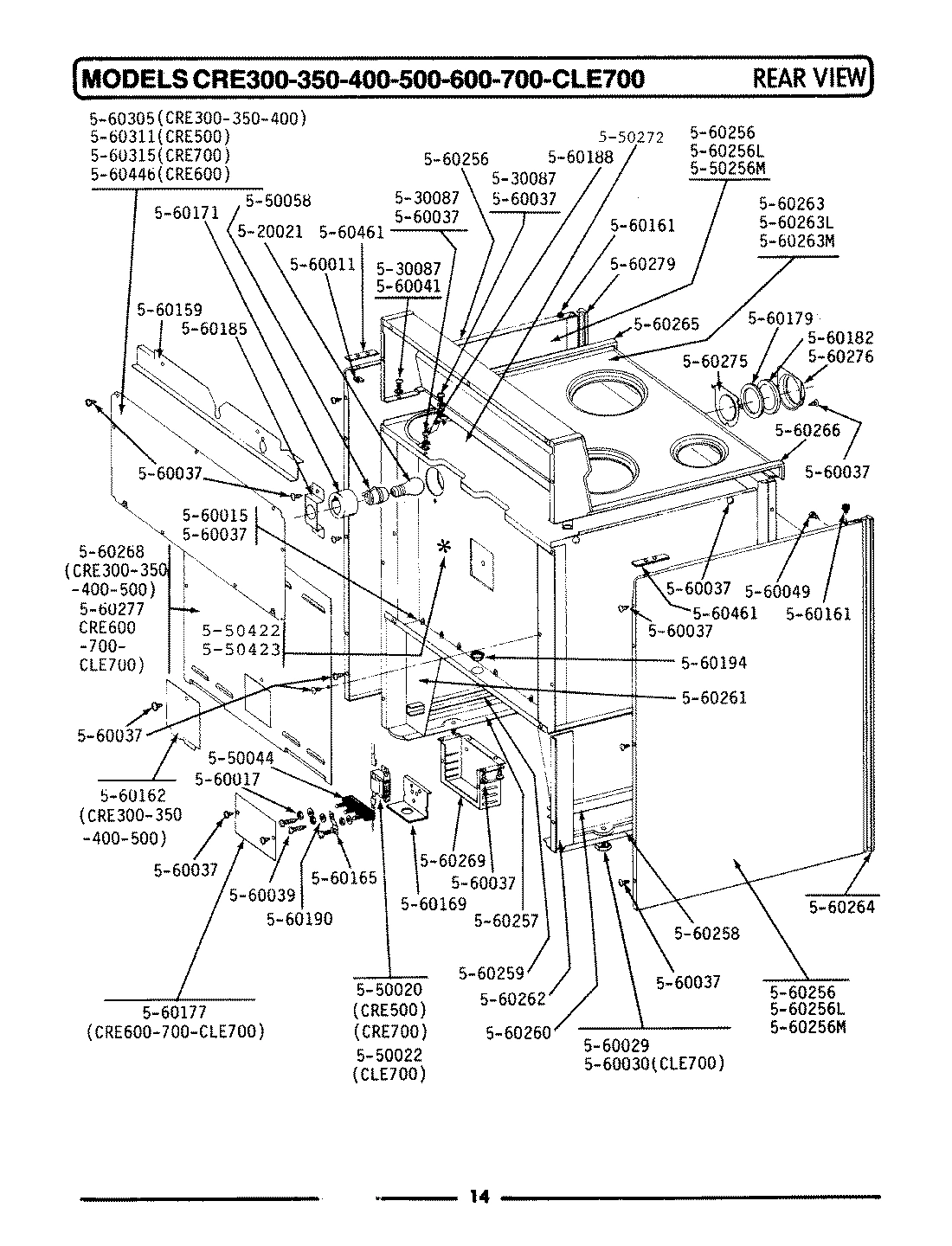

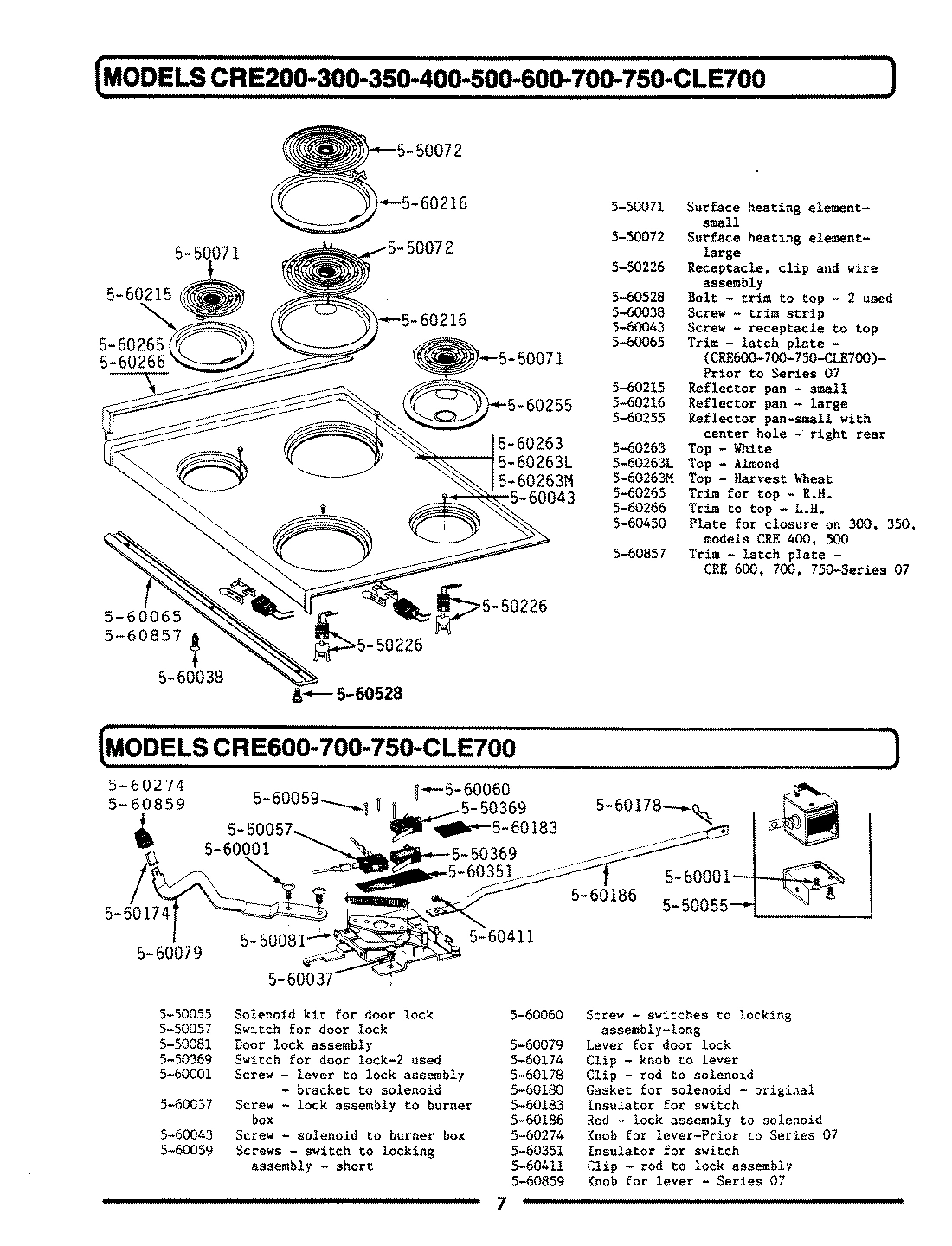

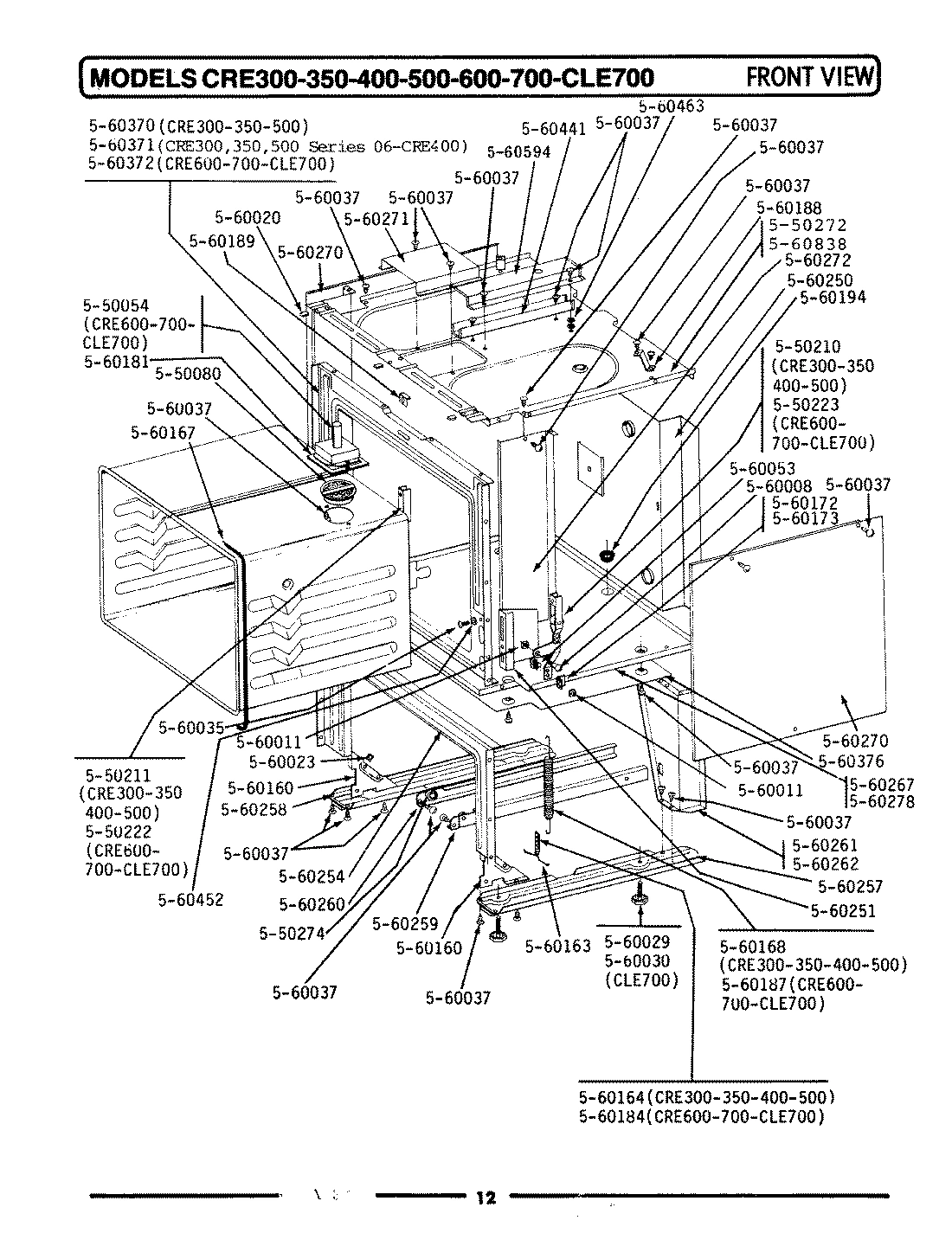

Model Whirlpool CRE300 ELECTRIC RANGE – Common Parts &amp; Diagrams

1

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

1

WPY04100165 Whirlpool Surface Element In Stock WPL WPY04100165 $53.72

1

GLASS WITH FRAME ASSEMBLY WPL 550091 Contact Us For Availability

1

INDICATOR LIGHT-125 VOLT WPL 550026 Contact Us For Availability

1

CATALYTIC BURNER WPL 550080 Contact Us For Availability

1

LOCK WASHER WPL 530087 Contact Us For Availability

2

WP7406P043-60 Whirlpool Bake Element Backorder WPL WP7406P043-60 $99.77

2

WPY04100166 Whirlpool Oven 8" Surface Element In Stock WPL WPY04100166 $30.89

2

DOOR PANEL-WHITE WPL 550092 Contact Us For Availability

2

INDICATOR LIGHT-250 VOLT WPL 550027 Contact Us For Availability

2

HINGE SUPPORT-RIGHT WPL 550210 Contact Us For Availability

2

DRAWER WPL 550077 Contact Us For Availability

3

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $13.57

3

WPW10245259 Whirlpool Terminal Block In Stock WPL WPW10245259 $23.97

3

DOOR PANEL-ALMOND WPL 550092L Contact Us For Availability

3

BROIL ELEMENT WPL 550139 Contact Us For Availability

3

CONTROL SWITCH-HEAT ELEMENT WPL 550052 Contact Us For Availability

3

HINGE SUPPORT-LEFT WPL 550211 Contact Us For Availability

3

DRAWER PANEL-WHITE WPL 550078 Contact Us For Availability

4

DOOR PANEL-HARVEST WHEAT WPL 550092M Contact Us For Availability

4

FOIL WPL 550206 Contact Us For Availability

4

SCREW WPL 560528 Contact Us For Availability

4

SWITCH FOR OVEN LIGHT WPL 550125 Contact Us For Availability

4

SOCKET FOR OVEN LIGHT WPL 550058 Contact Us For Availability

4

DRAWER PANEL-ALMOND WPL 550078L Contact Us For Availability

5

INNER DOOR LINING WPL 550154 Contact Us For Availability

5

SCREW WPL 560052 Contact Us For Availability

5

SCREW WPL 560038 Contact Us For Availability

5

CLOCK ASSEMBLY WPL 550131 Contact Us For Availability

5

POWER CORD - 4 FT. WPL 550246 Contact Us For Availability

5

DRAWER PANEL-HARVEST WHEAT WPL 550078M Contact Us For Availability

6

WP74004005 Whirlpool Screw Backorder WPL WP74004005 $4.82

6

HINGE FOR OVEN DOOR WPL 550207 Contact Us For Availability

6

SCREW WPL 560058 Contact Us For Availability

6

OVEN TEMPERATURE CONTROL WPL 550137 Contact Us For Availability

6

ROLLER REPAIR KIT WPL 550274 Contact Us For Availability

7

M0282009 Whirlpool Air Conditioner Nut Backorder WPL M0282009 $8.89

7

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $9.60

7

BOLT WPL 560009 Contact Us For Availability

7

INSULATION WPL 560086 Contact Us For Availability

7

CONTROL SWITCH-OVEN SELECTO WPL 550161 Contact Us For Availability

7

BOLT WPL 560008 Contact Us For Availability

8

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $12.65

8

NUT WPL 560013 Contact Us For Availability

8

INSULATION WPL 560092 Contact Us For Availability

8

KNOB FOR OVEN SELECTOR WPL 550183 Contact Us For Availability

8

NUT WPL 560015 Contact Us For Availability

8

SCREW WPL 560041 Contact Us For Availability

9

CLIP FOR CAPILLARY TUBE WPL 560112 Contact Us For Availability

9

KNOB FOR OVEN TEMPERATURE WPL 550184 Contact Us For Availability

9

NUT-BURNER BOX WPL 560020 Contact Us For Availability

9

SCREW WPL 560053 Contact Us For Availability

9

NUT WPL 560017 Contact Us For Availability

HANDLE FOR DOOR WPL 560071 Contact Us For Availability

VENT PIPE WPL 560166 Contact Us For Availability

KNOB FOR SURFACE ELEMENT WPL 550186 Contact Us For Availability

NUT-BRACE WPL 560023 Contact Us For Availability

ADJUSTABLE LEG WPL 560029 Contact Us For Availability

WP7101P126-60 Whirlpool Screw Backorder WPL WP7101P126-60 $4.82

SCREW-HANDLE TO DOOR WPL 560047 Contact Us For Availability

HANDLE FOR DOOR WPL 560080 Contact Us For Availability

CLIP-MULLION ELEMENT WPL 560175 Contact Us For Availability

CONSOLE-WHITE WPL 550201 Contact Us For Availability

SCREW-INNER DOOR LINING WPL 560039 Contact Us For Availability

CLIP-CAPILLARY TUBE WPL 560176 Contact Us For Availability

CONSOLE-ALMOND WPL 550201L Contact Us For Availability

SCREW-FRAME TO INNER DOOR WPL 560035 Contact Us For Availability

SPACER WPL 560120 Contact Us For Availability

13

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $39.84

13

CONSOLE-HARVEST WHEAT WPL 550201M Contact Us For Availability

13

RUBBER BUMPER WPL 560161 Contact Us For Availability

INSULATION WPL 560085 Contact Us For Availability

DOOR HANDLE WPL 560845 Contact Us For Availability

HEAT DEFLECTOR WPL 560253 Contact Us For Availability

KNOB, OVEN CONTROL WPL 550478 Contact Us For Availability

SCREW WPL 560049 Contact Us For Availability

SPACER-OVEN DOOR HANDLE WPL 560170 Contact Us For Availability

FRONT PLATE FOR ENCLOSURE WPL 560450 Contact Us For Availability

KNOB - SELECTOR SWITCH WPL 550479 Contact Us For Availability

BRACE-MAIN FRONT WPL 560160 Contact Us For Availability

BRACKET FOR BURNER BOX WPL 560159 Contact Us For Availability

16

BAFFLE WPL 560299 Contact Us For Availability

16

CONTROL KNOB WPL 550480 Contact Us For Availability

16

LINK FOR DOOR SPRING WPL 560163 Contact Us For Availability

GLASS-OUTER WPL 560353 Contact Us For Availability

CLOCK-REGULAR WPL 550519 Contact Us For Availability

BRACKET FOR DOOR SPRING WPL 560164 Contact Us For Availability

COVER-TERMINAL BLOCK WPL 560162 Contact Us For Availability

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.67

SPACER FOR DOOR HANDLE WPL 560509 Contact Us For Availability

SUPPORT-BROIL ELEMENT WPL 560456 Contact Us For Availability

SEAL FOR OVEN WPL 560167 Contact Us For Availability

GROUND LUG WPL 560165 Contact Us For Availability

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $4.67

SCREW WPL 560510 Contact Us For Availability

SPRING FOR DOOR WPL 560168 Contact Us For Availability

BRACKET-TERMINAL BLOCK WPL 560169 Contact Us For Availability

GLASS, OVEN DOOR WPL 560844 Contact Us For Availability

NAMEPLATE WPL 560072 Contact Us For Availability

BRACKET FOR HINGE-RIGHT WPL 560172 Contact Us For Availability

COVER FOR LIGHT SOCKET WPL 560171 Contact Us For Availability

21

TRIM FOR CONSOLE-RIGHT WPL 560306 Contact Us For Availability

21

BRACKET FOR HINGE-LEFT WPL 560173 Contact Us For Availability

21

BRACKET FOR OVEN LIGHT WPL 560185 Contact Us For Availability

SPACER, DOOR HANDLE WPL 560847 Contact Us For Availability

TRIM FOR CONSOLE-LEFT WPL 560307 Contact Us For Availability

GASKET FOR VENT BOX WPL 560181 Contact Us For Availability

BRACKET FOR TOP WPL 560188 Contact Us For Availability

23

INLAY PANEL FOR CONSOLE WPL 560361 Contact Us For Availability

23

WASHER WPL 560190 Contact Us For Availability

24

KNOB FOR CLOCK WPL 560465 Contact Us For Availability

24

TRIM FOR OVEN WPL 560189 Contact Us For Availability

24

BURNER BOX KIT WPL 550272 Contact Us For Availability

25

CLAMP FOR WIRE HARNESS WPL 560469 Contact Us For Availability

25

BUSHING - WIRE HARNESS WPL 560194 Contact Us For Availability

26

GLASS FOR CLOCK, ONE HOLE WPL 560506 Contact Us For Availability

26

BACK PANEL WPL 560250 Contact Us For Availability

26

SIDE PANEL-WHITE WPL 560256 Contact Us For Availability

27

NAME PLATE WPL 560832 Contact Us For Availability

27

BRACE FOR SUPPORT-RIGHT WPL 560251 Contact Us For Availability

27

SIDE PANEL-ALMOND WPL 560256L Contact Us For Availability

28

BRACE FOR SUPPORT-LEFT WPL 560252 Contact Us For Availability

28

SIDE PANEL-HARVEST WHEAT WPL 560256M Contact Us For Availability

29

FRAME FOR DRAWER WPL 560254 Contact Us For Availability

29

BASE SUPPORT-RIGHT WPL 560257 Contact Us For Availability

30

BASE SUPPORT-LEFT WPL 560258 Contact Us For Availability

31

TRACK FOR DRAWER-RIGHT WPL 560259 Contact Us For Availability

32

TRACK FOR DRAWER-LEFT WPL 560260 Contact Us For Availability

33

SUPPORT BRACKET-RIGHT WPL 560261 Contact Us For Availability

34

SUPPORT BRACKET-LEFT WPL 560262 Contact Us For Availability

35

TOP-WHITE WPL 560263 Contact Us For Availability

36

TOP-ALMOND WPL 560263L Contact Us For Availability

36

SUPPORT FOR INSULATION WPL 560267 Contact Us For Availability

37

TOP-HARVEST WHEAT WPL 560263M Contact Us For Availability

37

COVER FOR INSULATION WPL 560270 Contact Us For Availability

38

COVER FOR WIRE WPL 560594 Contact Us For Availability

38

TRIM FOR END PANEL WPL 560264 Contact Us For Availability

39

TRIM FOR TOP-RIGHT WPL 560265 Contact Us For Availability

39

FRAME FOR OVEN WPL 560370 Contact Us For Availability

40

TRIM FOR TOP-LEFT WPL 560266 Contact Us For Availability

40

FRAME FOR OVEN WPL 560371 Contact Us For Availability

41

SHIELD-OVEN BOTTOM WPL 560376 Contact Us For Availability

41

BACK PANEL WPL 560268 Contact Us For Availability

42

BRACKET-WIRE HARNESS WPL 560441 Contact Us For Availability

42

TERMINAL BOX WPL 560269 Contact Us For Availability

43

PACKING-MAIN TOP WPL 560452 Contact Us For Availability

43

BACK PANEL WPL 560305 Contact Us For Availability

44

WASHER WPL 560463 Contact Us For Availability

44

WIRE CONNECTOR WPL 560460 Contact Us For Availability

45

BOTTOM, BURNER BOX WPL 560838 Contact Us For Availability

45

SPACER PAD FOR CONSOLE WPL 560461 Contact Us For Availability

46

THERMOSTAT - DISC TYPE WPL 550422 Contact Us For Availability

NI

INLAY, BACKGUARD PANEL WPL 560846 Contact Us For Availability

NI

POWER CORD - 5 FT. WPL 550248 Contact Us For Availability
