Model Whirlpool CP31600ADV GAS RANGE – Common Parts &amp; Diagrams

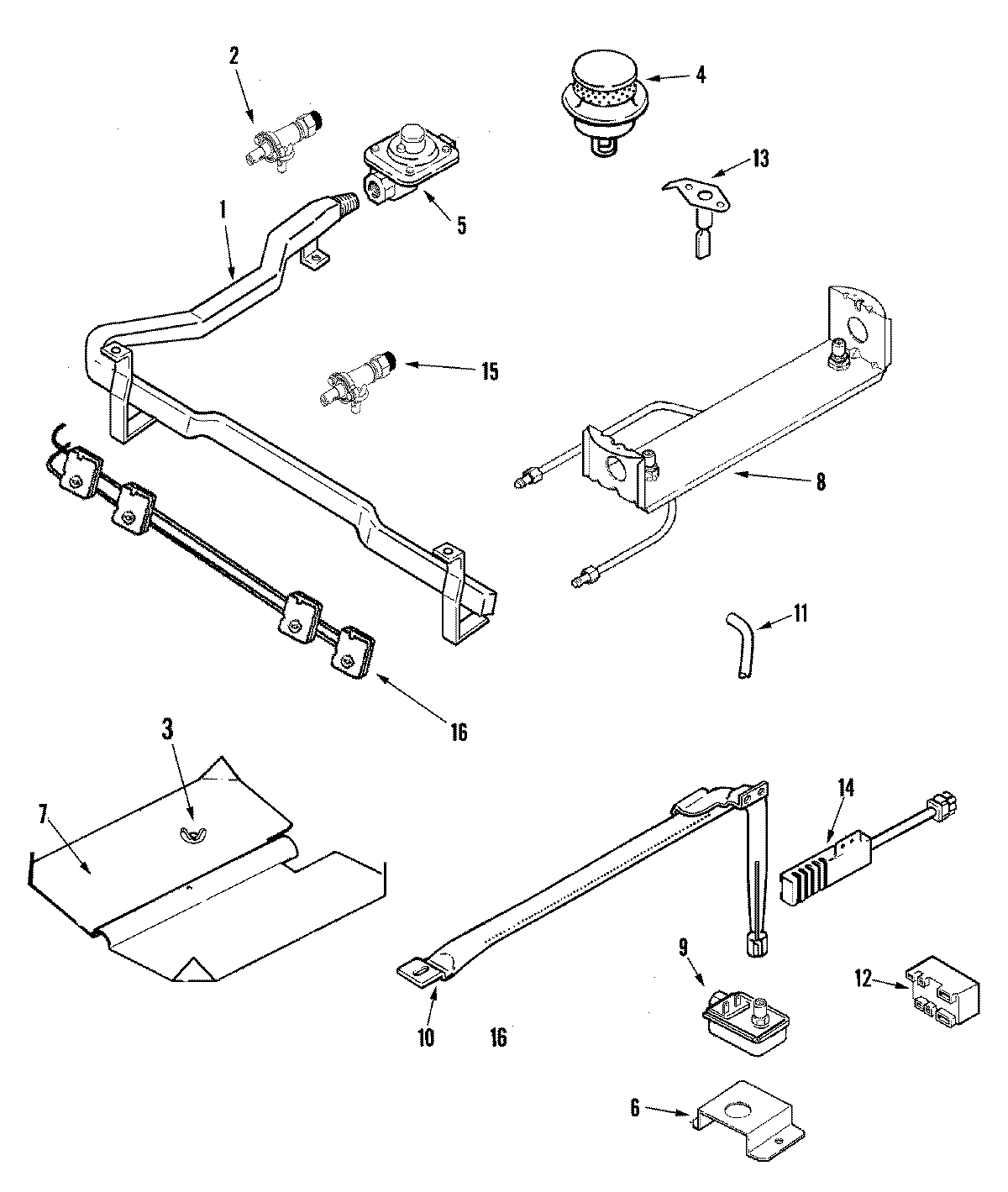

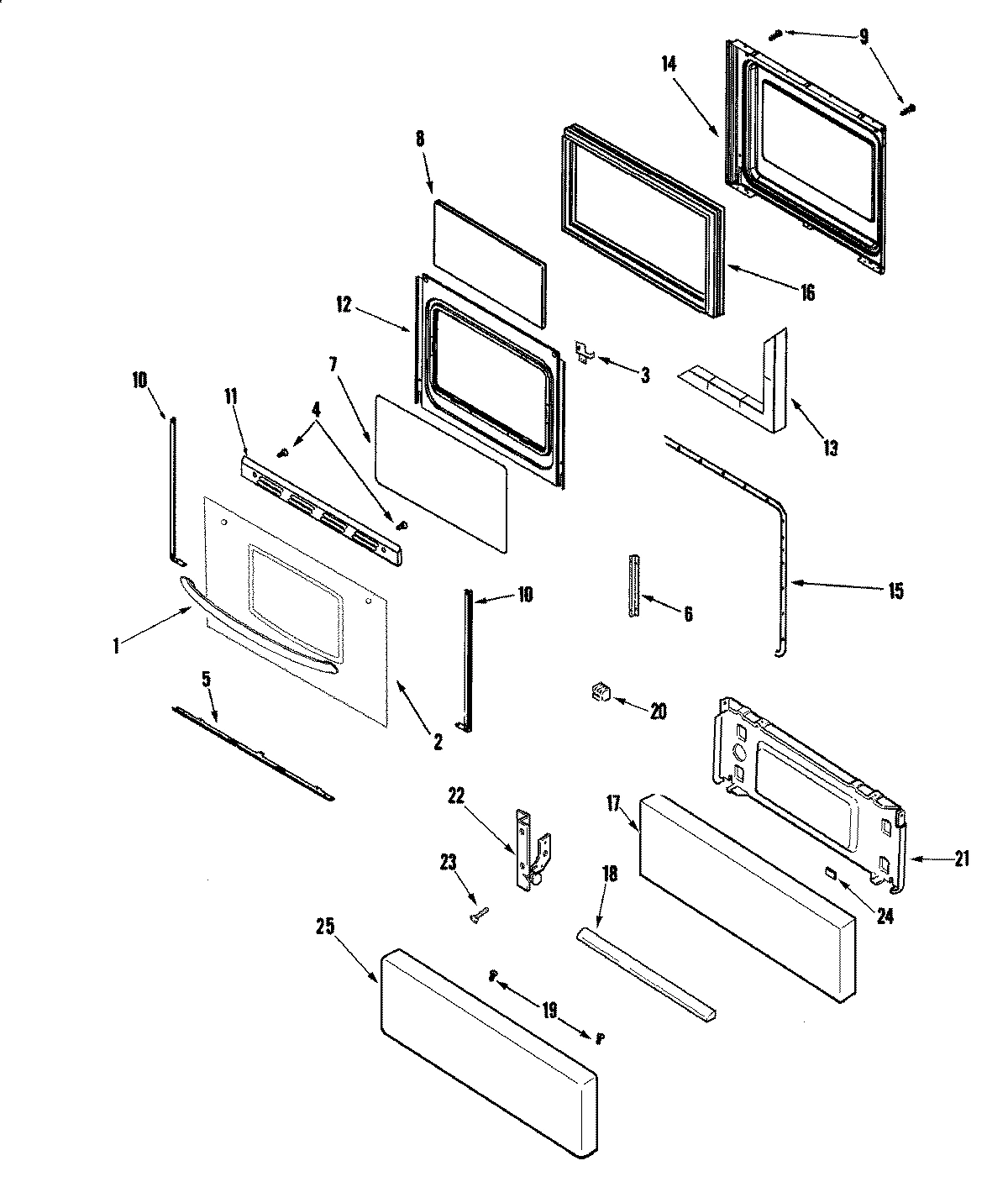

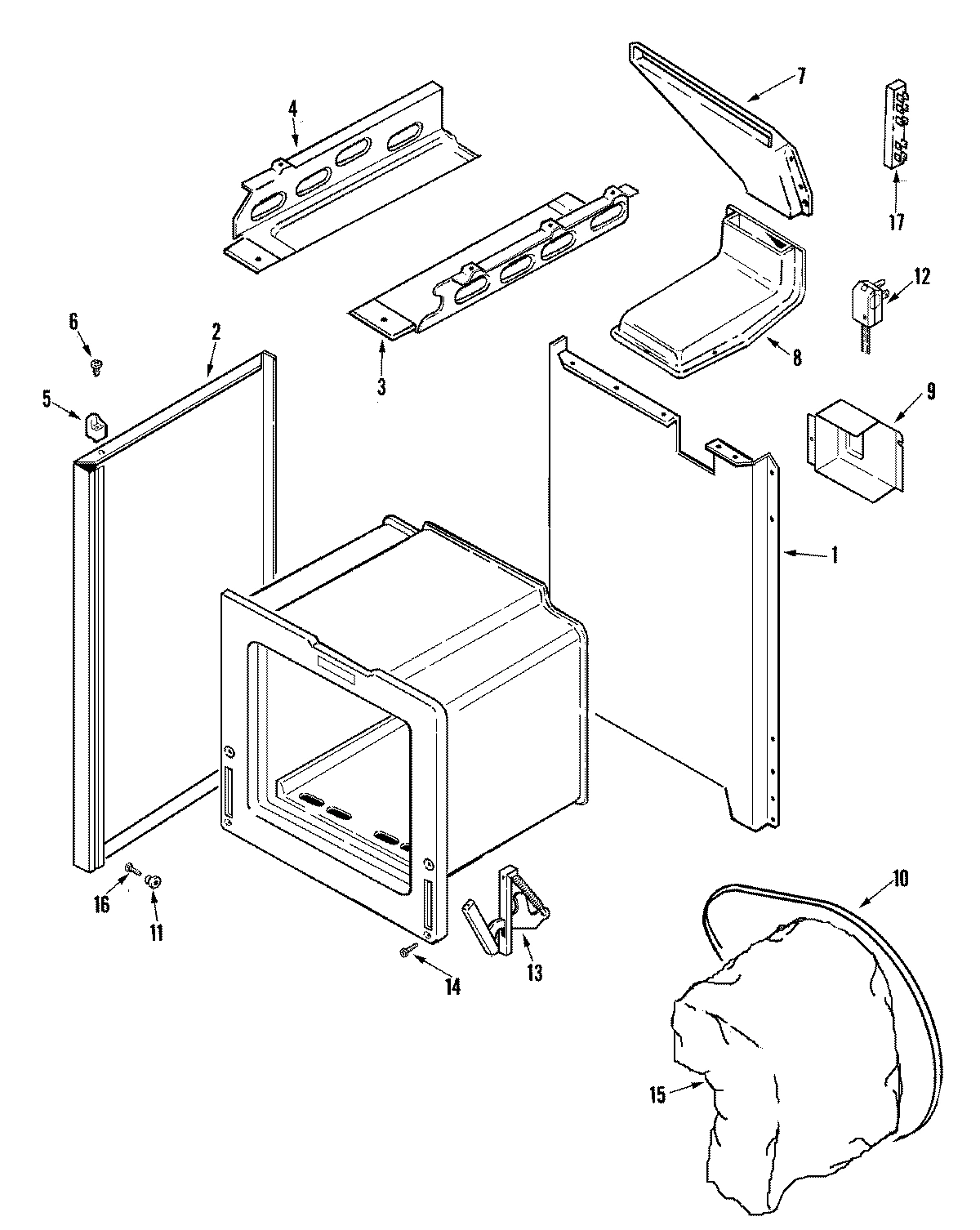

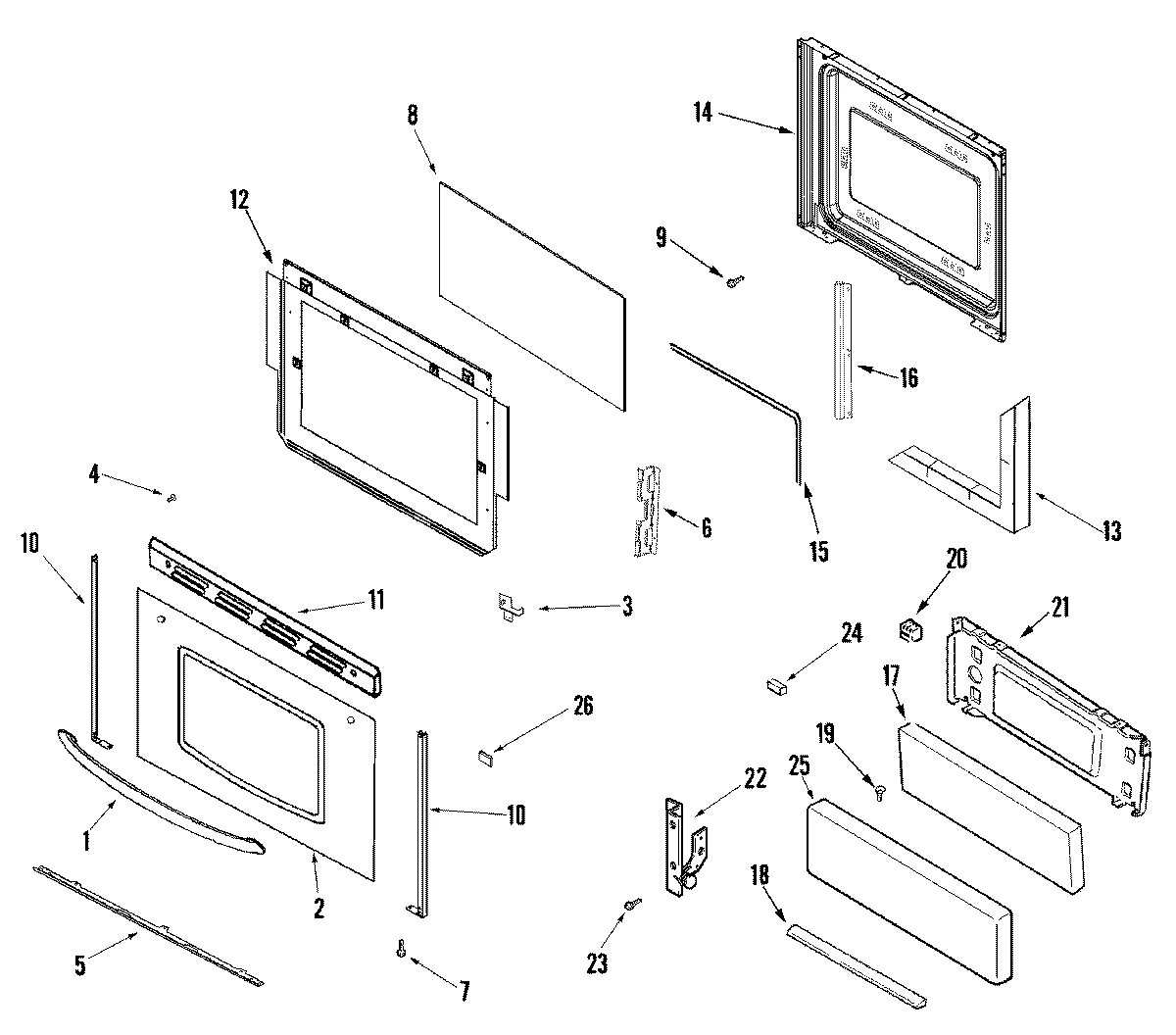

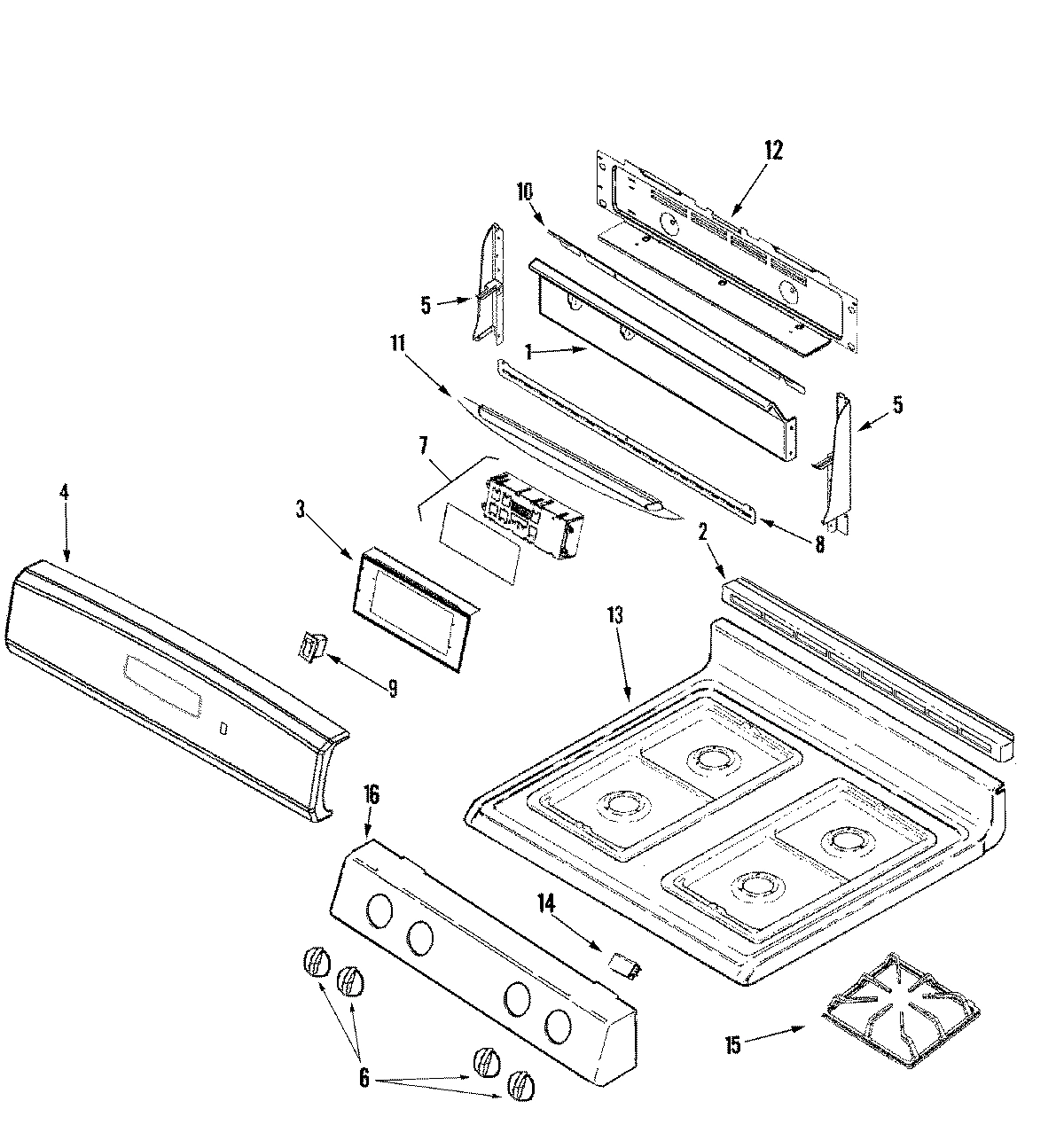

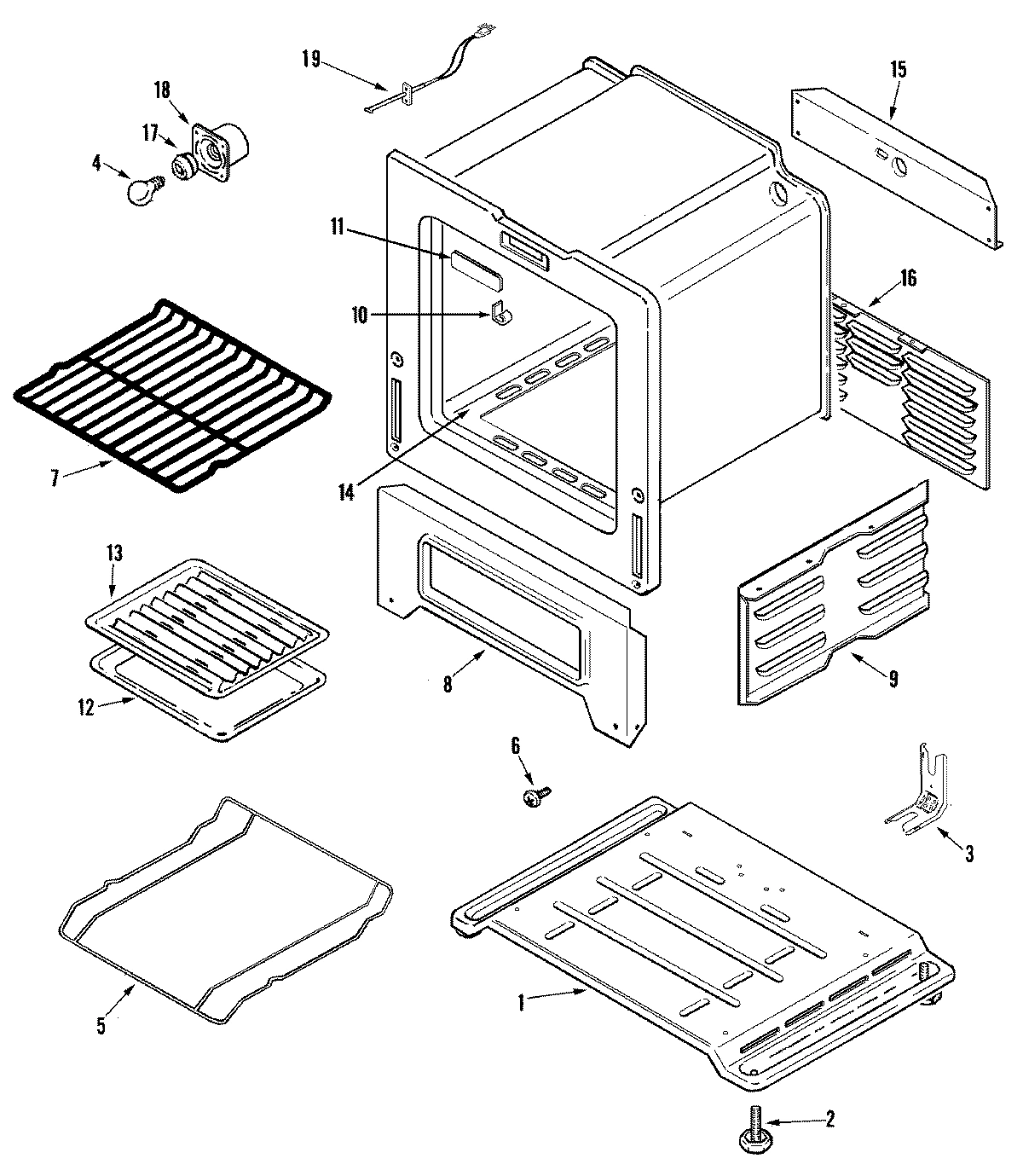

1

BASE, MAIN WPL 74005215 Contact Us For Availability

1

BACK, MAIN (GAS) WPL 74009884 Contact Us For Availability

1

HANDLE, DOOR (WHT) WPL 74010337 Contact Us For Availability

1

PIPE, MANIFOLD WPL 74009886 Contact Us For Availability

1

SCREW WPL 7101P14760 Contact Us For Availability

1

SHIELD, VENT DEFLECTOR WPL 74009779 Contact Us For Availability

2

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

2

PANEL, SIDE (WHT) WPL 74003236 Contact Us For Availability

2

KIT, DOOR GLASS (WHT) WPL 12002505 Contact Us For Availability

2

VALVE (MUELLER) WPL 74009462 Contact Us For Availability

2

VALVE (MUELLER 7.2) WPL 74009770 Contact Us For Availability

2

SCREW (10ABX1/4P TR ZN) WPL 7101P20860 Contact Us For Availability

2

TRIM, VENT (BLK) WPL 74009797 Contact Us For Availability

3

3801F831-45 Whirlpool Bracket Assembly Backorder WPL 3801F831-45 $14.02

3

3801F832-45 Whirlpool Bracket Backorder WPL 3801F832-45 $14.02

3

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

3

SCREW WPL 7101P35260 Contact Us For Availability

3

BOX, BURNER (RT) WPL 74009767 Contact Us For Availability

3

NUT, WING WPL 7103P03060 Contact Us For Availability

3

BRACKET, CLOCK WPL 74008716 Contact Us For Availability

4

WP3412D021-09 Whirlpool Burner Assembly In Stock WPL WP3412D021-09 $123.18

4

WP3412D024-09 Whirlpool Oven Burner Head In Stock WPL WP3412D024-09 $52.38

4

WP74006515 Whirlpool Washer Screw Backorder WPL WP74006515 $5.02

4

WP98008545 Whirlpool Screw Backorder WPL WP98008545 $11.88

4

BULB-OVEN WPL 7407P10360 Contact Us For Availability

4

BOX, BURNER (LT) WPL 74009768 Contact Us For Availability

4

PANEL, BACKGUARD (WHT) WPL 74010457 Contact Us For Availability

5

WP3807F708-71 Whirlpool Support In Stock WPL WP3807F708-71 $112.09

5

WP98008544 Whirlpool Screw Assembly In Stock WPL WP98008544 $9.16

5

RACK, BROILER WPL 74002381 Contact Us For Availability

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

5

REGULATOR, PRESSURE (L.P.) WPL 74007524 Contact Us For Availability

5

SUPPORT, BACKGUARD (LT-WHT) WPL 74010211 Contact Us For Availability

5

SUPPORT, BACKGUARD (RT-WHT) WPL 74010212 Contact Us For Availability

6

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

6

KNOB, VALVE (WHT) WPL 74010433 Contact Us For Availability

6

RETAINER, GLASS WPL 74003650 Contact Us For Availability

7

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $4.82

7

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

7

BAFFLE, OVEN BURNER WPL 74002393 Contact Us For Availability

7

EXTENSION, FLUE BOX WPL 4022W00719 Contact Us For Availability

7

CLOCK W/OVERLAY (WHT) WPL 74010310 Contact Us For Availability

8

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $115.28

8

FRONT, OVEN (LWR) WPL 74002327 Contact Us For Availability

8

BOX, VENT WPL 74006420 Contact Us For Availability

8

ASSY. ORIFICE FITTING (LT) WPL 74010468 Contact Us For Availability

8

ASSY. ORIFICE FITTING (RT) WPL 74010469 Contact Us For Availability

8

SHIELD, SIGHT WPL 74009780 Contact Us For Availability

9

74008717 Whirlpool White Rocker Switch Backorder WPL 74008717 $61.72

9

VALVE, SAFETY (LP) WPL 74010466 Contact Us For Availability

9

SIDE, BROILER (RT) WPL 74002374 Contact Us For Availability

9

SIDE, BROILER (LT) WPL 74002375 Contact Us For Availability

9

COVER, ACCESS WPL 74004591 Contact Us For Availability

9

SCREW WPL 74009416 Contact Us For Availability

WP3608F116-71 Whirlpool Door Trim Backorder WPL WP3608F116-71 $88.79

WP3608F117-71 Whirlpool Door Trim Backorder WPL WP3608F117-71 $88.63

TAPE, DBL SIDED (WHT) WPL 74009014 Contact Us For Availability

CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability

STRAP, INSULATION RETAINER WPL 74002369 Contact Us For Availability

BURNER, OVEN WPL 74002434 Contact Us For Availability

SHIELD, WIRE WPL 74009708 Contact Us For Availability

TRIM, DOOR TOP (WHT) WPL 74010238 Contact Us For Availability

PLUG, LOCK SLOT WPL 74003406 Contact Us For Availability

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

TUBING, OVEN BURNER WPL 74006417 Contact Us For Availability

SHIELD, VENT (WHT) WPL 74009799 Contact Us For Availability

SCREW, (8 X 1/4) (WHT) WPL 74009802 Contact Us For Availability

3601F373-51 Whirlpool Baffle Backorder WPL 3601F373-51 $195.78

8215557 Whirlpool Gas Stove Range Oven Cookto In Stock WPL 8215557 $141.83

WP7101P434-60 Whirlpool Screw Backorder WPL WP7101P434-60 $4.82

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

CORD, POWER WPL 74007556 Contact Us For Availability

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

SCREW WPL 7101P35660 Contact Us For Availability

BAFFLE, OVEN DOOR WPL 74009502 Contact Us For Availability

COVER, WIRE (2 5/8`` X 2) WPL 74006536 Contact Us For Availability

COVER, REAR WIRE (UPR) WPL 74009943 Contact Us For Availability

74004053 Whirlpool Range Cooktop Top Burner E In Stock WPL 74004053 $17.15

W11189172 Whirlpool Glide Drawer Backorder WPL W11189172 $11.24

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $6.25

INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

IGNITER WPL 74004410 Contact Us For Availability

TOP, MAIN (WHT) WPL 74003512 Contact Us For Availability

74007498 Whirlpool Range Flat Igniter In Stock WPL 74007498 $41.64

WP74001574 Whirlpool Snap Nut Backorder WPL WP74001574 $6.85

LINING, OVEN DOOR WPL 74011460 Contact Us For Availability

BOTTOM, OVEN WPL 74002376 Contact Us For Availability

CLIP, OVEN BOTTOM WPL 74002377 Contact Us For Availability

BOTTOM, OVEN (FIXED) WPL 74011228 Contact Us For Availability

SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability

LINING, OVEN DOOR WPL 74009909 Contact Us For Availability

CLIP, TOP LOCKING WPL 74004827 Contact Us For Availability

12002277 Whirlpool Oven Valve Kit & Screw Backorder WPL 12002277 $209.00

SEAL, DOOR WPL 7212P04360 Contact Us For Availability

SHIELD, BROILER (BK) WPL 74002378 Contact Us For Availability

INSULATION, OVEN WRAP WPL 74002370 Contact Us For Availability

INSULATION, OVEN BACK WPL 74002634 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

WPW10180490 Whirlpool Wire Harness Backorder WPL WPW10180490 $155.79

BACK, BROILER WPL 74002379 Contact Us For Availability

FRAME, GLASS WPL 74003644 Contact Us For Availability

PANEL, MANIFOLD (WHT) WPL 74010460 Contact Us For Availability

INSULATION, BROILER DRAWER WPL 74001814 Contact Us For Availability

RECEPTACLE, BULB WPL 74003387 Contact Us For Availability

SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability

18

HANDLE, DOOR (WHT) WPL 74010424 Contact Us For Availability

18

HOUSING, BULB WPL 74003388 Contact Us For Availability

19

12001655 Whirlpool Oven Sensor In Stock WPL 12001655 $21.52

20

GLIDE WPL 74001663 Contact Us For Availability

21

LINING, DRAWER WPL 74007553 Contact Us For Availability

22

HINGE, DRAWER WPL 74007560 Contact Us For Availability

23

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.67

25

PANEL, DRAWER (WHT) WPL 74001729 Contact Us For Availability

26

SPACER, RUBBER (BLK-SQUARE) WPL 74010267 Contact Us For Availability

SVC MAN, RANGE, GAS WPL 16023522 Contact Us For Availability

TECH SHT, RANGE, GAS WPL 16023523 Contact Us For Availability

HARNESS, SUPPLY WPL 74006924 Contact Us For Availability

BOOKLET, COOKING MADE SIMPLE WPL 74009330 Contact Us For Availability

HARNESS, GAS WPL 74009888 Contact Us For Availability

HARNESS, IGNITOR WPL 74009889 Contact Us For Availability

HARNESS, BACKGUARD WPL 74010417 Contact Us For Availability

KIT, LP TO NAT WPL 74010467 Contact Us For Availability

MANUAL, USE & CARE WPL 8113P44860 Contact Us For Availability

MANUAL, USE & CARE WPL 8113P51460 Contact Us For Availability

MANUAL, USE & CARE WPL 8113P56060 Contact Us For Availability

WIRING INFORMATION WPL 15003530 Contact Us For Availability
