Model Whirlpool CG34800ADV GAS RANGE – Common Parts & Diagrams

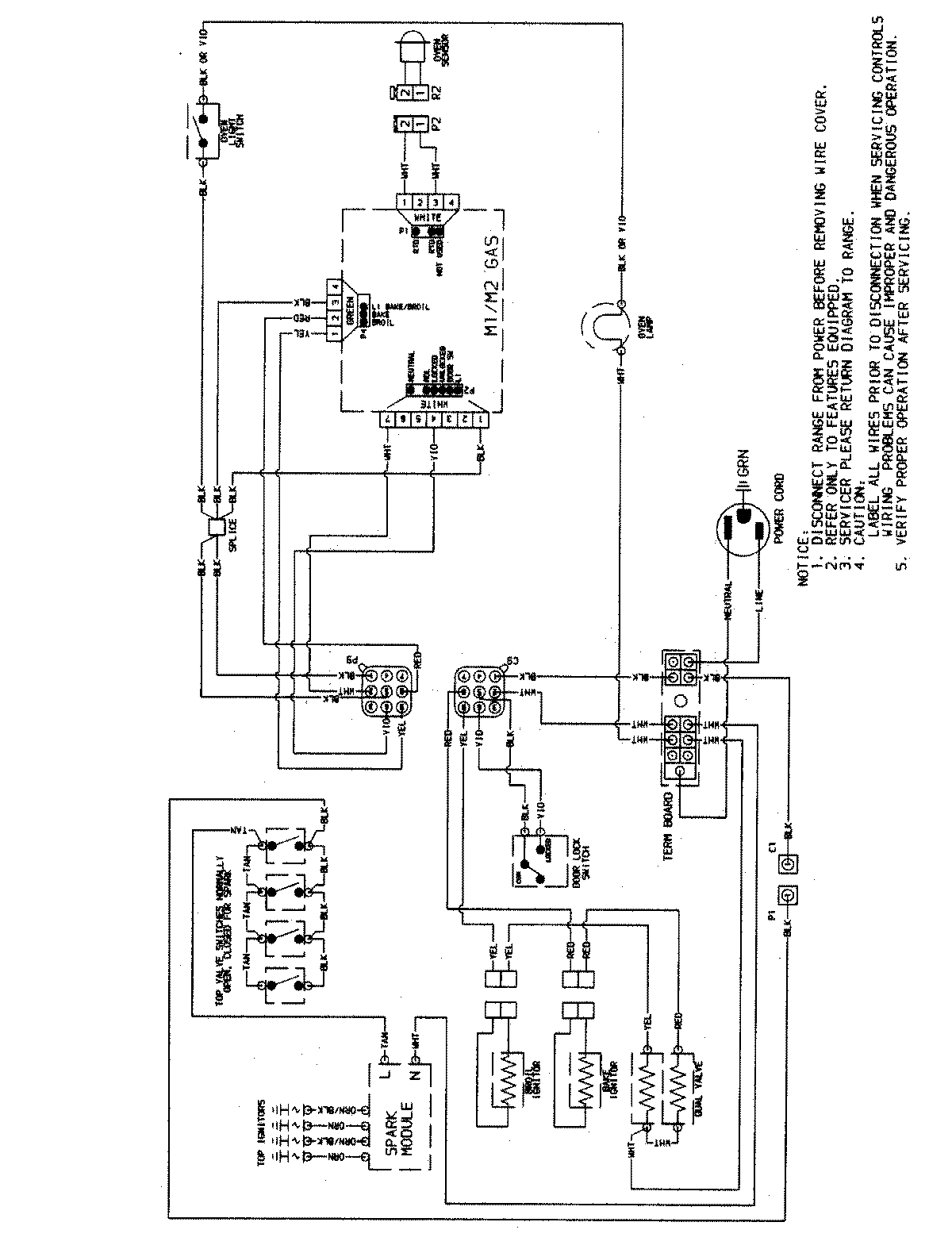

08 - WIRING INFORMATION

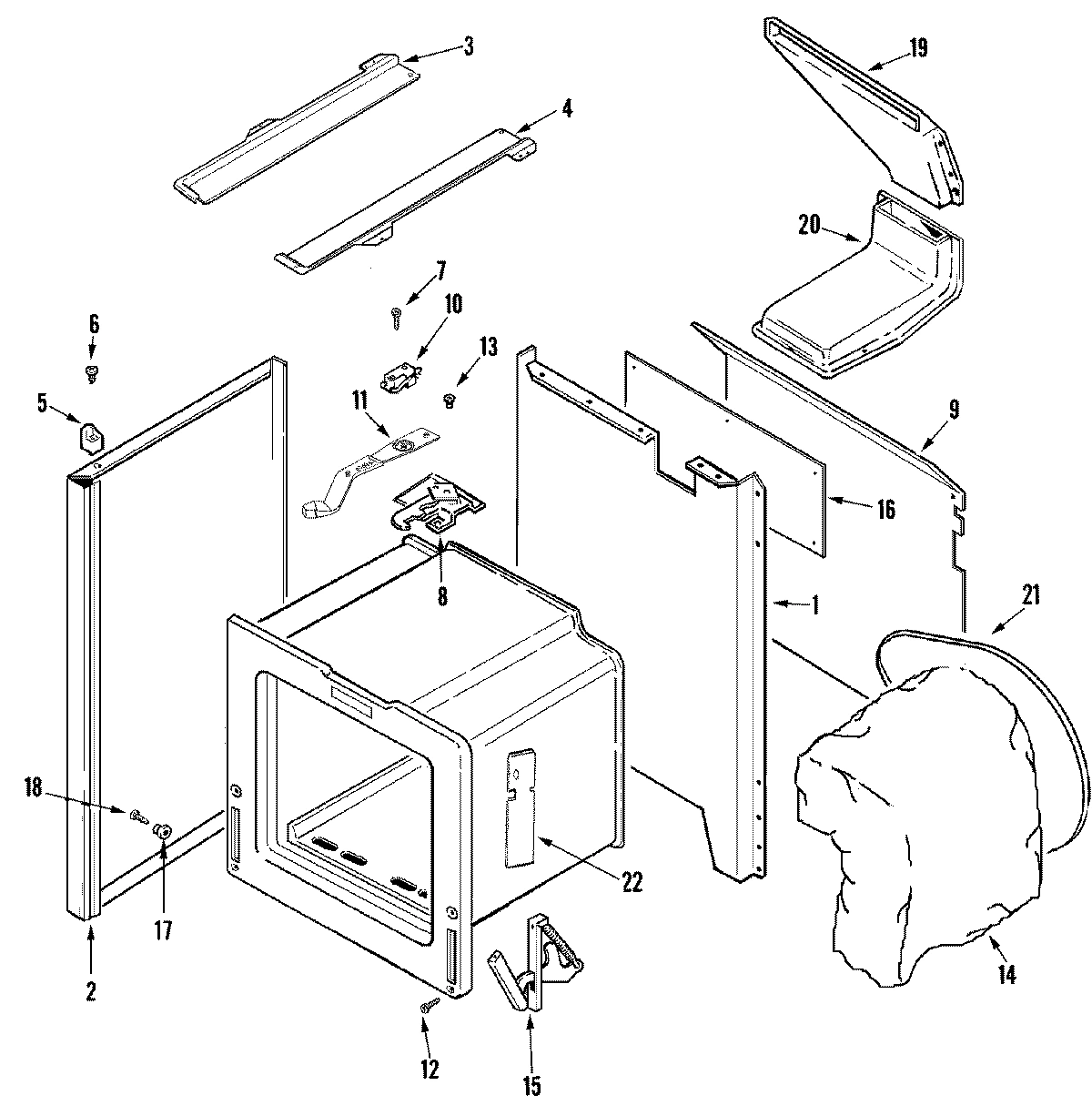

01 - BODY

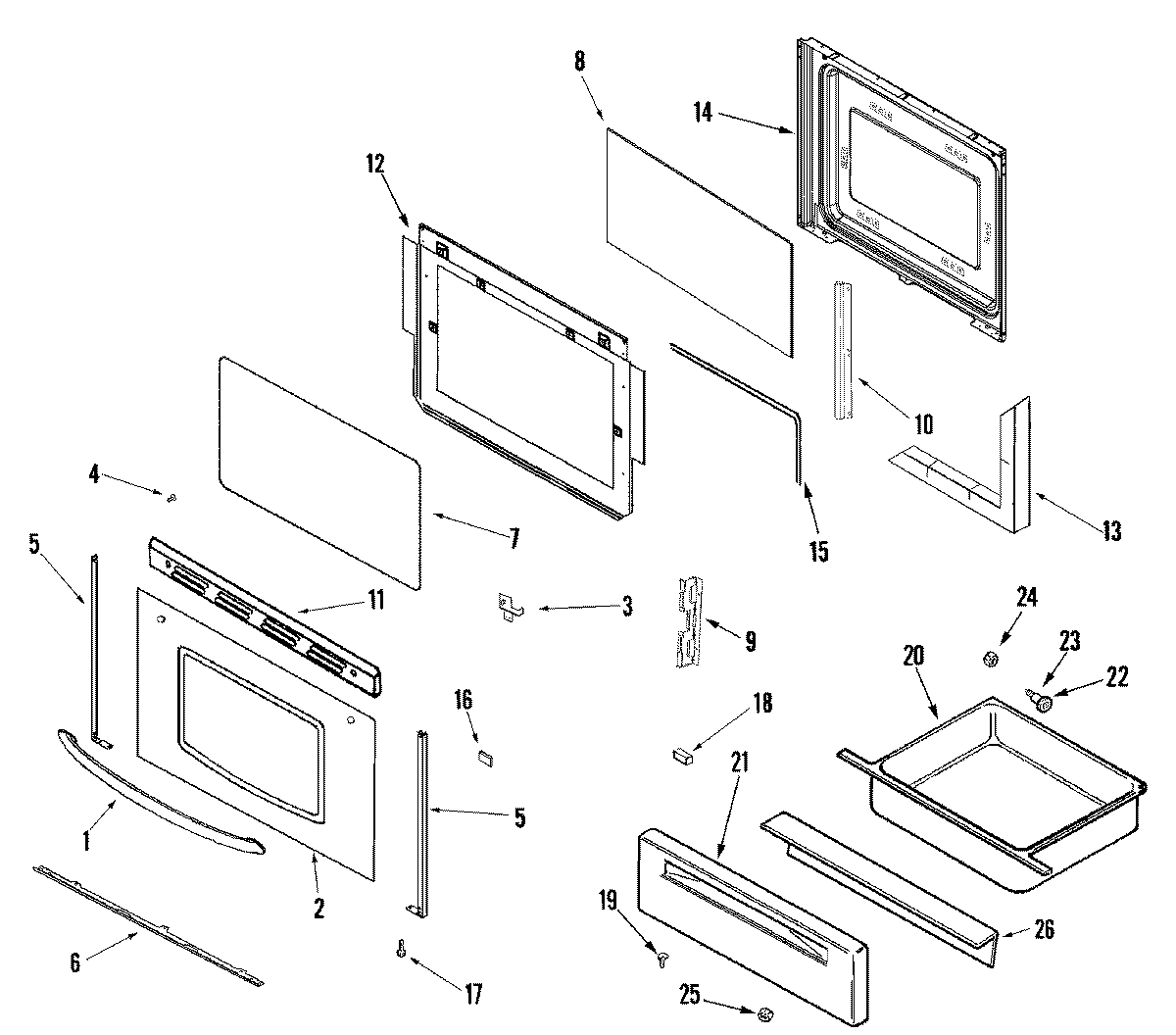

04 - DOOR/DRAWER (SERIES 16)

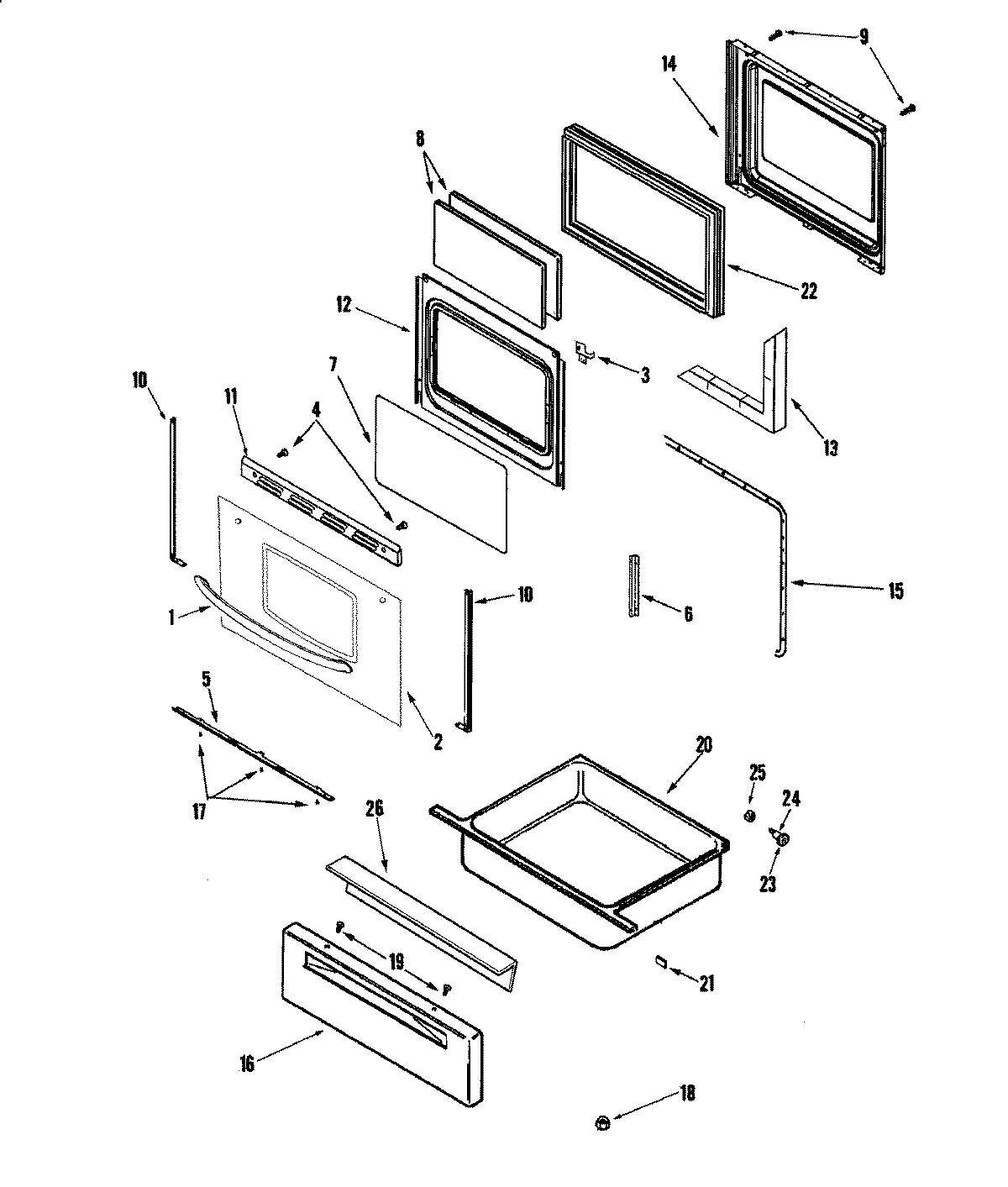

03 - DOOR/DRAWER

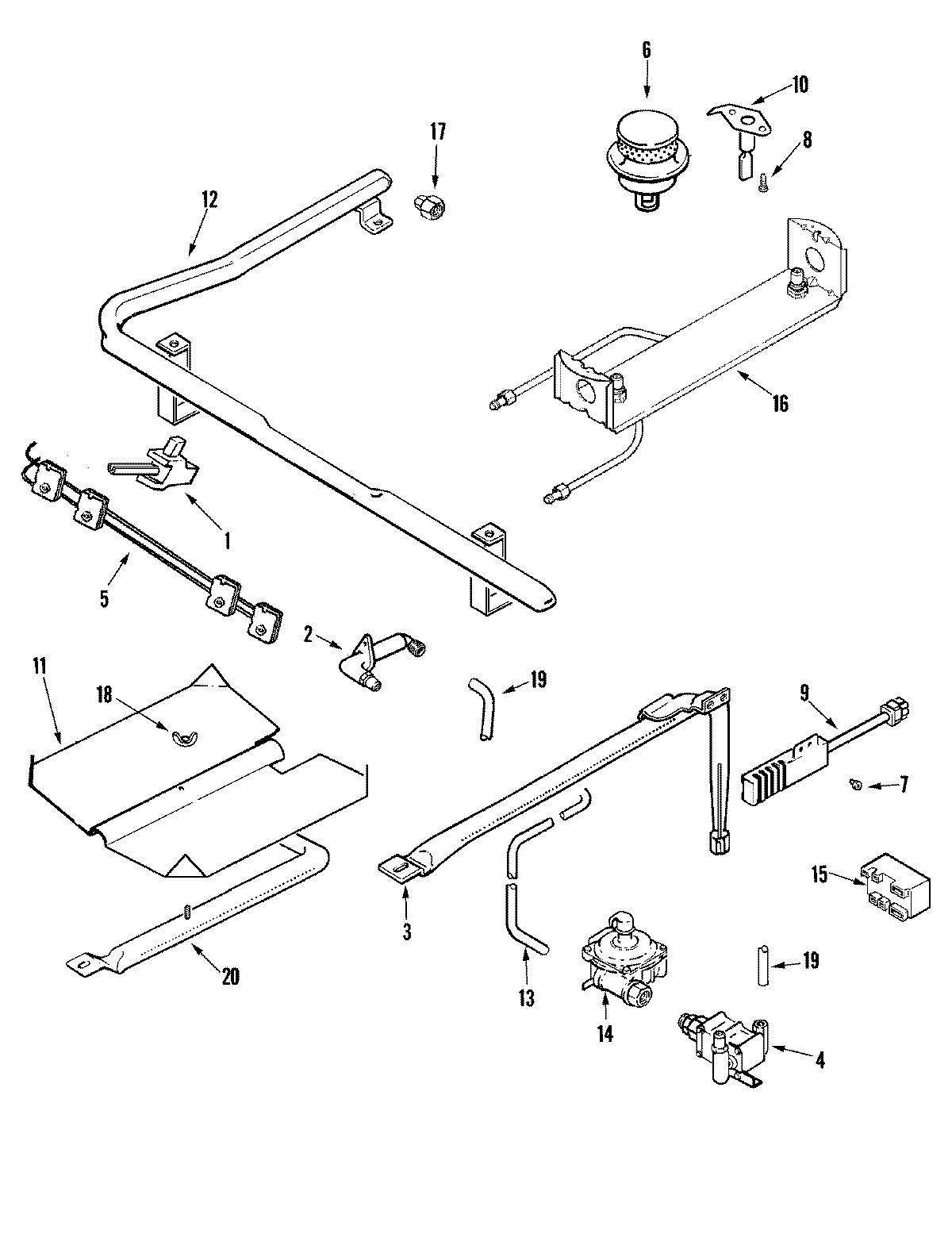

05 - GAS CONTROLS
07 - SUPPLEMENTAL INFORMATION

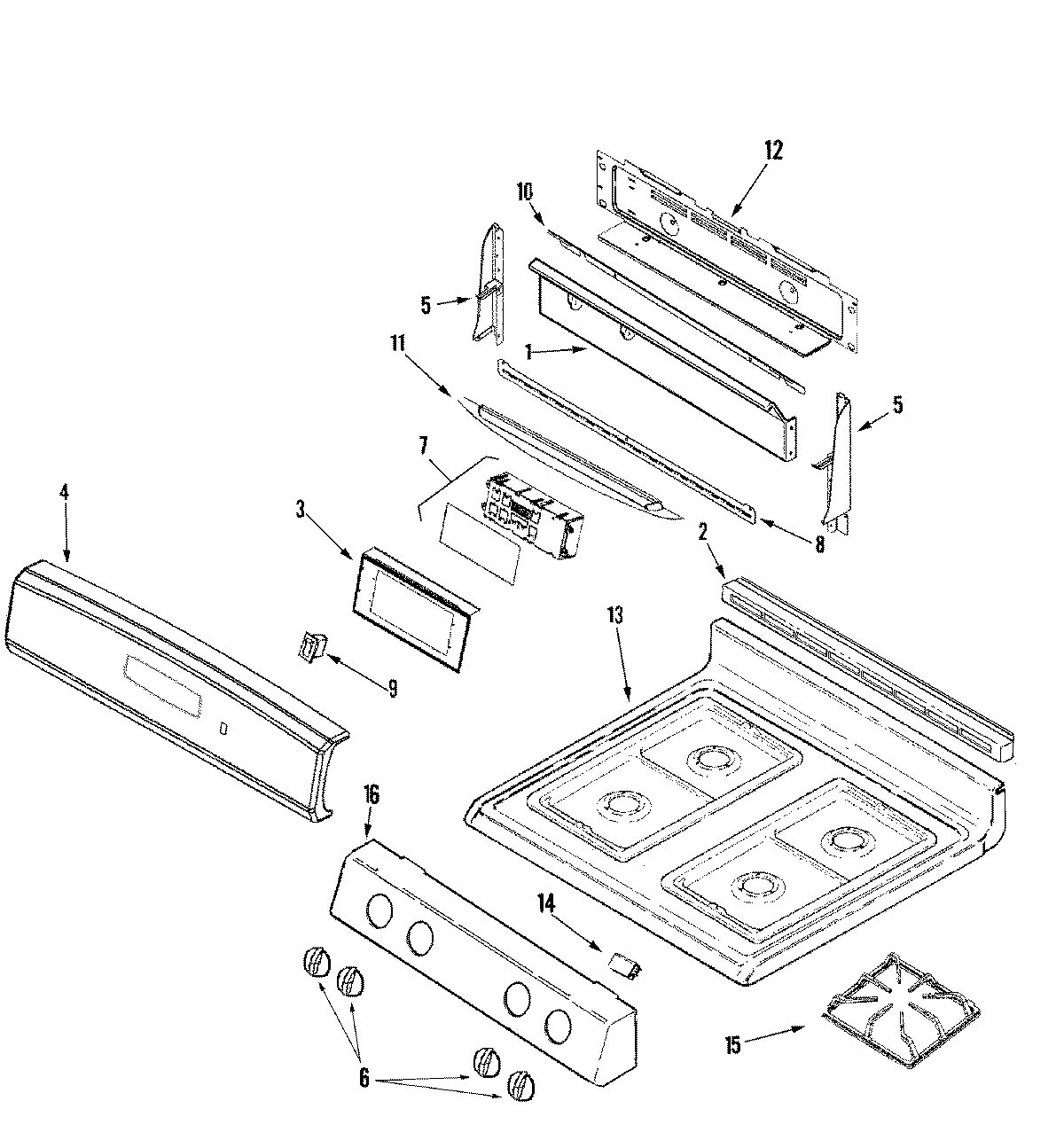

02 - CONTROL PANEL/TOP ASSEMBLY

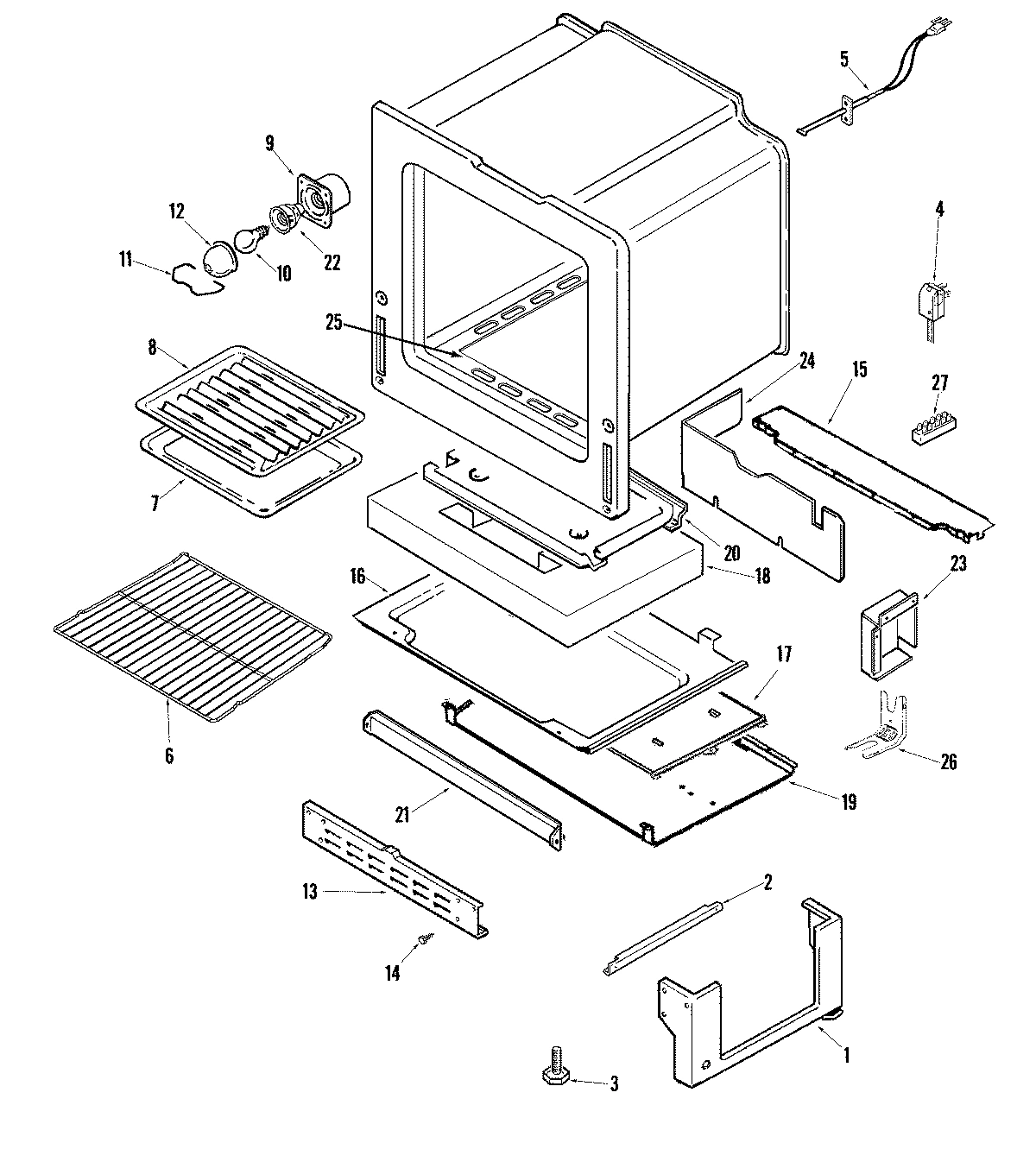

06 - OVEN/BASE
Common parts from model Whirlpool CG34800ADV GAS RANGE
1
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
1
HANDLE, DOOR (WHT) WPL 74010337 Contact Us For Availability
1
VALVE (MUELLER) WPL 74009462 Contact Us For Availability
1
VALVE (MUELLER 7.2) WPL 74009770 Contact Us For Availability
1
SHIELD, VENT DEFLECTOR WPL 74009779 Contact Us For Availability
1
PEDESTAL, SIDE WPL 74005772 Contact Us For Availability
2
NUT, LOCK (8-32) WPL 74005230 Contact Us For Availability
2
GLASS, DOOR (WHT) WPL 74010363 Contact Us For Availability
2
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
2
PLATE, BROIL FITTING WPL 74004307 Contact Us For Availability
2
FITTING, BROIL BURNER WPL 74009765 Contact Us For Availability
2
SCREW (10ABX1/4P TR ZN) WPL 7101P20860 Contact Us For Availability
2
TRIM, VENT (BLK) WPL 74009797 Contact Us For Availability
2
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
3
SUPPORT, BURNER WPL 3807F44645 Contact Us For Availability
3
BURNER, BAKE WPL 74003960 Contact Us For Availability
3
BRACKET, CLOCK WPL 74008716 Contact Us For Availability
4
CORD, POWER WPL 74007556 Contact Us For Availability
4
WASHER (1``) WPL 74001521 Contact Us For Availability
4
VALVE, OVEN WPL 74007621 Contact Us For Availability
4
INSULATION, FOIL (BKGD) WPL 74008836 Contact Us For Availability
4
PANEL, BACKGUARD (WHT) WPL 74010457 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SCREW WPL 74009416 Contact Us For Availability
5
HARNESS, SPARK SWITCH (4 POS) WPL 74009769 Contact Us For Availability
5
SUPPORT, BACKGUARD (LT-WHT) WPL 74010211 Contact Us For Availability
5
SUPPORT, BACKGUARD (RT-WHT) WPL 74010212 Contact Us For Availability
6
KNOB, VALVE (WHT) WPL 74010433 Contact Us For Availability
6
RETAINER, GLASS WPL 74003650 Contact Us For Availability
6
INSERT, KNOB WPL 74009846 Contact Us For Availability
7
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
7
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
7
GLASS, DOOR WPL 74003649 Contact Us For Availability
7
CLOCK W/OVERLAY (WHT) WPL 74010321 Contact Us For Availability
7
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
8
LATCH, MANUAL DOOR LOCK WPL 74009764 Contact Us For Availability
8
SHIELD, SIGHT WPL 74009780 Contact Us For Availability
8
NOT REQUIRED PART OR SEE NOTE NO LONGER SUPPL WPL W10124350 Contact Us For Availability
8
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
9
COVER, BROIL ACCESS FITTING WPL 74009653 Contact Us For Availability
9
COVER, MAIN BACK (WIRE) WPL 74009654 Contact Us For Availability
9
COVER, IGNITER WPL 4005F42145 Contact Us For Availability
9
HOUSING, BULB WPL 74003388 Contact Us For Availability
10
SWITCH, DOOR LATCH WPL 74009591 Contact Us For Availability
10
TAPE, SINGLE SIDED (WHT) WPL 74004224 Contact Us For Availability
10
SHIELD, WIRE WPL 74009978 Contact Us For Availability
10
BULB-OVEN WPL 7407P10360 Contact Us For Availability
11
LEVER, LATCH (GRY) WPL 74002973 Contact Us For Availability
11
SCREW WPL 7101P35660 Contact Us For Availability
11
TRIM, DOOR TOP (WHT) WPL 74010238 Contact Us For Availability
11
BAFFLE, BROIL BURNER WPL 74009231 Contact Us For Availability
11
SHIELD, VENT (WHT) WPL 74009799 Contact Us For Availability
11
SCREW, (8 X 1/4) (WHT) WPL 74009802 Contact Us For Availability
11
RETAINER, BULB COVER WPL 74003391 Contact Us For Availability
12
BAFFLE, OVEN DOOR WPL 74009502 Contact Us For Availability
12
PIPE, MANIFOLD WPL 74010271 Contact Us For Availability
12
COVER, WIRE (2 5/8`` X 2) WPL 74006536 Contact Us For Availability
12
COVER, REAR WIRE (UPR) WPL 74009943 Contact Us For Availability
12
COVER, BULB WPL 74003389 Contact Us For Availability
13
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
13
INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability
13
TUBING, REGULATOR/PIPE WPL 74009766 Contact Us For Availability
13
TOP, MAIN (WHT) WPL 74003512 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
14
INSULATION, OVEN WRAP WPL 74009201 Contact Us For Availability
14
LINING, DOOR WPL 74011456 Contact Us For Availability
14
LINING, DOOR WPL 74008926 Contact Us For Availability
14
VALVE/REG. ASSEMBLY WPL 74007780 Contact Us For Availability
14
CLIP, TOP LOCKING WPL 74004827 Contact Us For Availability
15
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
15
GRATE (GRY) WPL 74001061 Contact Us For Availability
15
SUPPORT, VALVE REGULATOR WPL 74007129 Contact Us For Availability
16
SPACER, RUBBER (BLK-SQUARE) WPL 74010267 Contact Us For Availability
16
SHIELD, FLUE (LOWER) WPL 3604F16551 Contact Us For Availability
16
PANEL, DRAWER (WHT) WPL 74003407 Contact Us For Availability
16
PANEL, MANIFOLD (WHT) WPL 74010460 Contact Us For Availability
16
RETAINER, BOTTOM INSULATION WPL 74009480 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
17
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
17
SHIELD, HEAT POUCH WPL 74006574 Contact Us For Availability
18
SCREW, W/SHOULDER WPL 74007476 Contact Us For Availability
18
NUT, LOCK WPL 7103P13960 Contact Us For Availability
18
NUT, WING WPL 7103P03060 Contact Us For Availability
18
INSULATION, DRAWER & SHIELD WPL 7002P14060 Contact Us For Availability
18
INSULATION, OVEN WPL 74003503 Contact Us For Availability
19
EXTENSION, FLUE BOX WPL 4022W00719 Contact Us For Availability
19
TUBING, BROIL FITTING WPL 74006430 Contact Us For Availability
19
SHIELD, WARMING DRAWER WPL 74006591 Contact Us For Availability
20
BOX, VENT WPL 74006420 Contact Us For Availability
20
DRAWER, STORAGE WPL 74008337 Contact Us For Availability
20
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
20
BURNER, BROIL WPL 74004076 Contact Us For Availability
20
PAN, BAKE BURNER WPL 74004465 Contact Us For Availability
21
STRAP, INSULATION WPL 74003385 Contact Us For Availability
21
BAFFLE, OVEN FRONT WPL 74001219 Contact Us For Availability
22
SHIELD, HEAT WPL 74009569 Contact Us For Availability
22
FRAME, GLASS WPL 74003644 Contact Us For Availability
22
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
23
SUPPORT, SPARK MODULE WPL 74009583 Contact Us For Availability
24
SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability
24
COVER, VALVE/REGULATOR WPL 74005465 Contact Us For Availability
25
NUT WPL 7103P08260 Contact Us For Availability
25
BAFFLE, OVEN BOTTOM WPL 3601F23945 Contact Us For Availability
25
BOTTOM, OVEN WPL 74002376 Contact Us For Availability
25
CLIP, OVEN BOTTOM WPL 74002377 Contact Us For Availability
25
BOTTOM, OVEN ASSY. WPL 74011347 Contact Us For Availability
26
LINING, DRAWER PANEL WPL 2404F03051 Contact Us For Availability
26
SCREW WPL 7101P35260 Contact Us For Availability
27
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
NI
SVC MAN, RANGE, GAS WPL 16023522 Contact Us For Availability
NI
TECH SHT, RANGE, GAS WPL 16023524 Contact Us For Availability
NI
HARNESS, WIRE (SPARK) WPL 74007018 Contact Us For Availability
NI
BOOKLET, COOKING MADE SIMPLE WPL 74009330 Contact Us For Availability
NI
HARNESS, CONTROL TO SENSOR WPL 74009824 Contact Us For Availability
NI
HARNESS, PEDESTAL WPL 74009826 Contact Us For Availability
NI
HARNESS, BACKGUARD WPL 74010269 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P44860 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P51460 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P56060 Contact Us For Availability
× ![]()
