Model Maytag CG34800ADT GAS RANGE – Common Parts & Diagrams
01 - BODY

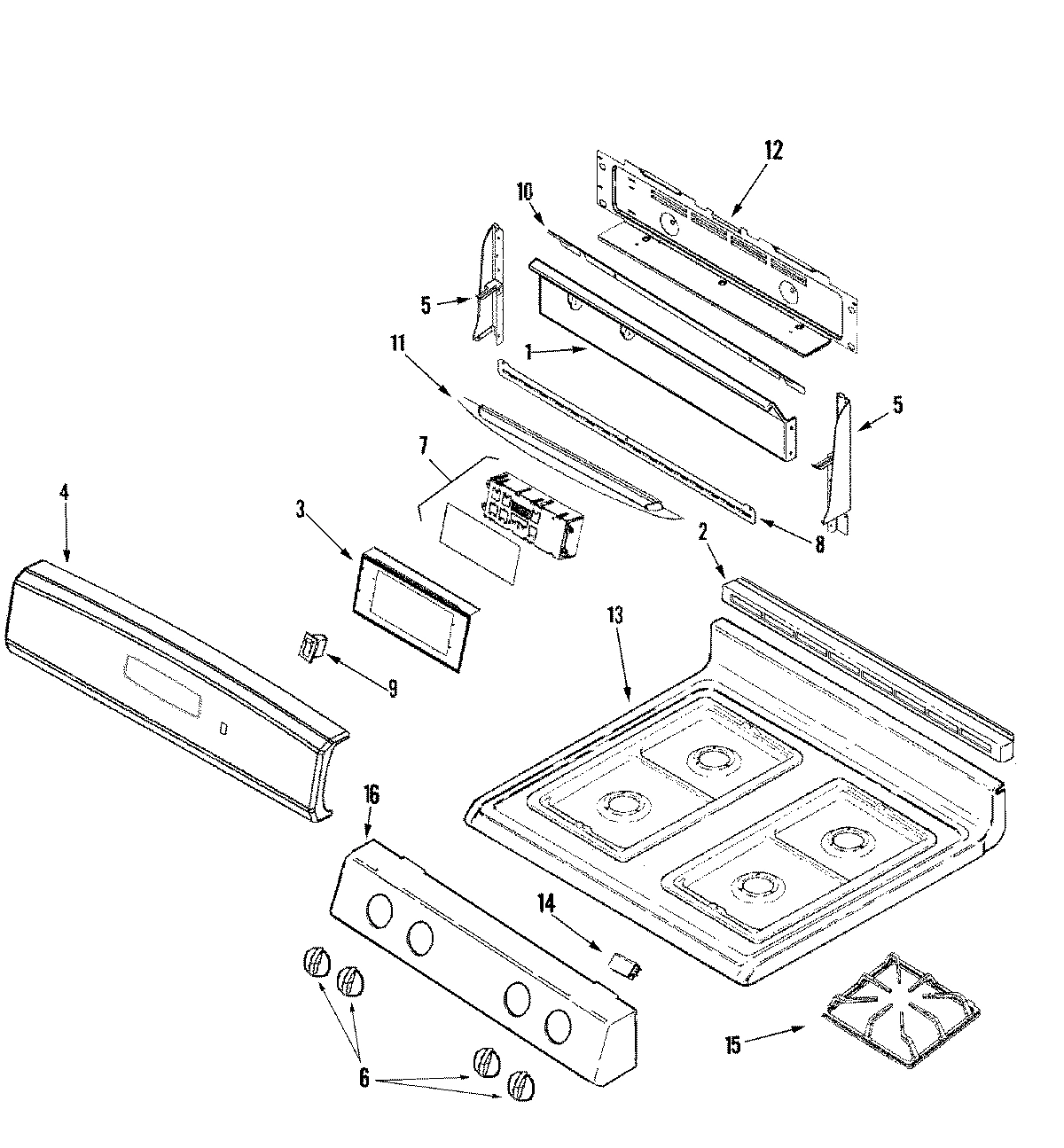

02 - CONTROL PANEL/TOP ASSEMBLY

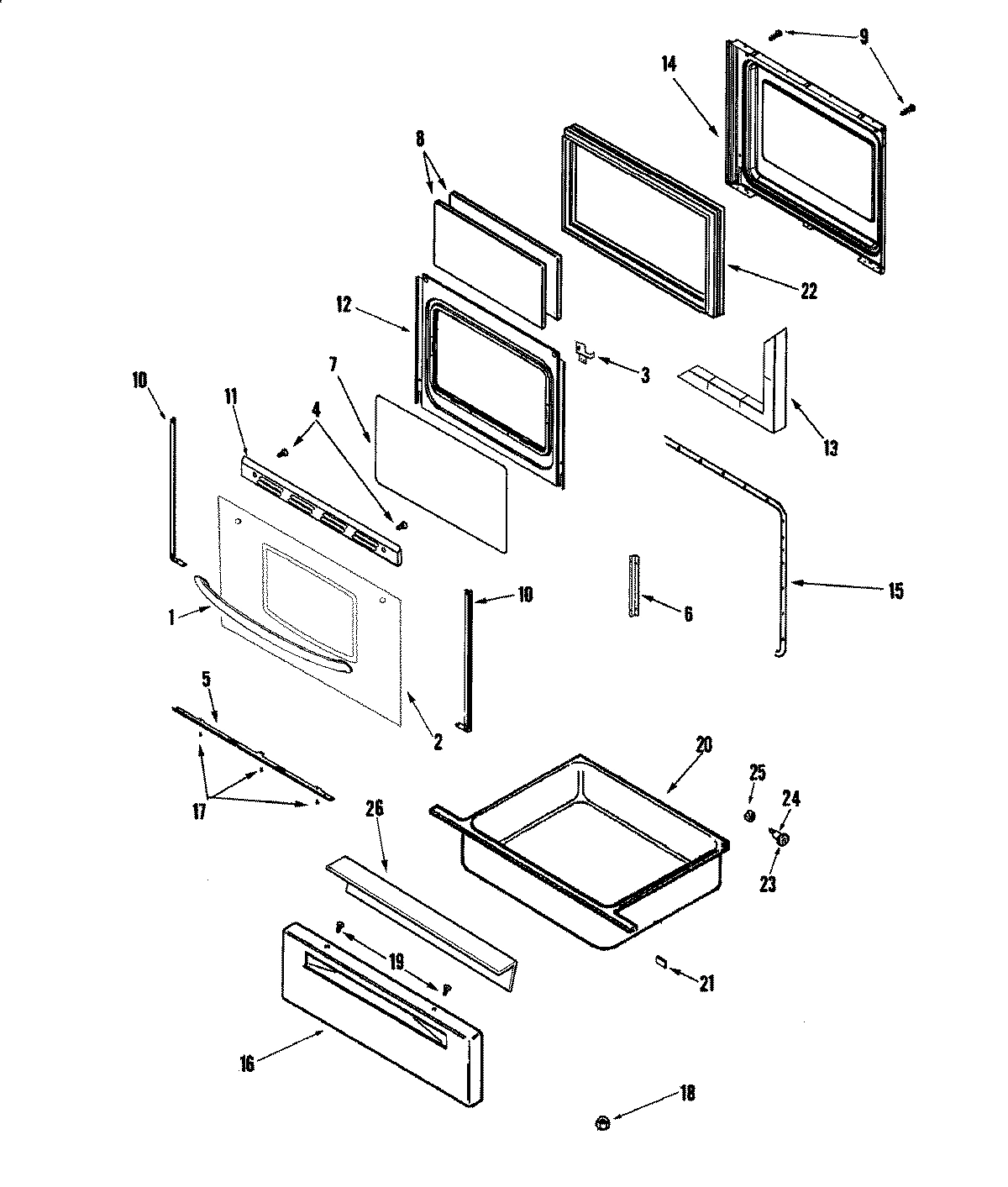

03 - DOOR/DRAWER

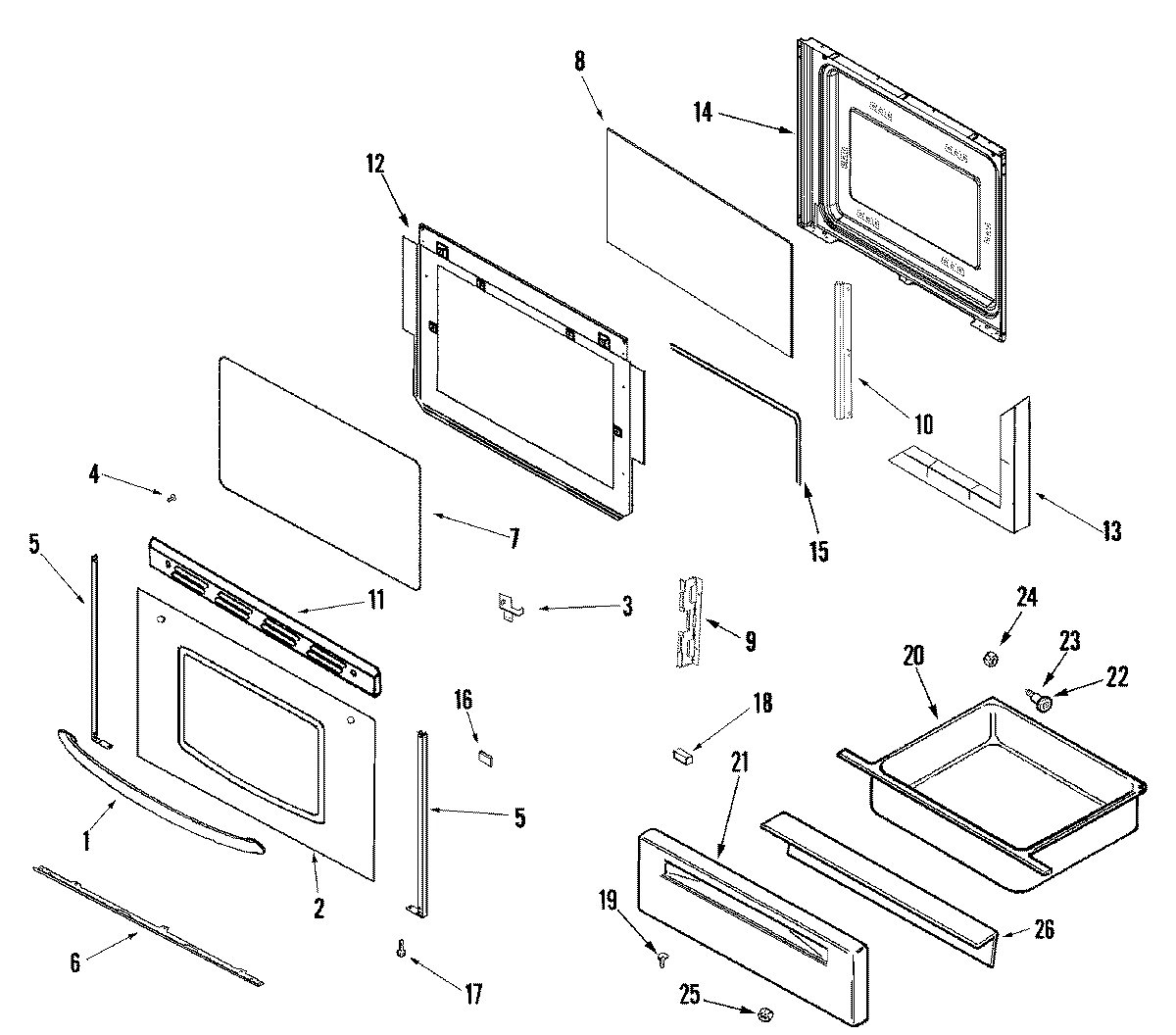

04 - DOOR/DRAWER (SERIES 16)

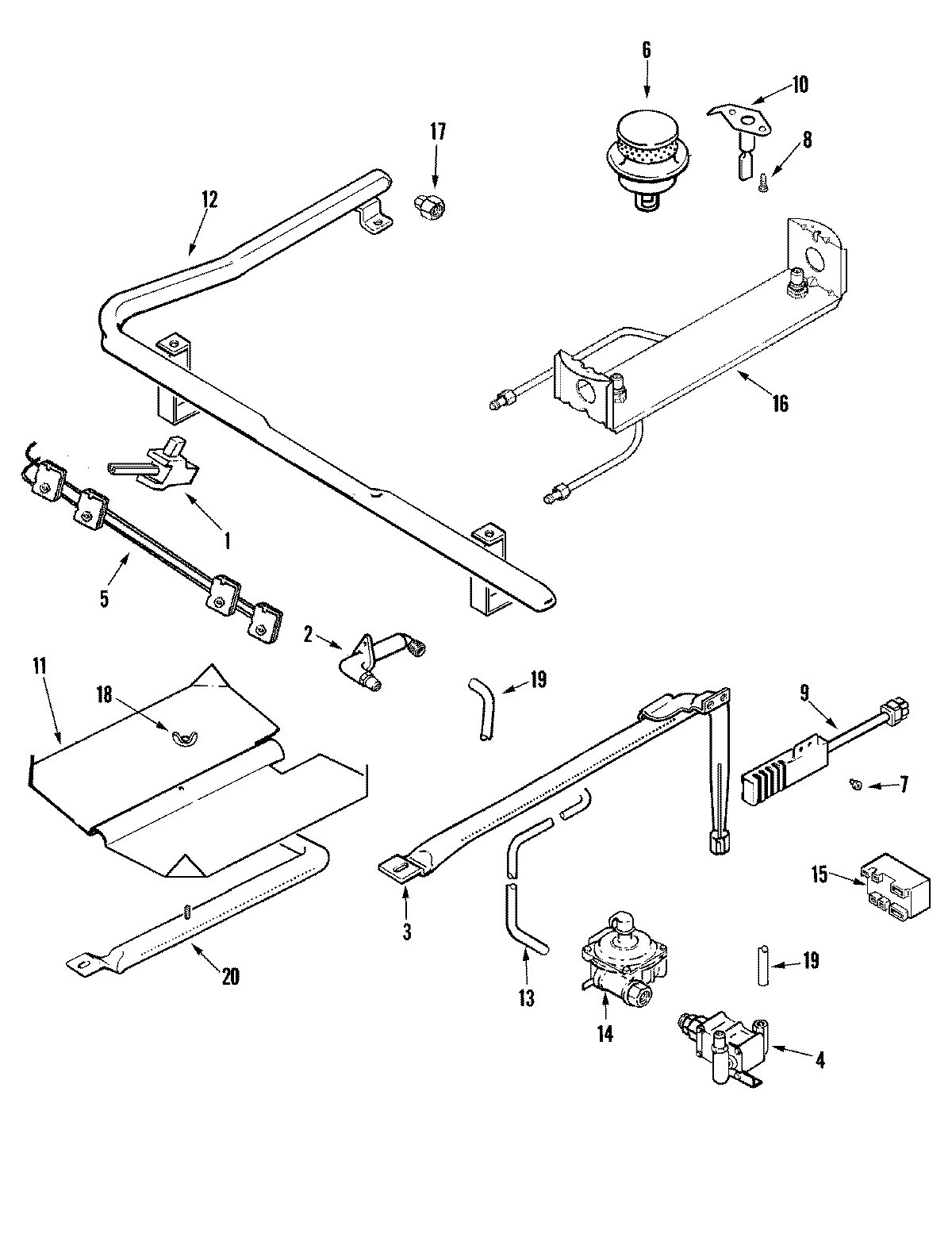

05 - GAS CONTROLS

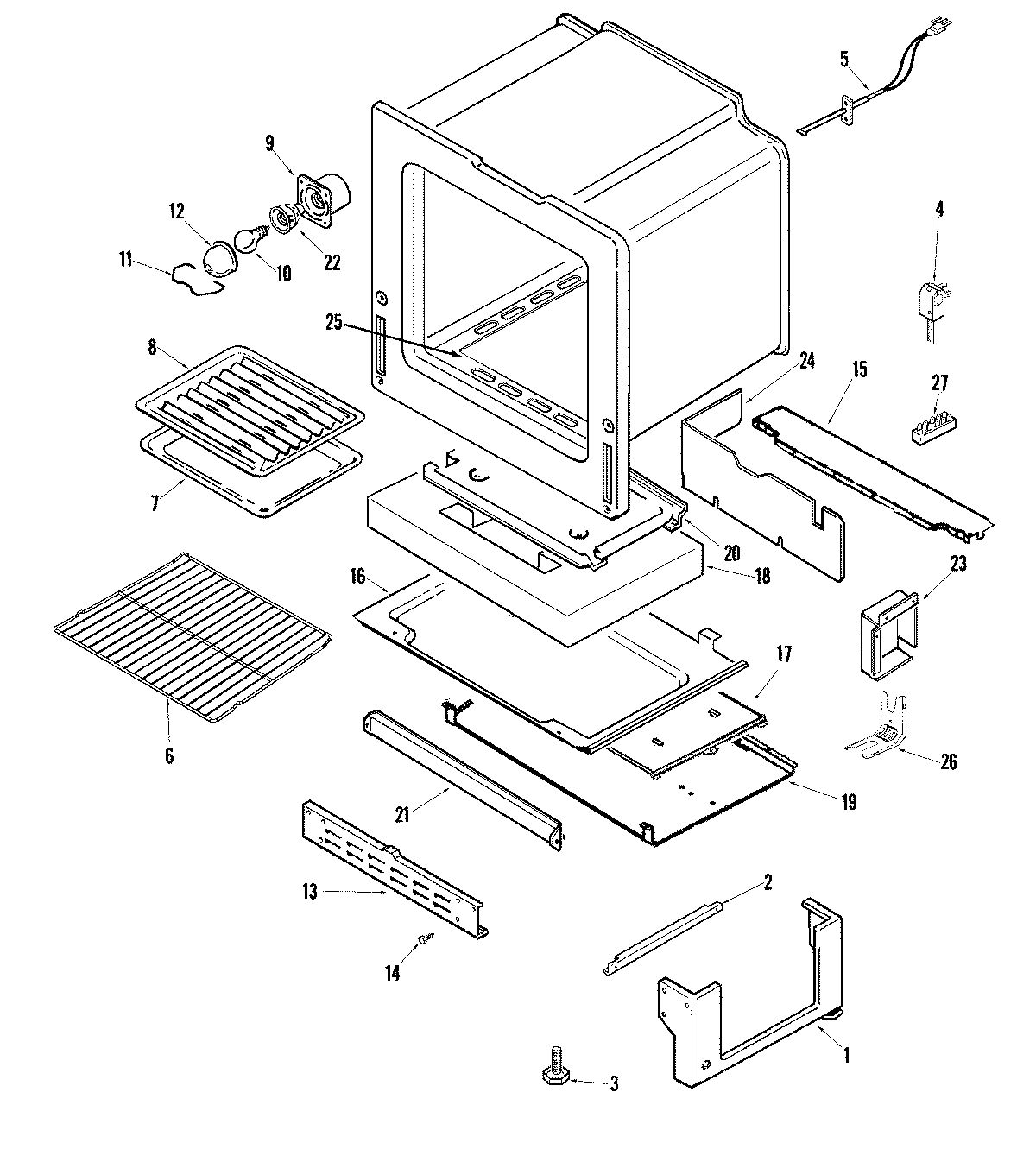

06 - OVEN/BASE
07 - SUPPLEMENTAL INFORMATION

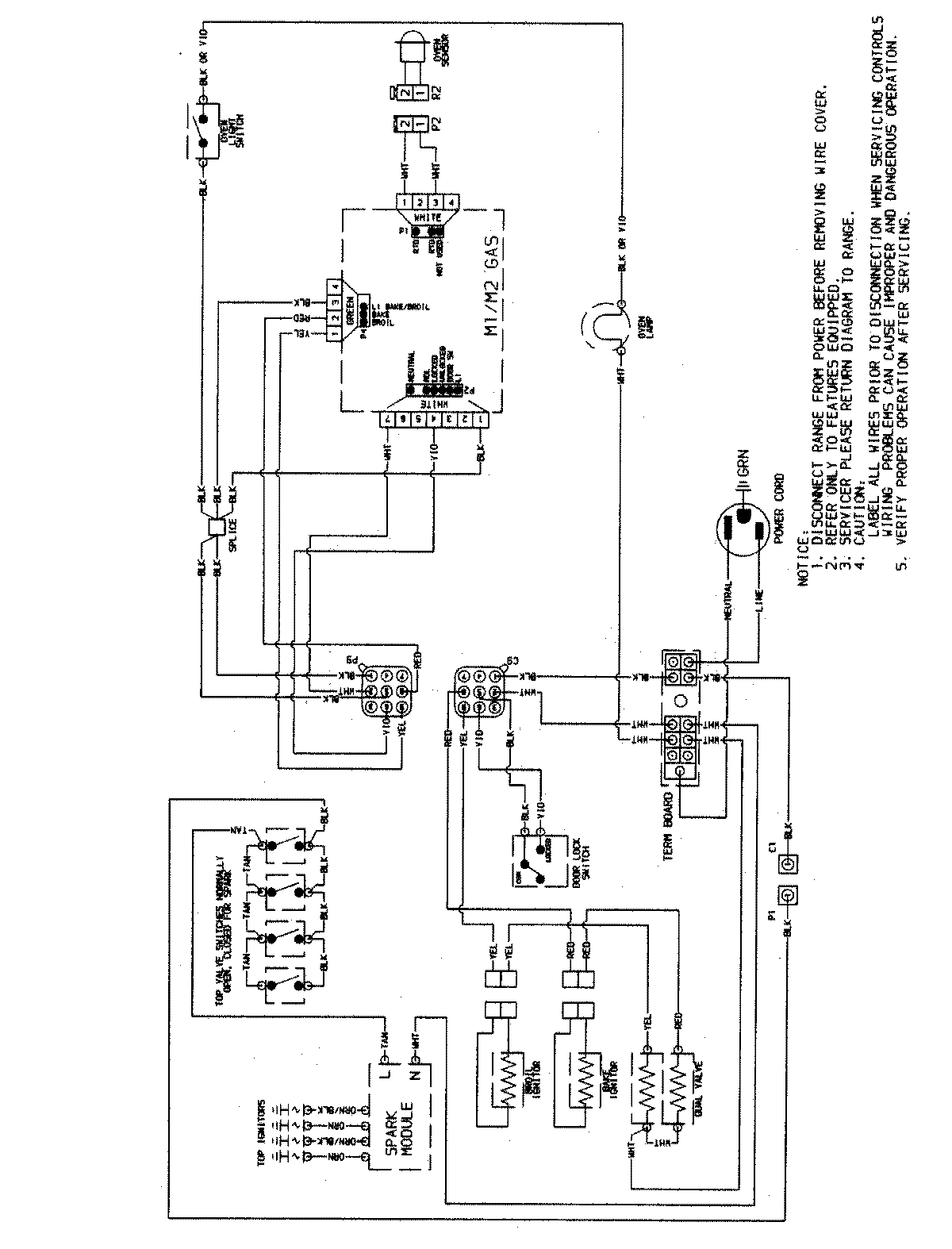

08 - WIRING INFORMATION
Common parts from model Maytag CG34800ADT GAS RANGE
1
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
1
MAY 74009779 MAY 74009779 Contact Us For Availability
1
MAY 74010338 MAY 74010338 Contact Us For Availability
1
MAY 7701P539-60 MAY 7701P539-60 Contact Us For Availability
1
MAY 74009462 MAY 74009462 Contact Us For Availability
1
MAY 74009770 MAY 74009770 Contact Us For Availability
1
MAY 74005772 MAY 74005772 Contact Us For Availability
2
MAY 74009765 MAY 74009765 Contact Us For Availability
2
SCREW (10ABX1/4P TR ZN) MAY 7101P208-60 Contact Us For Availability
2
MAY 74009797 MAY 74009797 Contact Us For Availability
2
MAY 74010362 MAY 74010362 Contact Us For Availability
2
MAY 74004307 MAY 74004307 Contact Us For Availability
2
RUNNER, DRAWER MAY 74003565 Contact Us For Availability
3
MAY 74003960 MAY 74003960 Contact Us For Availability
3
MAY 74008716 MAY 74008716 Contact Us For Availability
3
MAY 3807F446-45 MAY 3807F446-45 Contact Us For Availability
4
MAY 74008836 MAY 74008836 Contact Us For Availability
4
MAY 74010456 MAY 74010456 Contact Us For Availability
4
MAY 74001521 MAY 74001521 Contact Us For Availability
4
MAY 74007621 MAY 74007621 Contact Us For Availability
4
MAY 74007556 MAY 74007556 Contact Us For Availability
5
MAY 74010201 MAY 74010201 Contact Us For Availability
5
MAY 74010202 MAY 74010202 Contact Us For Availability
5
MAY 74009416 MAY 74009416 Contact Us For Availability
5
MAY 74009769 MAY 74009769 Contact Us For Availability
6
MAY 74009846 MAY 74009846 Contact Us For Availability
6
SUPPORT, GLASS (BLK) MAY 74009686 Contact Us For Availability
7
MAY 74010325 MAY 74010325 Contact Us For Availability
7
GLASS, DOOR MAY 74003649 Contact Us For Availability
7
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
7
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
8
MAY 74009780 MAY 74009780 Contact Us For Availability
8
MAY Y707113 MAY Y707113 Contact Us For Availability
8
NOT REQUIRED PART OR SEE NOTE NO LONGER SUPPL MAY W10124350 Contact Us For Availability
8
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
9
SWITCH, ROCKER (BLK) MAY 74008718 Contact Us For Availability
9
MAY 74003650 MAY 74003650 Contact Us For Availability
9
MAY 4005F421-45 MAY 4005F421-45 Contact Us For Availability
9
MAY 74003388 MAY 74003388 Contact Us For Availability
10
MAY 74009978 MAY 74009978 Contact Us For Availability
11
MAY 74009800 MAY 74009800 Contact Us For Availability
11
MAY 74009801 MAY 74009801 Contact Us For Availability
11
MAY 7101P356-60 MAY 7101P356-60 Contact Us For Availability
11
MAY 74010239 MAY 74010239 Contact Us For Availability
11
MAY 74009231 MAY 74009231 Contact Us For Availability
11
MAY 74003391 MAY 74003391 Contact Us For Availability
12
MAY 74006536 MAY 74006536 Contact Us For Availability
12
MAY 74009943 MAY 74009943 Contact Us For Availability
12
MAY 74009502 MAY 74009502 Contact Us For Availability
12
MAY 74010271 MAY 74010271 Contact Us For Availability
12
MAY 74003389 MAY 74003389 Contact Us For Availability
13
MAY 74004964 MAY 74004964 Contact Us For Availability
13
INSULATION, OVEN DOOR MAY 74003647 Contact Us For Availability
13
MAY 74009766 MAY 74009766 Contact Us For Availability
13
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
14
MAY 74009201 MAY 74009201 Contact Us For Availability
14
MAY 74004827 MAY 74004827 Contact Us For Availability
14
NUT, SNAP (ROUND-BLK) MAY 74001574 Contact Us For Availability
14
MAY 74008926 MAY 74008926 Contact Us For Availability
14
LINING, DOOR MAY 74011456 Contact Us For Availability
14
MAY 74007780 MAY 74007780 Contact Us For Availability
15
SUPPORT, VALVE REGULATOR MAY 74007129 Contact Us For Availability
16
MAY 3604F165-51 MAY 3604F165-51 Contact Us For Availability
16
MAY 74010459 MAY 74010459 Contact Us For Availability
16
SPACER, RUBBER (BLK-SQUARE) MAY 74010267 Contact Us For Availability
16
MAY 74009832 MAY 74009832 Contact Us For Availability
16
RETAINER, BOTTOM INSULATION MAY 74009480 Contact Us For Availability
17
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
17
MAY 7103P130-60 MAY 7103P130-60 Contact Us For Availability
17
MAY 74006574 MAY 74006574 Contact Us For Availability
18
MAY 74007476 MAY 74007476 Contact Us For Availability
18
NUT, WING MAY 7103P030-60 Contact Us For Availability
18
INSULATION, DRAWER & SHIELD MAY 7002P140-60 Contact Us For Availability
18
MAY 74003503 MAY 74003503 Contact Us For Availability
19
MAY 4022W007-19 MAY 4022W007-19 Contact Us For Availability
19
MAY 74006430 MAY 74006430 Contact Us For Availability
19
MAY 74006591 MAY 74006591 Contact Us For Availability
20
MAY 74006420 MAY 74006420 Contact Us For Availability
20
MAY 74008337 MAY 74008337 Contact Us For Availability
20
MAY 74004076 MAY 74004076 Contact Us For Availability
20
PAN, BAKE BURNER MAY 74004465 Contact Us For Availability
21
MAY 74003385 MAY 74003385 Contact Us For Availability
21
PANEL, DRAWER (BSQ) MAY 74004966 Contact Us For Availability
21
BAFFLE, OVEN FRONT MAY 74001219 Contact Us For Availability
22
MAY 74003387 MAY 74003387 Contact Us For Availability
22
MAY 74009569 MAY 74009569 Contact Us For Availability
23
SHAFT, STORAGE DRAWER ROLLER MAY 74005231 Contact Us For Availability
23
MAY 71001394 MAY 71001394 Contact Us For Availability
23
MAY 74009583 MAY 74009583 Contact Us For Availability
24
COVER, VALVE/REGULATOR MAY 74005465 Contact Us For Availability
25
BAFFLE, OVEN BOTTOM MAY 3601F239-45 Contact Us For Availability
25
MAY 74002376 MAY 74002376 Contact Us For Availability
25
MAY 74002377 MAY 74002377 Contact Us For Availability
25
MAY 74011347 MAY 74011347 Contact Us For Availability
26
LINING, DRAWER PANEL MAY 2404F030-51 Contact Us For Availability
27
MAY 7401P037-60 MAY 7401P037-60 Contact Us For Availability
NI
MAY 16023522 MAY 16023522 Contact Us For Availability
NI
MAY 16023524 MAY 16023524 Contact Us For Availability
NI
MAY 74007018 MAY 74007018 Contact Us For Availability
NI
MAY 74009330 MAY 74009330 Contact Us For Availability
NI
MAY 74009824 MAY 74009824 Contact Us For Availability
NI
MAY 74009826 MAY 74009826 Contact Us For Availability
NI
MAY 74010269 MAY 74010269 Contact Us For Availability
NI
MAY 8113P448-60 MAY 8113P448-60 Contact Us For Availability
NI
MAY 8113P514-60 MAY 8113P514-60 Contact Us For Availability
NI
MAY 8113P560-60 MAY 8113P560-60 Contact Us For Availability
NI
MAY 15003515 MAY 15003515 Contact Us For Availability
× ![]()
