Model Maytag CES1350AAH ELECTRIC RANGE – Common Parts & Diagrams

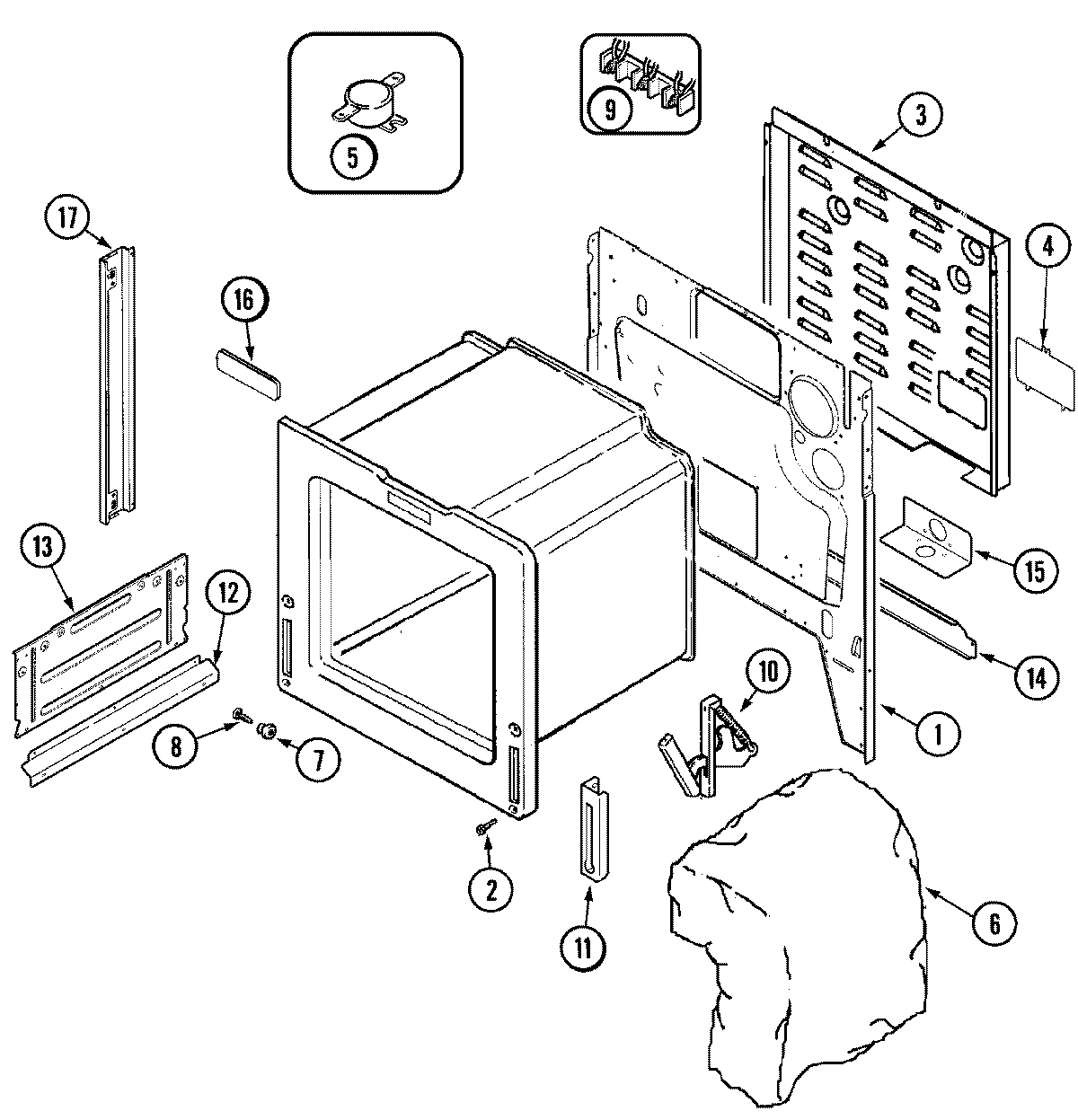

01 - BODY

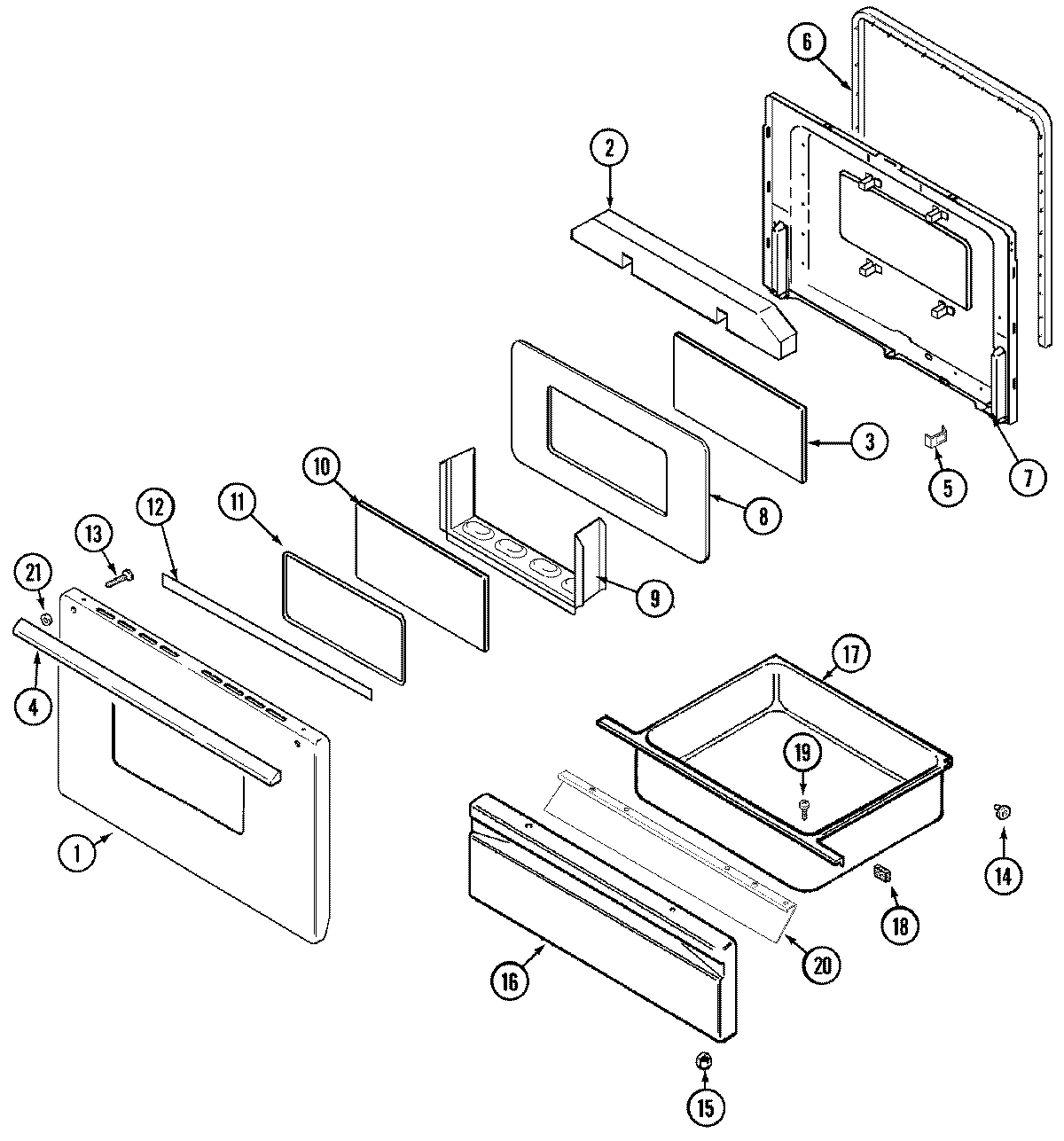

02 - DOOR/DRAWER

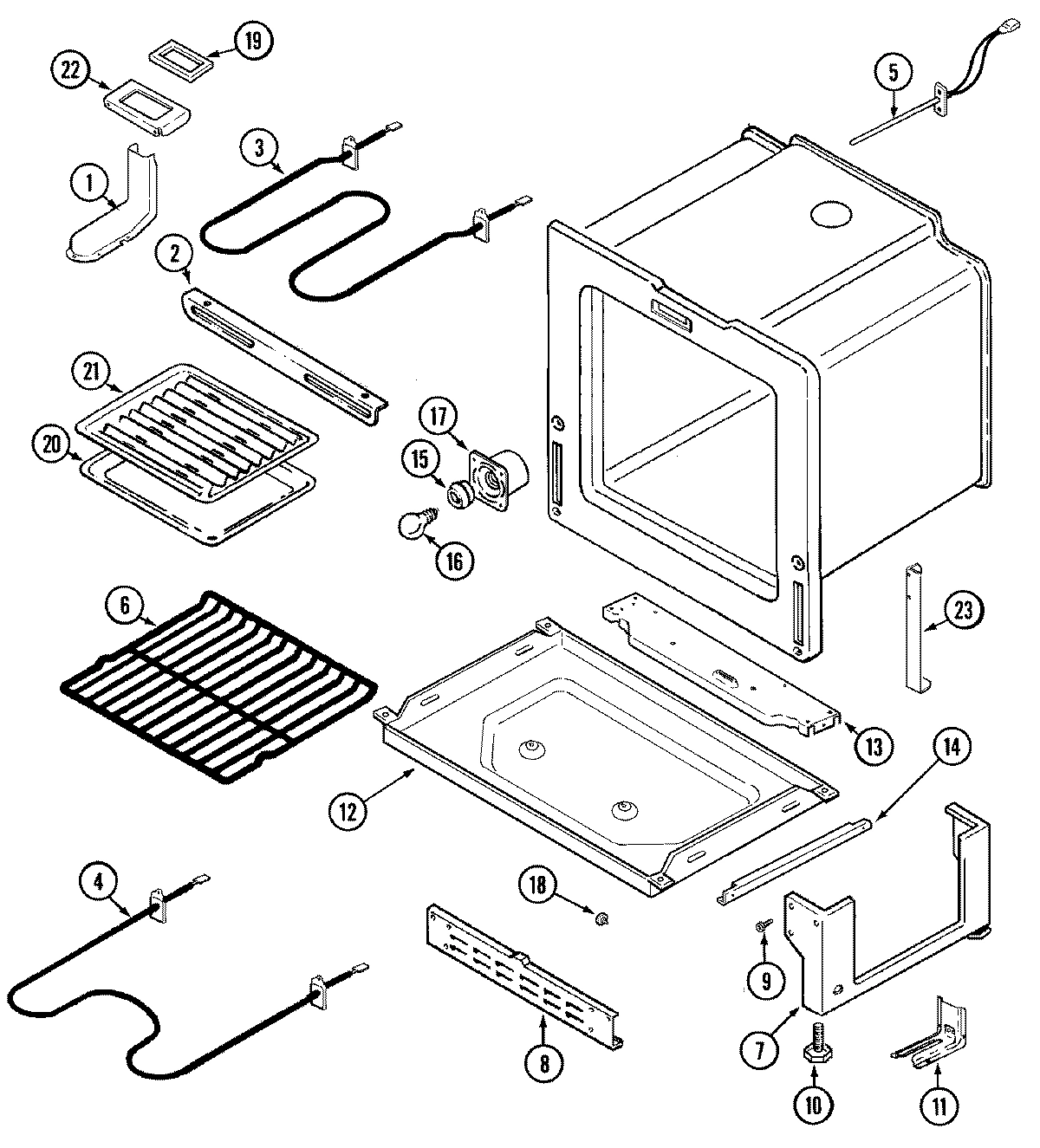

03 - OVEN/BASE

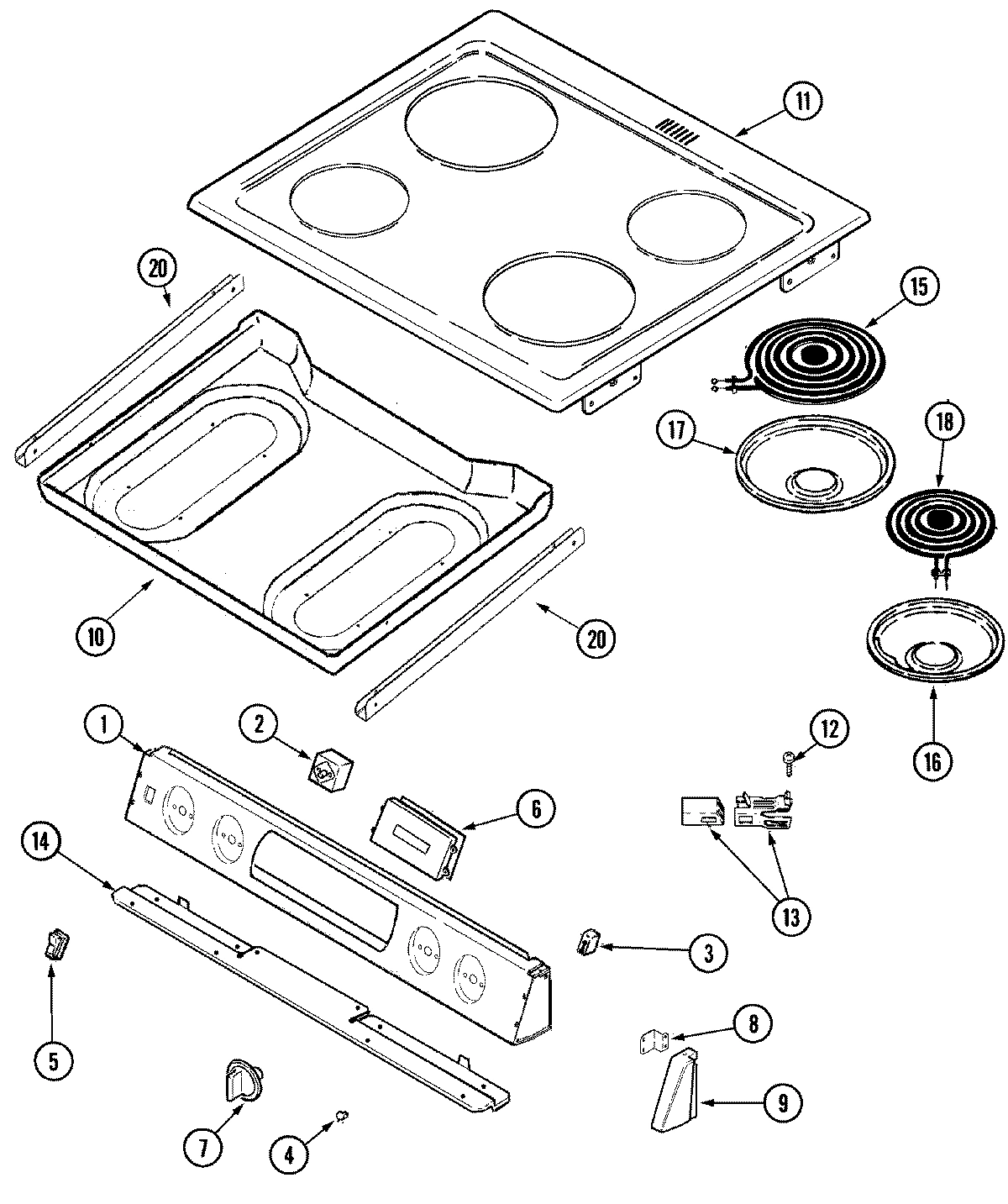

04 - TOP ASSEMBLY

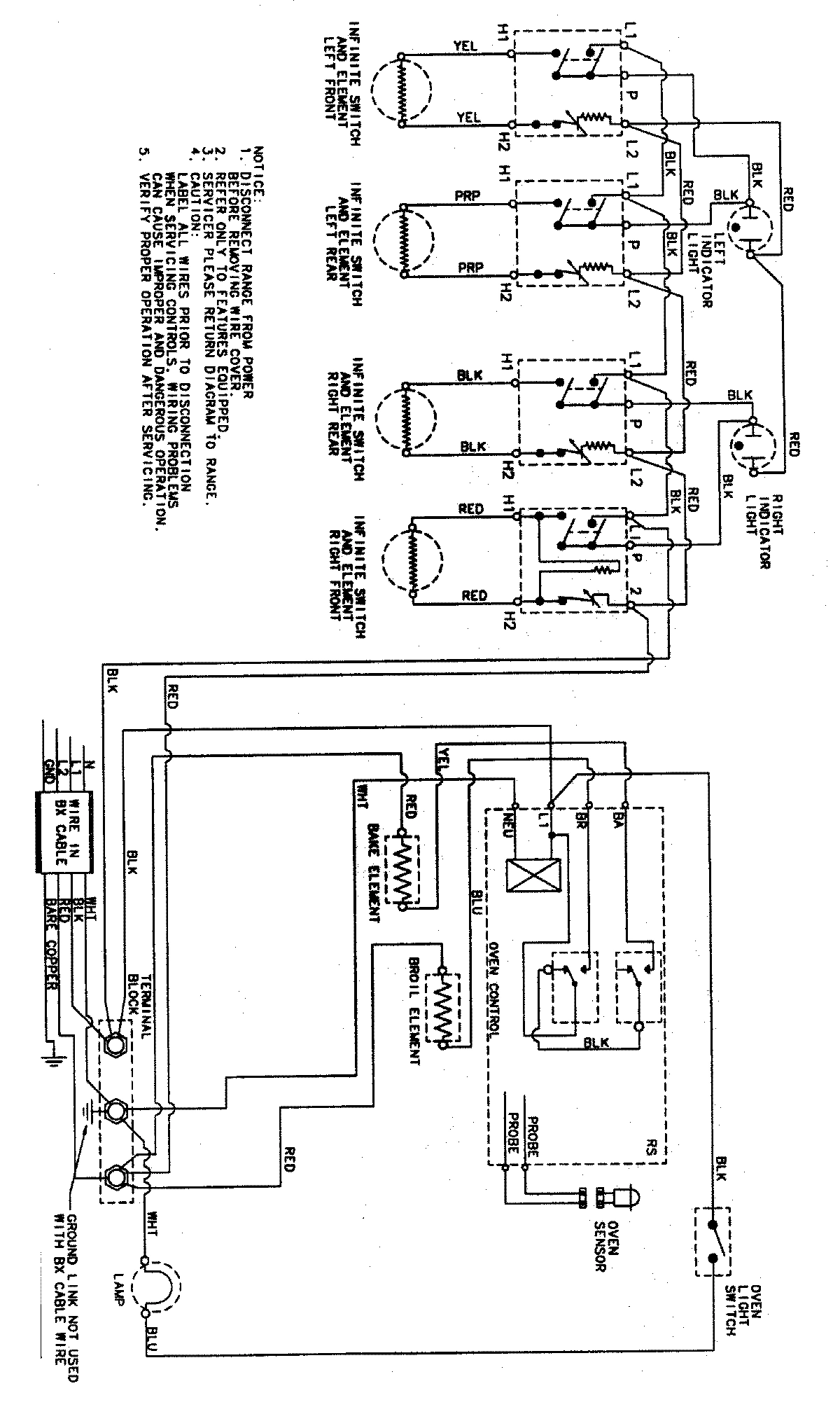

05 - WIRING INFORMATION
Common parts from model Maytag CES1350AAH ELECTRIC RANGE
1
MAY 2401F121-71 MAY 2401F121-71 Contact Us For Availability
1
MAY 74005223 MAY 74005223 Contact Us For Availability
1
MAY 74004170 MAY 74004170 Contact Us For Availability
1
MAY 74004267 MAY 74004267 Contact Us For Availability
2
MAY 74001842 MAY 74001842 Contact Us For Availability
2
MAY 74002458 MAY 74002458 Contact Us For Availability
2
SUPPORT, BROIL ELEMENT MAY 74003386 Contact Us For Availability
3
MAY 74002459 MAY 74002459 Contact Us For Availability
3
MAY 74009281 MAY 74009281 Contact Us For Availability
5
CLIP, DOOR MAY 7112P034-60 Contact Us For Availability
5
MAY 74003390 MAY 74003390 Contact Us For Availability
5
MAY 74003363 MAY 74003363 Contact Us For Availability
6
MAY 74004266 MAY 74004266 Contact Us For Availability
6
MAY 74004268 MAY 74004268 Contact Us For Availability
6
MAY 74009278 MAY 74009278 Contact Us For Availability
7
MAY 74003427 MAY 74003427 Contact Us For Availability
7
MAY 74003248 MAY 74003248 Contact Us For Availability
7
MAY 74009280 MAY 74009280 Contact Us For Availability
7
MAY 74003405 MAY 74003405 Contact Us For Availability
8
MAY 7101P209-60 MAY 7101P209-60 Contact Us For Availability
8
MAY 74001843 MAY 74001843 Contact Us For Availability
8
MAY 74002461 MAY 74002461 Contact Us For Availability
8
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
8
MAY 74004186 MAY 74004186 Contact Us For Availability
8
MAY 74005671 MAY 74005671 Contact Us For Availability
8
SCREW (8ABX1/2``-BLK) MAY 790448 Contact Us For Availability
9
MAY 74002462 MAY 74002462 Contact Us For Availability
9
MAY 74003048 MAY 74003048 Contact Us For Availability
9
MAY 74004196 MAY 74004196 Contact Us For Availability
9
MAY 74004197 MAY 74004197 Contact Us For Availability
9
MAY 74004601 MAY 74004601 Contact Us For Availability
9
MAY 74004602 MAY 74004602 Contact Us For Availability
9
MAY 74004819 MAY 74004819 Contact Us For Availability
9
MAY 74004820 MAY 74004820 Contact Us For Availability
10
MAY 74001072 MAY 74001072 Contact Us For Availability
10
MAY 74002463 MAY 74002463 Contact Us For Availability
10
MAY 74001449 MAY 74001449 Contact Us For Availability
10
MAY 74004251 MAY 74004251 Contact Us For Availability
10
MAY 74006046 MAY 74006046 Contact Us For Availability
11
MAY 7201P017-60 MAY 7201P017-60 Contact Us For Availability
11
MAY 74002311 MAY 74002311 Contact Us For Availability
11
MAY 74004248 MAY 74004248 Contact Us For Availability
11
MAY 74007600 MAY 74007600 Contact Us For Availability
12
MAY 74004176 MAY 74004176 Contact Us For Availability
12
TAPE, FOIL (3`` WIDE) MAY 8270P090-60 Contact Us For Availability
12
MAY 74004169 MAY 74004169 Contact Us For Availability
12
MAY 7118P013-60 MAY 7118P013-60 Contact Us For Availability
13
MAY 74004177 MAY 74004177 Contact Us For Availability
13
MAY 74004167 MAY 74004167 Contact Us For Availability
13
MAY 1430306K MAY 1430306K Contact Us For Availability
14
MAY 74004175 MAY 74004175 Contact Us For Availability
14
MAY 74003566 MAY 74003566 Contact Us For Availability
14
RUNNER, DRAWER MAY 74003565 Contact Us For Availability
14
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
14
MAY 74004185 MAY 74004185 Contact Us For Availability
15
MAY 74003387 MAY 74003387 Contact Us For Availability
16
PLUG, LOCK SLOT MAY 74003406 Contact Us For Availability
16
PANEL, DRAWER (WHT) MAY 74003407 Contact Us For Availability
17
MAY 74004182 MAY 74004182 Contact Us For Availability
17
MAY 71003042 MAY 71003042 Contact Us For Availability
17
MAY 74003388 MAY 74003388 Contact Us For Availability
18
MAY 74004079 MAY 74004079 Contact Us For Availability
19
MAY 74004179 MAY 74004179 Contact Us For Availability
20
LINING, DRAWER PANEL MAY 2404F030-51 Contact Us For Availability
20
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
20
MAY 74005822 MAY 74005822 Contact Us For Availability
21
MAY 8010P084-60 MAY 8010P084-60 Contact Us For Availability
21
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
22
MAY 74004178 MAY 74004178 Contact Us For Availability
23
MAY 74004171 MAY 74004171 Contact Us For Availability
NI
MAY 12001323 MAY 12001323 Contact Us For Availability
NI
MAY 16010161 MAY 16010161 Contact Us For Availability
NI
MAY 74004273 MAY 74004273 Contact Us For Availability
NI
MAY 74004274 MAY 74004274 Contact Us For Availability
NI
MAY 74004786 MAY 74004786 Contact Us For Availability
NI
MAY 74009279 MAY 74009279 Contact Us For Availability
NI
MAY 15002542 MAY 15002542 Contact Us For Availability
NI
MAY 15003352 MAY 15003352 Contact Us For Availability
× ![]()
