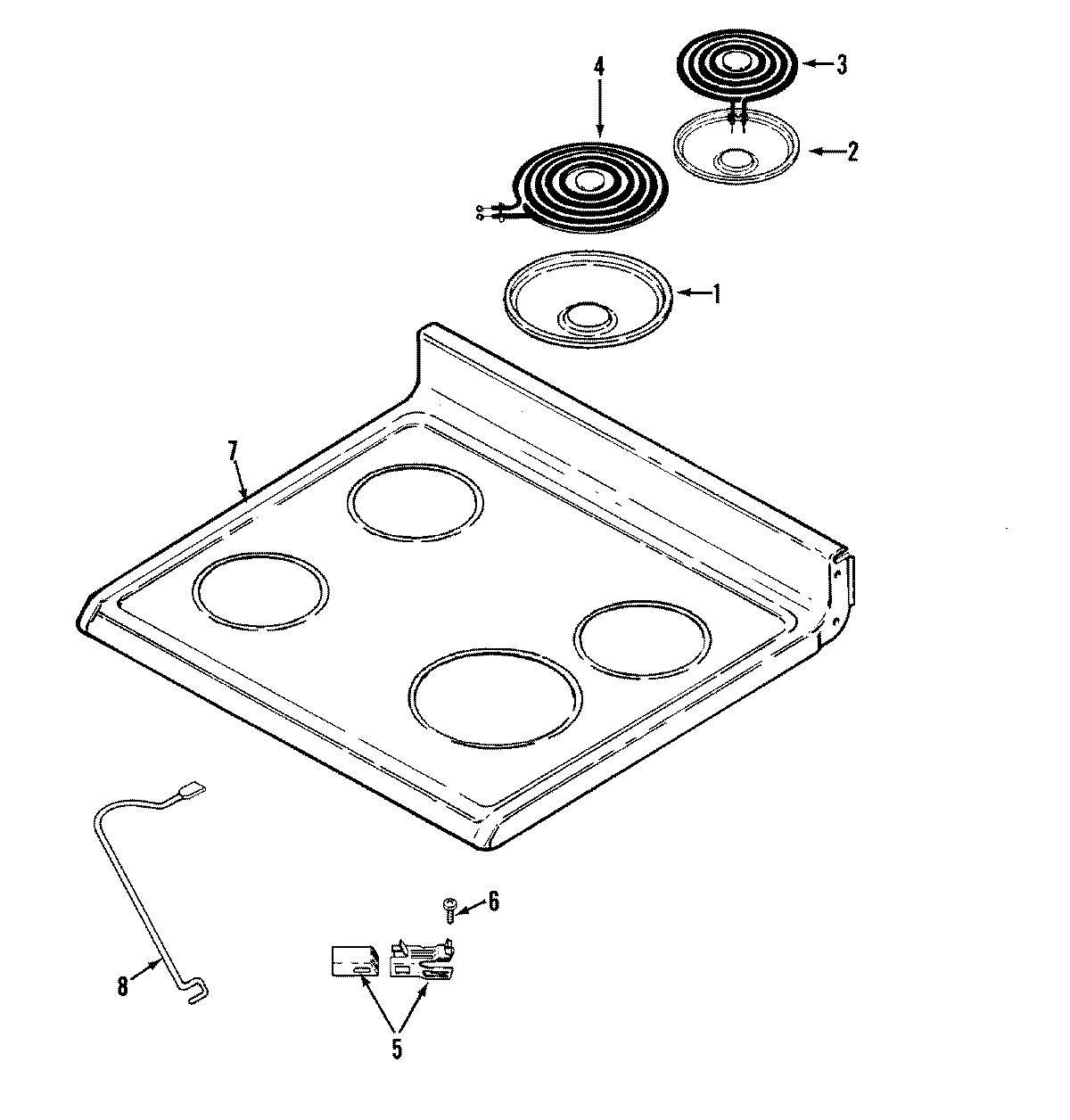

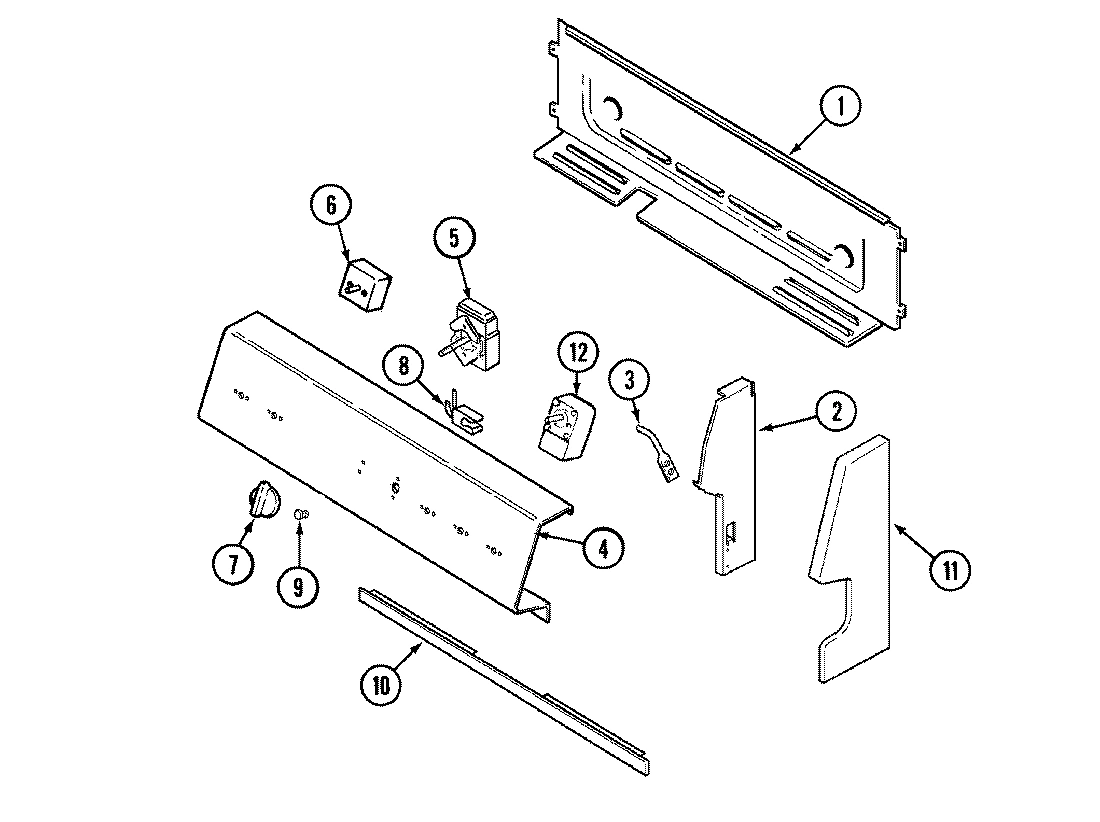

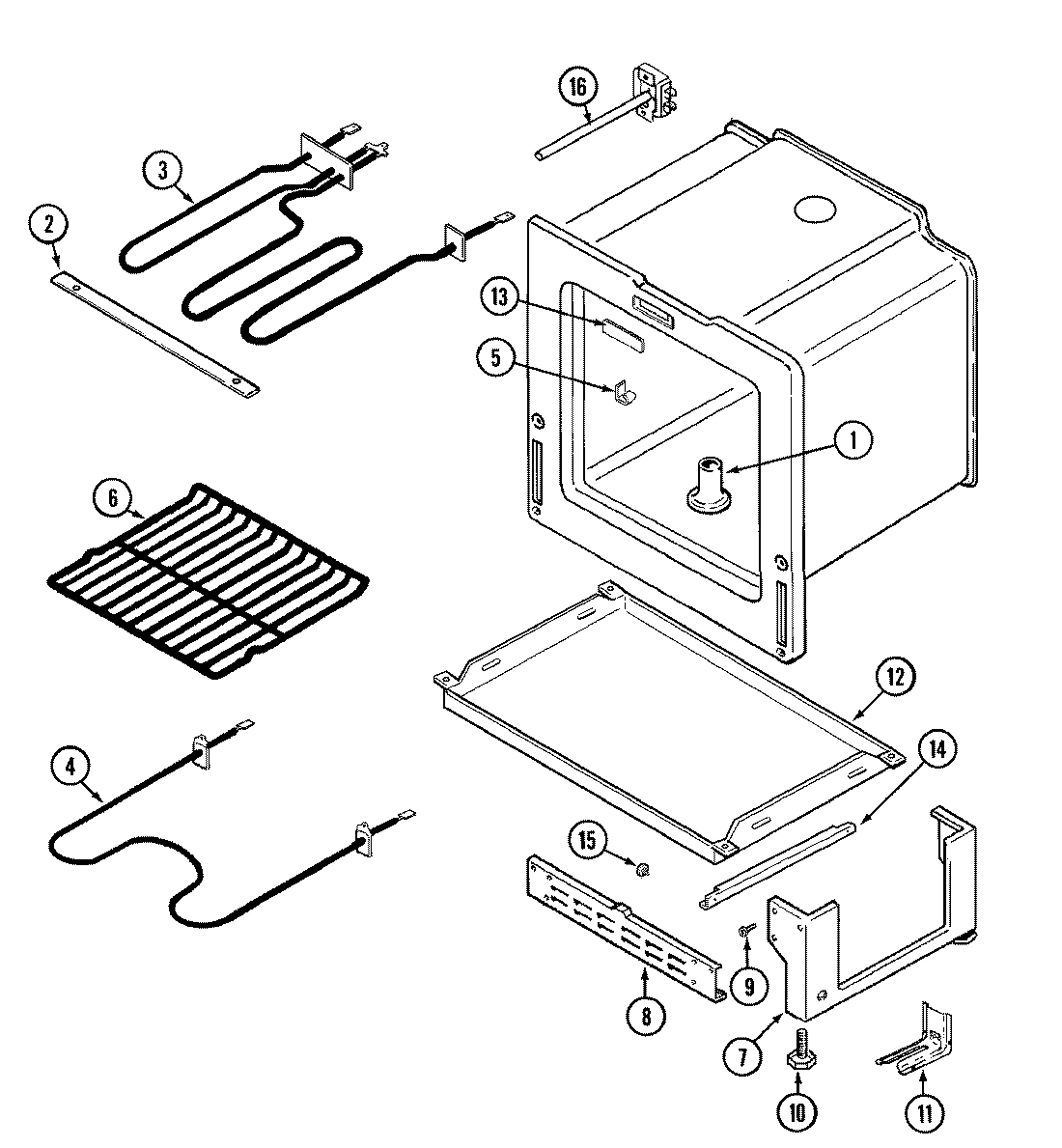

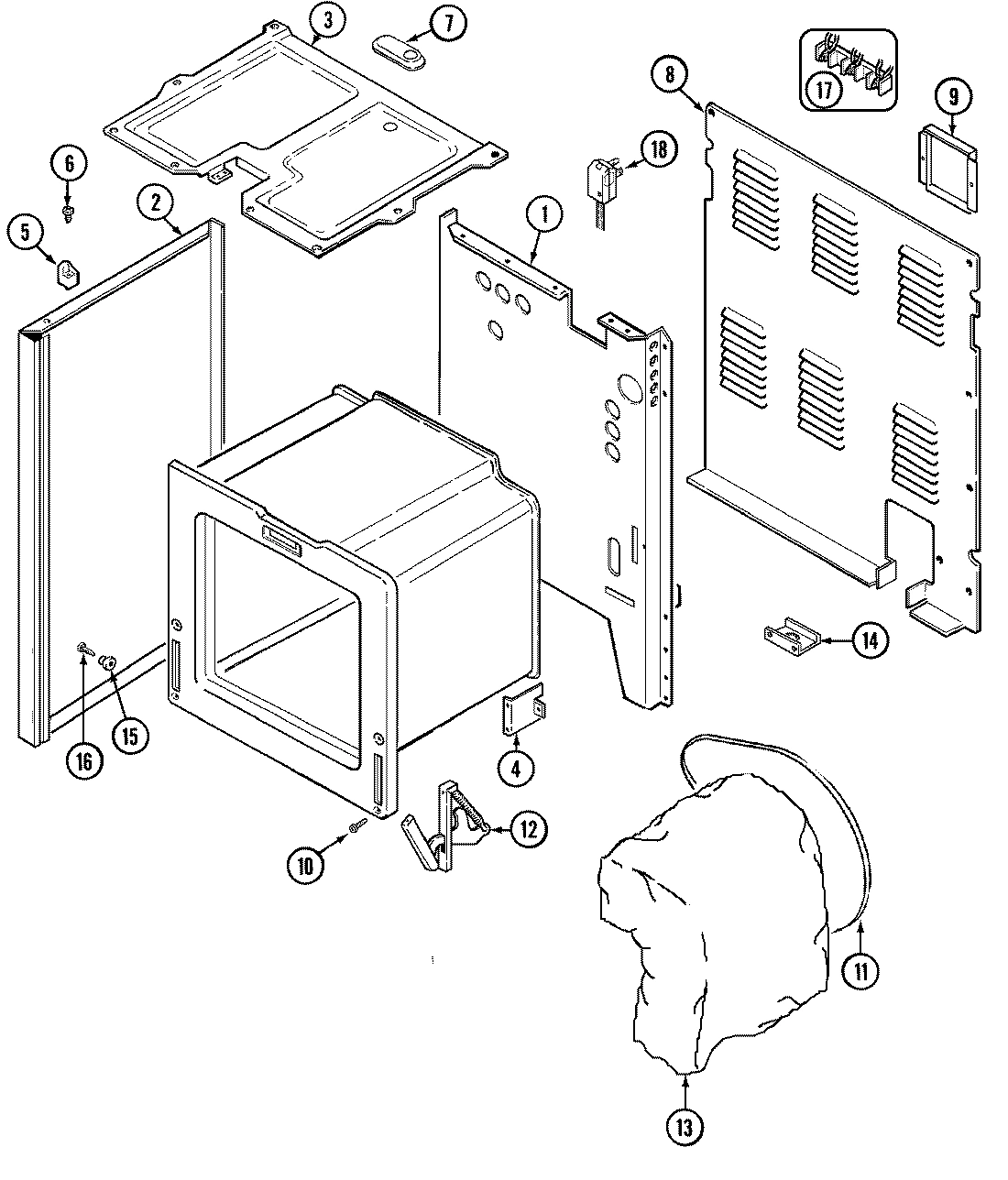

Model Whirlpool CER1140ACW ELECTRIC RANGE – Common Parts &amp; Diagrams

1

PANEL, DOOR (WHT) WPL 2401F09671 Contact Us For Availability

1

HOUSING, CONTROL PANEL WPL 74003372 Contact Us For Availability

1

TUBE, VENT WPL 8026P01960 Contact Us For Availability

1

BACK, MAIN WPL 74001772 Contact Us For Availability

1

SHIELD, WIRE WPL 74002334 Contact Us For Availability

2

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $9.60

2

HANDLE, DOOR (WHT) WPL 2411F00371 Contact Us For Availability

2

BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability

2

SUPPORT, CONTROL PANEL (RT) WPL 74003365 Contact Us For Availability

2

SUPPORT, CONTROL PANEL (LT) WPL 74003366 Contact Us For Availability

2

SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability

2

PANEL, SIDE (WHT) WPL 74003236 Contact Us For Availability

3

WPY04000036 Whirlpool Surface Element Backorder WPL WPY04000036 $75.33

3

SPACER, HANDLE (WHT) WPL 8010P08960 Contact Us For Availability

3

HINGE, MAIN TOP (ROD) WPL 74003371 Contact Us For Availability

3

ELEMENT, BROIL WPL Y04000057 Contact Us For Availability

3

BOX, BURNER WPL 4011F23919 Contact Us For Availability

4

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $4.65

4

WP74010750 Whirlpool Oven Bake Element In Stock WPL WP74010750 $38.16

4

WPY04000035 Whirlpool Surface Element In Stock WPL WPY04000035 $79.64

4

PANEL, CONTROL (WHT) WPL 74003852 Contact Us For Availability

4

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

5

12001676 Whirlpool Range Surface Burner Recep In Stock WPL 12001676 $10.60

5

INSULATION, DOOR 2`` WPL 4804F05060 Contact Us For Availability

5

SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability

5

THERMOSTAT, OVEN WPL 74003708 Contact Us For Availability

5

CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

6

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

6

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

6

LINING, DOOR WPL 74003240 Contact Us For Availability

6

SCREW WPL 7118P01360 Contact Us For Availability

6

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

6

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

7

WP74003373 Whirlpool Knob Switch Backorder WPL WP74003373 $12.06

7

SEAL, DOOR WPL 7212P04360 Contact Us For Availability

7

TOP, MAIN (WHT) WPL 74003410 Contact Us For Availability

7

PEDESTAL, SIDE WPL 74003393 Contact Us For Availability

7

COVER, VENT WPL 4005F43245 Contact Us For Availability

8

PANEL, DRAWER (WHT) WPL 74003399 Contact Us For Availability

8

SUPPORT, TOP WPL 74001170 Contact Us For Availability

8

LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability

8

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

8

COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability

9

CLIP, DOOR WPL 7112P03460 Contact Us For Availability

9

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

9

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

DRAWER, STORAGE WPL 74003618 Contact Us For Availability

SHIELD, SIGHT WPL 74003374 Contact Us For Availability

SCREW WPL 7101P11260 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

SCREW WPL 7101P07260 Contact Us For Availability

SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability

SCREW (1 3/16``-WHT) WPL 74002451 Contact Us For Availability

END CAP, CONTROL PNL (LT-WHT) WPL 74003370 Contact Us For Availability

SCREW WPL 7101P35260 Contact Us For Availability

STRAP, INSULATION WPL 74003385 Contact Us For Availability

W10876639 Whirlpool Door Hinge Assembly Backorder WPL W10876639 $91.57

WP7403P255-60 Whirlpool Selector Switch Backorder WPL WP7403P255-60 $107.82

SEAL, DOOR PANEL WPL 7208P00960 Contact Us For Availability

SCREW WPL 7101P30960 Contact Us For Availability

RETAINER, INSULATION (BOTTOM) WPL 74003392 Contact Us For Availability

NUT, LOCK WPL 7103P13960 Contact Us For Availability

PLUG, LOCK SLOT WPL 74003406 Contact Us For Availability

INSULATION, OVEN BACK WPL 4804F03960 Contact Us For Availability

INSULATION, WRAP WPL 74003112 Contact Us For Availability

14

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

14

PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability

15

NUT WPL 7103P08260 Contact Us For Availability

15

ROLLER, DRAWER WPL 74003566 Contact Us For Availability

15

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

16

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

16

THERMOSTAT, REDUNDANT WPL 7404P05760 Contact Us For Availability

16

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

17

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

17

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

17

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

18

CORD, POWER WPL 7402P05060 Contact Us For Availability

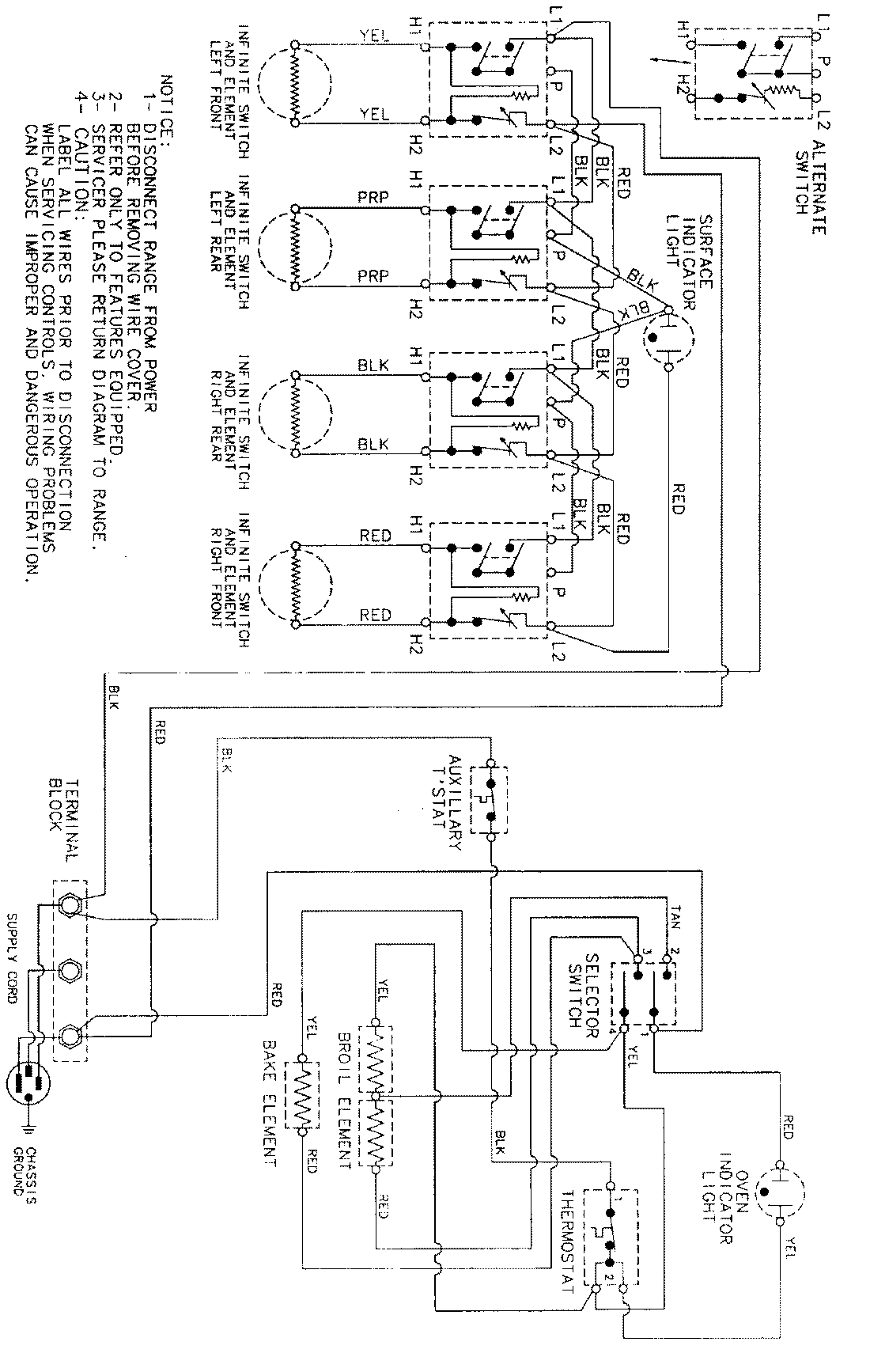

WIRING INFORMATION WPL 15002354 Contact Us For Availability

WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability

GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability

MANUAL, USE & CARE WPL 74003402 Contact Us For Availability

MANUAL, USE & CARE (FRCH) WPL 74003709 Contact Us For Availability
