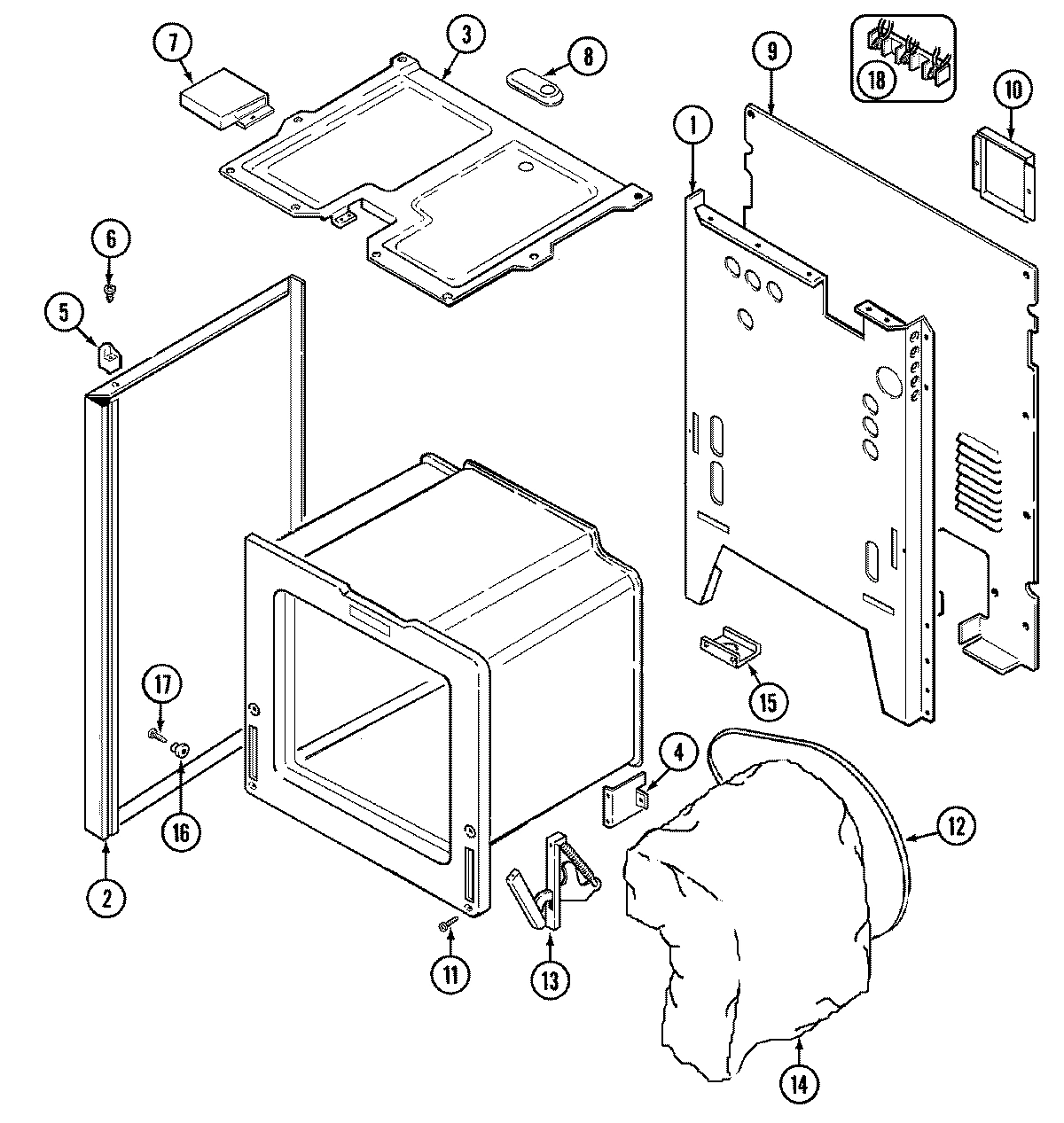

Model Whirlpool CER1100AAH ELECTRIC RANGE – Common Parts &amp; Diagrams

1

BACK, MAIN WPL 74001772 Contact Us For Availability

1

TUBE, VENT WPL 8026P02060 Contact Us For Availability

1

PANEL, DOOR (WHT) WPL 2401F09671 Contact Us For Availability

1

PANEL, DOOR (WHT) WPL 74003137 Contact Us For Availability

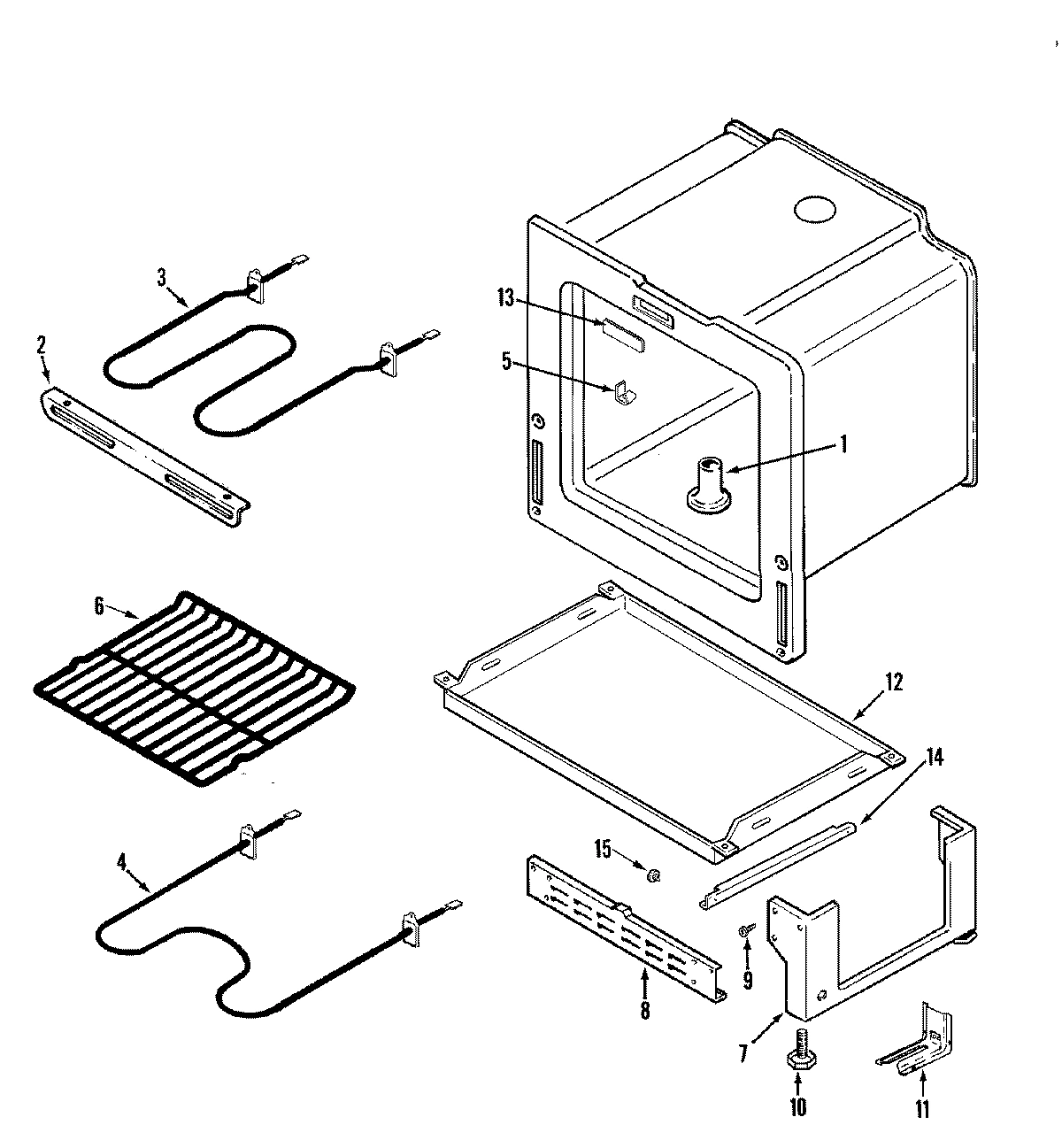

2

WP2411F013-70 Whirlpool Door Handle Backorder WPL WP2411F013-70 $144.44

2

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $9.51

2

PANEL, SIDE (WHT) WPL 74003236 Contact Us For Availability

2

BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability

2

SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability

2

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

2

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

2

HANDLE (SHORT-CHR) WPL 74001820 Contact Us For Availability

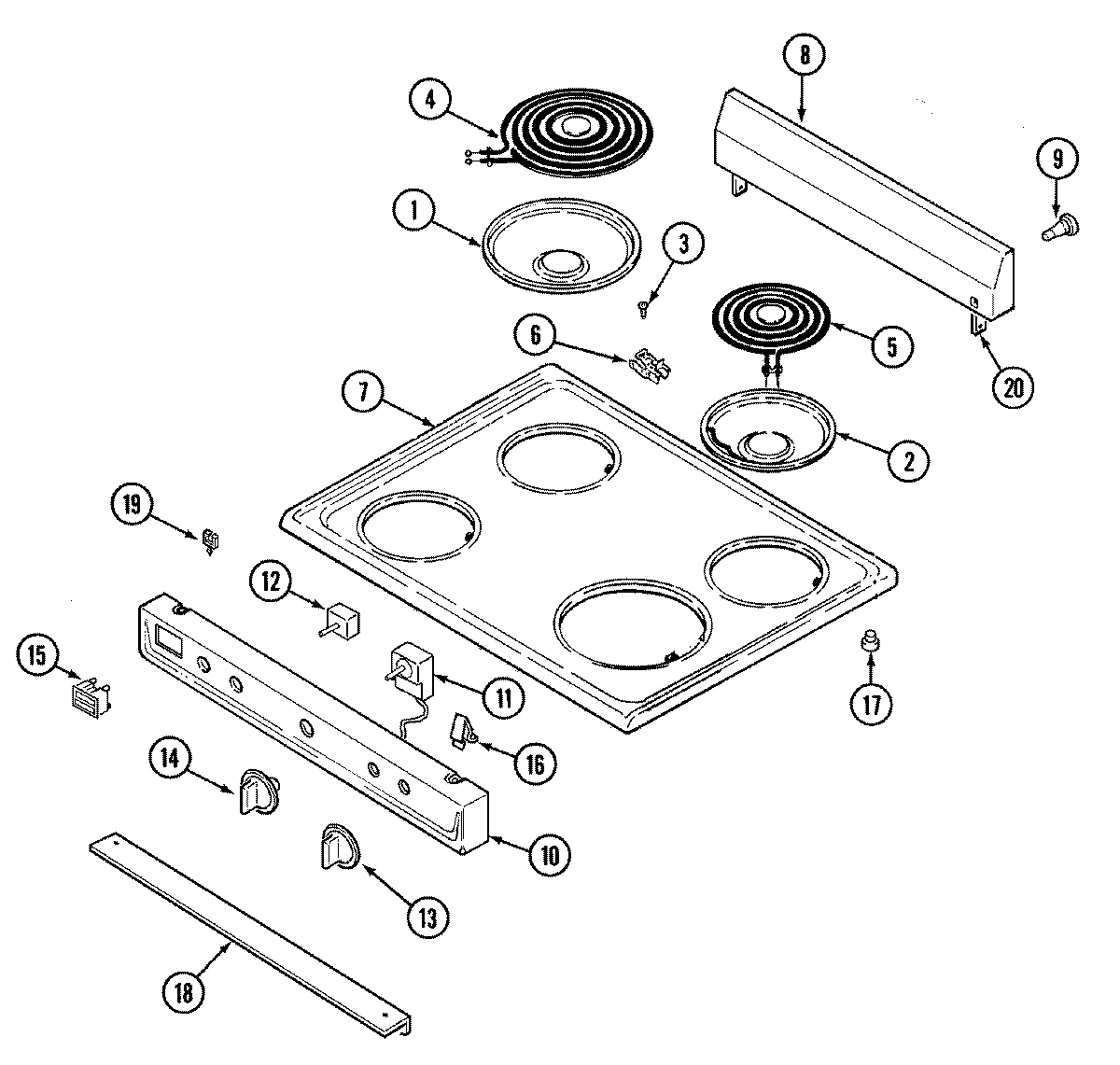

3

WPW10310249 Whirlpool Broil Element In Stock WPL WPW10310249 $82.15

3

BOX, BURNER WPL 74003403 Contact Us For Availability

3

SCREW WPL 7118P01360 Contact Us For Availability

3

SPACER, HANDLE (BLK) WPL 8010P08460 Contact Us For Availability

4

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $4.65

4

WP74010750 Whirlpool Oven Bake Element In Stock WPL WP74010750 $38.16

4

WPY04000035 Whirlpool Surface Element In Stock WPL WPY04000035 $79.64

4

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

5

WPY04000036 Whirlpool Surface Element Backorder WPL WPY04000036 $75.33

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

5

CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability

5

INSULATION, DOOR 2`` WPL 4804F05060 Contact Us For Availability

6

12001676 Whirlpool Range Surface Burner Recep In Stock WPL 12001676 $10.60

6

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

6

LINING, DOOR WPL 74003240 Contact Us For Availability

7

COVER, LOCK HOLE WPL 74003404 Contact Us For Availability

7

TOP, MAIN (WHT) WPL 2002W10581 Contact Us For Availability

7

BRACE WPL 3802F08580 Contact Us For Availability

7

PEDESTAL, SIDE WPL 74003405 Contact Us For Availability

8

COVER, VENT WPL 4005F43245 Contact Us For Availability

8

BACKGUARD (WHT) WPL 74003400 Contact Us For Availability

8

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

9

COVER, MAIN WIRE WPL 4005F38751 Contact Us For Availability

9

SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability

9

CLIP, DOOR WPL 7112P03460 Contact Us For Availability

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

BRACKET, CNTL. PANEL WPL 3801F25151 Contact Us For Availability

PANEL, CONTROL (BLK) WPL 74003401 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

SCREW WPL 7101P11260 Contact Us For Availability

THERMOSTAT WPL 74003267 Contact Us For Availability

SCREW WPL 7101P35260 Contact Us For Availability

STRAP, INSULATION WPL 74003385 Contact Us For Availability

SCREW WPL 7101P30960 Contact Us For Availability

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

RETAINER, INSULATION (BOTTOM) WPL 74003392 Contact Us For Availability

13

W10876639 Whirlpool Door Hinge Assembly Backorder WPL W10876639 $91.57

13

KNOB, THERMOSTAT WPL WP74003280 No Longer Available

13

PLUG, LOCK SLOT WPL 74003406 Contact Us For Availability

14

INSULATION, OVEN BACK WPL 4804F03960 Contact Us For Availability

14

INSULATION, WRAP WPL 74003112 Contact Us For Availability

14

KNOB, SWITCH WPL 7737P03060 Contact Us For Availability

15

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.46

15

PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability

15

LIGHT, INDICATOR WPL 7407P01560 Contact Us For Availability

16

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

16

CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability

16

PANEL, LOWER (WHT) WPL 2403F03471 Contact Us For Availability

17

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

17

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

17

SPACER, MAIN TOP WPL 74001428 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

SUPPORT UPPER FRONT PANEL WPL 3807F41980 Contact Us For Availability

BRACKET, PANEL WPL 3801F27851 Contact Us For Availability

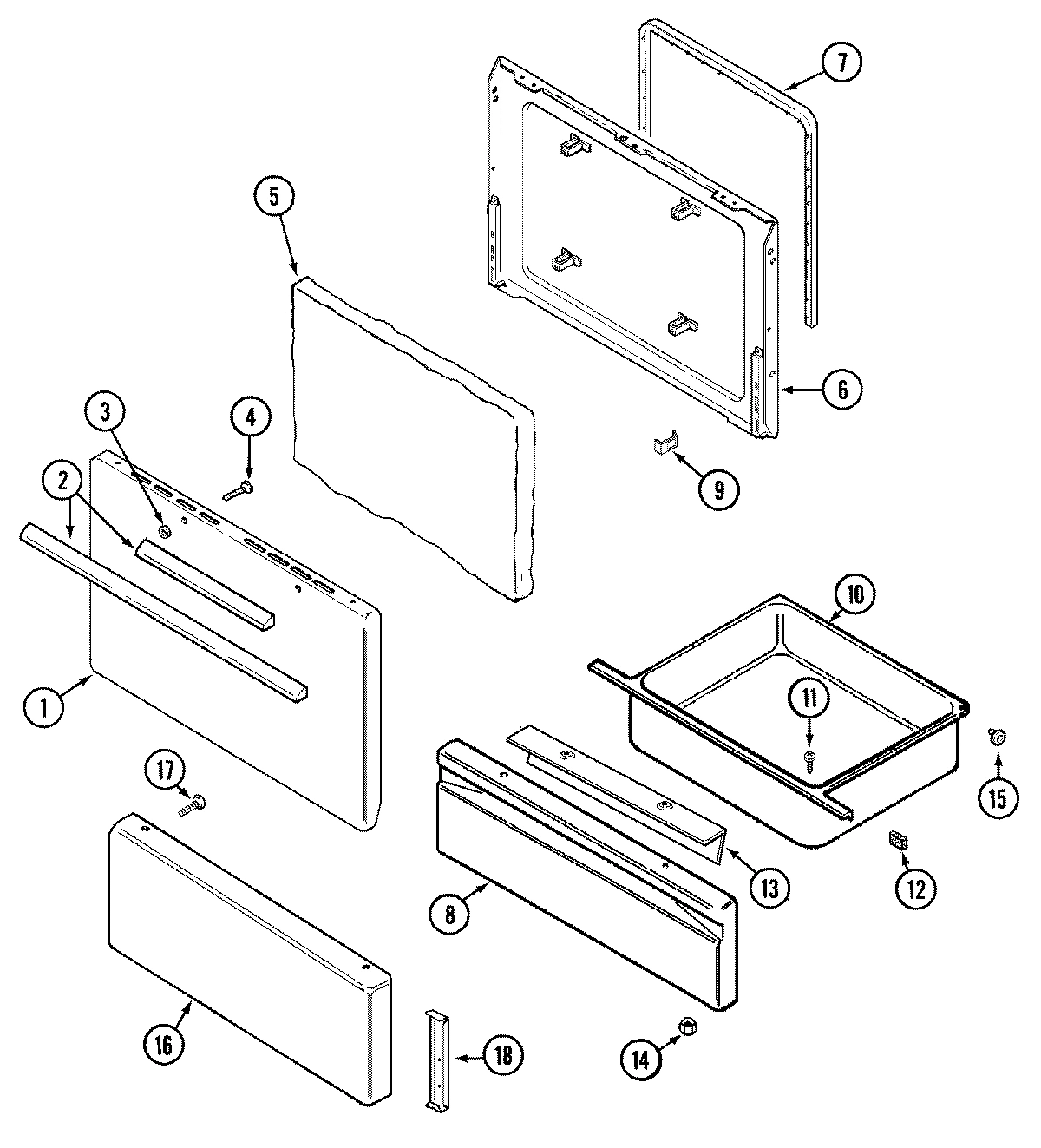

19

CLIP WPL 7112P02960 Contact Us For Availability

20

BRACKET, CONTROL PANEL (RT) WPL 3801F24251 Contact Us For Availability

20

BRACKET, CONTROL PANEL (LT) WPL 3801F24351 Contact Us For Availability

WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability

MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability

HARNESS, CONTROL PANEL WPL 5170D13060 Contact Us For Availability

MANUAL, USE & CARE WPL 74003402 Contact Us For Availability

WIRING INFORMATION WPL 15002207 Contact Us For Availability
