Model Whirlpool CE3832SRA ELECTRIC RANGE – Common Parts & Diagrams

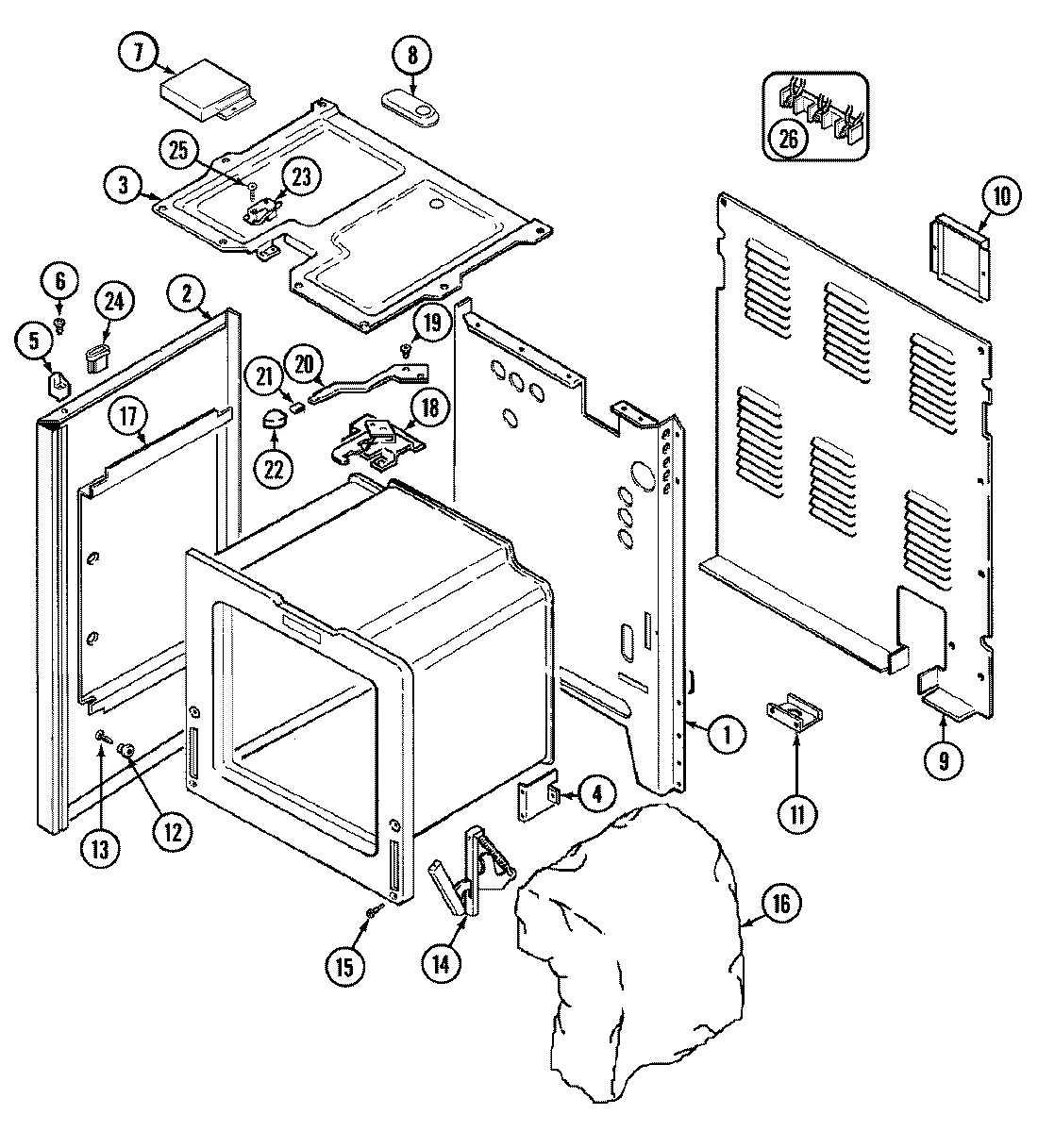

01 - BODY

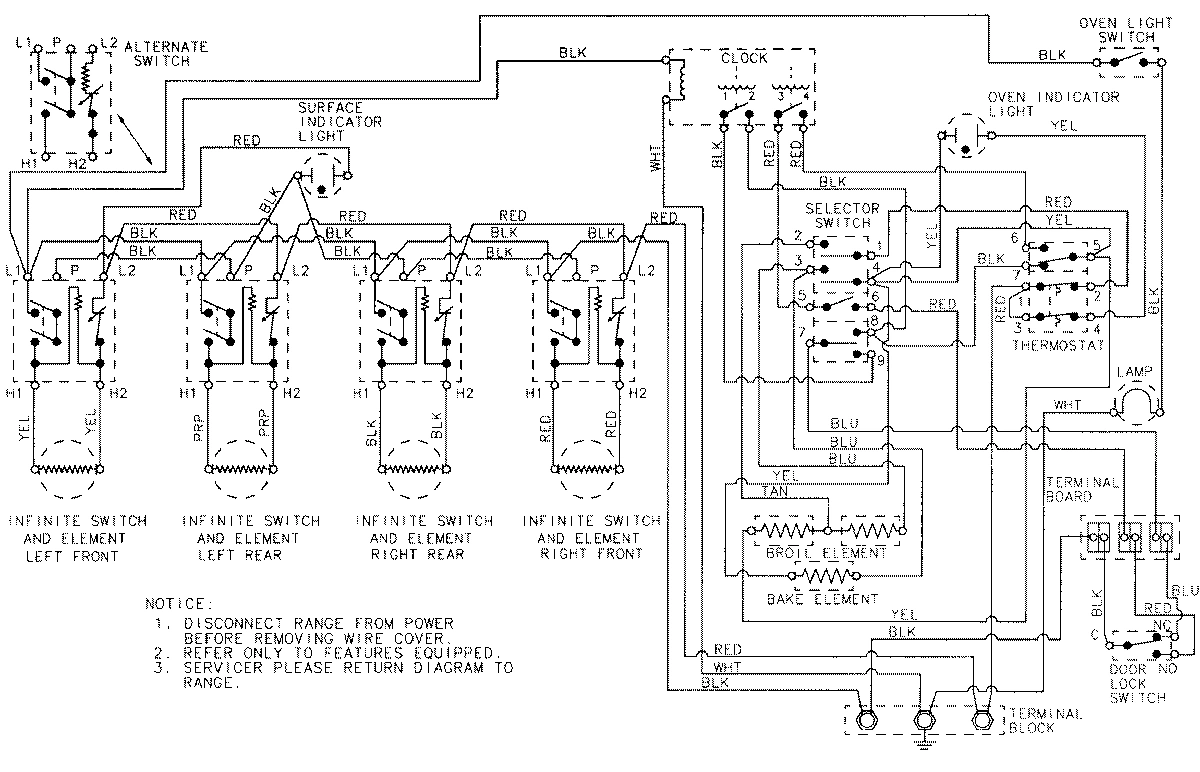

08 - WIRING INFORMATION

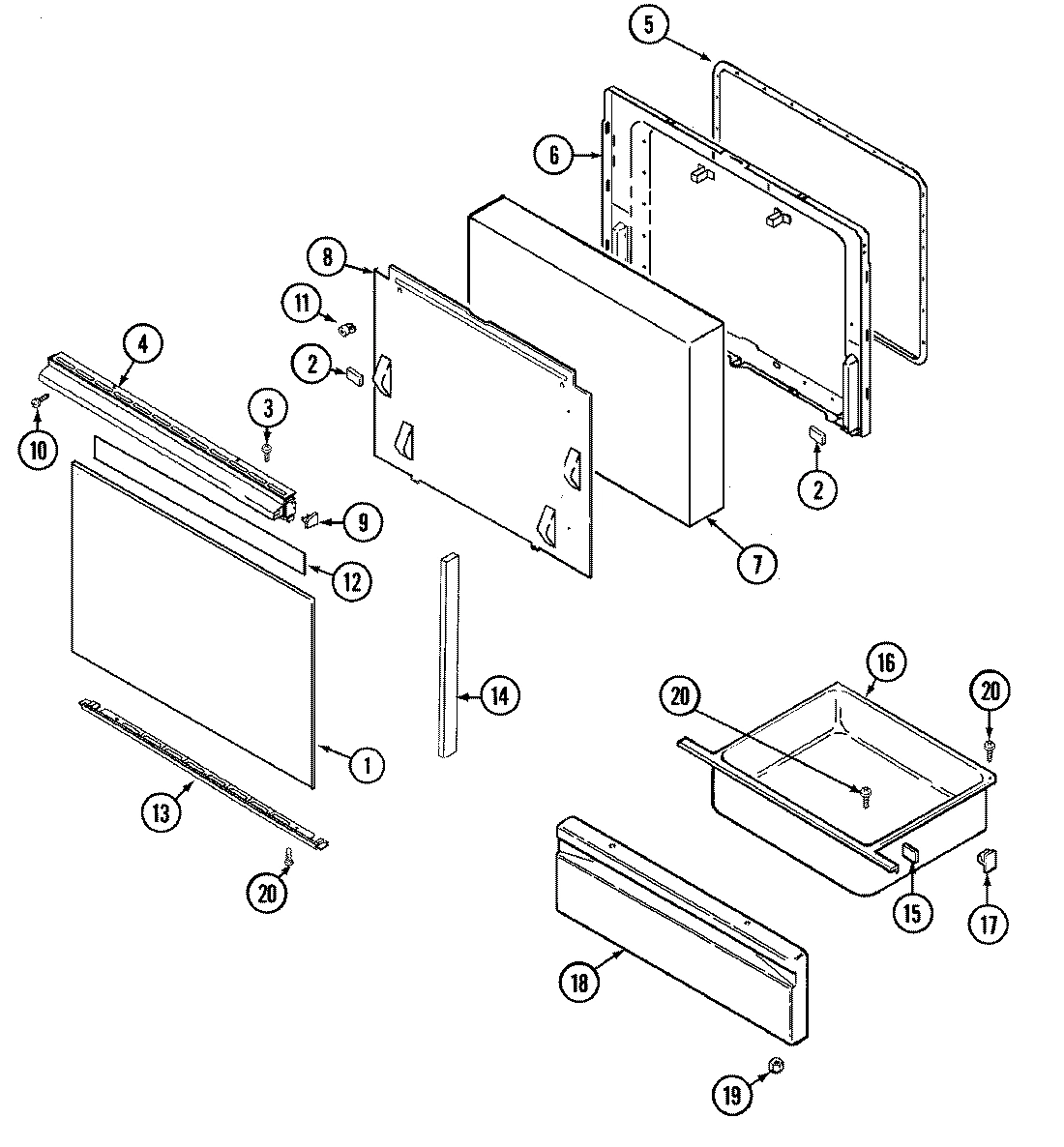

03 - DOOR/DRAWER (CE3832SRx)

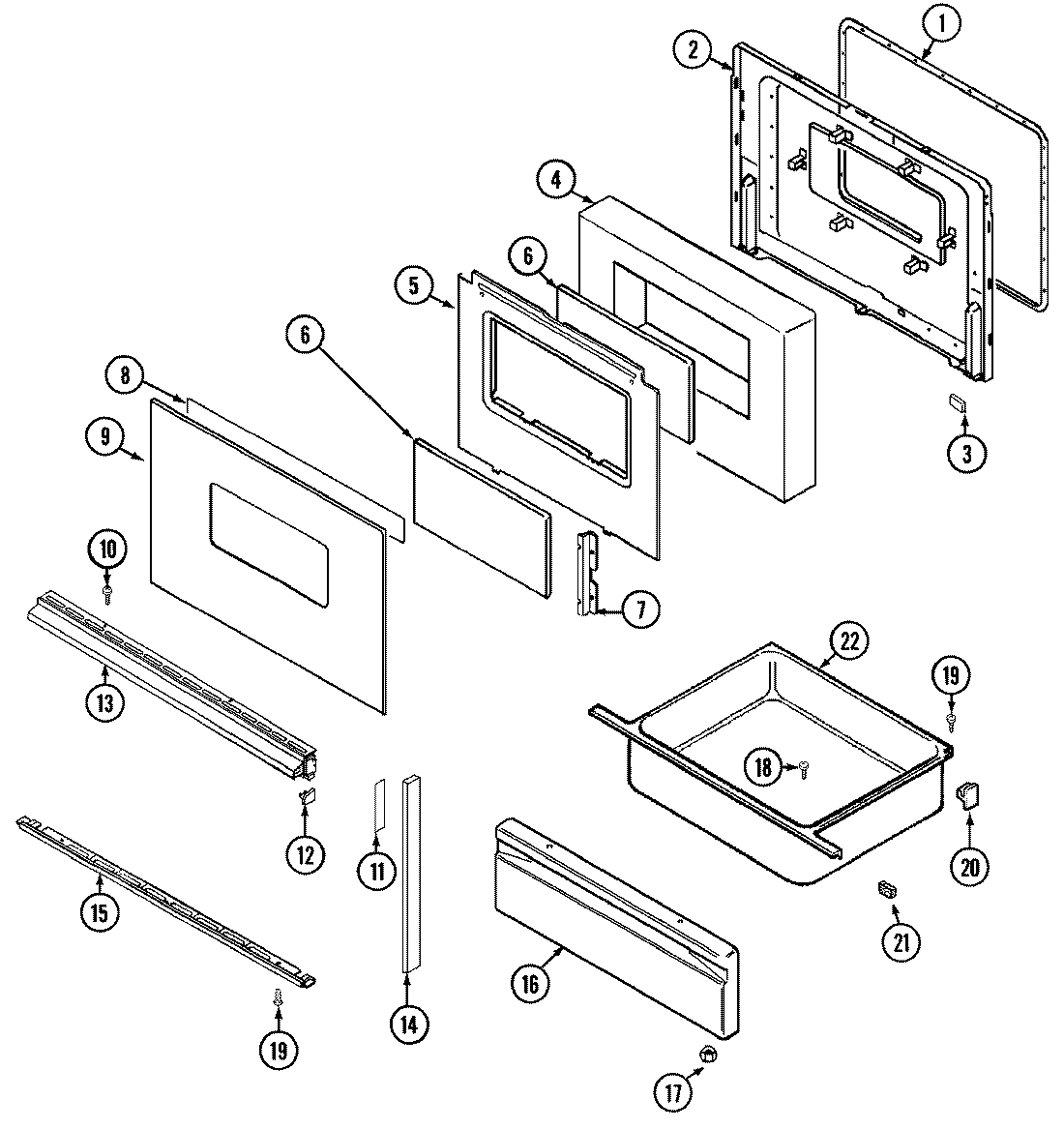

05 - DOOR/DRAWER (XRA/XRW SERIAL 34)

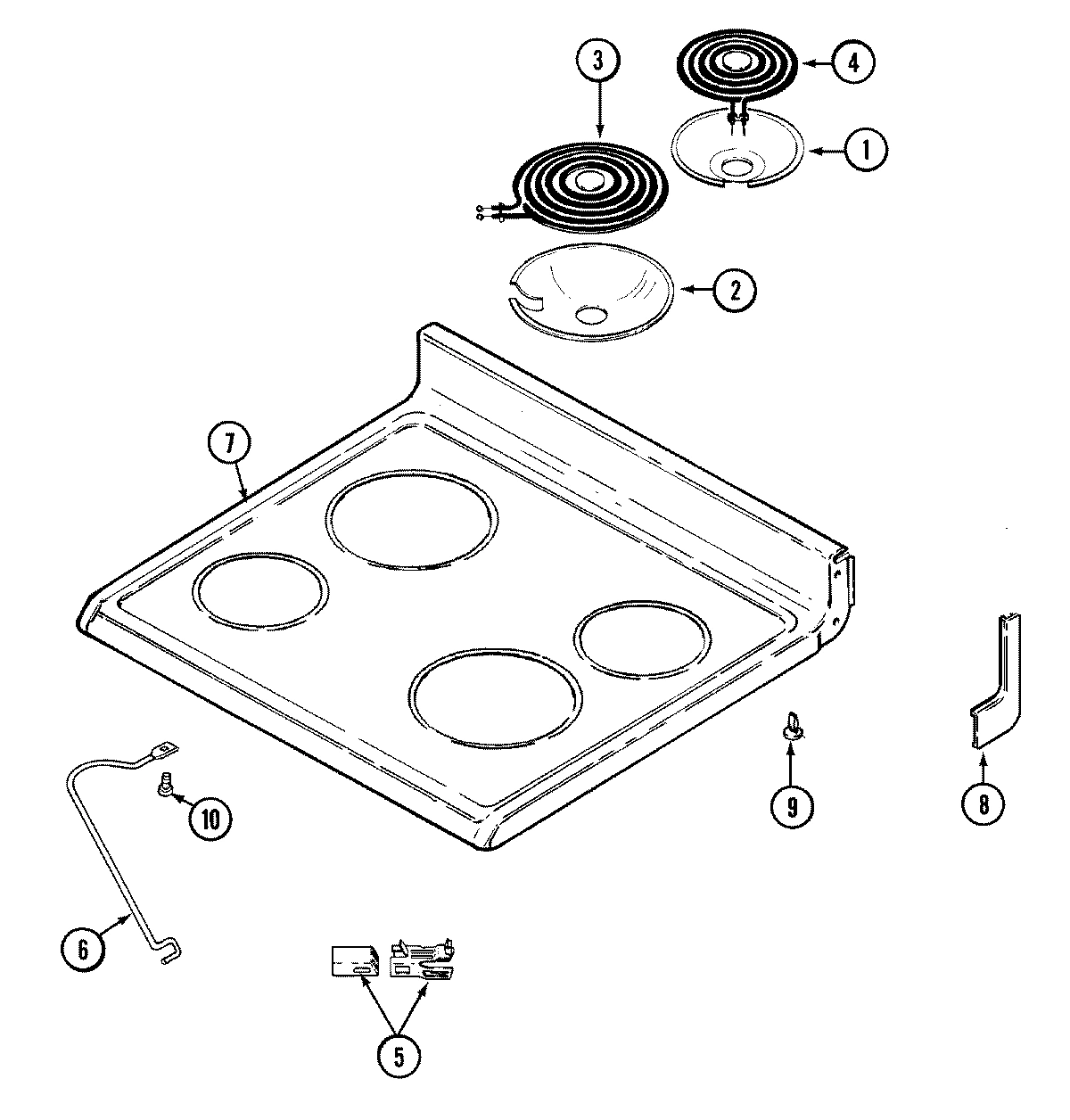

07 - TOP ASSEMBLY

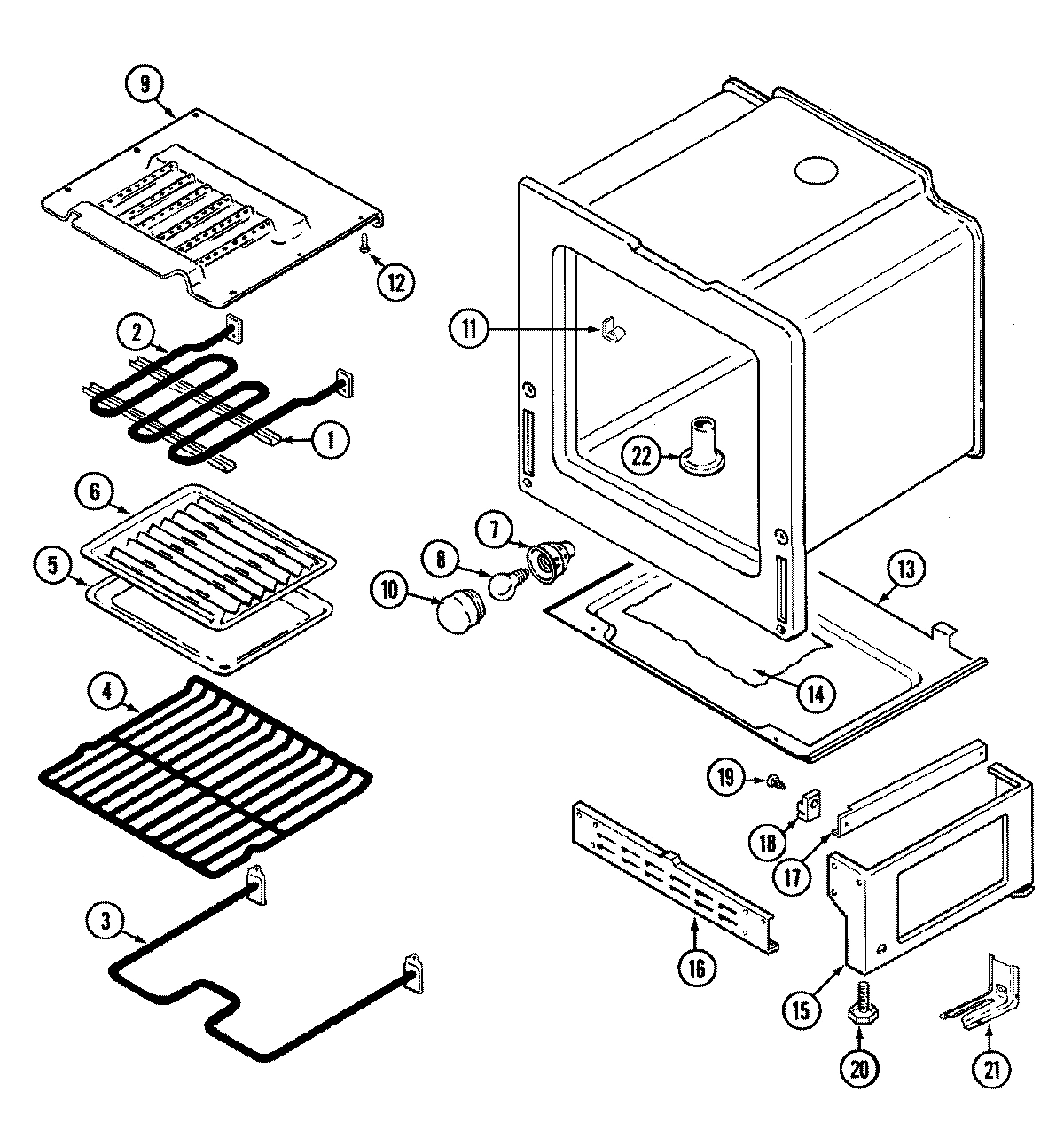

06 - OVEN/BASE

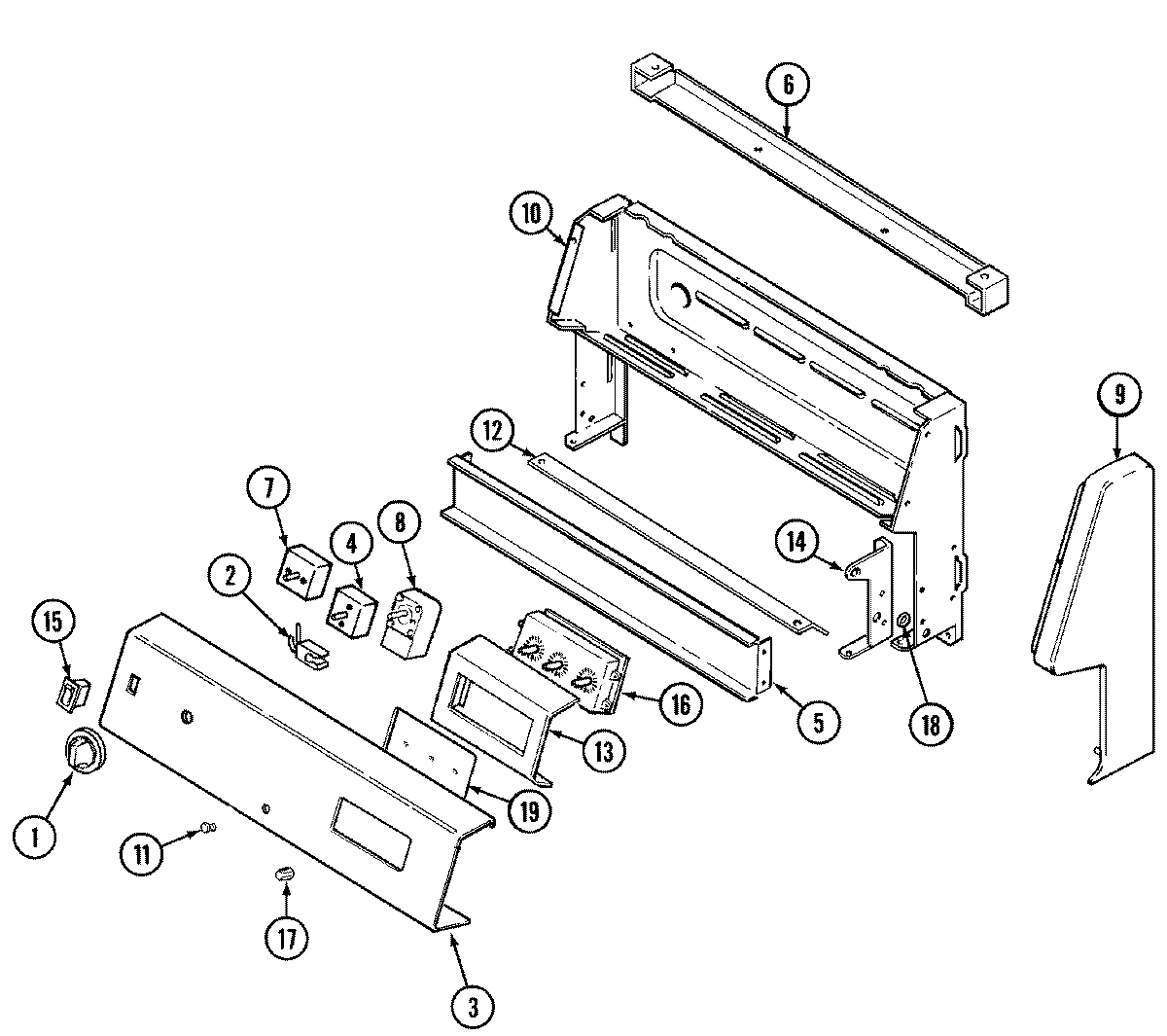

02 - CONTROL PANEL

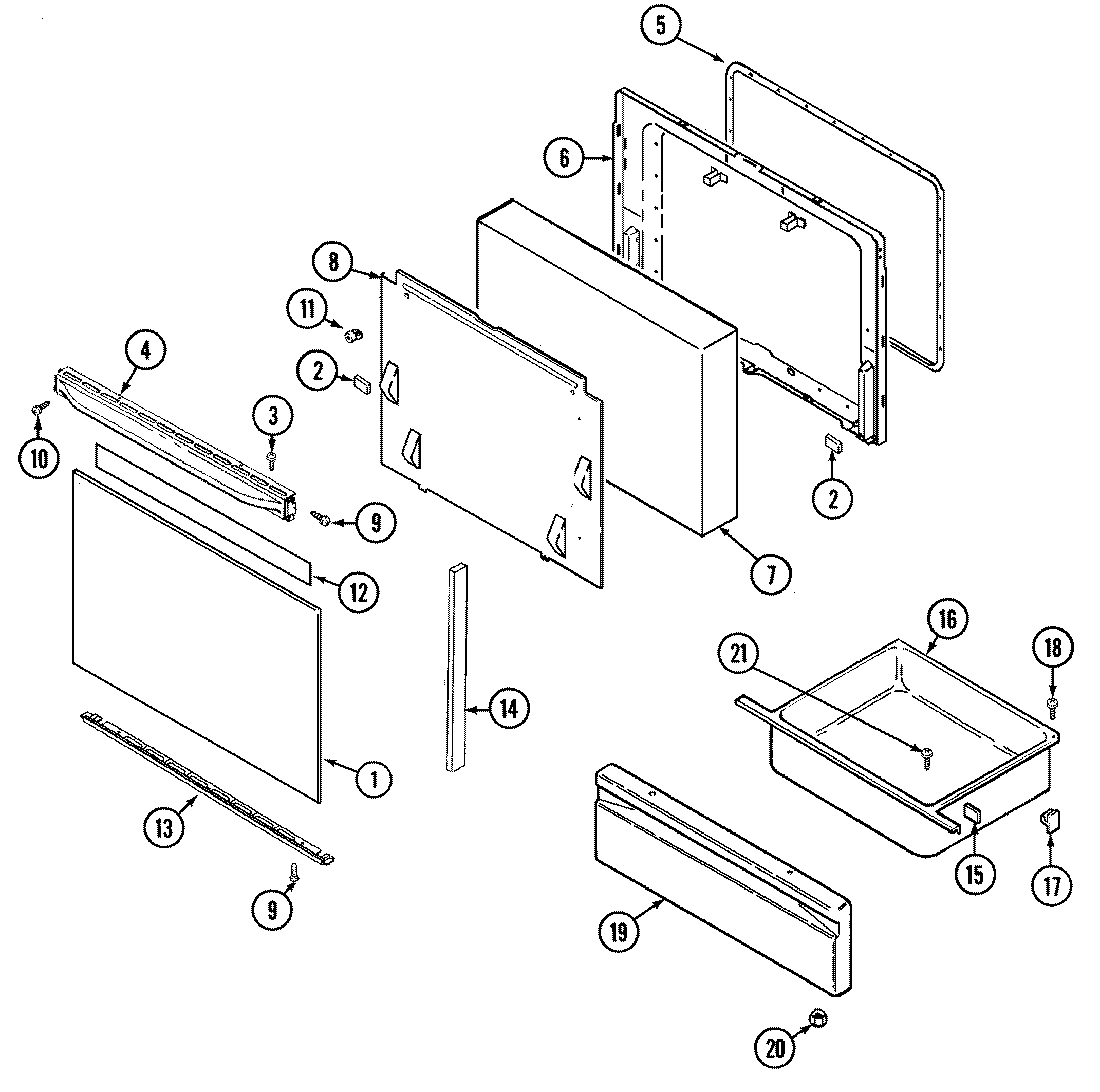

04 - DOOR/DRAWER (SRA/SRW SERIAL 49)
Common parts from model Whirlpool CE3832SRA ELECTRIC RANGE
1
BACK, MAIN WPL 74001772 Contact Us For Availability
1
SHIELD, WIRE WPL 74002334 Contact Us For Availability
1
GLASS, DOOR (OUTER-BLK) WPL 7902P32560 Contact Us For Availability
1
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SCREW WPL 7101P33460 Contact Us For Availability
1
KNOB, THERM/BURNER (BLK) WPL 7731P08260 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F08574 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 74001885 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
2
LINING, DOOR WPL 2402W20919 Contact Us For Availability
2
LINING, DOOR WPL 74003244 Contact Us For Availability
2
ELEMENT, BROIL WPL Y04000057 Contact Us For Availability
2
LIGHT, INDICATOR WPL 7407P08160 Contact Us For Availability
2
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
3
BOX, BURNER WPL 4011F21919 Contact Us For Availability
3
BOX, BURNER----NA WPL 74001753 Contact Us For Availability
3
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
3
PANEL, CONTROL WPL 7703P34460 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
4
HANDLE, DOOR (BLK) WPL 7701P14460 Contact Us For Availability
4
RACK, OVEN WPL 7801P03660 Contact Us For Availability
4
SWITCH, SELECTOR WPL 7403P34260 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SCREW WPL 7118P01360 Contact Us For Availability
5
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
5
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
5
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
BRACE, LWR BKGD WPL 3802F08751 Contact Us For Availability
6
LINING, DOOR WPL 2402W21019 Contact Us For Availability
6
GLASS, INNER WPL 74001841 Contact Us For Availability
6
SUPPORT, PROP WPL 7809P01460 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
7
COVER, LATCH ASSY. WPL 4005F39880 Contact Us For Availability
7
INSULATION DOOR WPL 4804F01260 Contact Us For Availability
7
RETAINER, GLASS WPL 74001844 Contact Us For Availability
7
TOP, MAIN (ALM) WPL 2002W10384 Contact Us For Availability
7
RECEPTACLE, BULB WPL 74003125 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
7
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
7
INSULATION, DOOR WPL 4804F05160 Contact Us For Availability
8
COVER VENT WPL 4005F35045 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F21845 Contact Us For Availability
8
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
8
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
8
LAMP, OVEN WPL 7407P09160 Contact Us For Availability
8
SCREW WPL 7101P30960 Contact Us For Availability
8
THERMOSTAT WPL 7404P07860 Contact Us For Availability
8
THERMOSTAT WPL 7404P10060 Contact Us For Availability
8
BAFFLE, DOOR SOLID WPL 3601F21851 Contact Us For Availability
9
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
9
GLASS, DOOR (OUTER-BLK) WPL 74003431 Contact Us For Availability
9
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
9
GLIDE WPL 74001663 Contact Us For Availability
9
BAFFLE. BROIL WPL 3601F20245 Contact Us For Availability
9
END CAP (LT-BLK) WPL 74001352 Contact Us For Availability
9
END CAP (RT-BLK) WPL 74001355 Contact Us For Availability
9
END CAP (LT-BLK) WPL 7726P05960 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7726P06060 Contact Us For Availability
10
COVER, TERMINAL BLOCK ACCES WPL 4005F37651 Contact Us For Availability
10
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
10
SCREW 3/8`` WPL 7101P14160 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
HOUSING, CONTROL PANEL WPL 74002162 Contact Us For Availability
11
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
11
NUT, NYLON WPL 7103P04560 Contact Us For Availability
11
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
11
LENS, INDICATOR LIGHT WPL 7730P00860 Contact Us For Availability
11
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
12
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
12
END CAP (RT) WPL 7744P07560 Contact Us For Availability
12
END CAP (LT) WPL 7744P07660 Contact Us For Availability
12
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
12
SCREW WPL 7101P29060 Contact Us For Availability
12
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
13
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
13
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
13
HANDLE, DOOR (BLK) WPL 74003429 Contact Us For Availability
13
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
13
BRACKET, CLOCK WPL 3801F26445 Contact Us For Availability
14
HINGE, DOOR WPL 7106P03260 Contact Us For Availability
14
END CAP, DOOR (BLK) WPL 74002084 Contact Us For Availability
14
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
14
TAPE, END CAP WPL 8270P09360 Contact Us For Availability
14
END CAP, DOOR (BLK) WPL 74003430 Contact Us For Availability
14
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
14
HINGE, MAIN TOP (LT) WPL 3418D09760 Contact Us For Availability
14
HINGE, MAIN TOP (RT) WPL 3418D09860 Contact Us For Availability
15
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
15
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
15
TRIM, BOTTOM (BLK) WPL 74003432 Contact Us For Availability
15
PEDESTAL, SIDE WPL 4020W00780 Contact Us For Availability
15
PEDESTAL, SIDE WPL 74003016 Contact Us For Availability
15
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
16
INSULATION, BACK WPL 4804F01560 Contact Us For Availability
16
INSULATION, WRAP WPL 4804F01660 Contact Us For Availability
16
DRAWER, STORAGE WPL 3405F01580 Contact Us For Availability
16
DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability
16
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
16
CLOCK (BLK) WPL 74001560 Contact Us For Availability
17
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
17
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
17
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
17
KNOB, CLOCK WPL 7711P46660 Contact Us For Availability
18
SUPPORT, DRAWER WPL 74002312 Contact Us For Availability
18
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
18
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
18
LATCH ASSY. WPL 74003032 Contact Us For Availability
18
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
18
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
18
NUT, SPEED WPL 7103P12960 Contact Us For Availability
19
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
19
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
19
PANEL, DRAWER (ALM) WPL 2416F03964 Contact Us For Availability
19
NUT, LOCK WPL 7103P08560 Contact Us For Availability
19
GASKET WPL 7201P05660 Contact Us For Availability
19
GLASS, CLOCK WPL 7902P10960 Contact Us For Availability
20
LEVER, DOOR LATCH WPL 74001725 Contact Us For Availability
20
LEVER, LATCH (BLK) WPL 74003005 Contact Us For Availability
20
LEVER, LOCK WPL 8009P01660 Contact Us For Availability
20
NUT, LOCK WPL 7103P13960 Contact Us For Availability
20
NUT WPL 7103P08260 Contact Us For Availability
20
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
20
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
21
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
21
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
21
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
22
HANDLE, LATCH (BLK) WPL 7701P08860 Contact Us For Availability
22
DRAWER, STORAGE WPL 74003618 Contact Us For Availability
22
TUBE, VENT WPL 8026P01960 Contact Us For Availability
23
SWITCH, DOOR LOCK WPL 74001822 Contact Us For Availability
23
SWITCH, DOOR LATCH WPL 7403P22860 Contact Us For Availability
24
BUSHING, PROP WPL 8007P02360 Contact Us For Availability
25
SCREW WPL 7101P10360 Contact Us For Availability
26
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001147 Contact Us For Availability
NI
GUIDE, QUICK REF - CROSLEY WPL 16002080 Contact Us For Availability
NI
HARNESS LOOSE WIRES WPL 5125A32160 Contact Us For Availability
NI
HARNESS, BKGD WPL 5170D14860 Contact Us For Availability
NI
HARNESS, PANEL TO TOP WPL 5175D04960 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P02160 Contact Us For Availability
× ![]()
