Model Whirlpool CE38000AAA ELECTRIC RANGE – Common Parts &amp; Diagrams

1

BACK, MAIN WPL 74001772 Contact Us For Availability

1

SHIELD, WIRE WPL 74002334 Contact Us For Availability

1

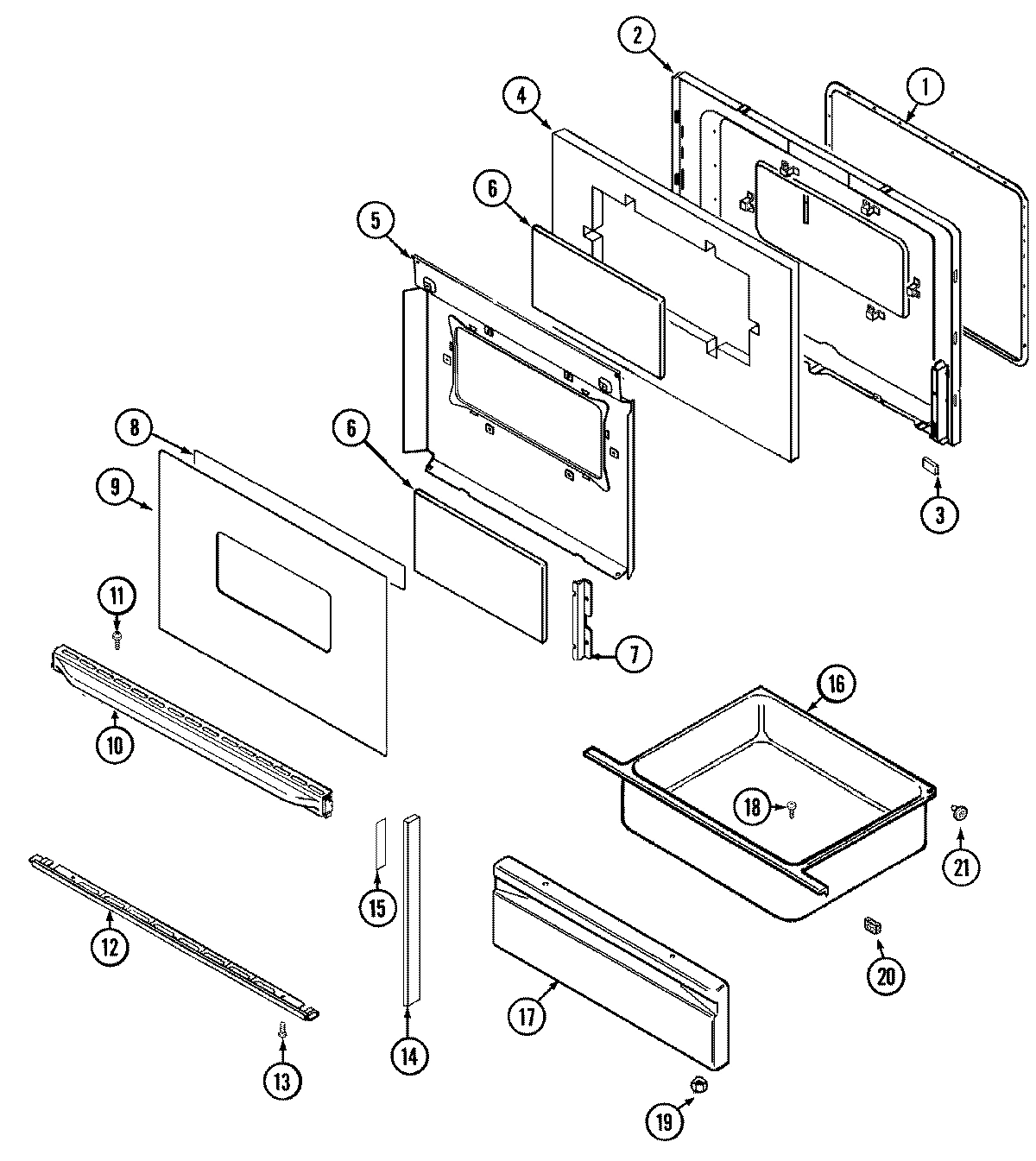

GASKET, DOOR WPL 7201P04660 Contact Us For Availability

1

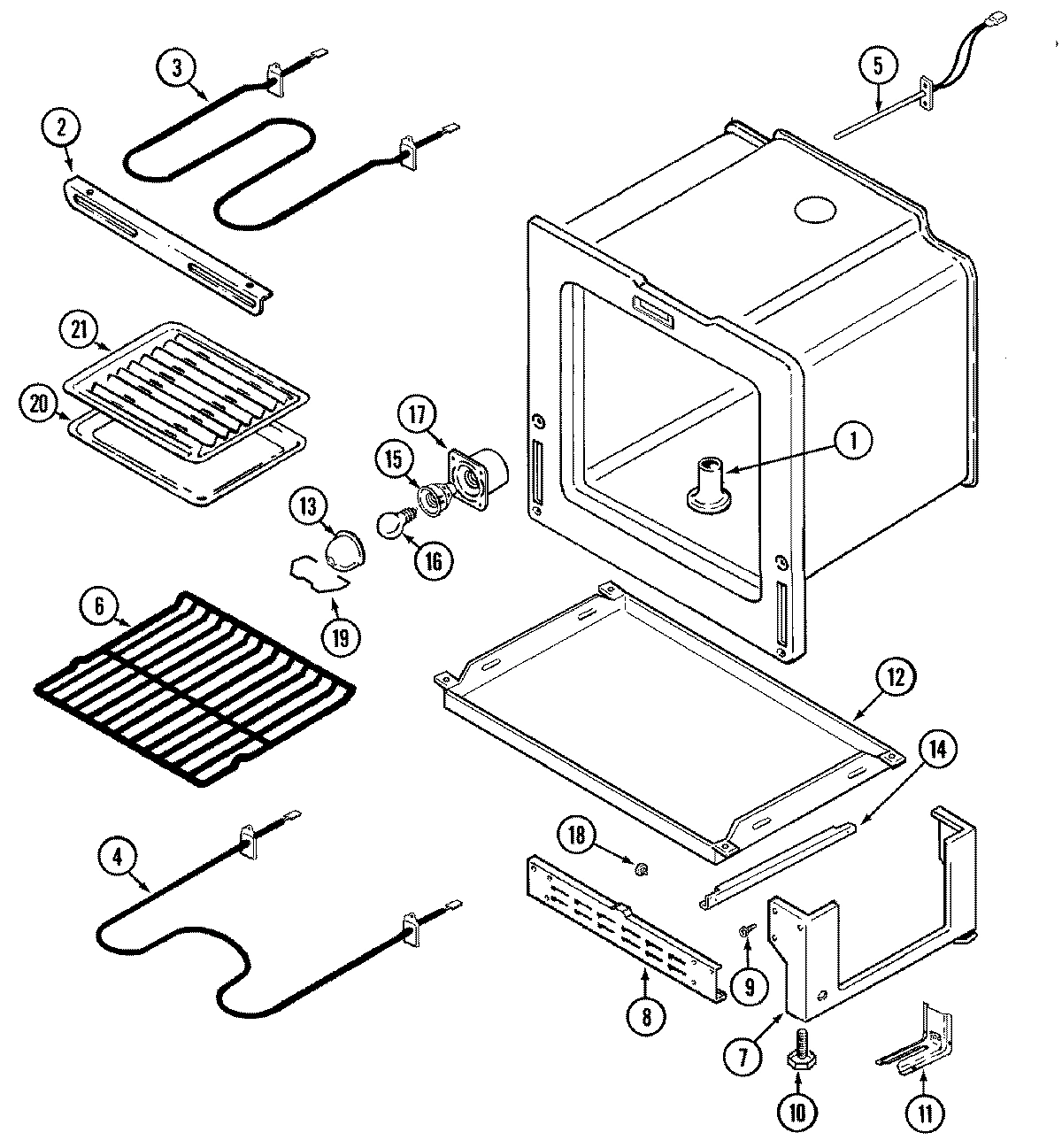

TUBE, VENT WPL 74003469 Contact Us For Availability

1

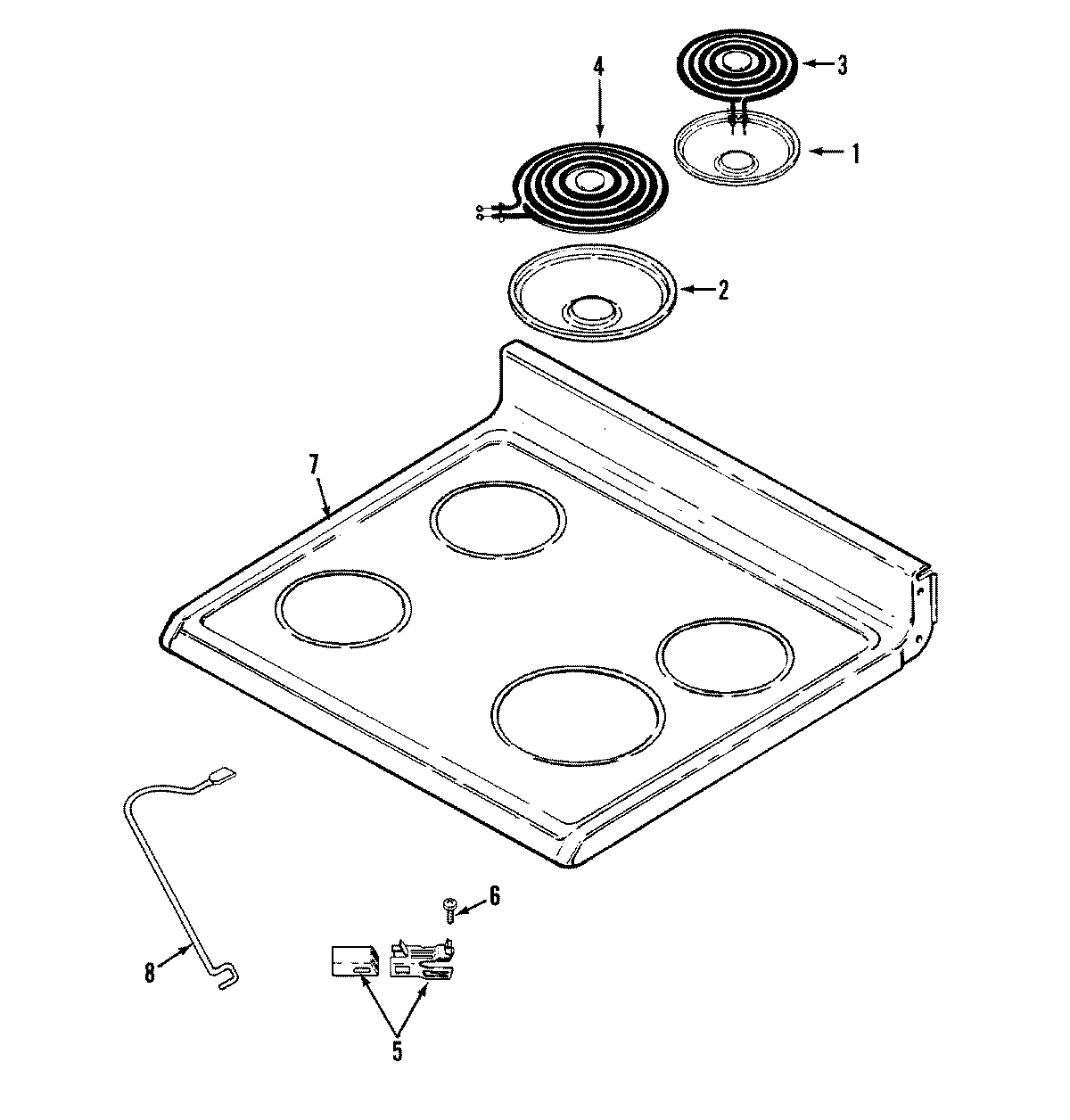

BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability

2

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $12.65

2

PANEL, SIDE (ALM) WPL 74003237 Contact Us For Availability

2

LINING, DOOR WPL 74003244 Contact Us For Availability

2

SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability

3

WPW10310249 Whirlpool Broil Element In Stock WPL WPW10310249 $82.15

3

WPY04000036 Whirlpool Surface Element Backorder WPL WPY04000036 $75.33

3

BOX, BURNER WPL 74003403 Contact Us For Availability

4

WP74010750 Whirlpool Oven Bake Element In Stock WPL WP74010750 $38.16

4

WPY04000035 Whirlpool Surface Element In Stock WPL WPY04000035 $79.64

4

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

4

INSULATION, DOOR WPL 74001842 Contact Us For Availability

5

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

5

12001676 Whirlpool Range Surface Burner Recep In Stock WPL 12001676 $10.60

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

5

BAFFLE, DOOR WPL 74001843 Contact Us For Availability

6

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

6

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

6

GLASS, INNER WPL 74001841 Contact Us For Availability

6

SCREW WPL 7118P01360 Contact Us For Availability

7

COVER, VENT WPL 4005F43245 Contact Us For Availability

7

RETAINER, GLASS WPL 74001844 Contact Us For Availability

7

PEDESTAL, SIDE WPL 74003393 Contact Us For Availability

7

TOP, MAIN (ALM) WPL 74003444 Contact Us For Availability

8

TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability

8

COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability

8

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

8

SUPPORT, TOP WPL 74001170 Contact Us For Availability

9

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

9

GLASS, DOOR (OUTER-BLK) WPL 74003431 Contact Us For Availability

10

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

10

HANDLE, DOOR (BLK) WPL 74003429 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

STRAP, INSULATION WPL 74003385 Contact Us For Availability

SCREW (1/2``) WPL 7101P04060 Contact Us For Availability

SCREW WPL 7101P35260 Contact Us For Availability

12

WP74011140 Whirlpool Range Hinge In Stock WPL WP74011140 $102.61

12

TRIM, BOTTOM (BLK) WPL 74003432 Contact Us For Availability

12

RETAINER, INSULATION (BOTTOM) WPL 74003392 Contact Us For Availability

13

INSULATION, OVEN WRAP WPL 74003381 Contact Us For Availability

13

COVER, BULB WPL 74003389 Contact Us For Availability

13

COVER, BULB WPL 7724P04760 Contact Us For Availability

14

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.46

14

END CAP, DOOR (BLK) WPL 74003430 Contact Us For Availability

14

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

TAPE, END CAP WPL 8270P09360 Contact Us For Availability

RECEPTACLE, BULB WPL 74003387 Contact Us For Availability

RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

DRAWER, STORAGE WPL 74003618 Contact Us For Availability

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

PANEL, DRAWER (ALM) WPL 74003445 Contact Us For Availability

HOUSING, BULB WPL 74003388 Contact Us For Availability

INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability

RETAINER, LATCH INSULATION WPL 74003139 Contact Us For Availability

LATCH, DOOR WPL 74003380 Contact Us For Availability

SCREW, STAINLESS WPL 7101P03760 Contact Us For Availability

NUT WPL 7103P08260 Contact Us For Availability

ROLLER, DRAWER WPL 74003566 Contact Us For Availability

19

SCREW WPL 7101P11260 Contact Us For Availability

19

NUT, LOCK WPL 7103P13960 Contact Us For Availability

19

RETAINER, BULB COVER WPL 74003391 Contact Us For Availability

20

LEVER, LATCH (BLK) WPL 74003005 Contact Us For Availability

20

SPACER, RUBBER WPL 8010P08560 Contact Us For Availability

20

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

21

SWITCH, DOOR LATCH WPL 74003383 Contact Us For Availability

21

INSULATOR, SWITCH WPL 74003630 Contact Us For Availability

21

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

22

SCREW WPL 912012 Contact Us For Availability

23

COVER, DOOR LATCH WPL 74003479 Contact Us For Availability

NI

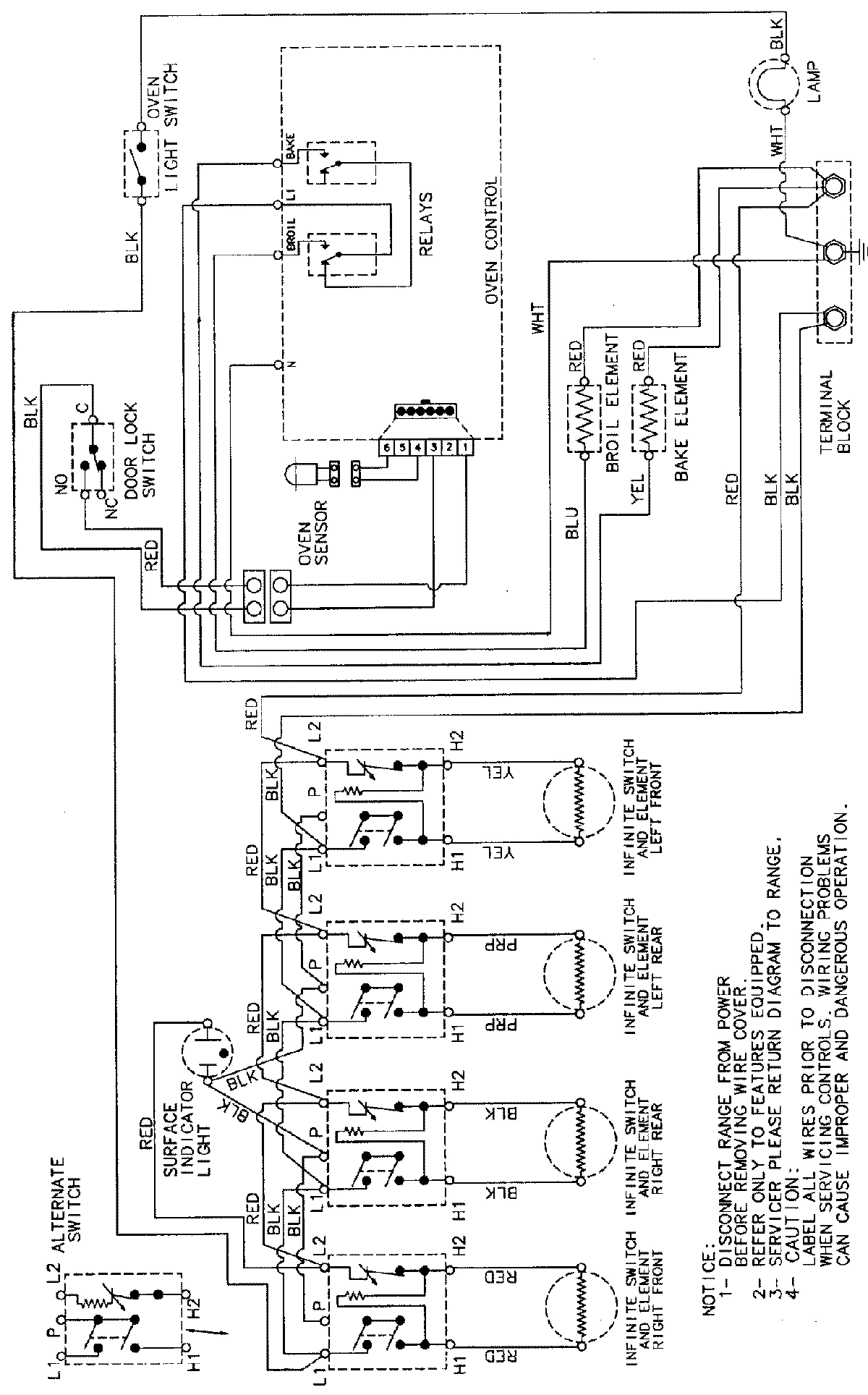

WIRING INFORMATION WPL 15002232 Contact Us For Availability
