Model Whirlpool CDE9500AZW ELECTRIC DRYER – Common Parts &amp; Diagrams

1

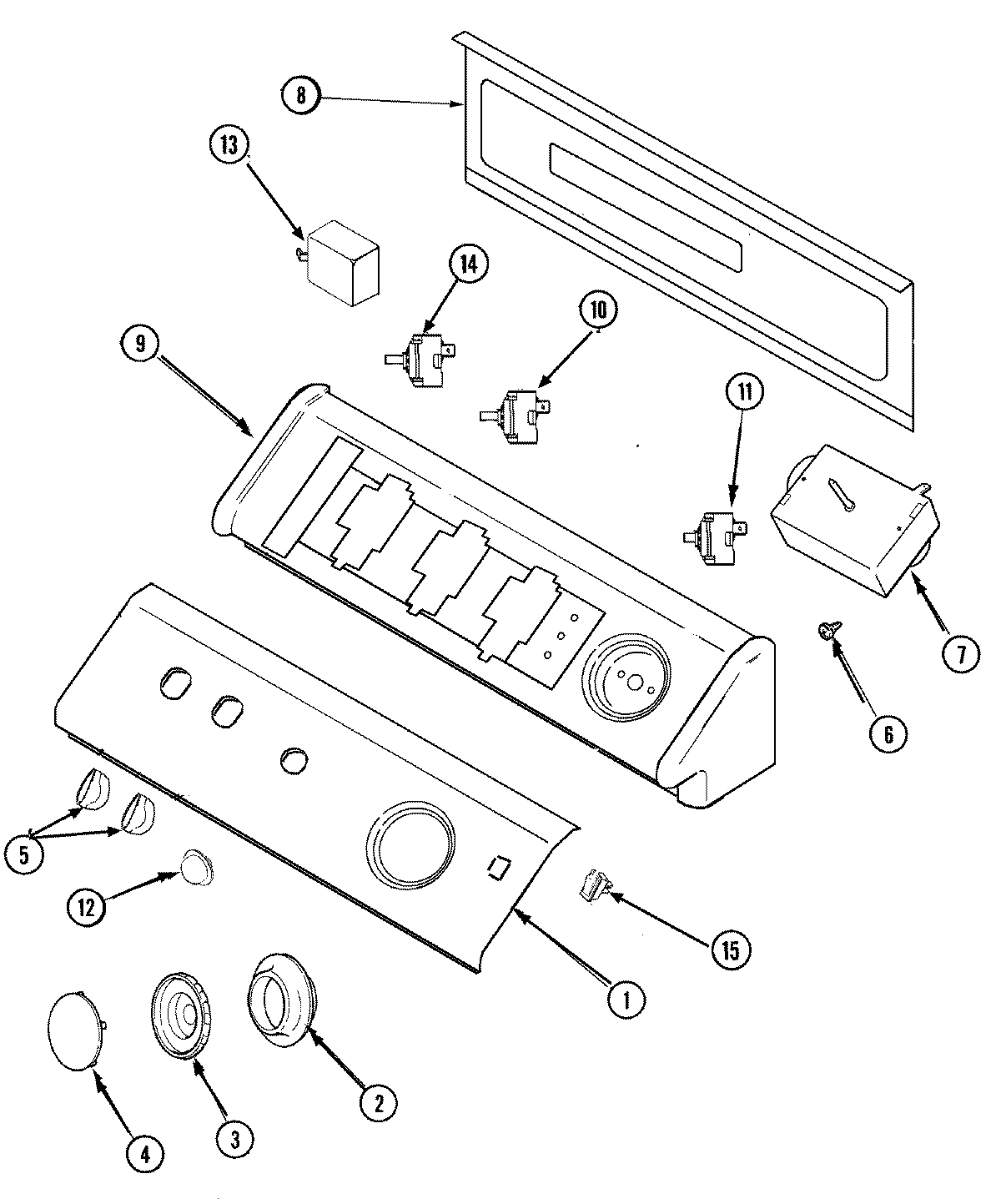

FACIA WPL 37001123 Contact Us For Availability

1

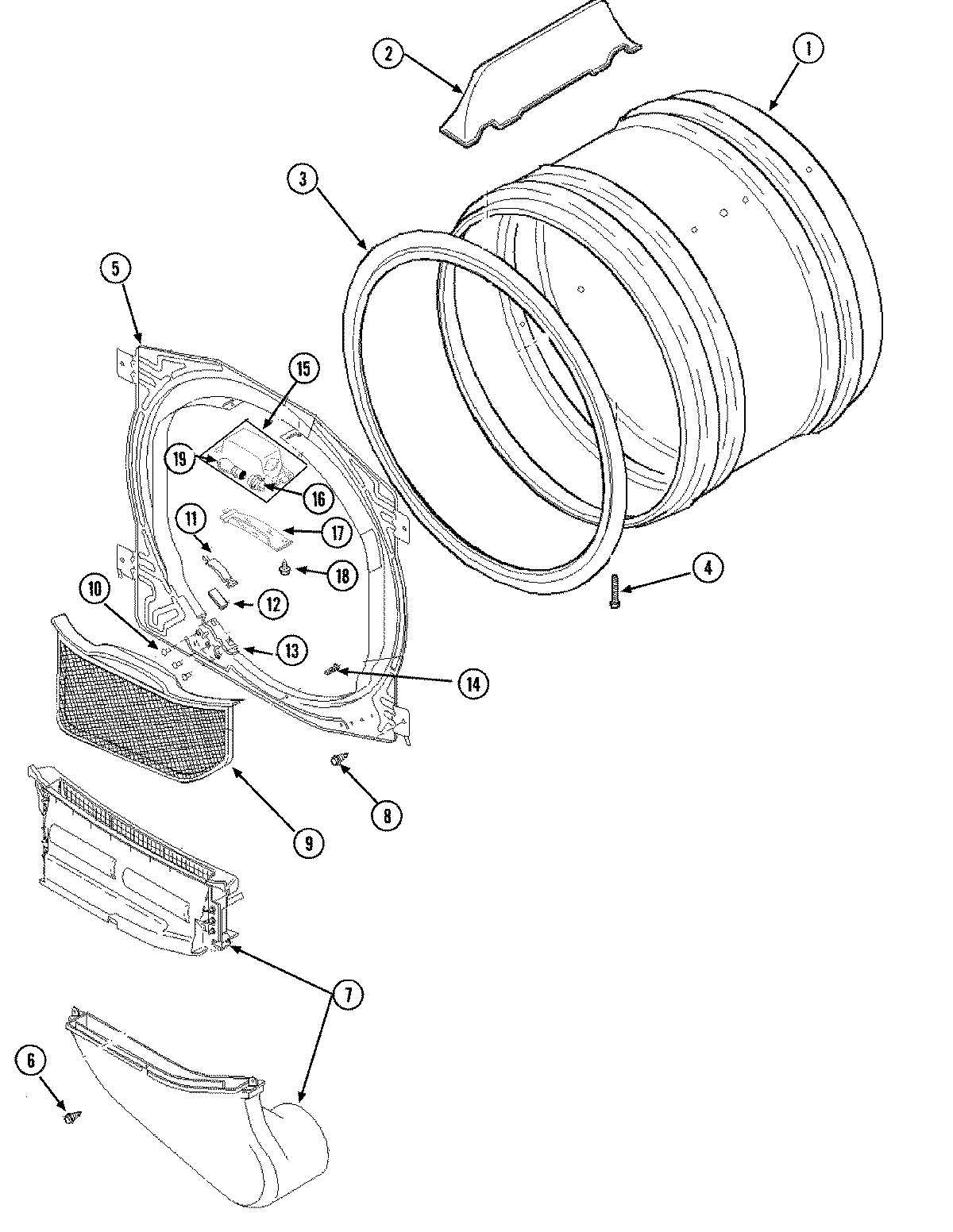

CYLINDER ASSEMBLY (PAINTED) WPL 504467WP Contact Us For Availability

1

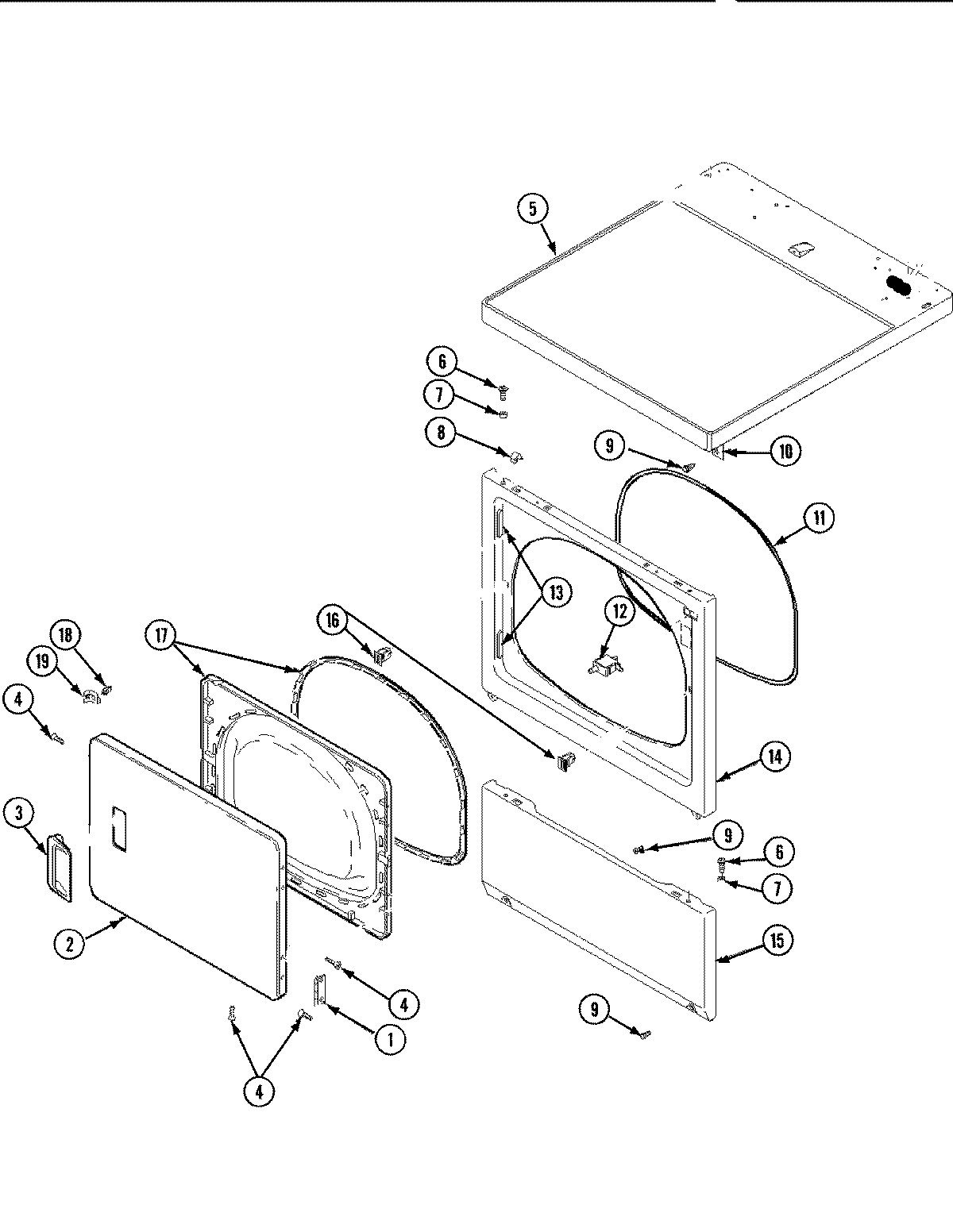

HINGE, DOOR & TOP WPL Y503676 Contact Us For Availability

2

WP33001621 Whirlpool Dial Knob In Stock WPL WP33001621 $16.65

2

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

2

BAFFLE, CYLINDER (WHT) WPL 503703 Contact Us For Availability

2

DOOR, DRYER (WHT) WPL 37001029 Contact Us For Availability

3

WP22001659 Whirlpool Timer Knob In Stock WPL WP22001659 $18.86

3

WP37001132 Whirlpool Felt Seal In Stock WPL WP37001132 $31.71

3

HANDLE, DOOR (WHT) WPL 33001241 Contact Us For Availability

3

HINGE, TOP WPL 500003 Contact Us For Availability

3

CLIP, WIRE WPL 504034 Contact Us For Availability

4

WP22001664 Whirlpool Timer Knob Backorder WPL WP22001664 $4.82

4

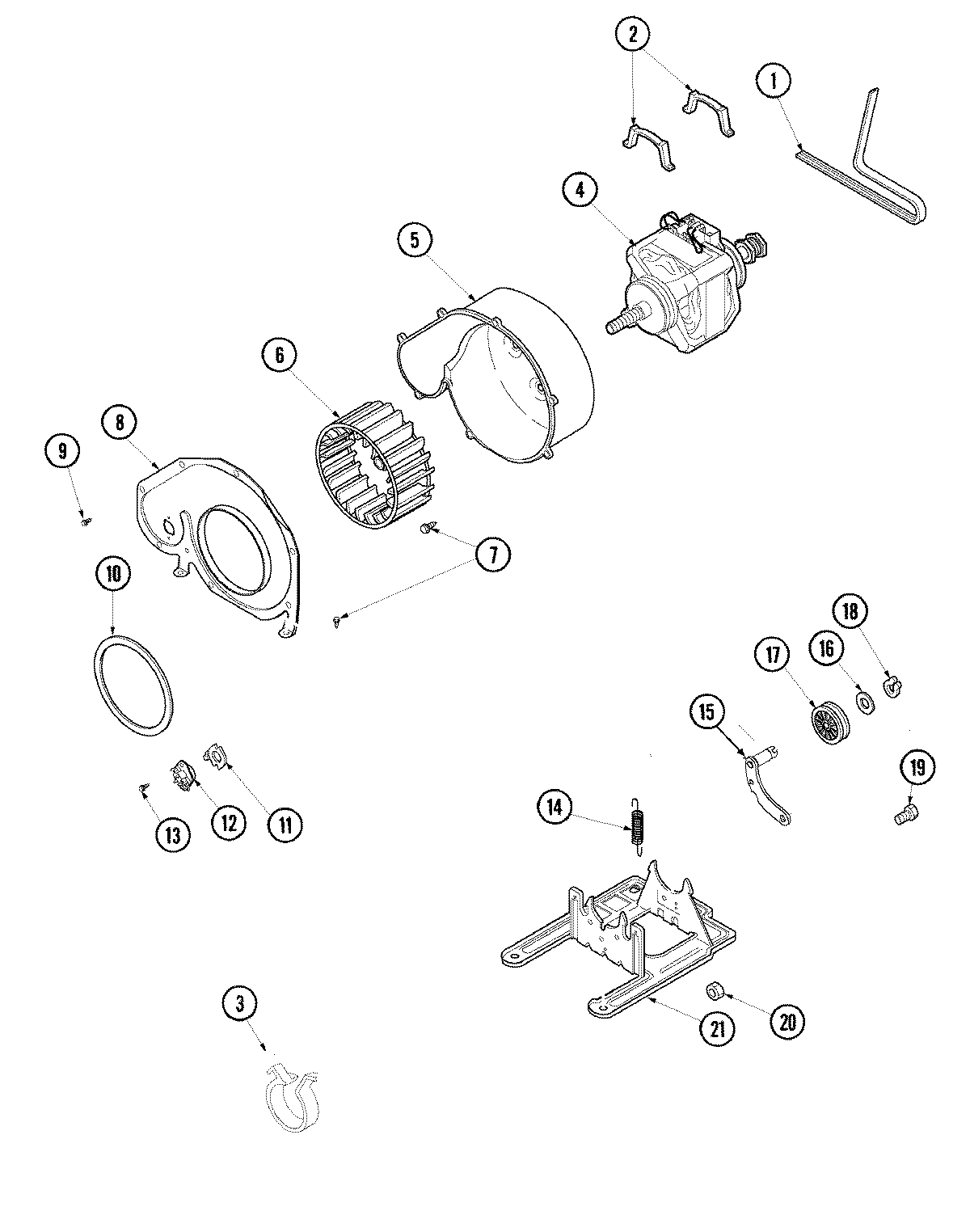

WP2200376 Whirlpool Dryer Drum Drive Motor As In Stock WPL WP2200376 $116.74

4

WP40113801 Whirlpool Dryer High Limit Thermal In Stock WPL WP40113801 $7.57

4

SCREW, 10BT-12 X 1 TAP WPL Y62588 Contact Us For Availability

4

SCREW, No.8AB-16X3/4 FH WPL 37001030 Contact Us For Availability

5

WP22001663 Whirlpool Selector Knob Backorder WPL WP22001663 $40.58

5

PANEL, ACCESS COVER WPL 500114 Contact Us For Availability

5

ASSY, FRT BULKHEAD (WHITE) WPL 503616WP Contact Us For Availability

5

HOUSING, BLOWER WPL 56020 Contact Us For Availability

5

PANEL, TOP (WHT) WPL 37001027 Contact Us For Availability

5

PAD, BUMPER WPL Y56128 Contact Us For Availability

6

37001139 Whirlpool Element Repair Kit 5300W Backorder WPL 37001139 $232.50

6

56000 Whirlpool Blower Wheel In Stock WPL 56000 $54.20

6

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $4.82

6

DUCT, EXHAUST WPL 505518 Contact Us For Availability

6

SCREW, No.12 X 9/16 WPL 501285 Contact Us For Availability

7

WPY2200920 Whirlpool Timer Backorder WPL WPY2200920 $233.82

7

LOCATOR, PANEL WPL 505187 Contact Us For Availability

7

ASSY,UPPR/LWR AIR DUCT WPL 40124501 Contact Us For Availability

8

WP22001650 Whirlpool Spring Clip In Stock WPL WP22001650 $5.30

8

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.82

8

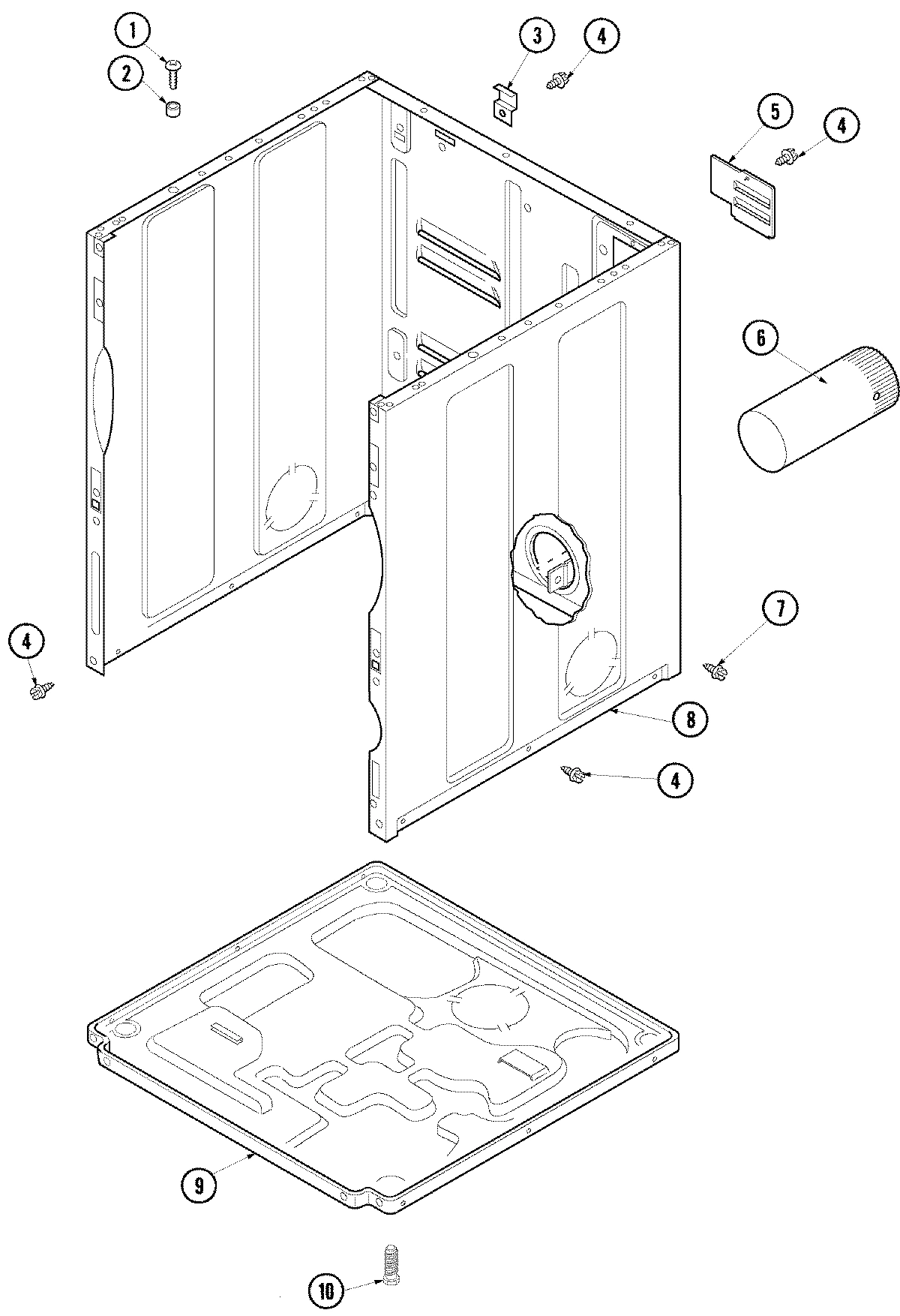

CABINET, DRYER & WASHER (WHT) WPL 40076402WP Contact Us For Availability

8

PANEL, BACK WPL 37001072 Contact Us For Availability

8

COVER, BLOWER HOUSING WPL 500078 Contact Us For Availability

9

WP27001200 Whirlpool Screw Backorder WPL WP27001200 $4.82

9

WP37001142 Whirlpool Lint Filter Backorder WPL WP37001142 $70.37

9

BASE, DRYER WPL 500070 Contact Us For Availability

9

CONSOLE (WHT) WPL 27001110 Contact Us For Availability

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

LEG, LEVELING (PLASTIC) WPL Y500101 Contact Us For Availability

SWITCH, ROTARY (2 POS) WPL 22001794 Contact Us For Availability

SEAL, BLOWER HOUSING WPL 40090001 Contact Us For Availability

BRACKET,TOP MOUNT WPL 40130801 Contact Us For Availability

11

SEAL, FRONT PANEL WPL 504005 Contact Us For Availability

11

SWITCH, PUSH TO START (WHT) WPL 33001861 Contact Us For Availability

11

HEATER, THERMOSTAT WPL 61623 Contact Us For Availability

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $21.70

WP37001136 Whirlpool Dryer Cycling Thermostat In Stock WPL WP37001136 $115.60

WP503979 Whirlpool Thermostat Backorder WPL WP503979 $69.96

PAD, FELT-COIN WPL 500121 Contact Us For Availability

BUTTON, PUSH TO START (WHT) WPL 33001619 Contact Us For Availability

WP37001036 Whirlpool Glide Bracket In Stock WPL WP37001036 $50.00

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

BUZZER, NON-ADJUSTABLE WPL 33001623 Contact Us For Availability

SCREW, No.8 X 3/8 IND H WPL 31260 Contact Us For Availability

PLUG, HINGE HOLE WPL 503126 Contact Us For Availability

WP56076 Whirlpool Idler Spring Backorder WPL WP56076 $50.95

SWITCH, TEMPERATURE WPL 33001640 Contact Us For Availability

SCREW, 8B-16X5/8 TAP WPL 500226 Contact Us For Availability

PANEL, FRONT (WHT) WPL 503656WP Contact Us For Availability

WP37001144 Whirlpool Dryer Idler Arm Pulley A Backorder WPL WP37001144 $35.47

WP40113601 Whirlpool Dryer Roller Bracket In Stock WPL WP40113601 $47.42

WP74010226 Whirlpool RO Switch Backorder WPL WP74010226 $70.94

LIGHT ASSEMBLY WPL Y504452 Contact Us For Availability

PANEL, ACCESS (WHT) WPL 40045301WP Contact Us For Availability

LA-1003 Whirlpool Dryer Door Catch and Metal In Stock WPL LA-1003 $13.15

WP37001042 Whirlpool Dryer Drum Support Rolle In Stock WPL WP37001042 $12.64

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.82

HOLDER, LAMP WPL 504458 Contact Us For Availability

WPY54414 Whirlpool Dryer Idler Pulley In Stock WPL WPY54414 $10.74

SEAL & LINER, ASSY(INNER DOOR) WPL 37001028 Contact Us For Availability

REPAIR KIT, 5000W ELEMENT WPL 37001140 Contact Us For Availability

LENS, LIGHT WPL 40094301 Contact Us For Availability

18

WP23748 Whirlpool Retaining Ring In Stock WPL WP23748 $7.39

18

STRIKE, DOOR (METAL) WPL 500039 Contact Us For Availability

19

W10857122 Whirlpool Refrigerator Light Bulb, In Stock WPL W10857122 $10.02

19

SCREW, 1/4-20 UNC HEX WPL 500824 Contact Us For Availability

19

BRACKET,DOOR STRIKE WPL 40116201 Contact Us For Availability

20

WPW10139757 Whirlpool Nut Backorder WPL WPW10139757 $4.82

21

MOUNT, MOTOR WPL 503613 Contact Us For Availability

ASSEMBLY, POWER CORD WPL 40097501 Contact Us For Availability

MNL,SERVICE-HOME LAUNDRY DRYER WPL RS3200007 Contact Us For Availability

HARNESS, WIRING WPL Y2201011 Contact Us For Availability

MANUAL, USE & CARE WPL Y2201077 Contact Us For Availability

GUIDE, ENERGY WPL Y2201098 Contact Us For Availability

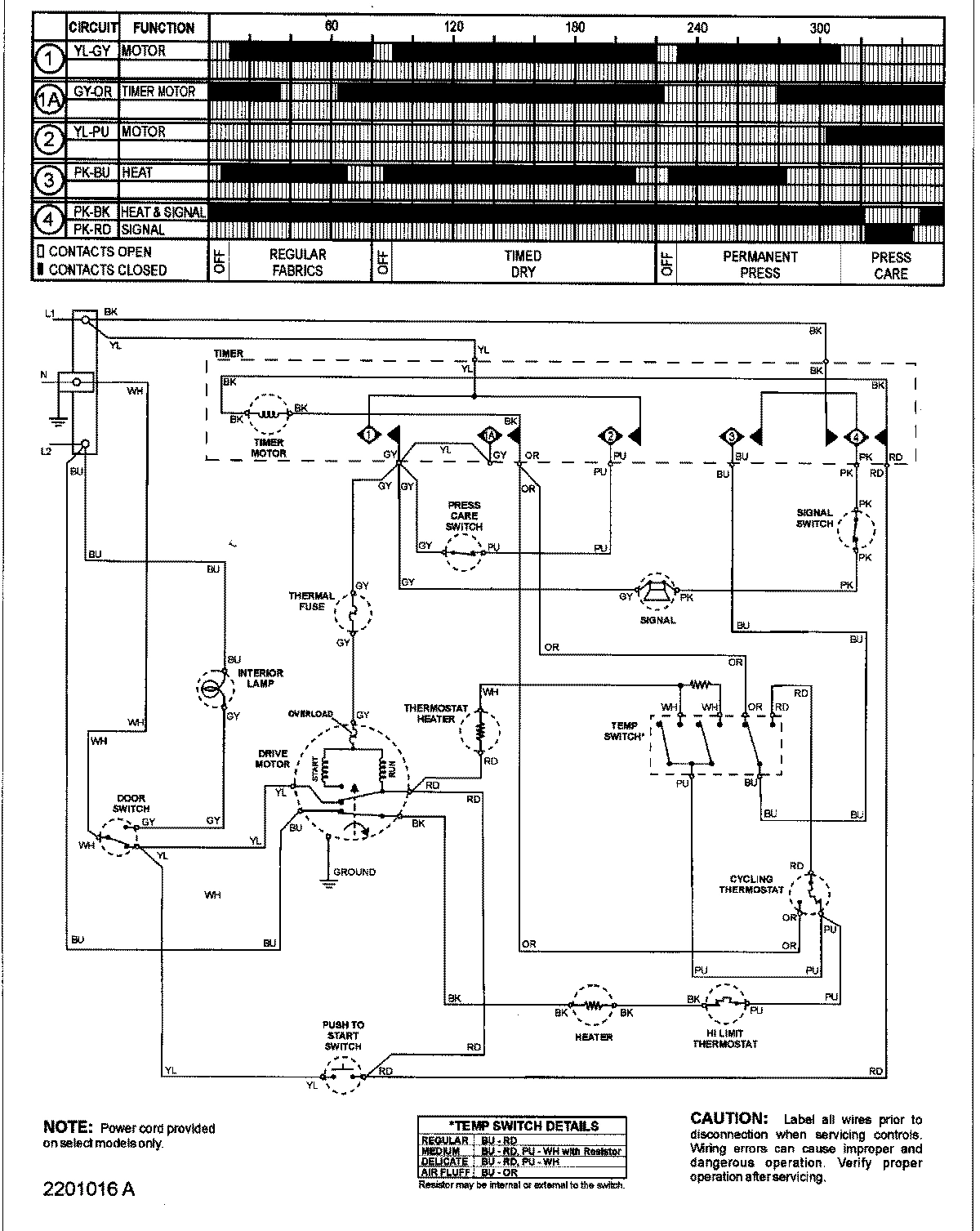

WIRING INFORMATION WPL 15003425 Contact Us For Availability
