Model IPSO BA4121-3088 Washer – Common Parts & Diagrams

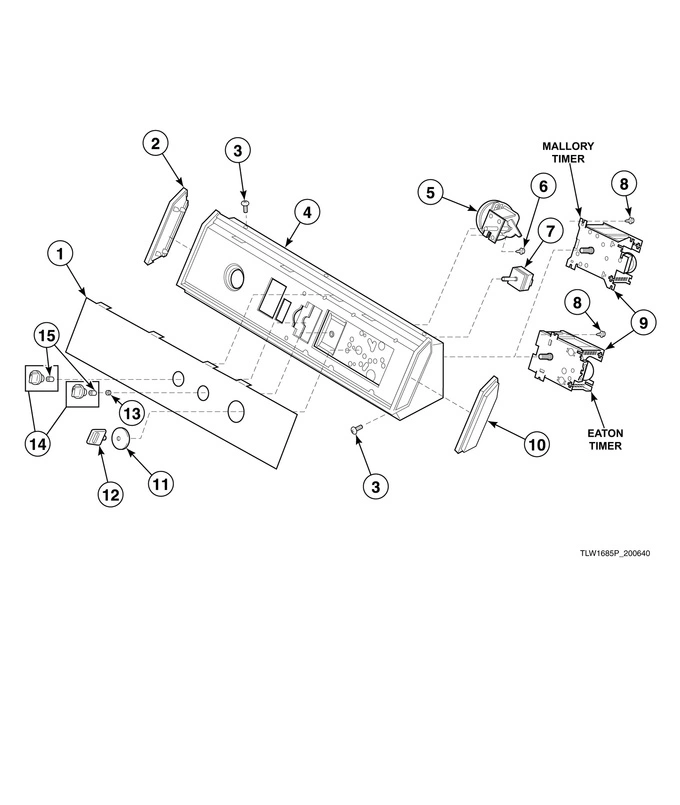

Graphic Panel, Control Hood and Controls

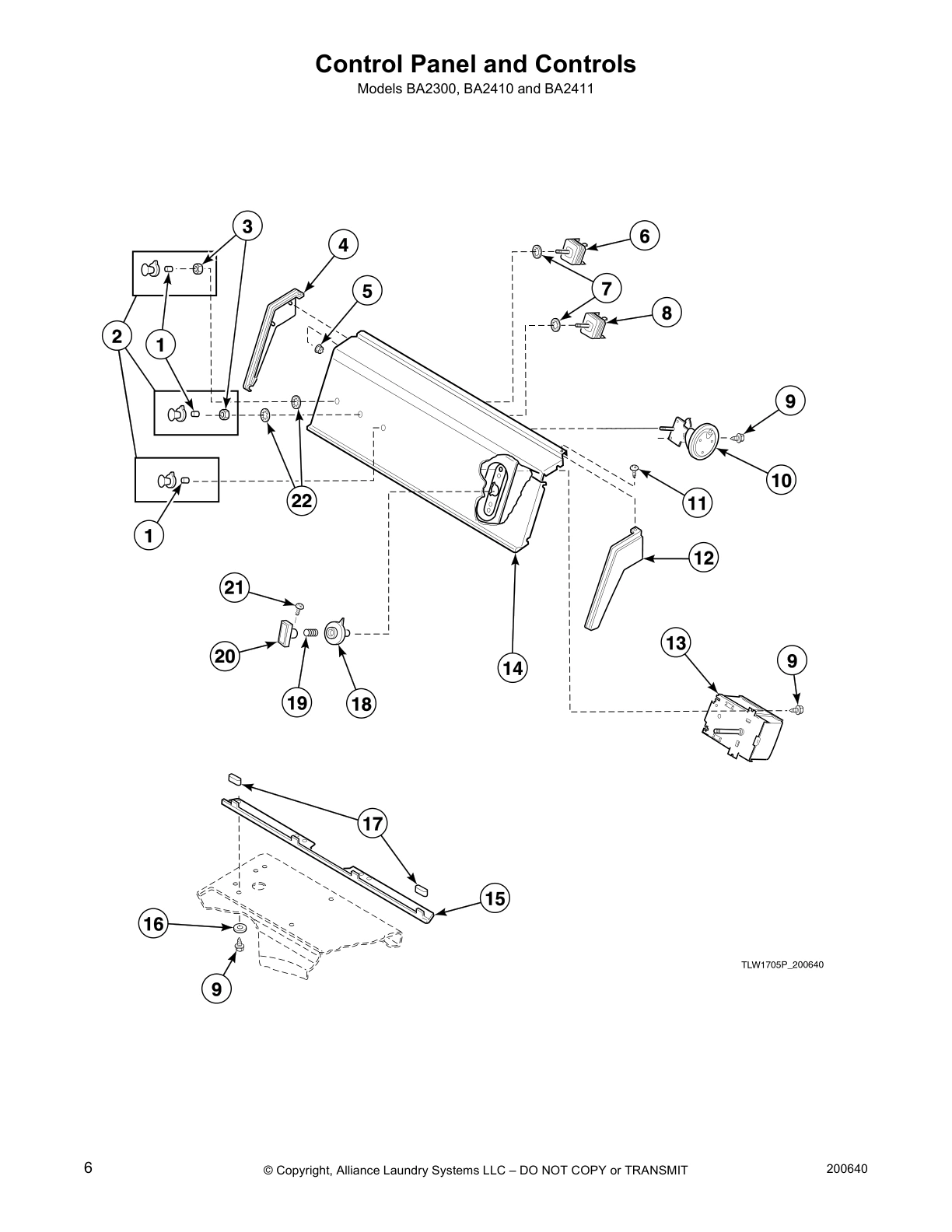

Control Panel and Controls

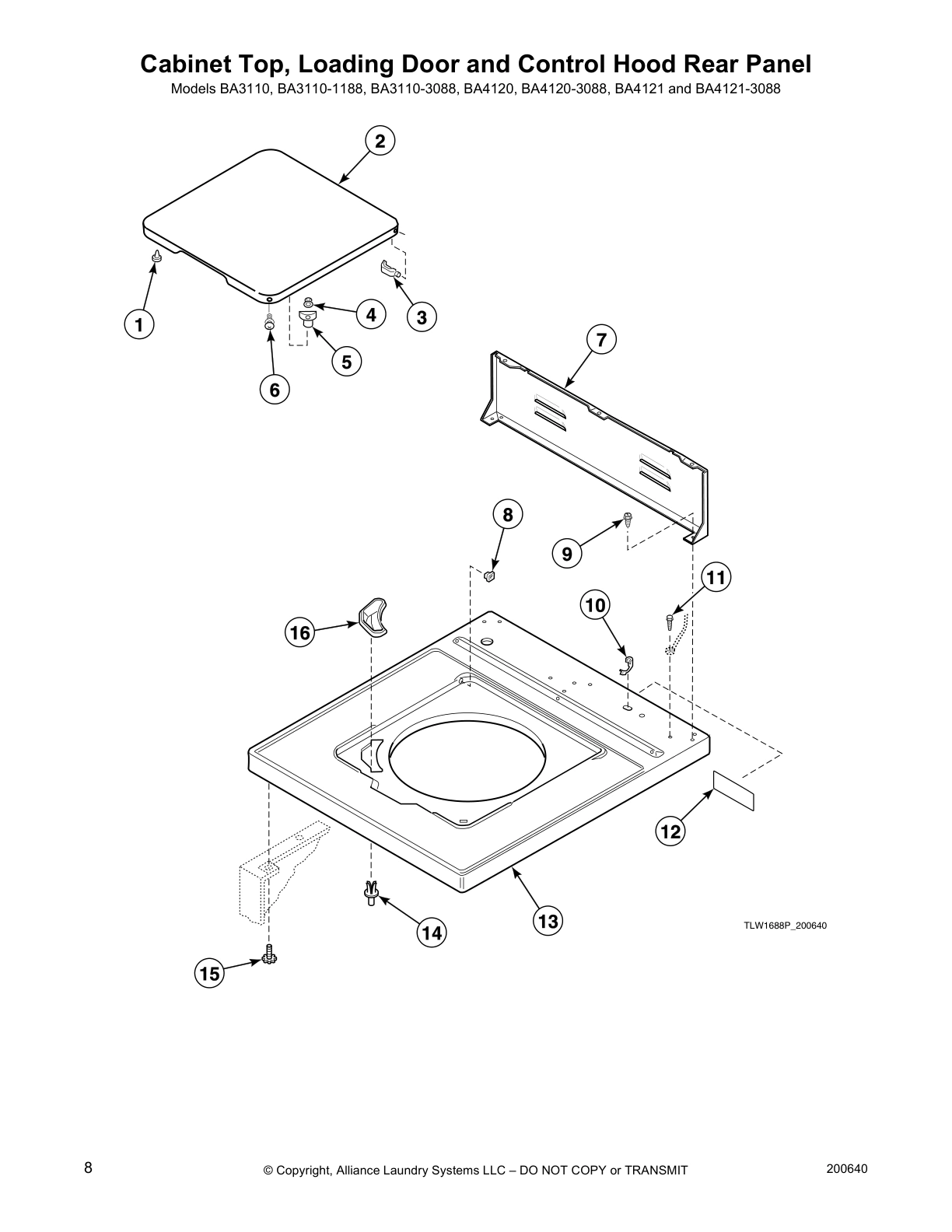

Cabinet Top, Loading Door and Control Hood Rear Panel

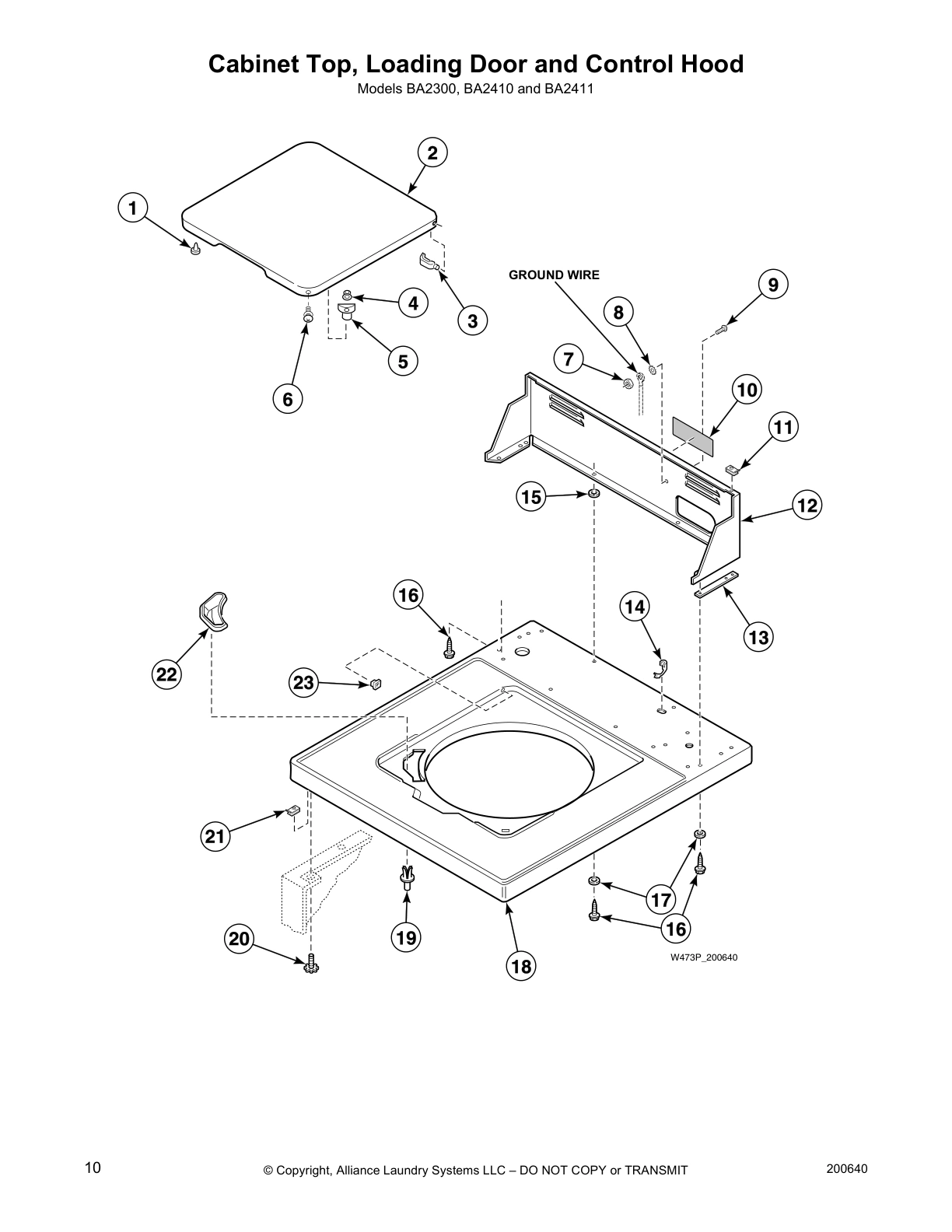

Cabinet Top, Loading Door and Control Hood

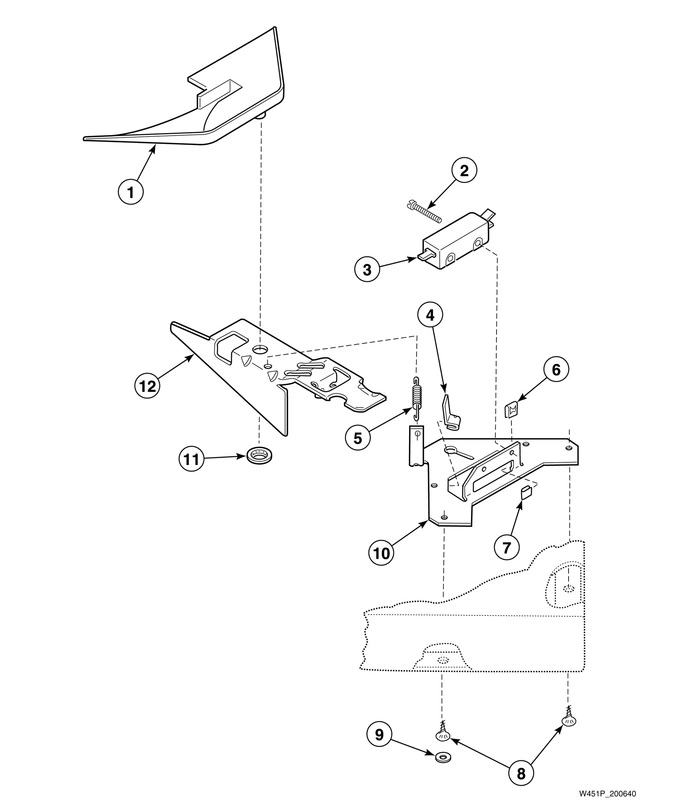

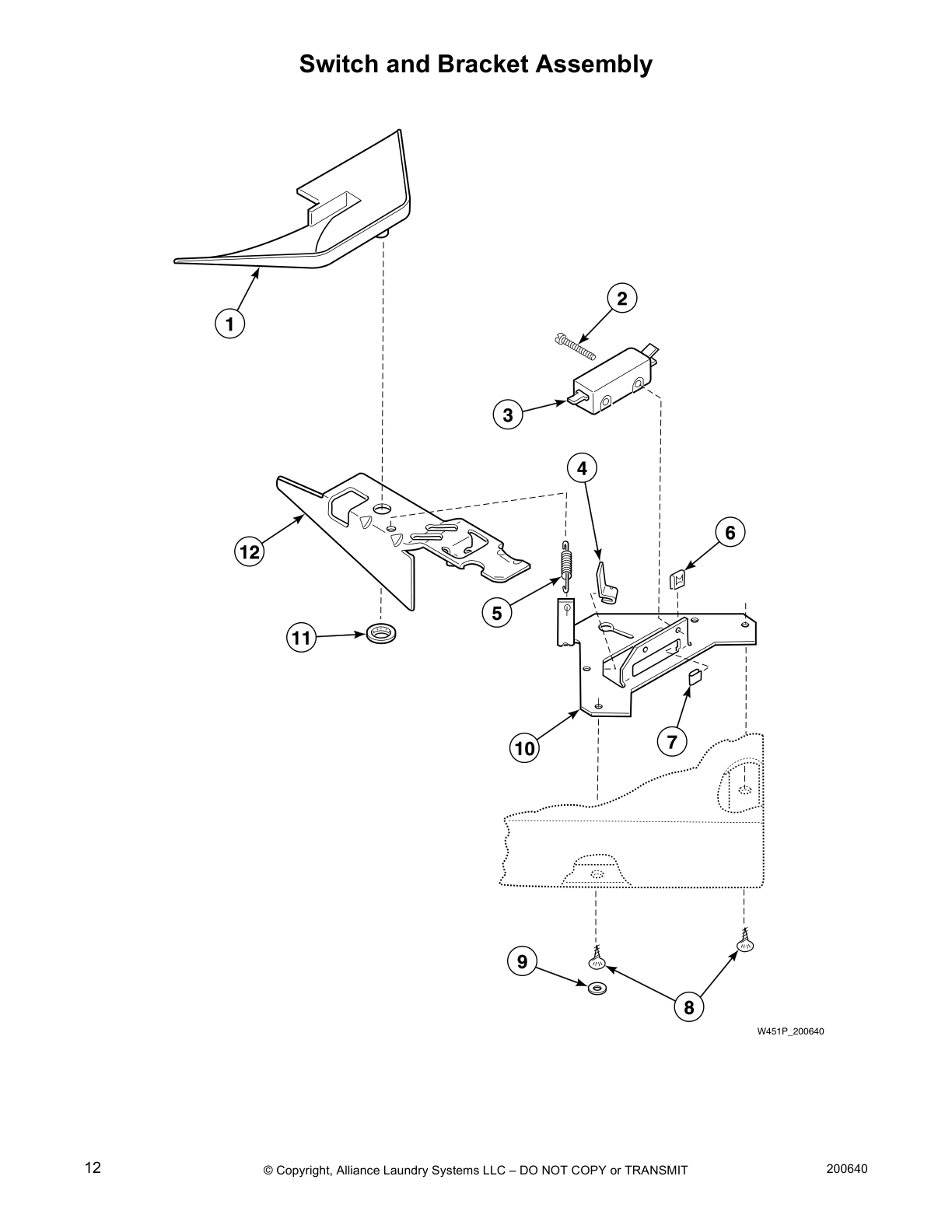

Switch and Bracket Assembly

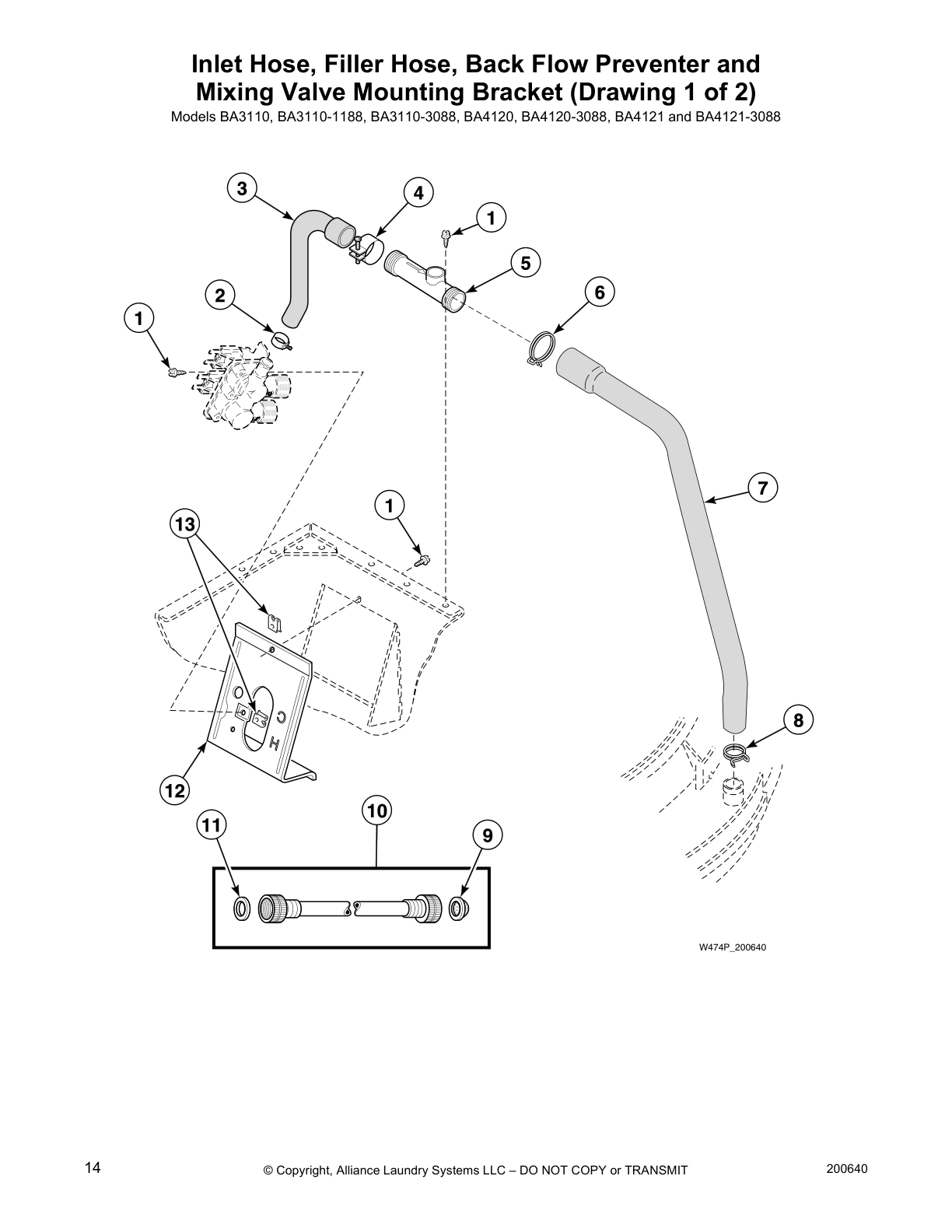

Inlet Hose, Filler Hose, Back Flow Preventer and
Mixing Valve Mounting Bracket (Drawing 1 of 2)
Inlet Hose, Filler Hose, Back Flow Preventer and Mixing Valve

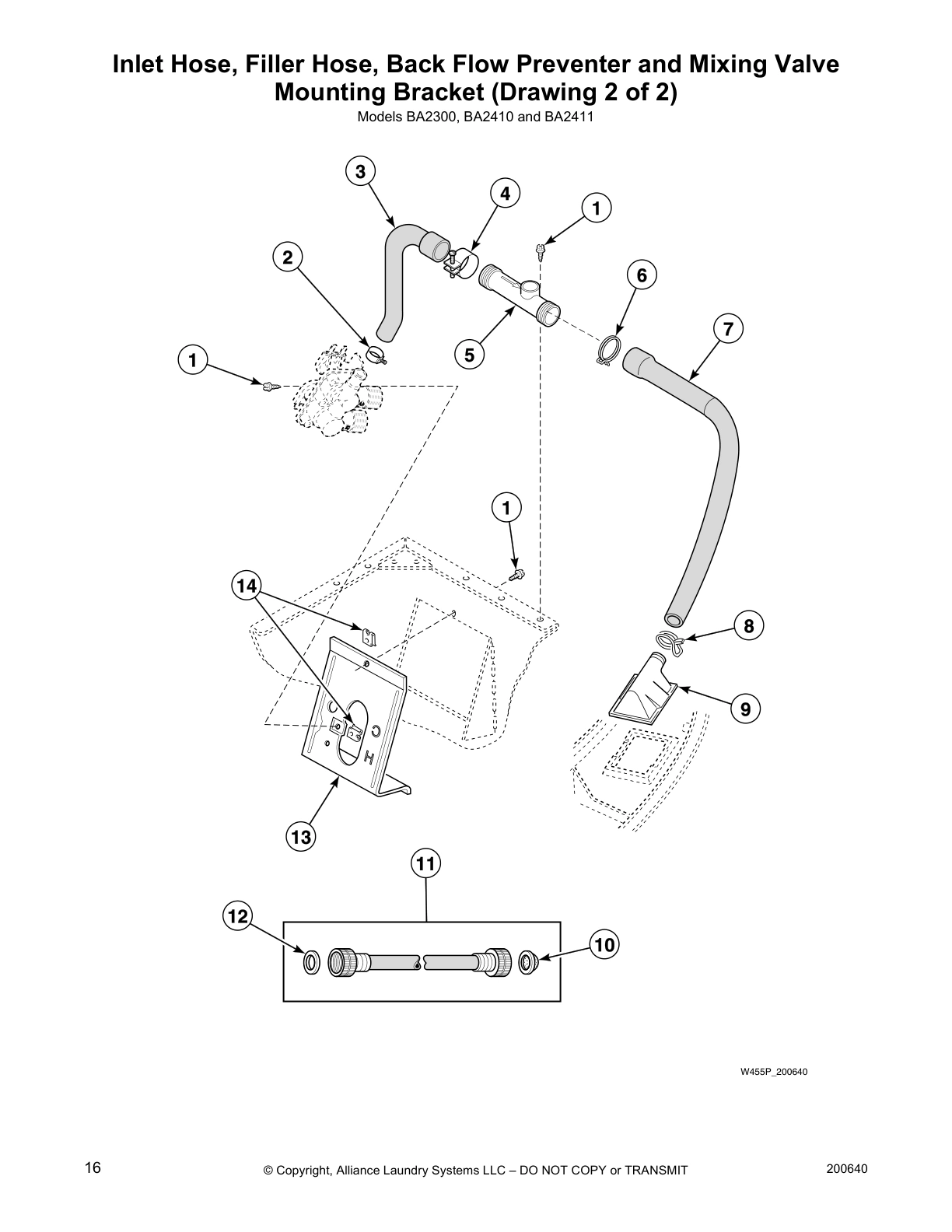

Mounting Bracket (Drawing 2 of 2)

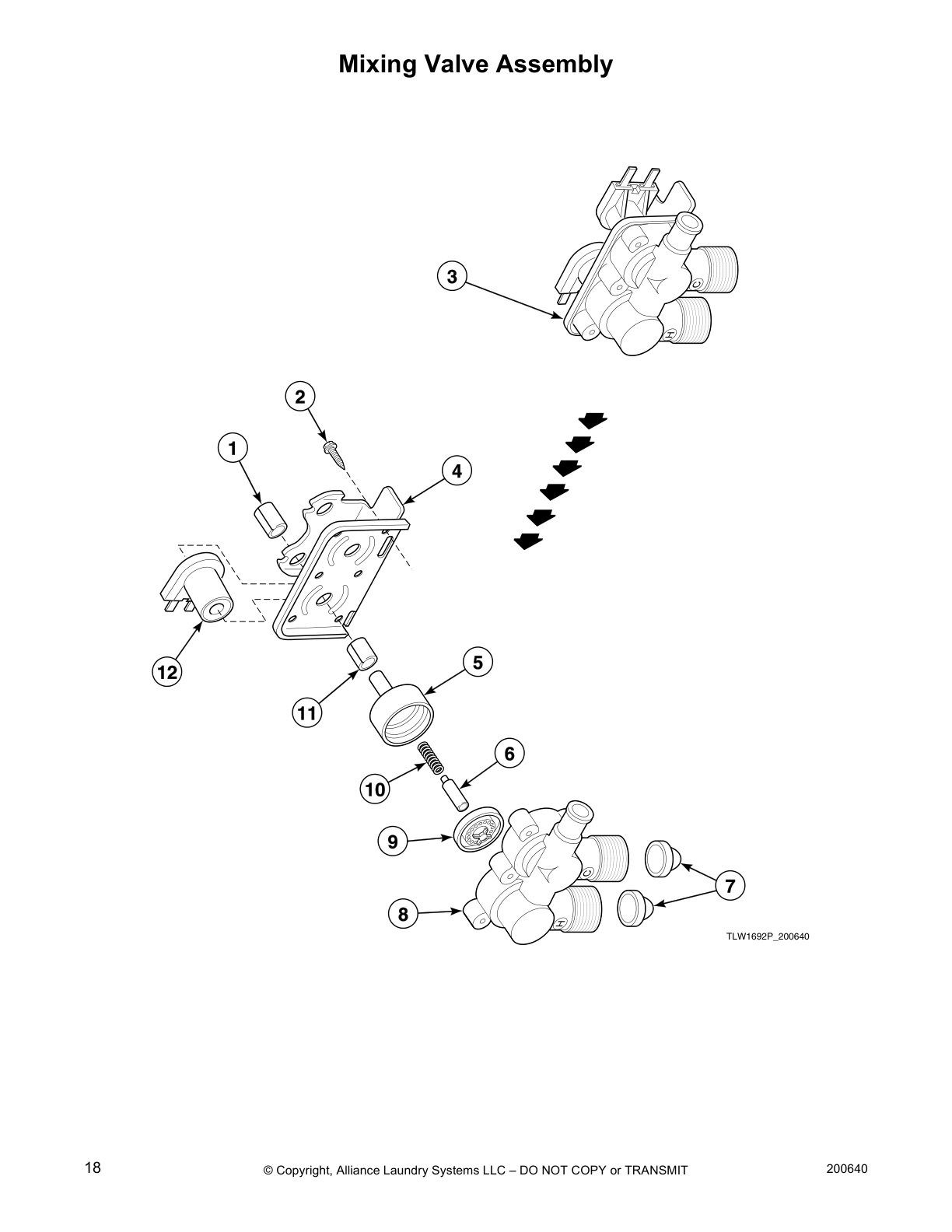

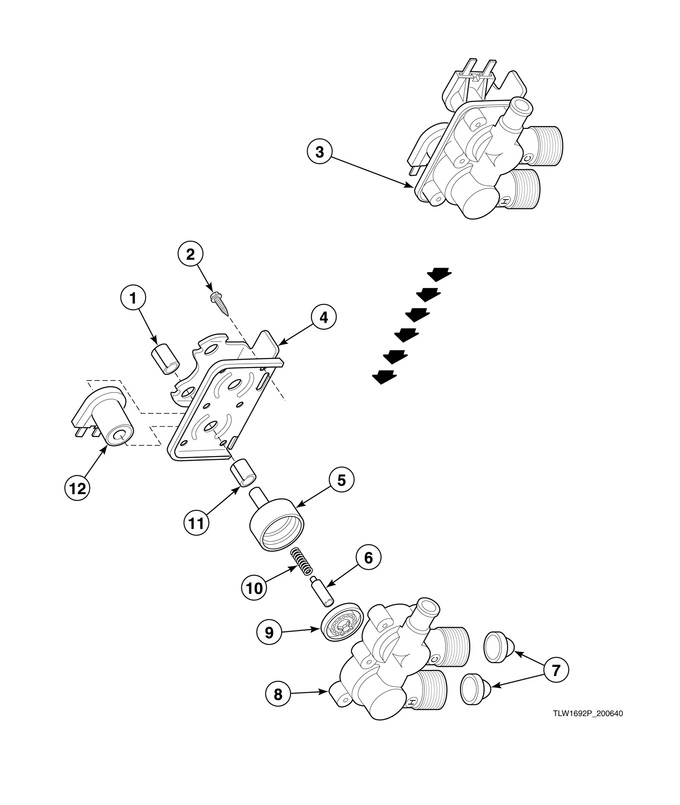

Mixing Valve Assembly

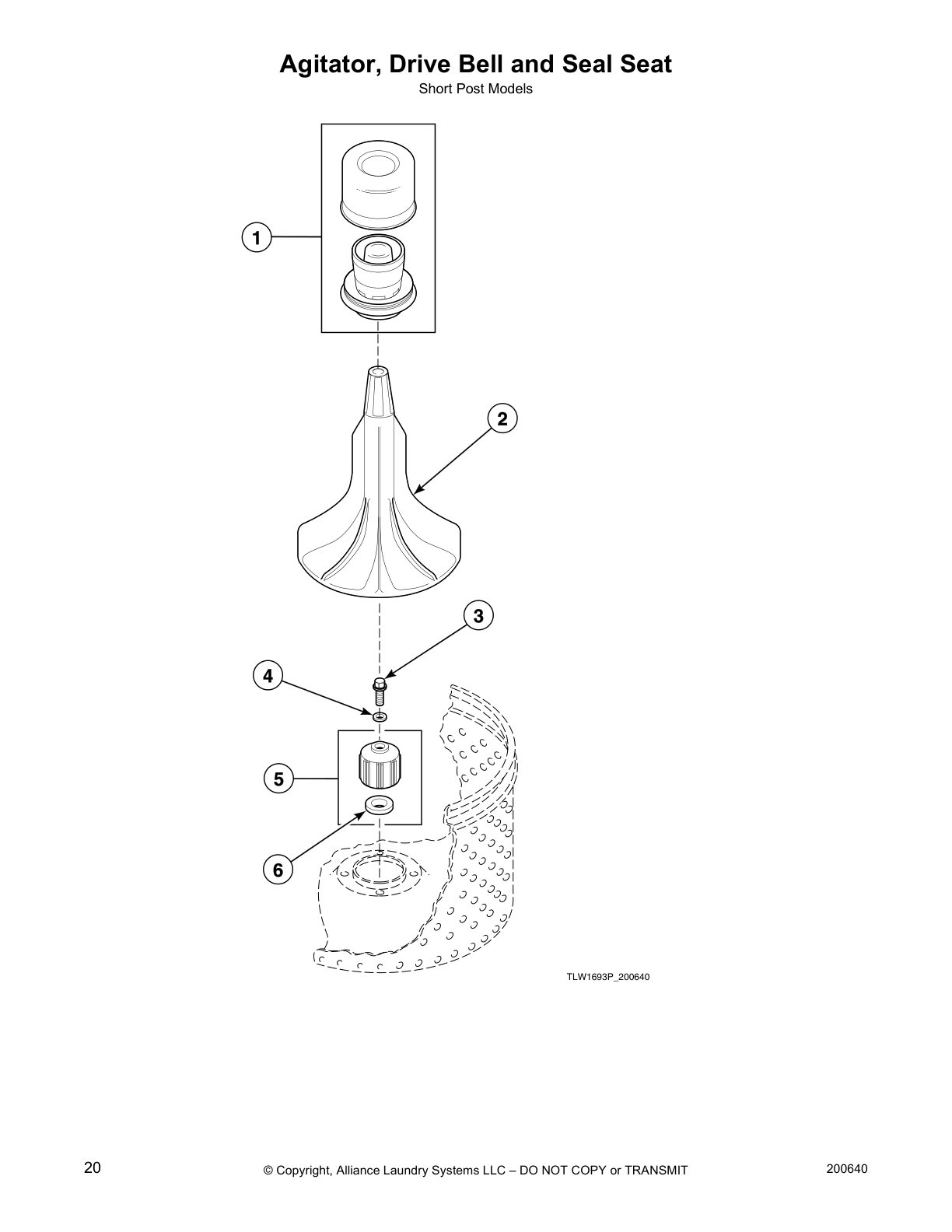

Agitator, Drive Bell and Seal Seat
Agitator and Post

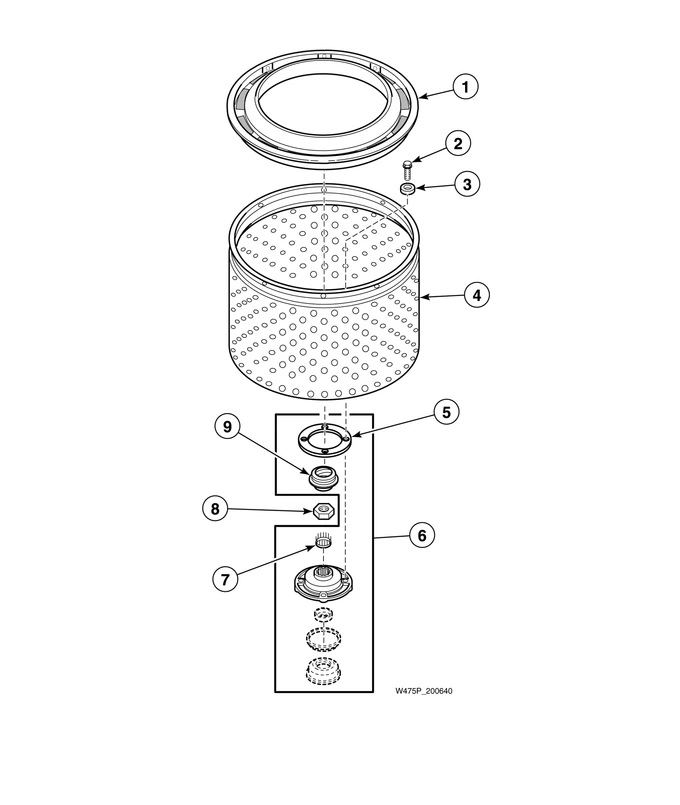

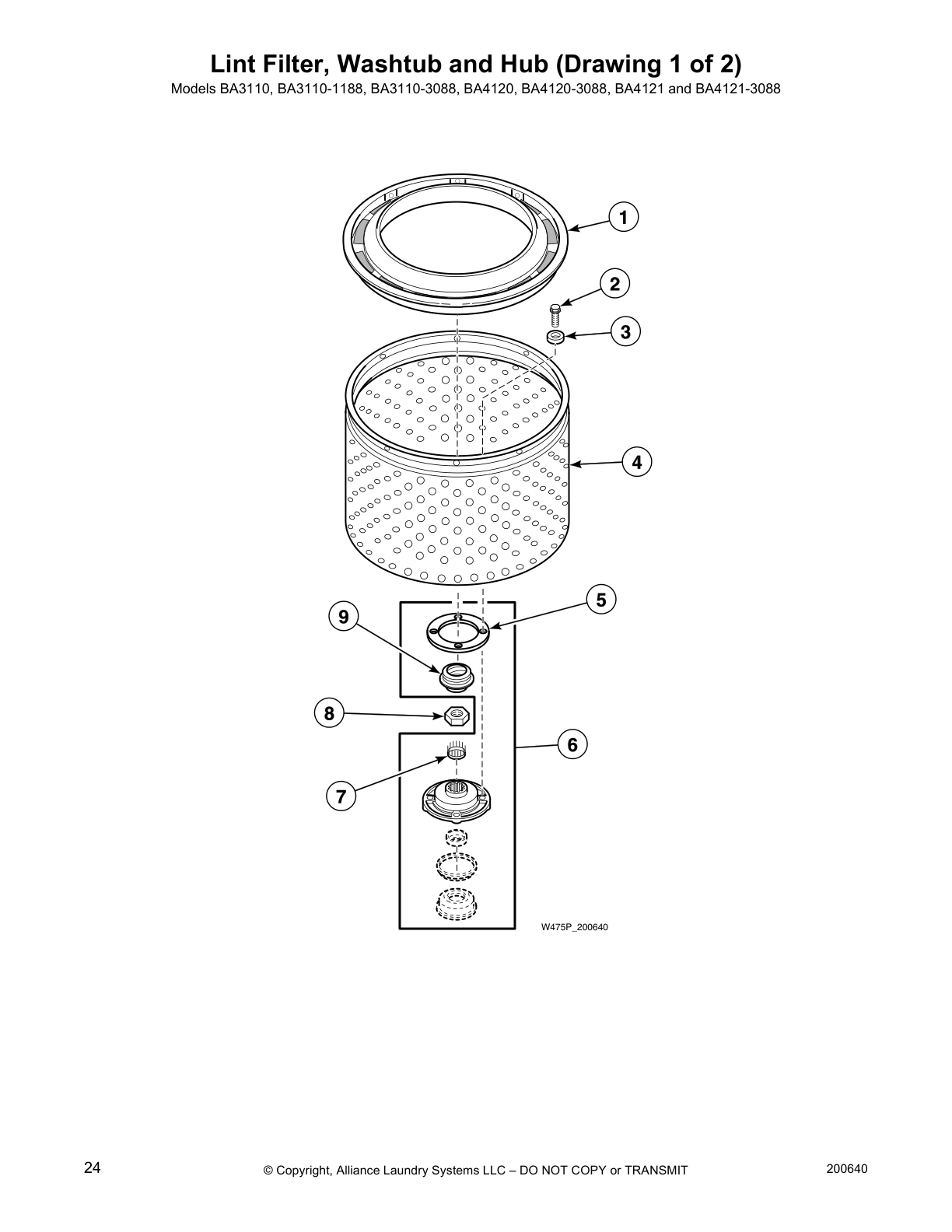

Lint Filter, Washtub and Hub (Drawing 1 of 2)

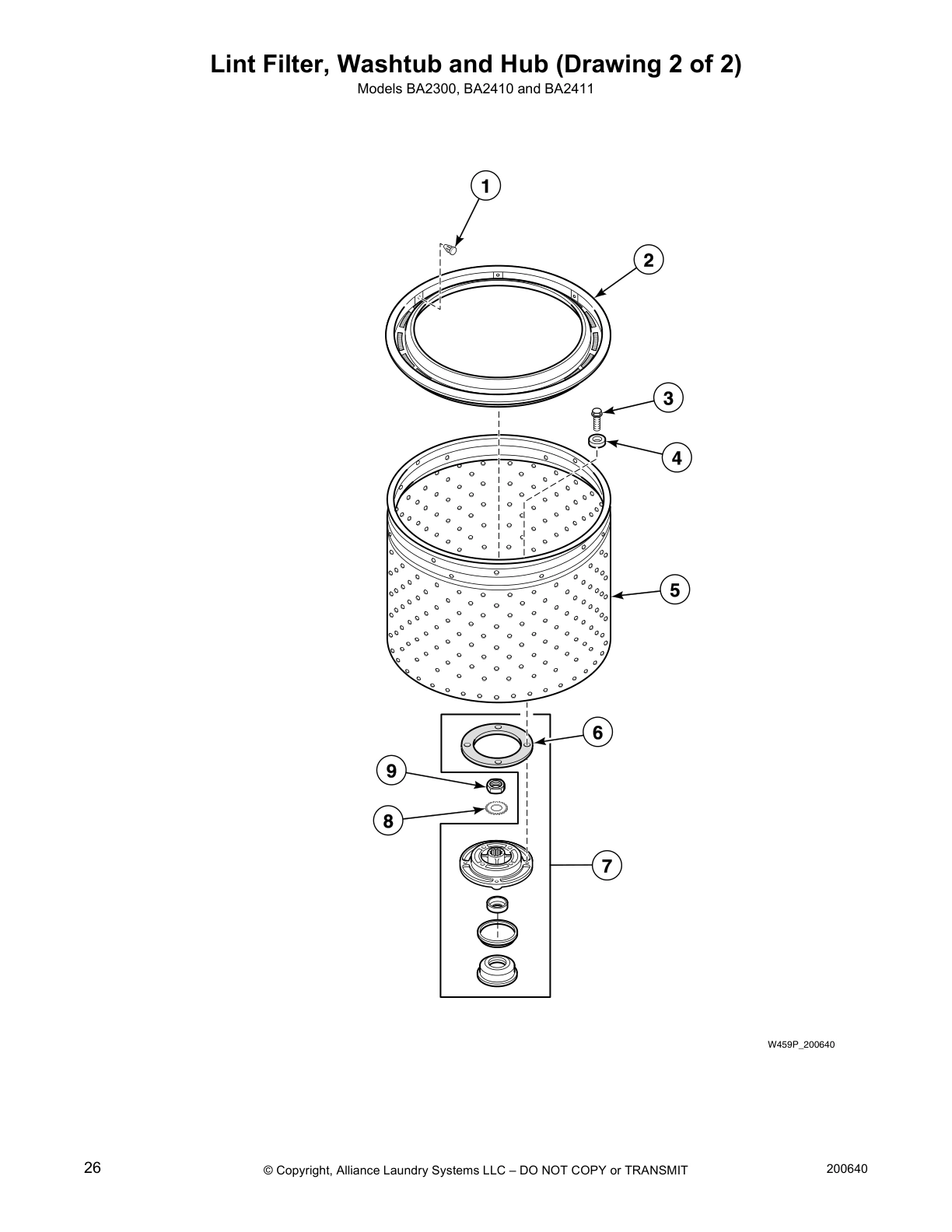

Lint Filter, Washtub and Hub (Drawing 2 of 2)

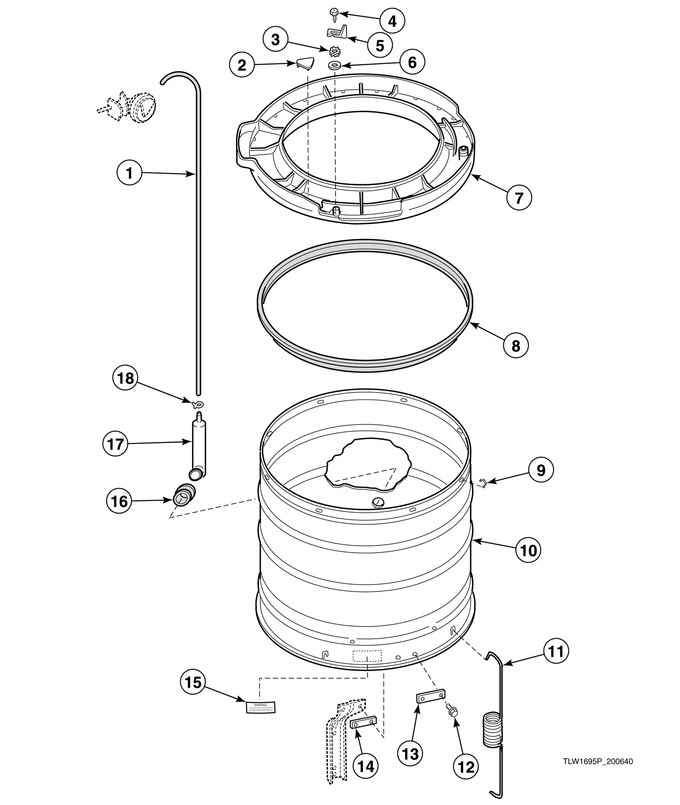

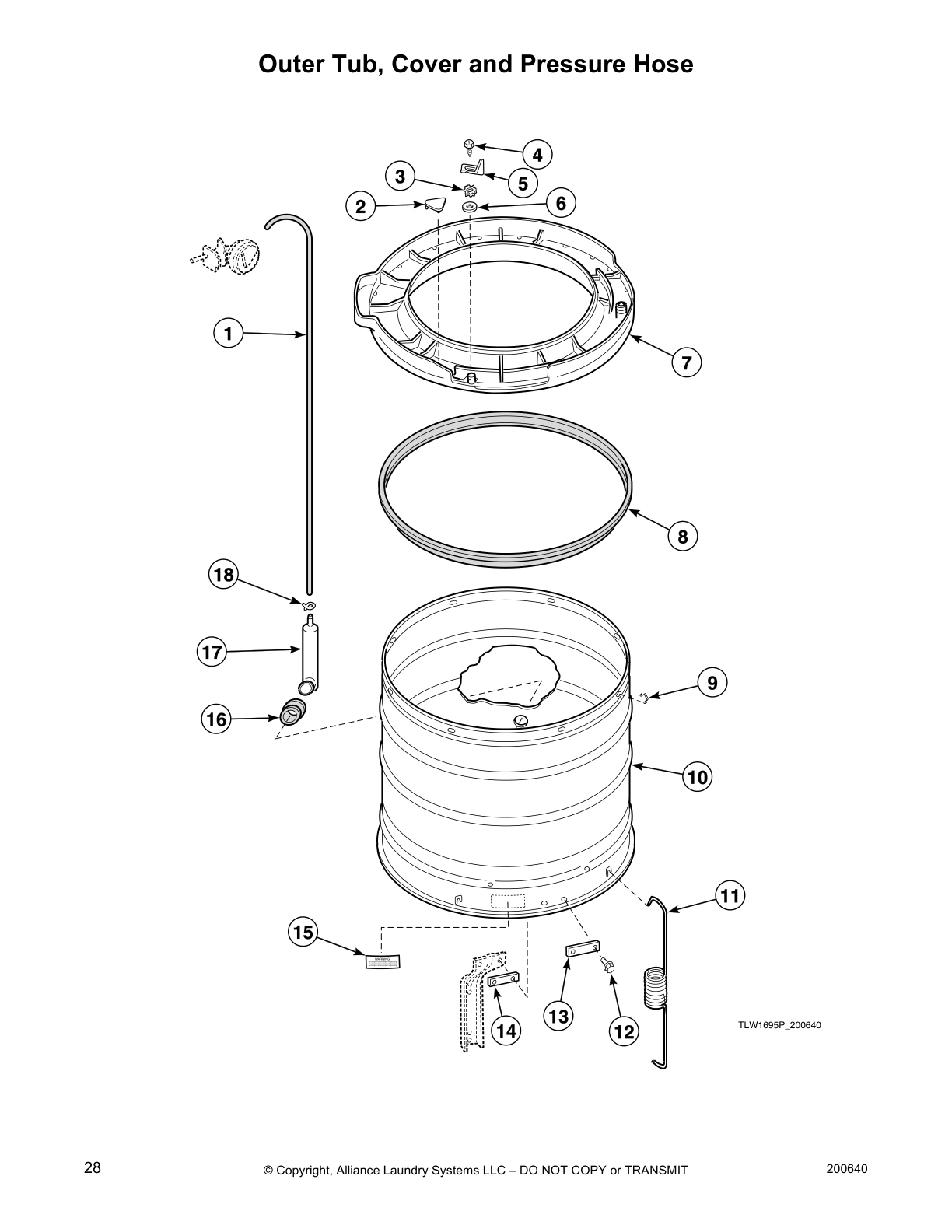

Outer Tub, Cover and Pressure Hose

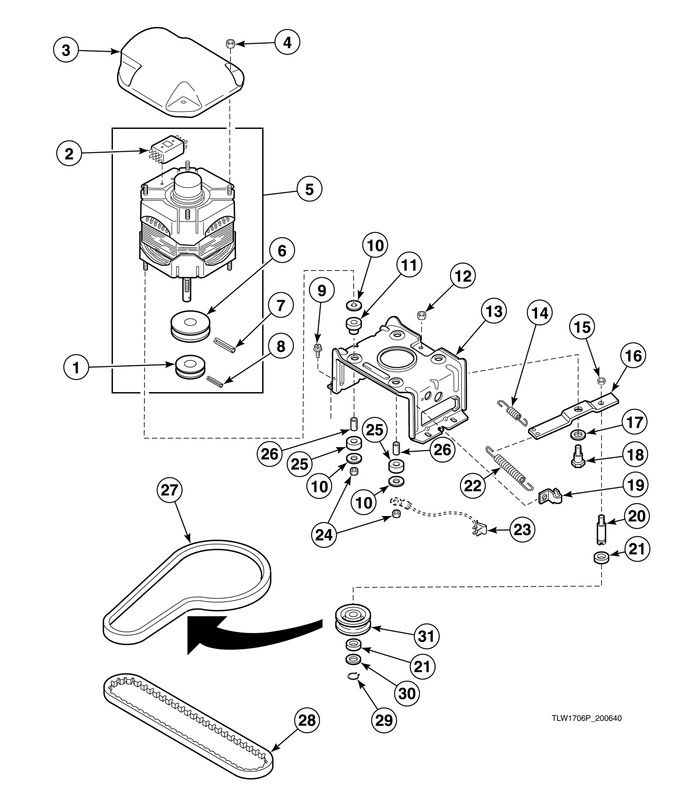

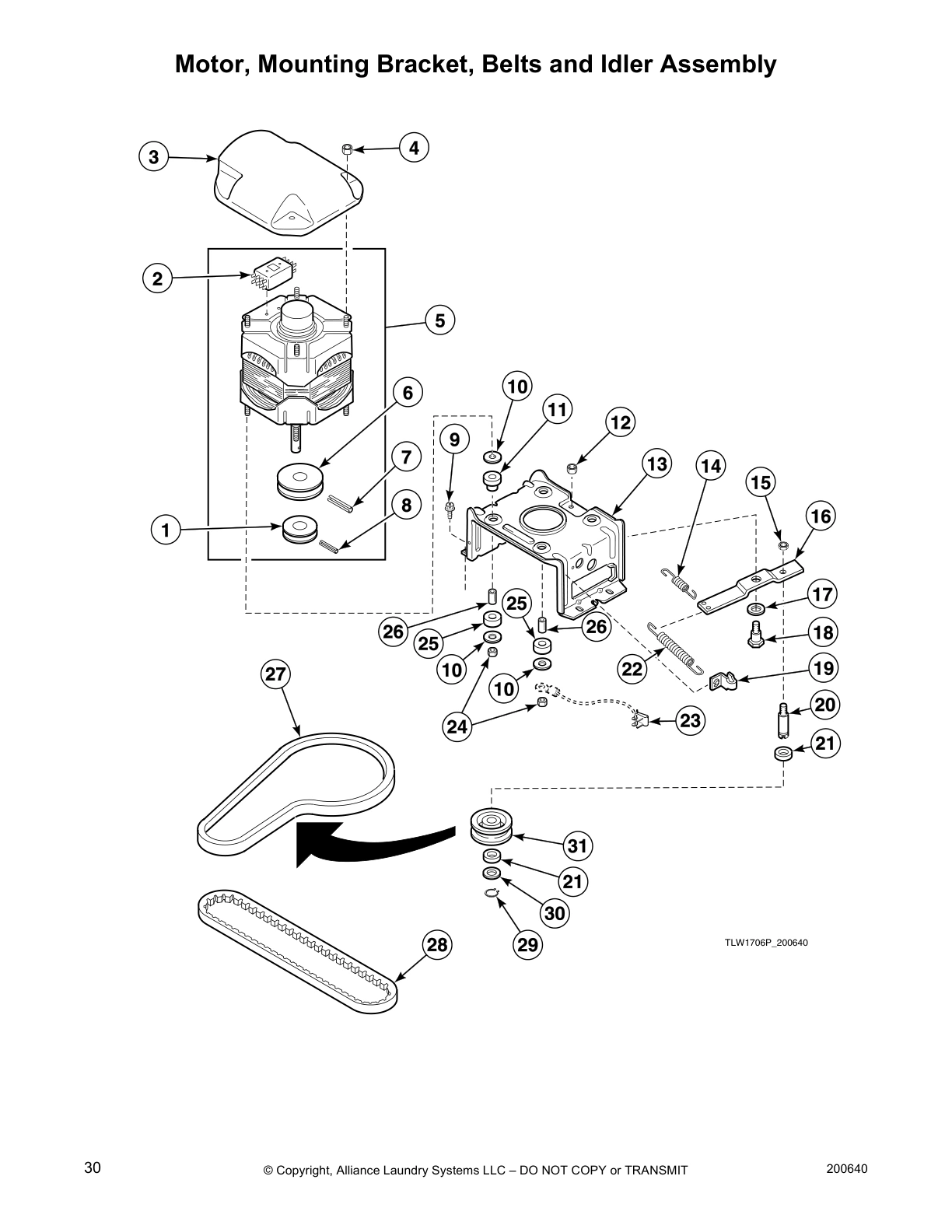

Motor, Mounting Bracket, Belts and Idler Assembly

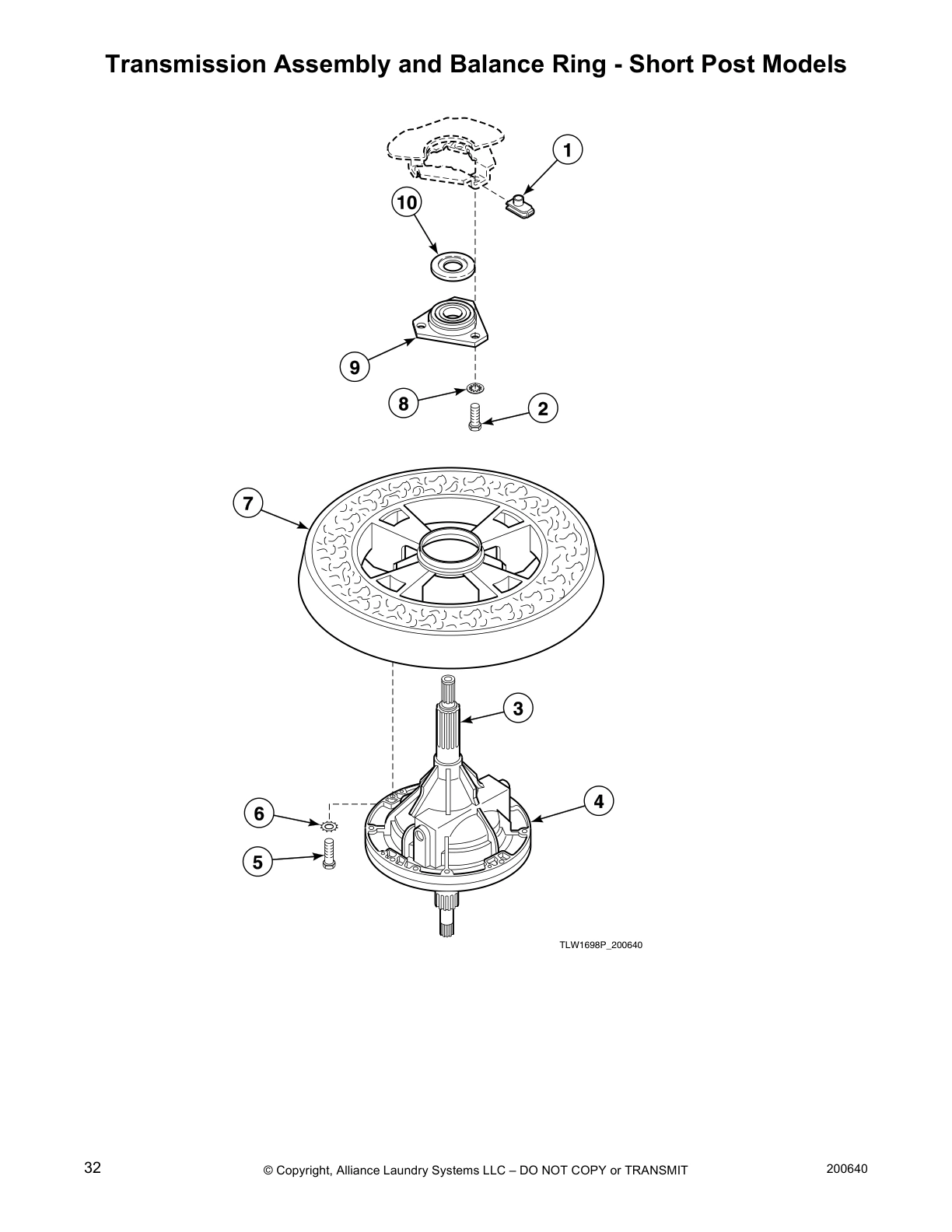

Transmission Assembly and Balance Ring - Short Post Models

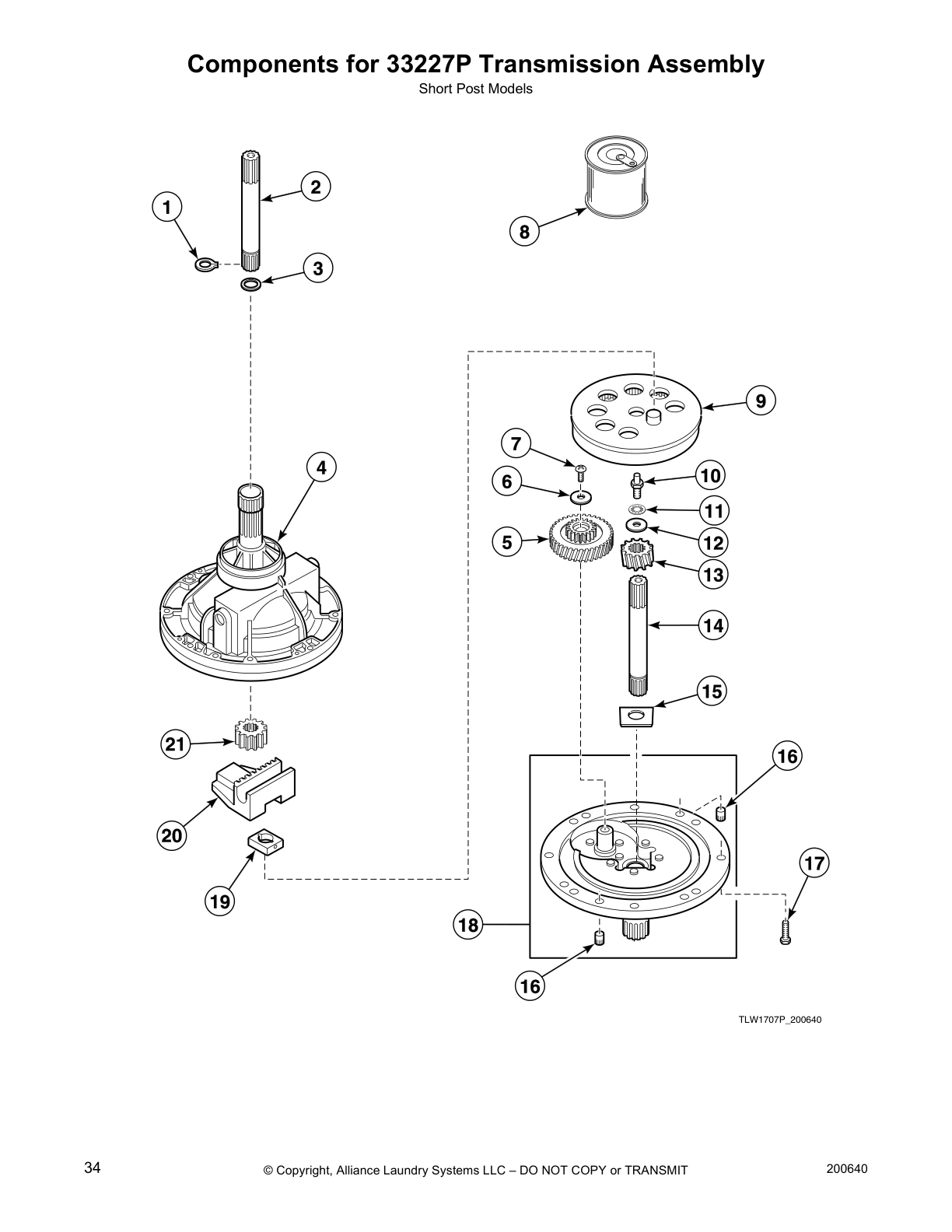

Components for 33227P Transmission Assembly

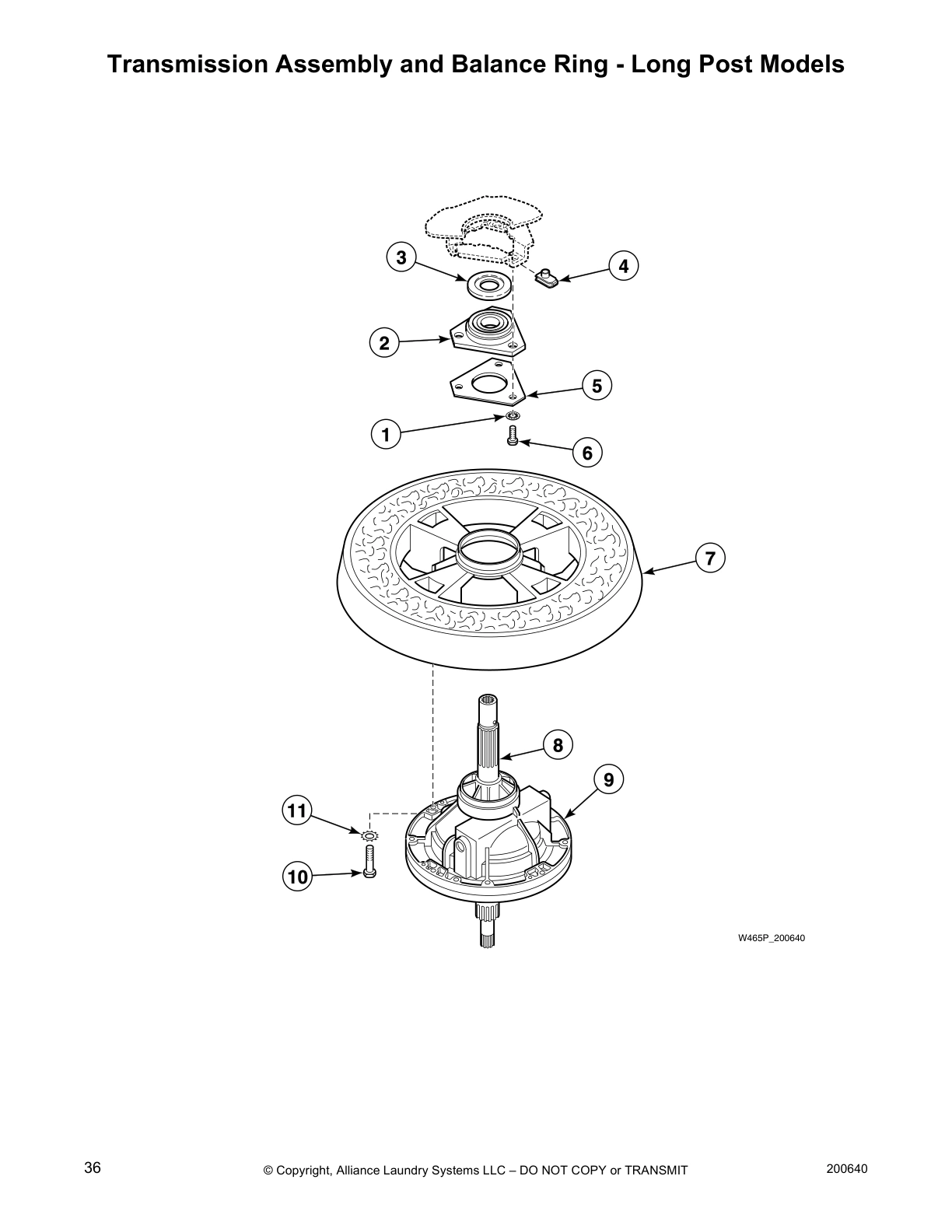

Transmission Assembly and Balance Ring - Long Post Models
Components for 30946P Transmission Assembly

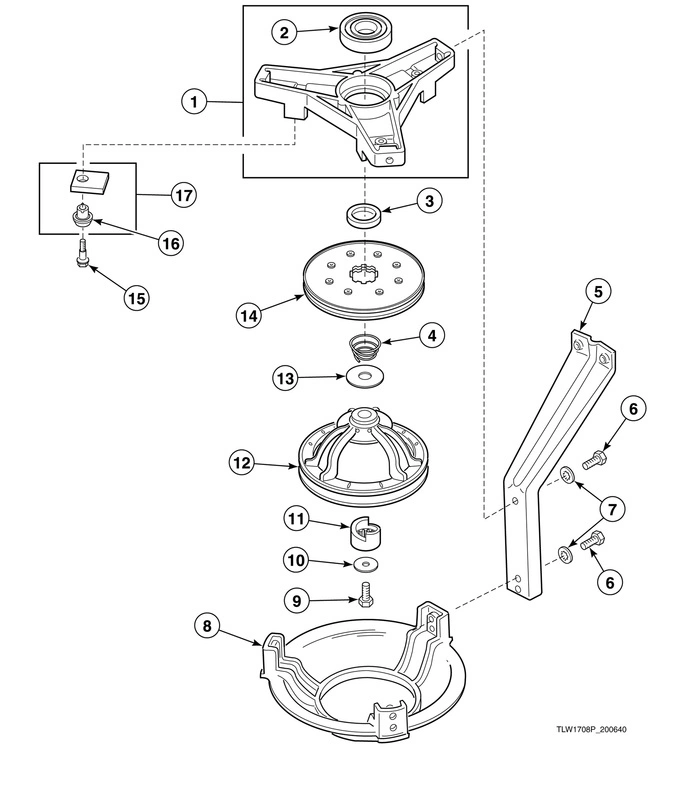

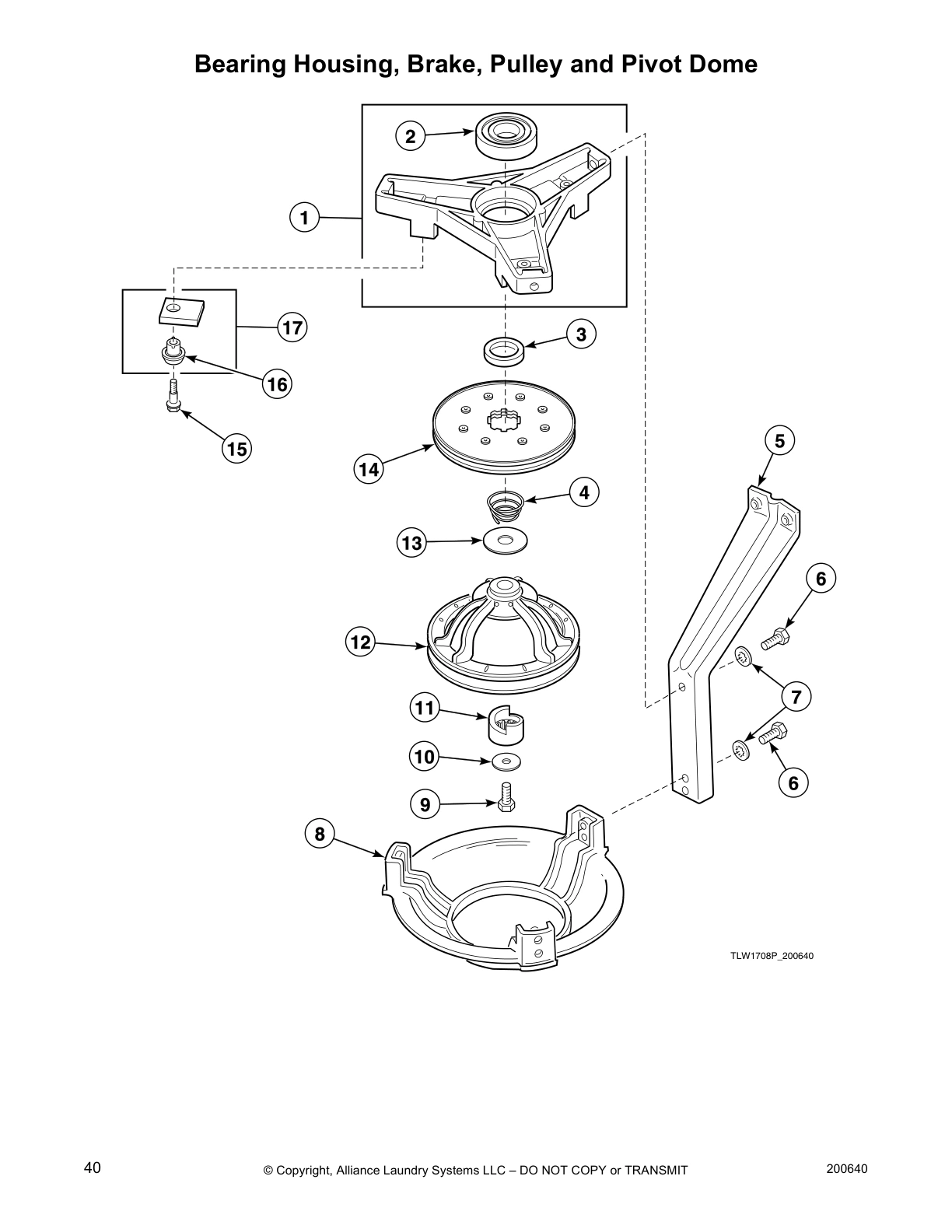

Bearing Housing, Brake, Pulley and Pivot Dome

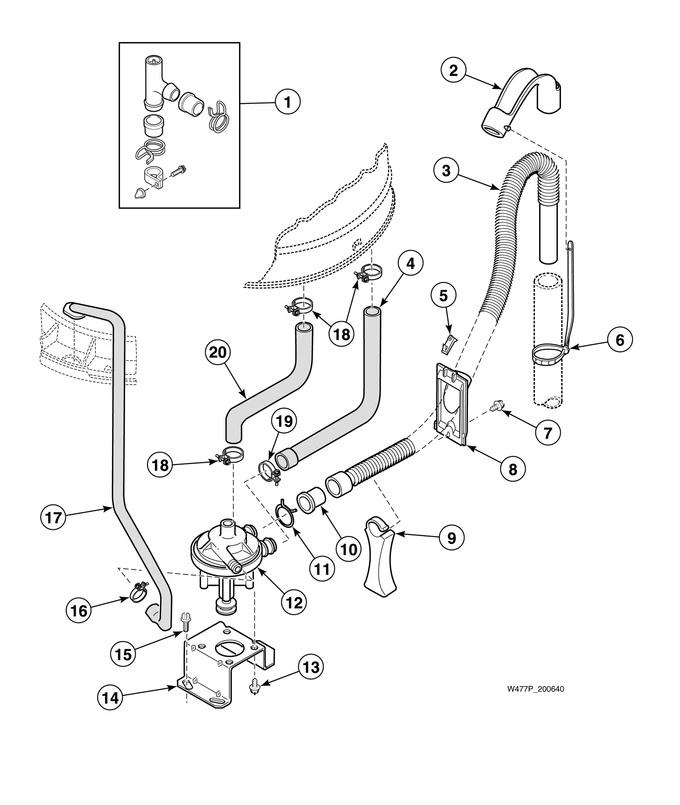

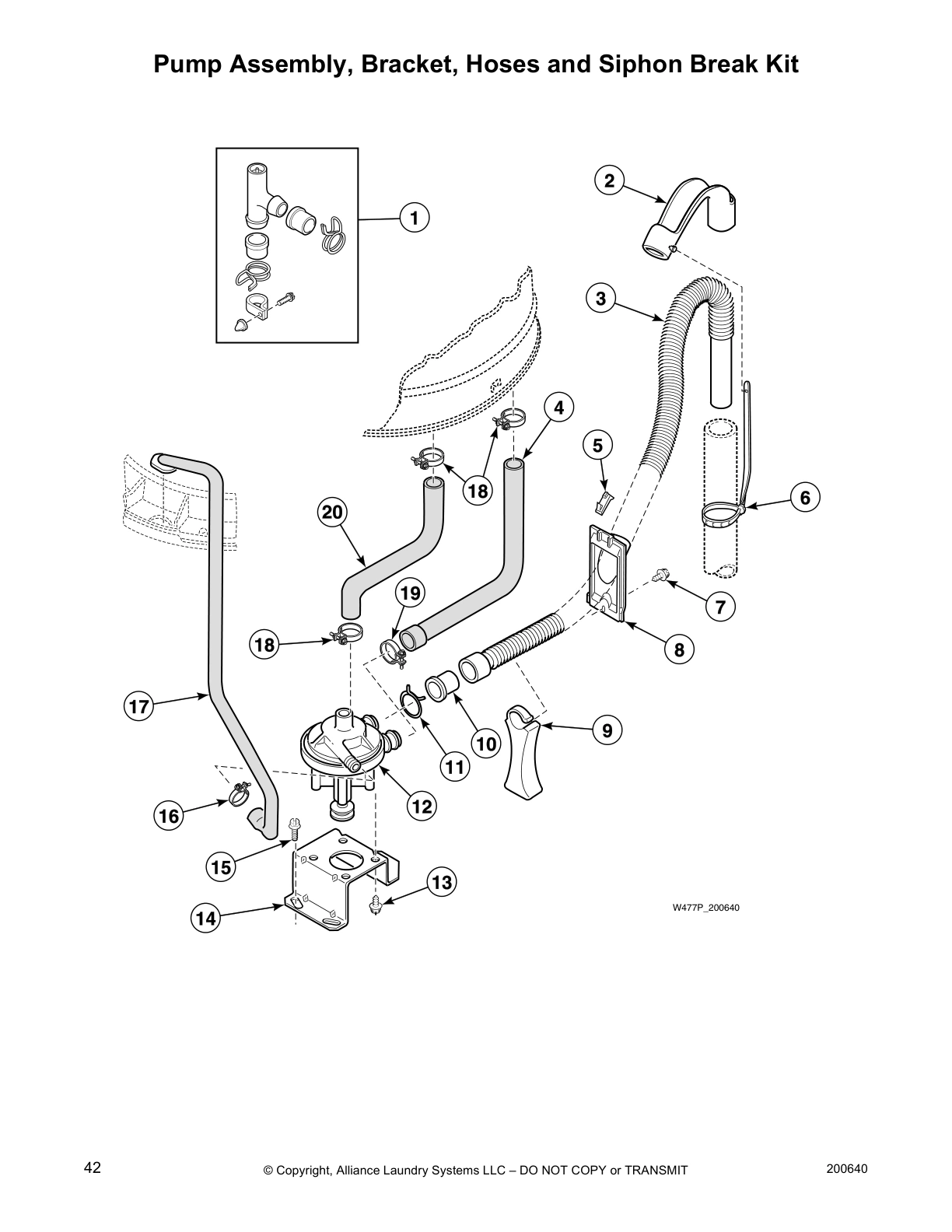

Pump Assembly, Bracket, Hoses and Siphon Break Kit

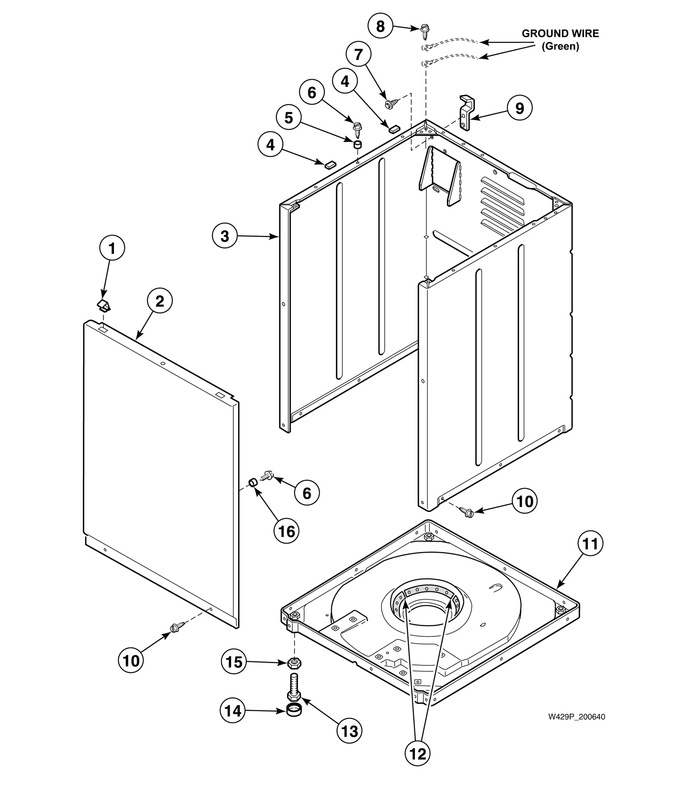

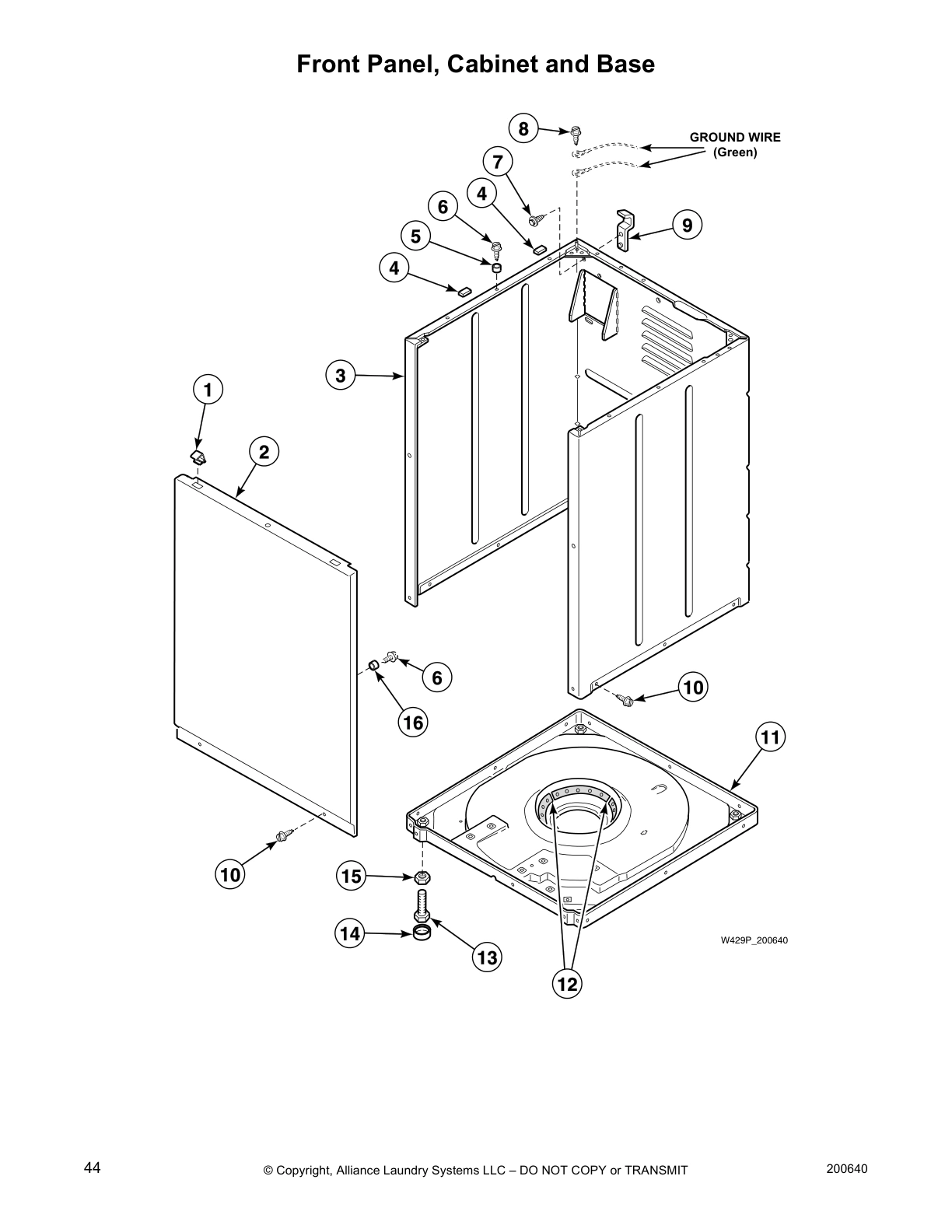

Front Panel, Cabinet and Base

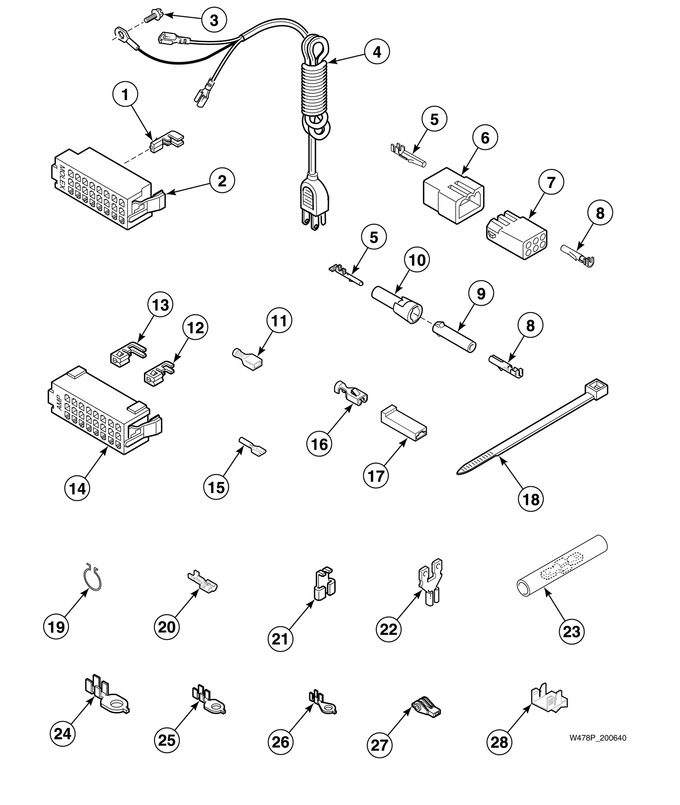

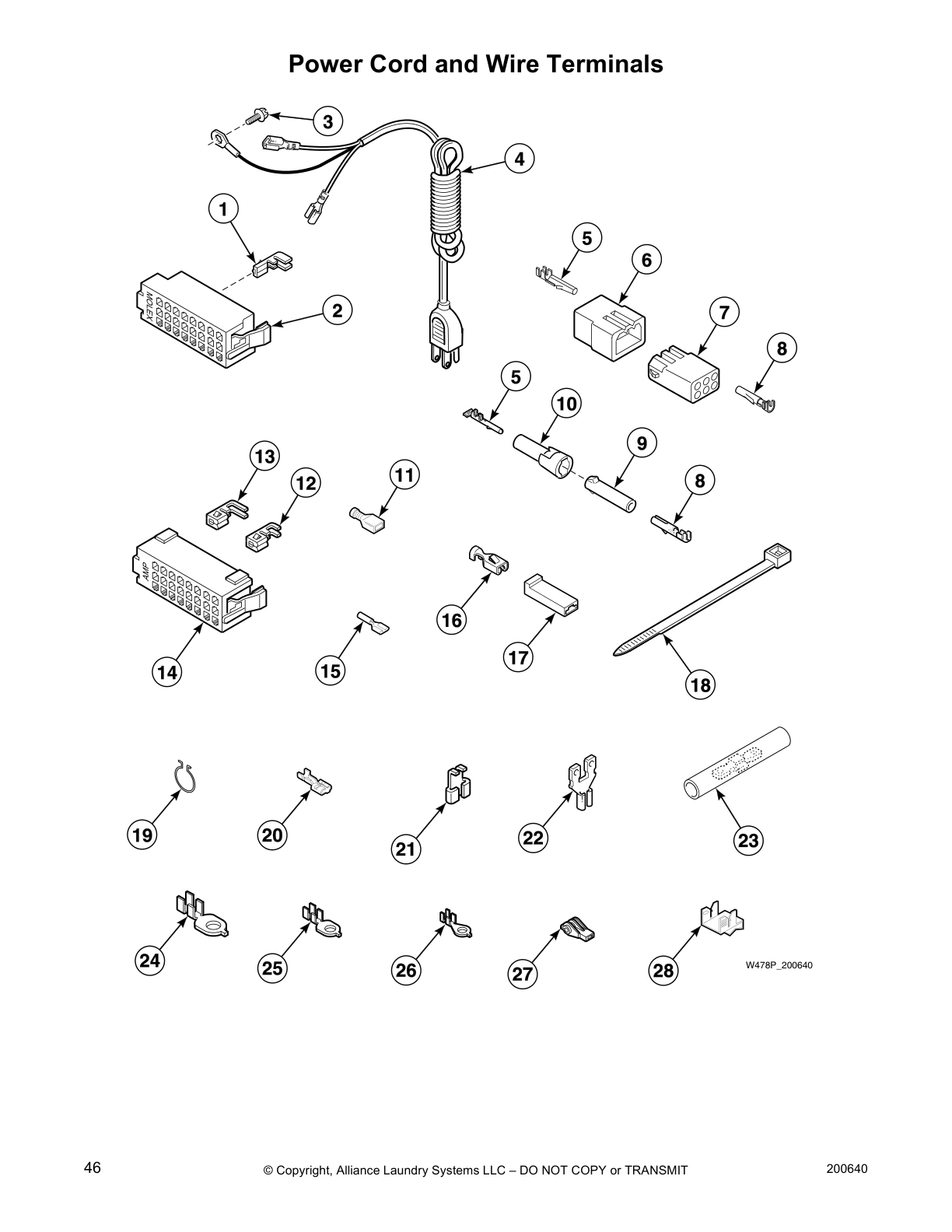

Power Cord and Wire Terminals

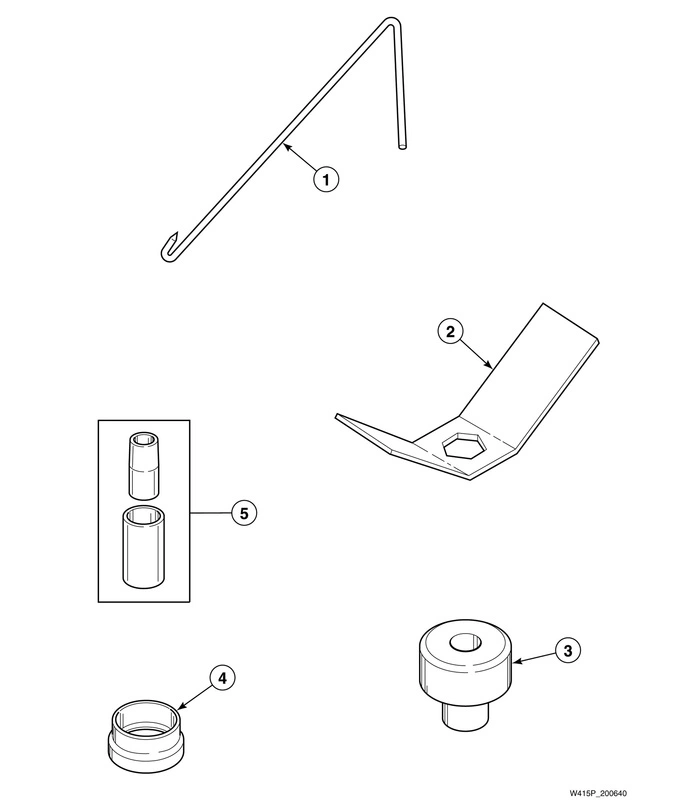

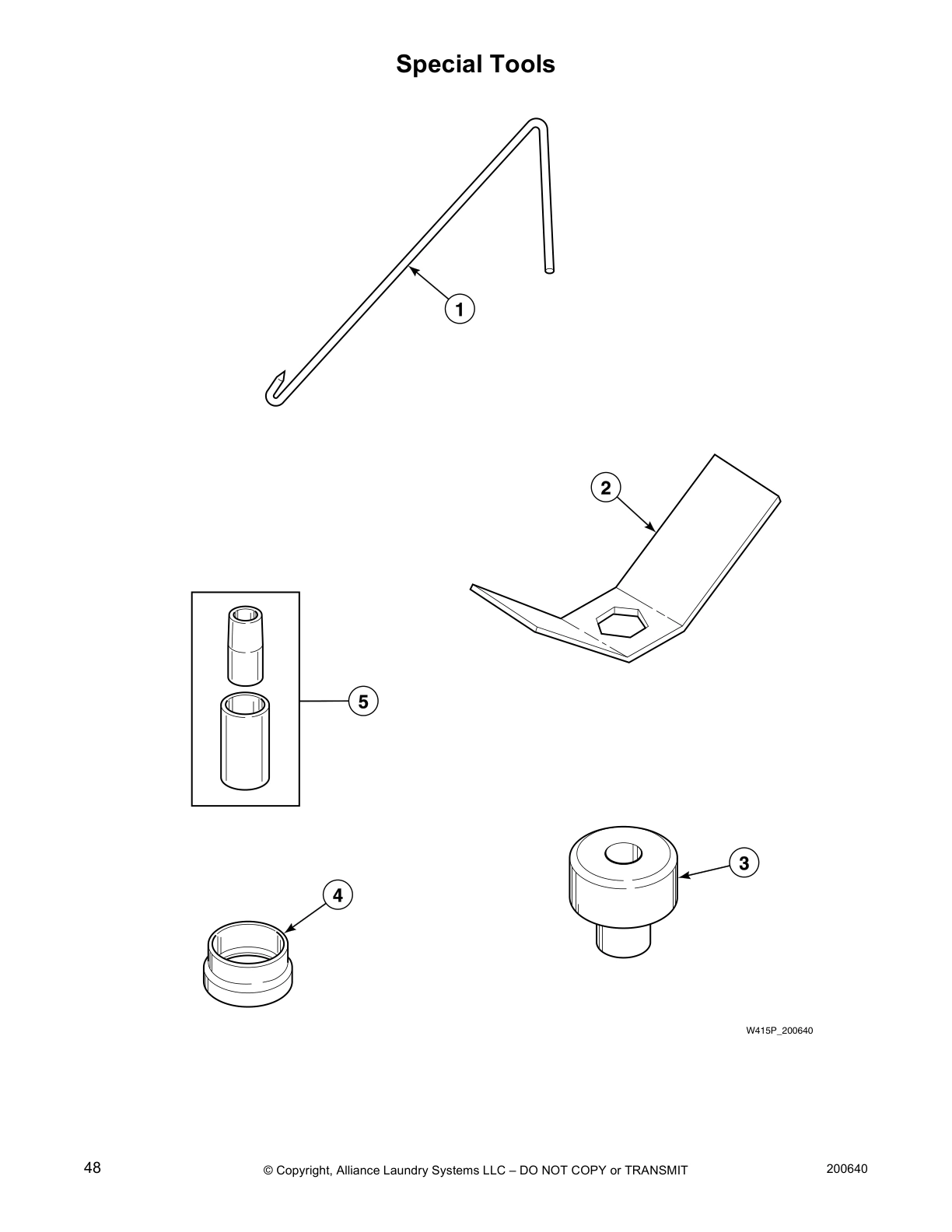

Special Tools

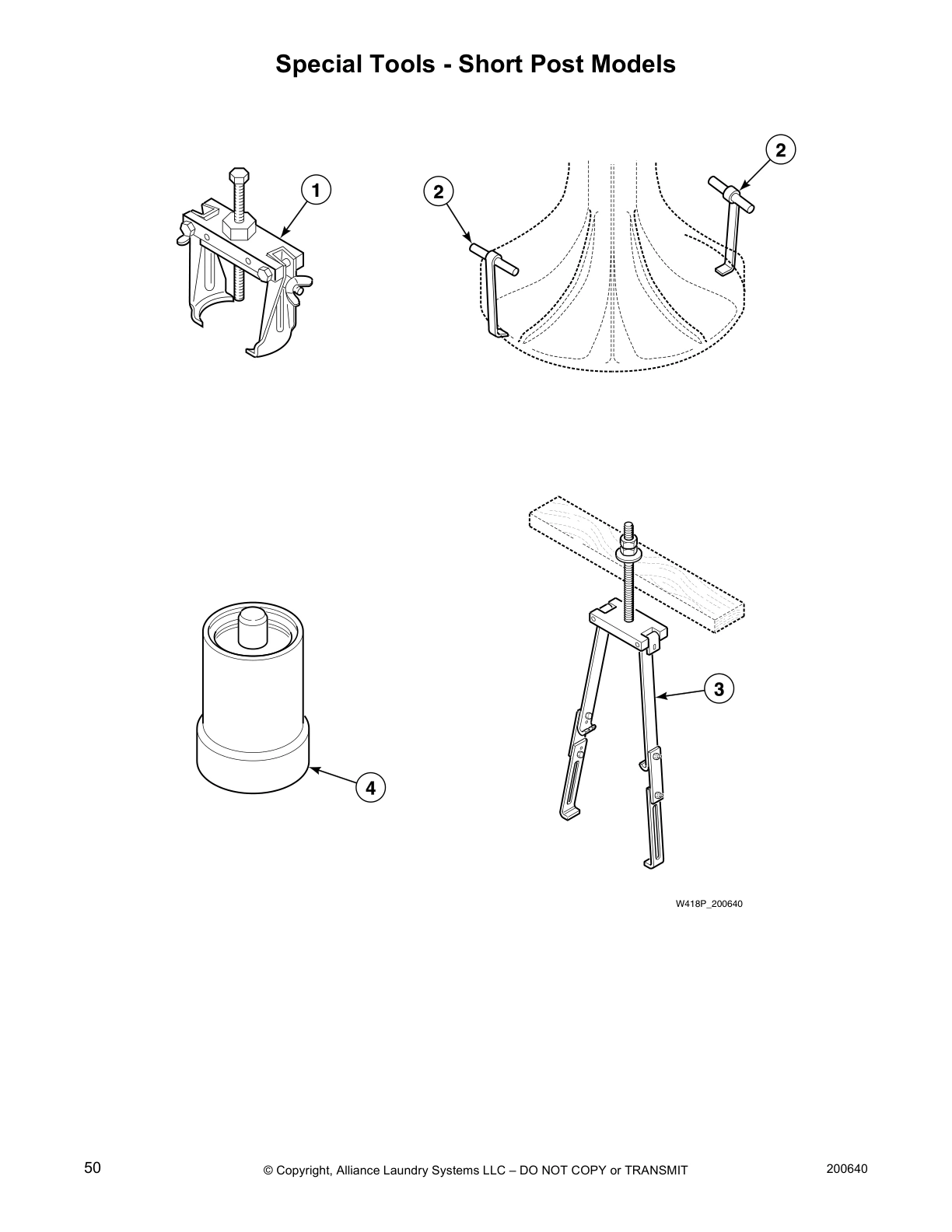

Special Tools - Short Post Models
Motor, Mounting Bracket, Belts And Idler Assembly
Mixing Valve Assembly

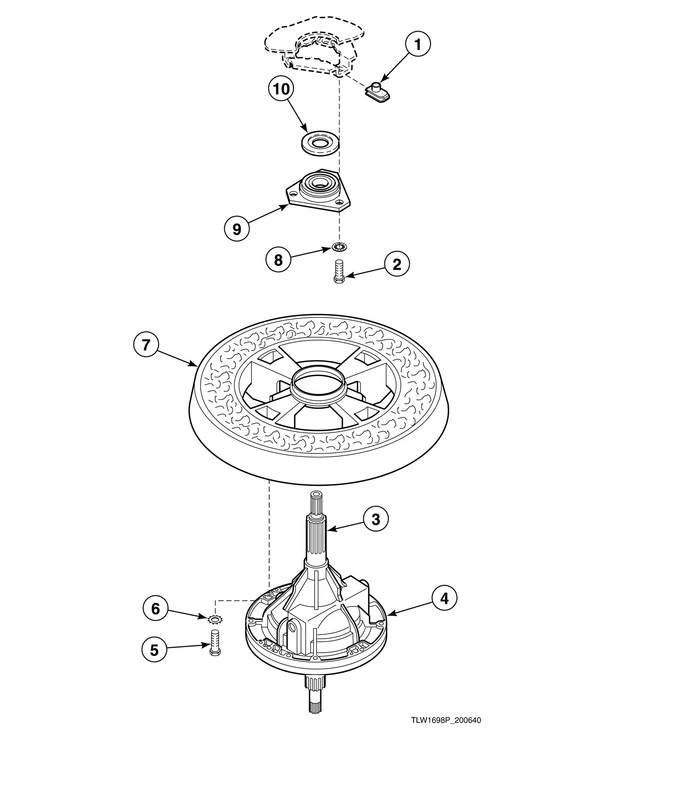

Transmission Assembly And Balance Ring - Short Post Models

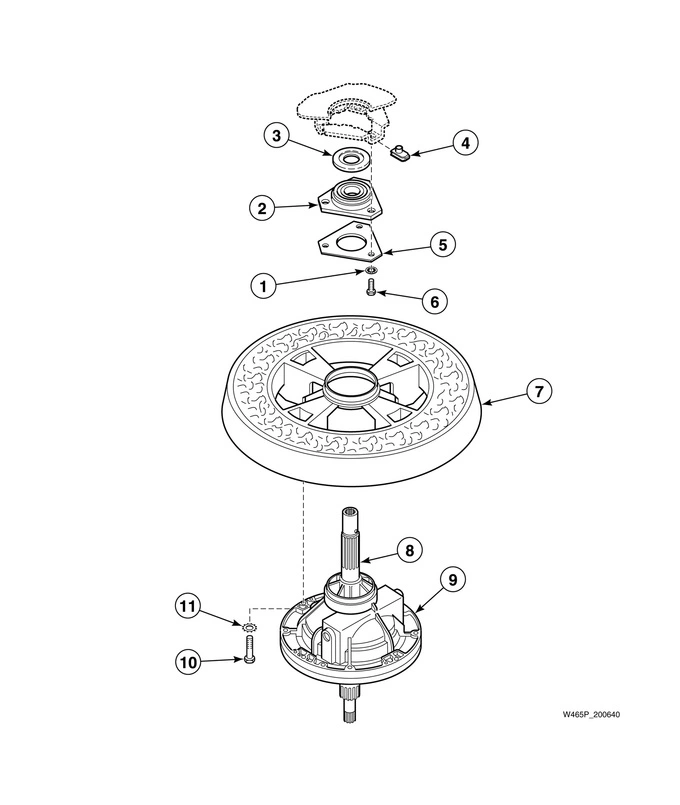

Transmission Assembly And Balance Ring - Long Post Models
Power Cord And Wire Terminals

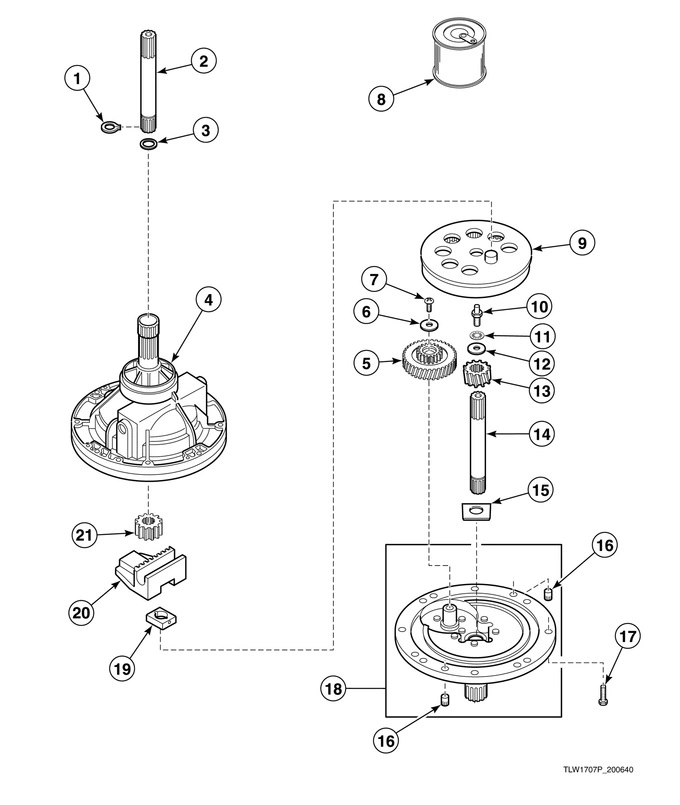

Components For 33227p Transmission Assembly (short Post Models)

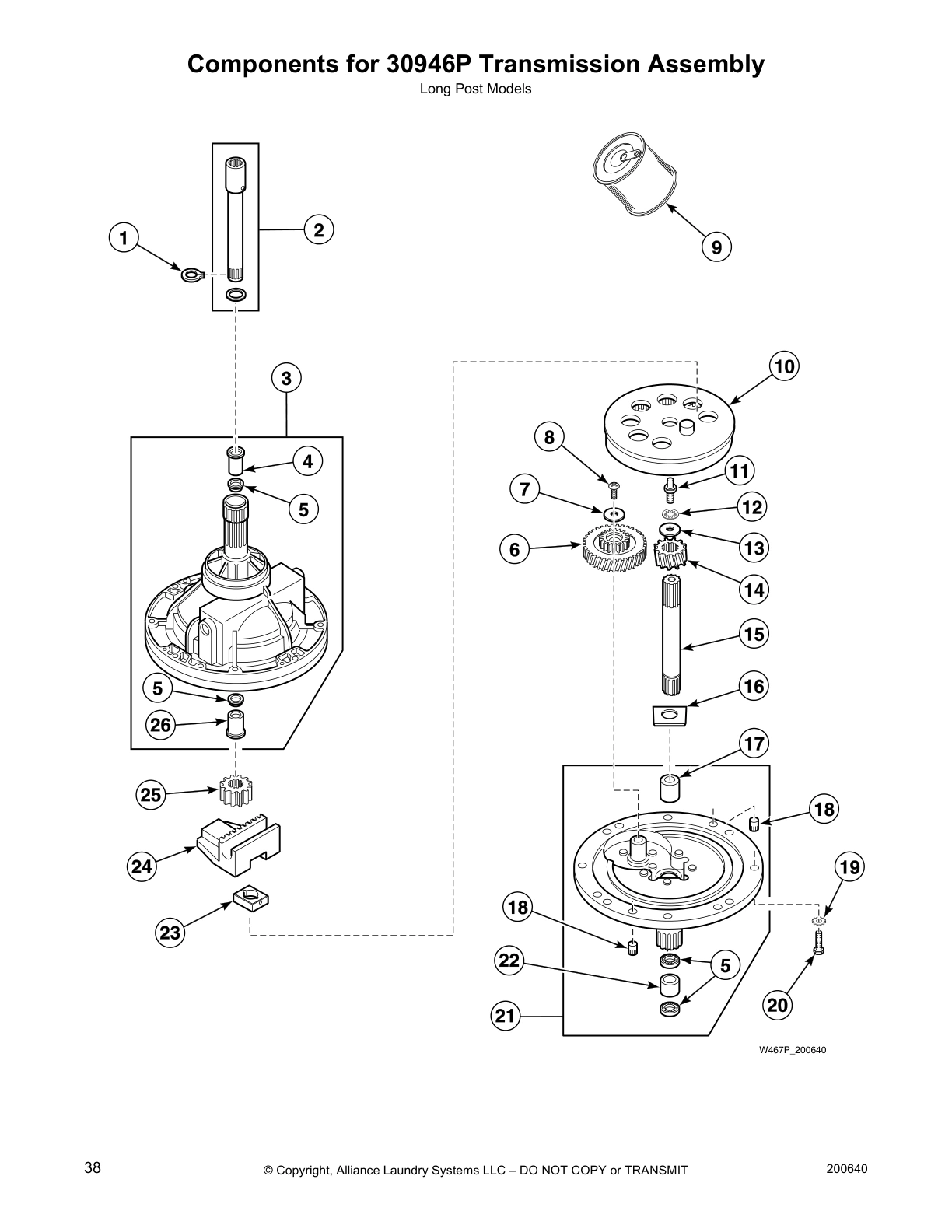

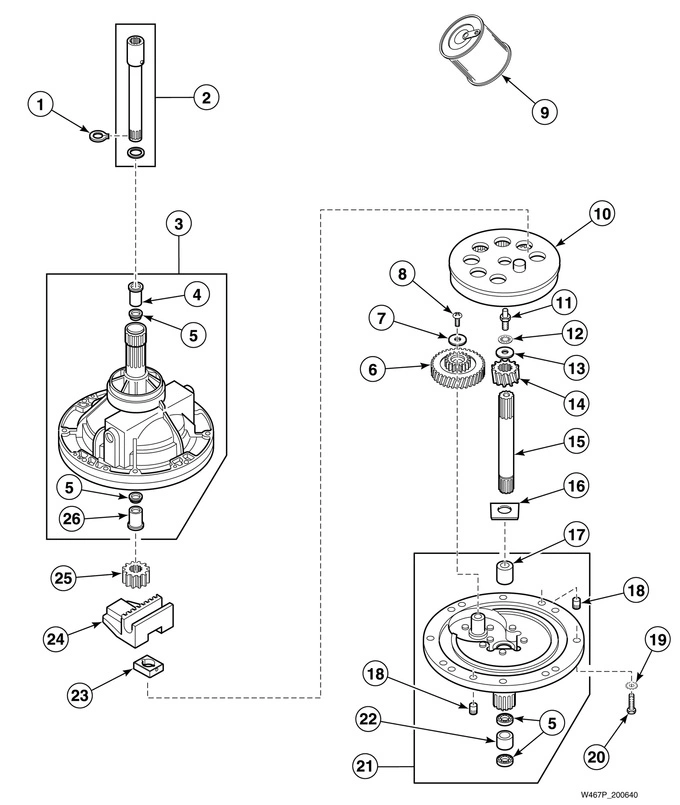

Components For 30946p Transmission Assembly (long Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Bearing Housing, Brake, Pulley And Pivot Dome
Components For 33227p Transmission Assembly (short Post Models)
Components For 33227p Transmission Assembly (short Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Outer Tub, Cover And Pressure Hose

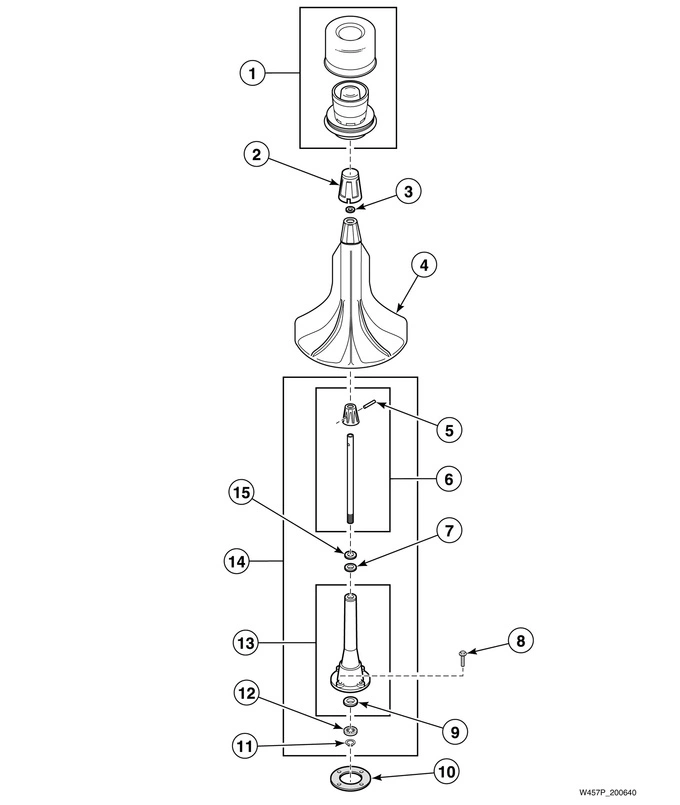

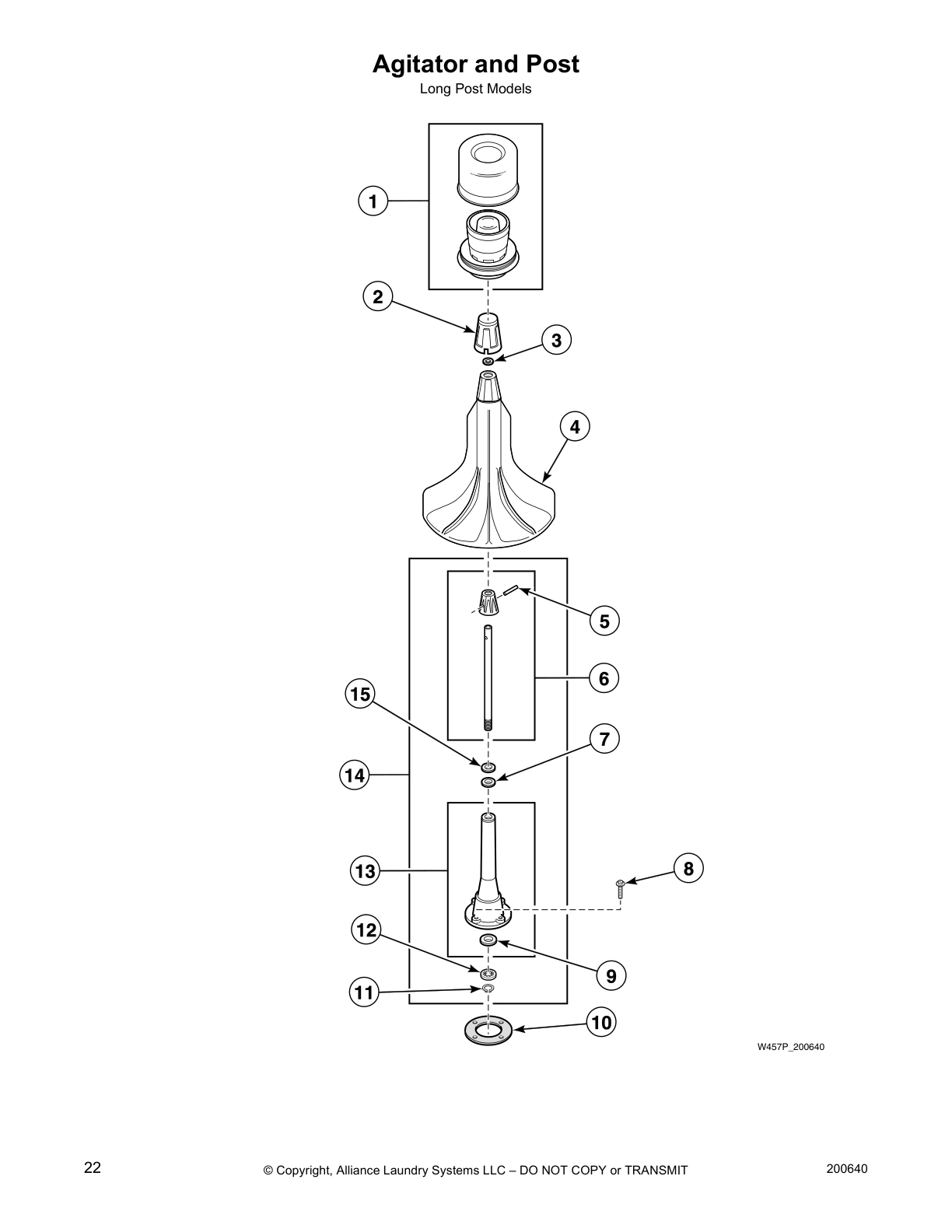

Agitator And Post (long Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Components For 33227p Transmission Assembly (short Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Bearing Housing, Brake, Pulley And Pivot Dome
Front Panel, Cabinet And Base
Pump Assembly, Bracket, Hoses And Siphon Break Kit
Bearing Housing, Brake, Pulley And Pivot Dome
Motor, Mounting Bracket, Belts And Idler Assembly
Agitator And Post (long Post Models)
Cabinet Top, Loading Door And Control Hood Rear Panel
Pump Assembly, Bracket, Hoses And Siphon Break Kit
Transmission Assembly And Balance Ring - Long Post Models
Motor, Mounting Bracket, Belts And Idler Assembly
Components For 33227p Transmission Assembly (short Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Bearing Housing, Brake, Pulley And Pivot Dome
Motor, Mounting Bracket, Belts And Idler Assembly
Inlet Hose, Filler Hose, Back Flow Preventer And Mixing valve mounting Bracket (drawing 1 Of 2)
Transmission Assembly And Balance Ring - Long Post Models
Agitator And Post (long Post Models)
Outer Tub, Cover And Pressure Hose
Components For 33227p Transmission Assembly (short Post Models)
Transmission Assembly And Balance Ring - Short Post Models
Transmission Assembly And Balance Ring - Long Post Models
Motor, Mounting Bracket, Belts And Idler Assembly
Transmission Assembly And Balance Ring - Long Post Models
Motor, Mounting Bracket, Belts And Idler Assembly
Pump Assembly, Bracket, Hoses And Siphon Break Kit
Outer Tub, Cover And Pressure Hose
Switch And Bracket Assembly
Motor, Mounting Bracket, Belts And Idler Assembly
Agitator And Post (long Post Models)
Front Panel, Cabinet And Base
Components For 30946p Transmission Assembly (long Post Models)
Switch And Bracket Assembly
Motor, Mounting Bracket, Belts And Idler Assembly
Front Panel, Cabinet And Base
Motor, Mounting Bracket, Belts And Idler Assembly
Power Cord And Wire Terminals
Agitator And Post (long Post Models)
Pump Assembly, Bracket, Hoses And Siphon Break Kit
Outer Tub, Cover And Pressure Hose
Inlet Hose, Filler Hose, Back Flow Preventer And Mixing valve mounting Bracket (drawing 1 Of 2)
Components For 33227p Transmission Assembly (short Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Components For 33227p Transmission Assembly (short Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Power Cord And Wire Terminals
Lint Filter, Washtub And Hub (drawing 1 Of 2)
Pump Assembly, Bracket, Hoses And Siphon Break Kit

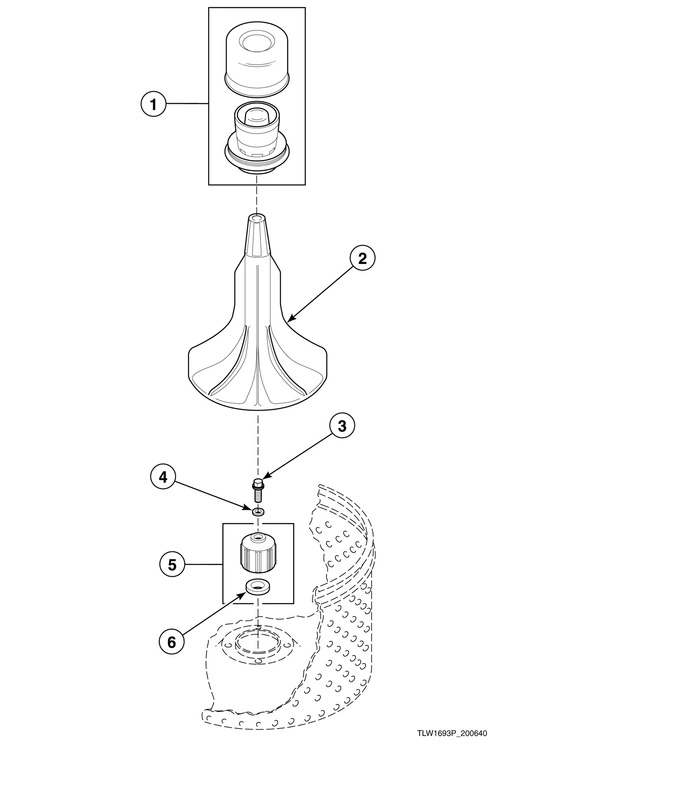

Agitator, Drive Bell And Seal Seat (short Post Models)
Agitator, Drive Bell And Seal Seat (short Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Motor, Mounting Bracket, Belts And Idler Assembly
Pump Assembly, Bracket, Hoses And Siphon Break Kit
Graphic Panel, Control Hood And Controls
Components For 33227p Transmission Assembly (short Post Models)
Power Cord And Wire Terminals
Bearing Housing, Brake, Pulley And Pivot Dome
Agitator, Drive Bell And Seal Seat (short Post Models)
Lint Filter, Washtub And Hub (drawing 1 Of 2)
Motor, Mounting Bracket, Belts And Idler Assembly
Inlet Hose, Filler Hose, Back Flow Preventer And Mixing valve mounting Bracket (drawing 1 Of 2)
Front Panel, Cabinet And Base
Power Cord And Wire Terminals
Graphic Panel, Control Hood And Controls
Transmission Assembly And Balance Ring - Short Post Models
Cabinet Top, Loading Door And Control Hood Rear Panel
Components For 33227p Transmission Assembly (short Post Models)
Outer Tub, Cover And Pressure Hose
Bearing Housing, Brake, Pulley And Pivot Dome
Cabinet Top, Loading Door And Control Hood Rear Panel
Bearing Housing, Brake, Pulley And Pivot Dome
Cabinet Top, Loading Door And Control Hood Rear Panel
Lint Filter, Washtub And Hub (drawing 1 Of 2)
Inlet Hose, Filler Hose, Back Flow Preventer And Mixing valve mounting Bracket (drawing 1 Of 2)
Motor, Mounting Bracket, Belts And Idler Assembly
Front Panel, Cabinet And Base
Pump Assembly, Bracket, Hoses And Siphon Break Kit
Power Cord And Wire Terminals
Motor, Mounting Bracket, Belts And Idler Assembly
Power Cord And Wire Terminals
Cabinet Top, Loading Door And Control Hood Rear Panel
Inlet Hose, Filler Hose, Back Flow Preventer And Mixing valve mounting Bracket (drawing 1 Of 2)
Power Cord And Wire Terminals
Front Panel, Cabinet And Base
Cabinet Top, Loading Door And Control Hood Rear Panel
Graphic Panel, Control Hood And Controls
Power Cord And Wire Terminals
Motor, Mounting Bracket, Belts And Idler Assembly
Power Cord And Wire Terminals
Components For 33227p Transmission Assembly (short Post Models)
Transmission Assembly And Balance Ring - Short Post Models
Transmission Assembly And Balance Ring - Long Post Models
Bearing Housing, Brake, Pulley And Pivot Dome
Outer Tub, Cover And Pressure Hose
Front Panel, Cabinet And Base
Outer Tub, Cover And Pressure Hose
Inlet Hose, Filler Hose, Back Flow Preventer And Mixing valve mounting Bracket (drawing 1 Of 2)
Motor, Mounting Bracket, Belts And Idler Assembly
Lint Filter, Washtub And Hub (drawing 1 Of 2)
Special Tools
Mixing Valve Assembly
Components For 33227p Transmission Assembly (short Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Motor, Mounting Bracket, Belts And Idler Assembly
Components For 30946p Transmission Assembly (long Post Models)
Transmission Assembly And Balance Ring - Short Post Models
Transmission Assembly And Balance Ring - Long Post Models
Motor, Mounting Bracket, Belts And Idler Assembly
Bearing Housing, Brake, Pulley And Pivot Dome
Components For 33227p Transmission Assembly (short Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Special Tools
Motor, Mounting Bracket, Belts And Idler Assembly
Transmission Assembly And Balance Ring - Long Post Models
Graphic Panel, Control Hood And Controls
Cabinet Top, Loading Door And Control Hood Rear Panel
Front Panel, Cabinet And Base
Front Panel, Cabinet And Base
Cabinet Top, Loading Door And Control Hood Rear Panel
Components For 33227p Transmission Assembly (short Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Transmission Assembly And Balance Ring - Short Post Models
Bearing Housing, Brake, Pulley And Pivot Dome
Components For 33227p Transmission Assembly (short Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Components For 33227p Transmission Assembly (short Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Agitator And Post (long Post Models)
Components For 33227p Transmission Assembly (short Post Models)
Inlet Hose, Filler Hose, Back Flow Preventer And Mixing valve mounting Bracket (drawing 1 Of 2)
Front Panel, Cabinet And Base
Lint Filter, Washtub And Hub (drawing 1 Of 2)
Agitator, Drive Bell And Seal Seat (short Post Models)
Front Panel, Cabinet And Base
Pump Assembly, Bracket, Hoses And Siphon Break Kit
Lint Filter, Washtub And Hub (drawing 1 Of 2)
Bearing Housing, Brake, Pulley And Pivot Dome
Motor, Mounting Bracket, Belts And Idler Assembly
Components For 33227p Transmission Assembly (short Post Models)
Components For 30946p Transmission Assembly (long Post Models)
Inlet Hose, Filler Hose, Back Flow Preventer And Mixing valve mounting Bracket (drawing 1 Of 2)
Transmission Assembly And Balance Ring - Long Post Models
Switch And Bracket Assembly
Mixing Valve Assembly
Pump Assembly, Bracket, Hoses And Siphon Break Kit
Pump Assembly, Bracket, Hoses And Siphon Break Kit
Inlet Hose, Filler Hose, Back Flow Preventer And Mixing valve mounting Bracket (drawing 1 Of 2)
Front Panel, Cabinet And Base
Transmission Assembly And Balance Ring - Short Post Models
Transmission Assembly And Balance Ring - Long Post Models
Outer Tub, Cover And Pressure Hose
Graphic Panel, Control Hood And Controls
Front Panel, Cabinet And Base
Cabinet Top, Loading Door And Control Hood Rear Panel
Lint Filter, Washtub And Hub (drawing 1 Of 2)
Agitator And Post (long Post Models)
Motor, Mounting Bracket, Belts And Idler Assembly
Common parts from model IPSO BA4121-3088 Washer
1
Fabric Softener Dispenser Assembly (comment: SPQ 33510 Contact Us For Availability
1
Lint Filter SPQ 33521 Contact Us For Availability
2
Agitator SPQ 33514 Contact Us For Availability
2
End Cap (comment: Left, Black) SPQ 34460 Contact Us For Availability
2
Screw SPQ 25817C Contact Us For Availability
2
Motor Switch (comment: Used With 30897 Genera SPQ 30897AP Contact Us For Availability
2
Lid And Carton Assembly (comment: Almond, Eng SPQ 31315LP Contact Us For Availability
2
Front Panel (comment: Almond) SPQ 32708LP Contact Us For Availability
2
MAIN BEARI NS SPQ WP40004201P Contact Us For Availability
3
Drain Extension Kit SPQ 39952 Contact Us For Availability
3
Screw SPQ 31752 Contact Us For Availability
3
Guide Spindle (comment: Use To Remove Hub Fro SPQ 230P4 Contact Us For Availability
3
Agitator Puller Assembly (comment: Use To Rem SPQ 256P4P Contact Us For Availability
3
Service Cabinet Kit (comment: Almond) SPQ 38612LP Contact Us For Availability
4
Support Leg SPQ 33435 Contact Us For Availability
4
Seal Installer (comment: Use To Install 356p3 SPQ 241P4 Contact Us For Availability
4
Seal Tool (comment: Use To Install The Seal S SPQ 255P4 Contact Us For Availability
4
CLAMP SPQ WP285655 Contact Us For Availability
5
SPQ 34280 SPQ 34280 Contact Us For Availability
5
Spring Installer SPQ 242P4 Contact Us For Availability
6
Reduction Gear SPQ 29161P Contact Us For Availability
7
Timer SPQ 21300 Contact Us For Availability
7
Balance Ring Assembly SPQ 34731 Contact Us For Availability
7
Washer SPQ 202010 Contact Us For Availability
7
STRAINER SPQ WP22002960 Contact Us For Availability
7
SCREW SPQ WP27001200 Contact Us For Availability
7
SCREW SPQ WP3390631 Contact Us For Availability
8
Screw (Replaces: 27202) SPQ WPW10116787 Contact Us For Availability
9
Transmission Assembly SPQ 30946P No Longer Available
9
M SCREW WAS 211294 SPQ WP90767 Contact Us For Availability
10
End Cap (comment: Right, Black) SPQ 34459 Contact Us For Availability
10
Gear And Stud Assembly (Replaces: 26577) SPQ DE81-05916A Contact Us For Availability
11
Rubber Motor Mount (comment: Upper) SPQ 01952A Contact Us For Availability
11
Base Assembly (comment: Includes Snubber Pads SPQ 31653P Contact Us For Availability
12
Pump Assembly SPQ 31968 Contact Us For Availability
12
Timer Knob Assembly SPQ 31281 Contact Us For Availability
12
Pulley And Washers Kit SPQ 34232P Contact Us For Availability
12
Snubber Pad Kit (comment: Includes 4 Pads) SPQ 434P3 Contact Us For Availability
12
NUT SPQ WPW10139757 Contact Us For Availability
13
Nut (comment: Use With 27126 Mixing Valve Mou SPQ 54038 Contact Us For Availability
13
Nut SPQ 57584 Contact Us For Availability
13
Top And Carton Assembly (comment: Almond) SPQ 32808LP Contact Us For Availability
16
Screw SPQ 31054 Contact Us For Availability
17
Receptacle Housing SPQ 90789 Contact Us For Availability
18
Hose Clamp (Replaces: 20391) SPQ 43261 Contact Us For Availability
18
Transmission Cover Assembly SPQ 38287P Contact Us For Availability
18
CLAMP SPQ WP596669 Contact Us For Availability
19
Wire Clip SPQ 51291 Contact Us For Availability
20
Grounding Clip SPQ 28802P Contact Us For Availability
22
Pump Belt SPQ 39666 Contact Us For Availability
27
Insulator SPQ 70210 Contact Us For Availability
28
Roll Pin SPQ 28043 Contact Us For Availability
NA
Motor Switch (comment: Used With 30895 Genera SPQ 30895A Contact Us For Availability
NA
Lid And Carton Assembly (comment: White, Engl SPQ 31315WP Contact Us For Availability
NA
Front Panel (comment: White) SPQ 32708WP Contact Us For Availability
NA
Top And Carton Assembly (comment: White) SPQ 32808WP Contact Us For Availability
× ![]()
Login and Registration Form
